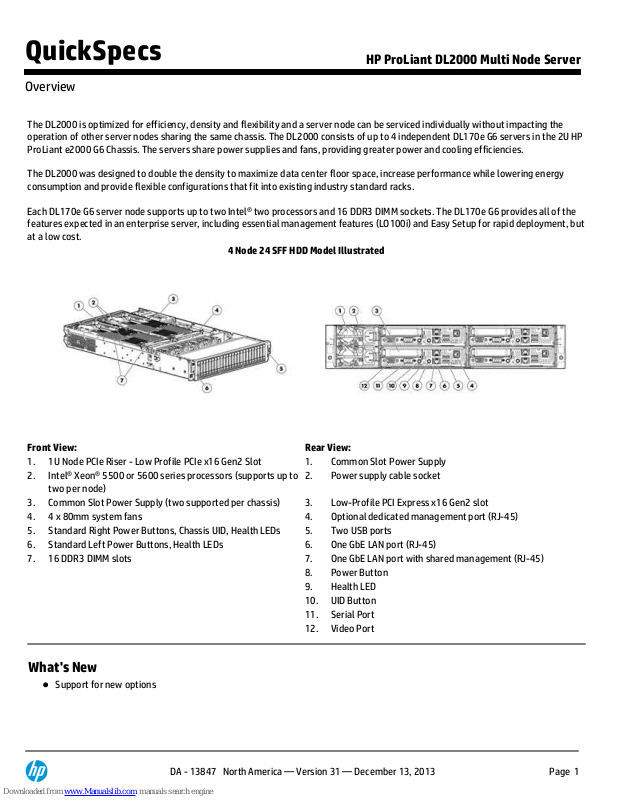

HP ProLiant DL2000 Specification
The DL2000 is optimized for efficiency, density and flexibility and a server node can be serviced individually without impacting the
operation of other server nodes sharing the same chassis. The DL2000 consists of up to 4 independent DL170e G6 servers in the 2U HP
ProLiant e2000 G6 Chassis. The servers share power supplies and fans, providing greater power and cooling efficiencies.
The DL2000 was designed to double the density to maximize data center floor space, increase performance while lowering energy
consumption and provide flexible configurations that fit into existing industry standard racks.
Each DL170e G6 server node supports up to two Intel® two processors and 16 DDR3 DIMM sockets. The DL170e G6 provides all of the
features expected in an enterprise server, including essential management features (LO100i) and Easy Setup for rapid deployment, but
at a low cost.
4 Node 24 SFF HDD Model Illustrated
Front View:
Rear View:
1.
1U Node PCIe Riser - Low Profile PCIe x16 Gen2 Slot
1.
Common Slot Power Supply
2.
Intel® Xeon® 5500 or 5600 series processors (supports up to
two per node)
2.
Power supply cable socket
3.
Common Slot Power Supply (two supported per chassis)
3.
Low-Profile PCI Express x16 Gen2 slot
4.
4 x 80mm system fans
4.
Optional dedicated management port (RJ-45)
5.
Standard Right Power Buttons, Chassis UID, Health LEDs
5.
Two USB ports
6.
Standard Left Power Buttons, Health LEDs
6.
One GbE LAN port (RJ-45)
7.
16 DDR3 DIMM slots
7.
One GbE LAN port with shared management (RJ-45)
8.
Power Button
9.
Health LED
10.
UID Button
11.
Serial Port
12.
Video Port
What's New
Support for new options
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Overview
DA - 13847 North America — Version 31 — December 13, 2013
Page 1
NOTE:
For the Standard Features shipped in the Factory Integrated Models, please see the "Configuration Information - Factory
Integrated Models" section.
Processor
One of the following
depending on Model
Six-Core Processors
Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) Processor
Intel® Xeon® L5640 (2.26GHz/6-core/12MB/60W, DDR3-1333, HT, Turbo 2/2/3/3/4/4) Processor
Four-Core Processors
Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W, DDR3-1066, HT, Turbo 1/1/2/2) Processor
Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W, DDR3-1066, HT, Turbo 1/1/2/2) Processor
Intel® Xeon® E5607 (2.26GHz/4-core/8MB/80W, DDR3-1066) Processor
Intel® Xeon® E5603 (1.60GHz/4-core/4MB/80W, DDR3-1066) Processor
NOTE:
HT indicates that the processor model supports Intel® Hyper-Threading Technology
NOTE:
Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost
Technology, with 6, 5, 4, 3, 2, and 1 cores active.
NOTE:
DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on
the quantity and type of DIMMs installed.
NOTE:
For the Intel 5000 Series, the letter preceding the model number indicates the
performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise
Performance/Wattage (Mainstream), and "L" denotes Lower Wattage.
NOTE:
Up to 2 processors supported. Mixing different processor models is not supported.
Cache Memory
12MB (1 x 12MB) Level 3 cache
NOTE:
All 5600 processor models except those noted below.
8MB (1 x 8MB) Level 3 cache
NOTE:
For processor E5607.
6MB (1 x 6MB) Level 3 cache
NOTE:
For processor E5603.
Chipset
Intel® 5520 Chipset
NOTE:
For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/
Upgradeability
Upgradeable to two processors (12 cores)
Memory Protection
Advanced ECC (multi-bit error protection)
Mirroring mode
Lockstep mode
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Standard Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 2
Memory
Type
DDR3 Registered (RDIMM) and Unbuffered (UDIMM)
Maximum (RDIMM) (per
server node)
192GB (12 x 16GB) PC3-8500R (DDR3-800)
Maximum (UDIMM) (per
server node)
48GB (12 x 4GB) PC3-10600E (DDR3-1333)
NOTE:
Depending on the memory configuration and processor model, the memory speed may run at
1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at
http://www.hp.com/go/ddr3memory-configurator
Network Controller
HP NC362i Integrated Dual Port Gigabit Server Adapter
Expansion Slots
Half Height Nodes (1U): One available PCI Express Gen 2.0 slots:
Slot 1: Low profile PCI-Express 2.0 x16
Full Height Nodes (2U): three available riser options
Option 1: Up to three available PCI-Express Gen 2.0 slots:
Slot 1: full-height/full-length PCI-Express 2.0 x16
Slot 2: full-height/half-length PCI-Express 2.0 x4
Slot 3: low-profile PCI-Express 2.0 x4
Option 2: Up to three available PCI-Express Gen 2.0 slots:
Slot 1: full-height/full-length PCI-Express 2.0 x8
Slot 2: full-height/half-length PCI-Express 2.0 x8
Slot 3: low-profile PCI-Express 2.0 x8
Option 3: Up to two available PCI-Express Gen 2.0 slots:
Slot 1: full-height/full-length PCI-Express 2.0 x16
Slot 3: low-profile PCI-Express 2.0 x8
Full-height PCIe Riser
Option
Expansion
Slots #
Technology
Bus
Width
**
Connector
Width
*
Bus
Number
Form
Factor
Notes
1
PCI-Express
2.0
x16 x16
4
Full height,
full length
3.3 volts
2
PCI-Express
2.0
x4 x4
6
Full height,
half length
3.3 volts
3
PCI-Express
2.0
x4 x4
7
Low Profile
3.3 volts
Full-height PCIe Riser
Option
Expansion
Slots #
Technology
Bus
Width
**
Connector
Width
*
Bus
Number
Form
Factor
Notes
1
PCI-Express
2.0
x8 x8
4
Full height,
full length
3.3 volts
2
PCI-Express
2.0
x8 x8
5
Full height,
half length
3.3 volts
3
PCI-Express
2.0
x8 x8
7
Low Profile
3.3 volts
Full-height PCIe Riser
Option
Expansion
Slots #
Technology
Bus
Width
**
Connector
Width
*
Bus
Number
Form
Factor
Notes
1
PCI-Express
2.0
x16 x16
4
Full height,
full length
3.3 volts
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Standard Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 3
3
PCI-Express
2.0
x8 x8
6
Low Profile
3.3 volts
Half-height PCIe Riser
(Standard with half-height
1U nodes)
Expansion
Slots #
Technology
Bus
Width
**
Connector
Width
*
Bus
Number
Form
Factor
Notes
1
PCI-Express
2.0
x16 x16
4
Low Profile
3.3 volts
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Indicates the number of physical electrical lanes running to the connector.
Storage Controller
Non-Hot Plug SATA Models
Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
NOTE:
Transfer rate: up to 3 Gb/s SATA
NOTE:
To enable RAID on Embedded SATA (Windows and Linux only), use the
HP Smart Array B110i SATA Raid controller, To enable use of the B110i, enter
the ROM based setup utility(RBSU). The option for enabling RAID can be found
in the advanced section of the RBSU. For additional details
www.hp.com/go/SATARAID
. For RAID on Solaris, a Smart Array Controller
must be purchased.
Hot Plug SATA Models
Embedded HP Smart Array Hot Plug Advanced Pack for B110i (RAID 0, 1, 10)
NOTE:
Transfer rate: up to 3Gb/s SATA
NOTE:
The HP Smart Array B110i SATA Raid Hot Plug Advance Pack provides
the hot-plug and RAID support for the embedded SATA controller. The Hot
Plug Advance kit is a License to enable the RAID support on Hot Plug models. It
supports up to six 3G SATA hard disk drives. It will support a maximum of two
(2) logical drives. It supports Raid 0, 1 and 1+0. For additional details
www.hp.com/go/SATARAID
Hot Plug SAS/SATA Models
HP Smart Array Controller RAID 0,1,10, 5
NOTE:
Transfer rate: up to 6GB/s SAS, 3Gb/s SATA
NOTE:
SAS Upgrade: A HP Smart Array Controller is required for SAS HDD support. Transfer rate: 6.0 Gb/s
SAS supported.
NOTE:
If a Smart Array P410 Controller is added after initial purchase (e.g. an upgrade) a HP DL170e G6
P410 CONTROLLER CABLE OPTION KIT (P/N 612206-B21) must be ordered to connect the Smart Array
Controller to the adapter board.
NOTE:
If any Smart Array Controller other than the P410 is added after initial purchase (e.g. an upgrade),
an HP DL170e G6 SMART ARRAY CONTROLLER CABLE OPTION KIT (P/N 612207-B21) must be ordered to
connect the Smart Array Controller to the adapter board.
NOTE:
An external diskette drive, USB floppy drive key or virtual FDD using LO100 Advanced Pack is
needed to install storage controller drivers during a Windows operating system installation from a CD.
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Standard Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 4
Internal Storage Devices
Diskette Drives
Via USB only
Optical Drives
DVD drive via USB only (External support only)
Hard Drives
None ship standard
Drive Bays
One of the following
depending on Model
Up to 8 or 12 Hot plug SAS/SATA 3.5" drives
Up to 16 or 24 Hot plug SAS/SATA 2.5" drives
NOTE:
The 12 LFF HDD cage is available for special large volume
configurations only. Please contact your HP representative for details.
Maximum Internal
Storage
LFF 3.5" Hot Plug SATA
24.0TB
8 x 3TB
*
LFF 3.5" Hot Plug SAS
24.0TB
8 x 3TB
LFF 3.5" Hot Plug SATA
36.0TB
12 x 3TB
*
LFF 3.5" Hot Plug SAS
36.0TB
12 x 3TB
SFF 2.5" Hot Plug SATA
16.0TB
16 x 1TB
SFF 2.5" Hot Plug SAS
16.0TB
16 x 1TB
SFF 2.5" Hot Plug SATA
24.0TB
24 x 1TB
SFF 2.5" Hot Plug SAS
24.0TB
24 x 1TB
NOTE:
The 12 LFF HDD cage is available for special large volume configurations only. Please contact your
HP representative for details.
NOTE:
To support HP hard drives exceeding 2.2 TB, a HP Smart Array Controller is required.
Interfaces
Serial
1
Network RJ-45 (Ethernet)
2 10/100/1000 NIC ports (1 NIC shared for the HP ProLiant Lights Out 100i
Remote Management)
Graphics
1
Management
1 Optional Dedicated LO100i Management Port
Health LED
2 (1 front and 1 rear) per server node
Power
2 (1 front and 1 rear) per server node
UID
1 rear per server node and 1 upfront system UID
USB
3 (two rear, one internal)
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0, DCMI 1.0. SMASH CLP compliant
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Standard Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 5
Graphics
Integrated Matrox Graphics G200e, 32MB Standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
The following NVIDIA graphics cards are tested for compatibility in the DL2000 (when using full-height 2U
nodes):
NVIDIA Quadro 6000 6GB PCIe x 16 graphics card
NVIDIA Quadro FX5800 4GB PCIe x 16 graphics card
NVIDIA Quadro 4000 2GB PCIe x 16 graphics card
NVIDIA Quadro FX3800 1GB PCIe x 16 graphics card
NOTE:
For more information on the latest visualization and acceleration qualification status, please see
http://www.hp.com/go/accelerators
NOTE:
An HP DL170e GPU Adapter Kit (P/N 612253-B21) is required when installing this NVIDIA card. The
NVIDIA cards can only be installed in the 2U node with the 2 slot full-height riser option: HP DL170e I/O
Riser PCIe x16 x8 FIO option (P/N 512481-B21).
Server Power Cords
One 6' Highline (IEC-IEC) power cord ships standard
NOTE:
HP ProLiant DL servers are primarily connected to PDU's in data center racks so they ship standard
with only a PDU power cord (416151-B21).
NOTE:
If customers require a power cord, they can check the power cord matrix for the appropriate cord.
Please see the following power cord matrix:
http://www.hp.com/go/powercordmatrix
Advanced Power
Management: Power
Management Controller
In addition to the efficiencies gained by the shared power infrastructure, the DL2000 contains advanced
power metering and capping capabilities. The embedded Power Management Controller (PMC) is able to
monitor power consumption and throttle the speed of the processors and memory in each node within the
chassis in order to maintain a pre-set power budget. HP provides a simple command-line utility, called HP
ProLiant Power Interface Control (PPIC) Utility, for reading and configuring the power control logic of the
server nodes. Versions are available for MS Windows Server OS (2008 and 2008 R2) and Linux OS (RHEL5
and SLES11) with the requirement that the OS IPMI Driver be installed. The following Power Management
modes for power redundancy are standard and are configurable in the controller:
No Redundancy - power control disabled. No power throttling will occur.
(DEFAULT) AC Redundancy with Throttling. This mode allows all nodes to share both power supplies
and run at maximum performance. Power control logic will only throttle the performance of each
node when the power draw by the chassis attempts to exceed the load supported by the power
supplies. In this mode, the box is expected to survive an unexpected AC Power loss to one of the
power supplies.
Full AC/DC Redundancy - power control logic will maintain a power cap value for the chassis at the
DC rating of a single power supply (750W, or 1200W), such that if one power supply experiences a
DC or AC failure, the chassis should remain on-line and operational.
Power Capping is included with the LO100 Advanced Pack:
Power Capping - User specifies the power envelope for the 2U chassis, within the capabilities of the
hardware installed. Users run a utility to calibrate the minimum and maximum power consumption
envelope for the chassis. In order to avoid any impact to performance due to throttling, a User
selectable Power Cap value should not be set below the minimum power value provided by the
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Standard Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 6
utility.
Power Supply
HP has a new design for ProLiant power supplies - the new Common Slot power supply bay. This design
provides the customer with commonality in power supplies across multiple platforms to save on the cost
of spares and allows HP to offer multiple power solutions to fit the customers' needs. Many HP ProLiant
Servers come with high-efficiency Common Slot power supplies. The new HP Common Slot power supplies
are designed for the highest power efficiency without degrading performance of the ProLiant server.
These power supplies have efficiency ratings up to 94%. There are multiple power supply options available
allowing you to "right-size" the most appropriate power supply for your server configuration. To make
sure you select the correct power supply to meet your configuration, please use the HP Power Advisor at:
www.hp.com/go/hppoweradvisor
. All HP Common Slot power sources are UL, CE mark compliant, hotplug, and support Redundant Power Management: In addition to the shared power and cooling
infrastructure, the DL2000 contains advanced power metering and power capping technologies. The
Power Interface Controller allows you to configure the system for full AC redundancy or AC redundancy
with power throttling, depending on your configuration. With the optional Dynamic Power Capping mode,
the DL2000 can boost the capacity of your data center by reclaiming trapped power and cooling capacity.
HP offers several Common Slot Power Supply Options for this platform.
NOTE:
The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and
consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus
independently tests power supply efficiency and publicly posts the results on 80Plus.org.
Optional power supplies can be purchased through power supply option kits (see Power Supply Options for
part numbers).
NOTE:
Mixing of power supplies in the same chassis is not supported. All power supplies must be of the
same type, all, 750W 94%, all 1200W 94%, or all 1200W 90%. If non-matched power supplies are inserted
you will get errors and operation will fail.
System Fans
4 x 80mm system fans ship standard; Non-hot plug, Non-redundant.
Required Cabling
For required cabling information, refer to the HP Web site at:
www.hp.com/servers/dl170e
.
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware ESX
Citrix XenServer
NOTE:
For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server including how to purchase from
HP, please visit our OS Support Matrix Site at:
http://www.hp.com/go/ossupport
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Standard Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 7
Form Factor
HP ProLiant e2000 G6 Chassis - 2U Chassis can support up to four DL170e server nodes in the 2U chassis.
HP ProLiant DL170e G6 Server - Half-width system board. Half-height (1U) or full-height (2U) depending
on riser option selected.
HP offers four different drive cages for the 2U HP ProLiant e2000 G6 Chassis
8 LFF HDD Cage
12 LFF HDD Cage
NOTE:
Available for special large volume configurations only. Contact HP representative)
16 SFF HDD Cage
24 SFF HDD Cage
The 2U chassis can support two server node configurations:
Two full height nodes
Four half-height nodes
Server Node Blanks
If a server node is removed for a period, a blank must be installed to maintain the thermal environment in
the chassis. It is okay to leave a node in the chassis powered off to be serviced in the future. But once a
DL170e node is removed for servicing, a HP DL2000 Server Node Blank Kit is required. The blank is a 1U
blank so two blanks are needed for a 2U node.
4 Node Configuration - Front View
NOTE:
For 2 node configurations, 2U nodes are ordered and are numbered 1 and 3. NOTE: Additional nodes
cannot be added later to 2 node configurations.
Embedded Manageability
HP ProLiant Lights-Out 100
HP Lights-Out 100 with Optional LO100 Advanced Licenses for Virtual KVM and
Virtual Media.
Standard Features:
IPMI 2.0, DCMI 1.0, and SMASH CLP support
Configuration via ROM Setup Utility or LO100cfg utility
USB 2.0 support for virtual media for much faster transfer speeds
Enhanced browser interface and embedded KVM over IP provides OSindependent remote graphical console
24x7 Technical Support and Update (TSU) 1 year support and license
upgrades included in Advanced license
For more information, see:
www.hp.com/go/lo100
.
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Standard Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 8
Security
Power-on password
Setup password
Diskette boot control
Secure Sockets Layer (SSL)
Secure Shell (SSH)
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one
year from date of purchase. Support for software and initial setup is available for 90 days from date of
purchase. Enhancements to warranty services are available through HP Care Pack services or customized
service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard
drive QuickSpecs for details.
NOTE:
Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business day
response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts.
These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity. Customers may choose
to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited
warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
.
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Standard Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 9
HP Insight management
HP Insight Control
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. For more information, see
http://www.hp.com/go/insightcontrol
.
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, see:
http://www.hp.com/services/insight
.
HP Insight Control server
deployment
HP Insight Control server deployment is a deployment solution for HP ProLiant
and Integrity servers hosted on a Windows CMS. It automates the process of
deploying and provisioning server software, enabling companies to quickly
and easily adapt to changing business demands. Insight Control server
deployment includes software optimizations for HP servers, including the HP
scripting toolkits, configuration jobs for leading industry-standard operating
systems, sample unattended files, and HP server support packs that include
software drivers, management agents, and important documentation.
Deploying servers can be accomplished either through imaging or through
scripting.
Insight Control server deployment is hosted on a Windows server and is
intended for heterogeneous environments deploying Windows, Linux, VMware
ESX and Microsoft Hyper-V systems.
Insight Control server deployment includes one year of 24 x 7 HP Software
Technical Support and Update Service ensuring rapid access to HP support
staff and proactive delivery of software updates. For more information about
this service, please visit:
http://www.hp.com/services/insight
.
Core Server Management
ProLiant 100 Series G6
Core Management
Software for ProLiant 100
Series Servers
HP provides management solutions that are designed to simplify a server's
installation, configuration, and maintenance throughout the entire server
lifecycle. This provides the customers with higher levels of operational
efficiency and highly reliable systems.
While ProLiant 100 series G6 servers do not support the Insight Foundation
Suite for ProLiant, they support a key subset of this important suite software
tools and utilities which are very suitable for this class of server: SIM, SMH,
agents, providers, and a SmartStart 'like' deployment capability called Easy
Set-up which greatly simplifies server set-up. Additionally the DL100 and
SL100 G6 models support the SmartStart Scripting Toolkit (SSSTK), an
automated scalable deployment utility.
Information on core management supported on ProLiant 100 series G6 servers
can be found at these URLS:
Core Management:
www.hp.com/go/coremanagement
HP ProLiant 100 series Easy Set-up:
www.hp.com/servers/easysetup
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Optional Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 10
Core Infrastructure
Management
HP Systems Insight
Manager
HP Systems Insight Manager (HP SIM) provides a unified, secure and
extensible standards-based environment to centrally manage servers,
storage and other infrastructure devices, (both HP and non-HP) across
multiple operating system platforms.
Insight Management
Agents
HP Insight Management Agents and Insight Management Providers are
available for HP Systems Insight Manager (SIM) Integration.
ProLiant 100-series G6 servers can use the same SNMP based Insight
Management Agents supported by other ProLiant servers. As a result,
administrators can use HP Systems Insight Manager (SIM) 5.3 and greater to
manage ProLiant 100-series G6 servers. Administrators can also use any other
SNMP- based management tool. These agents are obtained as part of the
ProLiant 100-series model-specific "Easy Set-up" CDs, or through
http://www.hp.com/servers/easysetup
The following capabilities are enabled on the 100-series G6 servers by the
SNMP agents:
Health monitoring capabilities, including monitoring for drives, fans,
network, power supplies, and temperature
Alerting capabilities, including basic alert notification for Smart Array
drive pre-failure only
Performance monitoring capabilities providing information on
processor, memory, disk free space, network utilization
For additional information, please see:
http://www.hp.com/go/insight
Easy Set-up
Easy Set-up is available for this platform as an ISO image web download. HP
ProLiant Easy Set-up provides easy, step-by-step, single and multi-server
server utilities to streamline server setup. The user experience is consistent
with SmartStart and offers the following capabilities:
Boot environment and GUI
Assisted Installation: Windows 2003 Server and Windows 2008 Server
drivers
Manual installation: Windows 2003 Server, Windows 2008 Server, and
Linux drivers (specific OS support varies by server. Refer to each
server's QuickSpecs for supported versions)
HP Insight Diagnostics
AutoRun
Array Configuration Utility (ACU) has been combined with Array
Diagnostics Utility (ADU) to offer both configuration of array controllers
and storage devices and testing of array controller hardware
SmartStart Scripting Toolkit (SSSTK) and Smart Components for
software and drivers
NOTE:
OS and SW available for Manual Installation are listed on each servers'
QuickSpecs.
SmartStart Scripting
Toolkit (SSSTK)
The SmartStart Scripting Toolkit is a server deployment product that delivers
an unattended automated installation for high-volume server deployments.
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Optional Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 11
The SmartStart Scripting Toolkit includes a set of utilities for configuring and
deploying servers in a customized, predictable, and unattended manner.
These utilities enable you to duplicate the configuration of a source server on
target servers with minimum user interaction.
The Toolkit is designed for IT experts with experience in scripting operating
system installations and configuring ProLiant server hardware.
For additional information, please see:
http://h18004.www1.hp.com/products/servers/management/toolkit/
index.html
Subscriber's Choice
Subscriber's Choice Driver and Support Alerts/Notifications is a web-based
email subscription service that provides software and driver change
notifications for ProLiant products. Sign up at:
http://www.hp.com/go/subscriberschoice
and customize your profile to
receive various new alerts as they become available, on a weekly or monthly
basis.
ROMPaq, software and
latest drivers
The latest software, drivers, and firmware fully optimized and tested for your
ProLiant server and options; downloaded from Software and Drivers
download pages website at:
http://www.hp.com/go/support
and from
www.hp.com/servers/easysetup
. Contains the following:
HP Insight Management Agents for Systems Insight Manager (SIM)
Integration
HP Systems Management Homepage
Array Configuration Utility (ACU)
Array Diagnostics Utility (ADU)
HP Insight Diagnostics
High Performance
Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically engineered, factory-integrated largescale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well
as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies
ordering.
http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when
integrated within an HP cluster. Flexible, validated solutions can be defined
with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management
Utility
HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported
suite of tools that are used to manage large-scale Linux ProLiant systems.
CMU includes software for the centralized provisioning, management and
monitoring of nodes. CMU makes the administration of clusters user friendly,
efficient, and effective.
http://www.hp.com/go/cmu
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Optional Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 12
Storage Software
Whether you need to solve a specific data protection, archiving, or storage command and control
challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than
HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure,
protect vital assets and respond faster to business opportunities.
Storage software that gets the job done:
Data Protection and Recovery Software
Whether you're a large enterprise or a smaller business, HP data protection and recovery software
will cost-effectively protect you against disaster and ensure business continuity.
Data Archive and Migration Software
HP's storage software enables you to comply with data retention and retrieval requirements,
improve application performance, and reduce costs by efficiently migrating infrequently accessed
or less valuable data to lower cost storage.
Storage Resource Management Software (SRM)
HP's storage resource management software reduces operational costs and provides the command
and control foundation you need to efficiently manage and visualize your physical and virtual
environments.
Data Replication Software
HP offers array-based and host-based replication software for use in disaster recovery, testing,
application development and reporting.
Storage Device Management Software
Maximize your investment in HP storage and networking with software that enables hardwarespecific configuration, performance tuning and connectivity management.
HP StoreVirtual VSA
With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and
disconnected physical disk drives in your servers and storage devices into a single pool of logical
storage capacity.
NOTE:
For more information available Storage Software including QuickSpecs, please see:
www.hp.com/go/storage/software
.
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to:
http://www.hp.com/go/factory-express
.
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Optional Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 13
HP Simple Configurator
SCE is a guided self service tool to help sales and non technical people provide customers with initial
configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in
your existing ordering processes. If you require "custom" rack configuration or configuration for products
not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for
assistance.
http://www.hp.com/products/configurator
QuickSpecs
HP ProLiant DL2000 Multi Node Server
Optional Features
DA - 13847 North America — Version 31 — December 13, 2013
Page 14
Loading...
