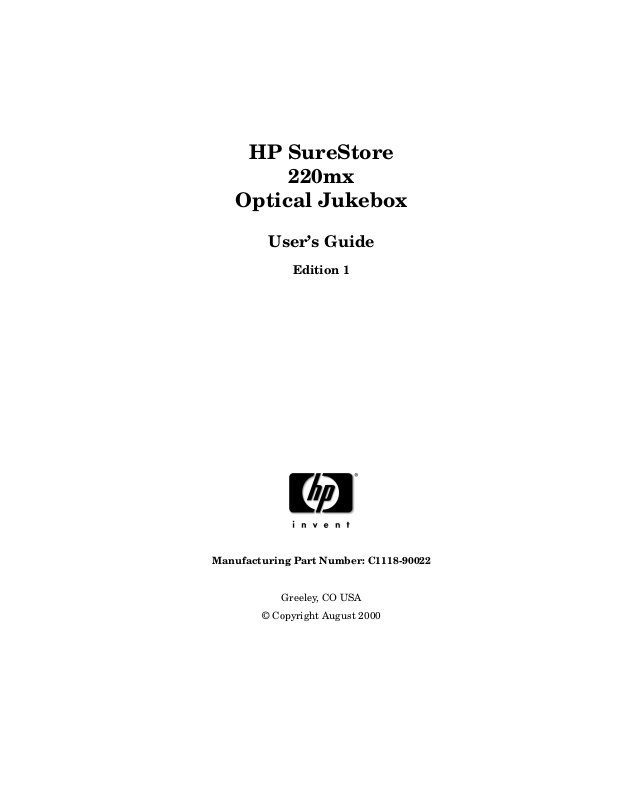

HP SureStore

220mx

Optical Jukebox

User’s Guide

Edition 1

Manufacturing Part Number: C1118-90022

Greeley, CO USA

Notice

This document contains information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company. The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this printed material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Printing History

New editions of this manual incorporate all material updated since the previous edition. The manual printing date and part number indicate the current edition. The printing date changes when a new edition is printed. (Minor corrections and updates incorporated at reprint do not change this date.)

Part Number C1118-90022 Edition 1 August 2000

Typographical Conventions

The following typographical conventions are used in this manual:

Emphasis: Denotes important information.

Keycap: Keys on the jukebox.

Computer Output: Information displayed in the display window and screen

menu items that you can select.

WARNING Warnings call attention to a procedure or practice that could

result in personal injury if not correctly performed. Do not proceed until you fully understand an meet the required conditions.

CAUTION Cautions call attention to an operating procedure or practice that could

damage the product if not correctly performed. Do not proceed until understanding and meeting these required conditions.

NOTE Notes provide information that can be helpful in understanding the

operation of the product.

iii

In This Manual

This user’s guide includes:

Chapter 1 set-up information for the this optical jukebox

Chapter 2 information about choosing and using optical disks

Chapter 3 features description, operating instructions, and

Appendix A supplies and customer support

Appendix B operating this jukebox on a SCSI bus

Appendix C safety and regulatory information

Glossary of Terms

Index

troubleshooting information

Contents

1. Setting up the Jukebox

Setting Up the Jukebox ........................................................................ 1-2

What you need for setting up the jukebox: ................................... 1-2

Choosing a Location.............................................................................. 1-3

Identifying Rear Panel Features.......................................................... 1-4

Removing the Mailslot Shipping Bracket and

Checking Removal of the Shipping Screw....................................... 1-6

Connecting the SCSI Cable to the Jukebox ........................................ 1-8

Connecting the Jukebox as the Only Peripheral ................................ 1-9

Connecting the Jukebox with Other SCSI Peripherals ...................... 1-11

Connecting Power, Adjusting IDs, and Turning the Jukebox On ...... 1-14

Moving or Shipping the Jukebox ......................................................... 1-16

Moving the Jukebox a Short Distance .......................................... 1-16

Shipping the Jukebox..................................................................... 1-17

2. Using Optical Disks

Overview of This Chapter .................................................................... 2-2

Using Optical Disks ....................................................................... 2-2

Choosing an Optical Disk Type............................................................ 2-3

Labeling an Optical Disk Cartridge .................................................... 2-4

Write-Protecting an Optical Disk ........................................................ 2-6

Caring for Optical Disks....................................................................... 2-7

Cleaning Disks ............................................................................... 2-7

Contents

3. Operating the Jukebox

Overview of This Chapter.................................................................... 3-2

Indentifying Front Panel Features...................................................... 3-3

Using Selection Buttons....................................................................... 3-4

Understanding Display Window Messages......................................... 3-5

Messages During Operator Selections.......................................... 3-5

Messages During Host Operations ............................................... 3-6

Using the Front Panel Features .......................................................... 3-7

Loading a Disk Cartridge Into the Jukebox ................................. 3-8

Ejecting a Disk Cartridge From the Jukebox............................... 3-10

Setting a New Security Code......................................................... 3-11

Customizing the Operation of the Jukebox .................................. 3-13

Retrieving Information Logged by the Jukebox........................... 3-20

Changing SCSI IDs .............................................................................. 3-22

Changing the Jukebox Controller ID............................................ 3-23

Changing an Optical Drive ID ...................................................... 3-24

Running an Internal Test .................................................................... 3-26

Troubleshooting.................................................................................... 3-28

A. Supplies and Customer Support

Overview of This Appendix .................................................................. A-2

Supplies and Accessories ..................................................................... A-3

Shipping Screw Specifications ............................................................. A-6

Hewlett-Packard Customer Support ................................................... A-7

Warranty............................................................................................... A-8

Contents

B. Operating This Jukebox on a SCSI Bus

A Brief Overview of SCSI ..................................................................... B-2

General ........................................................................................... B-2

The SCSI Bus ................................................................................. B-2

Initiators and Targets.................................................................... B-2

LUN Addressing............................................................................. B-4

Transfer Rates on the Bus ............................................................. B-4

Termination ................................................................................... B-4

Single-ended, High-Voltage Differential, and Low-Voltage Differential InterfacesB-5

Connectors ..................................................................................... B-6

The SCSI Bus and This Jukebox ......................................................... B-7

Mixing Wide and Narrow Devices ................................................ B-7

Mixing Single-Ended, High-Voltage Differential,

and Low-Voltage Differential Devices....................................... B-10

Cable Lengths................................................................................. B-10

Termination.................................................................................... B-10

General ........................................................................................... B-11

C. Safety and Regulatory Information

Overview of this Appendix ................................................................... C-2

CDRH Regulations (USA Only) ........................................................... C-3

United Kingdom Telecommunications Act 1984 ................................. C-4

EC Declaration of Conformity.............................................................. C-5

Herstellerbescheinigung....................................................................... C-6

English Translation of German Sound Emission Directive ........ C-6

vii

Contents

Turvallisuusyhteenveto ....................................................................... C-7

Laserturvallisuus........................................................................... C-7

Huolto ............................................................................................. C-7

English Translation of Finland Regulatory Information ................... C-9

Japanese VCCI Statement................................................................... C-10

Japanese Harmonics Statement ................................................... C-10

Glossary

Index

viii

Figures

Figure 1-1. Rear Panel Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Figure 1-2. The Mailslot Shipping Bracket . . . . . . . . . . . . . . . . . . . . . . 1-6

Figure 1-3. Location of the Shipping Screw . . . . . . . . . . . . . . . . . . . . . . 1-7

Figure 1-4. Connecting the Jukebox as the Only Peripheral . . . . . . . 1-10

Figure 1-5. Connecting the Jukebox With Other SCSI Peripherals . . 1-12

Figure 2-1. Recommended Placement of Cartridge Labels . . . . . . . . . . 2-5

Figure 2-2. Write-Protect Button Location . . . . . . . . . . . . . . . . . . . . . . 2-6

Figure 3-1. Features on the Front Panel . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Figure 3-2. Menu Tree - Top Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Figure 3-3. Menu Tree - Top Level, With Configuration 15 ON . . . . . . 3-4

Figure 3-4. Menu Tree - Top Level, With Configuration 32 ON . . . . . . 3-5

Figure 3-5. Loading a Disk Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Figure 3-6. Menu Tree - Loading a Disk Cartridge . . . . . . . . . . . . . . . . 3-9

Figure 3-7. Menu Tree - Ejecting a Disk Cartridge . . . . . . . . . . . . . . . 3-10

Figure 3-8. Menu Tree - Setting a New Security Code . . . . . . . . . . . . 3-11

Figure 3-9. Menu Tree - Changing a Security Configuration . . . . . . . 3-14

Figure 3-10. Menu Tree - Setting a Non-Security Configuration . . . . 3-16

Figure 3-11. Menu Tree - Retrieving Information . . . . . . . . . . . . . . . . 3-20

Figure 3-12. Menu Tree - Changing SCSI IDs . . . . . . . . . . . . . . . . . . 3-22

Figure 3-13. Menu Tree - Running an Internal Test . . . . . . . . . . . . . . 3-27

Figures

Tables

Table 3-1. Configurations ................................................................................3-17

Table 3 -2. Information Logs...........................................................................3-21

Table 3 -3. Troubleshooting.............................................................................3-29

Table A-1. Basic Supplies and Accessories.....................................................A-3

Tables

Setting Up the Jukebox

1 Setting up the Jukebox

1-1

Setting up the Jukebox

Setting Up the Jukebox

This chapter tells you how to connect the jukebox to your computer. Follow the unpacking instructions printed on the outside of the shipping carton before you complete the steps given in this chapter.

NOTE “Jukebox” and “library” are two, interchangeable terms used for this type

of data storage device. “Jukebox” is used in this document.

The term “autochanger” in this document refers only to the physical and electronic components that manage the movement and storage of optical cartridges inside the jukebox.

This chapter gives information on the following topics:

• choosing a proper environment for the jukebox

• identifying parts on the rear panel

• connecting the jukebox to your computer

• connecting power

• moving and shipping the jukebox

What you need for setting up the jukebox:

• power cord (included)

• SCSI terminator (included)

• 68-pin, high density SCSI cable of desired length

• single-ended or low-voltage differential SCSI host adapter with at

least two available addresses (at least three available addresses if you are installing one jukebox with two drives).

• application software that supports this type of jukebox

• this guide (included)

1-2 Chapter 1

Setting up the Jukebox

Choosing a Location

Before setting up your jukebox, choose the proper environment based on the following recommendations:

• temperature range between 65-75º F (18-24º C). The maximum operating temperature range is 50-104º F (10-40º)

• away from sources of particulate contamination such as printers, scanners, frequently-used doors and walkways, supplies that collect dust, and smoke-filled rooms.

• 2-3 inches in front and back of the jukebox to allow air circulation.

• availability of AC power with voltage ranges of 100-127 V (115 V

nominal) or 200-240 V (230 V nominal). This jukebox has an autoranging power supply.

Setting Up the Jukebox

At 100-127 V, the maximum power rating is 1.8 Amperes

At 200-240V, the maximum power rating is 0.9 Amperes

Typical power usage is 100 Watts

Maximum power usage is 170 Watts

Complete specifications are at www.hp.com/go/optical or you may contact your sales or service respresentative.

Chapter 1 1-3

Setting up the Jukebox

Identifying Rear Panel Features

Refer to Figure 1-1 and the text on the next page to identify parts and learn their functions.

Figure 1-1 Rear Panel Features

1-4 Chapter 1

Setting up the Jukebox

Identifying Rear Panel Features

The numbers below correspond to the numbers in Figure 1-1 on the previous page.

Setting Up the Jukebox

1Power

receptacle

2 Standby/on

switch

3 SCSI ports Two 68-pin high-density connectors

Used to connect the power cord to the jukebox.

The ON position appplies power to the robotics and electronics in the jukebox. The STANDBY position removes power from the robotics and electronics of the jukebox but power remains ON inside the power supply enclosure on the rear of the jukebox.

To remove power completely from the jukebox, you must remove the power cable either from the rear input on the jukebox or at the wall/floor electrical outlet.

that allow connection to either a single-ended or low-voltage differential SCSI bus. A terminator must be plugged into one of these connectors when the jukebox is the last physical device on a SCSI bus. The terminator shipped with the jukebox is a single-ended / low-voltage differential terminator.

For the most flexible configuration, use a self-configuring single-ended / low-voltage differential terminator (SE/LVD) even though the jukebox is may be originally configured onto a low-voltage differential bus.

Chapter 1 1-5

Setting up the Jukebox

Removing the Mailslot Shipping Bracket and Checking Removal of the Shipping Screw

The jukebox is shipped with a plastic bracket inserted into the mailslot to prevent damage to the mailslot during shipping. A shipping screw is installed through the bottom of the chassis to restrain the cartridge picker.

To remove the mailslot bracket, do the following. Refer to Figure 1-2.

1. Grasp both sides of the bracket and at the same time hook your fingers underneath its lower edge.

2. Gently bend the bottom of the bracket out slightly and while jiggling the bracket, pull it out from the mailslot.

Figure 1-2 The Mailslot Shipping Bracket

1-6 Chapter 1

Setting up the Jukebox

Removing the Mailslot Shipping Bracket and Checking Removal of the

Shipping Screw

NOTE When shipped, a wire links the shipping screw to the packing material

on the bottom of the jukebox. The screw should have been removed when the bottom packing material was removed.

Check that the shipping screw was removed by doing the following:

3. Slide a finger under the chassis so that you can feel the area shown in Figure 1-3. The bottom of the the chassis should be flat. You should not feel the head of a finger screw.

CAUTION If you feel a large screwhead undeneath the chassis, gently lay the

jukebox on its side and remove the screw. The jukebox will not be harmed by laying it on its side.

After removing the screw, raise the jukebox up and onto its feet.

The jukebox weights approximately 75 pounds (34 kg). Use two people to lay the jukebox on its side.

Setting Up the Jukebox

Figure 1-3 Location of the Shipping Screw

Chapter 1 1-7

Setting up the Jukebox

Connecting the SCSI Cable to the Jukebox

The jukebox can be connected to either a single-ended or low-voltage differential SCSI bus. The connectors are high-density 68-pin.

When connecting to a single-ended SCSI bus, and because the drives are “fast SCSI” you have a maximum of 9.8 feet (3 metres) for the entire bus. The jukebox uses 16 inches (0.4 metre) internally so 8.5 feet (2.6 metres) remain available for your use. This assumes that you do not have internal devices (disks, etc. connected to the bus. If you do, the maximum allowable external bus is reduced by the amount of internal bus used.

When connecting to a low-voltage differential SCSI bus, you have a maximum of 39.4 feet (12 metres) for the entire bus. As mentioned above, the jukebox uses 16 inches (0.4 metre) internally so 38 feet (11.6 metres) remain available for your use. This assumes that you do not have internal devices (disks, etc. connected to the bus. If you do, the maximum allowable external bus is reduced by the amount of internal bus used.

This jukebox can be connected to your host computer in two ways:

• as the only SCSI peripheral on a bus

• as one of multiple SCSI peripherals on a bus

1-8 Chapter 1

Setting up the Jukebox

Connecting the Jukebox as the Only Peripheral

The default IDs for the jukebox are as follows. Check to see if there will be any conflicts in this installation.

Autochanger (jukebox robotics) = 3

Drive 1 = 4

Drive 2 = 5 (if installed)

NOTE If any of the autochanger/drive IDs are already being used, you can

either change IDs used by the host bus adapter or another device on the bus, or you can change the autochanger/drive IDs.

If you choose to change the IDs of devices other than the autochanger and/or drives, do it now (before you begin cabling). Refer to your host and host bus adapter documentation.

Setting Up the Jukebox

If you will be changing the IDs of the autochanger or the drives, you will be given an opportunity to do this in the installation steps that follow.

1. Ensure that the mailslot shipping bracket and the shipping screw are removed.

NOTE If you will be changing SCSI IDs in the host, finish changing them before

doing the next step. See the previous NOTE.

2. Ensure that your host computer is OFF and the jukebox standby/on switch is in the STANDBY position.

The jukebox standby/on switch is in STANDBY when the STANDBY side of the switch is depressed. The switch is shown by “2” on Figure 1-1.

Chapter 1 1-9

Setting up the Jukebox

Connecting the Jukebox as the Only Peripheral

Figure 1-4 Connecting the Jukebox as the Only Peripheral

3. Connect a SCSI cable between one of the SCSI ports on the jukebox with a SCSI port on your host computer (see “3” on Figure 1-1).

4. Plug a terminator into the unused SCSI port on the jukebox.

Because this configuration makes the jukebox the last peripheral on the SCSI bus, the bus must be terminated on the jukebox.

NOTE The jukebox ships with a self-configuring single-ended / low-voltage

differential terminator.

5. Go to “Connecting Power, Adjusting IDs, and Turning the Jukebox On” on page 1-14.

1-10 Chapter 1

Setting up the Jukebox

Connecting the Jukebox with Other SCSI Peripherals

Connecting this jukebox with other peripherals on the bus is shown in Figure 1-5.

IMPORTANT Other devices on the same bus as this jukebox will affect jukebox

performance. Consider the following issues if you are deciding whether to connect other devices onto the same bus.

• How will the jukebox be used: archiving, backup, near-line storage? What performance must be maintained?

• How will the additional peripheral will be used? How much demand will the additional peripheral place on the bus?

Setting Up the Jukebox

• What is the bus length available?

A basic review of SCSI and a discussion of the issues involved with connecting devices on a bus is in Appendix B.

CAUTION Do not connect a high-voltage differential device onto the same bus as

this jukebox. Damage to the high-voltage differential device interface electronics can occur.

IMPORTANT Do not add a a single-ended device onto the bus if you intend the bus to

be a low-voltage differential bus. The bus will switch to single-ended mode if any single-ended devices are detected.

If you mix single-ended and low-voltage differential devices (causing single-ended operation) on total cabling longer than 9.8 feet (3 metres), SCSI bus problems could occur. This jukebox will operate in single-ended mode, but must be on a bus that is 9.8 feet (3 metres) or less.

Chapter 1 1- 11

Setting up the Jukebox

Connecting the Jukebox with Other SCSI Peripherals

IMPORTANT Although this jukebox connects to a 68-pin SE/LVD “wide” SCSI bus and

host adapter, the jukebox and its optical drives use a 50-pin “narrow” SCSI bus internally. See Appendix B for a discussion of SCSI buses.

Do not force “wide” data transfers.

Figure 1-5 Connecting the Jukebox With Other SCSI Peripherals

The default IDs for the jukebox are as follows. Check to see if there will be any conflicts in this installation. If you are installing another of this model jukebox on the same bus you have conflicts.

Autochanger (jukebox robotics) = 3

Drive 1 = 4

Drive 2 = 5 (if installed)

1-12 Chapter 1

Setting up the Jukebox

Connecting the Jukebox with Other SCSI Peripherals

NOTE If you determine that there are conflicts among SCSI IDs that are

currently in use by your system and peripherals you will be placing on the bus, plan to do the following steps, as they apply to your situation.

• If you choose to change IDs used by internal devices, change the IDs at this time (before you turn the host system OFF).

• If you choose to change the IDs of external peripherals (other than this jukebox) you may want to change those IDs at this time.

• If you choose to change the IDs in this jukebox (or an additional jukebox of this model), you can do this during the next set of steps “Connecting Power, Adjusting IDs, and Turning the Jukebox On”. Remember, if you are installing two libraries of this type, they will have the same default IDs (3, 4, and 5).

Setting Up the Jukebox

1. Ensure that the mailslot shipping bracket and the shipping screw are removed.

NOTE If you will be changing SCSI IDs in the host, finish changing them before

doing the next step. See the previous NOTE.

2. Ensure that your host computer is OFF and the jukebox standby/on switch is in the STANDBY position.

The jukebox standby switch is in STANDBY when the STANDBY side of the switch is depressed. The switch is shown by “2” on Figure 1-1.

3. Connect SCSI cables between the host, the jukebox, and the other peripheral (perhaps another jukebox) as shown in Figure 1-5.

4. Depending on your bus type, put a single-ended, low-voltage, or SE/LVD terminator on the SCSI connector of the last peripheral on the bus.

CAUTION Do not use a high-voltage differential terminator.

5. Go to the next steps, “Connecting Power, Adjusting IDs, and Turning the Jukebox On”.

Chapter 1 1-13

Setting up the Jukebox

Connecting Power, Adjusting IDs, and Turning the Jukebox On

NOTE If you are changing SCSI IDs on the host bus adapter to avoid conflicts,

change the IDs before turning host power OFF.

If you are changing IDs on one (or two) of this jukebox to avoid conflicts, the following steps include this option.

1. Ensure that your host computer is OFF and the jukebox standby/on switch is in the STANDBY position.

2. Plug the socket end of the power cord into the power port on the rear of the jukebox (see “1” on Figure 1-1). Use the power cord supplied with the jukebox.

3. Plug the other end of the power cord into a grounded electrical outlet.

CAUTION Placing the standby/on switch to STANDBY does not remove all power

from the jukebox. To remove all power (including primary power) you must pull the jukebox power plug from the wall/floor receptacle.

4. Press the jukebox standby/on switch to ON.

NOTE If you are connecting two libraries, place both libraries to ON.

The remaining steps apply to both libraries.

5. Initially, jukebox. Once the poweron test completes (approximately 1.5 minutes),

NOTE If FAIL 1 displays, the poweron test was not successful. Feel under the

chassis at the location shown in Figure 1-3 to ensure that the shipping screw was removed. If the shipping screw was removed, refer to “Troubleshooting” in Chapter 3.

1-14 Chapter 1

TESTING appears in the display window on the front of the

READY displays.

Setting up the Jukebox

Connecting Power, Adjusting IDs, and Turning the Jukebox On

NOTE If you are changing autochanger/drive IDs, refer to “Changing SCSI IDs”

in Chapter 3. Return to this NOTE to continue.

After changing the IDs, turn the jukebox (or jukeboxes) to STANDBY then back to ON to write the changes into the jukebox memory. Once more, wait until the jukebox shows on the host.

6. Turn on the host computer.

READY in the display before turning

Setting Up the Jukebox

Chapter 1 1-15

Setting up the Jukebox

Moving or Shipping the Jukebox

To move the jukebox a short distance, such as to another office or to another floor in your building, refer to “Moving the Jukebox a Short Distance”. To ship the jukebox to another location, refer to “Shipping the Jukebox”.

Moving the Jukebox a Short Distance

1. Unmount any optical disk surfaces in the jukebox if necessary.

See your computer operating system, or software application documentation for instructions on how to unmount optical disks.

2. Ensure that there are no disks in the drives.

Eject any disks as necessary. Refer to your jukebox application software documentation. If you will be manually ejecting disks, refer to “Ejecting a Disk Cartridge From the Jukebox” on page 3-10.

CAUTION Failure to eject a disk from the optical drive prior to moving the jukebox

could result in damage to the optical drive mechanism.

CAUTION Do not turn off power to the jukebox until you are sure the SCSI bus is

inactive. Removing power from a SCSI peripheral when the bus is active can result in data loss and/or indeterminate bus states. Check your host system manuals for information about checking the SCSI bus status.

If your computer is connected to a LAN, ensure that other users on the LAN are not accessing the jukebox.

3. Switch the jukebox standby/on switch to STANDBY (see “2” on Figure 1-1).

4. Remove the power cord from the wall/floor receptacle and the SCSI cable connections from the rear of the jukebox.

5. Carefully move the jukebox to its new destination. If the jukebox

contains disks, do not tip the jukebox or lay it on its side.

6. Set up the jukebox at its new location, following the procedures in the beginning of this chapter.

1-16 Chapter 1

Setting up the Jukebox

Moving or Shipping the Jukebox

Shipping the Jukebox

1. Unmount any optical disk surfaces in the jukebox if necessary.

See your computer operating system, or software application documentation for instruction on how to unmount optical disks.

2. Eject all disks from the jukebox.

If you will be replacing the disks into this jukebox after shipment, it is recommended that you label the disks at this time to at least show their slot location inside the jukebox. This will aid the setup at the new location.

Refer to your jukebox application software documentation for instructions on how to eject disks from the jukebox. If you will be manually ejecting disks, refer to “Ejecting a Disk Cartridge From the Jukebox” on page 3-10. To label disks so that the labeling will not cause problems in the jukebox, refer to “Labeling an Optical Disk Cartridge” on page 2-4.

Setting Up the Jukebox

CAUTION Failure to eject a disk from the optical drive prior to moving the jukebox

could result in damage to the optical drive mechanism.

Failure to remove all disks from the storage slots in the jukebox could result in damage to the jukebox.

CAUTION Do not turn off power to the jukebox until you are sure the SCSI bus is

If your computer is connected to a LAN, ensure that other users on the LAN are not accessing the jukebox.

3. Switch the jukebox standby/on switch to STANDBY (see “2” on Figure 1-1).

The disk transport mechanism will lower to the chassis when power is turned off. The position at the bottom of the chassis is correct for insertion of the shipping screw (inserted in Step 6).

4. Remove the power cord from the wall/floor receptacle and the SCSI cable from the jukebox rear panel (see “1” and “3” on Figure 1-1).

Chapter 1 1-17

Setting up the Jukebox

Moving or Shipping the Jukebox

5. Secure the mailslot by inserting the mailslot shipping bracket. Refer to page 1-6 for a description of this bracket.

The shipping bracket slides into the mailslot easily, but will not latch. Place a piece of tape across the bracket to keep it in place.

6. Re-insert the shipping screw that was removed when the jukebox was unpacked. This screw is 6/32 UNC-2B cap screw 1 3/4 inches long. Re-install in the position shown in Figure 1-3. This screw is HP part number 2360-0551 and may be ordered from HP DIRECT.

7. Repack the jukebox in its original shipping carton.

An alternative method of shipping is careful packaging and padded van shipping.

1-18 Chapter 1

Using Optical Disks

2 Using Optical Disks

2-1

Using Optical Disks

Overview of This Chapter

Using Optical Disks

The optical disks that you use with your jukebox are an integral part of the storage process. This chapter provides information on the following topics:

• choosing an optical disk type

• labeling optical disks

• write-protecting optical disks

• caring for optical disks

IMPORTANT Hewlett-Packard conducts extensive product quality testing to ensure it’s

magneto-optical media is unsurpassed in quality -- far exceeding ISO, ANSI, and IEC industry standards requirements. In addition, HP conducts exhaustive media compatibility and interchange testing to ensure maximum interaction reliability between HP jukebox drives and HP media. Using HP optical media with HP jukeboxes is the best way to ensure your data’s integrity and accessibility.

That’s why HP recommends using HP-brand optical media with its jukeboxes.

For additional details and specifications for HP optical media, or to purchase media online, go to the “Product Information” section at

www.hp.com/storagemedia.

2-2 Chapter 2

Using Optical Disks

Choosing an Optical Disk Type

Two disk types are available for use in the jukebox: rewritable disks and write-once disks.

To choose which type of disks to use, consider these points:

• Rewritable optical disks--data can be repeatedly written and erased.

• Write-Once optical disks--data can be written only once, and the data

cannot be altered or erased. If you have a need for data security and audit trails, write-once disks may be a good disk choice.

• Rewritable and write-once disks come in sector sizes from 4,096 bytes/sector down to 512 bytes/sector (see Table A-1 in Appendix A). The sector size you choose depends upon what type of operating system you have in your host computer and which software package you use to manage files stored on the jukebox.

NOTE Do not use write-once disks in a computer system that does not support

write-once disks. Check that your jukebox application software supports write-once disks.

Using Optical Disks

Chapter 2 2-3

Using Optical Disks

Labeling an Optical Disk Cartridge

Make it a practice to label your optical disk cartridges. You are provided adhesive labels with each disk for this purpose. Here are some suggestions for labeling:

NOTE Your jukebox application software may label your optical disk slot

locations differently. Use your application to check disk locations prior to labeling the disks.

• storage slot location (1, 2, 3, ... )

• date of format or initialization

• disk owner (group, department, etc.)

• storage purpose (backup, old version of operating system, etc.)

HP recommends using end labels as shown in Figure 2-1. End labels reduce the chance of label material interfering with the cartridge shutter and causing a drive to jam.

CAUTION Labels used in the vicinity of the shutter may cause the drive to jam if

the label is installed incorrectly or if portions of the label lift off because of wear. If a drive jams because the label interferes with the shutter, a service call may be necessary.

2-4 Chapter 2

Using Optical Disks

Labeling an Optical Disk Cartridge

Figure 2-1 Recommended Placement of Cartridge Labels

Using Optical Disks

Chapter 2 2-5

Using Optical Disks

Write-Protecting an Optical Disk

Each side of an optical disk can be write-protected by sliding the write-protect button in the direction of the arrow on the cartridge (see Figure 2-2).

With rewritable optical disks, write-protecting the disk prevents overwriting existing files and prevents any additional file being written to the disk.

With write-once optical disks, existing files cannot be altered or erased regardless of whether or not the write-protect button has been set. However, setting the button to write-protect prevents writing additional files to the disk.

Figure 2-2 Write-Protect Button Location

2-6 Chapter 2

Using Optical Disks

Caring for Optical Disks

Follow these guidelines to ensure that your optical disks remain in good condition:

• Do not expose disks to extreme magnetic fields.

• Do not expose disks to dust particles.

• Do not expose disks to extreme temperatures or extreme humidity.

• Do not drop the disks.

• Do not open a disk's metal shutter and touch the disk surface.

• Do not take disks apart.

• Do not insert disks with loosely-attached labels into the jukebox.

• Remove old disk labels before applying new ones especially if you

choose to place labels on the sides of the cartridge (near the shutter) rather than on the end of the cartridge.

Using Optical Disks

• Store disks in a clean, safe place when they are not in use.

Cleaning Disks

Normally, an optical disk does not require cleaning when used in a computer room or clean office environment. If you are in an extremely dusty environment and are experiencing difficulties reading and/or writing to a particular disk you may want to clean the disk to see if this corrects the problem.

CAUTION Be very careful when cleaning an optical disk. Abrasive particles dragged

across the disk surface can damage the disk and prevent recovery of some or all of the data on the disk.

Clean a disk only with an approved disk cleaning kit. Follow the disk cleaning kit instructions exactly.

Disk cleaning kits are listed on www.hp.com/go/optical.

Chapter 2 2-7

Using Optical Disks

Caring for Optical Disks

2-8 Chapter 2

Operating the Jukebox

3 Operating the Jukebox

3-1

Operating the Jukebox

Overview of This Chapter

This chapter describes how to do the following:

• identify front panel features

• use selection buttons

• interpret displayed messages

• load optical disks into the jukebox

• eject optical disks from the jukebox

• set a security code

• change configurations

• retrieve internal jukebox performance information

• run tests (for service use only)

• set SCSI IDs

3-2 Chapter 3

Indentifying Front Panel Features

Figure 3-1 Features on the Front Panel

Operating the Jukebox

Indentifying Front Panel Features

Operating the Jukebox

1 Mailslot Used to load and eject disks.

2 9-Character

display

3 Selection buttons Pressed to perform the following operations:

4 Drive indicator Lit when the optical drive mechanism is being

Chapter 3 3-3

Displays information about the current operation.

CANCEL cancels the current operation or

choice

PREV scrolls the displayed choice backward by one

NEXT scrolls the displayed choice forward by one

ENTER selects the displayed choice

accessed.

Operating the Jukebox

Using Selection Buttons

Use the CANCEL, PREV, NEXT, and ENTER buttons to select tasks you want the jukebox to perform. When you push these buttons, the message in the display window changes. See the next section for a list of messages.

Each time you push the you see an “ beneath that option, which you can access by pressing the display additional options press the

NEXT or PREV buttons down, the display scrolls faster.)

NOTE You can get back to READY at any time by pressing CANCEL. (You may

have to press CANCEL more than once in some cases.)

Figure 3-2 Menu Tree - Top Level

NOTE * If Configuration 15 is ON, SECURE displays instead of READY (see

Figure 3-3).

*” as part of the message, it indicates there is a menu

NEXT or PREV button, a task option appears. (If

ENTER key. To

NEXT or PREV Key. If you hold the

Figure 3-3 Menu Tree - Top Level, With Configuration 15 ON

3-4 Chapter 3

Operating the Jukebox

Understanding Display Window Messages

Figure 3-4 Menu Tree - Top Level, With Configuration 32 ON

* Displays if the mailslot is open.

** Displays if the mailslot is closed.

Understanding Display Window Messages

Operating the Jukebox

The jukebox displays messages according to your keypresses on the control panel. One level of messages is to tell you which operation you have selected, another level is to give you feedback to which options you are selecting under each operation.

Messages are also displayed that tell about operations that the host computer has initiated.

Messages During Operator Selections

The display window shows you the operations you may select. A description of each operation is given below. Instructions for using and setting operations are given in the following sections. (See the note below.

READY - the jukebox is ready for operation

SECURE - the jukebox is ready for operation in SECURE mode (see

Configuration 15 description in Table 1)

CLOSE MS - select to close the mailslot (Configuration 32 is set, see

description in Table 1)

Chapter 3 3-5

Operating the Jukebox

Understanding Display Window Messages

OPEN MS - select to open the mailslot (Configuration 32 is set, see

description in Table 1)

LOAD * - select to load disks through the mailslot

EJECT * - select to eject disks through the mailslot

TEST * - select to run internal jukebox tests (tests are for service only

CONF * - select to customize the way the jukebox functions

(CONFigurations)

INFO * - select to retrieve performance information

SCSI ID * - select to set the SCSI IDs for the jukebox controller

and the optical drive mechanisms.

NOTE An “*” indicates there are options that must be set with that operation.

ENTER to go to the submenu that allows you to set these options.

Press

The next section explains how to set these options.

Pressing display.

CANCEL one or two times brings the jukebox back to the READY

Messages During Host Operations

Some disk operations initiated by the host computer will cause messages to be displayed. The following are examples of these messages.

LOAD 15 - the host computer selected the disk in slot 15 for insertion into

a drive

MOVING - the disk transport mechanism is moving a disk

STORE 1 - the host computer selected slot 1 to store a disk

3-6 Chapter 3

Operating the Jukebox

Using the Front Panel Features

This section gives step-by-step instructions for tasks that are accessed by using the selection buttons on the control panel.

Tasks included in this section are:

• loading a disk into the jukebox

• ejecting a disk from the jukebox

• setting a security code

• changing a configuration option

• retrieving performance information

• running internal jukebox tests (at request of service)

• changing the jukebox controller SCSI ID

• changing a drive SCSI ID

Operating the Jukebox

• troubleshooting

Chapter 3 3-7

Operating the Jukebox

Using the Front Panel Features

Loading a Disk Cartridge Into the Jukebox

Label all disks before inserting them into the jukebox. (See “Labeling an Optical Disk Cartridge” in Chapter 2 for instructions.)

Figure 3-5 Loading a Disk Cartridge

NOTE Some software packages require that you insert and remove disks by

following the instructions in the software. If you are using a software package to manage files in the jukebox, check the software documentation before proceeding with these steps.

3-8 Chapter 3

Using the Front Panel Features

Figure 3-6 Menu Tree - Loading a Disk Cartridge

Operating the Jukebox

Start with

READY in the display.

1. Insert a cartridge into the mailslot; shutter end of the cartridge first, Side A facing up (see Figure 3-3). Push the cartridge in firmly but gently until it is fully inserted into the mailslot.

SLOT ## displays (“##”

is the number of an available storage slot, 1-24, in the jukebox or a drive number).

2. If the displayed storage slot number is the one you want, press

ENTER. If you want to choose a different storage slot, press NEXT until

the desired slot number is displayed and then press

ENTER.

NOTE Any time during the load sequence you may press CANCEL and the

cartridge will be returned to the mailslot.

3. After the disk has been loaded into the selected storage slot,

READY

displays.

Chapter 3 3-9

Operating the Jukebox

Using the Front Panel Features

Ejecting a Disk Cartridge From the Jukebox

Figure 3-7 Menu Tree - Ejecting a Disk Cartridge

Start with

1. Press

2. Press

READY in the display.

NEXT until EJECT * displays.

ENTER. SLOT ## displays. (“##'' is a slot number from 1-24 where

a disk is stored.

DRIVE # may also display, indicating there is a disk in a drive.)

3. If the number of the slot (or drive) that is displayed is the one you want, press

If you want a different numbered slot (or drive), press until that number displays. Then press

ENTER.

NEXT or PREV

ENTER.

NOTE Any time during the eject sequence you may press CANCEL and the

cartridge will be returned to the storage slot or drive from where it came.

3-10 Chapter 3

Using the Front Panel Features

Setting a New Security Code

Figure 3-8 Menu Tree - Setting a New Security Code

Operating the Jukebox

The security code accessing and setting jukebox configurations. Consider changing the security code so that only authorized persons can change the configurations.

Chapter 3 3- 11

0 0 0 is set at the factory. This code is used when

Operating the Jukebox

Using the Front Panel Features

NOTE Don’t forget your security code. If you forget it, only your service

representative can reset the security code to the factory setting so you can set a new code.

Start with

1. Press

2. Press

3. Press

READY or SECURE in the display.

NEXT until CONF * displays

ENTER. CONF 0 and a flashing 0 displays.

NEXT until CONF 17 displays.

NOTE Starting from when you press ENTER in the next step, you are prompted

to enter the current security code.

4. Press

5. Press

ENTER. CODE 1 and a flashing 0 displays.

NEXT until the first number of your current security code

displays.

6. Press ENTER. CODE 2 and a flashing 0 displays.

7. Press

NEXT until the second number of your current security code

displays.

8. Press ENTER. CODE 3 and a flashing 0 displays.

9. Press

NEXT until the third number of your current security code

displays.

10.Press ENTER.

NOTE If you entered an incorrect code, NO CONFIG displays briefly and then

CONF 17 displays. Repeat steps 4-10 again and enter the correct current

code.

After entering the current security code in the previous steps, you are prompted to enter a new three-digit security code.

11.Press

ENTER. NEW 1 and a flashing digit displays (the previous code

1).

12.Press NEXT until the first number you want in your security code displays

13. Press ENTER. NEW 2 and a flashing digit displays (the previous code

3-12 Chapter 3

2).

Operating the Jukebox

Using the Front Panel Features

14.Press

15.Press ENTER. NEW 3 and a flashing digit displays (the previous code

16.Press

17.Press ENTER. SET 17 displays briefly.

18.Press

CAUTION The next step is turn the jukebox to STANDBY.

Do not turn power to STANDBY in this jukebox until you are sure the SCSI bus is inactive. Removing power from a SCSI peripheral when the bus is active can result in data loss and/or indeterminate bus states. Check your host system manuals for information about checking the SCSI bus status.

19.Turn the jukebox to STANDBY, then ON to save the code in jukebox

NOTE You can limit access to your jukebox by setting certain security options.

See Table 3-1 for information about configurations 15, 20, 31, and 32.

NEXT until the second number you want in your security code

displays.

3).

NEXT until the third number you want in your security code

displays.

CANCEL to return to READY.

memory.

Operating the Jukebox

Customizing the Operation of the Jukebox

You can customize the way the jukebox operates by setting values in its “configurations.”. See Table 3-1 for a list of these configurations, their default settings, and possible settings.

NOTE Your security code is required to change security configurations 15, 17,

20, 31, and 32.

Chapter 3 3-13

Operating the Jukebox

Using the Front Panel Features

Changing a Security Configuration

Figure 3-9 Menu Tree - Changing a Security Configuration

Configurations that affect security of your disks in the jukebox are numbered 15, 17, 20, 31, and 32. Table 3-1 describes these configurations.

During the process of setting the security configurations, you are prompted for your current security code. If you have not changed the default security code, enter 0-0-0. If you have changed the security code to a different set of three digits, enter your code. Setting a security code is described in “Setting a New Security Code” explained previously.

3-14 Chapter 3

Follow these steps to set a security option

Operating the Jukebox

Using the Front Panel Features

Start with

1. Press

2. Press

3. Press

READY or SECURE in the display.

NEXT until CONF * displays.

ENTER. CONF 0 displays. (The 0 is flashing.)

NEXT until the number of the option you want to change

displays.

4. Press ENTER. CODE 1 and a flashing 0 displays.

5. Press

NEXT or PREV until the first number of your security code

displays.

6. Press ENTER. CODE 2 and a flashing 0 displays.

7. Press

NEXT or PREV until the second number of your security code

displays.

8. Press ENTER. CODE 3 and a flashing 0 are displayed.

9. Press

NEXT or PREV until the third number of your security code

displays.

NOTE NO CONFIG displays if you entered the wrong security code.

10.Press

ENTER.

The current default setting displays. It may be any one of these settings

Operating the Jukebox

OFF or ON

•

• a number

11.Select the option you want by pressing

12.Press

ENTER. SET displays briefly.

NEXT or PREV.

The security option is set.

13.Press

CANCEL to return to READY.

Chapter 3 3-15

Operating the Jukebox

Using the Front Panel Features

CAUTION The next step is to turn off the jukebox.

14.Turn the jukebox OFF, then ON to save the code to the jukebox flash ROM.

Setting a Non-Security Configuration

Figure 3-10 Menu Tree - Setting a Non-Security Configuration

Start with

READY or SECURE in the display.

1. Press NEXT until CONF * displays.

2. Press

3. Press

ENTER. CONF 0 and a flashing 0 displays.

NEXT until the number of the option you want to change

3-16 Chapter 3

Operating the Jukebox

Using the Front Panel Features

displays. NO CONFIG displays if you choose an invalid number.

4. Press

ENTER.

The current default setting displays. It may be any one of these settings

•

OFF or ON

• a number

5. Select the option you want by pressing

6. Press

ENTER. SET displays.

NEXT or PREV.

The security option is set.

7. Press

CANCEL to return to READY.

CAUTION The next step is to turn the jukebox to STANDBY.

1. Turn the jukebox to STANDBY, then ON to save the code to the jukebox memory.

Operating the Jukebox

Table 3-1 Configurations

Number Function Default Settings

0-14 Used by service personnel only. Changing these configurations may result

in an inoperable jukebox.

15 Enables or

prevents manual disk removal.

Off On - disks cannot be loaded or ejected.

Off - disks can be loaded and ejected.

Requires entering the current security code.

16 Set default

configurations

Save Clear - restores default configurations

immediately.

Save - maintains all set configurations.

Chapter 3 3-17

Operating the Jukebox

Using the Front Panel Features

Table 3-1 Configurations

Number Function Default Settings

17 Set a new

security code.

18 Used by service personnel only. Changing this configuration may result in

an inoperable jukebox.

20 Set disk security

operation after a power failure

21-26 Used by service personnel only. Changing these configurations may result

in an inoperable jukebox.

27 Reporting

recovered errors to the host computer

28-30 Not used

0-0-0 Any three-digit number.

Requires entering the current security code.

Off On - maintains the status of config. 15

upon power cycle or power failure.

Off - config. 15 is not maintained through a power cycle or power failure.

Requires entering the current security code.

Off On - reports the SCSI- level error to the

host computer.

Off - no reports of SCSI- level errors to the host computer.

3-18 Chapter 3

Table 3-1 Configurations

Number Function Default Settings

Operating the Jukebox

Using the Front Panel Features

31 Enabling/disabli

ng mailslot access.

32 Mailslot rotation Off Off - Normal mailslot operation.

33-39 Not used

Off Off - Normal mailslot operation.

On - The mailslot rotates to face inward when Configuration 15 is set to ON or a Prevent Media Removal command is received from the host computer. The mailslot remains facing inward until configuration 15 is set to OFF or an Allow Media Removal command is received from the host computer.

If the jukebox is full, the mailslot will rotate and allow a disk to be ejected when the jukebox receives an EJECT command from the host computer.

Requires entering the current security code.

On - When a Rotate Mailslot command is received (either from the control panel or from the host), the mailslot is toggled open or closed.

Operating the Jukebox

40 Used by service personnel only. Changing these configurations may result

in an inoperable jukebox.

41 Forces the

optical drive to execute a verify after every write

42-65 Not used

66 Used by service personnel only. Changing these configurations may result

in an inoperable jukebox.

Chapter 3 3-19

ON ON - Write verify is forced.

OFF - The drive may write verify or not, depending on how they are manually configured or how they are configured by the jukebox application software.

Operating the Jukebox

Using the Front Panel Features

Retrieving Information Logged by the Jukebox

Figure 3-11 Menu Tree - Retrieving Information

You can display information about the operations of the jukebox by using the

INFO * option. This information is called a log. See Table 3-2 for a list

of logs.

3-20 Chapter 3

Using the Front Panel Features

Start with READY or SECURE in the display.

Operating the Jukebox

1. Press

2. Press

3. Press

4. Press

NEXT until INFO * appears in the display window.

ENTER. A flashing 0 displays

NEXT until the desired log number displays.

ENTER. If you select any log except 4 (drive cartridge loads), the

log information displays immediately.

If you select log 4, DRIVE 1 displays and you can press ENTER for Drive 1 information. If your jukebox has two optical drives, you can press

NEXT (DRIVE 2 displays) and ENTER to access Drive 2 information.

5. Press

6. Press

ENTER to stop the INFO * display.

To choose another log, press

CANCEL to return to READY.

NEXT or PREV.

Table 3 -2 Information Logs

No. Description

1 Firmware revision of the jukebox

4 Total cartridge loads for the drive.

5 Operation hours (power on time)

9 Total moves and move attempts by the

disk transport mechanism.

Operating the Jukebox

12 Total disk transport mechanism flips.

14 Total mailslot rotations.

16 Optical drive 1 SCSI ID.

17 Optical drive 2 SCSI ID (if installed)

Other logs are used by service.

Chapter 3 3-21

Operating the Jukebox

Changing SCSI IDs

Figure 3-12 Menu Tree - Changing SCSI IDs

The jukebox controller uses two SCSI IDs if your jukebox has one drive and three IDs if your jukebox has two drives. The jukebox controller is

3-22 Chapter 3

Operating the Jukebox

Changing SCSI IDs

assigned one ID and one ID is assigned to each disk drive.

The default SCSI IDs are as follows

• jukebox controller = 3

disk drive 1 (lower drive) = 4

disk drive 2 (upper drive in a two-drive model) = 5

If you are already using one of these IDs for your host bus adapter or another SCSI peripheral device, follow the directions in one of the next two sections to change either the jukebox controller or a drive ID.

Changing the Jukebox Controller ID

Start with READY or SECURE in the display.

1. Press

2. Press

3. Press

4. Press

5. Press

6. Press

NOTE CONFLICT displays if you attempt to set the jukebox controller and a

drive to the same ID. Repeat the procedure and reset one of the IDs to another, non-conflicting ID.

NEXT until SCSI ID * displays.

ENTER. AC ID * displays. (“AC” is the “jukebox controller.”)

ENTER. AC ID 3 displays.

NEXT or PREV until the ID you want displays.

ENTER. SET # (# is a number from 0-7) displays briefly and then

C ID * displays again. The ID you chose is now set.

CANCEL two times to return to the READY state.

Operating the Jukebox

NOTE After you change an ID you may have to restart your host computer for

the new ID to be recognized.

Chapter 3 3-23

Operating the Jukebox

Changing SCSI IDs

CAUTION Do not turn power to STANDBY in this jukebox until you are sure the

SCSI bus is inactive. Removing power from a SCSI peripheral when the bus is active can result in data loss and/or indeterminate bus states. Check your host system manuals for information about checking the SCSI bus status.

Changing an Optical Drive ID

Start with READY or SECURE in the display.

1. Press

2. Press

3. Press

NEXT until SCSI ID * displays.

ENTER. AC ID * displays. (“AC” is the “jukebox controller.”)

NEXT until DRV 1 ID * or DRV 2 ID * (if your jukebox has two

drives) displays.

4. Press ENTER. DRV # ID? displays, where “#” is the number of the drive you selected in step 3 and “

?” is the ID to which your selected drive is

currently set.

5. Press NEXT until the ID you want displays.

6. Press

ENTER. SET # (# is a number from 0-7) displays briefly and then

DRV # ID # displays again. The ID you chose is now set.

7. Press

CANCEL two times to return to the READY state.

NOTE CONFLICT displays if you attempt to set the jukebox controller and a

drive to the same ID. Repeat the procedure and reset one of the IDs to another, non-conflicting ID.

NOTE After you change an ID you may have to restart your host computer for

the new ID to be recognized.

3-24 Chapter 3

Operating the Jukebox

Changing SCSI IDs

CAUTION Do not turn power to STANDBY in this jukebox until you are sure the

8. Switch the jukebox standby/on switch to STANDBY, the back to ON to save the new SCSI ID in jukebox memory.

Operating the Jukebox

Chapter 3 3-25

Operating the Jukebox

Running an Internal Test

The jukebox is capable of running internal tests. These tests are used for service diagnostic purposes. You may be asked to run some tests by the service representative prior to coming to your site. Results of the tests can provide service with important information that can help service to more quickly resolve the problem in your jukebox.

CAUTION Some internal tests can change the location of disks in the jukebox. This

may cause problems with your jukebox application software or your operating system.

Unless directed by an authorized service representative, do not run jukebox internal tests

A menu tree for running an internal test is on the next page.

3-26 Chapter 3

Figure 3-13 Menu Tree - Running an Internal Test

Operating the Jukebox

Running an Internal Test

Operating the Jukebox

* If the message is

PA S S (test number) and you press ENTER, the test

number flashes and the jukebox is ready to accept another choice of test to run using the

NEXT and PREV buttons. If you press CANCEL when PAS S

is displayed, you will exit the test process.

* If the message is FA IL (test number) and you press ENTER, the jukebox will display the error code. The error code may be given to the service representative. If you press

CANCEL when FAIL is displayed, you will exit

the test process.

Chapter 3 3-27

Operating the Jukebox

Troubleshooting

This section provides steps you can take when problems occur during operation.

If the troubleshooting procedures do not resolve the problem, call your service provider. If you do not have a service provider, you can locate one by going to ww.hp.com. Look under “HP Services and Support.”

NOTE If a service call is necessary, gather the following information before

calling your service provider:

• model of your jukebox

• serial number

• brand and model of your host computer

• brand and model of your host computer SCSI adapter

• jukebox application software you are using and its version

• any jukebox driver separate from your jukebox application software

and the version of this driver.

3-28 Chapter 3

Table 3 -3 Troubleshooting

Problem What to do

Operating the Jukebox

Troubleshooting

Jukebox won’t power on

Poweron selftest failed

Power to the jukebox failed while a disk was in the drive and did not return to

READY after the

power came back on

• Check that the drive activity indicator light on the control panel is ON (“4” on Figure 3-1) while you see TESTING in the display.

• If light is not ON, make sure the standby/on switch on the rear panel is in the ON position and that the jukebox is plugged in.

• Is the power cord good?

• Is the power outlet operating?

• If steps above are unsuccessful, go to “HP

Services and Support” at www.hp.com.

Ensure that shipping screw is removed.

Ensure that the shipping bracket (in the mailslot) is removed.

Power cycle the jukebox.*

If jukebox continues to fail poweron selftest, press

ENTER and record the error codes. Call your

service representative.

Power cycle the jukebox.*

If the poweron test is unsuccessful, place the standby/on switch to STANDBY. Do not move the jukebox! Moving the jukebox when there is a disk cartridge inside the drive risks damaging the drive. Call your service representative.

Operating the Jukebox

* Before turning power to STANDBY, ensure that the SCSI bus is inactive and will remain inactive while you are troubleshooting. Going to STANDBY in this jukebox while the SCSI bus is active can cause data loss and/or SCSI bus problems.

Chapter 3 3-29

Operating the Jukebox

Troubleshooting

Table 3 -3 Troubleshooting

Problem What to do

No display messages

Changed a drive or jukebox ID but the host does not recognize the new ID

Changed a drive or jukebox ID but the jukebox rejected the ID

Check that the fan in the front of the jukebox is running (or the fan in the rear on the power supply). If the fans are not running, check that the jukebox is receiving power. See “Jukebox won’t power on” previously discussed in this troubleshooting list.

If the jukebox is not powering on or if the jukebox is powering on but you do not have display messages, call your service representative.

• Ensure that no other device IDs conflict with the new ID. If you find a conflict, change the ID and reboot the system (or rescan the bus). (If rebooting, see the * note at the bottom of this page.)

• Refer to your host adapter documentation for adding devices to a SCSI bus.

• Refer to “HP Services and Support” at the web site www.hp.com.

• Call your service representative.

You are trying to set an ID that is already in use by either the jukebox or by the other drive (in two-drive models). Select another ID.

Forgot your security code

Disk inserted in the mailslot,

LOAD ERR, or MISLOAD

displays

3-30 Chapter 3

• Enter the default password (

• If the default password is not accepted, call

your service representative.

• Press

• If re-inserting the disk results in the same

CANCEL and re-insert the disk in the

mailslot. See “Loading an Optical Disk into the Jukebox” in this chapter for the correct disk loading orientation.

message, call your service representative.

0 0 0).

Table 3 -3 Troubleshooting

Problem What to do

Operating the Jukebox

Troubleshooting

Operating the Jukebox

Disk inserted in the mailslot, but

RESERVED

displays

Disk eject attempted but

EMPTY then READY displays

Disk eject attempted but

FULL then READY

displays

Disk eject attempted but

MISLOAD displays

A security configuration is set that prevents disks from being loaded into, or ejected from, the jukebox.

If you want to change the security configuration, see “Changing a Security Configuration” in this chapter.

This is not an error. There are no disks in the jukebox.

A disk is in the mailslot.

• Remove the disk from the mailslot.

• Select EJECT *, select the slot you want the

disk ejected from again, and eject the disk.

• If there is no disk in the mailslot, press

CANCEL and attempt another eject.

• If MISLOAD continues to display, check under

“HP Services and Support” at the web site www.hp.com.

• If no solution is found, call your service representative.

Disk eject attempted but RESERVED displays

Chapter 3 3-31

The host computer or application software has reserved the disk for its own use. You will not be able to eject this disk.

If you want to change this configuration, refer to the host and/or application software documentation.

Operating the Jukebox

Troubleshooting

Table 3 -3 Troubleshooting

Problem What to do

You want to stop a running test

INIT ELEM displays

Can’t write to the disk

Press CANCEL. The current test loop continues until finished, then the test stops.

• The jukebox is inventorying the disks and drives. The jukebox or host computer may have initiated this process. Wait for this process to finish.

• If this process does not complete, if does not appear in the display, or if no motion is seen in the jukebox, power cycle the jukebox.*

• If the jukebox does not come up your service representative.

• Check the host computer or network file system access permissions.

• Check that your disk is the correct density and is HP-qualified.

• Check your host computer messages and host system documentation for interpretation of the error messages.

• Check that the disk is not write protected (see Figure 2-2 on page 2-6).

READY

READY, call

• Refer to “HP Services and Support” at the web site www.hp.com.

• Call your service representative.

3-32 Chapter 3

A Supplies and Customer Support

Supplies and Support

A-1

Supplies and Customer Support

Overview of This Appendix

This appendix provides information on the following topics:

• supplies and accessories

• shipping screw specifications

• HP customer support

A-2 Appendix A

Supplies and Accessories

A full range of computer supplies may be ordered through a Hewlett-Packard authorized dealer, sales office, or online through the Business Store at www.bstore.hp.com.

You may also access the “Business Store” web site by selecting “Other Ways to B u y ” from the main HP shopping site, www.shopping.hp.com.

Authorized dealers and sales offices can be found at www.hp.com under “HP Service and Support.”

Table A-1 Basic Supplies and Accessories

9.1-and 8.6-Gbyte Optical Disks

Supplies and Customer Support

Supplies and Accessories

Item HP Part Number

Rewritable optical disk (4,096 bytes/sector, 9.1 Gbytes, single disk)

Write-once optical disk (4,096 bytes/sector, 9.1 Gbytes, single disk)

Rewritable optical disk (2,048 bytes/sector, 8.6 Gbytes, single disk)

Write-once optical disk (2,048 bytes/sector, 8.6 Gbytes, single disk)

Rewritable optical disk (1,024 bytes/sector, 9.1 Gbytes, single disk)

Rewritable optical disk (512 bytes/sector, 9.1 Gbytes, single disk)

5.2- and 4.7-Gbyte Optical Disks

Rewritable optical disk (2,048 bytes/sector, 5.2 Gbytes, single disk)

Write-once optical disk (2,048 bytes/sector, 5.2 Gbytes, single disk)

C7983A

C7984A

C7985A

C7986A

C7987A

C7988A

88147J

88146J

Supplies and Support

Appendix A A-3

Supplies and Customer Support

Supplies and Accessories

Table A-1 Basic Supplies and Accessories

Item HP Part Number

Rewritable optical disk (1,024 bytes/sector, 4.7 Gbytes, single disk)

Write-once optical disk (1,024 bytes/sector, 4.7 Gbytes, single disk)

2.6- and 2.3-Gbyte Optical Disks

Rewritable optical disk (1,024 bytes/sector, 2.6 Gbytes, single disk)

Write-once optical disk (1,024 bytes/sector, 2.6 Gbytes, single disk)

Rewritable optical disk (512 bytes/sector, 2.3 Gbytes, single disk)

Write-once optical disk (512 bytes/sector, 2.3 Gbytes, single disk)

SCSI Cables

68-Pin High-Density to 68-Pin High-Density

0.9 m, M/M, thumbscrew to thumbscrew C5666A or C2911A

1.5 m, M/M, thumbscrew to thumbscrew C5667A

88143J

88145J

92280F

92290F

92279F

92289F

2.5 m, M/M, thumbscrew to thumbscrew C2924A or D3636A

10 m, M/M, thumbscrew to thumbscrew C2925A

SCSI Terminators

Single-Ended / Low Voltage Differential, self-configuring (with LED)

A-4 Appendix A

A4986-63008

Table A-1 Basic Supplies and Accessories

Disk Cleaners

See www.hp.com/go/optical ------

Supplies and Customer Support

Supplies and Accessories

Item HP Part Number

Supplies and Support

Appendix A A-5

Supplies and Customer Support

Shipping Screw Specifications

If you have misplaced the shipping screw, you can use a cap screw with these specifications:

6/32 UNC-2B cap screw, 1-3/4 inches long. HP part number 2360-0551, orderable from HP Direct. Call 1-800-613-2222.

A-6 Appendix A

Supplies and Customer Support

Hewlett-Packard Customer Support

If your jukebox fails and the suggestions in this user’s guide and accompanying documentation do not solve your problem:

• If you have a service contract with HP, contact your local HP Response Center. Response Centers are found at www.hp.com under the “HP Services and Support” tab.

• If you do not have a service contract with HP, contact your nearest HP dealer or sales office. Dealers and sales offices are found at www.hp.com under the “HP Services and Support” tab.

NOTE Before calling, please record the following information and have it ready when you

contact your service representative.

- model number of your jukebox

- serial number

- brand and model of your host computer

Supplies and Support

- brand and model of your host computer SCSI adapter

- jukebox application software you are using and its version

- any jukebox driver you may be using that is separate from your

jukebox application software and the version of this driver

Appendix A A-7

Supplies and Customer Support

Warranty

HP PRODUCT DURATION OF WARRANTY

C1118M/P, C1119M/P One Year

1. HP warrants HP hardware, accessories and supplies against defects in materials and workmanship for the period specified above. If HP receives notice of such defects during the warranty period, HP will, at its option, either repair or replace products which prove to be defective. Replacement products may be either new or like-new.

2. HP warrants that HP software will not fail to execute its programming instructions, for the period specified above, due to defects in material and workmanship when properly installed and used. If HP receives notice of such defects during the warranty period, HP will replace software media which does not execute its programming instructions due to such defects.

3. HP does not warrant that the operation of HP products will be uninterrupted or error free. If HP is unable, within a reasonable time, to repair or replace any product to a condition as warranted, customer will be entitled to a refund of the purchase price upon prompt return of the product.

4. HP products may contain remanufactured parts equivalent to new in performance or may have been subject to incidental use.

5. The warranty period begins on the date of delivery or on the date of installation if installed by HP. If customer schedules or delays HP installation more than 30 days after delivery, warranty begins on the 31st day from delivery.

6. Warranty does not apply to defects resulting from (a) improper or inadequate maintenance or calibration, (b) software, interfacing, parts or supplies not supplied by HP, (c) unauthorized modification or misuse, (d) operation outside of the published environmental specifications for the product, or (e) improper site preparation or maintenance.

7. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

8. HP will be liable for damage to tangible property per incident up to the greater of $300,000 or the actual amount paid for the product that is the subject of the claim,

A-8 Appendix A

Supplies and Customer Support

Warranty

and for damages for bodily injury or death, to the extent that all such damages are determined by a court of competent jurisdiction to have been directly caused by a defective HP product.

9. TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS

WARRANTY STATEMENT ARE CUSTOMER’S SOLE AND EXCLUSIVE REMEDIES. EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR LOSS OF DATA OR FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

Supplies and Support

Appendix A A-9

Supplies and Customer Support

Warranty

A-10 Appendix A

B Operating This Jukebox on a

SCSI Bus

SCSI and This Jukebox

B-1

Operating This Jukebox on a SCSI Bus

A Brief Overview of SCSI

General

The Small Computer System Interface (SCSI), is a contention-based bus that accommodates different speed devices without impacting the devices with faster transfer speeds. This specification was defined by the American National Standards Institute (ANSI) in 1986. The specification defines both the physical medium and the command set used to transfer information. Later developments are known under the newer specifications, SCSI-2 and SCSI-3.

The SCSI Bus

The common SCSI buses are 50-pin and 68-pin. The 50-pin bus, which uses eight of its lines for data transmission, is called a “narrow” bus. The narrow bus can support eight devices. The 68-pin bus, which uses 16 lines for data transmission is called a “wide” bus. The wide bus can support 16 devices.

Some devices may have 68-pin connectors, but operate with a “narrow” bus. (See the next section in this Appendix, “The SCSI Bus and This Jukebox”.

Initiators and Targets

SCSI devices on the bus are either “initiators” or “targets.” An initiator (usually the host computer) originates a transaction and the target (usually a peripheral device) fulfills the request.

Initiators and targets identify themselves on the bus by a SCSI ID. The ID is designated by the user and is set electronically or manually depending on the device. In addition to identifying a device on the bus, the ID also determines the priority of the device during contention among the devices for use of the bus.

The narrow SCSI bus, with its eight data lines, can communicate with eight devices that have IDs from 0 to 7. The wide SCSI bus, with its 16 data lines, can communicate with 16 devices that have addresses from 0 to 15. The host bus adapter, which links the host computer to the SCSI bus, is also a SCSI device (initiator), and is usually assigned an ID of 7.

B-2 Appendix B

Operating This Jukebox on a SCSI Bus

A Brief Overview of SCSI

Priority of IDs ascends from lowest to highest but this ascending priority, however, is in blocks of eight IDs, and the block from 8 to 15 is actually defined to be at a lower priority than ID 0, the lowest address on the “narrow” portion of the bus. This is done so that if a narrow device is placed on a wide bus, the wide devices, which can “see” the lower addresses, will always defer to the lower addresses when they contend for the bus. Otherwise, a narrow device, which cannot “see” any device at an ID greater than 7, would always assume it won the contention and would attempt to talk, perhaps at the same time as a device with an ID above 7 that was contending for the bus.

The following diagram shows the priority scale of IDs when the priority of the two blocks of eight are reversed.

[1] Priority - the order at which contentions on the bus are resolved

[2] Narrow Addresses - IDs from 0 to 7 available on a narrow bus

[3] Wide Address Range - IDs from 0 to 15 available on a wide bus

The following diagram below shows the linear addressing of a simple, narrow bus with the host bus adapter set at a SCSI ID of 7. Seven other target devices are set to the remaining IDs. Note that the ID of the device does not determine where the device is physically placed on the bus.

[1] Host Bus Adapter - the connecting point for all SCSI devices on the bus

Appendix B B-3

SCSI and This Jukebox

Operating This Jukebox on a SCSI Bus

A Brief Overview of SCSI

LUN Addressing

This jukebox does not support logical unit numbering (LUN) addressing.

Transfer Rates on the Bus

Initially, the SCSI specification defined a 5 MB/s synchronous data transfer rate on the narrow bus. SCSI now also defines “Fast” which is 10 MB/s on a narrow bus and 20 MB/s on a wide bus. Another definition is “Ultra,” also known as “Fast-20” which is 20 MB/s transfer rate on a narrow bus and 40 MB/s on a wide bus.

Termination

To keep signals on the SCSI bus from being reflected, “terminators” must be placed at each end of the physical bus. These terminators may be either active or passive. Passive termination is a resistor network. Active termination uses a voltage regulator (the active component) to regulate the power of the resistor network to provide more stable termination. Active termination is always preferred over passive termination.

Depending on your SCSI device, termination is supplied by a using a physical connector, by flipping a dip switch, or by selecting the termination setting in software.

Termination is always at both physical ends of the bus. (Note that all HP jukeboxes use active termination.)

B-4 Appendix B

Operating This Jukebox on a SCSI Bus

A Brief Overview of SCSI

[1] Terminator - device required on each end of a SCSI bus to prevent reflected signals

[2] SCSI Device - a device on the internal SCSI bus

[3] Host Bus Adapter - SCSI bus connecting point

[4] Host Internal - SCSI components internal to the host computer

[5] External - SCSI components external to the host computer

SCSI and This Jukebox

[6] SCSI Device - SCSI device external to the host computer

Single-ended, High-Voltage Differential, and Low-Voltage Differential Interfaces

The SCSI bus is electrically implemented in three ways: single-ended, high-voltage differential, and low-voltage differential. These terms come from the way the signals are asserted on the bus.

Single-ended buses use a 5-volt signal that is referenced to ground. This method makes the bus somewhat susceptible to noise and loss of signal quality over distance. The maximum allowable length of a single-ended SCSI bus was initially 6 meters (19.7 feet). Fast SCSI required the maximum length of the bus to be reduced to 3 metres (9.8 feet).

High-voltage differential buses uses two lines for each signal and

Appendix B B-5

Operating This Jukebox on a SCSI Bus

A Brief Overview of SCSI

measures the voltage difference between the two signals. The differential configuration retains more signal quality than single-ended and is not as sensitive to noise, allowing for a longer cable length. The maximum allowable length of a high-voltage differential bus is 25 meters (82 feet) for all types of buses (narrow, wide, fast, Fast-20)

Low-voltage differential buses (Ultra 2) use less of a voltage difference between the two signals used for each bus signal. The low-voltage differential configuration also retains more signal quality than single-ended and is not as sensitive to noise as either the single-ended or high-voltage differential buses. The maximum allowable length of a low-voltage differential bus is 12 metres (39.4 feet).

Connectors

50-pin connectors - narrow devices only

• 50-pin low-density clip Centronics-type (external)

This is a large connector that is similar to a printer cable. This type of connector is gradually being replaced by the Micro D connector, described below.

• 50-pin high density Micro D (using thumbscrews or small clips) (external)

• This connector is similar to a D-type connector, but smaller and with smaller pin holes placed closer together.

• 50-pin low-density ribbon (usually internal to the host)

68- pin connectors - some narrow and all wide devices

• 68-pin high density Micro D connector (external)

This connector is similar to a D-type connector, but longer and slimmer and with smaller pin holes placed closer together. This connector is becoming the most common.

• 68-pin high density ribbon (usually internal to the host)

B-6 Appendix B

Operating This Jukebox on a SCSI Bus

The SCSI Bus and This Jukebox

This jukebox is a “fast and narrow” SCSI device that uses either a single-ended or low-voltage differential external SCSI bus. The external connectors on the jukebox are “wide” (68-pin) but, because the internal SCSI bus in the jukebox is “narrow,” only eight data lines are available for addressing. The jukebox may only use SCSI IDs from 0-8 (not 0-15 available on “wide” buses). The jukebox does not support logical unit number (LUN) addressing.

When calculating available cable length, subtract 16 inches (0.41 metre), the length of the SCSI bus used internally by the jukebox.

When considering adding other peripherals to the jukebox bus, you should consider the following:

• Will adding a device onto a bus with this jukebox interfere or degrade the performance of the jukebox or the device that is added?

• If the decision is made to add other devices to the jukebox bus, what SCSI requirements must be observed to make sure the bus will work?

Before addressing some questions involved in deciding whether to place another device on the jukebox bus, we can say that, as a general rule, HP recommends that the jukebox be the only device on a bus. If there are multiple devices on the bus, performance of one or all of the devices on the bus can be affected.

If you are still considering adding a device, you might first consider the quantity of data that the bus will have to carry, the frequency of data transfer, and the priority of this data transfer in your business. If you are using the jukebox as a backup or archive device, the demands on the jukebox will be different than if the jukebox is used for near-online storage where requests are more random in both frequency and data size. If you expect to be using the jukebox in the same time-frame as the other device, or devices, this might indicate that you may experience a drop in performance.

Mixing Wide and Narrow Devices

As a preliminary note to this discussion, HP highly recommends that you do NOT mix wide and narrow buses.

Appendix B B-7

SCSI and This Jukebox

Operating This Jukebox on a SCSI Bus

The SCSI Bus and This Jukebox

Connecting devices of the same bus width, such as all narrow (50-pin) is a simple process of daisy-chaining the devices, and terminating both ends of the bus.

Mixing narrow and wide devices invites problems. Mixing narrow and wide devices on a bus should be done only by a person experienced in SCSI configurations.

Because wide (68-pin) buses need more data lines on the bus for data transfer, it’s necessary for the cables connecting the devices to be 68 pin. Data would be lost if the devices were set up as depicted in the figure below.

[1]Bus Adapter - connecting point for all SCSI devices

[2] Wide SCSI Device - accepts IDs from 0 to 15

[3] 68-50-Pin SCSI Cable - adapts from wide to narrow connectors

[4] Narrow SCSI Device - accepts IDs from 0 to 7

[5] Terminator - device on the ends of a SCSI bus to prevent reflected signals on the bus

Because some narrow devices have only 50-pin connectors, they do not transmit the eight extra bits of data needed for the wide device on the end of the bus. Using only 50 lines also prevents the narrow device from passing along the IDs of devices at ID 8 or above.

The lower eight data lines transfer commands and messages, allowing all devices, regardless of size, to co-exist on the bus. However, data transfers and device addressing occur on the higher bits. Since a narrow device

B-8 Appendix B

Operating This Jukebox on a SCSI Bus

The SCSI Bus and This Jukebox

can't “see” the upper 8 data bits, that translates to it not being able to “see” wide devices with a SCSI ID of 8 or above. Remember the host

adapter is a device, so if you're mixing wide and narrow devices on the bus, your host adapter must be at an ID that all devices can address.

If mixing narrow and wide devices is unavoidable, use the configuration shown in the following diagram. When looking at the diagram note that, while this is a “legal” SCSI configuration, it is not a configuration that is recommended by Hewlett-Packard. As a general rule, HP recommends that the jukebox be the only device on a bus. If there are multiple devices on the bus, performance of one or all of the devices on the bus can be affected

[1]Bus Adapter - connecting point for all SCSI devices

[2] Wide SCSI Device - accepts IDs from 0 to 15

[3] Wide SCSI Cable - 68-pin SCSI Cable

[4] 68-50-Pin SCSI Cable - adapts from wide to narrow connectors - high 18 lines must be terminated

[5] Narrow SCSI Device - accepts IDs from 0 to 7

[5] Terminator - device on the ends of a SCSI bus to prevent reflected signals on the bus (50-pin)

It is very important that the 68-pin to 50-pin cable is properly configured to assure that the eighteen truncated lines are properly terminated.

Appendix B B-9

SCSI and This Jukebox

Operating This Jukebox on a SCSI Bus

The SCSI Bus and This Jukebox

Mixing Single-Ended, High-Voltage Differential, and Low-Voltage Differential Devices

On a low-voltage differential (LVD) bus, if the jukebox senses a single-ended device on the bus, the bus will be operated as a single-ended bus. You must not mix high-voltage differential buses with either

low-voltage differential or single-ended buses. High-voltage signals are on different pins and may damage low-voltage differential circuits.

Cable Lengths

This jukebox can use either a single-ended or low-voltage differential bus. When using a single-ended bus, you have 8.50 feet (2.59 metres) available for an external bus. (3 metres allowable minus 0.41 metres for internal cabling.)

If you are using a low-voltage differential bus, you have 38.04 feet (11.59 metres) available for an external bus. (12 metres allowable minus 0.41 metres for internal cabling.)

Termination

• Refer to the documentation that comes with your particular adapter to see how to apply termination.

• Use active terminators on single-ended buses to reduce noise sensitivity. Use low-voltage differential terminators if using a low-voltage differential bus. If you have a multimode (SE/LVD) host adapter, you can use SE/LVD terminators. These terminators can sense which mode is being used.

• Never terminate the bus at any place except the physical ends. Terminating the bus in the middle will probably cause the bus to become inoperable or operate in a state that could cause data loss.

• If devices are on both sides of the host bus adapter (such as hard drives internal to the host computer and a jukebox external to the host computer) make sure that there is no termination on the host bus adapter. Termination must be only on the device inside the computer that is farthest away (on the bus) from the host bus adapter,

B-10 Appendix B

Operating This Jukebox on a SCSI Bus

The SCSI Bus and This Jukebox

and on the last physical device external to the computer.

[1] Terminator - device on each end of a SCSI bus to prevent reflected signals

[2] SCSI Device - a device on the internal SCSI bus

[3] Host Bus Adapter - SCSI bus connecting point

[4] Host Internal - SCSI components internal to the host computer

[5] External - SCSI components external to the host computer

[6] SCSI Device - SCSI device external to the host computer

SCSI and This Jukebox

General

• Do not connect a single-ended or low-voltage differential bus with high-voltage differential devices. Damage can occur.

Appendix B B-11

Operating This Jukebox on a SCSI Bus

The SCSI Bus and This Jukebox

B-12 Appendix B

C Safety and Regulatory

Information

Safety and Regulatory

Safety and Regulatory Information

Overview of this Appendix

This appendix contains important safety and regulatory information for the United States, Finland, Sweden, Germany, United Kingdom, European Union, and Japan.

C-2 Appendix C

Safety and Regulatory Information

CDRH Regulations (USA Only)

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States. The labels and artwork shown below indicate compliance with CDRH regulations and must be attached to laser products marketed in the United States.

WARNING Use of controls, adjustments or performing procedures other

than those specified in this manual may result in hazardous laser radiation exposure.

NOTE Complies with 21 CFR Chapter 1 Subchapter J.

Laser Class Information: A black on yellow label which reads, “Class 1 Laser Product” printed in English, French, German, Finnish, Japanese, and Spanish.

Appendix C C-3

Safety and Regulatory

Safety and Regulatory Information

United Kingdom Telecommunications Act 1984

The Hewlett-Packard 220mx optical jukebox is approved under Approval Number NS/G/1234/J/100003 for indirect connection to Public Telecommunication Systems within the United Kingdom.

C-4 Appendix C

Safety and Regulatory Information

EC Declaration of Conformity

Appendix C C-5

Safety and Regulatory

Safety and Regulatory Information

Herstellerbescheinigung

Diese Information steht im Zusammenhang mit den Anforderungen der Maschinenlärn information sverordnung vom 18 Januar 1991.

Schalldruckpegel Lp < 70 dB(A)

• am arbeitsplatz

• normaler betrieb

• nach ISO 7779:1988/EN 27779:1991 (Typprüfung)

English Translation of German Sound Emission Directive

This statement is provided to comply with the requirements of the German Sound Emission Directive, from 18 January 1991.

Sound pressure Lp < 70 dB(A)

• at operator position

• normal operation

• according to ISO 7779: 1988/EN 27779: 1991 (type test)

C-6 Appendix C

Safety and Regulatory Information

Turvallisuusyhteenveto

Laserturvallisuus

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

Hewlett-Packard 220mx optiset levymuistiasemat ovat käyttäjän kannalta turvallisia luokan 1 laserlaitteita. Normaalissa käytössä levymuistiaseman kotelointi estää lasersäteen pääsyn laitteen ulkopuolelle.

Laitteen turvallisuusluokka on määritetty standardin EN 60825 mukaisesti.

VAROITUS !

Laitteen käyttäminen muulla kuin käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle lasersäteilylle.

VARNING !

Om apparaten används på annat sätt än i bruksanvisning specificerats, kan användaren utsättas för laserstrålning, som överskrider gränsen för laserklass 1.

Huolto

Hewlett-Packard 220mx levymuistiasemien sisällä ei ole käyttäjän huollettavissa olevia kohteita. Laitteen saa avata ja huoltaa ainoastaan sen huoltamiseen koulutettu henkilö. Levymuistiaseman sisälle asennettujen luku-/kirjoitusyksiköiden suojakoteloa ei tule avata huoltotoimenpiteiden yhteydessä.

VARO !

Mikäli luku-/kirjoitusyksikön suojakotelo avataan ja suojalukitus ohitetaan, olet alttiina lasersäteilylle laitteen ollessa toiminnassa. Älä katso säteeseen.

VARNING !

Appendix C C-7

Safety and Regulatory

Safety and Regulatory Information

Turvallisuusyhteenveto

Om skyddshöljet av den optiska drivmodulen öppnas och spärren urkopplas då apparaten är i funktion, utsättas användaren för laserstrålning. Betrakta ej strålen.

Tiedot luku-/kirjoitusyksikössä käytettävän laserdiodin säteilyominaisuuksista:

Aallonpituus 660 nm

Teho 60 mW

Turvallisuusluokka 3B

C-8 Appendix C

HP Optical Jukeboxes User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Setting up the Jukebox

2. Using Optical Disks

3. Operating the Jukebox
