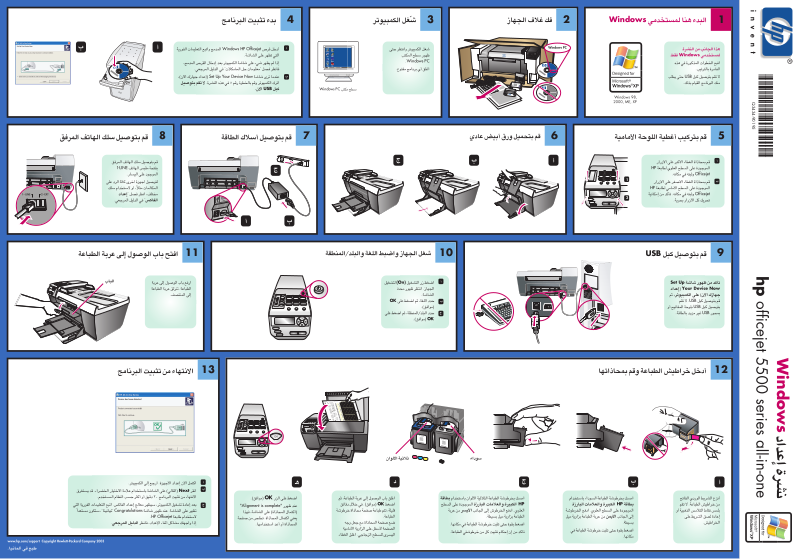

HP Officejet 5500 Setup Poster [ar]

134 2

*Q3434-90195*

*Q3434-90195*

Q3434-90195

8

567

1

2

10 911

13

12

1

Macintosh users START HERE

2

Unpack the device

3 4

Attach the front panel covers

Load plain white paper

This side of the poster
is for Macintosh users
only.

Follow the steps on
this poster in order.

Q3434-90195

5

*Q3434-90195*

*Q3434-90195*

Connect the supplied phone cord

Macintosh OS 9, OS X

6

Macintosh

Connect the power cords

Align the larger cover over the buttons

a

on the top of the HP Officejet and snap
into place.

b

Align the smaller cover over the buttons
on the front of the HP Officejet and
snap into place. Make sure all the
buttons can move freely.

1

2

Connect the USB cable

a

b

c

Turn on the device and set the

87

language and country/region

Connect the supplied phone cord to
the open 1-LINE jack on the left.

To connect other equipment such as
an answering machine, or to use a
different cord, see the Fax Setup
chapter in the Reference Guide.

9

Open the print-carriage access door

10

c

a

Insert and align the print cartridges

b

If you have an iMac, the
USB port is on the side.
Do not connect the HP
Officejet to a USB port
on a keyboard or a non­powered USB hub.

a

Press the On button to turn on the
device. Wait for the display prompt.

Select your language, then press the OK

b

button.

c

Select your country/region, then press
the OK button.

Lift the print-carriage
access door. The print
carriage slides to the
middle.

11

Install the software

Door

a

Remove the bright pink
tape from the print
cartridges. Do not touch the
gold-colored contacts or
retape the cartridges.

b

Hold the black print cartridge with the large
HP label and the raised markings on top.

Slide the cartridge at a slight angle into the
right side of the print carriage.

Press firmly until the print cartridge snaps
into place.

Tri-color Black

c

Hold the tri-color print cartridge with the large HP
label and the raised markings on top. Slide the

cartridge at a slight angle into the left side of the print
carriage.

Press firmly until the print cartridge snaps into place.
Make sure that both print cartridges are secure.

12

Try the HP Officejet

d

Close the print-carriage access door and
press the OK button. Within a few minutes, a
print cartridge alignment page prints.

Place the alignment page face down in the
left front corner of the glass. Close the lid.

e

Press the OK button.
When "Alignment is

complete" appears on the
display, alignment is
complete. Discard or recycle
the alignment page.

a

Macintosh setup poster

hp officejet 5500 series all-in-one

Turn on your Macintosh
and wait for it to finish
starting up.

Insert the Macintosh
HP Officejet CD.

b

Double-click the
HP All-In-One Installer
icon on the desktop.

hp_all-in-one_installer

c

Follow the onscreen
instructions. You may
have to restart your
Macintosh during setup.
Be sure to complete the
setup assistant.

Congratulations! You are now ready
to use the HP Officejet. Select the HP
Director icon in the dock to get
started.

If you encounter problems during
setup, see the Reference Guide.

www.hp.com/support

Copyright Hewlett-Packard Company 2003

Printed in U.S.
