Page 1
HPMSAFCVDSHardwareProviderquick
start guide
Par t number: T1634-96073
econd edition: May 2006
S
Page 2
Legal and notice information
© Copyright 2005-2006 Hewlett-Packard Development Company, L.P.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and
12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are
licensed to the U.S. Government under vendor’s standard commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth
in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting
an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Intel, Itanium, Pentium, Intel Inside, and the Intel Inside logo are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the United States a nd other countries.
Microsoft, Windows, Windows XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
Java is a U.S. trademark of Sun Microsystems, Inc.
Oracle is a registered U.S. trademark of Oracle Corporation, Redwood City, California.
Linux is a U.S. registered trademark of Linus Torvalds.
UNIX is a registered trademark of The Open G roup.
Printed in the U.S.
Page 3
Contents
Configurationandinstallationsummary............................... 4
Components ........................................ 4
Hardwarecomponents.................................. 4
Softwarecomponents .................................. 5
HPMSAdiskarray(hostserveroptional):........................ 5
WindowsVDSProviderserver:............................. 5
Optionalcomponents .................................. 5
Configurationprocedures................................... 6
Configurationsummary.................................. 6
VDSProviderWindows2003server:.......................... 6
Diskarrayandhost: ................................. 6
Important configurationnotes:............................. 6
Installationsummary..................................... 6
Removalsummary...................................... 7
UninstallingtheHPProviderusingWindows......................... 7
UninstallingusingtheHPProviderinstaller.......................... 7
HP MSA FC VDS Hardw ar e Provider quick start guide
3
Page 4
Configuration and installation summary
This document summarizes the HP MSA FC VDS Hardware Provider components, configuration, and
installation. For more detailed procedures, please refer to the HP Modular Smart Array FC VDS Hardware
Providers ad m inistration guide.
Components
The following hardware and software components are used with the HP Provider and an HP MSA disk
array. See the Read Me file and contact HP Support for HP tested and approved components.
Hardware components
• HP StorageWorks MSA1000/1500 Disk Array
• Windows 2003 Server: This server contains the Microsoft VDS Service and HP VDS Hardware
Provider.
• Fibre Channel Host bus adapter (HBA): Installs in the VDS Provider server to provide FC
connection to the MSA array. VDS supports only certain Emulex and Qlogic HBAs and the SCSI
Storport driver, not SCSI Miniport.
• Fibre Chann el switch and cabling: For connecting the VDS Provider ser ver to the array via fabric
SAN. Some arrays have a built-in switch.
4
Configuration and installation summary
Page 5
Software components
IMPORTANT NO
system. Refe
about compa
instructio
The following components and configurations enable you to use the HP MSA FC VDS Provider with the
MSA.
ns carefully.
TE: The right combination of software versions is crucial to configuring a working
rtothetheREADMEfiles a ccompanying the HP Provider installation files for information
tible software versions and system configurations. Follow all configuration and installation
HP MSA disk array (host server optional):
• Configured as described in the following Configura tion procedures
Windows VD
S Provider server:
• Windows 2003 Server
• HP MSA FC V
• Microsoft QFEs (quick fixes), if required for your OS or VDS, are listed in the HP Provider README
file. For more information, contact HP Support.
DS Provider 4.00.00
Optional components
• HP Ba sic MPIO software if multipathing is desired
• MSCS clustering (4–node clusters are supported)
HP MSA FC VDS Hardw ar e Provider quick start guide
5
Page 6
Configuration procedures
Physically install and configure the disk array and the server as described below and in the manuals for

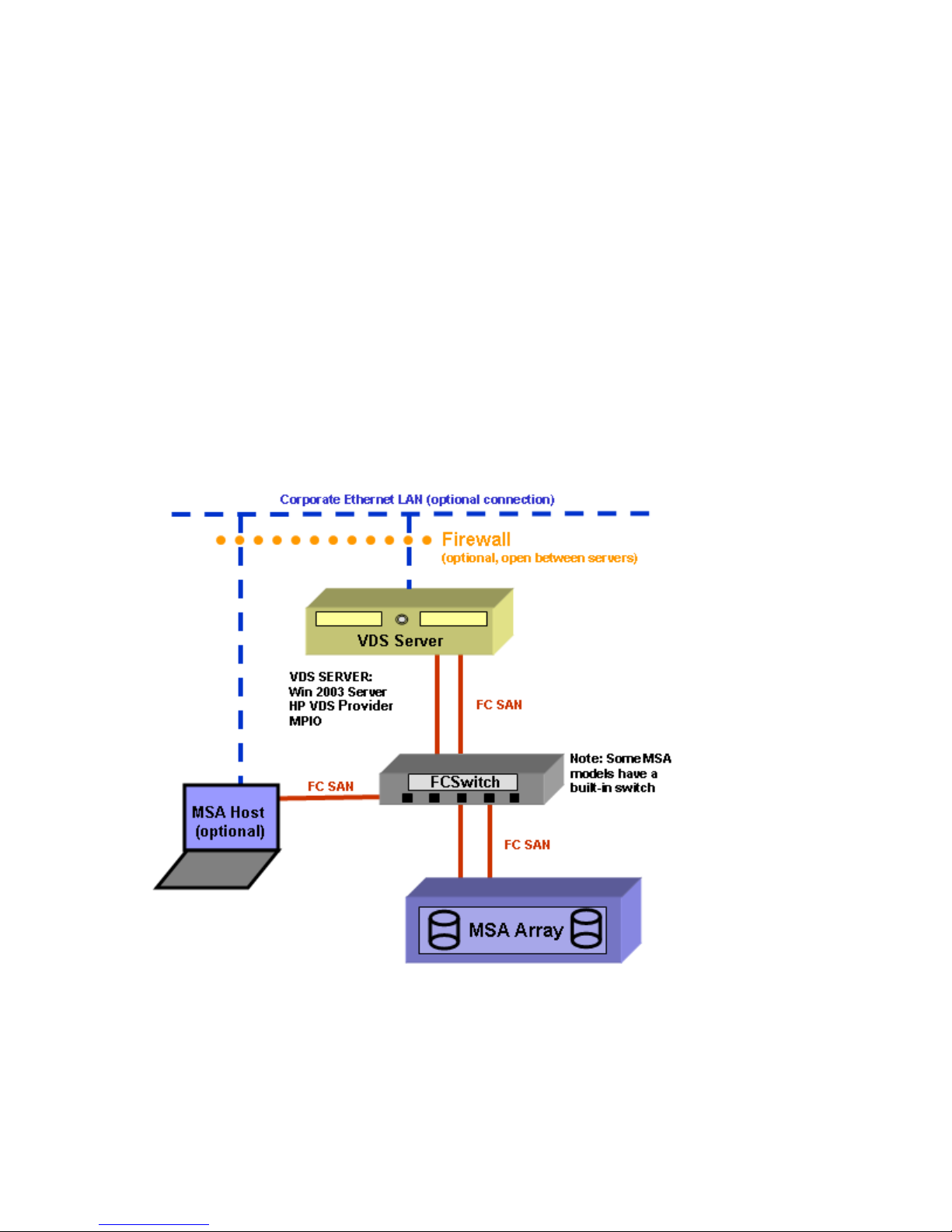

those products. Refer to the diagram under Components for an overview of interconnections.
Configuration summary
You will perform the following tasks du ring configuration:
VDS Provider Windows 2003 server:
• Install Windows 2003 Server OS.
• InstallFCHostBusAdapteranddriver.
• Connect th
• Install NIC card and connect to Ethernet LA N (optional) .
• Install HP MPIO software if multipathing is desired.
Disk array and host:
• Connect the array to the VDS Server through the FC switch.
• Verify existing or install MPIO software license.
Important configuration notes:
Administrator privileges are required for all devices and software. If you do not have administrator
privileges, the software and hardware will not communicate properly.
e server HBA to the array using a FC switch and set up zoning (if required).
When using the VDS framework to create and manage LUNs, the LUNs should be the same size as the
physical disk size. You can make LUNs smaller than a physical disk (or disks, if spanning multiple disks) ,
butanyspaceleftoveronthephysicaldisk(s)cannotbeused. Forexample,ifyouhavethree36
GB drives totalling 108 GB and you create a LUN of 20 GB spanning all three disks, the remaining
88 GB a
YoumayuseBasicMPIOwiththediskarrayandProviderserver,butyouwillnotbeabletouseVDSto
manage MPIO. Use whatever MPIO configuration software you h ave available to manage MPIO.
re unusable.
Installation summary
You will perform the following tasks on the Windows server during installation:
• Remove the previous version of the Provider, if necessary.
• Run the Provider installation executable: setup.exe.
• Follow the InstallShield Wizard instructions to install the software.
• Install Microsoft QFEs (quick fixes), if any. See the Provider README file for details.
• Verify installation using Windows Disk Management and the DISKRAID List Provider command.
6
Configuration and installation summary
Page 7
Removal summary
Before removing the HP VDS Provider, issue a net stop command from the command line, as shown below:
net stop vds
Uninstalling the HP Provider using Windows
1. In Windows, select Start > Settings > Control Panel.
2. Double-click Add/Remove Programs.
3. Select the HP MSA VDS Hardware Provider program for removal.
4. Click Change/Remove. Windows removes the program.
Uninstalling using the HP Provider installer
You can also uninstall the HP Provider by starting the Provider installer again. Removal follows the same
steps as installation. When the Remove Program window appears, click the Remove button, and then
nish when removal is complete.
click Fi
HP MSA FC VDS Hardw ar e Provider quick start guide
7
