HP LaserJet M153, LaserJet M154 User's Guide

User Guide
www.hp.com/support/ljM153
Color LaserJet Pro M153-M154
Color LaserJet Pro M153-M154
User Guide
Copyright and License
Trademark Credits
© Copyright 2019 HP Development Company, L.P.
Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Edition 3, 9/2019
Adobe®, Adobe Photoshop®, Acrobat®, and PostScript
®
are trademarks of Adobe Systems
Incorporated.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
OS X is a trademark of Apple Inc., registered in the U.S. and other countries.
AirPrint is a trademark of Apple Inc., registered in the U.S. and other countries.
iPad is a trademark of Apple Inc., registered in the U.S. and other countries.
iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
iPhone is a trademark of Apple Inc., registered in the U.S. and other countries.
Microsoft®, Windows®, Windows® XP, and Windows Vista® are U.S. registered trademarks of Microsoft Corporation.
UNIX® is a registered trademark of The Open Group.
Table of contents
1 Printer overview ........................................................................................................................................................................................ 1
Printer views .............................................................................................................................................................................. 2
Printer front view ................................................................................................................................................. 2
Printer back view .................................................................................................................................................. 3
Control panel view ............................................................................................................................................... 4
Printer specications ................................................................................................................................................................ 5
Technical specications ...................................................................................................................................... 5
Supported operating systems ........................................................................................................................... 5
Mobile printing solutions .................................................................................................................................... 7
Printer dimensions .............................................................................................................................................. 8
Power consumption, electrical specications, and acoustic emissions ...................................................... 8
Operating environmental range ........................................................................................................................ 8
Printer hardware setup and software installation .............................................................................................................. 9
2 Paper trays .............................................................................................................................................................................................. 11
Introduction ............................................................................................................................................................................. 12
Load Tray 1 ............................................................................................................................................................................. 12
Introduction ........................................................................................................................................................ 12
Tray 1 paper orientation ................................................................................................................................... 15
Load and print envelopes ..................................................................................................................................................... 17
Introduction ........................................................................................................................................................ 17
Print envelopes .................................................................................................................................................. 17
Envelope orientation ......................................................................................................................................... 17
Load and print labels ............................................................................................................................................................. 18
Introduction ........................................................................................................................................................ 18
Manually feed labels ......................................................................................................................................... 18
Label orientation ............................................................................................................................................... 18
3 Supplies, accessories, and parts .......................................................................................................................................................... 19
Order supplies, accessories, and parts ............................................................................................................................... 20
Ordering .............................................................................................................................................................. 20
ENWW iii
Supplies and accessories ................................................................................................................................. 20
Customer self-repair parts ............................................................................................................................... 20
Replace the toner cartridges ................................................................................................................................................ 22
Introduction ........................................................................................................................................................ 22
Remove and replace the toner cartridges ..................................................................................................... 24
4 Print .......................................................................................................................................................................................................... 27
Print tasks (Windows) ............................................................................................................................................................ 28
How to print (Windows) .................................................................................................................................... 28
Manually print on both sides (Windows) ........................................................................................................ 28
Print multiple pages per sheet (Windows) .................................................................................................... 29
Select the paper type (Windows) .................................................................................................................... 29
Print tasks (OS X) .................................................................................................................................................................... 31
How to print (OS X) ............................................................................................................................................ 31
Manually print on both sides (OS X) ................................................................................................................ 31
Print multiple pages per sheet (OS X) ............................................................................................................ 31
Select the paper type (OS X) ............................................................................................................................ 32
Mobile printing ........................................................................................................................................................................ 33
Introduction ........................................................................................................................................................ 33
Wi-Fi Direct (wireless models only) ................................................................................................................ 33
Enable or disable Wi-Fi Direct ..................................................................................................... 34
Change the printer Wi-Fi Direct name ....................................................................................... 35
HP ePrint via email ............................................................................................................................................ 36
HP ePrint software ............................................................................................................................................ 36
AirPrint ................................................................................................................................................................. 37
Android embedded printing ............................................................................................................................. 37
5 Manage the printer ................................................................................................................................................................................. 39
Change the printer connection type (Windows) ................................................................................................................ 40
Advanced conguration with HP Embedded Web Server (EWS) and HP Device Toolbox (Windows) ....................... 41
Congure IP network settings .............................................................................................................................................. 44
Introduction ........................................................................................................................................................ 44
Printer sharing disclaimer ................................................................................................................................ 44
View or change network settings ................................................................................................................... 44
Rename the printer on a network .................................................................................................................. 45
Manually congure IPv4 TCP/IP parameters ................................................................................................. 46
Printer security features ....................................................................................................................................................... 47
Introduction ........................................................................................................................................................ 47
Assign or change the system password using the HP Embedded Web Server ...................................... 47
Energy-conservation settings .............................................................................................................................................. 49
Introduction ........................................................................................................................................................ 49
iv ENWW
Print with EconoMode ....................................................................................................................................... 49
Set the Sleep/Auto O After Inactivity setting .............................................................................................. 49
Set the Shut Down After Inactivity delay and congure the printer to use 1 watt or less of power .... 50
Set the Delay Shut Down setting .................................................................................................................... 51
HP Web Jetadmin ................................................................................................................................................................... 53
Update the rmware ............................................................................................................................................................. 54
Update the rmware using the Firmware Update Utility ............................................................................ 54
6 Solve problems ....................................................................................................................................................................................... 55
Customer support .................................................................................................................................................................. 56
Interpret control-panel light patterns ................................................................................................................................ 57
Restore the factory-set defaults ......................................................................................................................................... 59
A “Cartridge is low” or “Cartridge is very low” message displays on the printer control panel ................................. 60
Change the “Very Low” settings ...................................................................................................................... 60
Order supplies .................................................................................................................................................... 61
Printer does not pick up paper or misfeeds ....................................................................................................................... 62
Introduction ........................................................................................................................................................ 62
The product does not pick up paper ............................................................................................................... 62
The product picks up multiple sheets of paper ............................................................................................ 62
Clear paper jams .................................................................................................................................................................... 63
Introduction ........................................................................................................................................................ 63
Paper jam locations ........................................................................................................................................... 63
Experiencing frequent or recurring paper jams? .......................................................................................... 64
Clear paper jams in Tray 1 ............................................................................................................................... 66

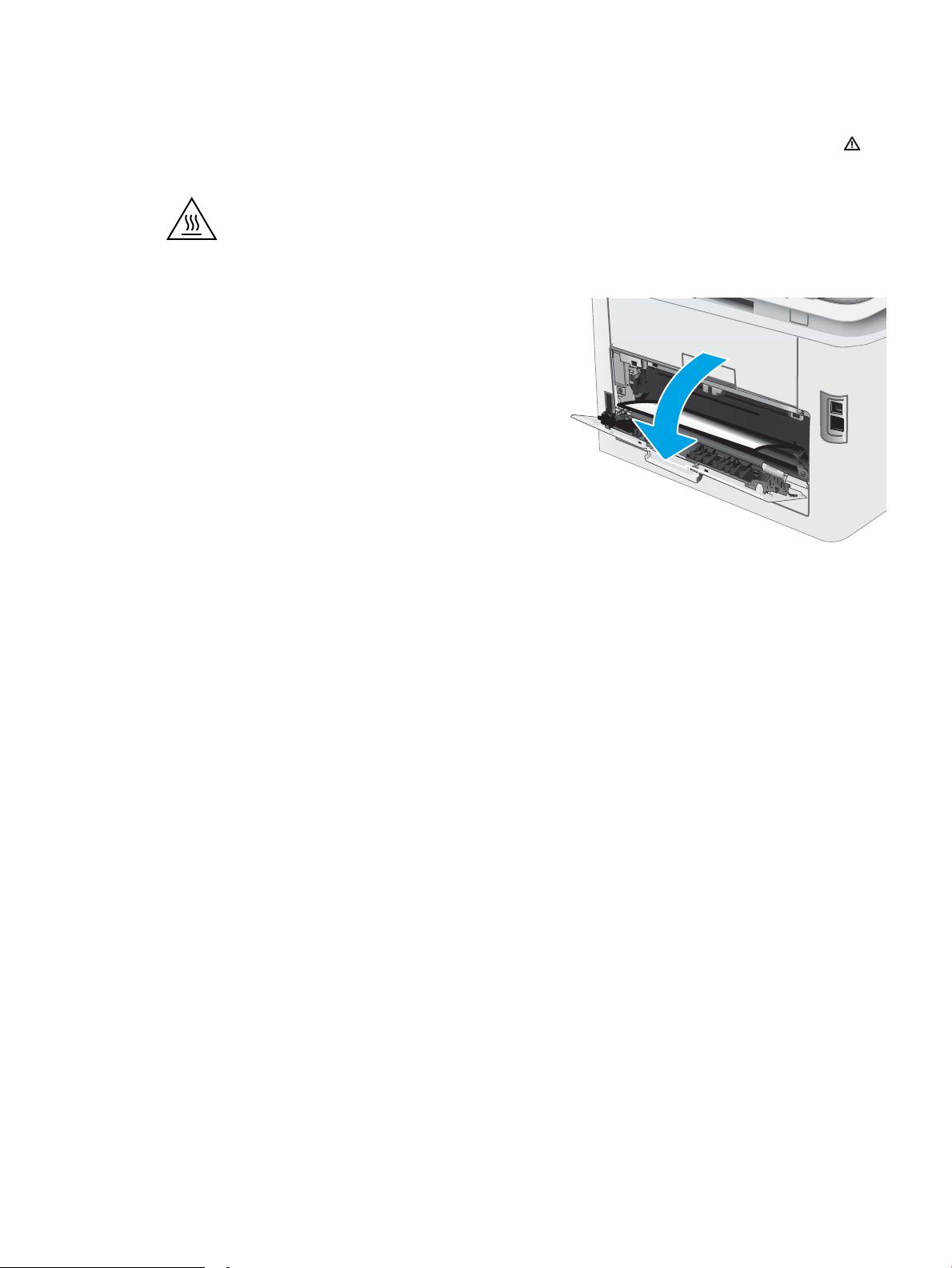

Clear paper jams in the rear door and the fuser area ................................................................................. 67

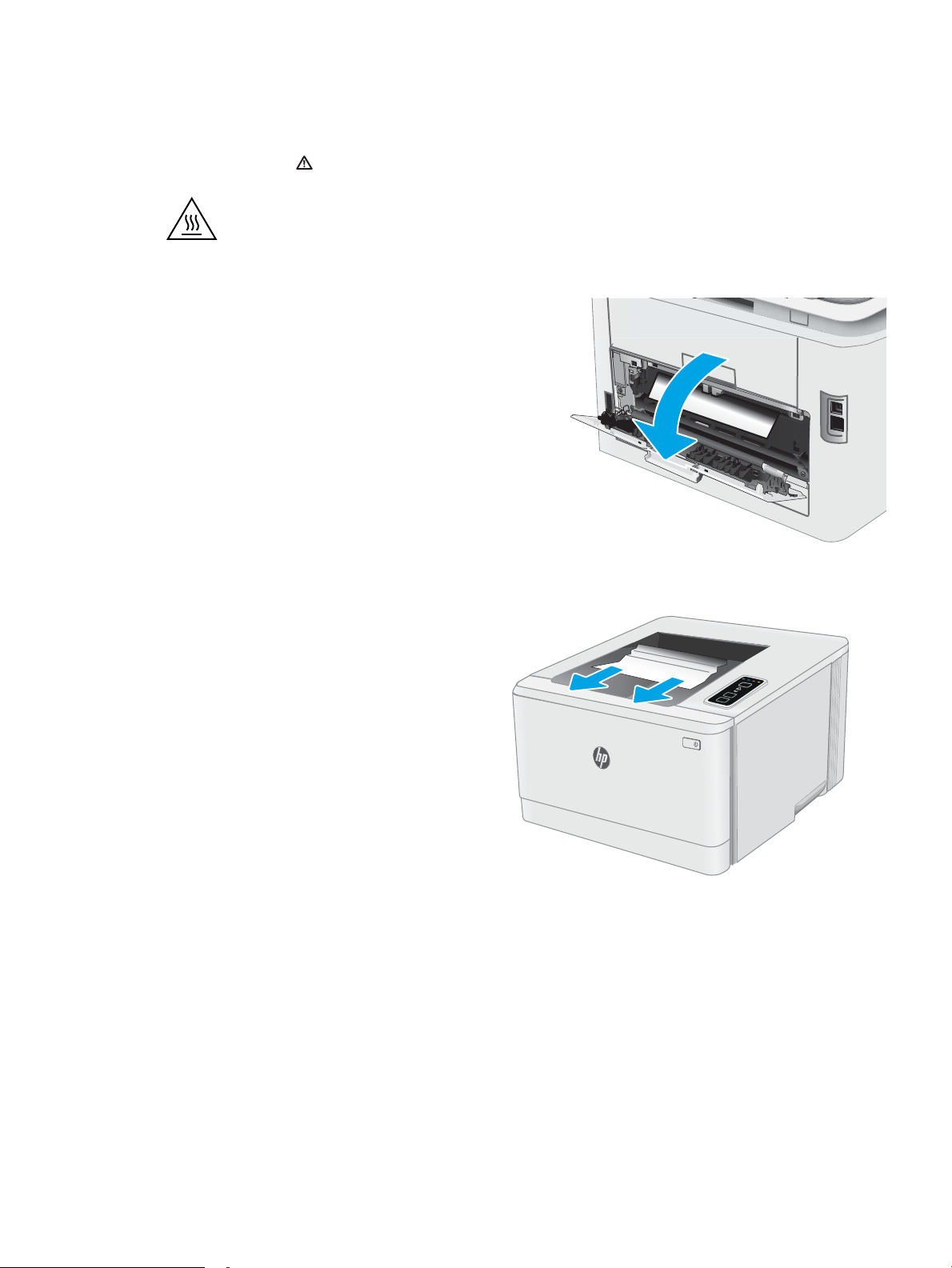

Clear paper jams in the output bin ................................................................................................................. 69
Improve print quality ............................................................................................................................................................. 71
Introduction ........................................................................................................................................................ 71
Update the printer rmware ............................................................................................................................ 72
Print from a dierent software program ....................................................................................................... 72
Check the paper-type setting for the print job ............................................................................................. 72
Check the paper type setting on the printer ............................................................................ 72
Check the paper type setting (Windows) .................................................................................. 72
Check the paper type setting (OS X) .......................................................................................... 72
Check toner-cartridge status ........................................................................................................................... 73
Print a cleaning page ........................................................................................................................................ 73
Visually inspect the toner cartridge or cartridges ........................................................................................ 74
Check paper and the printing environment ................................................................................................... 74
Step one: Use paper that meets HP specications ................................................................. 74
Step two: Check the environment .............................................................................................. 74
Step three: Set the individual tray alignment ........................................................................... 75
ENWW v
Try a dierent print driver ................................................................................................................................ 76
Check the EconoMode settings ....................................................................................................................... 76
Adjust Print Density ........................................................................................................................................... 77
Calibrate the printer to align the colors ......................................................................................................... 78
Adjust color settings (Windows) ...................................................................................................................... 79
Print and interpret the print quality page ...................................................................................................... 79
Resolving print quality problems ......................................................................................................................................... 81
Introduction ........................................................................................................................................................ 81
Troubleshoot print quality problems ............................................................................................................. 81
Solve wired network problems ............................................................................................................................................ 89
Introduction ........................................................................................................................................................ 89
Poor physical connection ................................................................................................................................. 89
The computer is unable to communicate with the printer ......................................................................... 89
The printer is using incorrect link and duplex settings for the network ................................................... 90
New software programs might be causing compatibility problems ......................................................... 90
The computer or workstation might be set up incorrectly ......................................................................... 90
The printer is disabled, or other network settings are incorrect ............................................................... 90
Solve wireless network problems ....................................................................................................................................... 91
Introduction ........................................................................................................................................................ 91
Wireless connectivity checklist ........................................................................................................................ 91
The printer does not print after the wireless conguration completes .................................................... 92
The printer does not print, and the computer has a third-party rewall installed ................................. 92
The wireless connection does not work after moving the wireless router or printer ............................ 92
Cannot connect more computers to the wireless printer ........................................................................... 92
The wireless printer loses communication when connected to a VPN ..................................................... 93
The network does not appear in the wireless networks list ...................................................................... 93
The wireless network is not functioning ........................................................................................................ 93
Perform a wireless network diagnostic test ................................................................................................. 93
Reduce interference on a wireless network ................................................................................................. 94
Index ............................................................................................................................................................................................................. 95
vi ENWW

1 Printer overview

Printer views
Printer specications
Printer hardware setup and software installation
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/ljM153.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 1

Printer views

6
3
4
7
2
5
1

Printer front view

Printer back view
Control panel view
Printer front view
1 Control panel
2 Output bin
3 Output bin extension
4 Front door (access to the toner cartridges)
5 Model name
6 Tray 1
7 Power button
2 Chapter 1 Printer overview ENWW

Printer back view

2
5
4
3
1
1 Rear door (access for clearing jams)
2 Power connection
3 Serial number and product number label
4 USB interface port
5 Ethernet port (network models only)
ENWW Printer views 3

Control panel view

5
6
4
2
3
1
1 Supplies LEDs A Supplies light blinks when a supply error occurs, and it glows without blinking when the
supply is very low and replacement is required.
2
Wireless button and LED
(wireless models only)
3 Attention LED The Attention light blinks when the printer requires user attention. If the Attention light is
4 Ready LED The Ready light is on when the printer is ready to print. It blinks when the printer is
5
Resume button
6
Cancel button
Press this button to turn the wireless feature on or o, or to congure a WiFi Direct connection.
Press and hold this button to congure a WPS connection.
If the wireless LED light is on, there is a stable wireless connection. If it is blinking, there is either a WPS or WiFi Direct conguration process in progress. If it is blinking rapidly, there is an issue with the wireless connection.
on, the printer is in an error state.
receiving print data.
Press this button to begin a print job.
If the printer is in an error state, press the Resume button to clear the error and resume printing.
In manual duplex mode, press the Resume button to print the second side of the page.
Press this button to cancel a print job.
4 Chapter 1 Printer overview ENWW
Printer specications
IMPORTANT: The following specications are correct at the time of publication, but they are subject to change.
For current information, see www.hp.com/support/ljM153.
Technical specications

Supported operating systems

Mobile printing solutions
Printer dimensions
Power consumption, electrical specications, and acoustic emissions
Operating environmental range
Technical specications
See www.hp.com/support/ljM153 for current information.
Supported operating systems
The following information applies to the printer-specic Windows PCL 6 and HP print drivers for OS X and to the software installer.
Windows: The HP Software Installer installs the “HP PCL.6” version 3 print driver, the “HP PCL 6” version 3 print driver, or the “HP PCL-6” version 4 print driver, depending on the Windows operating system, along with optional software when using the software installer. Download the "HP PCL.6" version 3 print driver, the "HP PCL 6" version 3 print driver, and the "HP PCL-6" version 4 print driver from the printer-support website for this printer: www.hp.com/support/ljM153.
OS X: Mac computers are supported with this printer. Download HP Easy Start either from 123.hp.com/LaserJet or from the Printer Support page, and then use HP Easy Start to install the HP print driver. HP Easy Start is not included in the HP Software Installer.
1. Go to 123.hp.com/LaserJet.
2. Follow the steps provided to download the printer software.
Linux: For information and print drivers for Linux, go to www.hp.com/go/linuxprinting.
UNIX: For information and print drivers for UNIX®, go to www.hp.com/go/unixmodelscripts.
Table
1-1 Supported operating systems and print drivers
Operating system Print driver installed (from the software on
the web)
Windows® XP SP3, 32-bit
The “HP PCL.6” printer-specic print driver is installed for this operating system as part of the software installation.
Notes
Microsoft retired mainstream support for Windows XP in April 2009. HP will continue to provide best eort support for the discontinued XP operating system. Some features of the print driver are not supported.
ENWW Printer specications 5
Table 1-1 Supported operating systems and print drivers (continued)
Operating system Print driver installed (from the software on
the web)
Windows Vista®, 32-bit
Windows 7, 32-bit and 64-bit The “HP PCL 6” printer-specic print driver is
Windows 8, 32-bit and 64-bit The “HP PCL 6” printer-specic print driver is
Windows 8.1, 32-bit and 64-bit The “HP PCL-6” V4 printer-specic print
Windows 10, 32-bit and 64-bit The “HP PCL-6” V4 printer-specic print
Windows Server 2008 SP2, 32-bit The “HP PCL.6” printer-specic print driver is
The “HP PCL.6” printer-specic print driver is installed for this operating system as part of the software installation.
installed for this operating system as part of the software installation.
installed for this operating system as part of the software installation.
driver is installed for this operating system as part of the software installation.
driver is installed for this operating system as part of the software installation.
available for download from the printer­support website. Download the driver, and then use the Microsoft Add Printer tool to install it.
Notes
Microsoft retired mainstream support for Windows Vista in April 2012. HP will continue to provide best eort support for the discontinued Vista operating system. Some features of the print driver are not supported.
Windows 8 RT support is provided through Microsoft IN OS Version 4, 32- bit driver.
Windows 8.1 RT support is provided through Microsoft IN OS Version 4, 32- bit driver.
Microsoft retired mainstream support for Windows Server 2008 in January 2015. HP will continue to provide best eort support for the discontinued Server 2008 operating system. Some features of the print driver are not supported.
Windows Server 2008 SP2, 64-bit The “HP PCL 6” printer-specic print driver is
available for download from the printer­support website. Download the driver, and then use the Microsoft Add Printer tool to install it.
Windows Server 2008 R2, SP 1, 64-bit The “HP PCL 6” printer-specic print driver is
installed for this operating system as part of the software installation.
Windows Server 2012, 64-bit The “HP PCL 6” printer-specic print driver is
installed for this operating system as part of the software installation.
Windows Server 2012 R2, 64-bit The “HP PCL-6” printer-specic print driver is
installed for this operating system as part of the software installation.
Windows 10 server (Server 2016), 32-bit and 64-bit
OS X 10.10 Yosemite, OS X 10.11 El Capitan, OS X 10.12 Sierra
The “HP PCL-6” printer-specic print driver is installed for this operating system as part of the software installation.
To install the print driver, download HP Easy Start from 123.hp.com/LaserJet. Follow the steps provided to install the printer software and print driver.
Microsoft retired mainstream support for Windows Server 2008 in January 2015. HP will continue to provide best eort support for the discontinued Server 2008 operating system.
NOTE: For a current list of supported operating systems, go to www.hp.com/support/ljM153 for HP's all-
inclusive help for the printer.
6 Chapter 1 Printer overview ENWW
NOTE: For HP UPD driver support for this printer, go to www.hp.com/go/upd. Under Additional information,
click the links.
Table 1-2 Minimum system requirements
Windows OS X
CD-ROM drive, DVD drive, or an Internet connection
Dedicated USB 1.1 or 2.0 connection or a network connection
400 MB of available hard-disk space
1 GB RAM (32-bit) or 2 GB RAM (64-bit)

Mobile printing solutions

HP oers multiple mobile and ePrint solutions to enable easy printing to an HP printer from a laptop, tablet, smartphone, or other mobile device. To see the full list and to determine the best choice, go to www.hp.com/go/
LaserJetMobilePrinting.
NOTE: Update the printer rmware to ensure all mobile printing and ePrint capabilities are supported.
Wi-Fi Direct (wireless models only)
HP ePrint via email (Requires HP Web Services to be enabled and the printer to be registered with
HP Connected)
HP ePrint app (Available for Android, iOS, and Blackberry)
HP All-in-One Remote app for iOS and Android devices
HP ePrint software
Internet connection
1 GB of available hard-disk space
Google Cloud Print
AirPrint
Android Printing
ENWW Printer specications 7

Printer dimensions

3
2
1
3
2
1
Figure 1-1 Dimensions for the printer
1. Height 244.2 mm (9.6 in) 244.2 mm (9.6 in)
2. Depth 379.6 mm (14.9 in) 855 mm (33.7 in)
3. Width 392 mm (15.4 in) 392 mm (15.4 in)
Printer fully closed Printer fully open
Weight (with cartridges) 13.3 kg (29.3 lb)
Power consumption, electrical specications, and acoustic emissions
See www.hp.com/support/ljM153 for current information.
CAUTION: Power requirements are based on the country/region where the printer is sold. Do not convert
operating voltages. This will damage the printer and void the printer warranty.

Operating environmental range

Table
1-3 Operating environmental range
Environment Recommended Allowed
Temperature 17° to 25°C (62.6° to 77°F) 15° to 30°C (59° to 86°F)
Relative humidity 30% to 70% relative humidity (RH) 10% to 80% (RH)
8 Chapter 1 Printer overview ENWW

Printer hardware setup and software installation

For basic setup instructions, see the Setup Poster and Getting Started Guide that came with the printer. For additional instructions, go to HP support on the Web.
Go to www.hp.com/support/ljM153 for HP's all-inclusive help for the printer. Find the following support:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW Printer hardware setup and software installation 9
10 Chapter 1 Printer overview ENWW

2 Paper trays

Introduction
Load Tray 1
Load and print envelopes
Load and print labels
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/ljM153.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 11

Introduction

CAUTION: Do not extend more than one paper tray at a time.
Do not use paper tray as a step.
Keep hands out of paper trays when closing.
All trays must be closed when moving the printer.

Load Tray 1

Introduction

The following information describes how to load paper into Tray 1. This tray holds up to 150 sheets of 75 g/m (20 lb) paper.
NOTE: To avoid paper jams:
Never add or remove paper from the tray during printing.
Before loading the tray, remove all of the paper from the input tray and straighten the stack.
When loading the tray, do not fan the paper.
Use paper that is not wrinkled, folded, or damaged.
1. Open the tray.
NOTE: Do not open this tray while it is in use.
2
12 Chapter 2 Paper trays ENWW
2. Adjust the paper guides by squeezing the
adjustment latches and sliding the guides to the size of the paper being used.
NOTE: To load legal-size paper, extend the tray
front by pressing the blue latch and pulling the front of the tray. When loaded with legal-size paper, Tray 1 extends from the front of the printer approximately 57.5 mm (2.2 in).
3. Load the paper into the tray. For information about
how to orient the paper, see Tray 1 paper
orientation on page 15.
ENWW Load Tray 1 13
4. Adjust the guides so that they lightly touch the
paper stack, but do not bend it.
NOTE: Do not adjust the paper guides tightly
against the paper stack.
NOTE: To prevent jams, adjust the paper guides
to the correct size and do not overll the tray.
5. Close the tray.
14 Chapter 2 Paper trays ENWW

Tray 1 paper orientation

123
When using paper that requires a specic orientation, load it according to the information in the following table.
Paper type Image orientation Output Paper size How to load paper
Letterhead or preprinted
Portrait 1-sided printing Letter, Legal, Executive,
Ocio (8.5 x 13), A4, A6, B5 (JIS), B5 (ISO), Postcard #10, Japanese Postcard (Postcard (JIS)), Double Japan Postcard Rotated (Double Postcard (JIS))
2-sided printing Letter, Legal, Executive,
Ocio (8.5 x 13), A4, A6, B5 (JIS), B5 (ISO), Postcard #10, Japanese Postcard (Postcard (JIS)), Double Japan Postcard Rotated (Double Postcard (JIS))
Face-up
Top edge toward the back of the tray
Face-down
Top edge toward the back of the tray
Landscape 1-sided printing A5 Face-up
Top edge toward the back of the tray
ENWW Load Tray 1 15
Paper type Image orientation Output Paper size How to load paper
2-sided printing A5 Face-down
Top edge toward the back of the tray
Prepunched Portrait 1-sided printing or 2-
sided printing
Landscape 1-sided printing or 2-
sided printing
Letter, Legal, Executive, Ocio (8.5 x 13), A4, A6, B5 (JIS), B5 (ISO), Postcard #10, Japanese Postcard (Postcard (JIS)), Double Japan Postcard Rotated (Double Postcard (JIS))
A5 Face-up
Face-up
Holes toward the left side of the tray
Holes toward the front of the tray
16 Chapter 2 Paper trays ENWW

Load and print envelopes

Introduction

The following information describes how to print and load envelopes. Tray 1 holds up to 5 envelopes.
To print envelopes using the manual feed option, follow these steps to select the correct settings in the print driver, and then load the envelopes into the tray after sending the print job to the printer.

Print envelopes

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click or tap the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen, select Devices, select Print, and
then select the printer.
3. Click or tap the Paper/Quality tab.
4. In the Paper size drop-down list, select the correct size for the envelopes.
5. In the Paper type drop-down list, select Envelope.
6. In the Paper source drop-down list, select Manual feed.
7. Click the OK button to close the Document Properties dialog box.
8. In the Print dialog box, click the OK button to print the job.

Envelope orientation

Tray Envelope size How to load envelopes
Tray 1 Envelope #10, Envelope Monarch,
Face up
Envelope B5, Envelope C5, Envelope DL
Short, postage end toward the back of the tray
ENWW Load and print envelopes 17

Load and print labels

Introduction

The following information describes how to print and load labels. Tray 1 holds up to 50 sheets of labels.
To print labels using the manual feed option, follow these steps to select the correct settings in the print driver, and then load the labels into the tray after sending the print job to the printer. When using manual feed, the printer waits to print the job until it detects that the tray has been opened.

Manually feed labels

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click or tap the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: To access these features from a Windows 8 or 8.1 Start screen, select Devices, select Print, and
then select the printer.
3. Click the Paper/Quality tab.
4. In the Paper size drop-down list, select the correct size for the sheets of labels.
5. In the Paper type drop-down list, select Labels.
6. In the Paper source drop-down list, select Manual feed.
7. Click the OK button to close the Document Properties dialog box.
8. In the Print dialog box, click the OK button to print the job.

Label orientation

Tray How to load labels
Tray 1 Face-up
Top edge toward the back of the tray
18 Chapter 2 Paper trays ENWW

3 Supplies, accessories, and parts

Order supplies, accessories, and parts
Replace the toner cartridges
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/ljM153.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 19

Order supplies, accessories, and parts

Ordering

Order supplies and paper www.hp.com/go/suresupply
Order genuine HP parts or accessories www.hp.com/buy/parts
Order through service or support providers Contact an HP-authorized service or support provider.
Order using the HP Embedded Web Server (EWS) To access, in a supported Web browser on the computer, enter the
printer IP address or host name in the address/URL eld. The EWS contains a link to the HP SureSupply Web site, which provides options for purchasing Original HP supplies.

Supplies and accessories

Item Description Cartridge number Part number
Supplies
For use only in North America, Latin America, Asia Pacic Countries/Regions, and Japan
HP 204A Black Original LaserJet Toner Cartridge
HP 204A Cyan Original LaserJet Toner Cartridge
HP 204A Yellow Original LaserJet Toner Cartridge
HP 204A Magenta Original LaserJet Toner Cartridge
For use only in Europe, Russia, CIS, Middle East, and Africa
HP 205A Black Original LaserJet Toner Cartridge
HP 205A Cyan Original LaserJet Toner Cartridge
HP 205A Yellow Original LaserJet Toner Cartridge
HP 205A Magenta Original LaserJet Toner Cartridge
Standard-capacity replacement black toner cartridge
Standard-capacity replacement cyan toner cartridge
Standard-capacity replacement yellow toner cartridge
Standard-capacity replacement magenta toner cartridge
Standard-capacity replacement black toner cartridge
Standard-capacity replacement cyan toner cartridge
Standard-capacity replacement yellow toner cartridge
Standard-capacity replacement magenta toner cartridge

Customer self-repair parts

204A CF510A
204A CF511A
204A CF512A
204A CF513A
205A CF530A
205A CF531A
205A CF532A
205A CF533A
Customer Self-Repair (CSR) parts are available for many HP LaserJet printers to reduce repair time. More information about the CSR program and benets can be found at www.hp.com/go/csr-support and
www.hp.com/go/csr-faq.
Genuine HP replacement parts can be ordered at www.hp.com/buy/parts or by contacting an HP-authorized service or support provider. When ordering, one of the following will be needed: part number, serial number (found on back of printer), product number, or printer name.
20 Chapter 3 Supplies, accessories, and parts ENWW
Parts listed as Mandatory self-replacement are to be installed by customers, unless you are willing to pay
HP service personnel to perform the repair. For these parts, on-site or return-to-depot support is not provided under the HP printer warranty.
Parts listed as Optional self-replacement can be installed by HP service personnel at your request for no
additional charge during the printer warranty period.
Self-replacement
Item Description
150-sheet paper input tray Replacement cassette for Tray 1 Mandatory RM2-1684-000
options Part number
ENWW Order supplies, accessories, and parts 21

Replace the toner cartridges

Introduction

This printer indicates when the toner cartridge level is low. The actual toner cartridge life remaining can vary. Consider having a replacement cartridge available to install when print quality is no longer acceptable.
To purchase cartridges or check cartridge compatibility for the printer, go to HP SureSupply at www.hp.com/go/
suresupply. Scroll to the bottom of the page and verify that the country/region is correct.
The printer uses four colors and has a dierent toner cartridge for each color: yellow (Y), magenta (M), cyan (C), and black (K). The toner cartridges are inside the front door.
Item Description Cartridge number Part number
For use only in North America, Latin America, Asia Pacic Countries/Regions, and Japan
HP 204A Black Original LaserJet Toner Cartridge
HP 204A Cyan Original LaserJet Toner Cartridge
HP 204A Yellow Original LaserJet Toner Cartridge
HP 204A Magenta Original LaserJet Toner Cartridge
For use only in Europe, Russia, CIS, Middle East, and Africa
HP 205A Black Original LaserJet Toner Cartridge
HP 205A Cyan Original LaserJet Toner Cartridge
HP 205A Yellow Original LaserJet Toner Cartridge
HP 205A Magenta Original LaserJet Toner Cartridge
Standard-capacity replacement black toner cartridge
Standard-capacity replacement cyan toner cartridge
Standard-capacity replacement yellow toner cartridge
Standard-capacity replacement magenta toner cartridge
Standard-capacity replacement black toner cartridge
Standard-capacity replacement cyan toner cartridge
Standard-capacity replacement yellow toner cartridge
Standard-capacity replacement magenta toner cartridge
Do not remove the toner cartridge from its package until it is time to install it.
204A CF510A
204A CF511A
204A CF512A
204A CF513A
205A CF530A
205A CF531A
205A CF532A
205A CF533A
CAUTION: To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. If
the toner cartridge must be removed from the printer for an extended period of time, place the cartridge in the original plastic packaging, or cover the cartridge with a light-weight, opaque item.
The following illustration shows the toner-cartridge components.
22 Chapter 3 Supplies, accessories, and parts ENWW
2
1
3
1 Handle
2 Imaging drum
3 Memory chip
CAUTION: If toner gets on clothing, wipe it o by using a dry cloth and wash the clothes in cold water. Hot water
sets toner into fabric.
NOTE: Information about recycling used toner cartridges is in the toner cartridge box.
ENWW Replace the toner cartridges 23

Remove and replace the toner cartridges

1. Open the front door.
2. Grasp the blue handle on the toner cartridge
drawer, and then pull out the drawer.
3. Grasp the handle on the toner cartridge, and then
pull the toner cartridge straight up to remove it.
24 Chapter 3 Supplies, accessories, and parts ENWW
4. Remove the new toner cartridge package from the
box, and then pull the release tab on the packaging.
5. Remove the toner cartridge from the opened
packaging shell. Save all packaging for recycling the used toner cartridge.
NOTE: Avoid touching the green imaging drum.
Fingerprints on the imaging drum can cause print defects.
6. Holding the toner on both ends, gently rock the
toner cartridge end to end to distribute the toner evenly inside the cartridge.
ENWW Replace the toner cartridges 25
7. Install the new toner cartridge. Make sure that the
color chip on the cartridge matches the color chip on the drawer.
NOTE: Avoid touching the green imaging drum.
Fingerprints on the imaging drum can cause print defects.
8. Close the toner cartridge drawer.
9. Close the front door.
26 Chapter 3 Supplies, accessories, and parts ENWW

4 Print

Print tasks (Windows)
Print tasks (OS X)
Mobile printing
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/ljM153.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 27

Print tasks (Windows)

How to print (Windows)

The following procedure describes the basic printing process for Windows.
1. From the software program, select the Print option.
2. Select the printer from the list of printers. To change settings, click the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: In Windows 10, 8.1, and 8, these applications will have a dierent layout with dierent features
from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:
Windows 10: Select Print, and then select the printer.
Windows 8.1 or 8: Select Devices, select Print, and then select the printer.
For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.
NOTE: For more information, click the Help (?) button in the print driver.
3. Click the tabs in the print driver to congure the available options. For example, set the paper orientation
on the Finishing tab, and set the paper source, paper type, paper size, and quality settings on the Paper/ Quality tab.
4. Click the OK button to return to the Print dialog box. Select the number of copies to print from this screen.
5. Click the Print button to print the job.

Manually print on both sides (Windows)

Use this procedure for printers that do not have an automatic duplexer installed or to print on paper that the duplexer does not support.
1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click the Properties or Preferences button to open the
print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: In Windows 10, 8.1, and 8, these applications will have a dierent layout with dierent features
from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:
Windows 10: Select Print, and then select the printer.
Windows 8.1 or 8: Select Devices, select Print, and then select the printer.
For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.
3. Click the Finishing tab.
28 Chapter 4 Print ENWW
4. Select Print on both sides (manually), and then click OK to close the Document Properties dialog.
5. In the Print dialog, click Print to print the rst side of the job.
6. Retrieve the printed stack from the output bin, and place it in Tray 1.
7. If prompted, select the appropriate control panel button to continue.

Print multiple pages per sheet (Windows)

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click the Properties or Preferences button to open the
print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: In Windows 10, 8.1, and 8, these applications will have a dierent layout with dierent features
from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:
Windows 10: Select Print, and then select the printer.
Windows 8.1 or 8: Select Devices, select Print, and then select the printer.
For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.
3. Click the Finishing tab.
4. Select the number of pages per sheet from the Pages per sheet drop-down.
5. Select the correct Print page borders, Page order, and Orientation options. Click OK to close the Document
Properties dialog.
6. In the Print dialog, click Print to print the job.

Select the paper type (Windows)

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click or tap the Properties or Preferences button to
open the print driver.
NOTE: The name of the button varies for dierent software programs.
NOTE: In Windows 10, 8.1, and 8, these applications will have a dierent layout with dierent features
from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:
Windows 10: Select Print, and then select the printer.
Windows 8.1 or 8: Select Devices, select Print, and then select the printer.
For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.
3. Click the Paper/Quality tab.
ENWW Print tasks (Windows) 29
4. Select the option for the type of paper you are using, and then click OK.
5. Click OK to close the Document Properties dialog.
6. In the Print dialog, click Print to print the job.
30 Chapter 4 Print ENWW

Print tasks (OS X)

How to print (OS X)

The following procedure describes the basic printing process for OS X.
1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then select other menus to adjust the print settings.
NOTE: The name of the item varies for dierent software programs.
4. Click the Print button.

Manually print on both sides (OS X)

NOTE: This feature is available if you install the HP print driver. It might not be available if you are using AirPrint.
1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Manual Duplex menu.
NOTE: The name of the item varies for dierent software programs.
4. Click the Manual Duplex box, and select a binding option.
5. Click the Print button.
6. Go to the printer, and remove any blank paper that is in Tray 1.
7. Retrieve the printed stack from the output bin and place it with the printed-side facing down in the input
tray.
8. If prompted, touch the appropriate control panel button to continue.

Print multiple pages per sheet (OS X)

1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Layout menu.
NOTE: The name of the item varies for dierent software programs.
4. From the Pages per Sheet drop-down list, select the number of pages that you want to print on each sheet.
5. In the Layout Direction area, select the order and placement of the pages on the sheet.
6. From the Borders menu, select the type of border to print around each page on the sheet.
7. Click the Print button.
ENWW Print tasks (OS X) 31

Select the paper type (OS X)

1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Media & Quality menu or the Paper/Quality menu.
NOTE: The name of the item varies for dierent software programs.
4. Select from the Media & Quality or Paper/Quality options.
NOTE: This list contains the master set of options available. Some options are not available on all
printers.
Media Type: Select the option for the type of paper for the print job.
Print Quality: Select the resolution level for the print job.
Edge-To-Edge Printing: Select this option to print close to the paper edges.
EconoMode: Select this option to conserve toner when printing drafts of documents.
5. Click the Print button.
32 Chapter 4 Print ENWW

Mobile printing

Introduction

HP oers multiple mobile and ePrint solutions to enable easy printing to an HP printer from a laptop, tablet, smartphone, or other mobile device. To see the full list and to determine the best choice, go to www.hp.com/go/
LaserJetMobilePrinting.
NOTE: Update the printer rmware to ensure all mobile printing and ePrint capabilities are supported.

Wi-Fi Direct (wireless models only)

HP ePrint via email
HP ePrint software
AirPrint
Android embedded printing
Wi-Fi Direct (wireless models only)
Wi-Fi Direct enables printing from a wireless mobile device without requiring a connection to a network or the Internet.
Wi-Fi Direct does not support all mobile operating systems. If the mobile device does not support Wi-Fi Direct, you must change the wireless network connection of the device to the Wi-Fi Direct connection of the printer before printing.
NOTE: For non-Wi-Fi Direct capable mobile devices, the Wi-Fi Direct connection only enables printing. After
using Wi-Fi Direct to print, you must reconnect to a local network in order to access the Internet.
To access the printer Wi-Fi Direct connection, complete the following steps:
1. Print a conguration page to determine the IP address or host name.
Press and hold the Resume button until the Ready light begins blinking.
a.
Release the Resume button.
b.
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the
printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be safe,
select the option to continue to the website. Accessing this website will not harm the computer.
3. On the Networking tab, click the Wi-Fi Direct Setup link in the left navigation pane.
4. Choose one of the following connection methods:
Manual
Automatic
ENWW Mobile printing 33
5. On the mobile device, open the Wi-Fi or the Wi-Fi Direct menu.
6. From the list of available networks, select the printer name.
NOTE: If the printer name does not display, you might be out of range of the Wi-Fi Direct signal. Move the
device closer to the printer.
7. If prompted, enter the Wi-Fi Direct password.
NOTE: For Android devices that support Wi-Fi Direct, if the connection method is set to Automatic, the
connection will occur automatically, without a password prompt. If the connection method is set to Manual, you will need to either press the OK button, or provide a personal identication number (PIN) — displayed on the printer control panel — as a password on the mobile device.
NOTE: To access the Wi-Fi Direct password, from the EWS open the Networking tab, and then click Wi-Fi
Direct Setup.
8. Open the document, and then select the Print option.
NOTE: If the mobile device does not support printing, install the HP ePrint mobile app.
9. Select the printer from the list of available printers, and then select Print.
10. After the print job is complete, some mobile devices need to be reconnected to the local network.
The following devices and computer operating systems support Wi-Fi Direct:
Android 4.0 and later tablets and phones with the HP Print Service or Mopria mobile printing plugin
installed
Most Windows 8.1 computers, tablets, and laptops that have the HP print driver installed
The following devices and computer operating systems do not support Wi-Fi Direct, but can print to a printer that does:
Apple iPhone and iPad
Mac computers running OS X
For more information on Wi-Fi Direct printing, go to www.hp.com/go/wirelessprinting.
Wi-Fi Direct capabilities can be enabled or disabled from the HP Embedded Web Server (EWS).
Enable or disable Wi-Fi Direct
Wi-Fi Direct capabilities must be enabled rst from the printer EWS.
Step one: Open the HP Embedded Web Server
1. Print a conguration page to determine the IP address or host name.
a. Press and hold the Resume button until the Ready light begins blinking.
b. Release the Resume button.
34 Chapter 4 Print ENWW
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the
printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be safe,
select the option to continue to the website. Accessing this website will not harm the computer.
Step two: Enable or disable Wi-Fi Direct
1. On the Networking tab, click the Wi-Fi Direct Setup link in the left navigation pane.
2. Select the On option, and then click Apply. Selecting the O option disables Wi-Fi Direct printing.
NOTE: In environments where more than one model of the same printer is installed, it might be helpful to
provide each printer a unique Wi-Fi Direct name for easier printer identication for Wi-Fi Direct printing.
Change the printer Wi-Fi Direct name
Follow this procedure to change the printer Wi-Fi Direct name using the HP Embedded Web Server (EWS):
Step one: Open the HP Embedded Web Server
1. Print a conguration page to determine the IP address or host name.
Press and hold the Resume button until the Ready light begins blinking.
a.
Release the Resume button.
b.
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the
printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be safe,
select the option to continue to the website. Accessing this website will not harm the computer.
Step two: Change the Wi-Fi Direct name
1. On the Networking tab, click the Wi-Fi Direct Setup link in the left navigation pane.
2. In the Wi-Fi Direct Name eld, enter the new name.
3. Click Apply.
ENWW Mobile printing 35

HP ePrint via email

Use HP ePrint to print documents by sending them as an email attachment to the printer's email address from any email enabled device.
To use HP ePrint, the printer must meet these requirements:
The printer must be connected to a wired or wireless network and have Internet access.
HP Web Services must be enabled on the printer, and the printer must be registered with HP Connected.
Follow this procedure to enable HP Web Services and register with HP Connected:
Step one: Open the HP Embedded Web Server
1. Print a conguration page to determine the IP address or host name.
a. Press and hold the Resume button until the Ready light begins blinking.
b. Release the Resume button.
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
Step two: Enable HP Web Services
1. Click the HP Web Services tab, and then click Enable. The printer enables Web Services, and then prints an
information page.
The information page contains the printer code necessary to register the HP printer at HP Connected.
2. Go to www.hpconnected.com to create an HP ePrint account and complete the setup process.

HP ePrint software

The HP ePrint software makes it easy to print from a Windows or Mac desktop or laptop computer to any HP ePrint-capable printer. This software makes it easy to nd HP ePrint-enabled printers that are registered to your HP Connected account. The target HP printer can be located in the oce or at locations across the globe.
Windows: After installing the software, open the Print option from within your application, and then select
HP ePrint from the installed printers list. Click the Properties button to congure print options.
OS X: After installing the software, select File, Print, and then select the arrow next to PDF (in the bottom
left of the driver screen). Select HP ePrint.
For Windows, the HP ePrint software supports TCP/IP printing to local network printers on the network (LAN or WAN) to products that support UPD PostScript®.
Windows and OS X both support IPP printing to LAN or WAN network-connected products that support ePCL.
Windows and OS X also both support printing PDF documents to public print locations and printing using HP ePrint via email through the cloud.
36 Chapter 4 Print ENWW

AirPrint

Go to www.hp.com/go/eprintsoftware for drivers and information.
NOTE: For Windows, the name of the HP ePrint Software print driver is HP ePrint + JetAdvantage.
NOTE: The HP ePrint software is a PDF workow utility for OS X, and is not technically a print driver.
NOTE: HP ePrint Software does not support USB printing.
Direct printing using Apple’s AirPrint is supported for iOS and from Mac computers running OS X 10.7 Lion and newer. Use AirPrint to print directly to the printer from an iPad, iPhone (3GS or later), or iPod touch (third generation or later) in the following mobile applications:
Mail
Photos
Safari
iBooks
Select third-party applications
To use AirPrint, the printer must be connected to the same network (sub-net) as the Apple device. For more information about using AirPrint and about which HP printers are compatible with AirPrint, go to
www.hp.com/go/LaserJetMobilePrinting.
NOTE: Before using AirPrint with a USB connection, verify the version number. AirPrint versions 1.3 and earlier
do not support USB connections.

Android embedded printing

HP's built-in print solution for Android and Kindle enables mobile devices to automatically nd and print to HP printers that are either on a network or within wireless range for Wi-Fi Direct printing.
The print solution is built into the many versions of the operating system.
NOTE: If printing is not available on your device, go to the Google Play > Android apps and install the HP Print
Service Plugin.
For more information on how to use Android embedded printing and which Android devices are supported, go to
www.hp.com/go/LaserJetMobilePrinting.
ENWW Mobile printing 37
38 Chapter 4 Print ENWW

5 Manage the printer

Change the printer connection type (Windows)
Advanced conguration with HP Embedded Web Server (EWS) and HP Device Toolbox (Windows)
Congure IP network settings
Printer security features
Energy-conservation settings
HP Web Jetadmin
Update the rmware
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/ljM153.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 39

Change the printer connection type (Windows)

If you are already using the printer and you wish to change the way it is connected, use Device Setup & Software to change the connection. For example, connect the new printer to the computer using a USB or network connection, or change the connection from a USB to a wireless connection.
To open Device Setup & Software, complete the following procedure:
1. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the printer
name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then
select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All
Programs, click HP, click the folder for the printer, and then select the printer name.
2. In the HP Printer Assistant, select Tools from the navigation bar, and then select Device Setup & Software.
40 Chapter 5 Manage the printer ENWW
Advanced conguration with HP Embedded Web Server (EWS) and HP Device Toolbox (Windows)
Use the HP Embedded Web Server to manage printing functions from your computer instead of the printer control panel.
View printer status information
Determine the remaining life for all supplies and order new ones
View and change tray congurations
View and change the printer control-panel menu conguration
View and print internal pages
Receive notication of printer and supplies events
View and change network conguration
The HP Embedded Web Server works when the printer is connected to an IP-based network. The HP Embedded Web Server does not support IPX-based printer connections. You do not have to have Internet access to open and use the HP Embedded Web Server.
When the printer is connected to the network, the HP Embedded Web Server is automatically available.
NOTE: HP Device Toolbox is software used to connect to the HP Embedded Web Server when the printer is
connected to a computer via USB. It is available only if a full installation was performed when the printer was installed on a computer. Depending on how the printer is connected, some features might not be available.
NOTE: The HP Embedded Web Server is not accessible beyond the network rewall.
Method one: Open the HP Embedded Web Server (EWS) from the software
1. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the printer
name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
2. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Method two: Open the HP Embedded Web Server (EWS) from a web browser
1. Print a conguration page to determine the IP address or host name.
a. Press and hold the Resume button until the Ready light begins blinking.
b. Release the Resume button.
ENWW Advanced conguration with HP Embedded Web Server (EWS) and HP Device Toolbox (Windows) 41
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the
printer control panel. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be safe,
select the option to continue to the website. Accessing this website will not harm the computer.
Tab or section Description
Home tab
Provides printer, status, and conguration information.
System tab
Provides the ability to congure the printer from your computer.
Device Status: Shows the printer status and shows the approximate percent life remaining
of HP supplies.
Supplies Status: Shows the approximate percent life remaining of HP supplies. Actual
supply life remaining can vary. Consider having a replacement supply available to install when print quality is no longer acceptable. The supply does not need to be replaced unless the print quality is no longer acceptable.
Device Conguration: Shows the information found on the printer conguration page.
Network Summary: Shows the information found on the printer network conguration
page.
Reports: Print the conguration and supplies status pages that the printer generates.
Color Usage Log: Shows a summary of color jobs that the printer has produced.
Event Log: Shows a list of all printer events and errors.
Open Source Licenses: Shows a summary of the licenses for open source software
programs that can be used with the printer.
Device Information: Provides basic printer and company information.
Paper Setup: Change the default paper-handling settings for the printer.
Print Quality: Change the default print-quality settings for the printer.
Energy Settings: Change the default times for entering Sleep/Auto O mode or automatic
shut down.
Print Density: Change the print density of contrasts, highlights, midtones, and shadows.
Paper Types: Congure print modes that correspond to the paper types that the printer
accepts.
System Setup: Change the system defaults for the printer.
Supply Settings: Change the settings for Cartridge is low alerts and other supplies
information.
Service: Perform the cleaning procedure on the printer.
Save and Restore: Save the current settings for the printer to a le on the computer. Use
this le to load the same settings onto another printer or to restore these settings to this printer at a later time.
Administration: Set or change the printer password. Enable or disable printer features.
NOTE: The System tab can be password-protected. If this printer is on a network, always
consult with the administrator before changing settings on this tab.
42 Chapter 5 Manage the printer ENWW
Tab or section Description
Print tab
Provides the ability to change default print settings from your computer.
Networking tab
(Network-connected printers only)
Provides the ability to change network settings from your computer.
HP Web Services tab Use this tab to set up and use various web tools with the printer.
Printing: Change the default printer print settings, such as number of copies and paper
orientation. These are the same options that are available on the control panel.
PCL5: View and change the PCL5 settings.
PostScript: Turn o or on the Print PS Errors feature.
Network administrators can use this tab to control network-related settings for the printer when it is connected to an IP-based network. It also allows the network administrator to set up Wireless Direct functionality. This tab does not appear if the printer is directly connected to a computer.
ENWW Advanced conguration with HP Embedded Web Server (EWS) and HP Device Toolbox (Windows) 43
Congure IP network settings

Introduction

Printer sharing disclaimer

View or change network settings

Rename the printer on a network
Manually congure IPv4 TCP/IP parameters
Introduction
Use the following sections to congure the printer network settings.
Printer sharing disclaimer
HP does not support peer-to-peer networking, as the feature is a function of Microsoft operating systems and not of the HP printer drivers. Go to Microsoft at www.microsoft.com.
View or change network settings
Use the HP Embedded Web Server to view or change IP conguration settings.
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
i. Press and hold the Resume button until the Ready light begins blinking.
ii. Release the Resume button.
44 Chapter 5 Manage the printer ENWW
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Click the Networking tab to obtain network information. Change settings as needed.

Rename the printer on a network

To rename the printer on a network so that it can be uniquely identied, use the HP Embedded Web Server.
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
Press and hold the Resume button until the Ready light begins blinking.
i.
Release the Resume button.
ii.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Open the System tab.
3. On the Device Information page, the default printer name is in the Device Description eld. You can change
this name to uniquely identify this printer.
NOTE: Completing the other elds on this page is optional.
4. Click the Apply button to save the changes.
ENWW Congure IP network settings 45
Manually congure IPv4 TCP/IP parameters
Use the EWS to manually set an IPv4 address, subnet mask, and default gateway.
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
Press and hold the Resume button until the Ready light begins blinking.
i.
Release the Resume button.
ii.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. On the Networking tab, click the IPv4 Cong Method in the left navigation pane.
3. From the IP Preferred Address Method drop-down, select Manual, and then edit the IPv4 conguration
settings.
4. Click the Apply button.
46 Chapter 5 Manage the printer ENWW

Printer security features

Introduction

The printer includes several security features to restrict who has access to conguration settings, to secure data, and to prevent access to valuable hardware components.

Assign or change the system password using the HP Embedded Web Server

Assign or change the system password using the HP Embedded Web Server
Assign an administrator password for access to the printer and the HP Embedded Web Server so that unauthorized users cannot change the printer settings.
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
Press and hold the Resume button until the Ready light begins blinking.
i.
Release the Resume button.
ii.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. On the System tab, click the Administration link in the left navigation pane.
3. In the area labeled Product Security, enter the password in the Password eld.
4. Re-enter the password in the Conrm Password eld.
5. Click the Apply button.
ENWW Printer security features 47
NOTE: Make note of the password and store it in a safe place.
6. Click the Apply button.
NOTE: Make note of the password and store it in a safe place.
48 Chapter 5 Manage the printer ENWW

Energy-conservation settings

Introduction

Print with EconoMode

Set the Sleep/Auto O After Inactivity setting
Set the Shut Down After Inactivity delay and congure the printer to use 1 watt or less of power
Set the Delay Shut Down setting
Introduction
The printer includes several economy features to conserve energy and supplies.
Print with EconoMode
This printer has an EconoMode option for printing drafts of documents. Using EconoMode can use less toner. However, using EconoMode can also reduce print quality.
HP does not recommend the full-time use of EconoMode. If EconoMode is used full-time, the toner supply might outlast the mechanical parts in the toner cartridge. If print quality begins to degrade and is no longer acceptable, consider replacing the toner cartridge.
NOTE: If this option is not available in your print driver, you can set it using the HP Embedded Web Server.
1. From the software program, select the Print option.
2. Select the printer, and then click the Properties or Preferences button.
3. Click the Paper/Quality tab.
4. Click the EconoMode check box.
Set the Sleep/Auto O After Inactivity setting
Use the EWS to set the amount of idle time before the printer enters sleep mode.
Complete the following procedure to change the Sleep/Auto O After setting:
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
ENWW Energy-conservation settings 49
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
i. Press and hold the Resume button until the Ready light begins blinking.
ii. Release the Resume button.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Click the System tab, and then select Energy Settings.
3. From the Sleep/Auto O After Inactivity drop-down, select the time for the delay.
4. Click the Apply button.
Set the Shut Down After Inactivity delay and congure the printer to use 1 watt or less of power
Use the EWS to set the amount of time before the printer shuts down.
NOTE: After the printer shuts down, the power consumption is 1 watt or less.
Complete the following procedure to change the Shut Down After Delay setting:
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
50 Chapter 5 Manage the printer ENWW
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
i. Press and hold the Resume button until the Ready light begins blinking.
ii. Release the Resume button.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Click the System tab, and then select Energy Settings.
3. From the Shut Down After Inactivity drop-down, select the time for the delay.
NOTE: The default value is 4 hours.
4. Click the Apply button.

Set the Delay Shut Down setting

Use the EWS to select whether or not the printer delays shutting down after the power button is pressed.
Complete the following procedure to change the Delay Shut Down setting:
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
i. Press and hold the Resume button until the Ready light begins blinking.
ii. Release the Resume button.
ENWW Energy-conservation settings 51
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Click the System tab, and then select Energy Settings.
3. Select or clear the Delay when ports are active option.
NOTE: When this option is selected the printer will not shut down unless all ports are inactive. An active
network link or fax connection will prevent the printer from shutting down.
52 Chapter 5 Manage the printer ENWW

HP Web Jetadmin

HP Web Jetadmin is an award-winning, industry-leading tool for eciently managing a wide variety of networked HP products, including printers, multifunction printers, and digital senders. This single solution allows you to remotely install, monitor, maintain, troubleshoot, and secure your printing and imaging environment — ultimately increasing business productivity by helping you save time, control costs, and protect your investment.
HP Web Jetadmin upgrades are periodically made available to provide support for specic product features. Go to www.hp.com/go/webjetadmin for more information.
ENWW HP Web Jetadmin 53
Update the rmware
HP oers periodic printer updates, new Web Services apps, and new features to existing Web Services apps. Follow these steps to update the printer rmware for a single printer. When you update the rmware, Web Service apps will update automatically.
Update the rmware using the Firmware Update Utility
Use these steps to manually download and install the Firmware Update Utility from HP.com.
NOTE: This method is the only rmware update option available for printers connected to the computer via a
USB cable. It also works for printers connected to a network.
NOTE: You must have a print driver installed in order to use this method.
1. Go to www.hp.com/go/support, select your country/region or language, and then click the Get software
and drivers link.
2. Type the printer name in the search eld, press the ENTER button, and then select the printer from the list
of search results.
3. Select the operating system.
4. Under the Firmware section, locate the Firmware Update Utility.
5. Click Download, click Run, and then click Run again.
6. When the utility launches, select the printer from the drop-down list, and then click Send Firmware.
NOTE: To print a conguration page to verify the installed rmware version before or after the update
process, click Print Cong.
7. Follow the on-screen instructions to complete the installation, and then click the Exit button to close the
utility.
54 Chapter 5 Manage the printer ENWW

6 Solve problems

Customer support
Interpret control-panel light patterns
Restore the factory-set defaults
A “Cartridge is low” or “Cartridge is very low” message displays on the printer control panel
Printer does not pick up paper or misfeeds
Clear paper jams

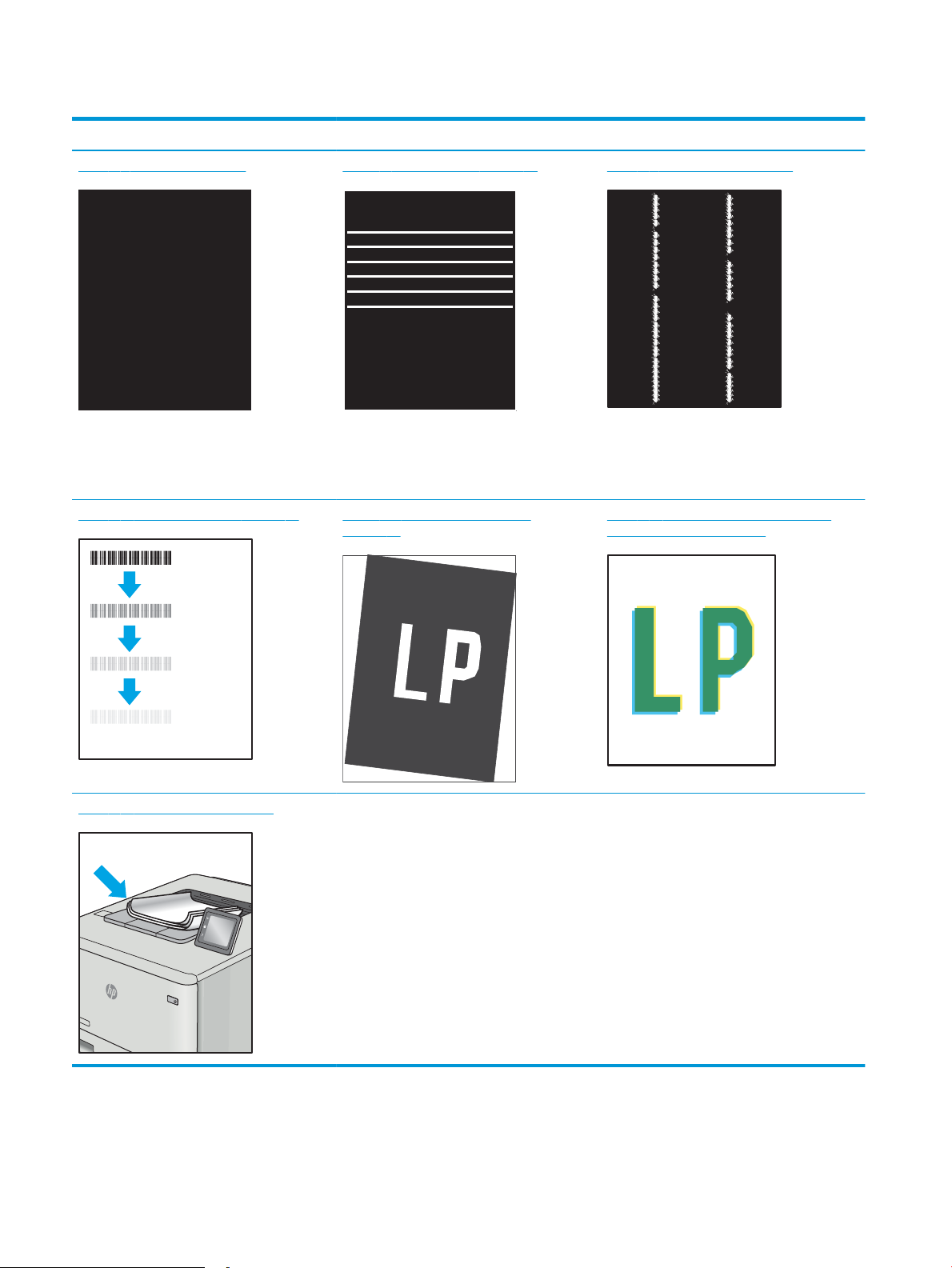

Improve print quality
Resolving print quality problems
Solve wired network problems
Solve wireless network problems
For more information:
The following information is correct at the time of publication. For current information, see www.hp.com/
support/ljM153.
HP's all-inclusive help for the printer includes the following information:
Install and congure
Learn and use
Solve problems
Download software and rmware updates
Join support forums
Find warranty and regulatory information
ENWW 55

Customer support

Get telephone support for your country/region
Have the printer name, serial number, date of purchase, and problem description ready
Get 24-hour Internet support, and download software utilities and drivers
Order additional HP service or maintenance agreements www.hp.com/go/carepack
Register the printer www.register.hp.com
Country/region phone numbers are on the yer that was in the box with the printer or at support.hp.com.
www.hp.com/support/ljM153
56 Chapter 6 Solve problems ENWW

Interpret control-panel light patterns

If the printer requires attention, an error code appears on the control-panel display.
Table 6-1 Status-light legend
Symbol for "light o"
Symbol for "light on"
Symbol for "light blinking"
Table 6-2 Control-panel light patterns
Light status State of the printer Action
The Attention light is blinking. The printer is in manual-feed mode. Load the correct paper type and size into the input
tray. Press the Resume button to continue.
The printer is processing a manual duplex job.
The input tray is empty. Load the tray.
A door is open. Verify that the toner-cartridge door is fully closed.
The printer has failed to pick up a sheet of paper to process a print job.
Paper is jammed in the printer. Check for jams in the input tray, the output bin, and
The toner cartridge is missing or incorrectly installed.
The toner cartridge is very low. Replace the toner cartridge.
Multiple supplies are very low. Replace the supplies.
The toner cartridge is incompatible with the printer, possibly due to a missing or damaged memory chip.
Multiple supplies are incompatible with the printer, possibly due to a missing or damaged memory chip.
Load the pages into the input tray to print the second
sides. Press the Resume button to continue.
Verify that paper is correctly loaded, and then press
the Resume button to continue.
the toner cartridge area. Clear the jam. Press the
Resume button to continue.
Verify that all supplies are in place and installed correctly.
Replace the toner cartridge.
Replace the supplies.
The toner cartridge has been protected on another printer.
Multiple supplies have been protected on another printer.
The printer has detected an unauthorized toner cartridge.
Replace the toner cartridge.
Replace the supplies.
Replace the toner cartridge.
ENWW Interpret control-panel light patterns 57
Table 6-2 Control-panel light patterns (continued)
Light status State of the printer Action
The printer has detected multiple unauthorized supplies.
The cartridge sensor has experienced an error.
The loaded paper is not the size needed for the print job.
The printer has experienced a general engine error.
Incorrect rmware has been loaded.
The printer has experienced a bad code signature.
The printer has experienced an engine cable error.
The printer has experienced a control­panel cable error.
Replace the supplies.
Replace the toner cartridge.
Replace the paper, or press the Resume
button to continue with the size currently loaded.
Press the Resume button to continue.
If the error repeats, turn o the printer. Wait 30 seconds, and then turn on the printer.
Press the Resume button to continue, Load
the correct rmware.
Press the Resume button to accept the
signature.
Press the Resume button to continue.
If the error persists, contact HP customer support.
Press the Resume button to continue.
The Attention and Ready lights are on.
The printer has experienced a fatal error from which it cannot recover.
If the error persists, contact HP customer support.
1. Turn o the printer or disconnect the power
cord from the printer.
2. Wait 30 seconds, and then turn on the printer or
reconnect the power cord to the printer.
3. Wait for the printer to initialize.
If the error persists, contact HP customer support.
58 Chapter 6 Solve problems ENWW

Restore the factory-set defaults

Restoring the factory-set defaults returns all of the printer and network settings to the factory defaults. It will not reset the page count, tray size, or language. To restore the printer to the factory-default settings, follow these steps.
CAUTION: Restoring the factory-set defaults returns all of the settings to the factory defaults, and it also
deletes any pages that are stored in the memory.
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
Press and hold the Resume button until the Ready light begins blinking.
i.
Release the Resume button.
ii.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. On the System tab, click Save and Restore in the left navigation pane.
3. In the Restore Defaults area, click the Restore defaults button.
The printer automatically restarts.
ENWW Restore the factory-set defaults 59

A “Cartridge is low” or “Cartridge is very low” message displays on the printer control panel

Cartridge is low: The printer indicates when a cartridge level is low. Actual cartridge life remaining may vary. Consider having a replacement available to install when print quality is no longer acceptable. The cartridge does not need to be replaced now.
Continue printing with the current cartridge until redistributing the toner no longer yields acceptable print quality. To redistribute the toner, remove the toner cartridge from the printer and gently rock the cartridge back and forth end to end. Reinsert the toner cartridge into the printer and close the cover.
Cartridge is very low: The printer indicates when the cartridge level is very low. Actual cartridge life remaining may vary. To extend the life of the toner, gently rock the cartridges back and forth end to end. Consider having a replacement available to install when print quality is no longer acceptable. The cartridge does not need to be replaced now unless the print quality is no longer acceptable.
HP’s Premium Protection Warranty expires when a message indicating that HP’s Premium Protection Warranty on this supply has ended appears on the Supplies Status Page or the EWS.

Change the “Very Low” settings

You can change the way the printer reacts when supplies reach the Very Low state. You do not have to re­establish these settings when you install a new cartridge.
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
60 Chapter 6 Solve problems ENWW
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
i. Press and hold the Resume button until the Ready light begins blinking.
ii. Release the Resume button.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Select the System tab, and then select Supply Settings.
3. Select one of the following options from the Very Low Setting (Black Cartridge): or Very Low Setting (Color
Cartridges): drop-down:
Select the Stop option to set the printer to stop printing until you replace the cartridge or imaging
Select the Prompt option to set the printer to stop printing and prompt you to replace the cartridge.
Select the Continue option to set the printer to alert you that the cartridge or imaging drum is very

Order supplies

Order supplies and paper www.hp.com/go/suresupply
Order through service or support providers Contact an HP-authorized service or support provider.
Order using the HP Embedded Web Server (EWS) To access, in a supported on your computer, enter the printer IP
drum.
You can acknowledge the prompt and continue printing.
low, but to continue printing.
address or host name in the address/URL eld. The EWS contains a link to the HP SureSupply website, which provides options for purchasing Original HP supplies.
ENWW A “Cartridge is low” or “Cartridge is very low” message displays on the printer control panel 61

Printer does not pick up paper or misfeeds

Introduction

The following solutions can help solve problems if the printer is not picking up paper from the tray or is picking up multiple sheets of paper at one time. Either of these situations can result in paper jams.

The product does not pick up paper

The product picks up multiple sheets of paper

The product does not pick up paper
If the product does not pick up paper from the tray, try these solutions.
1. Open the product and remove any jammed sheets of paper.
2. Load the tray with the correct size of paper for your job.
3. Make sure the paper size and type are set correctly on the product control panel.
4. Make sure the paper guides in the tray are adjusted correctly for the size of paper. Adjust the guides to the
appropriate indentation in the tray.
5. Check the product control panel to see if the product is waiting for you to acknowledge a prompt to feed
the paper manually. Load paper, and continue.
6. The rollers above the tray might be contaminated. Clean the rollers with a lint-free cloth dampened with
warm water.
The product picks up multiple sheets of paper
If the product picks up multiple sheets of paper from the tray, try these solutions.
1. Remove the stack of paper from the tray and ex it, rotate it 180 degrees, and ip it over. Do not fan the
paper. Return the stack of paper to the tray.
2. Use only paper that meets HP specications for this product.
3. Use paper that is not wrinkled, folded, or damaged. If necessary, use paper from a dierent package.
4. Make sure the tray is not overlled. If it is, remove the entire stack of paper from the tray, straighten the
stack, and then return some of the paper to the tray.
5. Make sure the paper guides in the tray are adjusted correctly for the size of paper. Adjust the guides to the
appropriate indentation in the tray.
6. Make sure the printing environment is within recommended specications.
62 Chapter 6 Solve problems ENWW

Clear paper jams

1
2
3

Introduction

The following information includes instructions for clearing paper jams from the printer.

Paper jam locations

Experiencing frequent or recurring paper jams?
Clear paper jams in Tray 1
Clear paper jams in the rear door and the fuser area
Clear paper jams in the output bin
Paper jam locations
1 Output bin
2 Tray 1
3 Rear door and fuser area
ENWW Clear paper jams 63

Experiencing frequent or recurring paper jams?

Follow these steps to solve problems with frequent paper jams. If the rst step does not resolve the problem continue with the next step until you have resolved the problem.
1. If paper has jammed in the printer, clear the jam and then print a conguration page to test the printer.
2. Check that the tray is congured for the correct paper size and type. Adjust paper settings if necessary.
a. Print a conguration page to determine the IP address or host name.
i. Press and hold the Resume button until the Ready light begins blinking.
ii. Release the Resume button.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
c. Click the System tab, and then click the Paper Setup page.
d. Select the type of paper that is in the tray.
e. Select the size of paper that is in the tray.
3. Turn the printer o, wait 30 seconds, and then turn it on again.
4. Print a cleaning page to remove excess toner from inside the printer.
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
c. On the System tab, click Service.
d. In the Cleaning Mode area, click Start to begin the cleaning process.
5. Print a conguration page to test the printer.
a. Press and hold the Resume button until the Ready light begins blinking.
b. Release the Resume button.
64 Chapter 6 Solve problems ENWW
If none of these steps resolves the problem, the printer might need service. Contact HP customer support.
ENWW Clear paper jams 65

Clear paper jams in Tray 1

Use the following procedure to clear jams in Tray 1. When a jam occurs, the Attention LED ashes.
1. Pull the tray completely out of the printer.
2. Remove any jammed or damaged sheets of paper.
3. Reinsert and close Tray 1.
66 Chapter 6 Solve problems ENWW

Clear paper jams in the rear door and the fuser area

Use the following procedure to clear jams in the rear door and fuser area. When a jam occurs, the Attention LED ashes.
CAUTION: The fuser can be hot while the printer is in use. Wait for the fuser to cool before handling it.
1. Open the rear door.
ENWW Clear paper jams 67
2. Gently pull out any jammed paper from the rollers
in the rear door area.
CAUTION: The fuser can be hot while the printer is in use. Wait for the fuser to cool before handling it.
3. Close the rear door.
68 Chapter 6 Solve problems ENWW

Clear paper jams in the output bin

Use the following procedure to check for paper in all possible jam locations related to the output bin. When a jam occurs, the Attention LED ashes.
CAUTION: The fuser can be hot while the printer is in use. Wait for the fuser to cool before handling it.
1. Open the rear door.
2. If paper is visible in the output bin, grasp the
leading edge and remove it.
ENWW Clear paper jams 69
3. Gently pull out any jammed paper from the rollers
in the rear door area.
CAUTION: The fuser can be hot while the printer is in use. Wait for the fuser to cool before handling it.
4. Close the rear door.
70 Chapter 6 Solve problems ENWW

Improve print quality

Introduction

Update the printer rmware
Print from a dierent software program
Check the paper-type setting for the print job
Check toner-cartridge status
Print a cleaning page
Visually inspect the toner cartridge or cartridges
Check paper and the printing environment
Try a dierent print driver
Check the EconoMode settings
Adjust Print Density
Calibrate the printer to align the colors
Adjust color settings (Windows)
Introduction
The following information provides troubleshooting steps to resolve print-quality problems, including the following problems:
Smears
Fuzzy print
Dark print
Light print
Streaks
Missing toner
Scattered dots of toner
Loose toner
Skewed images
To resolve these or other print-quality problems, try the following solutions in the order presented.
Print and interpret the print quality page
For information about resolving specic image defects, see the Resolving print quality problems section of this User Guide.
ENWW Improve print quality 71
Update the printer rmware
Try upgrading the printer rmware. For more information, see the Update the rmware section of this User Guide.
Print from a dierent software program
Try printing from a dierent software program. If the page prints correctly, the problem is with the software program from which you were printing.

Check the paper-type setting for the print job

Check the paper type setting when printing from a software program and the printed pages have smears, fuzzy or dark print, curled paper, scattered dots of toner, loose toner, or small areas of missing toner.
Check the paper type setting on the printer
1. Open the tray.
2. Verify that the tray is loaded with the correct type of paper.
3. Close the tray.
Check the paper type setting (Windows)
1. From the software program, select the Print option.
2. Select the printer, and then click the Properties or Preferences button.
3. Click the Paper/Quality tab.
4. From the Paper Type drop-down list, click the More... option.
5. Expand the list of Type is: options.
6. Expand the category of paper types that best describes your paper.
7. Select the option for the type of paper you are using, and click the OK button.
8. Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the OK button
to print the job.
Check the paper type setting (OS X)
1. Click the File menu, and then click the Print option.
2. In the Printer menu, select the printer.
3. By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then
click the Finishing menu.
4. Select a type from the Media Type drop-down list.
5. Click the Print button.
72 Chapter 6 Solve problems ENWW

Check toner-cartridge status

Follow these steps to check the estimated life remaining in the toner cartridges and if applicable, the status of other replaceable maintenance parts.
Step one: Print the supplies status page
The printer prints the supplies summary page when it prints the conguration page.
1. Press and hold the Resume button until the Ready light begins blinking.
2. Release the Resume button.
Step two: Check supplies status
1. Look at the supplies status report to check the percent of life remaining for the toner cartridges and if
applicable, the status of other replaceable maintenance parts.
Print quality problems can occur when using a toner cartridge that is at its estimated end of life. The supplies status page indicates when a supply level is very low.
HP’s Premium Protection Warranty expires when a message indicating that HP’s Premium Protection Warranty on this supply has ended appears on the Supplies Status Page or the EWS.
The toner cartridge does not need to be replaced now unless the print quality is no longer acceptable. Consider having a replacement available to install when print quality is no longer acceptable.
If you determine that you need to replace a toner cartridge or other replaceable maintenance parts, the supplies status page lists the genuine HP part numbers.
2. Check to see if you are using a genuine HP cartridge.
A genuine HP toner cartridge has “HP” on it, or has the HP logo on it. For more information on identifying HP cartridges go to www.hp.com/go/learnaboutsupplies.

Print a cleaning page

During the printing process paper, toner, and dust particles can accumulate inside the printer and can cause print-quality issues such as toner specks or spatter, smears, streaks, lines, or repeating marks.
Use the following procedure to print a cleaning page.
1. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the printer
name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then
select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All
Programs, click HP, click the folder for the printer, and then select the printer name.
2. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
ENWW Improve print quality 73
3. On the System tab, click Service.
4. In the Cleaning Mode area, click Start to begin the cleaning process.

Visually inspect the toner cartridge or cartridges

Follow these steps to inspect each toner cartridge.
1. Remove the toner cartridges from the printer, and verify that the sealing tape has been removed.
2. Check the memory chip for damage.
3. Examine the surface of the green imaging drum.
CAUTION: Do not touch the imaging drum. Fingerprints on the imaging drum can cause print-quality
problems.
4. If you see any scratches, ngerprints, or other damage on the imaging drum, replace the toner cartridge.
5. Reinstall the toner cartridge, and print a few pages to see if the problem has resolved.

Check paper and the printing environment

Step one: Use paper that meets HP specications
Some print-quality problems arise from using paper that does not meet HP specications.
Always use a paper type and weight that this printer supports.
Use paper that is of good quality and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids,
staples, and curled or bent edges.
Use paper that has not been previously printed on.
Use paper that does not contain metallic material, such as glitter.
Use paper that is designed for use in laser printers. Do not use paper that is designed only for use in Inkjet
printers.
Use paper that is not too rough. Using smoother paper generally results in better print quality.
Step two: Check the environment
The environment can directly aect print quality and is a common cause for print-quality or paper-feeding issues. Try the following solutions:
Move the printer away from drafty locations, such as open windows or doors, or air-conditioning vents.
Make sure the printer is not exposed to temperatures or humidity outside of printer specications.
Do not place the printer in a conned space, such as a cabinet.
Place the printer on a sturdy, level surface.
Remove anything that is blocking the vents on the printer. The printer requires good air ow on all sides,
including the top.
Protect the printer from airborne debris, dust, steam, grease, or other elements that can leave residue
inside the printer.
74 Chapter 6 Solve problems ENWW
Step three: Set the individual tray alignment
Follow these steps when text or images are not centered or aligned correctly on the printed page when printing from specic trays.
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
Press and hold the Resume button until the Ready light begins blinking.
i.
Release the Resume button.
ii.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Click the System tab, and then select the Service page.
3. In the Adjust Alignment area, select the tray to adjust.
4. Adjust the alignment settings, and then click Apply
5. Click Print Test Page to print a test page in order to conrm the new alignment settings.
ENWW Improve print quality 75
Try a dierent print driver
Try a dierent print driver when printing from a software program and the printed pages have unexpected lines in graphics, missing text, missing graphics, incorrect formatting, or substituted fonts.
Download any of the following drivers from the HP Web site: www.hp.com/support/ljM153.
HP PCL.6 driver
HP PCL 6 driver This printer-specic print driver supports Windows 7 and newer operating systems that
HP PCL-6 driver This product-specic print driver supports Windows 8 and newer operating systems that
HP UPD PS driver
HP UPD PCL 6 Recommended for printing in all Windows environments
If available, this printer-specic print driver supports older operating systems like Windows XP and Windows Vista®. For a list of supported operating systems, go to www.hp.com/go/
support.
support version 3 drivers. For a list of supported operating systems, go to www.hp.com/go/
support.
support version 4 drivers. For a list of supported operating systems, go to www.hp.com/go/
support.
Recommended for printing with Adobe® software programs or with other highly
graphics-intensive software programs
Provides support for printing from postscript emulation needs, or for postscript ash
font support
Provides the overall best speed, print quality, and printer feature support for most
users
Developed to align with Windows Graphic Device Interface (GDI) for best speed in
Windows environments
Might not be fully compatible with third-party and custom software programs that
are based on PCL 5
®

Check the EconoMode settings

HP does not recommend the full-time use of EconoMode. If EconoMode is used full-time, the toner supply might outlast the mechanical parts in the toner cartridge. If print quality begins to degrade and is no longer acceptable, consider replacing the toner cartridge.
NOTE: This feature is available with the PCL 6 print driver for Windows. If you are not using that driver, you can
enable the feature by using the HP Embedded Web Server.
Follow these steps if the entire page is too dark or too light.
1. From the software program, select the Print option.
2. Select the printer, and then click the Properties or Preferences button.
3. Click the Paper/Quality tab, and locate the Print Quality area.
4. If the entire page is too dark, use these settings:
Select the 600 dpi option, if available.
Select the EconoMode check box to enable it.
If the entire page is too light, use these settings:
76 Chapter 6 Solve problems ENWW
Select the FastRes 1200 option, if available.
Clear the EconoMode check box to disable it.
5. Click the OK button to close the Document Properties dialog box. In the Print dialog, click the OK button to
print the job.

Adjust Print Density

Complete the following steps to adjust the print density.
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All
printer name.
then select the printer name.
Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
Press and hold the Resume button until the Ready light begins blinking.
i.
Release the Resume button.
ii.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Click the System tab, and then select the Print Density page.
3. Select the correct density settings.
4. Click Apply to save the changes.
ENWW Improve print quality 77

Calibrate the printer to align the colors

Calibration is a printer function that optimizes print quality.
Follow these steps to resolve print-quality problems such as misaligned color, colored shadows, blurry graphics, or other print-quality issues.
1. Open the HP Embedded Web Server (EWS):
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
2. Click the System tab, and then select the Print Quality page.
3. Select Calibrate Now:, and then click Apply to start the calibration process.
Network-connected printers
1. Print a conguration page to determine the IP address or host name.
Press and hold the Resume button until the Ready light begins blinking.
a.
Release the Resume button.
b.
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the
printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be safe,
select the option to continue to the website. Accessing this website will not harm the computer.
3. Click the System tab, and then select the Print Quality page.
4. Select Calibrate Now:, and then click Apply to start the calibration process.
78 Chapter 6 Solve problems ENWW

Adjust color settings (Windows)

When printing from a software program, follow these steps if colors on the printed page do not match colors on the computer screen, or if the colors on the printed page are not satisfactory.
Change the color options
1. From the software program, select the Print option.
2. Select the printer, and then click the Properties or Preferences button.
3. Click the Color tab.
4. Click the Print in Grayscale option to print a color document in black and shades of gray. Use this option to
print color documents for photocopying or faxing. Also use this option to print draft copies or to save color toner.
5. Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the OK button
to print the job.

Print and interpret the print quality page

1. Open the HP Embedded Web Server (EWS).
Direct-connected printers
a. Open the HP Printer Assistant.
Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.
Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the
printer name.
Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.
Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, and then select the printer name.
b. In the HP Printer Assistant, select Print, and then select HP Device Toolbox.
Network-connected printers
a. Print a conguration page to determine the IP address or host name.
i. Press and hold the Resume button until the Ready light begins blinking.
ii. Release the Resume button.
ENWW Improve print quality 79
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays
on the printer conguration page. Press the Enter key on the computer keyboard. The EWS opens.
NOTE: If the web browser displays a message indicating that accessing the website might not be
safe, select the option to continue to the website. Accessing this website will not harm the computer.
2. Click the Home tab, and then select the Reports page.
3. Find Print Quality Page in the list of reports, and then click Print.
This page contains ve bands of color, which are divided into four groups as indicated in the following illustration. By examining each group, you can isolate the problem to a particular toner cartridge.
Figure 6-1 Print quality page
Section Toner cartridge
1 Yellow
2 Cyan
3 Black
4 Magenta
If dots or streaks appear in only one of the groups, replace the toner cartridge that correlates with that
group.
If dots appear in more than one group, print a cleaning page. If this does not solve the problem, determine
if the dots are always the same color; for example, if magenta dots appear in all ve color bands. If the dots are all the same color, replace that toner cartridge.
If streaks appear in multiple color bands, contact HP. A component other than the toner cartridge is
probably causing the problem.
80 Chapter 6 Solve problems ENWW

Resolving print quality problems

Introduction

Troubleshoot print quality problems

Introduction
The following information provides troubleshooting steps for solving image defect issues, including the following defects:
Light print
Gray background or dark print
Blank pages
Black pages
Dark or light bands
Dark or light streaks
Missing toner
Skewed images
Colors that do not align
Curled paper
Troubleshoot print quality problems
Table
6-3 Image defects table quick reference

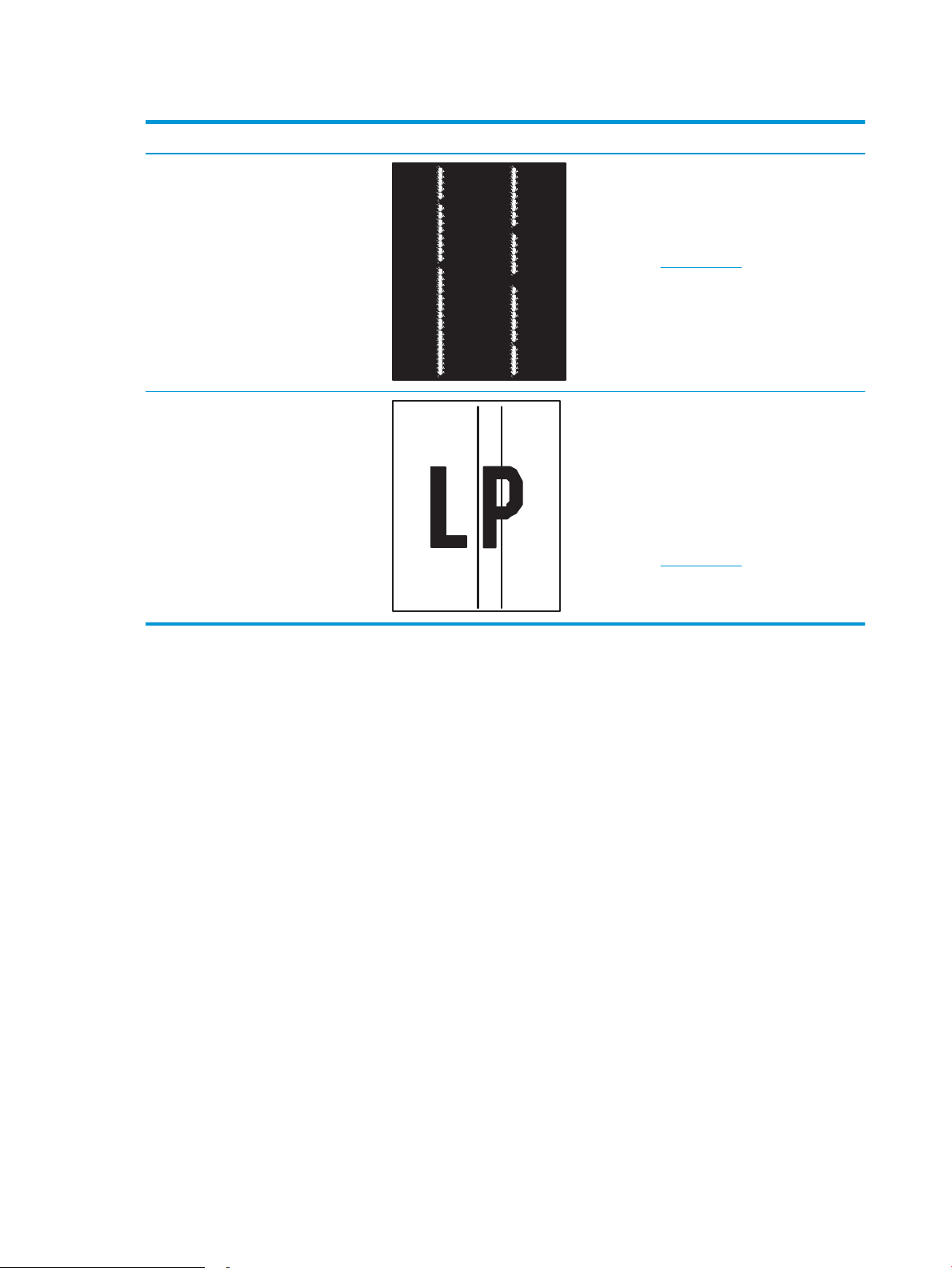

Defect Defect Defect
Table 6-4 Light print on page 83 Table 6-5 Gray background or dark print
on page 84
Table 6-6 Blank page — No print on page 84
ENWW Resolving print quality problems 81
Table 6-3 Image defects table quick reference (continued)
Defect Defect Defect
Table 6-7 Black page on page 85 Table 6-8 Banding defects on page 85 Table 6-9 Streak defects on page 86
Table 6-10 Fixing/fuser defects on page 87 Table 6-11 Image placement defects
on page 87
Table 6-13 Output defects on page 88
Table 6-12 Color plane registrations defects (color models only) on page 88
Image defects, no matter the cause, can often be resolved using the same steps. Use the following steps as a starting point for solving image defect issues.
82 Chapter 6 Solve problems ENWW
1. Reprint the document. Print quality defects can be intermittent in nature or can go away completely with
continued printing.
2. Check the condition of the cartridge or cartridges. If a cartridge is in a Very Low state (it has passed the
rated life), replace the cartridge.
3. Make sure that the driver and tray print mode settings match the media that is loaded in the tray. Try using
a dierent ream of media or a dierent tray. Try using a dierent print mode.
4. Make sure that the printer is within the supported operating temperature/humidity range.
5. Make sure that the paper type, size, and weight are supported by the printer. See the printer support page
at support.hp.com for a list of the supported paper sizes and types for the printer.
NOTE: The term “fusing” refers to the part of the printing process where toner is axed to paper.
The following examples depict letter-size paper that has passed through the printer short-edge rst.
Table 6-4 Light print
Description Sample Possible solutions
Light print:
The printed content on the entire page is light or faded.
1. Reprint the document.
2. Remove the cartridge, and then shake
it to redistribute the toner. Reinsert the toner cartridges into the printer and close the cover. For a graphical representation of this procedure, see Replace the toner cartridges.
3. Mono models only: Make sure that the
Economode setting is disabled both at the printer control panel and in the print driver.
4. Make sure that the cartridge is
installed correctly.
5. Print a Supply status page and check
for life and usage of the cartridge.
6. Replace the cartridge.
7. If the problem persists, go to support.hp.com.
ENWW Resolving print quality problems 83
Table 6-5 Gray background or dark print
Description Sample Possible solutions
Gray background or dark print:
The image or text is darker than expected.
1. Make sure that the paper in the trays
has not already been run through the printer.
2. Use a dierent paper type.
3. Reprint the document.
4. Mono models only: From the Home
screen on the printer control panel, go to the Adjust Toner Density menu, and then adjust the toner density to a lower level.
5. Make sure that the printer is in within
the supported operating temperature and humidity range.
6. Replace the cartridge.
7. If the problem persists, go to support.hp.com.
Table 6-6 Blank page — No print
Description Sample Possible solutions
Blank page — No print:
The page is completely blank and contains no printed content.
1. Make sure that the cartridge is
genuine HP cartridges.
2. Make sure that the cartridge is
installed correctly.
3. Print with a dierent cartridge.
4. Check the paper type in the paper tray
and adjust the printer settings to match. If necessary, select a lighter paper type.
5. If the problem persists, go to support.hp.com.
84 Chapter 6 Solve problems ENWW
Table 6-7 Black page
Description Sample Possible solutions
Black page:
The entire printed page is black.
1. Visually inspect the cartridge to check
for damage.
2. Make sure that the cartridge is
installed correctly.
3. Replace the cartridge
4. If the problem persists, go to support.hp.com.
Table 6-8 Banding defects
Description Sample Possible solutions
Repetitive wide-pitch banding and Impulse bands:
Dark or light lines which repeat down the length of the page. They might be sharp or soft in nature. The defect displays only in areas of ll, not in text or sections with no printed content.
1. Reprint the document.
2. Try printing from another tray.
3. Replace the cartridge.
4. Use a dierent paper type.
5. Enterprise models only: From the
Home screen on the printer control panel, go to the Adjust Paper Types menu, and then choose a print mode that is designed for a slightly heavier media than what you are using. This slows the print speed and might improve the print quality.
6. If the problem persists, go to support.hp.com.
ENWW Resolving print quality problems 85
Table 6-9 Streak defects
Description Sample Possible solutions
Light vertical streaks:
Light streaks that usually span the length of the page. The defect displays only in areas of ll, not in text or sections with no printed content.
Dark vertical streaks and ITB cleaning streaks (color models only):
Dark lines which occur down the length of the page. The defect might occur anywhere on the page, in areas of ll or in sections with no printed content.
1. Reprint the document.
2. Remove the cartridge, and then shake
it to redistribute the toner.
3. If the problem persists, go to support.hp.com.
NOTE: Both light and dark vertical streaks
can occur when the printing environment is outside the specied range for temperature or humidity. Refer to your printer's environmental specications for allowable temperature and humidity levels.
1. Reprint the document.
2. Remove the cartridge, and then shake
it to redistribute the toner.
3. Print a cleaning page.
4. Check the toner level in the cartridge.
5. If the problem persists, go to support.hp.com.
86 Chapter 6 Solve problems ENWW
Table 6-10 Fixing/fuser defects
Description Sample Possible solutions
Hot fuser oset (shadow):
Slight shadows, or osets, of the image repeated down the page. The repeated image might fade with each recurrence.
Poor fusing:
Toner rubs o along either edge of page. This defect is more common at the edges of high-coverage jobs and on light media types but can occur anywhere on the page.
1. Reprint the document.
2. Check the paper type in the paper tray
and adjust the printer settings to match. If necessary, select a lighter paper type.
3. If the problem persists, go to support.hp.com.
1. Reprint the document.
2. Check the paper type in the paper tray
and adjust the printer settings to match. If necessary, select a heavier paper type.
3. Enterprise models only: From the
printer control panel, go to the Edge-
to-Edge menu and then select Normal. Reprint the document.
4. Enterprise models only: From the
printer control panel, select Auto
Include Margins and then reprint the
document.
5. If the problem persists, go to support.hp.com.
Table 6-11 Image placement defects
Description Sample Possible solutions
Margins and skew:
The image is not centered, or is skewed on the page. The defect occurs when the paper is not positioned properly as it is pulled from the tray and moves through the paper path.
1. Reprint the document.
2. Remove the paper and then reload the
tray. Make sure that all the paper edges are even on all sides.
3. Make sure that the top of the paper
stack is below the tray full indicator. Do not overll the tray.
4. Make sure that the paper guides are
adjusted to the correct size for the paper. Do not adjust the paper guides tightly against the paper stack. Adjust them to the indentations or markings in the tray.
5. If the problem persists, go to support.hp.com.
ENWW Resolving print quality problems 87
Table 6-12 Color plane registrations defects (color models only)
Description Sample Possible solutions
Color plane registrations:
One or more color of the planes is not aligned with the other color planes. The primary error will typically occur with yellow.
1. Reprint the document.
2. From the printer control panel,
calibrate the printer.
3. If a cartridge has reached a Very Low
state or the printed output is severely faded, replace the cartridge.
4. From the printer control panel use the Restore Calibration feature to reset
the printer's calibration settings to the factory defaults.
5. If the problem persists, go to support.hp.com.
Table 6-13 Output defects
Description Sample Possible solutions
Output curl:
Printed paper has curled edges. The curled edge can be along the short or long side of the paper. Two types of curl are possible:
Positive curl: The paper curls toward
the printed side. The defect occurs in dry environments or when printing high coverage pages.
Negative curl: The paper curls away
from the printed side. The defect occurs in high-humidity environments or when printing low coverage pages.
1. Reprint the document.
2. Positive curl: From the printer control
panel, select a heavier paper type. The heavier paper type creates a higher temperature for printing.
Negative curl: From the printer control panel, select a lighter paper type. The lighter paper type creates a lower temperature for printing. Try storing the paper in a dry environment prior or use freshly opened paper.
3. Print in duplex mode.
4. If the problem persists, go to support.hp.com.
Output stacking:
The paper does not stack well in the output tray. The stack might be uneven, skewed, or the pages might be pushed out of the tray and onto the oor. Any of the following conditions can cause this defect:
Extreme paper curl
The paper in the tray is wrinkled or
deformed
The paper is a non-standard paper
type, such as envelopes
The output tray is too full
1. Reprint the document.
2. Extend the output bin extension.
3. If the defect is caused by extreme
paper curl, complete the troubleshooting steps for Output curl.
4. Use a dierent paper type.
5. Use freshly opened paper.
6. Remove the paper from the output
tray before the tray gets too full.
7. If the problem persists, go to support.hp.com.
88 Chapter 6 Solve problems ENWW

Solve wired network problems

Introduction

Certain types of problems can indicate there is a network communication problem. These problems include the following issues:
The periodic loss of ability to communicate with the printer
The printer cannot be found during driver installation
A periodic failure to print
NOTE: If you have been experiencing intermittent loss of network productivity, rst update the printer
rmware. For instructions on how to update the printer rmware, go to http://support.hp.com, search for your
printer, and then search on “update the rmware.”
Check the following items to verify that the printer is communicating with the network. Before beginning, print a conguration page from the printer control panel and locate the printer IP address that is listed on this page.

Poor physical connection

The computer is unable to communicate with the printer

The printer is using incorrect link and duplex settings for the network
New software programs might be causing compatibility problems
The computer or workstation might be set up incorrectly
The printer is disabled, or other network settings are incorrect
NOTE: HP does not support peer-to-peer networking, as the feature is a function of Microsoft operating
systems and not of the HP print drivers. For more information, go to Microsoft at www.microsoft.com.
Poor physical connection
1. Verify that the printer is attached to the correct network port using a cable of the correct length.
2. Verify that cable connections are secure.
3. Look at the network port connection on the back of the printer, and verify that the amber activity light
ashes indicating network trac, and the green link-status light is continuously lit indicating a network link.
4. If the problem continues, try a dierent cable or port on the hub.
The computer is unable to communicate with the printer
1. Test network communication by pinging the network.
a. Open a command-line prompt on your computer.
ENWW Solve wired network problems 89
For Windows, click Start, click Run, type cmd, and then press Enter.
For OS X, go to Applications, then Utilities, and open Terminal.
b. Type ping followed by the IP address for your printer.
c. If the window displays round-trip times, the network is working.
2. If the ping command failed, verify that the network hubs are on, and then verify that the network settings,
the printer, and the computer are all congured for the same network (also known as subnet).
3. Open the printer properties and click the Ports tab. Verify that the current IP address for the printer is
selected. The printer IP address is listed on the printer conguration page.
4. If you installed the printer using the HP standard TCP/IP port, select the box labeled Always print to this
printer, even if its IP address changes.
5. If you installed the printer using a Microsoft standard TCP/IP port, use the printer’s hostname instead of the
IP address.
6. If the IP address is correct, delete the printer and then add it again.

The printer is using incorrect link and duplex settings for the network

HP recommends leaving these settings in automatic mode (the default setting). If you change these settings, you must also change them for your network.

New software programs might be causing compatibility problems

Verify that any new software programs are correctly installed and that they use the correct print driver.

The computer or workstation might be set up incorrectly

1. Check the network drivers, print drivers, and the network redirection settings.
2. Verify that the operating system is congured correctly.

The printer is disabled, or other network settings are incorrect

1. Review the printer’s conguration/networking pages to check the status of the network settings and
protocols.
2. Recongure the network settings if necessary.
90 Chapter 6 Solve problems ENWW

Solve wireless network problems

Introduction

Wireless connectivity checklist

The printer does not print after the wireless conguration completes
The printer does not print, and the computer has a third-party rewall installed
The wireless connection does not work after moving the wireless router or printer
Cannot connect more computers to the wireless printer
The wireless printer loses communication when connected to a VPN
The network does not appear in the wireless networks list
The wireless network is not functioning
Perform a wireless network diagnostic test
Reduce interference on a wireless network
Introduction
Use the troubleshooting information to help resolve issues.
NOTE: To determine whether HP NFC and Wi-Fi Direct printing are enabled on your printer, print a conguration
page from the printer control panel
Wireless connectivity checklist
Verify that the network cable is not connected.
Verify that the printer and the wireless router are turned on and have power. Also make sure that the
wireless radio in the printer is turned on.
Verify that the service set identier (SSID) is correct. Print a conguration page to determine the SSID. If you
are not sure the SSID is correct, run the wireless setup again.
With secured networks, verify that the security information is correct. If the security information is
incorrect, run the wireless setup again.
If the wireless network is working correctly, try accessing other computers on the wireless network. If the
network has Internet access, try connecting to the Internet over a wireless connection.
Verify that the encryption method (AES or TKIP) is the same for the printer as it is for the wireless access
point (on networks using WPA security).
Verify that the printer is within the range of the wireless network. For most networks, the printer must be
within 30 m (100 ft) of the wireless access point (wireless router).
Verify that obstacles do not block the wireless signal. Remove any large metal objects between the access
point and the printer. Make sure poles, walls, or support columns containing metal or concrete do not separate the printer and wireless access point.
ENWW Solve wireless network problems 91
Verify that the printer is located away from electronic devices that might interfere with the wireless signal.
Many devices can interfere with the wireless signal including motors, cordless phones, security system cameras, other wireless networks, and some Bluetooth devices.
Verify that the print driver is installed on the computer.
Verify that you have selected the correct printer port.
Verify that the computer and printer connect to the same wireless network.
For OS X, verify that the wireless router supports Bonjour.
The printer does not print after the wireless conguration completes
1. Make sure that the printer is turned on and in the ready state.
2. Turn o any third-party rewalls on your computer.
3. Make sure that the wireless network is working correctly.
4. Make sure that your computer is working correctly. If necessary, restart the computer.
5. Verify that you can open the printer HP Embedded Web Server from a computer on the network.
The printer does not print, and the computer has a third-party rewall installed
1. Update the rewall with the most recent update available from the manufacturer.
2. If programs request rewall access when you install the printer or try to print, make sure you allow the
programs to run.
3. Temporarily turn o the rewall, and then install the wireless printer on the computer. Enable the rewall
when you have completed the wireless installation.

The wireless connection does not work after moving the wireless router or printer

1. Make sure that the router or printer connects to the same network that your computer connects to.
2. Print a conguration page.
3. Compare the service set identier (SSID) on the conguration page to the SSID in the printer conguration
for the computer.
4. If the numbers are not the same, the devices are not connecting to the same network. Recongure the
wireless setup for the printer.

Cannot connect more computers to the wireless printer

1. Make sure that the other computers are within the wireless range and that no obstacles block the signal.
For most networks, the wireless range is within 30 m (100 ft) of the wireless access point.
2. Make sure that the printer is turned on and in the ready state.
3. Make sure there are not more than 5 concurrent Wi-Fi Direct users.
4. Turn o any third-party rewalls on your computer.
92 Chapter 6 Solve problems ENWW
