HP Indigo, Indigo press ws4050, Indigo press ws4500 User Manual

HP Indigo Flexible Packaging Rewinder

For HP Indigo press ws4050 and HP Indigo press ws4500

User Guide

HP Indigo Flexible Packaging Rewinder
for HP Indigo press ws4050
and HP Indigo press ws4500

User Guide

© 2007 Copyright
Hewlett-Packard
Development Company,
L.P.

Reproduction, adaptation,
or translation without prior
written permission is
prohibited, except as
allowed under the
copyright laws.

The information contained
herein is subject to change
without notice.

The only warranties for HP
products and services are
set forth in the express
warranty statements
accompanying such
products and services.
Nothing herein should be
construed as constituting
an additional warranty. HP
shall not be liable for
technical or editorial errors
or omissions contained
herein.

HP, HP Indigo Press,
HP Indigo Press RIP, and
HP ElectroInk are
trademarks or registered
trademarks of HP.

The HP Indigo press
counter feature records the
number of impressions you
make using your press.
The counter does not
reflect any previous use of
the press or its age.

The HP Indigo press is a
Class 1 Laser Product
containing high voltage
power supplies and laser
light sources. There is no
danger to persons or
equipment when the
system is operated in
accordance with the
directions provided by HP
in this and other
publications. All high
voltage power supplies and
laser sources are located
behind protective covers.
Warning labels are
attached to each protective
cover. Do not remove
covers.

Part Number:
CA294-05790

First Edition:

December 2007

Printed in Israel.

Adobe® PostScript® is a
trademark of Adobe
Systems Incorporated.

MS Windows® and
Windows® are U.S.
registered trademarks of
Microsoft Corp.

All other products or name
brands are trademarks of
their respective holders.

Contents

1 Using the flexible packaging rewinder

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Turning on the rewinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using the touch screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Changing the touch screen language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operating the rewinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Viewing the alarms and messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Adjusting the substrate tension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the tension control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the meter counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Threading the web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turning off the rewinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

A Obtaining service

EN i

ii EN

Using the flexible packaging

1

rewinder

This chapter contains the following sections:

z Overview
z Turning on the rewinder
z Using the touch screen
z Adjusting the substrate tension
z Threading the web
z Turning off the rewinder

EN 1

Overview

The flexible packaging rewinder is used to rewind the web.
The rewinder:

z Supports a wide variety of flexible packaging substrates and thin films that are less

than 50 µm thick

z Prevents wrinkles, telescoping, and ink back transferring
z Can rotate clockwise or counterclockwise
z Enables you to rewind the web with the print facing the inside or outside of the roll
z Is controlled from the touch screen
z Connects to the printing engine through an interface cable
z Includes a web guide with a lateral rewinding accuracy of 0.3 mm
z Includes a meter counter

Table 1-1 shows the rewinder specifications.

Table 1-1. Specifications

Parameter Specification

Power supply 230 VAC / 8 A / 1p+1n+GND

or
110 VAC / 15 A / 1p+1n+GND

Power consumption 1,650 W

Air supply 6 - 10 bar (maximum:10 liter/min)

Maximum web width 330 mm (13 in)

Maximum web roll diameter
(if you use a heavy substrate, the maximum web
roll weight may cause this value to decrease)

Maximum web roll weight
(when the rewinder is attached to the floor)

Maximum web roll weight
(when the rewinder is not attached to the floor)

Standard web core diameter 76 mm (3 in)

Rewinder height 1,280 mm (50 in)

Rewinder length 1,905 mm (75 in)

Rewinder width 960 mm (38 in)

Rewinder weight (including packaging) 500 kg (1,102 lb)

600 mm (26 in)

100 kg (220 lb)

75 kg (165 lb)

2 Overview EN

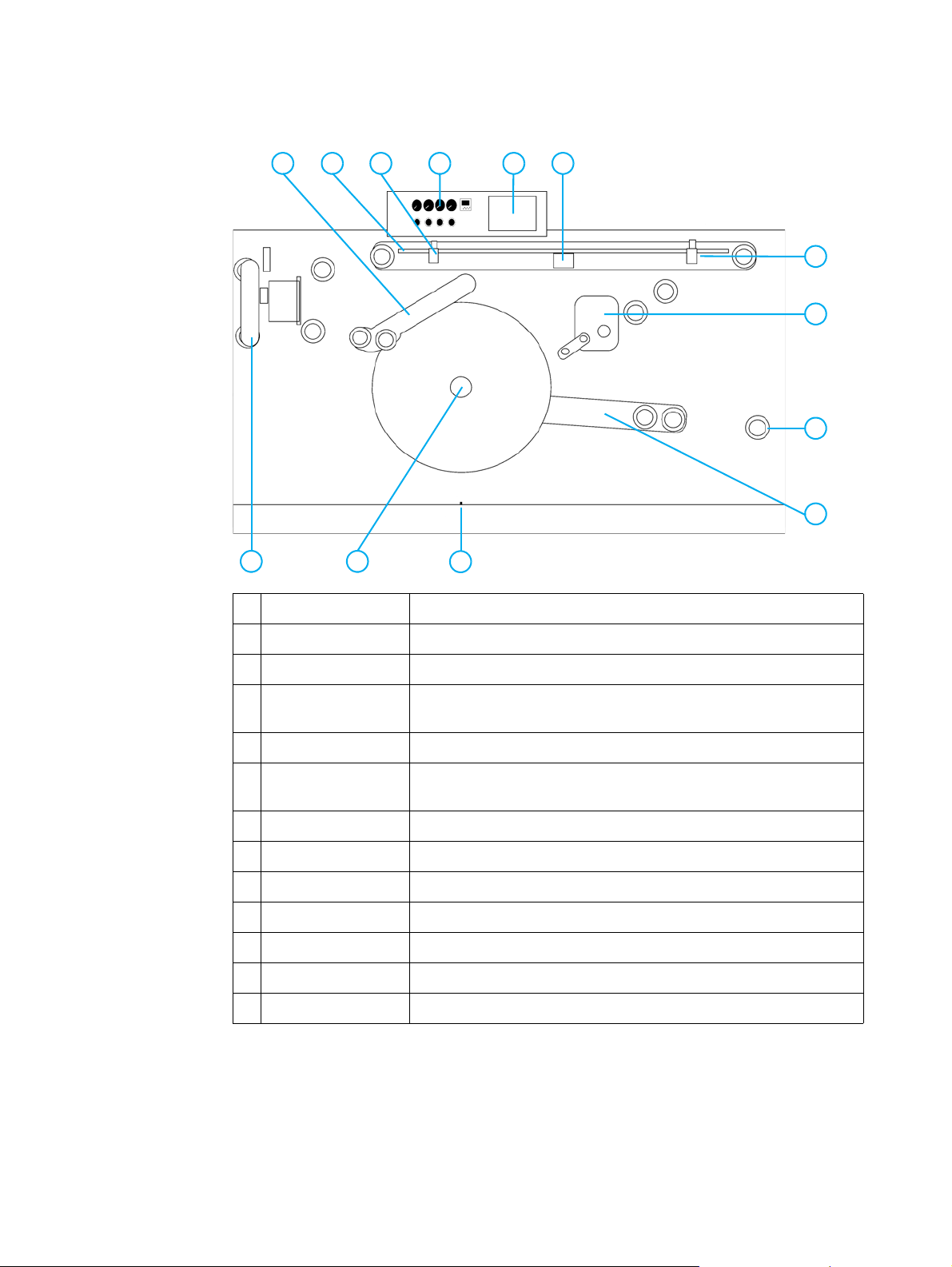

Figure 1-1 shows the main components of the rewinder.

Figure 1-1. Rewinder components

1 2 3 5 6

13

1 Riding roller Prevents wrinkles and electrostatic build-up in the final roll.

12

4

11

7

8

9

10

2 Splicing table Used for splicing the web.

3 Left clamp Holds the substrate in place for splicing.

4 Tension control panel Controls the tension in the rewinder (see "Using the tension control

panel" on page 8).

5 Touch screen Operates the rewinder (see "Using the touch screen" on page 5).

6 Anti-vacuum roller Prevents vacuum build-up between the moving web and the splicing

table.

7 Right clamp Holds the substrate in place for splicing.

8 Nip cassette Creates tension in the web before it is rolled on the rewinder spindle.

9 Alignment roller Used for aligning the printing engine and the rewinder.

10 Dancer arm Keeps the web taut between the printing engine and the rewinder.

11 Ultrasonic sensor Stops the rewinder when the final roll reaches the maximum size.

12 Rewinder spindle Removes substrate.

13 Web guide Compensates for lateral web movement.

EN Overview 3

Follow these safety guidelines:

z The rewinder must be operated only by properly trained personnel thoroughly familiar

with all its safety and maintenance procedures.

z Do not attempt to service or repair the rewinder yourself. Call an authorized customer

engineer for service and repair of the rewinder.

z For more safety guidelines, see the "Safety" chapter in CA294-04110 - HP Indigo

Press ws4500 User Guide.

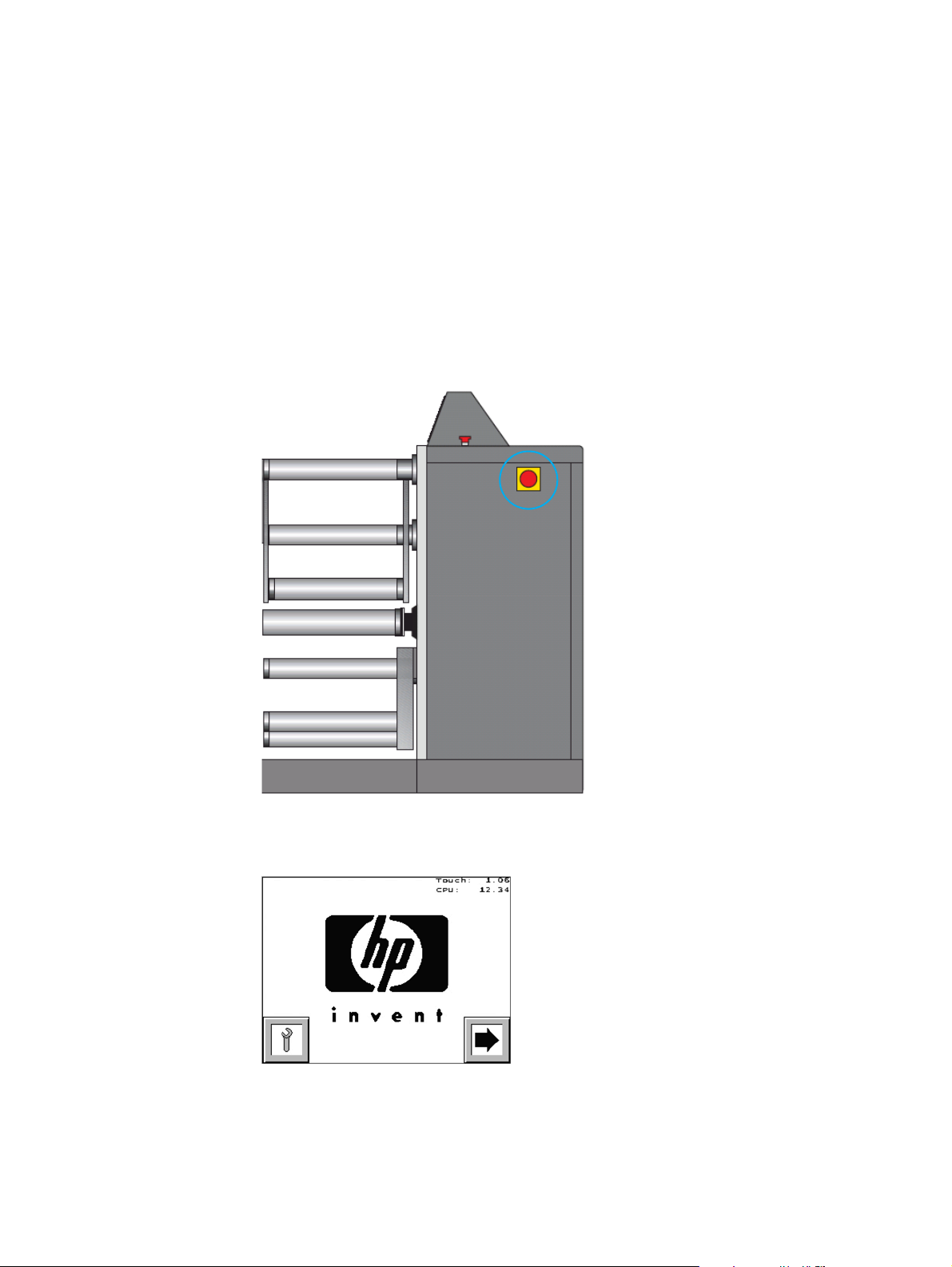

Turning on the rewinder

1 Turn the main switch.

Figure 1-2. Main switch

The Start screen appears.

Figure 1-3. Start screen

4 Turning on the rewinder EN

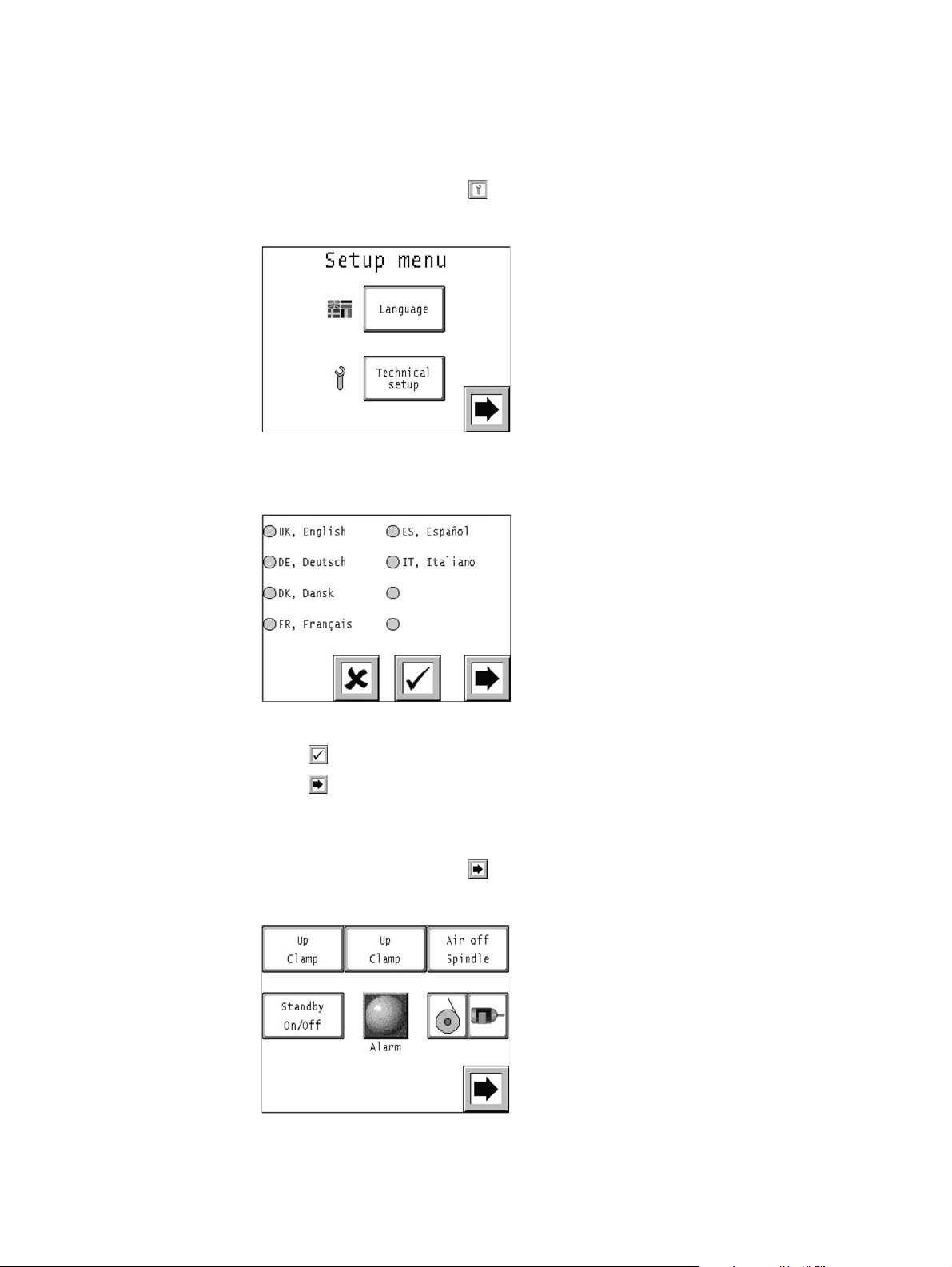

Using the touch screen

Changing the touch screen language

1 From the Start screen, touch . The Setup menu screen appears.

Figure 1-4. Setup menu screen

2 Touch Language. The Language screen appears.

Figure 1-5. Language screen

3 Select a language.
4 Touch . The touch screen language changes.
5 Touch .

Operating the rewinder

1 From the Start screen, touch . The first Operator screen appears.

Figure 1-6. First Operator screen

EN Using the touch screen 5

2 To switch between standby and ready modes, touch either Standby On/Off or

Ready On/Off.
3 When the rewinder is in standby mode, you can do the following tasks from the first

Operator screen:

• To raise the right clamp and close the nip cassette, touch the right Up Clamp

button.

• To lower the right clamp and open the nip cassette, touch the right Down Clamp

button.

• To raise the left clamp, touch the left Up Clamp button.

• To lower the left clamp, touch the left Down Clamp button.

• To deflate the rewinder spindle, touch Air off Spindle.

• To inflate the rewinder spindle, touch Air on Spindle.

• To change the rewinder direction, touch .

• To slowly turn the rewinder spindle, touch and hold . To stop turning the rewinder
spindle, release .

4 Touch . The second Operator screen appears.

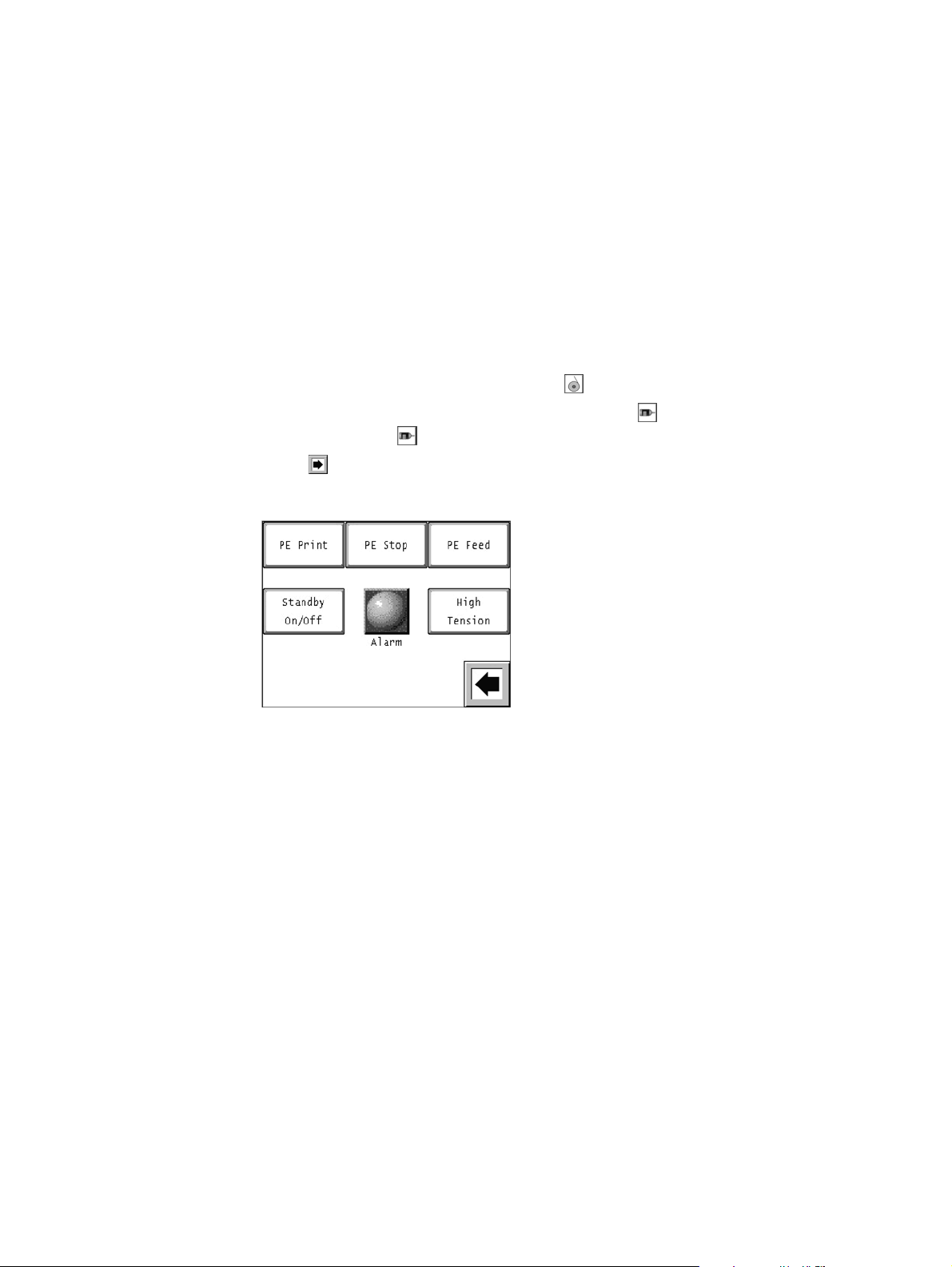

Figure 1-7. Second Operator screen

5 When the rewinder is in standby mode, you can do the following tasks from the

second Operator screen:

• To enable dancer arm tension, touch High Tension.

• To disable dancer arm tension, touch Low Tension.

6 When the rewinder is in ready mode, you can do the following tasks from the second

Operator screen:

• To start printing, touch PE Print two times. Ensure that the press and the web
handling system are both in the ready mode.

• To stop printing, touch PE Stop.

• To feed the web, touch PE Feed two times. Hold PE Feed until the correct amount
of substrate is fed. Ensure that the web handling system is in the ready mode.

6 Using the touch screen EN

Viewing the alarms and messages

Alarms and messages can appear at the bottom of the Operator screen. Follow the
instructions in table 1-2.

Table 1-2. Alarms and messages

Alarm / message Instructions

Factory default values set. Please calibrate
dancer

Local emergency stop activated Release the rewinder emergency stop button.

Motor failure Turn off the rewinder. Wait two minutes. Turn on

PE cover open Close the cover.

Picking up web. Please wait Wait until the rewinder finishes picking up the

Press “PE Print” / “PE Feed” to activate
print/feed cycle

Printing engine is not ready Put the printing engine into ready mode.

Remote emergency stop activated Release the emergency stop button.

Rewinder can’t start when clamps are down.
Release clamps

Rewinder is not ready Touch Standby On/Off.

Roll has reached maximum size Remove the roll. Insert a new core.

Touch panel communication trouble Turn off the rewinder. Wait two minutes. Turn on

Calibrate the dancer.

the rewinder. If the problem continues, contact
technical support.

web.

To u ch PE Print or PE Feed.

Touch the right and left Up Clamp buttons.

the rewinder. If the problem continues, contact
technical support.

Web break Fix the broken web or raise the dancer arm from

the lowest position.

EN Using the touch screen 7

Adjusting the substrate tension

You can optimize the rewinder performance by adjusting the substrate tension.

Using the tension control panel

From the tension control panel, you can do the following:

z To control the tension of the finished roll, adjust the web tension controller. The default

setting is 0.5 bar for thin substrates and 2.5 bar for thick substrates. Set the web
tension controller according to the properties of the substrate (see tables 1-3
and 1-4).

z To reduce the amount of wrinkles in the finished roll, adjust the riding arm controller.

The default setting is 2 bar.

z To control the nip pressure, adjust the nip controller. The default setting is 4 bar. For

smooth or glossy substrates, increase the nip pressure.

z To control the pulling force of the rewinder, adjust the dancer arm controller. The

default setting is 0 bar.For thick substrates, increase the dancer arm controller.

z To use the counter, see "Using the meter counter" on page 9.

Figure 1-8. Tension control panel

1

7 6 5 4

1 Controller displays

2 Meter counter

3 Touch screen

4 Dancer arm controller

5 Nip controller

6 Riding arm controller

2

3

7 Web tension controller

8 Adjusting the substrate tension EN

Table 1-3. Web tension controller settings

Substrate thickness Web tension controller setting

12 - 50 µm 1 - 2 kg/cm2 (0.5 bar)

2

50 - 150 µm 2 - 5 kg/cm

150 - 250 µm 4 - 7 kg/cm

(1.0 - 2.5 bar)

2

(2.0 - 3.5 bar)

Table 1-4. Pressure-tension conversions

Pressure Tension

0 bar 0.5 kg/cm

1 bar 2.2 kg/cm

2 bar 4.1 kg/cm

3 bar 6.1 kg/cm

4 bar 8.0 kg/cm

5 bar 10.0 kg/cm

6 bar 11.9 kg/cm

2

2

2

2

2

2

2

Using the meter counter

The counter enables you to measure the amount of substrate that has been rewound. The
counter displays all values in meters.

From the counter, you can do the following:

z To set the preset value, press the UP button for the digit that you want to increase.
z To reset the counter value, press RESET.
z To enable and disable the counter keypad, press LOCK.

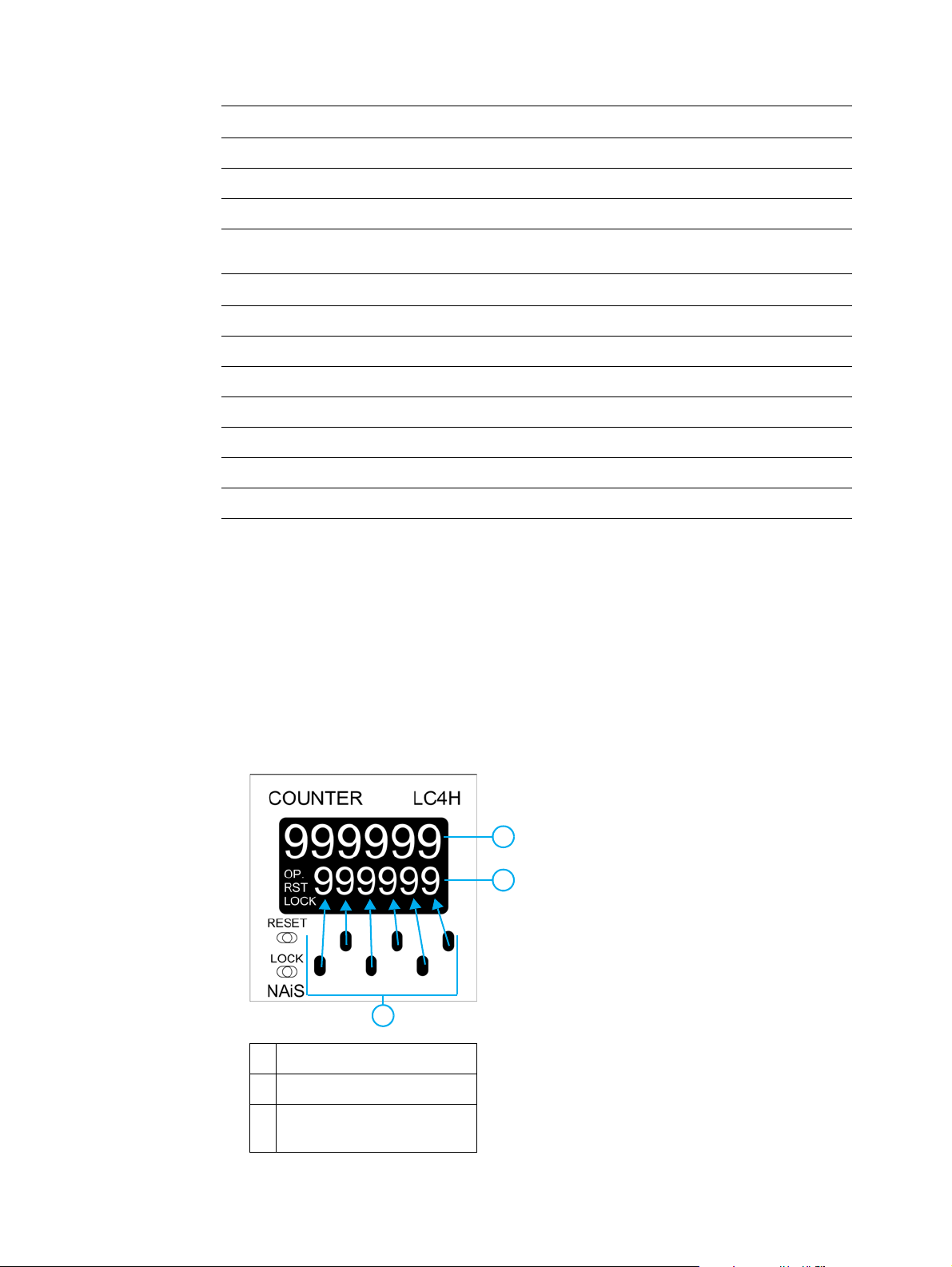

Figure 1-9. Counter

1

2

3

1 Counter value

2Preset value

3 UP buttons for the six digits of

the preset value

EN Adjusting the substrate tension 9

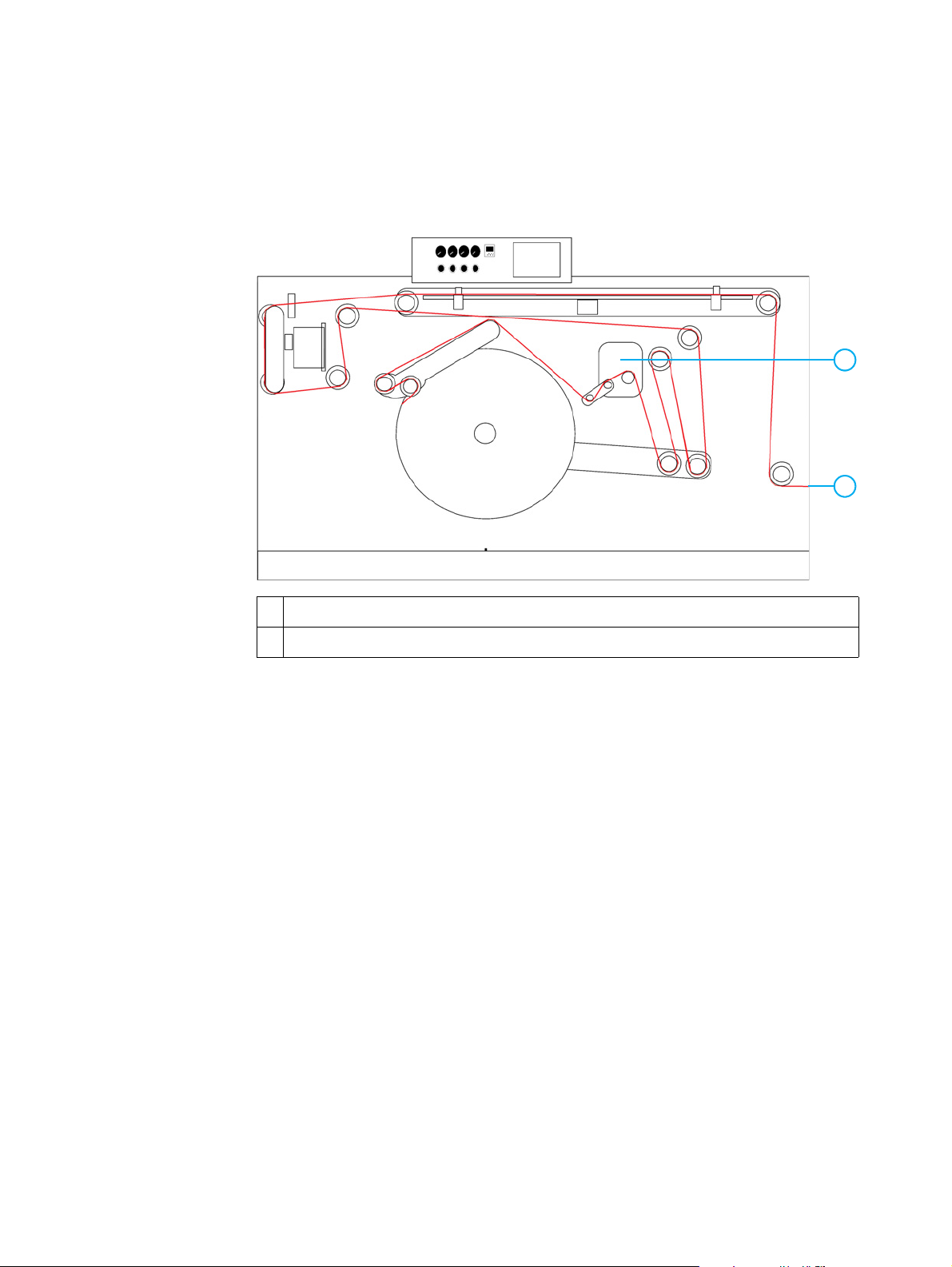

Threading the web

1 From the exit of the printing engine, ensure that you have enough web.
2 Thread the web as shown in figure 1-10.

Figure 1-10. Threading the web

1

2

1 Nip cassette

2 Start of web

3 When the web reaches the nip cassette, touch the right Clamp Down button. The nip

cassette opens.

4 Thread the web through the nip cassette.
5 Touch the right Clamp Up button. The nip cassette closes.
6 When the web reaches the core, tape the web to the core.
7 Use either the spindle ruler or the core stop ring to align the core with the middle of

the rewinder spindle.

8 To u ch Air on Spindle. The core inflates.
9 Touch Standby On/Off. The web is rewound.

Turning off the rewinder

1 Release all tension in the rewinder (see "Adjusting the substrate tension" on page 8).
2 Turn the main switch (see figure 1-2).

10 Threading the web EN

A

Obtaining service

To obtain service, contact the HP Indigo customer care center in your country/region:

Europe

z Austria: [phone]
z Belgium: [phone]
z France: [phone]
z Germany: [phone]
z Italy: [phone]
z Ireland: [phone]
z Luxembourg: [phone]
z Netherlands [phone]
z UK: [phone]

Distribution Channels (DC): [phone]
North America: 1-800-204-6344
Israel: [phone]

North America

Hewlett-Packard Company
Indigo Division
165 Dascomb Road
Andover, MA 01810-5897
USA

Israel

Hewlett-Packard Company
Indigo Division
Kiryat Weizmann
P. O . B o x 1 5 0
Rehovot 76101
Israel

International

Hewlett-Packard Company
Indigo Division
Limburglaan 5
6221 SH Maastricht
The Netherlands

EN 11

12 EN

Copyright © 2007 Hewlett-Packard Company

This is an HP Indigo digital print. Printed in Israel.

www.hp.com/go/indigo

reorder: P/N CA294-05790
