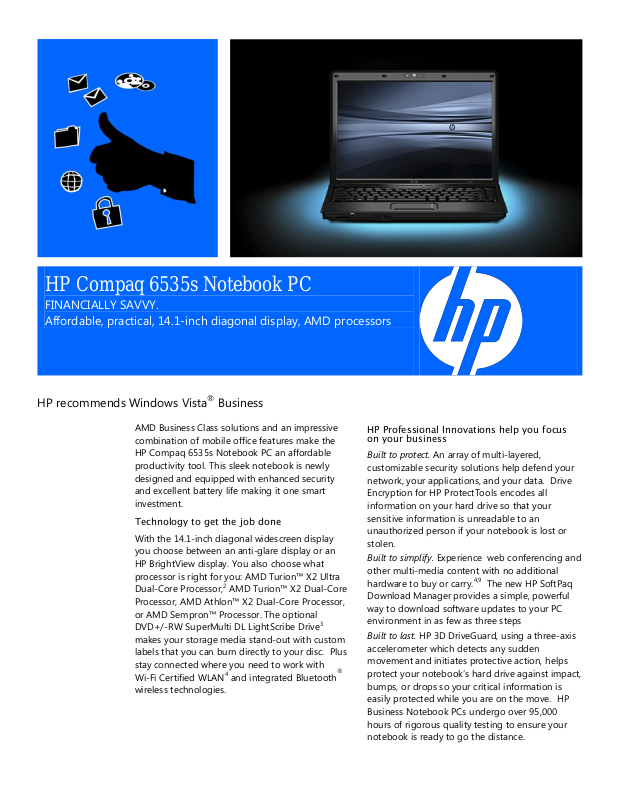

HP Compaq 6535s Notebook PC

FINANCIALLY SAVVY.
Affordable, practical, 14.1-inch diagonal display, AMD processors

HP recommends Windows Vista® Business

AMD Business Class solutions and an impressive
combination of mobile office features make the
HP Compaq 6535s Notebook PC an affordable
productivity tool. This sleek notebook is newly
designed and equipped with enhanced security
and excellent battery life making it one smart
investment.

Technology to get the job done

With the 14.1-inch diagonal widescreen display
you choose between an anti-glare display or an
HP BrightView display. You also choose what
processor is right for you: AMD Turion™ X2 Ultra
Dual-Core Processor,2 AMD Turion™ X2 Dual-Core
Processor, AMD Athlon™ X2 Dual-Core Processor,
or AMD Sempron™ Processor. The optional
DVD+/-RW SuperMulti DL LightScribe Drive3
makes your storage media stand-out with custom
labels that you can burn directly to your disc. Plus
stay connected where you need to work with
Wi-Fi Certified WLAN4 and integrated Bluetooth
wireless technologies.

®

HP Professional Innovations help you focus
on your business

Built to protect. An array of multi-layered,
customizable security solutions help defend your
network, your applications, and your data. Drive
Encryption for HP ProtectTools encodes all
information on your hard drive so that your
sensitive information is unreadable to an
unauthorized person if your notebook is lost or
stolen.

Built to simplify. Experience web conferencing and
other multi-media content with no additional
hardware to buy or carry.
Download Manager provides a simple, powerful
way to download software updates to your PC
environment in as few as three steps

Built to last. HP 3D DriveGuard, using a three-axis
accelerometer which detects any sudden
movement and initiates protective action, helps

protect your notebook’s hard drive against impact,

bumps, or drops so your critical information is
easily protected while you are on the move. HP
Business Notebook PCs undergo over 95,000
hours of rigorous quality testing to ensure your
notebook is ready to go the distance.

4,9

The new HP SoftPaq

HP Compaq 6535s Notebook PC

HP recommends Windows Vista® Business

Operating system

Preinstalled:

Genuine Windows Vista® Business 321
Genuine Windows Vista Home Basic 321
FreeDOS
Red Flag Linux (PRC only)

Supported:
Genuine Windows® XP Professional
Genuine Windows Vista® Business 641

Processor

AMD Turion™ X2 Ultra Dual-Core Mobile Processor2 (up to 2.4 GHz, 2 MB L2 cache)
AMD Turion™ X2 Dual-Core Mobile Processor (up to 2.0 GHz, 1 MB L2 cache)
AMD Athlon

TM

X2 Dual-Core Processor for Notebook PCs (up to 1.9 GHz, 1 MB L2 cache)

AMD Sempron Processor for Notebook PCs (up to 2.0 GHz, 512 KB L2 cache)

Chipset

AMD M780G Chipset

Memory

DDR2 SDRAM, 667 MHz or 800 MHz, two slots supporting dual channel memory,11 1024/2048/4096 MB SODIMMs, up to
8192 MB total, (max memory with Sempron is 4096 MB)12

Internal Storage5

120/160/250 GB 5400 rpm SATA HDD, HP 3D DriveGuard

Removable Storage3

Fixed 12.7-mm SATA optical drive: DVD+/–RW SuperMulti DL LightScribe Drive, DVD/CD-RW Combo Drive, DVD-ROM Drive

Display

14.1-inch diagonal WXGA (1280 x 800), 14.1-inch diagonal WXGA BrightView (1280 x 800)

Graphics

Integrated UMA graphics with shared video memory7

Audio

High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated -microphone

Wireless support

4, 5

Broadcom 802.11a/b/g/n draft 2.0, a/b/g, b/g, Bluetooth™ 2.0, HP Wireless Assistant

Communications

Marvell Ethernet (10/100 NIC), 56K v.92 modem

Expansion slots

1 ExpressCard/54 slot, Media Card Reader

Ports and connectors

4 USB 2.0 ports, VGA, stereo microphone in, stereo headphone/line out, power connector, RJ-11/modem, RJ-45/ethernet

Input device

Full-sized keyboard, touchpad with scroll zone, VoIP ready4 - optional integrated VGA webcam with integrated microphone

Software

HP Recovery Manager, HP SoftPaq Download Manager, Roxio Creator Business 10 (select models)

Security

Standard: HP ProtectTools, Enhanced Pre-Boot Security, HP SpareKey, HP Disk Sanitizer, Drive Encryption for HP ProtectTools,
Credential Manager for HP ProtectTools, File Sanitizer for HP ProtectTools; Enhanced Drive Lock
Optional:9 Kensington Lock, McAfee Security Solution10

Dimensions
(h × w × d)

1.21 (at front) x 13.3 x 9.7 in / 30.7 (at front) x 338.0 x 246.4 mm

Weight

starting at: 5 lb / 2.27 kg (weight will vary by configuration)

Power

6-cell (47 WHr) Lithium-Ion battery, 65W HP Smart AC Adapter, HP Fast Charge8

Expansion Solutions9

HP Adjustable Notebook Stand

Warranty

Limited 3-year,1-year and 90-day warranty options available depending on country, 1-year limited warranty on primary
battery. HP Care Pack Services extend service contracts which go beyond your standard warranties. For more details visit:

http://www.hp.com/go/lookuptool.
