Hardware Setup
CAUTION: To prevent file corruption and ensure that the correct drivers
Ä
are installed:
■ Do not set up the notebook for the first time while the notebook is
connected to an optional expansion product.
■ During the hardware and software setup procedures:
❏ Do not unplug the notebook from external power.
❏ Do not shut down the notebook or initiate Standby mode or
Hibernation mode.
❏ Do not insert, remove, connect, or disconnect any device,
cable, or cord, unless instructed to do so.
During hardware setup, you will
1. Identify the hardware you need to set up the notebook.
2. Insert the battery pack into the notebook.
3. Connect the modem, so you can register the notebook and
operating system during software setup.
1
4. Open the notebook.
5. Connect the notebook to external power.
6. Allow the battery pack to charge.
7. Turn on the notebook.
When the notebook is turned on, you will be prompted to begin
software setup.
Getting Started 1–1
Hardware Setup
Step 1: Identify the Setup Hardware
To set up the notebook for the first time, you need the notebook
and the components listed in the following table.
Power cords, AC adapters, modem cables, and modem adapters
✎
may vary in appearance.

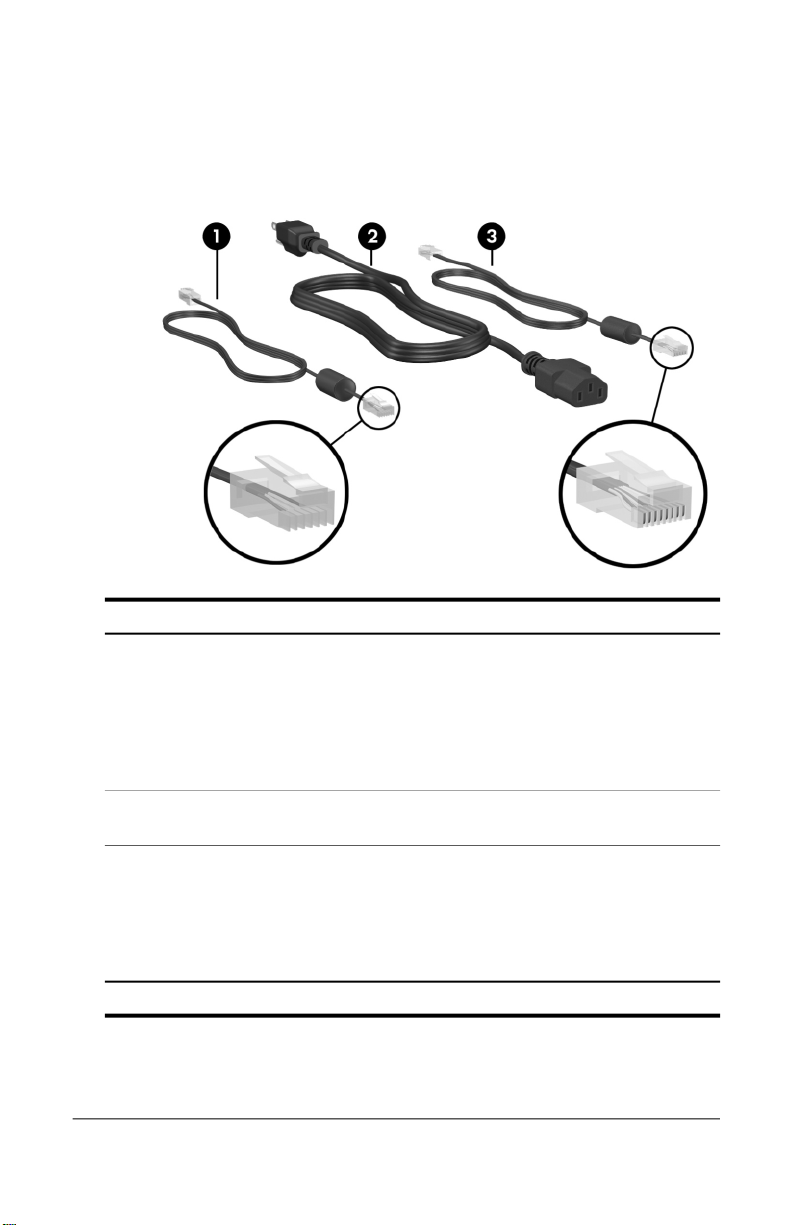

Component Description
1 Modem cable (included with Connects the modem to a telephone
select models) jack or to a country-specific modem
adapter.
A modem cable has a 6-pin
✎
RJ-11 telephone connector at
each end.
2 Power cord Connects the AC adapter to an
AC outlet.
(Continued)
1–2 Getting Started
Hardware Setup

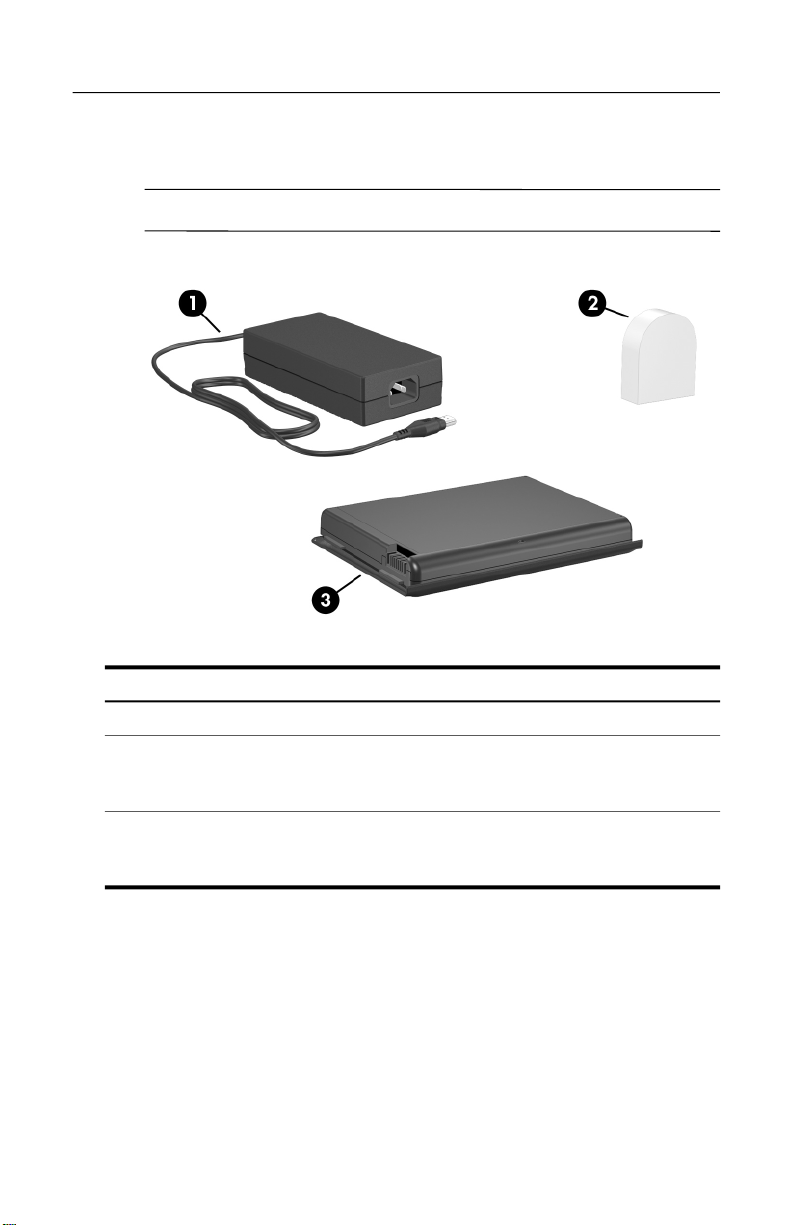

Component Description
3 AC adapter Converts AC power to DC power.
4 Network cable (not included) Connects the notebook to a
network jack.
A network cable has an 8-pin
✎
RJ-45 network connector at
each end.
5 Country-specific modem
adapter (included by region
as required)
Adapts the modem cable to a
non-RJ-11 telephone jack.
6 Battery pack Provides power to the notebook when
the notebook is not connected to
external power.
Getting Started 1–3
Hardware Setup
Step 2: Insert the Battery Pack
CAUTION: To avoid data loss when you turn on the notebook, make
Ä
sure the battery pack is firmly seated.
CAUTION: To ensure that the correct drivers load and to prevent file
Ä
corruption or damage to components, do not remove the battery pack
until the notebook has been connected to external power.
To insert the battery pack:
1. Turn the notebook upside down on a flat surface.
2. Insert the alignment tab on the battery pack into the
alignment slot on the notebook 1.
3. Tilt the battery pack downward until it snaps into place 2.
1–4 Getting Started
Step 3: Connect the Modem
WARNING: To reduce the risk of electric shock, disconnect the
Å
modem from the telephone network before accessing an internal
compartment of the notebook. Internal compartments include the
memory compartment, the battery bay, and the hard drive bay.
To connect the modem so that you can register your notebook
and operating system during software setup:
■ Follow the instructions in this section for connecting the
modem to an analog telephone line.
– or –
■ Follow the instructions provided by your Internet service
provider (ISP) to connect the notebook to the Internet through
a DSL (Digital Subscriber Line) modem, cable modem, or
network connection.
For more information about DSL, cable, and network
connections, select Start > Help and Support. The Help and
Support utility provides hardware and software information,
instructions, tutorials, and wizards that can help you set up or
troubleshoot a variety of connections.
Hardware Setup
It may be easier to connect your modem to a telephone line
✎
now and set up another Internet connection later, after you have
completed software setup.
Wall jacks for analog telephone lines vary by country.
■ If you are connecting the modem to a telephone line in
a country where RJ-11 telephone wall jacks are standard,
see the following section
RJ-11 Jack.”
■ If you are connecting the modem to a telephone line in a
country where RJ-11 telephone wall jacks are not standard,
see the section
later in this chapter.
Getting Started 1–5
“Connecting the Modem with an Adapter,”
“Connecting the Modem to an
Hardware Setup
Connecting the Modem to an RJ-11 Jack
To connect the modem to an analog telephone line that has an
RJ-11 telephone jack:
1. Turn the notebook display-side up on a flat surface near
an RJ-11 telephone wall jack.
2. If your modem cable has noise suppression circuitry 1,
which prevents interference with TV and radio reception,
place the circuitry end of the cable near the notebook.
3. Plug the modem cable into the RJ-11 (modem) jack on the
notebook 2.
4. Plug the other end of the modem cable into the RJ-11
telephone wall jack 3.
Telephone wall jacks and modem cables vary in appearance by
✎
region and country.
1–6 Getting Started
Hardware Setup
Connecting the Modem with an Adapter
To connect the modem to an analog telephone line that does not
have an RJ-11 telephone wall jack:
1. Turn the notebook display-side up on a flat surface near a
telephone wall jack.
2. If your modem cable has noise suppression circuitry 1,
which prevents interference with TV and radio reception,
place the circuitry end of the cable near the notebook.
3. Plug the modem cable into the RJ-11 (modem) jack on the
notebook 2.
4. Plug the other end of the modem cable into the
country-specific modem adapter 3.
5. Plug the country-specific modem adapter into the telephone
wall jack 4.
Telephone wall jacks, modem adapters, and modem cables
✎
vary in appearance by region and country.
Getting Started 1–7
Hardware Setup
Step 4: Open the Notebook
To open the notebook:
1. Place the notebook display-side up on a flat surface near an
electrical outlet.
2. Press the display release button 1, and then lift the
display 2.
1–8 Getting Started
Hardware Setup
Step 5: Connect the Notebook to External Power
To connect the notebook to external power:
1. Plug the AC adapter cable into the power connector 1.
2. Plug the power cord into the AC adapter 2, and then into an
electrical outlet 3.
The battery light is turned on and the battery pack begins to
charge.
Power cords, AC adapters, and electrical outlets may vary in
✎
appearance.
Getting Started 1–9
Hardware Setup
Step 6: Charge the Battery Pack
The battery pack begins to charge as soon as the notebook is
connected to external power. Charge status is indicated by the
battery light, which remains on while the battery pack is
charging.
The battery light is on while the battery pack is charging.
It is recommended that you leave the notebook connected to
external power until the battery pack is fully charged and the
battery light is turned off.
A partially charged new battery pack can run the notebook,
but battery charge displays will not be accurate until the new
battery pack has been fully charged.
1–10 Getting Started
Step 7: Turn On the Notebook
To turn on the notebook:

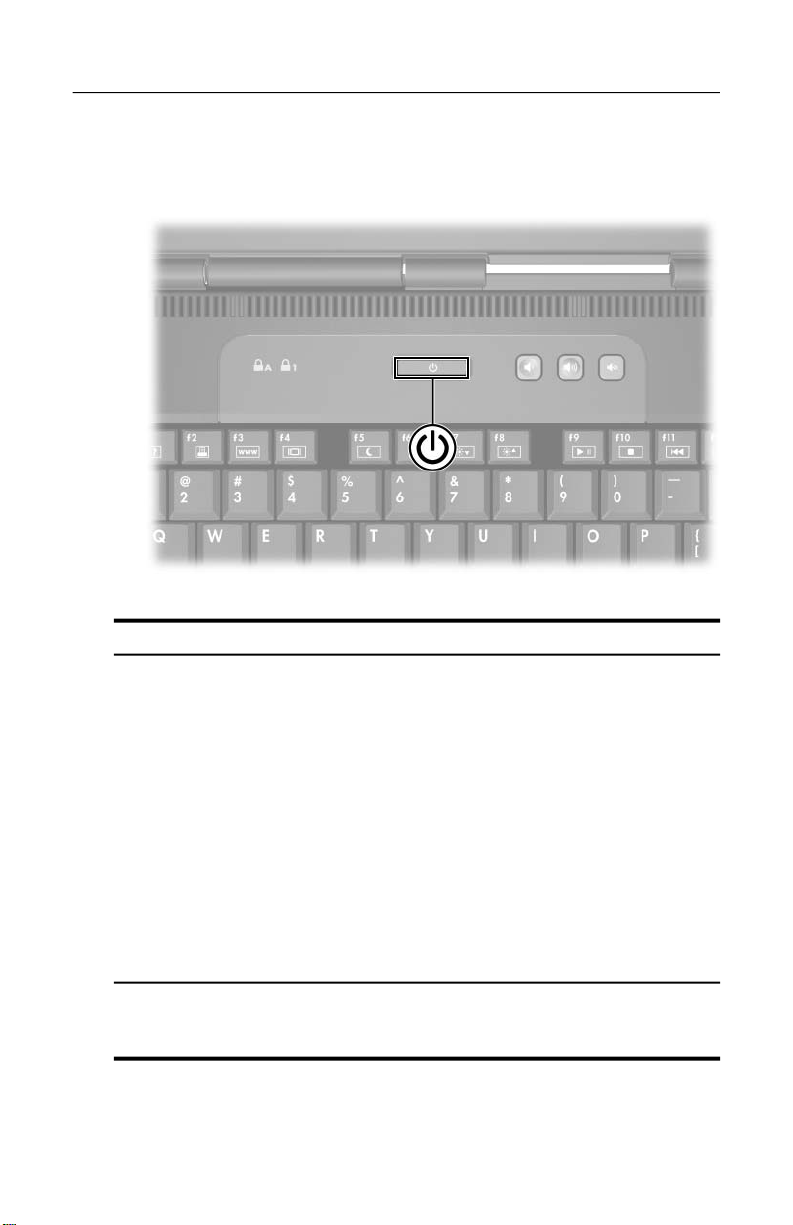

» Press the power/standby button 1.
The power/standby button light and the power/standby light on
the front of the notebook 2 are turned on and you are prompted
to begin software setup.
The power/standby button light and the power/standby light
✎
display the same information. The power/standby button light
is visible only when the notebook is open; the power/standby
light is visible when the notebook is open or closed.
Hardware Setup
Getting Started 1–11
Hardware Setup
If the notebook does not power up:
■ Make sure the AC adapter is securely plugged into the
notebook and an electrical outlet.
■ Make sure the electrical outlet is providing power.
(To confirm that the outlet is providing power, plug
another device into the outlet.)
■ If you have installed a battery pack, make sure the
battery pack is firmly seated.
■ Refer to the Worldwide Telephone Numbers booklet (English
only) included with the notebook to contact Customer Care.
1–12 Getting Started
2
Software Setup
During software setup you can
■ Select regional preferences.
■ Accept license agreements.
■ Name your notebook.
■ Register online.
■ Create user accounts.
If you prefer not to register your notebook during software setup,
you can do so at any time after software setup is complete. You
can also change or add any settings you select or skip during the
setup process. For instructions, refer to Chapter 2, “Managing
Your Software,” in the Help and Support Guide included with
your notebook. Although you can register and set preferences
later, it is usually easier and faster to complete these tasks during
software setup.
Getting Started 2–1
Software Setup
Software setup begins when you respond to the setup prompt on
the notebook screen.
CAUTION: If you are prompted to select an operating system language
Ä
before the Welcome to Microsoft Windows window is displayed,
choose carefully. On some models, the languages that you do not
choose are deleted from the system and cannot be restored during
software setup.
■ After you respond to the setup prompt, you must complete
the entire setup process without interruption. Setup time
varies.
■ During software setup, it is normal for some notebook
models to pause occasionally for several minutes. These
pauses are indicated by an hourglass icon.
Welcome to Microsoft Windows
The first window in software setup is Welcome to Microsoft
Windows. This window welcomes you to your Microsoft®
Windows® operating system and introduces you to software
setup navigation:
■ To display additional information about the text in any setup
window:
Select the question mark icon in the lower-right section of the
window or press the
■ To continue to the next window:
f1 key on your keyboard.
Select the Next button in the lower-right corner of the
window.
2–2 Getting Started
Software Setup
■ To return to the previous window:
Select the Back button in the lower-left corner of the window.
(This button is unavailable on the first window, Welcome to
Microsoft Windows.)
■ To skip a window without entering a preference:
Select the Skip button in the lower-right corner of the
window. (This button is unavailable on some windows.)
To navigate in a window:
» Slide your finger on the TouchPad 1 in the direction that you
want to move the pointer.
To select an item:
» Move the pointer over the item, and press the left TouchPad
button 2.
Getting Started 2–3
Software Setup
Select Your Regional Preferences
The next 2 windows prompt you to confirm or select regional
preferences. Regional preferences are preset for the country in
which you purchased the notebook.
■ Dates and currency window—The operating system will
format dates and currency according to the region and
language preferences you confirm or select in the How
should dates and currency appear? window.
Notice that some languages include regional versions. The
versions are shown in parentheses after the language name.
■ Time zone window—The operating system will set the
notebook clock according to the time zone you confirm or
select in the What time zone are you in? window.
Notice that you can select a check box to set the notebook
clock to adjust to daylight saving time.
2–4 Getting Started
Accept the End-User License Agreements
In the End-User License Agreement window, you must accept
both the Microsoft End-User License Agreement and the HP
Software Product License Agreement to continue with software
setup.
■ To accept both agreements:
Select Yes, I accept them, and then select Next.
■ To decline both agreements:
Select No, I don’t accept them, and the select Next.
If you decline both agreements, you will not be permitted to
use the installed software. On the following screen, you will
be offered only 2 options: You can choose Back to return to
the End-User License Agreement window or choose
Shutdown to turn off the notebook. When you start the
notebook after selecting Shutdown, the Welcome to
Microsoft Windows window is displayed and you must begin
software setup again.
Software Setup
Getting Started 2–5
Software Setup
Help Protect Your Notebook
In the Help protect your PC window, you can choose to have
your notebook automatically download and install Windows
updates as they become available. The Automatic Updates feature
helps protect your notebook by providing important security
enhancements. It is strongly recommended that you enable this
feature.
To enable Automatic Updates:
» Select the Help protect my PC by turning on Automatic
Updates now radio button.
If you do not choose to enable Automatic Updates, it is strongly
recommended that you use the Windows Updates feature on a
regular basis to check for critical updates. For more information,
select Start > Help and Support.
2–6 Getting Started
Name Your Notebook
If you plan to include your notebook on a home network, your
notebook must have a unique name. In the What’s your
computer’s name? window, you can retain the default name
shown in the Computer name text field or choose another name.
For example, you may want to base your notebook name on a
person’s name, “David,” or a location, “Familyroom.” In order for
your notebook name to be displayed on a network, the name
■ Must be no longer than 15 characters.
■ Must include only letters (A-Z and a-z), numerals (0-9), and
hyphens.
■ Cannot include spaces.
If you like, you can also enter a description of your notebook. The
description may contain more characters than the notebook name,
as well as spaces and special characters. For example, you could
describe your notebook as “David’s game machine.”
Software Setup
Getting Started 2–7
Software Setup
Register Online
In the Register Online with Hewlett-Packard window, you can
■ Register your notebook—Complete the text fields.
■ Register your operating system—Select the Also Register
with Microsoft check box beneath the text fields.
■ Indicate how you would like to be contacted by
Hewlett-Packard—Select or clear the check boxes above the
Microsoft registration information.
■ View privacy statements:
❏ To view the Hewlett-Packard Registration Privacy
Statement, select the underlined link near the top of the
window.
❏ To view the Microsoft Windows Registration Privacy
Statement, select the underlined link near the bottom of
the window.
If you connected your modem during the hardware setup in
Chapter 1, “Hardware Setup,” or have connected the notebook to
the Internet by another method, the Connecting to online
registration window is displayed. This window describes the
progress of your registration.
If you are unable to send your registration, you can do so at any
time after software setup is complete.
2–8 Getting Started
Create User Accounts
In the Who will use this computer? window, you can create a
user account for each person who may use the notebook.
User accounts enable each notebook user to create a personal
notebook environment. A user’s environment may include such
customizations as display and security settings, personal files,
screen savers, and the appearance of the Windows desktop.
When you start or restart the notebook, a prompt to select a user
account is displayed. When a user account is selected, Windows
opens according to the preferences set by that user.
The names you enter in the text fields of the Who will use this
computer? window are displayed at Windows startup on the list
of user accounts.
Press the Finish Button
When the Thank you! window is displayed:
1. Read the text, and then select Finish. (Your notebook saves
your preferences, and then restarts in Windows.)
Software Setup
2. Select your user account. (You are ready to begin using your
notebook.)
To protect your notebook and gain Internet access to software
✎
updates and online assistance, it is recommended that you
follow the suggestions in
Getting Started 2–9
Chapter 3, “Next Steps.”
All software instructions in your notebook documentation
✎
describe Microsoft® Windows® XP procedures based on the
default Windows XP category view. For information about
switching between Windows XP classic view and
Windows XP category view, select Start > Help and
Support > Customizing your computer > Files, folders, and
programs > Use Windows classic folders.
Protect Your Notebook
You can use the information in this section to
■ Protect your notebook from viruses.
■ Protect your system files.
■ Protect your privacy.
■ Protect your notebook from power surges.
3
Next Steps
■ Use your notebook safely.
■ Turn off your notebook properly.
For information about other notebook security features, such
as passwords, device disabling, and using an optional security
cable lock, refer to the “Security” chapter in the Hardware and
Software Guide on the Notebook Documentation CD.
Getting Started 3–1
Next Steps
Protect the Notebook from Viruses
When you use the notebook for e-mail, network, or Internet
access, you expose the notebook to computer viruses. Computer
viruses can disable your operating system, applications, or
utilities or cause them to function abnormally.
Antivirus software can detect most viruses, destroy them, and
in most cases, repair damage they have caused. To provide
protection against newly discovered viruses, antivirus software
must be updated.
Norton AntiVirus is preinstalled on your notebook. For
information about using and updating your Norton AntiVirus
software:
» Select Start > All Programs > Norton AntiVirus >Help
and Support.
For more information about computer viruses:
1. Select Start > Help and Support.
2. Type
viruses into the Search text field.
3. Press
3–2 Getting Started
enter.
Protect Your System Files
System Restore is an operating system feature that enables you
to undo harmful changes to your notebook software by restoring
your software to an earlier time, called a restore point, when your
software was functioning optimally.
Restore points are restorable, benchmark “snapshots” of your
application, driver, and operating system files. The notebook sets
restore points at regular intervals and may set additional restore
points whenever you change your personal settings or add
software or hardware.
Manually setting additional restore points provides additional
protection for your system files and settings. It is recommended
that you manually set restore points
■ Before you add or extensively modify software or hardware.
■ Periodically, whenever the system is performing optimally.
Restoring to any restore point does not affect your data files. For
example, restoring your system software to an earlier time will
not affect documents or e-mails that you saved after that time. All
System Restore procedures are reversible.
Next Steps
Setting a Restore Point
To set a system restore point manually:
1. Select Start > Help and Support > System Restore.
2. Select Create a restore point, and then follow the
instructions on the screen.
Getting Started 3–3
Next Steps
Restoring to a Restore Point
To restore the notebook to a restore point:
1. Make sure the notebook is connected to reliable external
power through the AC adapter.
2. Select Start > Help and Support > System Restore.
3. Select Restore my computer to an earlier time, and then
follow the instructions on the screen.
Protect Your Privacy
When you use the notebook for e-mail, network, or Internet
access, it is possible for unauthorized persons to obtain
information about you, your notebook, and your data.
To optimize the privacy protection features included with your
notebook, it is recommended that you
■ Keep your Windows operating system updated.
■ Use a firewall.
For details, see the following sections “Critical Security Updates
for Windows XP” and “Firewall Software.”
3–4 Getting Started
Critical Security Updates for Windows XP
CAUTION: Because new computer viruses are being detected all the
Ä
time, it is recommended that you install all critical updates as soon as
you receive an alert from Microsoft. You should also run Windows
Update on a monthly basis to install the latest recommended updates
from Microsoft.
A Critical Security Updates for Windows XP disc may have been
included with your notebook to provide additional updates
delivered after the computer was configured. Throughout the life
of the computer, Microsoft will continue to update the operating
system and make these updates available on their Web site.
To update your system using the Critical Security Updates for
Windows XP disc:
1. Insert the disc into the drive. (The disc automatically runs the
installation application.)
2. Follow the on-screen instructions to install all updates. (This
may take a few minutes.)
3. Remove the disc.
Next Steps
Getting Started 3–5
Next Steps
Firewall Software
When you use the notebook for e-mail, network, or Internet
access, it is possible for unauthorized persons to obtain
information about you, your notebook, and your data. Firewalls
monitor all incoming and outgoing traffic on your computer by
including features such as logging and reporting, automatic
alarms, and user interfaces for configuring the firewall. To protect
your privacy, it is recommended that you use
Your notebook comes with preinstalled firewall software. Refer to
the online Help in the firewall software application for additional
information.
Under some circumstances a firewall can block access to
✎
Internet games, interfere with printer or file sharing on a
network, or block authorized e-mail attachments. To
temporarily solve the problem, disable the firewall, perform
the task that is interfering with the firewall, and then reenable
the firewall. To permanently resolve the problem, reconfigure
the firewall.
firewall software.
Protect the Notebook from Power Surges
To protect the notebook from the power surges that may be
caused by an uncertain power supply or an electrical storm:
■ Plug the notebook power cord into an optional, high-quality
surge protector. Surge protectors are available from most
computer or electronics retailers.
■ Provide surge protection on the cable that connects the
modem to a telephone line.
■ During an electrical storm, either run the notebook on
battery power or shut down the notebook and disconnect
the power cord.
3–6 Getting Started
Use the Notebook Safely
WARNING: To reduce the risk of electric shock or damage to your
Å
equipment:
■ Plug the power cord into an electrical outlet that is easily accessible
at all times.
■ To disconnect power from the notebook, unplug the power cord
from the electrical outlet.
■ If provided with a three-pin attachment plug on your power cord,
plug the cord into a grounded (earthed) three-pin outlet. Do not
disable the power cord grounding pin; for example, by using a
2-pin adapter. The grounding pin is an important safety feature.
WARNING: To reduce the risk of serious injury, read the Safety and
Å
Comfort Guide. It describes proper workstation setup, and proper
posture, health, and work habits for computer users. The Safety and
Comfort Guide also provides important electrical and mechanical safety
information. This guide is located on the Web at
http://www.hp.com/ergo, on the notebook hard drive, and on the
Notebook Documentation CD that is included with the product.
Next Steps
WARNING: This notebook is designed to run demanding applications
Å
at full power. As a result of increased power consumption, it is normal
for the notebook to feel warm or hot when used continuously. To avoid
potential discomfort or burns, do not block the air vents or use the
notebook on your lap for extended periods. The notebook complies
with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment
(IEC 60950).
For more safety and regulatory information, refer to the
Regulatory and Safety Notices on the Notebook Documentation
CD and to the printed Wireless Regulatory Notices document
included with your notebook.
Getting Started 3–7
Next Steps
Turn Off the Notebook Properly
Whenever possible, turn off the notebook by using the standard
Windows shutdown procedure for your operating system.
To turn off the notebook:
» Select Start > Turn Off Computer > Turn Off.
If the notebook does not respond, try the following emergency
shutdown procedures in the order shown:
■ Press ctrl+alt+delete, select Shut Down, and then select Turn
Off from the drop-down list.
■ Press and hold down the power/standby button for at least
4 seconds.
■ Unplug the notebook from external power by unplugging
the power cord from the electrical outlet. Then remove the
battery pack. For instructions on removing the battery pack,
refer to the Hardware and Software Guide on the Notebook
Documentation CD.
3–8 Getting Started
Connect to the Internet
To connect the notebook to the Internet, you must enable your
communication hardware and have an account with an Internet
service provider (ISP).
Enable Communication Hardware
Your modem is enabled when the modem cable is connected to
the notebook and to an analog telephone line.
■ If you connected the modem cable during hardware setup,
your modem is enabled. Proceed to the following section,
“Set Up Internet Service.”
■ If you did not connect the modem cable during hardware
setup:
1. Turn off your notebook.
2. Follow the instructions in the section “Step 3: Connect the
Modem” in Chapter 1.
3. Turn on your notebook and log on to Windows.
Next Steps
4. Refer to the following section, “Set Up Internet Service.”
To enable a wireless device, refer to the printed Go Wireless
document included with your notebook (select models only).
For more information about modem, wireless, cable, DSL and
network connections, select Start > Help and Support. The
Help and Support utility provides hardware and software
information, instructions, tutorials, and wizards that can help you
set up or troubleshoot a variety of connections.
Getting Started 3–9
Next Steps
Set Up Internet Service
You must set up Internet service before you can connect to the
Internet. Arrangements have been made with leading ISPs in
many locations to help you set up a new Internet account or to
configure your notebook to use an existing account.
Depending on your location, you may be able to set up Internet
service by using the Easy Internet Sign-up utility or an
ISP-provided icon on your desktop.
In all locations, you can set up Internet service by using the
Windows Internet Connection wizard.
Using Easy Internet Sign-Up
If the Easy Internet Sign-Up utility is supported in the country in
which you purchased your notebook, you can access the utility by
using either of the following methods:
» Double-click the Easy Internet Sign-up icon on the desktop.
– or –
» Select Start > All Programs > Online Services > Easy
Internet Sign-up.
If the Easy Internet Sign-Up utility is available, you can use the
utility to
■ Sign up for a new Internet account.
■ Configure your notebook to use an existing account.
■ Learn about accessing the Internet through a LAN (local area
network), cable, or DSL connection.
If you plan to use a LAN, DSL, or cable Internet connection,
you may need to contact your ISP for information about
obtaining additional software or hardware. For more
information about LAN, DSL or cable Internet connections,
select Start > Help and Support.
3–10 Getting Started
If the Easy Internet Sign-Up utility is not available, see the
following sections,
“Using an ISP-Provided Icon” or “Using the
Internet Connection Wizard.”
Using an ISP-Provided Icon
If ISP-provided icons are supported in the country in which you
purchased your notebook, the icons may be displayed either
individually on the Windows desktop or grouped in a desktop
folder named Online Services.
To set up a new Internet account or configure your notebook to
use an existing account, double-click an icon, and then follow the
instructions on the screen.
Using the Internet Connection Wizard
You can use the Windows Internet Connection wizard to connect
to the Internet
■ If you already have an account with an ISP.
■ If you have a CD from an ISP.
Next Steps
■ If you do not have an Internet account and would like to
select an ISP from the list provided within the wizard. (The
list of ISP providers is not available in all regions.)
■ If you have selected an unlisted ISP and the ISP has provided
you with such information as a specific IP address, and POP3
and SMTP settings.
To access the Internet Connection wizard and instructions for
using the wizard:
1. Select Start > Help and Support.
2. In the Search text field, type
Make an Internet connection.
3. Select Search.
Getting Started 3–11
Next Steps
Preview the Help and Support Guide
The Help and Support Guide included with your notebook
contains
■ Information about the interactive Help and Support utility
and the Notebook Documentation CD.
■ Instructions for updating your operating system, adding or
changing any settings you skipped or entered during software
setup, and setting additional preferences.
■ Instructions for installing additional software.
■ Tips for quick troubleshooting.
■ Procedures for repairing or reinstalling your drivers,
operating system, and other preinstalled software.
By previewing the Help and Support Guide now, you will
know how to find any information or help you may need later.
3–12 Getting Started
4
Notebook Tour
This chapter identifies the visible hardware features of your
notebook.
To find out how to use a feature, such as hotkeys, or to find
out about a general topic, such as Standby or Hibernation, refer
to the Hardware and Software Guide on the Notebook
Documentation CD.
Getting Started 4–1
Notebook Tour
Top Components

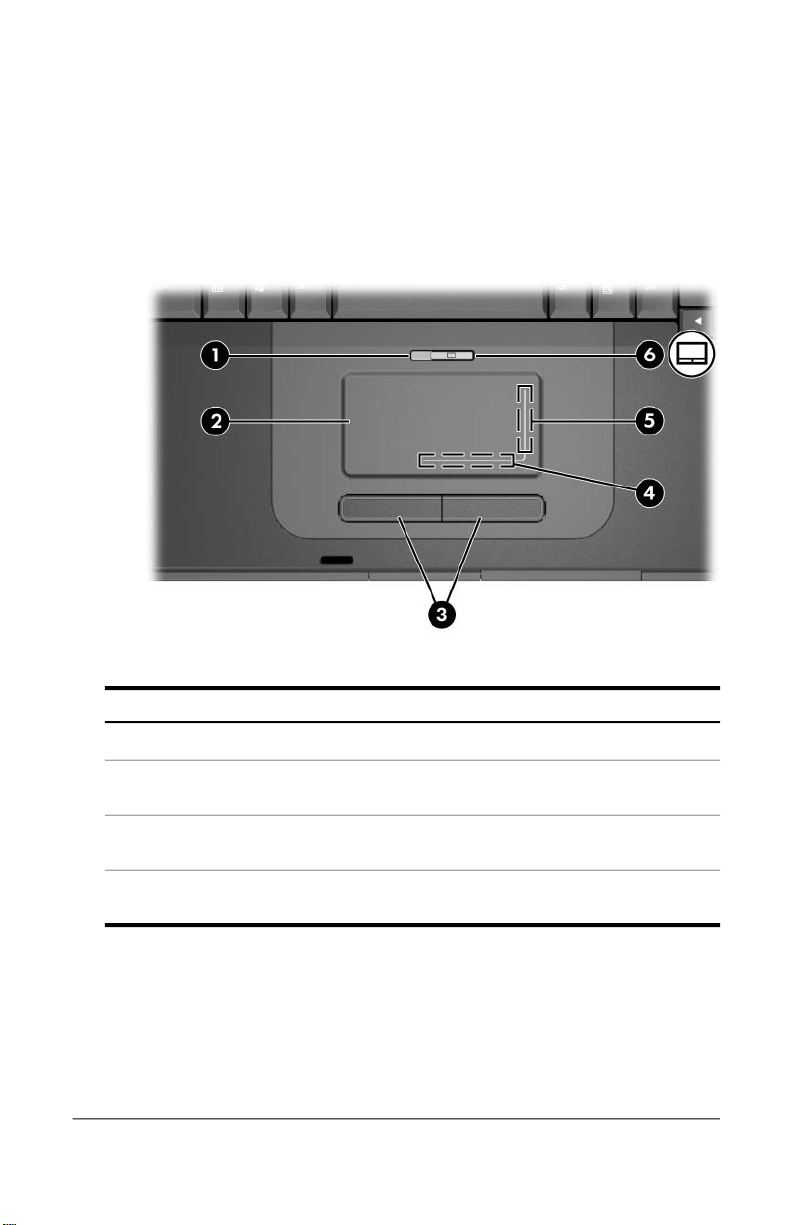

TouchPad
Component Description
TouchPad light On: TouchPad is enabled.
1
TouchPad* Moves the pointer and selects or
2
Left and right TouchPad Function like the left and right buttons
3
buttons (2)* on an external mouse.
TouchPad left/right Scrolls left or right.
4
scroll zone*
4–2 Getting Started
activates items on the screen.
(Continued)
Notebook Tour
Component Description
TouchPad up/down Scrolls up or down.
5
scroll zone*
6 TouchPad button Enables/disables the TouchPad.
*This table describes default settings. For information about changing the
functions of TouchPad features, refer to the
Notebook Documentation
on the
CD.
Hardware and Software Guide
Getting Started 4–3
Notebook Tour
Keys
Component Description
Function keys Perform system and application tasks.
1
fn key Combines with other keys to perform
2
Windows logo key Displays the Windows Start menu.
3
Windows applications key Displays a shortcut menu for items
4
Keypad keys (17) Standard numeric keypad.
5
4–4 Getting Started
When combined with the fn key, the
function keys perform additional tasks
as hotkeys.
For more information, refer to the
Hardware and Software Guide
Notebook Documentation
system tasks, and activates hotkeys.
For example, pressing fn+f8 increases
screen brightness.
beneath the pointer.
on the
CD.
Power Control
Component Description
Notebook Tour
Power/standby button* When the notebook is
■ Off, press to turn on the notebook.
■ On, briefly press to initiate Hibernation.
■ In Standby, briefly press to resume from
Standby.
■ In Hibernation, briefly press to restore
from Hibernation.
If the system has stopped
✎
responding and Windows shutdown
procedures cannot be used, press
and hold the power/standby button
for at least 4 seconds to turn off the
notebook.
*This table describes default settings. For information about changing the
function of the power/standby button or display switch, refer to the
Hardware and Software Guide
Getting Started 4–5
on the
Notebook Documentation
CD.
Notebook Tour

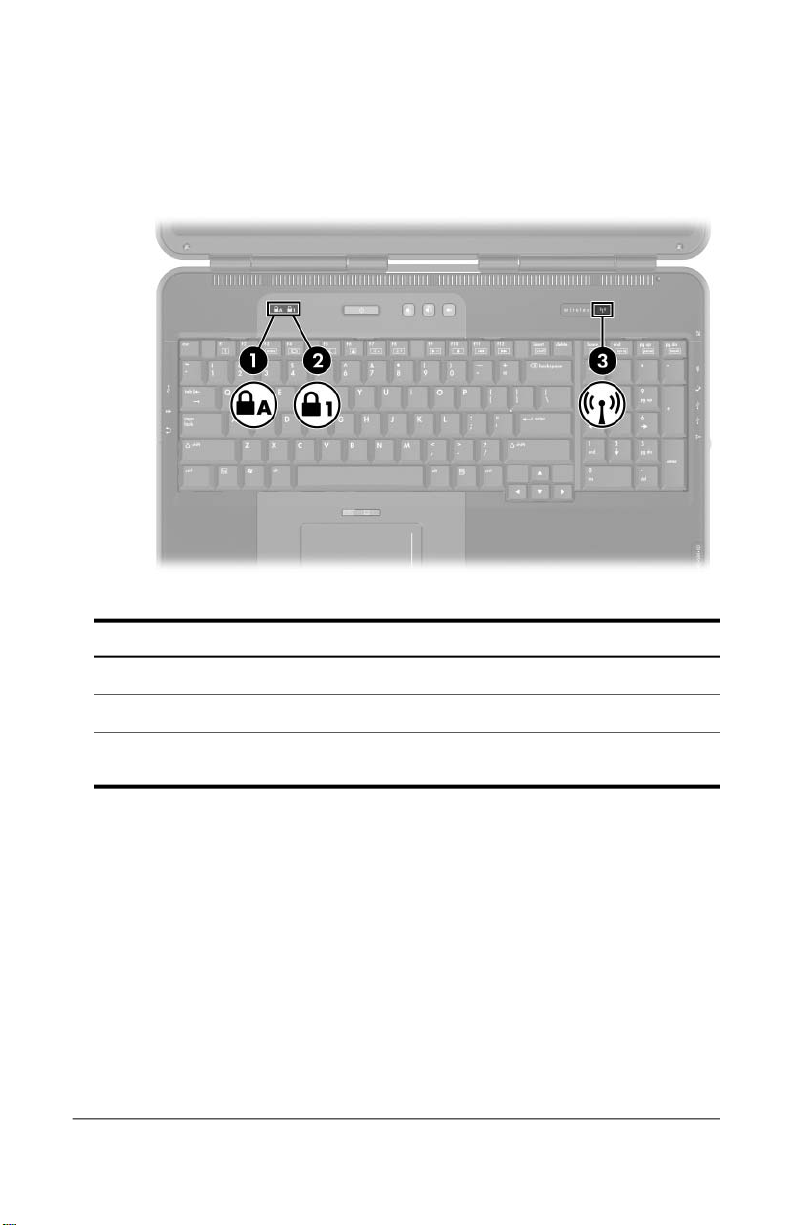

Lights
Component Description
Caps lock light On: Caps lock is on.
1
Num lock light On: Num lock or the numeric keypad is on.
2
Wireless light On: An integrated wireless device has been
3
4–6 Getting Started
enabled (select models only).

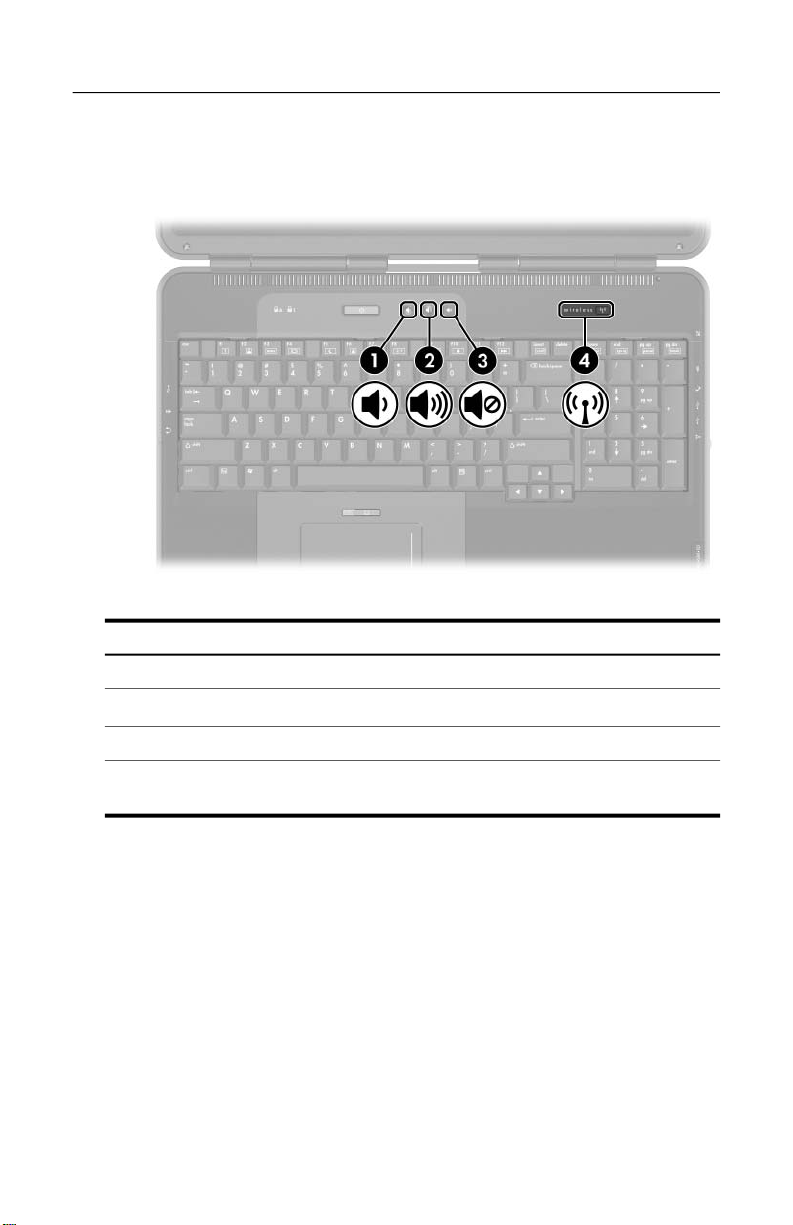

Buttons
Component Description
Notebook Tour
1 Volume down button Decreases system volume.
Volume up button Increases system volume.
2
3 Volume mute button Mutes or restores system volume.
Wireless button Turns the wireless network device on
4
Getting Started 4–7
and off (select models only).
Notebook Tour

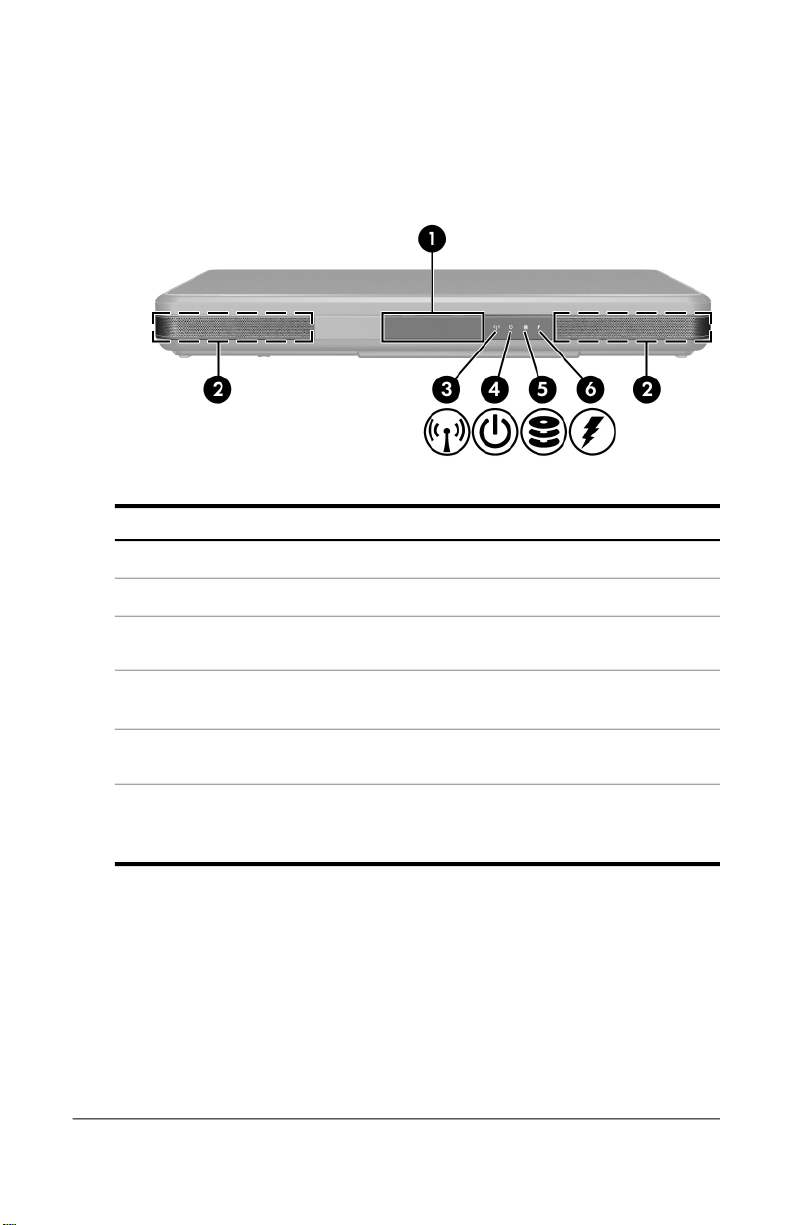

Front Components
Component Description
Display release button Opens the notebook.
1
Stereo speakers (2) Produce stereo sound.
2
Wireless light On: An integrated wireless device has
3
been enabled (select models only).
Power/standby light On: Notebook is turned on.
4
Blinking: Notebook is in Standby.
IDE (Integrated Drive On: Internal hard drive or optical drive is
5
Electronics) drive light being accessed.
Battery light On: Battery pack is charging.
6
Blinking: Battery pack has reached a
low-battery condition.
4–8 Getting Started

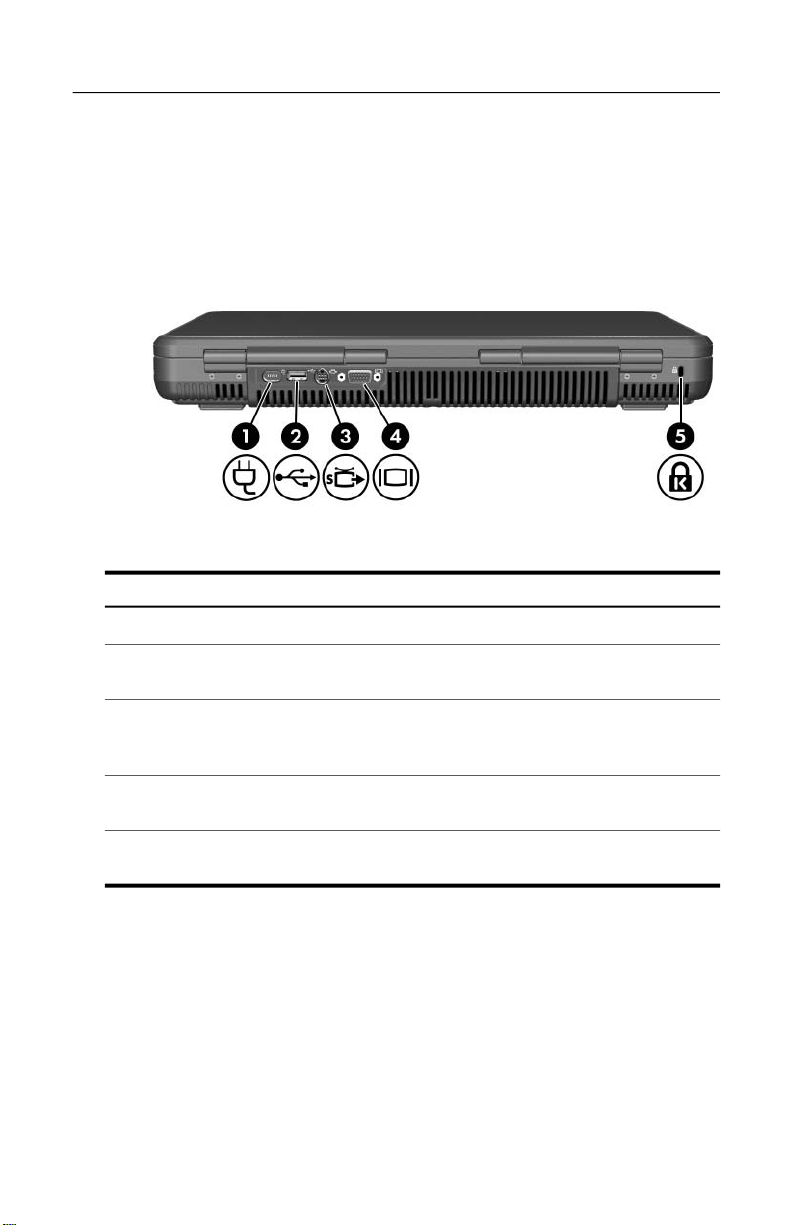

Rear Components
Connectors, Jacks and Ports
Component Description
Power connector Connects an AC adapter.
1
Notebook Tour
USB port Connects an optional 1.1- or
2
S-Video-out jack Connects an optional S-Video device,
3
External monitor port Connects an optional VGA external
4
Security cable slot Attaches an optional security cable to
5
Getting Started 4–9
2.0-compliant USB device.
such as a television, VCR, camcorder,
projector, or video capture card.
monitor or projector.
the notebook.
Notebook Tour
Vent
Component Description
Exhaust vent Provides airflow to cool internal
components.
To prevent overheating, do not
Ä
obstruct vents. Do not allow a hard
surface, such as a printer, or a soft
surface, such as a pillow, blanket,
rug, or thick clothing, to block airflow.
4–10 Getting Started

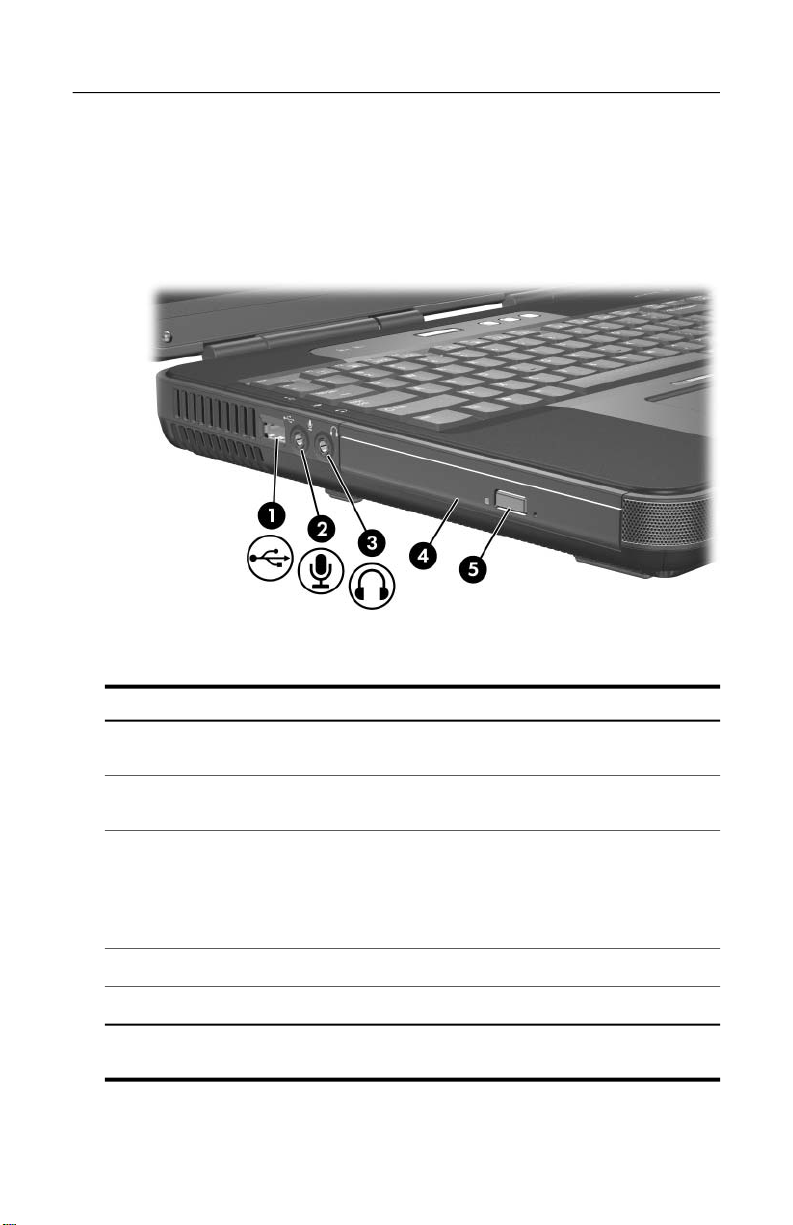

Left-Side Components
Connectors, Jacks and Components
Notebook Tour
Component Description
USB port Connects an optional 1.1- or
1
Audio-in (microphone) jack Connects an optional monaural
2
Audio-out (headphone) jack Connects optional headphones or
3
Optical drive* Supports an optical disc.
4
Optical drive release button Opens the optical drive.
5
*The type of optical drive, such as a combination CD-ROM/DVD-ROM,
varies by model.
Getting Started 4–11
2.0-compliant USB device.
microphone.
powered stereo speakers. Also
connects the audio function of an
audio/video device such as a television
or VCR.
Notebook Tour
Vent
Component Description
Exhaust vent Provides airflow to cool internal
components.
To prevent overheating, do not
Ä
obstruct vents. Do not allow a hard
surface, such as a printer, or a soft
surface, such as a pillow, blanket,
rug, or thick clothing, to block airflow.
4–12 Getting Started
Right-Side Components
Component Description
Notebook Tour
Digital Media Slot Supports the following optional
1
PC Card eject button Ejects an optional PC Card from the
2
PC Card slot Supports an optional Type I or Type II
3
ExpressCard slot Supports an optional ExpressCard.
4
Digital drive bay Supports an optional HP USB Digital
5
Getting Started 4–13
digital cards: SD (Secure Digital)
Memory Card, SD I/O Card,
Memory Stick, Memory Stick Pro,
MultiMediaCard, xD-Picture Card,
and SmartMedia card.
PC Card slot.
32-bit (CardBus) or 16-bit PC Card.
Drive.
(Continued)
Notebook Tour
Component Description
6 Digital drive eject button Ejects an optional HP USB Digital
Drive from the digital drive bay.
USB ports (2) Connect optional 1.1- or 2.0-compliant
7
1394 port Connects an optional 1394 device,
8
RJ-11 (modem) jack Connects a modem cable. (Included
9
USB devices.
such as a camcorder.
with select models.)
- RJ-45 (network) jack Connects a network cable. (A network
cable is included with select models.)
q Expansion port 2* Connects to an optional notebook
expansion product.
For more information, refer to the
Hardware and Software Guide
Notebook Documentation
CD.
on the
*The notebook has only one expansion port. The term
describes the type of expansion port.
4–14 Getting Started
expansion port 2

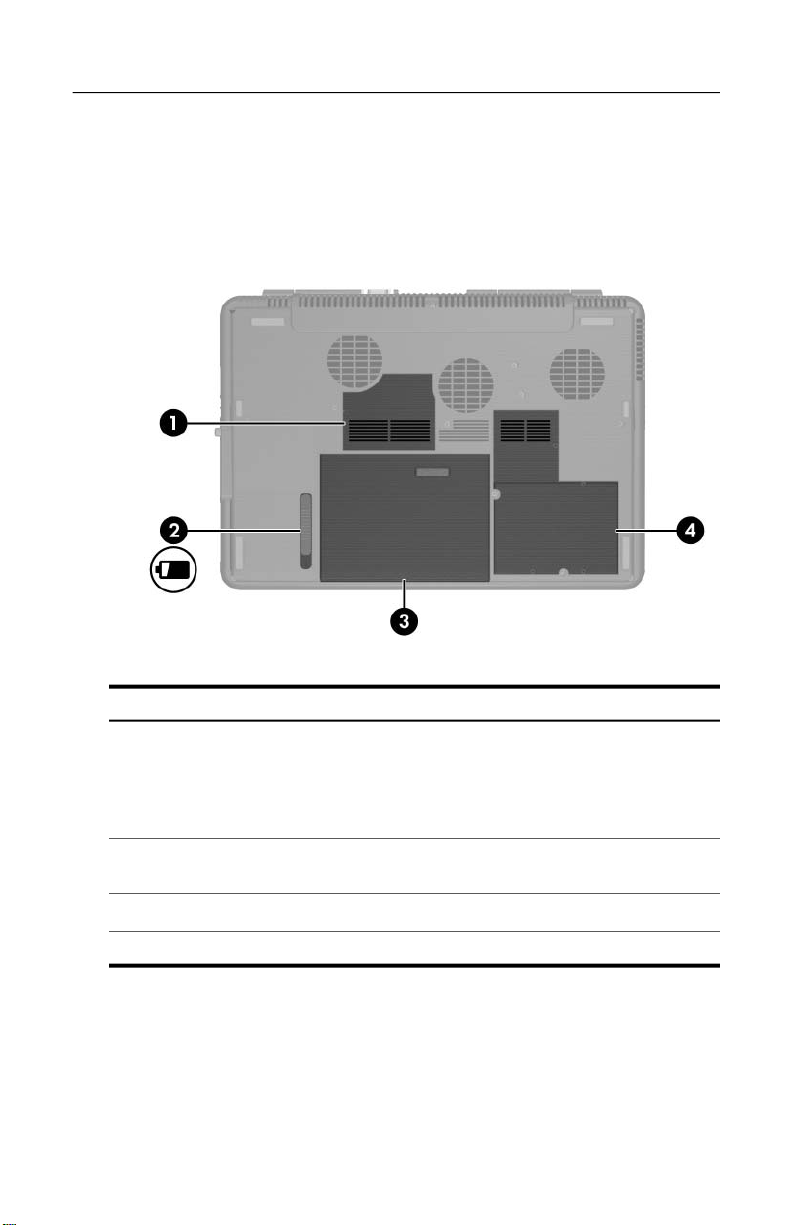

Bottom Components
Bays and Memory Compartment
Notebook Tour
Component Description
1 Memory compartment Contains 2 memory slots. Depending
on the model, when the notebook is
shipped, either one or both memory
slots are filled with a replaceable
memory module.
2 Battery pack release latch Releases a battery pack from the
battery bay.
Battery bay Holds a battery pack.
3
4 Hard drive bay Holds the internal hard drive.
Getting Started 4–15
Notebook Tour

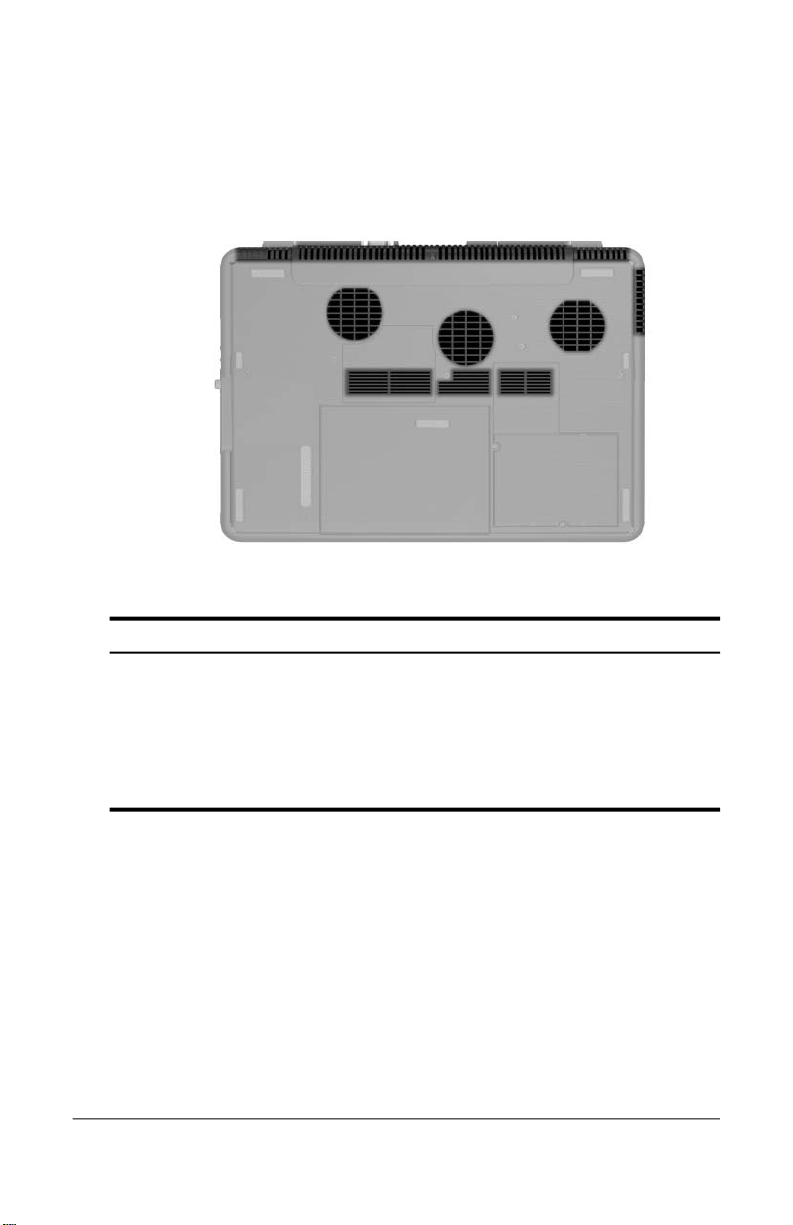

Vents
Component Description
Vents (8) Provide airflow to cool internal components.
To prevent overheating, do not obstruct
Ä
vents. Do not allow a hard surface, such
as a printer, or a soft surface, such as a
pillow, blanket, rug, or thick clothing, to
block airflow.
4–16 Getting Started
Notebook Tour
Additional Standard Components
The components included with the notebook vary by region,
country, notebook model, and the optional hardware ordered. The
following sections identify the standard external accessories and
components included with most notebook models.
Getting Started 4–17
Notebook Tour
Cables and Cord
Component Description
1 Modem cable* (included with Connects the notebook to a telephone
select models) jack or to a country-specific modem
adapter.
A modem cable has a 6-pin
✎
RJ-11 telephone connector at
each end.
2 Power cord* Connects the AC adapter to an
AC outlet.
3 Network cable (not included) Connects the notebook to a
network jack.
A network cable has an 8-pin
✎
RJ-45 network connector at
each end.
*Power cord and modem cables vary in appearance by region and country.
4–18 Getting Started
Adapters and Battery Pack
AC adapter appearance may vary.
✎
Notebook Tour
Component Description
1 AC adapter Converts AC power to DC power.
2 Country-specific modem
adapter (included by region
as required)
Adapts the modem cable to a
non-RJ-11 telephone jack.
3 Battery pack Provides power to the notebook when
the notebook is not connected to
external power.
Getting Started 4–19
Notebook Tour
Labels
The labels affixed to the notebook and to some notebook
components provide information you may need when
troubleshooting system problems or traveling internationally
with the notebook.
■ The Microsoft Certificate of Authenticity label contains the
■ The system label provides regulatory information about the
■ The product identification label contains the serial number of
■ The modem approvals label, which is located inside the hard
■ Wireless certification labels, which are specific to various
Product Key number. You may need this number to update or
troubleshoot problems with the operating system.
notebook.
the notebook and a code describing the original configuration
of the notebook. You will need the notebook serial number if
you call customer support.
drive cover, provides regulatory information.
types of optional wireless devices, provide regulatory
information and list the countries in which this optional
wireless device has been approved for use (select models
only).
4–20 Getting Started
Notebook Tour
Restoration and Documentation Discs
Discs for repairing or reinstalling software and for obtaining
supplementary information about the notebook are included
with the notebook.
■ For information about restoring, repairing, or reinstalling
software, refer to the Hardware and Software Guide on the
Notebook Documentation CD.
■ For supplementary information about the notebook, refer to
the Notebook Documentation CD, which includes this guide
and the following guides:
❏ Maintenance, Shipping and Travel
❏ Troubleshooting
❏ Modem and Networking
❏ Regulatory and Safety Notices
❏ Safety and Comfort Guide
❏ Help and Support Guide
Getting Started 4–21
Index
1394 port 4–14
A
AC adapter
connecting
identifying
antivirus software
audio-in (microphone) jack
4–11
audio-out (headphone) jack
4–11
1–9
1–3
, 4–19
3–2
B
battery bay
identifying
inserting battery pack
battery light
battery pack
charging
identifying
inserting
battery pack release latch
buttons
digital drive eject
display release
optical drive release
PC Card eject
power/standby
4–15
1–10
1–10
1–3
1–4
1–4
, 4–8
, 4–19
4–15
4–14
4–8
4–11
4–13
4–5
TouchPad 2–3, 4–2
volume
wireless
See also keys; latch
4–7
4–7
C
cables
modem
network
See also power cord
caps lock light
category view, Windows XP
3–1
charging battery pack
classic view, Windows XP
communication hardware,
enabling
compartment, memory
connecting to power
connecting to the Internet
connector, power
country-specific modem
adapter
creating user accounts
Critical Security Updates for
Windows XP
currency
customer support
1–2, 4–14, 4–18
1–3
, 4–14, 4–18
4–6
1–10
3–9
1–9
1–9
1–3
, 4–19
3–5
2–4
4–21
3–1
4–15
3–9
2–9
Getting Started Index–1
Index
D
dates 2–4
description of notebook
digital cards
digital drive bay
digital drive eject button
Digital Media Slot
display release button
identifying
using 1–8
documentation
DSL connections
4–13
4–13
4–8
4–21
2–7
4–14
4–13
1–5
E
Easy Internet Sign-Up utility
3–10
electric shock warning
emergency shutdown
procedures
End-User License Agreement
2–5
exhaust vents
left-side
rear
expansion port 2
ExpressCard slot
external monitor port
3–8
4–12
4–10
3–7
4–14
4–13
4–9
hardware
features
identifying
setting up
headphone jack
Help and Support Guide
4–21
Help and Support utility 1–5,
3–9, 3–12
help, documentation
Hibernation
initiating
restoring
hotkeys
HP Software Product License
Agreement
4–1
1–2
1–1
4–11
3–12,
4–21
4–5
4–5
4–4
2–5
I
IDE drive light 4–8
intake vents
Internet Connection wizard
3–11
Internet service, setting up
3–10
Internet, connecting to
ISP (Internet Service Provider)
icons
4–16
3–9
3–11
F
fan vents 4–10, 4–12, 4–16
firewall software
fn key 4–4
function keys
3–6
4–4
H
hard drive bay 4–15
Index–2 Getting Started
J
jacks
audio-in (microphone) 4–11
audio-out (headphone)
4–11
RJ-11 (modem)
RJ-45 (network)
S-Video-out
See also ports
4–14
4–14
4–9
Index
K
keypad 4–4
keys
fn 4–4
function
keypad
Windows applications
Windows logo
See also buttons; latch
4–4
4–4
4–4
L
labels
Microsoft Certificate of
Authenticity
modem approvals
product identification
system
wireless certification
language selection, during
setup
latch
battery pack release
See also buttons; keys
lights
battery
caps lock
IDE drive
num lock
power/standby
TouchPad
wireless
locked system
4–20
2–2
1–10
4–20
4–20
4–20
4–20
4–15
, 4–8
4–6
4–8
4–6
4–8
4–2
4–6
3–8, 4–5
M
Maintenance, Shipping and
Travel guide
memory compartment
4–21
4–15
4–4
4–4
Memory Stick
Memory Stick Pro
microphone jack
Microsoft Certificate of
Authenticity label
Microsoft End-User License
Agreement
modem
connecting
enabling
modem adapter
connecting
identifying
Modem and Networking guide
4–21
modem approvals label
modem cable
connecting to adapter
connecting to RJ-11 jack
1–6
identifying
modem jack
monitor port, external
MultiMediaCard
mute button
4–13
4–13
4–11
2–5
1–5
3–9
1–7
1–3, 4–19
4–14
1–2
, 4–18
4–14
4–13
4–7
4–20
4–20
1–7
4–9
N
naming notebook 2–7
navigation, software setup
network cable
connecting
identifying
network jack
Norton AntiVirus
notebook description
4–14
1–3
4–14
, 4–18
3–2
2–2
2–7
Getting Started Index–3
Index
Notebook Documentation CD
4–21
notebook name
num lock light
number, Product Key
2–7
4–6
4–20
O
opening the notebook 1–8
operating system
installing
Microsoft Certificate of
Authenticity label
Product Key number
registration
optical drive release button
4–11
optical drives
2–1
4–20
4–20
2–8
4–11
P
PC Card eject button 4–13
PC Card slot
ports
1394
expansion port 2
external monitor
USB
See also jacks
power
connecting
safety
power connector
power cord
connecting
identifying
See also cables
4–13
4–14
4–9
, 4–11, 4–14
1–9
3–7
1–9
1–2, 4–18
4–14
4–9
1–9, 4–9
power guidelines
power surge protection
power/standby button
identifying
turning on notebook
power/standby light
privacy protection
privacy statements 2–8
product identification label
4–20
Product Key number
projector, connecting
3–7
3–6
4–5
1–11
4–8
3–4
4–20
4–9
R
regional preferences 2–4
registration
notebook
operating system
Regulatory and Safety Notices
guide
regulatory information
modem approvals label
4–20
Regulatory and Safety
Notices guide
system label
wireless certification label
4–20
restore points
overview
restoring to
setting
restoring software
RJ-11 (modem) jack
RJ-45 (network) jack
2–1
2–8
2–8
4–21
3–7
4–21
4–20
3–3
3–4
3–3
4–21
4–14
4–14
Index–4 Getting Started
Index
S
Safety and Comfort Guide
4–21
safety information
SD (Secure Digital) Memory
4–13
Card
SD I/O Card
security cable slot
security features
serial number 4–20
setting preferences
setting up hardware
setting up software
slots
Digital Media
ExpressCard
PC Card
security cable
SmartMedia card
software restoration
software setup
speakers
Standby
support, user
surge protection
S-Video-out jack
system label
System Restore
4–8
power/standby light
resuming from
3–7
4–13
4–9
3–1
2–1
1–1
2–1
4–13
4–13
4–13
4–9
4–13
4–21
2–1
4–8
4–5
4–21
3–6
4–9
4–20
3–3
T
technical support 4–21
time zones
TouchPad
components
2–4
4–2
2–3
4–2
4–2
4–21
4–2
3–8
, 4–5
3–8
1–11
identifying
using
TouchPad buttons
TouchPad light
traveling with notebook
modem approvals label
4–20
serial number 4–20
wireless certification label
4–20
troubleshooting
locked system
notebook does not turn on
1–12
Troubleshooting guide
4–21
turning off notebook
turning on notebook
U
USB ports 4–9, 4–11, 4–14
user accounts
2–9
V
vents
bottom
left-side
rear
virus protection
volume buttons
4–16
4–12
4–10
3–2
4–7
W
Welcome to Microsoft
Windows window
Windows applications key
Windows logo key
2–2
4–4
4–4
Getting Started Index–5
Index
Windows XP
category view
classic view
wireless button
3–1
3–1
4–7
wireless certification labels
4–20
wireless devices, enabling
wireless light 4–6
X
xD-Picture Card 4–13
3–9
Index–6 Getting Started
Loading...
