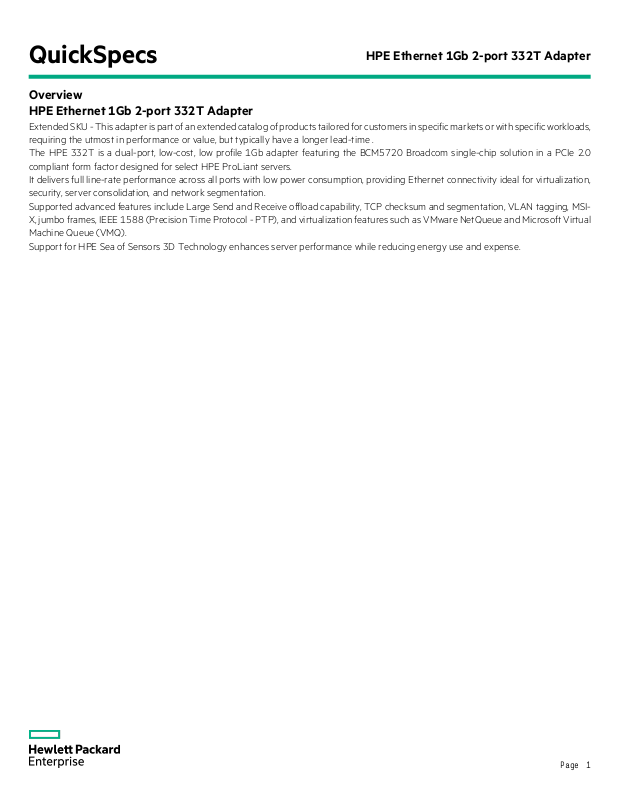

QuickSpecs
Overview
Overview
HPE Ethernet 1Gb 2-port 332T Adapter
HPE Ethernet 1Gb 2-port 332T Adapter
Extended SKU - This adapter is part of an extended catalog of products tailored for customers in specific markets or with specific workloads,
requiring the utmost in performance or value, but typically have a longer lead-time .
The HPE 332T is a dual-port, low-cost, low profile 1Gb adapter featuring the BCM5720 Broadcom single-chip solution in a PCIe 2.0
compliant form factor designed for select HPE ProLiant servers.
It delivers full line-rate performance across all ports with low power consumption, providing Ethernet connectivity ideal for virtualization,
security, server consolidation, and network segmentation.
Supported advanced features include Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSIX, jumbo frames, IEEE 1588 (Precision Time Protocol - PTP), and virtualization features such as VMware NetQueue and Microsoft Virtual
Machine Queue (VMQ).
Support for HPE Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
Page 1
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Overview
HPE Ethernet 1Gb 2-port 332T Adapter, with full-height bracket
Page 2
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Overview
HPE Ethernet 1Gb 2-port 332T Adapter, with half-height bracket
Page 3
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Platform Information
Platform Information
Models
HPE Ethernet 1Gb 2-port 332T Adapter 615732-B21
Kit Contents
Compatibility Supported Servers
HPE Ethernet 1Gb 2-port 332T Adapter
Low profile bracket
Quick install card
Product warranty statement
HPE ProLiant DL20 Gen9 Server
HPE ProLiant DL60 Gen9 Server
HPE ProLiant DL80 Gen9 Server
HPE ProLiant DL120 Gen9 Server
HPE ProLiant DL160 Gen9 Server
HPE ProLiant DL180 Gen9 Server
HPE ProLiant DL360 Gen9 Server
HPE ProLiant DL360 Gen10 Server
HPE ProLiant DL380 Gen9 Server
HPE ProLiant DL380 Gen10 Server
HPE ProLiant DL385 Gen10 Server
HPE ProLiant DL560 Gen9 Server
HPE ProLiant DL580 Gen9 Server
HPE ProLiant ML30 Gen9 Server
HPE ProLiant ML110 Gen9 Server
HPE ProLiant ML150 Gen9 Server
HPE ProLiant ML350 Gen9 Server
HPE Apollo 2000 - XL1x0r Gen9 Server
HPE Apollo 4200 Gen9 Server
HPE Apollo 6000 – XL260a Gen9 Server
HPE Apollo 6500 - XL270d Gen9 Server
NOTE:
This is a list of supported servers. Some may be discontinued.
Page 4
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Standard Features
Standard Features
At a Glance Features
• Industry-leading hardware integration for low power
• Dual-port, PCI Express 2.0 1Gb Ethernet adapter for HPE ProLiant servers
• Dual-port 1GbE provide up to 4 Gb full duplex aggregate throughput per adapter
• Energy Efficient Ethernet (EEE) support
• Optimized for virtual servers
• Improved small packet performance
• Supports the Preboot eXecution Environment (PXE)
• IEEE 1588, IEEE 802.1as (hardware assisted)
• In addition to Gigabit Ethernet, this adapter supports both 10 Mbps and 100 Mbps providing compatibility
with Ethernet and Fast Ethernet twisted pair networks.
• This adapter ships with a pre-installed full height bracket and a half height bracket is also supplied to ensure
trouble free installation. The included quick install card guides the user in the bracket exchange process.
ThroughputTheoretical Bandwidth
802.1Q VLANs
Configuration Utilities
Energy Efficient Ethernet
Jumbo Frames
This adapter delivers 2 Gb/s bi-directional Ethernet transfer rate per port (4 Gb/s per adapter), providing the
network performance needed to improve response times and alleviate bottlenecks.
IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of this adapter to be
separated into multiple virtual NICs for added network segmentation and enhanced security and performance.
VLANs increase security by isolating traffic between users. Limiting the broadcast traffic to within the same
VLAN domain also improves performance.
This adapter ships with a suite of operating system-tailored configuration utilities that allow the user to enable
initial diagnostics and configure adapter teaming. This includes a patented teaming GUI for Microsoft Windows
operating systems. Additionally, support for scripted installations of teams in a Microsoft Windows environment
allow for unattended OS installations.
Compliant with IEEE 802.3az, featuring advanced power savings features throttles power usage with network
load activity.
This adapter supports Jumbo Frames (also known as extended frames), permitting up to a 9,000 byte (KB)
transmission unit (MTU) when running Ethernet I/O traffic. This is over five times the size of a standard 1500byte Ethernet frame. With Jumbo Frames, networks can achieve higher throughput performance and greater
CPU utilization. These attributes are particularly useful for database transfer and tape backup operations.
LED Indicators
Management Support
LED indicators show link integrity and network activity for easy troubleshooting.
This adapter ships with agents that can be managed from HPE Systems Insight Manager or other management
application that support SNMP.
Page 5
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Standard Features
Message Signaled Interrupt (Extended) (MSI-X)
Network Adapter Teaming
Optimized for Virtualization
PCI Express Interface
Preboot eXecution Environment (PXE)
Server Integration
Message Signaled Interrupt (Extended) provides performance benefits for multi-core servers by load balancing
interrupts between CPUs/cores.
This adapter support for NIC teaming helps IT administrators increase network fault tolerance and increased
network bandwidth, the team of adapters can work together as a single virtual adapter, providing support for
several different types of teaming enabling IT administrators to optimize availability, improve performance
and help reduce costs.
I/O Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands
of consolidated virtual workloads.
The x1 PCI Express interface on this adapter is compatible with x1, x4, x8, and x16 PCI slots. If installed in a
x4, x8 or x16 slot, the adapter will operate at the x1 speed.
Support for PXE enables automatic deployment of computing resources remotely from anywhere. It allows a
new or existing server to boot over the network and download software, including the operating system, from a
management/ deployment server at another location on the network.Additionally, PXE enables decentralized
software distribution and remote troubleshooting and repairs.
This adapter is a validated, tested, and qualified solution that is optimized for HPE ProLiant servers. Hewlett
Packard Enterprise validates a wide variety of major operating systems drivers with the full suite of web-based
enterprise management utilities including HPE Intelligent Provisioning and HPE Systems Insight Manager that
simplify network management.
This approach provides a more robust and reliable networking solution than offerings from other vendors and
provides users with a single point of contact for both their servers and their network adapters.
TCP/UDP/IP
Precision Time Protocol (IEEE 1588 PTP)
Warranty
For overall improved system response, this adapter supports standard TCP/IP offloading techniques including:
TCP/IP, UDP checksum offload (TCO) moves the TCP and IP checksum offloading from the CPU to the network
adapter. Large send offload (LSO) or TCP segmentation offload (TSO) allows the TCP segmentation to be
handled by the adapter rather than the CPU.
Synchronization of system clocks throughout a network, achieving clock accuracy in the sub-microsecond
range, making it suitable for measurement and control systems.
Maximum: The remaining warranty of the HPE product in which it is installed (to a maximum three-year, limited
warranty).
Minimum: One year limited warranty.
Page 6
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Standard Features
NOTE:
Additional information regarding worldwide limited warranty and technical
support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/
index.aspx#.V4e3tPkrJhE
Page 7
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Service and Support
Service and Support
Service and Support NOTE:
Most HPE branded options sourced from HPE that are compatible with your product will be covered under
your main product support at the same level of coverage, allowing you to upgrade freely. Additional support is
required on select workload accelerators, switches, racks and UPS options 12KVA and over. Coverage of the
UPS battery is not included under HPE support services; standard warranty terms and conditions apply.
This adapter is covered under HPE Support Services/ Service Contract applied to the HPE
ProLiant Server or enclosure. No separate HPE Support Services need to be purchased.
Warranty and Support Services
Protect your business beyond warranty with HPE Support Services
Parts and Materials
Warranty and Support Services will extend to include HPE options configured with your server or storage
device. The price of support service is not impacted by configuration details. HPE sourced options that are
compatible with your product will be covered under your server support at the same level of coverage allowing
you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for
everyone, some high value options will require additional support. Additional support is only required on select
high value workload accelerators, fibre switches, InfiniBand and UPS options 12KVA and over. Coverage of the
UPS battery is not included under TS support services; standard warranty terms and conditions apply.
HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability.
Connect to HPE to help prevent problems and solve issues faster. HPE Support Services enable you to choose
the right service level, length of coverage and response time as you purchase your new server, giving you full
entitlement to the support you need for your IT and business.
Protect your product, beyond warranty.
Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to
maintain the covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements. Parts and components that have reached their maximum
supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual,
product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of
these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash
Drives replaced by Hewlett Packard Enterprise due to malfunction.
For more information
Visit the Hewlett Packard Enterprise Service and Support website.
Page 8
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Technical Specifications
Technical Specifications
System Unit
Dimensions (L x W) 11.18 x 5.59 cm
4.4 x 2.2 in
NOTE:
without bracket
General Specifications
Power and Environmental Specifications
Network Processor Broadcom NetXtreme BCM5720 chipset
Data Rate Two ports, each at 1 Gb/s bi-directional (2 Gb/s aggregate per port); 4 Gb/s
aggregate bi-directional theoretical bandwidth.
Data Path One lane (x1) PCI Express compatible with x1, x4, x8, and x16 PCI Express
slots
Bus type PCI Express 2.0
Form Factor Low profile card with both full height (pre-installed) and half height brackets
included in kit
Bus Speed Gen 2 x1
IEEE Compliance 802.3,802.3u,802.3ab,802.3x,802.3ad,802.1p, 802.1q, 802.3az, 1588,
802.1as
Connector RJ-45 (Two)
Wiring Category 5/ (CAT-5) or better twisted-pair cabling
Cable Distance Up to 328 ft (100 m)
Interrupt Levels Automatically configured
Power 2.1 W (1000Base-T, both ports, idle, without EEE link partner)
1.7 W (1000Base-T, both ports, idle, EEE link partner)
2.2 W (1000Base-T, both ports, maximum traffic)
0.6 W (AUX power with WoL)
Temperature - Operating 0° to 55°C (32° to 131°F)
Humidity - Operating 10% to 90% non-condensing
Emissions Classification Class B
Agency Approvals USA: FCC Part 15 Class B
Canada: ICES-003, Issue 4
Japan: VCCI V3 (2010.04) Class B
Korea: KN22 Class B, KN24
Australia: EN55022:2006+A12007 class B
European Union: EN55024:1998+A1:2011+A2; EN61000-3- 2:2006,
EN61000-3-3:2008
International: EN55022:2006 + A1:2007 Class B
RoHS Compliance 6 of 6
Safety UL Mark (USA and Canada)
CE Mark
EN 60590
Operating System and Virtualization Support
Environmentfriendly Products and
The Operating Systems supported by this adapter are based on the server OS support. Please refer to the OS
Support Matrix at: https://www.hpe.com/us/en/servers/server-operating-systems.html
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many
geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered
or disposed of in a responsible manner.
Page 9
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Technical Specifications
Approach - End-oflife Management and
Recycling
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly instructions) is posted on
the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE
treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett
Packard Enterprise equipment.
Page 10
QuickSpecs HPE Ethernet 1Gb 2-port 332T Adapter
Summary of Changes
Summary of Changes
Date Version History Action Description of Change
05-Feb-2018 Version 10 Changed Overview section was updated
18-Dec-2017 Version 9 Changed Product Information- Compatibility was updated
16-Oct-2017 Version 8 Changed Overview, Standard Features-At a Glance Features and Technical
Specification- OS were updated.
11-Jul-2017 Version 7 Changed Compatibility section was updated.
10-Sep-2013 Version 6 Changed Servers, 10 Gigabit Server Adapters, and FlexibleLOM Servers were revised.
19-Feb-2013 Version 5 Changed Changes were made in the Overview Section and Related Options Section.
10-Oct-2012 Version 4 Changed Changes made in the Compatibility section.
24-Sep-2012 Version 3 Changed Changes made in the Compatibility section.
20-Aug-2012 Version 2 Changed Changes made in the Compatibility section.
04-Jun-2012 Version 1 New New QuickSpecs.
Sign up for updates
©
Copyright 2018 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change
without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained
herein.
c04111458 - 14332 - Worldwide - V10-05-February-2018
Loading...
