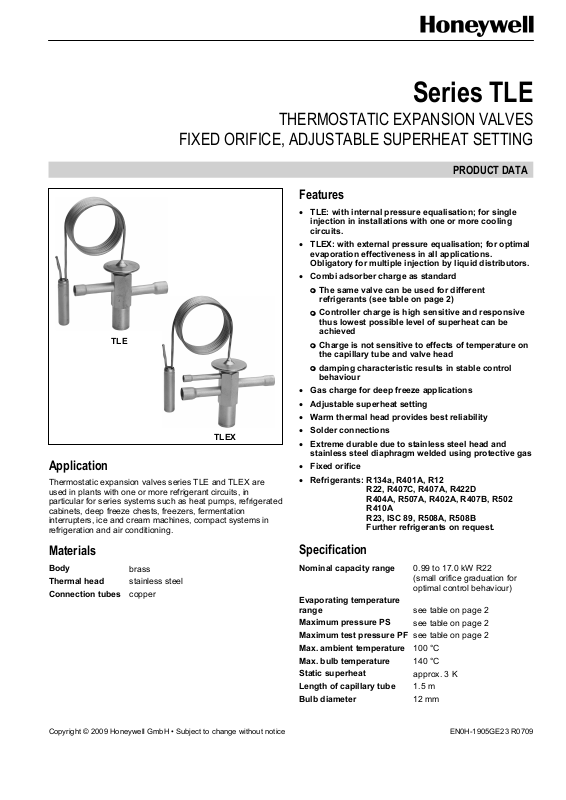

FIXED ORIFICE, ADJUSTABLE SUPERHEAT SETTING
TLE
TLEX
Application
Thermostatic expansion valves series TLE and TLEX are
used in plants with one or more refrigerant circuits, in
particular for series systems such as heat pumps, refrigerated
cabinets, deep freeze chests, freezers, fermentation
interrupters, ice and cream machines, compact systems in
refrigeration and air conditioning.
Materials
Body
Thermal head
Connection tubes
brass
stainless steel
copper
Series TLE
THERMOSTATIC EXPANSION VALVES
PRODUCT DATA
Features
• TLE: with internal pressure equalisation; for single
injection in installations with one or more cooling
circuits.
• TLEX: with external pressure equalisation; for optimal
evaporation effectiveness in all applications.
Obligatory for multiple injection by liquid distributors.
• Combi adsorber charge as standard
The same valve can be used for different
refrigerants (see table on page 2)
Controller charge is high sensitive and responsive
thus lowest possible level of superheat can be
achieved
Charge is not sensitive to effects of temperature on
the capillary tube and valve head
damping characteristic results in stable control
behaviour
• Gas charge for deep freeze applications
• Adjustable superheat setting
• Warm thermal head provides best reliability
• Solder connections
• Extreme durable due to stainless steel head and
stainless steel diaphragm welded using protective gas
• Fixed orifice
• Refrigerants: R134a, R401A, R12
R22, R407C, R407A, R422D
R404A, R507A, R402A, R407B, R502
R410A
R23, ISC 89, R508A, R508B
Further refrigerants on request.
Specification
Nominal capacity range
Evaporating temperature
range
Maximum pressure PS
Maximum test pressure PF
Max. ambient temperature
Max. bulb temperature
Static superheat
Length of capillary tube
Bulb diameter
0.99 to 17.0 kW R22
(small orifice graduation for
optimal control behaviour)
see table on page 2
see table on page 2
see table on page 2
100 °C
140 °C
approx. 3 K
1.5 m
12 mm
Copyright © 2009 Honeywell GmbH • Subject to change without notice EN0H-1905GE23 R0709
SERIES TLE
Thermal Charges and Temperature Ranges
1. Adsorber charge
Refrigerant
R134a, R401A,
R12
R22, R407C,
R407A, R422D
R404A, R507A,
R402A, R407B,
R502
R410A +15 °C to -20 °C 40 44.0
Further refrigerants on request.
Thermal systems with adsorber charge are completely
insensitive to effects of temperature on the capillary tube and
valve head. It reacts only according to the temperature of the
bulb.
Thus, Honeywell TLE and TLEX valves with combi adsorber
charge work absolutely reliable, even in icy condition or while
defrosting using hot gas.
2. Adsorber charge with pressure limiting performance (MOP)
Refrigerant
Evaporation
temperature
range
R134a,
R401A,
R12
R22,
R407C,
R407A,
R422D
R404A,
R507A,
R402A,
R407B,
+5 °C to -30 °C MOP A +15 °C 34 37.4
-10 °C to -30 °C MOP A ±0 °C 29 31.9
+5 °C to -45 °C MOP A +15 °C 36 39.6
-10 °C to -45 °C MOP A ±0 °C 29 31.9
-27 °C to -45 °C MOP A -18 °C 29 31.9
-10 °C to -50 °C MOP A ±0 °C 36 39.6
-20 °C to -50 °C MOP A -10 °C 34 37.4
-27 °C to -50 °C MOP A -18 °C 34 37.4
R502
Further refrigerants and MOP on request.
Evaporation
temperature range
PS
(bar(a))
PF
(bar(a))
+15 °C to -30 °C 34 37.4
+15 °C to -45 °C 36 39.6
±0 °C to -50 °C 36 39.6
MOP PS
(bar(a))
PF
(bar(a))
3. Gas charge
Refrigerant
Evaporation
temperature
MOP PS
(bar(a))
PF
(bar(a))
range
ISC 89 -40 °C to -70 °C MOP -40 °C 29 31.9
-55 °C to -70 °C MOP -55 °C 29 31.9
R23 -40 °C to -80 °C MOP -40 °C 29 31.9
-55 °C to -80 °C MOP -55 °C 29 31.9
R410A +15 °C to -50 °C MOP +15 °C 40 44.0
-40 °C to -70 °C MOP -40 °C 29 31.9
-55 °C to -70 °C MOP -55 °C 29 31.9
R508A -40 °C to -90 °C MOP -40 °C 29 31.9
-55 °C to -90 °C MOP -55 °C 29 31.9
R508B -40 °C to -100 °C MOP -40 °C 29 31.9
-55 °C to -100 °C MOP -55 °C 29 31.9
Further refrigerants and MOP on request.
With gas charged valves and MOP it is under all operating
conditions necessary that the bulb is always colder than the
capillary tube and the thermal head!
With the Honeywell TLE and TLEX series the thermal head is
heated advantageously by the liquid refrigerant. The warm
thermal head is on the safe side at any time.
Capacities
Type Orifice size
R134a R22 R407C R422D R404A R507A
0.5 0.69 0.99 0.95 0.67 0.68 0.69
0.7 1.0 1.4 1.3 0.92 0.97 0.98
1.0 1.4 2.0 1.9 1.3 1.4 1.4
TLE
TLEX
1.5 2.2 3.2 3.1 2.2 2.2 2.3
2.0 2.9 4.0 3.9 2.7 2.8 2.9
2.5 4.0 5.8 5.6 3.9 4.1 4.1
3.0 6.6 9.3 8.9 6.3 6.5 6.6
3.5 8.7 12.2 11.7 8.3 8.6 8.7
4.5 11.8 17.0 16.4 11.3 12.0 12.1
* Capacities are based on t0 = +4 °C, tc = +38 °C and 1 K subcooled liquid refrigerant entering the valve.
For other operating conditions see capacity charts in Honeywell catalogue or consult the Honeywell software.
EN0H-1905GE23 R0709 2 Honeywell GmbH • Subject to change without notice
Nominal capacity (kW)*
Dimensions and Weights
SERIES TLE
TLE
TLEX
Orifice
size
0.5
0.7
1.0
1.5
2.0
2.5
3.0
3.5
4.5
Connections Type
Inlet
(A)
6 mm ODF 12 mm ODF 6 mm ODF
1/4" ODF 1/2" ODF 1/4" ODF
10 mm ODF 12 mm ODF 6 mm ODF
3/8" ODF 1/2" ODF 1/4" ODF
10 mm ODF 16 mm ODF 6 mm ODF
3/8" ODF 5/8" ODF 1/4" ODF
12 mm ODF 16 mm ODF 6 mm ODF
1/2" ODF 5/8" ODF 1/4" ODF
Outlet
(B)
Pressure
equaliser (C)
Weight
(kg)
approx. 0.32
TLE 0.5 - 4.5 TLEX 0.5 - 4.5
Type Code / Order Information
TLE X 0.7 R22 MOP A -18 °C 3/8“ x 1/2“
Series
Pressure equalisation:
X = external
() = internal
Orifice size
Refrigerant
Charge type, MOP,
evaporation temperature range
Solder connection ODF
(inlet x outlet)
Honeywell GmbH • Subject to change without notice 3 EN0H-1905GE23 R0709
SERIES TLE
Installation
• The valves may be installed in any position.
• The external pressure equaliser line (TLEX) should be
6 mm or 1/4" in diameter and is to be connected downstream of the remote bulb. An overbow is recommended in
order to prevent the ingress of oil into the equaliser line.
• The bulb should preferably be positioned on the upper half
of a horizontal suction line but never after a liquid trap. As
a general rule, bulbs of expansion valves should be
insulated to prevent them being affected by the ambient
temperature.
• When soldering the valve, the valve body must not get
warmer than 100 °C.
• Do not bend or squeeze the bulb when thightening the
bulb clamp!
• Constructive modifications at the valve are not allowed.
Information for original equipment manufacturers:
The valve series TLE can be customised to the
requirements of your series device in an optimum way.
Contact us!
Superheat Adjustment
In general the Honeywell valves should be installed with the
factory setting for the used refrigerant unaltered.
At combi adsorber valves the label on the capillary tube
indicates how to adjust the adjusting spindle (with arrow for
direction), depending on the refrigerant used. This correction
of the adjustment is essential to ensure that the control
performance of the valve is correct. The refrigerant used must
be marked on the label.
This superheat adjustment is calibrated for lowest
superheating and optimum evaporator utilisation. However,
should it be necessary to adjust the superheat, turn the
adjusting spindle as follows:
Turning clockwise
Turning
counterclockwise
One turn of adjusting spindle alters superheat setting by
approx. 0.25 bar. Increase of superheat setting results in a
lower MOP-value and vice versa.
reduced refrigerant mass flow,
=
increase of superheat
increased refrigerant mass
=
flow, decrease of superheat
Automation and Control Solutions
Honeywell GmbH
Hardhofweg
74821 Mosbach/Germany
Phone: +49 (0)
Fax: +49 (0)
62 61 / 81-475
62 61 / 81-461
Manufactured for and on behalf of the
Environment and Combustion Controls
Division of Honeywell Technologies Sàrl,
1180 Rolle, Z. A. La Pièce 16, Switzerland
by its authorized representative Honeywell GmbH
E-Mail: cooling.mosbach@honeywell.com
KAT-TLE-002
www.honeywell-cooling.com
EN0H-1905GE23 R0709 4 Honeywell GmbH • Subject to change without notice
