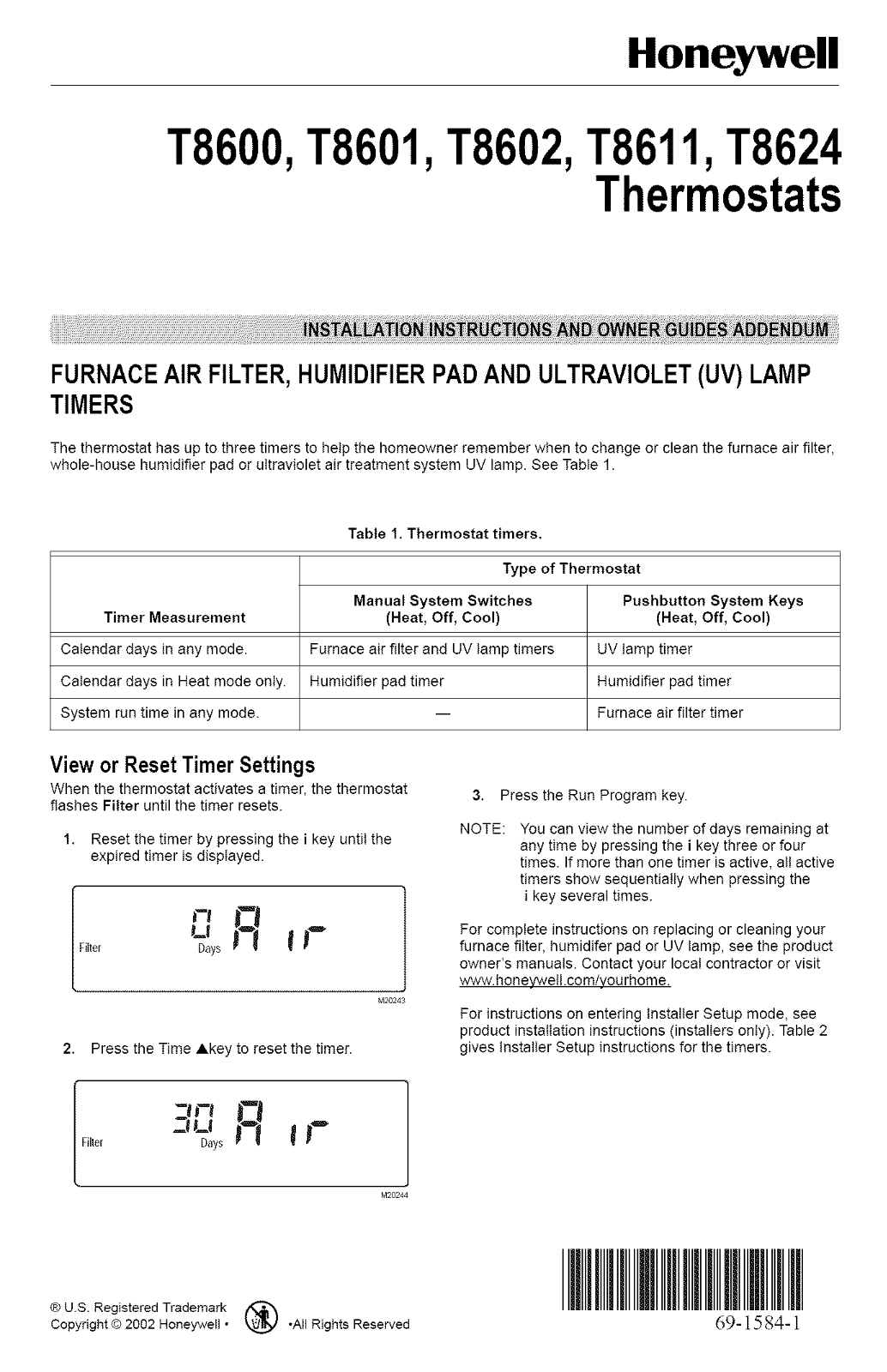

Honeywell T8601, T8602 User Manual
Honeywell
T8600,T8601,T8602,T8611,T8624
Thermostats
FURNACEAIR FILTER, HUMIDIFIER PADAND ULTRAVIOLET(UV) LAMP
TIMERS
The thermostat has up to three timers to help the homeowner remember when to change or clean the furnace air filter,
whole-house humidifier pad or ultraviolet air treatment system UV lamp. See Table 1.
Table 1. Thermostat timers.
Type of Thermostat
Timer Measurement
Calendar days in any mode.
Calendar days in Heat mode only.
System run time inany mode.
Manual System Switches Pusbbutton System Keys
(Heat, Off, Cool) (Heat, Off, Cool)
Furnace air filter and UV lamp timers UV lamp timer
Humidifier pad timer Humidifier pad timer
-- Furnace air filter timer
Viewor ResetTimer Settings
When the thermostat activates a timer, the thermostat
flashes Filter until the timer resets.
1. Reset the timer by pressing the i key until the
expired timer is displayed.
Filter Days
2. Press the Time Akey to reset the timer.
Filter Days
® US. Registered Trademark
Copyright @ 2002 Honeywell • _ *All Rights Reserved (_9- [ 5 _4- [
u P! IP--
ZqLI
Pl !_--
M2(1244
3. Press the Run Program key.
NOTE:
You can view the number of days remaining at
any time by pressing the i key three or four
times. If more than one timer is active, ell active
timers show sequentially when pressing the
i key several times.
For complete instructions on replacing or cleaning your
furnace filter, humidifer pad or UV lamp, see the product
owner's manuals. Contact your local contractor or visit
www.bonewveli.com/vourhome.
For instructions on entering installer Setup mode, see
product installation instructions (installers only). Table 2
gives installer Setup instructions for the timers.
T8600, T860f, 7-8602, T861f, T8624 THERMOSTATS

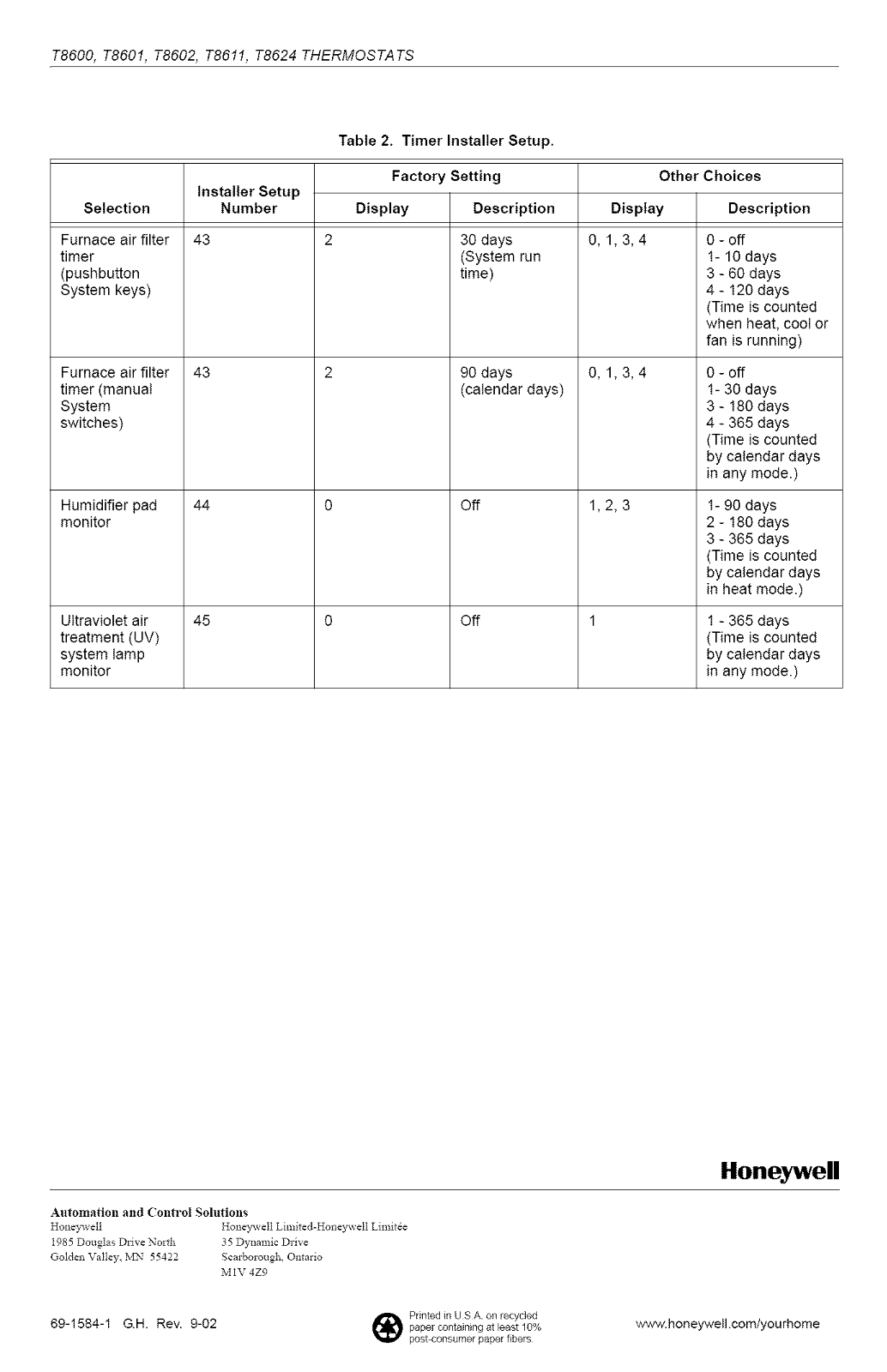

Table 2. Timer Installer Setup.
Installer Setup
Factory Setting Other Choices
Selection Number Display Description Display Description
Furnace air filter 43 2 30 days 0, 1, 3, 4 0 - off
timer (System run 1- 10 days
(pushbutton time) 3 - 60 days
System keys) 4- 120 days
(Time is counted
when heat, cool or
fan is running)
Furnace air filter 43 2 90 days O, 1, 3, 4 0 - off
timer (manual (calendar days) 1- 30 days
System 3 - 180 days
switches) 4 - 365 days
(Time is counted
by calendar days
in any mode.)
Humidifier pad 44 0 Off 1, 2, 3 1- 90 days
monitor 2 - 180 days
3 - 365 days
(Time is counted
by calendar days
in heat mode.)
Ultraviolet air 45 0 Off 1 1- 365 days
treatment (UV) (Time is counted
system lamp by calendar days
monitor in any mode.)
Honeywell
Automatioll and Colltrol Solutions
Ho*l_>_ ell Honey_ ell Limited-HoneyweIl Limit&
1985 Doughs Drive No:li 35 Dynamic D_iw
Golde_ Valley, MZ< 55422 Scarbomugh, Oiit_io
69-1584-1 GH Rev. 9-02 w_w<honeywellcom/yourhome
