N0524/N1024, N05230-2POS/N10230-2POS
NON-SPRING RETURN DIRECT-COUPLED DAMPER ACTUATORS FOR
FLOATING AND 2-POSITION CONTROL
PRODUCT DATA
SPECIFICATIONS
Supply voltage
N0524/N1024 24 Vac/dc -15%/+20%,
50/60 Hz
GENERAL
This non-spring return direct-coupled damper actuator
provides floating and two-position control for:
• air dampers,
• VAV units,
• air handlers,
• ventilation flaps,
• louvers, and
• reliable control for air damper applications with up to
2
/ (5 Nm) and 2 m2 (10 Nm) (seal-less damper
1 m
blades; air friction-dependent).
FEATURES
• Declutch for manual adjustment
• Adjustable mechanical end limits
• Removable access cover for direct wiring
• Mountable in any orientation
• Rotation direction and service/OFF switch
N05230-2POS/N10230-2POS
Nominal voltage
N0524/N1024 24 Vac/dc, 50/60 Hz
N05230-2POS/N10230-2POS
All values stated hereinafter apply to operation under
nominal voltage conditions.
Power consumption
N0524/N1024 5 VA / 2 W
N05230-2POS 22 VA / 2 W at 50 Hz
25 VA / 2 W at 60 Hz
N10230-2POS 22 VA / 2 W at 50 Hz
25 VA / 2 W at 60 Hz
Ambient limits
Ambient operating limits -20...+60 °C (-5...+140 °F)
Ambient storage limits -30...+80 °C (-22...+176 °F)
Relative humidity 5...95%, non-condensing
Safety
Protection standard IP54
Protection class II as per EN 60730-1
Overvoltage category II
Lifetime
Full strokes 60000
Repositions 1.5 million
Mounting
Round damper shaft 8...16 mm
Square damper shaft 6...13 mm; 45° steps
Shaft length min. 41 mm
End switches (when included)
Rating 5 A (resistive), 3 A (inductive)
Triggering points 5° / 85°
Torque rating 5 Nm / 10 Nm
Runtime for 90°
N0524 / N1024 90 sec (dc / 60 Hz ac)
N0524 / N1024 110 sec (50 Hz ac)
N05230-2POS 65...110 s (60/50 Hz)
N10230-2POS 65...140 s (60/50 Hz)
Rotation stroke 95° ± 3°

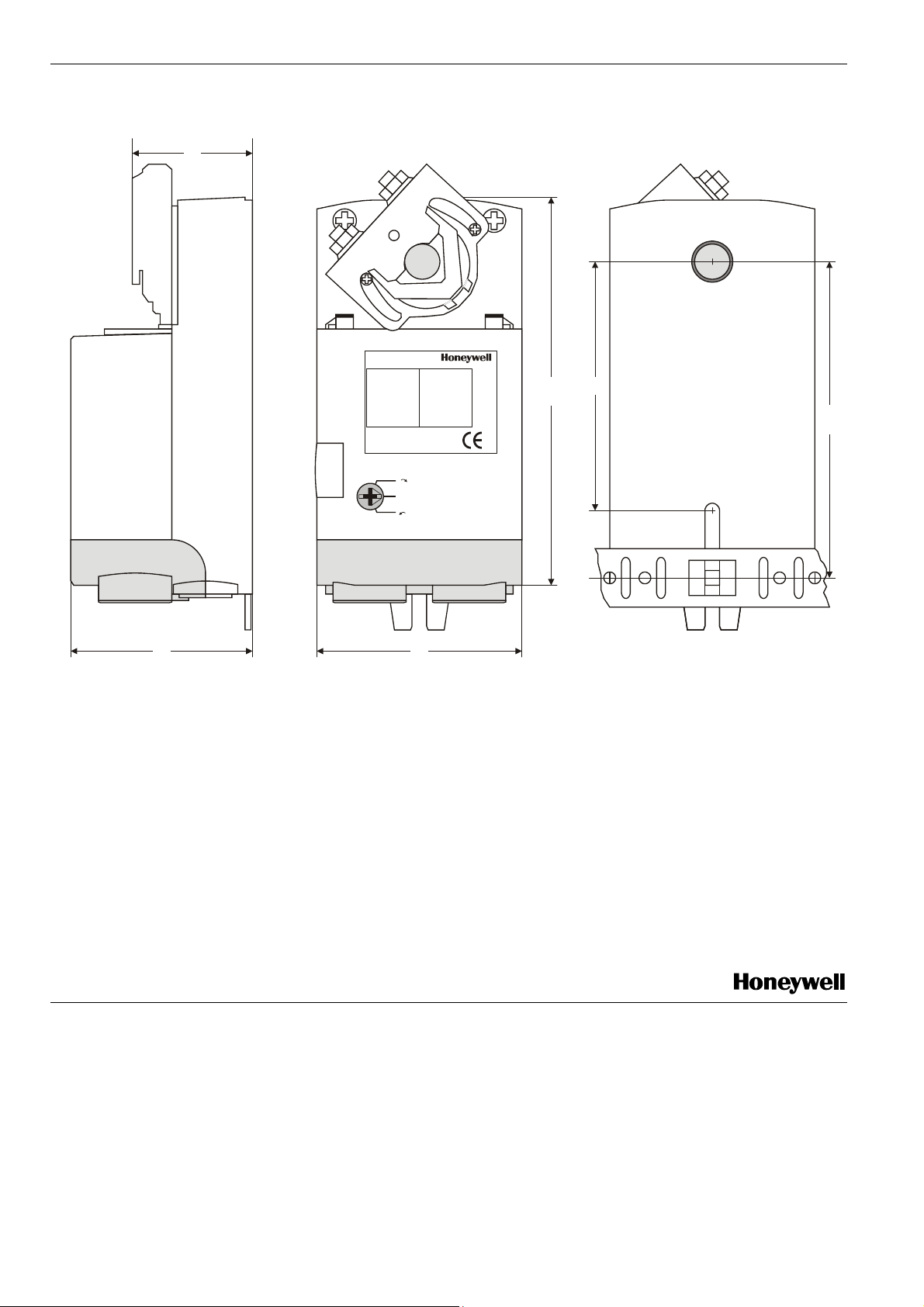

Dimensions see "Dimensions" on page 6
Weight (without cables) 450 g
Noise rating 35 dB(A) max. at 1 m;
40 dB(A) for 230 Vac at
65 sec runtime
230 Vac -15%/+20%, 50/60 Hz
230 Vac, 50/60 Hz
® U.S. Registered Trademark EN0B-0477GE51 R0408
Copyright © 2008 Honeywell Inc. • All rights reserved
N0524/N1024 AND N05230-2POS/N10230-2POS DAMPER ACTUATORS FOR FLOATING/2-POSITION CONTROL
PRODUCT IDENTIFICATION SYSTEM
N = non-spring return
S = spring return
05 = 5 Nm
10 = 10 Nm
N
5
SmartAct
Fig. 1. Product Identification System
0
010 = modulating + floating
24 = 24 V floating + ON/OFF
230 = 230 V ON/OFF
2
equipped with two
end switches
S
W
-
+ ON/OFF
24
Contents of Package
The delivery package includes the actuator and parts 1
through 6 (see Fig. 2), plus two cable grommets and a spare
cable grommet.
RUN MODES
The function selection switch (see Fig. 3) can be used to
place the actuator into either of two different modes:
• Service/Off; or
• the floating/2-position run mode ("Dir" for CCW-closing
dampers or "Rev" for CW-closing dampers).
floating/2-position
Dir
MODELS
order no. supply voltage end switches torque
N05024 -N05024-SW2 2
N1024 -N1024-SW2
N05230-2POS 5 Nm
N10230-2POS
24 Vac/dc
2
230 Vac --
BASIC FEATURES
1
2
5 Nm
10 Nm
10 Nm
Power-Off Behavior
If power is removed, the shaft adapter remains in position.
Service/Off
If the function selection switch is set to the "Service/Off"
position, then all rotary movement is cancelled, and all control
signals are ignored, thus allowing the actuator to be manually
operated safely.
Floating/2-Position Run Mode
N0524
3
Dir
4
Service/Off
Rev
5
6
Fig. 2. Setting units and control elements
Legend for Fig. 2:
1) Universal shaft adapter
2) Mechanical end limits (manually adjustable)
3) Declutch button
4) Function selection switch
5) Removable access cover
6) Anti-rotation bracket
If the function selection switch has been set to one of the two
floating/2-position control settings – and if the actuator is
wired correspondingly (see Fig. 8, Fig. 9, and Fig. 10) – then
as soon as operating power is applied, the shaft adapter will
run according to the control signals applied.
Table 1 describes the behavior ("stops," rotates "CCW," or
rotates "CW") of the N0524 / N1024 in dependence upon the
control signals (switch "open" or "24 Vac/dc") applied to
terminals 3 and 4, the function selection switch setting, and
the manner in which the actuator is wired (either for floating
mode: see Fig. 8; or for 2-position mode: see Fig. 9).
wiring
float.
2-pos.
Table 2 describes the behavior ("stops," rotates "CCW," or
rotates "CW") of the N05230-2POS / N10230-2POS in
dependence upon the control signals (switch "open" or
"230 Vac") applied to terminals 1 and 3 and the function
Service/Off
Rev
Fig. 3. Function selection switch
Table 1. Behavior of N0524/N1024
control signal at switch setting
term. 3 term. 4 Dir Service/Off Rev
open open stops stops stops
open 24Vac/dc CCW stops CW
24Vac/dc open CW stops CCW
24Vac/dc open CW stops CCW
24Vac/dc 24Vac/dc CCW stops CW
Service / Off
Dir
Service/Off
Rev
EN0B-0477GE51 R0408
2
N0524/N1024 AND N05230-2POS/N10230-2POS DAMPER ACTUATORS FOR FLOATING/2-POSITION CONTROL
selection switch setting; only one manner of wiring is permitted (see Fig. 10).
Table 2. Behavior of N05230-2POS/N10230-2POS
control signal at switch setting
terminal 1 terminal 3 Dir Service/Off Rev
open open stops stops stops
open 230 Vac stops stops stops
230 Vac open CW stops CCW
230 Vac 230 Vac CCW stops CW
MANUAL ADJUSTMENT
IMPORTANT
To prevent equipment damage, before manual
adjustment, you must remove power or set the
function selection switch to the "Service/Off"
position.
After removing power or setting the function selection switch
to the "Service/Off" position, the gear train can be disengaged
using the declutch button, permitting the shaft adapter to be
manually rotated to any position.
Limitation of Rotation Stroke
Two adjustable mechanical end limits are provided to limit the
angle of rotation as desired (see Fig. 4). The mechanical end
limits must be securely fastened in place.
changeover switch A activated
when shaft adapter moves past 5°
-2.5° 92.5°5° 10° 15°0° 90°85°80°75°
Fig. 5. Internal end switch triggering points
changeover switch B activated
when shaft adapter moves past 85°
INSTALLATION
CAUTION
To avoid personal injury (electrical shock) and to
prevent equipment damage, before installation,
you must remove power.
These actuators are designed for single-point mounting.
Mounting Instructions
All information and steps are included in the Installation
Instructions (Product Literature No.: MU1B-0276GE51)
supplied with each actuator.
Mounting Position
The actuators can be mounted in any position (IP54 is
dependent upon orientation; see Fig. 6). Choose a mounting
position permitting easy access to cables and controls.
IP54 IP54IP54 IP54
Fig. 6. Mounting for IP54
NOTE: Further, in order to guarantee IP54, only original
Honeywell grommets may be used.
Anti-Rotation Bracket and Screws
Fig. 4. Mechanical end limits
To ensure tight closing of the dampers, the shaft adapter has
a total rotation stroke of 95°.
INTERNAL END SWITCHES
NOTE: Only those actuators for which "-SW2" has been
specified when ordering (e.g.: "N0524-SW2") feature
internal end switches.
The internal end switches "A" and "B" are changeover
switches which are activated when the shaft adapter moves
past a position of 5° and 85°, respectively (see also Table 5).
3 EN0B-0477GE51 R0408
If the actuator is to be mounted directly on a damper shaft,
use the anti-rotation bracket and screws included in the
delivery package. The min. distance between the center of
the damper shaft and the middle of the anti-rotation bracket is
85 mm; a max. of 108 mm is allowed (see also Fig. 12).
Depending upon your mounting site, the actuator may shift in
position slightly while tightening the screws at the top of the
shaft adapter. The anti-rotation bracket features a T-piece
with a 5-mm-long shank to accommodate for this movement.
It is important to ensure that this play is not impeded.
Universal Shaft Adapter
The shaft adapter can be used for shafts of various diameters
and shapes (round: 8...16 mm and square: 6...13 mm).
N0524/N1024 AND N05230-2POS/N10230-2POS DAMPER ACTUATORS FOR FLOATING/2-POSITION CONTROL
A
WIRING
CAUTION
To avoid personal injury (electrical shock) and to
prevent equipment damage, before wiring, you
must remove power.
Connecting to the Power Supply
In order to comply with protection class II, the power source of
24 V actuators must be reliably separated from the network
power supply circuits as per DIN VDE 0106, part 101.
Access Cover
IMPORTANT
Once the access cover has been removed, please
take care to avoid damaging any of the parts now
accessible.
The access cover can be unscrewed and removed in order to
gain access to the terminal block(s) and perform wiring.
2-Position: Dir
24V~/=
1
GND/-
2
CW
3
CCW
4
5
!
Fig. 9. N0524/N1024 (2-position mode)
2-Position: Dir
230V~
1
CW
2
Fig. 7. Access cover
Wiring Diagrams
24V~/=
5
4
3
5
2
4
1
3
2
1
1
S
2
S
3
S
5
S
6
S
1
S
2
S
3
S
5
S
6
S
removable access cover
Floating: Dir
1
GND/-
2
CW
3
CCW
4
5
CCW
1
NL
3
4
> 3 mm!
5
230V ~
2
Fig. 10. N05230-2POS/N10230-2POS (2-position mode)
END SWITCHES
(max. 230 V, 5 A)
A,B: C
S1
B
A: NC
A: NO
B: NC
B: NO
Fig. 11. End switches (Nxx-SW2)
NOTE: Both internal end switches must be connected to the
same power source.
S2
S3
S5
S6
!
Fig. 8. N0524/N1024 (floating mode)
EN0B-0477GE51 R0408 4
N0524/N1024 AND N05230-2POS/N10230-2POS DAMPER ACTUATORS FOR FLOATING/2-POSITION CONTROL
Table 3, Table 4, and Table 5 summarize the information
presented in the preceding wiring diagrams.
Table 3. Signals at terminals for N0524/N1024
ter-
minal
NOTE: All cables connected to these terminals must be
Table 4. Signals at terminals for N05230-2POS/N10230-
terminal signal
NOTE: All cables connected to these terminals must be
terminal type of switch
signal in floating mode signal in 2-pos. mode
2
3
4
1
2
3
S1
S2 / S3
S5 / S6
common ~/- common ~/-
24 V ~/+
(control signal)
24 V ~/+
(control signal)
equipped with spark suppression.
2POS (2-position mode, only)
L (230 V ~)
N (230 V ~)
control signal
equipped with spark suppression.
Table 5. Internal end switches (Nxx-SW2)
common lead for switches A and B
change-over switch A (S1/S2 opens and S1/S3
closes when shaft adapter moves CW past 5°;
reverts to original state when shaft adapter
moves CCW past 5°).
change-over switch B (S1/S5 opens and S1/S6
closes when shaft adapter moves CW past 85°;
reverts to original state when shaft adapter
moves CCW past 85°).
24 V ~/+
(control / power signal)
24 V ~/+
(control / power signal)
SPARE PARTS
Anti-Rotation Bracket Kit
Order no.: A7211.2073
Contains:
• 10 anti-rotation brackets
• 20 screws
Spare Parts Kit
Order no.: A7211.2071
Contains:
• 1 anti-rotation bracket + screws
• 2 universal terminal blocks
• 2 strain-relief clamps
• 2 grommets*
• 2 adjustable end stops
*In order to guarantee IP54, only original Honeywell
grommets may be used.
5 EN0B-0477GE51 R0408
N0524/N1024 AND N05230-2POS/N10230-2POS DAMPER ACTUATORS FOR FLOATING/2-POSITION CONTROL
DIMENSIONS
41
N0524
85
134
Dir
Service/Off
Rev
108
62
66
Fig. 12. Dimensions (in mm)
Manufactured for and on behalf of the Environmental and Combustion Controls Division of Honeywell Technologies Sàrl, Ecublens, Route du Bois 37, Switzerland by its Authorized Representative:
Automation and Control Solutions
Honeywell GmbH
Böblinger Strasse 17
71101 Schönaich
Germany
Phone: (49) 7031 63701
Fax: (49) 7031 637493
http://ecc.emea.honeywell.com
Subject to change without notice. Printed in Germany
EN0B-0477GE51 R0408
Loading...
