VisionPRO® TH8000 Series

69-1894EF-1

Touchscreen Programmable Thermostat

Operating Manual

BE CAREFUL! Never use sharp instruments, such as a pencil
or pen, to press touchscreen keys. To prevent damage to the
thermostat, always press keys with your fingertip.

This manual covers the following models

TH8110U: For 1 Heat/1 Cool systems
TH8320U: For up to 3 Heat/2 Cool systems
TH8321U: For up to 3 Heat/2 Cool systems with dehumidification

(Pull thermostat from wallplate and turn over to find model number)

This thermostat contains a Lithium battery which may contain Perchlorate material.
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate

Need Help?

For assistance with this product please visit http://yourhome.honeywell.com

or call Honeywell Customer Care toll-free at 1-800-468-1502

Read and save these instructions.

US Patent No. 6595430, D509151 and other patents pending.

Copyright © 2007 Honeywell International Inc. All rights reserved.

® U.S. Registered Trademark.

Table of contents

VisionPRO® TH8000 Series

About your new thermostat

Thermostat features .............................. 2

Programming at a glance ..................... 3

Quick reference to controls .................. 4

Quick reference to status display ........ 5

Programming & Operation

Clock setting.......................................... 6

Fan setting ............................................. 7

System setting ....................................... 8

Using program schedules ..................... 9

Program schedule overrides .............. 12

Vacation hold ....................................... 14

Special features ................................... 15

Screen lock .......................................... 16

Screen cleaning ................................... 17

Humidity display & control .................. 18

Appendices

Battery installation .............................. 20

Advanced functions ............................ 21

In case of difficulty .............................. 26

Optional remote sensors .................... 28

Limited warranty .................................. 29

This thermostat is ready to go!

Your new thermostat is pre­programmed and ready to go.
See page 3 to check settings.

CAUTION: EQUIPMENT DAMAGE
HAZARD. To prevent possible

compressor damage, do not oper­ate cooling system when outdoor

temperature is below 50˚F (10˚C).

1

Operating Manual

About your new thermostat

Congratulations! You’ve just purchased the world’s most advanced, easy-to-use ther­mostat. It has been designed to give you many years of reliable service and touch­screen climate control.

Features

• 7-day program schedules maximize comfort and economy.

• Armchair programming: Just pull thermostat from the wall to set schedules.

• EnergyStar® compliant to greatly reduce your heating/cooling expenses.

• One-touch temp control overrides program schedule at any time.

• Precise comfort control keeps temperature within 1°F of the level you set.

• Change/check reminders let you know when to service or replace filters,
batteries and other critical components.

• Large touchscreen display with backlight is easy to read—even in the dark.

• Select models display and control summer humidity.

• Select models accommodate optional outdoor or indoor remote sensors.

2

VisionPRO® TH8000 Series

About your new thermostat

This thermostat is ready to go!

Your new thermostat is pre-programmed and ready to go. Just set the time and day.
Then check the settings below and change if needed:

1. Set clock ........................................................................................................See page 6

2. Select fan setting: Preset to Auto ..............................................................See page 7

3. Select system setting: Preset to Heat ......................................................See page 8

4. Program schedules: Preset to energy-saving levels
while you’re at work or asleep (assumes you
wake at 6 am, leave at 8 am, return at 6 pm

and go to bed at 10 pm) .......................................................................See pages 10-13

ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time,
and manually adjust the temperature (see pages 12-14).

3

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

MON

TUE WED THU FRI SAT SUN

AM

FAN

AUTO

SYSTEM

HEAT

Following
Schedule

Inside

Set To

OK TO PICK MULTIPLE DAYS

70

6:01

70

Quick reference to controls

Press day(s) to set program schedule (see page 11)

Press to select fan
operation (see page 7)

Press to select system
type (see page 8)

Press to set program
schedule (see page 11)

Press to override
program schedule
(see pages 12-14)

Press to set clock
(see page 6)

4

Press to adjust
temperature settings
(see pages 11-14)

Press for more options
(select models only)

Press to lock keypad for 30
seconds to clean screen
(see page 17)

VisionPRO® TH8000 Series

SCHED HOLD CLOCK SCREEN MORE

WED

AM

FAN

AUTO

SYSTEM

HEAT

Following
Schedule

Inside

Set To

Recovery

70

6:01

70

Quick reference to status display

Current inside temperature Current day of week Temperature setting

Fan setting

Program schedule on

System setting

Current time

Other display messages:

• Cool On: Cooling system is activated

• Heat On: Heating system is activated

• Aux Heat On: Auxiliary heating system is activated

5

(does not display
when off)

Adaptive Intelligent
Recovery in effect
(see page 15)

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

WED

AM

FAN

AUTO

Inside

Set To

70

6:01

70

DONE CANCEL

WED

AM

FAN

AUTO

Inside

Set To

70

6:02

70

Clock setting

Press CLOCK

Adjust time, then press DONE

To set the current time display, press CLOCK,
then press s or t to adjust the time. Press
and hold s or t to advance the time more
quickly.

Press DONE to save & exit (or press CANCEL to
exit without changing the time).

Note: The real-time clock should never require
adjustment since it automatically updates for
daylight savings time, and stores all date/time
information.

Note: To change the current week day display, see
page 22.

6

SCHED HOLD CLOCK SCREEN MORE

WED

AM

SYSTEM

HEAT

Following
Schedule

Inside

Set To

70

6:01

70

FAN

AUTO

Fan setting

Press FAN

Note: If a fan schedule is programmed,

“Auto” will run the fan schedule.

VisionPRO® TH8000 Series

Press FAN to select fan operation, then press
DONE.

• On: Fan is always on.

• Auto: Fan runs only when the heating or
cooling system is on.

• Circ: Fan runs randomly, about 35% of the
time, not counting any run time with the
heating or cooling system.

You can press FAN to override the fan settings
you’ve programmed for different time periods
(see page 11). If you select On or Circ, the
setting you select will remain active until you
press FAN again to select Auto (see page 27
for more information).

7

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

WED

AM

Following
Schedule

Inside

Set To

70

6:01

70

FAN

AUTO

SYSTEM

HEAT

System setting

Press the SYSTEM button to select, then press
DONE.

• Heat: Thermostat controls only the
heating system.

• Cool: Thermostat controls only the
cooling system.

• Off: Heating and cooling systems are off.

• Auto: Thermostat automatically selects
heating or cooling depending on the
indoor temperature.**

• Em Heat (only for heat pumps with
auxiliary heat): Thermostat controls
Emergency and Auxiliary Heat.
Compressor is locked out.**

** Select models only

8

VisionPRO® TH8000 Series

Save money by setting program schedules

It’s easy to program your system for maximum energy savings. You can program four
time periods each day, with different settings for weekdays and weekends.

WAKE

6:00 am

°

70

LEAVE

8:00 am

°

62

RETURN

6:00 pm

°

70

SLEEP

10:00 pm

°

62

Set to the time you awaken and the temperature you want
during the morning, until you leave for the day.

Set to the time you leave home and the temperature you
want while you are away (usually an energy-saving level).

Set to the time you return home and the temperature you
want during the evening, until bedtime.

Set to the time you go to bed and the temperature you want
overnight (usually an energy-saving level).

9

Operating Manual

EnergyStar® settings for maximum cost savings

This thermostat is pre-set to use EnergyStar® program settings. We recommend these
settings, since they can reduce your heating/cooling expenses by as much as 33%.
(See next page to adjust times and temperatures of each time period.)

Cool (Mon-Fri)Heat (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)

Wake

(6:00 am)

Leave

(8:00 am)

Return

(6:00 pm)

Sleep

(10:00 pm)

70
62
70
62

°

°

°

°

78
85

78

82

10

°

°

°

[Or cancel period]

°

°

70

°

62

[Or cancel period]

°

70

°

62

°

78

°

85

[Or cancel period]

°

78

[Or cancel period]

°

82

To adjust program schedules

SCHED HOLD CLOCK SCREEN MORE

WED

AM

Following
Schedule

Inside

Set To

70

6:00

70

FAN

AUTO

DONE WAKE LEAVE RETURN SLEEPEDIT CANCEL

WED

AM

Following
Schedule

Inside

Set To

70

6:00

70

FAN

AUTO

DONE WAKE LEAVE RETURN SLEEP CANCEL

MON

TUE WED THU FRI SAT SUN

AM

CANCEL
PERIOD

HEAT

COOL

OK TO PICK MULTIPLE DAYS

70

6:00

78

FAN

AUTO

VisionPRO® TH8000 Series

Press SCHED

Press EDIT

Select day(s) Set heat/cool levels

Set time for program
period to start

1. Press SCHED, then EDIT.

2. Press day buttons (MON-SUN) to select
day(s).

3. Press s or t to set Wake time for selected
day(s).

4. Press s or t to set Heat and Cool
temperature for this time period.

5. Press other time periods (LEAVE, RETURN,
SLEEP) to set time and temperatures for
each.

6. Press DONE to save & exit (or press CANCEL
to exit without saving changes).

Note: You can press CANCEL PERIOD to eliminate any
unwanted time period.

Note: Press FAN to customize fan settings for any
time period (see page 7).

11

Operating Manual

Heat On

SCHED HOLD CLOCK SCREEN MORE

CANCEL

WED

AM

Inside

Hold Temperature

Until

Set To

73

8:00

70

FAN

AUTO

SYSTEM

HEAT

Program schedule override (temporary)

Press to set timer

Press CANCEL (or SCHED) to
resume program schedule

Adjust temperature

Press s or t to immediately adjust the tem­perature. This will temporarily override the
temperature setting for the current time period.

The new temperature will be maintained only
until the time you set. When the timer expires,
the program schedule will resume and set the
temperature to the level you’ve programmed
for the current time period.

To cancel the temporary setting at any time,
press CANCEL (or SCHED). The program schedule
will resume.

12

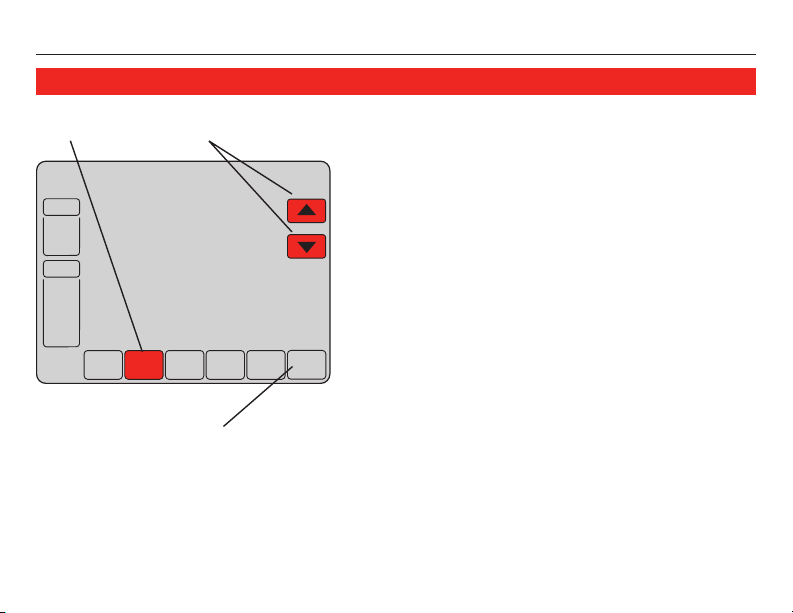

Program schedule override (permanent)

Heat On

SCHED HOLD CLOCK SCREEN MORE

CANCEL

WED

AM

Inside

Set To

Permanent

Hold

73

8:00

70

FAN

AUTO

SYSTEM

HEAT

VisionPRO® TH8000 Series

Press HOLD Adjust temperature

Press CANCEL (or SCHED) to
resume program schedule

Press HOLD to permanently adjust the
temperature. This will turn off the program
schedule.

Whatever temperature you set will be
maintained 24 hours a day until you manually
change it or press CANCEL (or SCHED) to cancel
“Hold” and resume the program schedule.

13

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

CANCEL

WED

PM

Inside

Hold Temperature

Until

Set To

55

6:00

70

FAN

AUTO

SYSTEM

HEAT

SCHED HOLD CLOCK SCREEN MORE

CANCEL

WED

Inside

DAYS

Hold Temperature

Until

Set To

55

14

70

FAN

AUTO

SYSTEM

HEAT

Vacation hold

1. Set temperature

2. Press to set time for
schedule to resume

3. Press HOLD twice

4. Press to select number of days

This feature can suspend the program sched­ule for extended periods of time.

Press s or t to set the temperature you want,
then press s or t to set the time of day you
want the schedule to resume when you return.
Press HOLD twice, then press s or t to select
the number of days.

Whatever temperature you set will be main­tained 24 hours a day for the number of days
you select. After this number of days have
elapsed, the previously programmed schedule
will resume at the time you set.

If you return earlier than expected, press
CANCEL (or SCHED) to cancel “Hold” and resume
the program schedule.

14

VisionPRO® TH8000 Series

Special features

Auto Changeover: When set to Auto, the thermostat automatically selects heating or

cooling depending on the indoor temperature.
Adaptive Intelligent Recovery: This feature allows the thermostat to “learn” how

long the furnace and air conditioner take to reach programmed temperature settings,
so the temperature is reached at the time you set. For example: Set the Wake time to
6 am, and the temperature to 70°. The heat will come on before 6 am, so the tempera­ture is 70° by the time you wake at 6. The message “Recovery” is displayed when the
system is activated before a scheduled time period.

Compressor Protection: This feature forces the compressor to wait a few minutes
before restarting, to prevent equipment damage. During the wait time, the message
“Wait” is displayed on screen.

15

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

WED

PM

Following

Schedule

Inside

Set To

SCREEN LOCKED

70

6:00

70

FAN

AUTO

SYSTEM

HEAT

Screen lock

See advanced function
0670 (page 25) for
screen lock options

To prevent tampering, the screen can be par­tially or fully locked.

When partially locked, the screen displays
SCREEN LOCKED for several seconds if a locked
key is pressed. To unlock the screen, press any
unlocked key while SCREEN LOCKED appears on
the screen.

When the screen is fully locked, no keys
function. To lock or unlock the screen, see
advanced function 0670 on page 25.

16

Screen cleaning

SCHED HOLD CLOCK SCREEN MORE

WED

PM

Following
Schedule

Inside

Set To

SCREEN LOCKED

70

6:00

70

FAN

AUTO

OK TO
CLEAN
SCREEN

30

VisionPRO® TH8000 Series

Press SCREEN

Screen lock timer (30 seconds)

Press SCREEN to lock the screen for cleaning.
The screen will remain locked for 30 seconds
so you can clean the screen without changing
any settings.

After 30 seconds, press DONE to resume normal
operation, or press SCREEN again if you require
more time for cleaning.

Note: Do not spray any liquid directly on the
thermostat. Spray liquids onto a cloth, then use
the damp cloth to clean the screen. Use water or
household glass cleaner. Avoid abrasive cleansers.

17

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

WED

PM

FAN

AUTO

SYSTEM

HEAT

Following
Schedule

Inside

Set To

Humidity

70

6:00

70

43

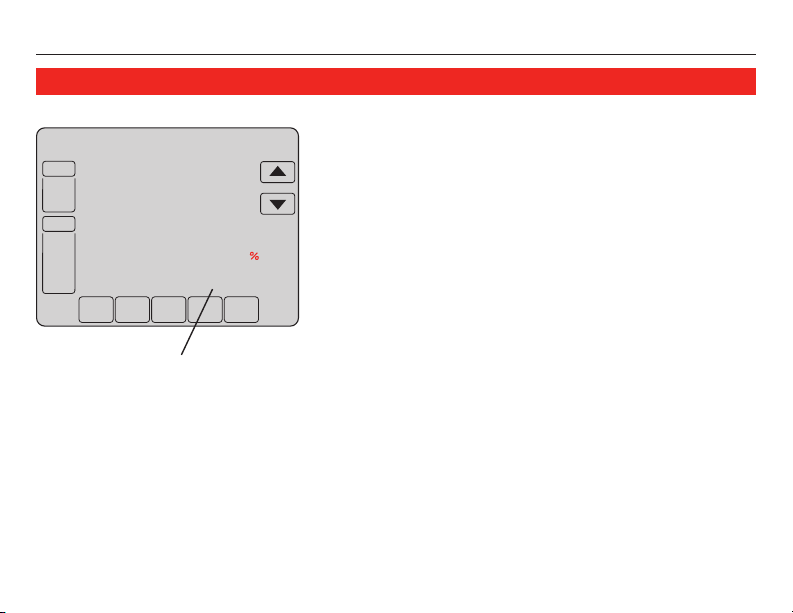

About your new thermostatHumidity level display (select models)

Select models can display the current indoor
humidity level.

(If an optional outdoor sensor is installed,
the outdoor temperature is shown instead of
the humidity level. Press MORE to display the
humidity level.)

Indoor humidity level

18
