INTRODUCTION
The Galaxy alarm system is, in fact, a computer which has been designed using the latest
software and hardware technology.
First and foremost, the Galaxy meets all your security needs. The engineer will program and
commission the system to your own exacting requirements.
Page 6
Page 7
Galaxy 8/18/60/128/500/504/512 User Guide
1
Keypad Information
General
The Galaxy Alarm system is controlled by Galaxy Mk7 Full Alpha Liquid Crystal Display
(LCD) keypads. A maximum of 16 keypads may be connected to the Galaxy 8, 18 and 60
and 128 control panels. A maximum of 32 keypads may be attached to the Galaxy 500, 504
and 512 control panels.
NUMBER KEYS (0 – 9)
These keys are used to enter the code and to select and modify options.
Before carrying out operations on the system, users must identify themselves with a Personal
Identification Number (PIN). This number is a 4, 5 or 6 digit number selected from keys 0 - 9.
The number keys are also used where groups are programmed on the system permitting
groups (areas) to be set or unset.
VIEW KEYS (A and B)
These keys have been programmed to activate one of the system options. Pressing the A > key
after a valid code has been entered starts the full set routine. Pressing the < B key after a valid
code has been entered starts the part set routine.
Once a system option has been selected, the A > or < B keys can be used to operate as view
keys, stepping forwards (A >) or backwards (< B) through lists of information. Holding down
a view key while viewing an option list, rapidly displays each item in the list, permitting quick
access to the information.
Star key
Power
LED
LCD
display
Number keys
View keys
Enter key
Escape key
Hash key
B
ent
esc
A
1
2 3
4
5
6
7 8 9
0
#
*
GALAXY 504 V2.00
16:32 MON 10 OCT
Page 8
User Guide Galaxy 8/18/60/128/500/504/512
2
ENTER KEY (ent)
The ent key accepts and processes entered data. Valid actions are performed and the next
option is accessed.
ESCAPE KEY (esc)
The esc key aborts the current option to return to the previous option level. Any option
modification made prior to the option being aborted is erased. Successive pressing of the esc
key returns the user to the start display (known as the BANNER).
The esc key also aborts the setting routine if pressed during the exit time.
HASH KEY (#)
The # key is used to display additional choices for certain options, e.g. ADVANCE/RETARD
the time in the TIME/DATE option.
This key is also used as the user duress key (by pressing twice following a valid code
entry).
STAR KEY (*)
The * key is used to provide additional features for certain options, e.g. printing the event log
or deleting entries.
POWER LED
The green power LED remains lit whenever the keypad is connected to a mains power
supply. A mains power failure is indicated by the LED flashing slowly. The LED flashes
rapidly if the battery voltage falls below the minimum threshold or if one of the fuses on the
control panel PCB blows.
BANNER
The banner is the display shown on the keypad, e.g. Galaxy 504 V2.00 (with the time and
date on the bottom line). This is shown at all times when the system is unset, unless the menu
is being accessed or an alarm or help message is on the display. The banner can be changed
by the engineer. In the set condition the banner is normally blank.
USER CODES
The user code is a unique four, five or six digit PIN (Personal Identification Number). The
PIN identifies the user to the Galaxy Alarm panel and allows operation of the system.
Page 9
Galaxy 8/18/60/128/500/504/512 User Guide
3
SETTING THE SYSTEM
SET A12345678
Groups RRR-----
SET A12345678
Groups SRR-----
TIMED SET 120
Code + A
1
ent
SET A12345678
Groups RSS-----
SET B12345678
Groups RSS-----
TIMED SET 60
Code + A
A Key
ent
BEFORE SETTING
Before setting the system ensure all doors and windows are secured
and areas protected by movement detectors are free from obstruction.
ENTERING A PIN - USER LEVEL 1-2
As each digit is entered the keypad responds with a bleep and displays
a *. When all the digits are entered, press the ent or A > key to start the
setting routine.
ENTERING A PIN - USER LEVEL 3 - 6
As each digit is entered the keypad responds with a bleep and displays
a *. When all the digits are entered press the A > key to start the setting
routine.
SETTING GROUPS
Where group choice has been assigned to the PIN, select which groups
have to set as part of the setting routine. The set status of each group is
displayed on the keypad screen. Possible status options are :-
R = Ready (Groups is unset, and all zones are closed)
F = Faulted (Group is unset, and at least one zone is open)
S = Set (Group is set)
L = Lockout (Group is locked out, and cannot be unset)
Select which groups have to be to set by entering the number of the
group. For example, to set groups 2 and 3 press keys 2 and 3 . The
display changes to indicate the groups selected for setting. Pressing
the ent key starts the setting routine for the specified groups.
The Galaxy 500 has 16 groups whilst the 504 and 512 have 32
groups. If the user has group choice, the available groups will be
displayed at the keypad following a valid code + A >. The groups
will be displayed showing A1 to A8. Use both A > and < B keys to
scroll to the various sets of groups. If the user does not have group
choice, entering the PIN and A > will cause all groups assigned to
the user to set.
EXIT TIME
If all the system zones are closed when the setting routine is started,
the display indicates the remaining time, in seconds, to vacate the
premises. Exit the building using the agreed route.
TIMED SET 120
Code + ent or A>
Page 10
User Guide Galaxy 8/18/60/128/500/504/512
4
SOUNDER
During the setting period the sounder emits a continuous tone if all of
the zones are closed. If a zone is opened during the setting period, the
sounder begins to pulse. The sounder also pulses during the last 25%
of the setting time to indicate time running short.
ZONES OPEN
The exit time will reset should any zones be open or opened during
setting. The display will indicate the number of zones open and invite
viewing. Closing the zones will restart the exit time. An alarm will be
generated on Galaxy 60, 128, 500, 504, 512, if setting is not completed
before the Fail to Set period expires. (Fail to Set; programmed by
engineer).
Note: Before closing the open zone, press esc to abort the setting
routine. The ESC TO ABORT message will flash as a
reminder.
FINAL DOOR/TERMINATOR
The setting procedure can be manually completed by either closing the
FINAL door or by pressing the TERMINATOR button.
SYSTEM SET
When time has expired or a manual termination is made, the system
waits four seconds before setting. The sounders emit two long tones to
confirm that the system is set. The keypad briefly displays the message
SYSTEM SET, before becoming blank.
PART SETTING
To Part Set the system press the < B key after the PIN. Only the zones
which have the PART attribute enabled are set. All other setting features
are the same.
CANCELLING THE SETTING
The setting routine can be aborted by pressing the esc key before the
system sets.
GROUP NAME
Press * and # keys simultaneously when groups are displayed on the
keypad (when setting for example), will display the name of the
group . The group name should be programmed by the installation
engineer. Press the * and # keys to return to the group display.
3 zones open
[<] [>] to view
PART SET 120
PIN+B
SET A12345678
Groups RRRRRRRR
A1 OFFICE AREA R
[<] [>] #=CHANGE
*
+#
Page 11
Galaxy 8/18/60/128/500/504/512 User Guide
5
UNSETTING THE SYSTEM
NORMAL ENTRY
Unsetting starts immediately when the FINAL door is opened or an
ENTRY zone is activated. The sounder pulses slowly and the user must
go directly to the keypad and enter a valid PIN, followed by A>, <B or
ent. Users with group choice, will access the UNSET screen following
PIN entry. This permits the user to unset specific groups. To return to
the SET screen press ent.
STRAYING FROM THE ENTRY ROUTE
Go directly to the keypad when entering the building. If the user strays
into a protected area and activates a zone, a full alarm will occur. The
police may be called out and the system will have to be reset.
SLOW ENTRY
Enter a valid PIN before the entry time expires. If the entry time expires
before a valid PIN is entered, then a full alarm will occur. The sounder
begins to pulse quickly when 75% of the entry time has elapsed
indicating time is running short.
CANCELLING ALARMS
To cancel an alarm, enter a valid PIN followed by ent at the keypad.
The keypad displays details of the zone activated. When more than one
zone is activated, details can be viewed using A > or < B. Press ent to
return to the banner. Certain types of alarms, once cancelled, require a
code with the appropriate reset authorisation to be entered. The system
prompts for a valid reset code by displaying MANAGER RESET
REQUIRED or ENGINEER RESET REQUIRED on the keypad.
MANAGER RESET
Entering a manager level PIN followed by ent, resets the system
following an alarm activation.
ENGINEER RESET
Certain types of alarm require an engineer to visit the site and, after
investigation, reset the system. In such cases, the system cannot be reset
until the engineer reset has been carried out.
4 ALARMS
[<] [>] to View
PIN + ent
CALL MANAGER
RESET REQUIRED
CALL ENGINEER
RESET REQUIRED
Galaxy 512 V2.00
15.49 MON 18 Nov
PIN + ent
Page 12
User Guide Galaxy 8/18/60/128/500/504/512
6
MENU OPTIONS
There are two menu structures on the Galaxy control panels:
Full Menu
Only accessed by default by the Manager code on the Galaxy 60, 128, 500, 504 and 512 control
panels.
Quick Menu
A selection of options from the full menu. The quick menu is the default menu access for all
user codes (level three and above) as well as the Manager code on the Galaxy 8 and 18 control
panels.
Table 1. Menu Options
leveLresU uneMkciuQ
uneMlluF
3leveL4leveL5leveL6leveL
3
timO=0
senoZ
gnitteS=01yalpsiD=02tseT=03yfidoM=04
3
decroF=1
teS
timO=11
senoZ
yalpsiD=12
senoZ
tseTklaW=13etaD/emiT=14
3 emihC=2 teSdemiT=21
yalpsiD=22
goL
stuptuO=23sedoC=24
4
yalpsiD=3
senoZ
teStraP=31metsyS=32remmuS=34
4
yalpsiD=4
goL
decroF=41
teS
tnirP=42ecarT=44
4 tnirP=5 emihC=51
sseccA=52
srooD
remiT=54
lortnoC
5 tseTklaW=6 teStnatsnI=61
puorG=64
timO
6
=7
etaD/emiT
tnatsnI=71
traP
etomeR=74
sseccA
6 sedoC=8 teSemoH=81
.gnE=84
sseccA
6 remmuS=9 tesllA=91kcolemiT=94
Page 13
Galaxy 8/18/60/128/500/504/512 User Guide
7
ACCESSING THE MENU
To access the menu enter a valid code and press the ent key. The Full
Menu or Quick Menu is accessed, depending on the user level.
Note: 1. If the user does not have group choice, all groups assigned
to the user code must be unset.
2. If the user has group choice, at least one group on the
system must be unset.
3. If there are no groups, then the system must be unset.
FULL MENU
The Full Menu has a hierarchy of four structures contained within it.
Each structure is accessible by an increased user code level.
QUICK MENU
The Quick Menu offers users level three and above a selection of up to
10 options, numbered 0 – 9. The required option is selected by entering the option number (0 – 9) or by using the A > or < B keys to
display each option.
The menu options (as with all Galaxy lists) are circular, therefore menu
option 9 is followed by menu option 0.
The following Quick Menu options are the factory default settings.
Each option is described in the following pages.
Page 14
User Guide Galaxy 8/18/60/128/500/504/512
8

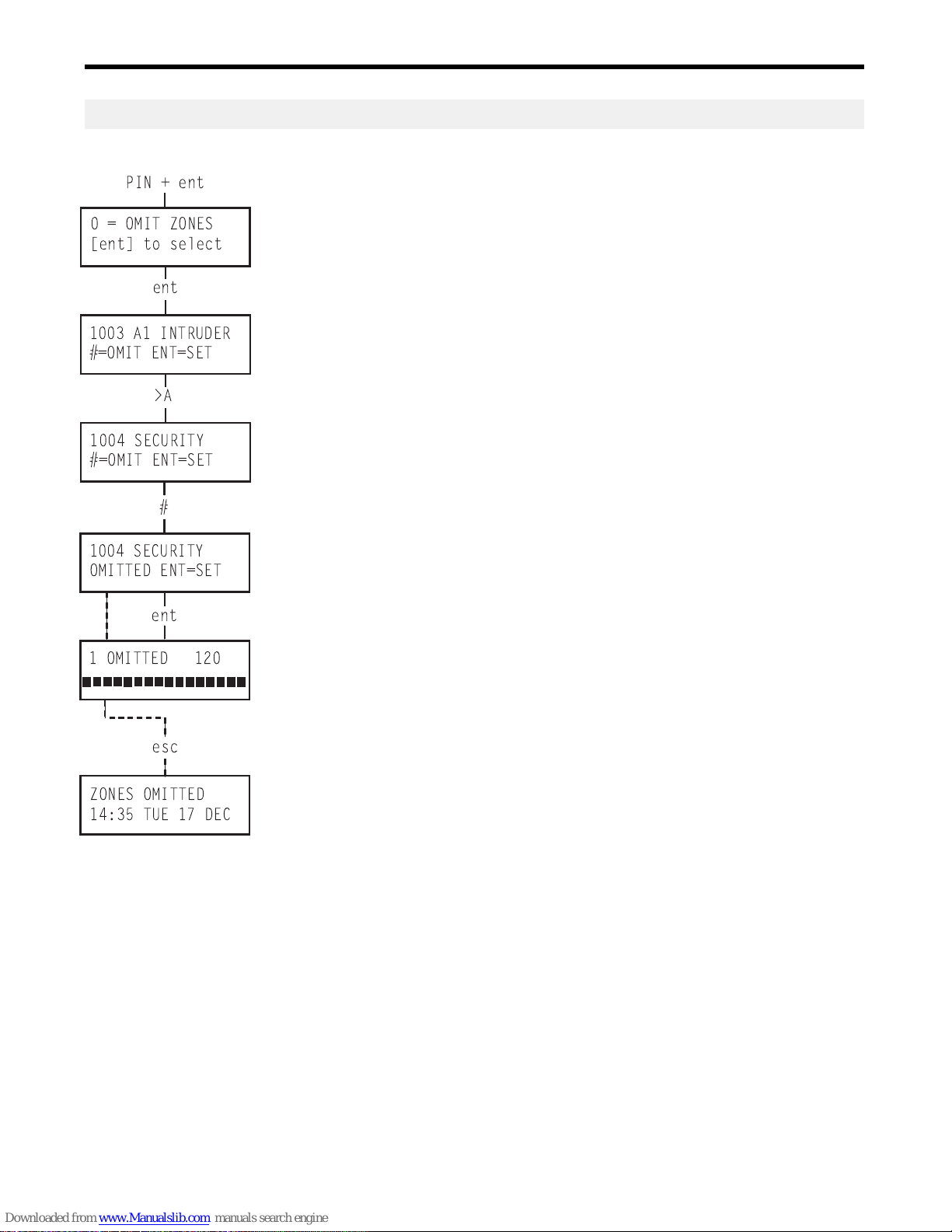

OMIT ZONES (User Level 3 and above)
PURPOSE
This option allows the user to omit zones before setting the system.
Zones must be eligible for omission otherwise they will not be displayed.
Note: Zones remain omitted for one set period only.
SELECTING OMIT ZONES
Enter the QUICK MENU. The 0=OMIT ZONES option is displayed.
Press the ent key to select this option.
VIEWING ELIGIBLE ZONES
When the OMIT ZONES option is selected the first zone eligible for
omission is displayed. The eligible zones can be viewed by pressing
the A> or <B keys. The zones eligible for omission can be rapidly
viewed by holding down either of these keys.
OMITTING ZONES
Once the zone to be omitted is shown on the display, press the # key.
The display indicates that the zone is omitted. A> and <B keys can
then be used to select other zones to be omitted using the same method.
Note: A zone is omitted from the system as soon as the # key is
pressed. The system does not have to be set.
SETTING WITH OMITTED ZONES
When the list of omitted zones is complete the setting routine is started
by pressing the ent key. The system starts to set and the display indicates
how many zones have been omitted. Alternatively the esc key can be
used to return to the menu options. Zones that have been omitted remain
omitted even after using the esc key.
Note: All zones omitted are recorded in the log against the user.
GALAXY 512
The Galaxy 512 will only allow a single eligible zone to be omitted
from the system. Once a zone has been omitted, it is not possible to
view other zones with the omit attribute enabled, until the omitted
zone is re-instated (either automatically or manually).
VIBRATION ZONES (504 & 512 only)
If the omitted zone is a vibration zone, then all zones of this type (in
all groups) will be block omitted. The vibration zones remain
omitted until manually reinstated. Unsetting the system does not
reinstate vibration detectors.
ZONES OMITTED
14:35 TUE 17 DEC
1 OMITTED 120
ent
#
esc
1004 SECURITY
OMITTED ENT=SET
0 = OMIT ZONES
[ent] to select
PIN + ent
1003 A1 INTRUDER
#=OMIT ENT=SET
ent
1004 SECURITY
#=OMIT ENT=SET
>A
Page 15
Galaxy 8/18/60/128/500/504/512 User Guide
9
ATM 1/2/3/4 ZONES (512 only)
ATM zones are omitted by entering one of the ten ATM codes (user
188 to user 197). To select this option enter an ATM code followed by
the ent key. Use the A> key to scroll through the four ATM zone
options (ATM1 to ATM4) and select by pressing the ent key. A
preprogrammed ATM delay time will expire before omitting all ATM
zones with the selected ATM zone type. The zones will be omitted for
the duration of the ATM time-out period and the remaining time in
minutes will be displayed on the initiating keypad. A warning is given
ten and five minutes before the zones are reinstated. The ATM Timeout period can be extended by entering an ATM code and selecting
1=Reset Access. To manually reinstate ATM zones, enter an ATM
code and select 2=Abort Access.
FORCED SET (User Level 3 and above)
PURPOSE
When enabled, the FORCED SET option allows the user to
automatically omit zones, eligible for omission, which are open when
the system setting routine is started. Zones omitted in this way remain
omitted for one set period only. This option is not available on the
Galaxy 512.
SELECTING FORCED SET
Access the QUICK MENU. Press key 1 followed by the ent key. The
display indicates how many zones have been omitted and the number
of seconds left before setting.
NON-OMITTABLE ZONES
Some open zones may not be eligible for omission from the system. In
this case the display indicates which zones are open and the exit time is
reset. These zones must be closed before setting can continue.
2 Zones Open
[<] [>] to View
3 OMITTED 120
ent
1 = FORCED SET
[ent] to select
0 = OMIT ZONES
[ent] to select
PIN + ent
1
1=RESET ACCESS
2=ABORT ACCESS
ATM PIN + ent
ACCESS TIMEOUT
ATM-2 10 mins
[ent] to Select
1=ATM-1
ATM PIN + ent
[ent] to Select
2=ATM-2
>A
ent
DELAY ACCESS
ATM-2 12 mins
1
Page 16
User Guide Galaxy 8/18/60/128/500/504/512
10
0 = OMIT ZONES
[ent] to Select
2 = CHIME
[ent] to Select
PIN + ent
> A
CHIME MODE
0 = OFF
2
ent
CHIME MODE
1=ON
ent
0 = OMIT ZONES
[ent] to Select
3 = DISPLAY ZONES
[ent] to Select
PIN + ent
1001 INTRUDER
COMPUTER ROOM
ent
3

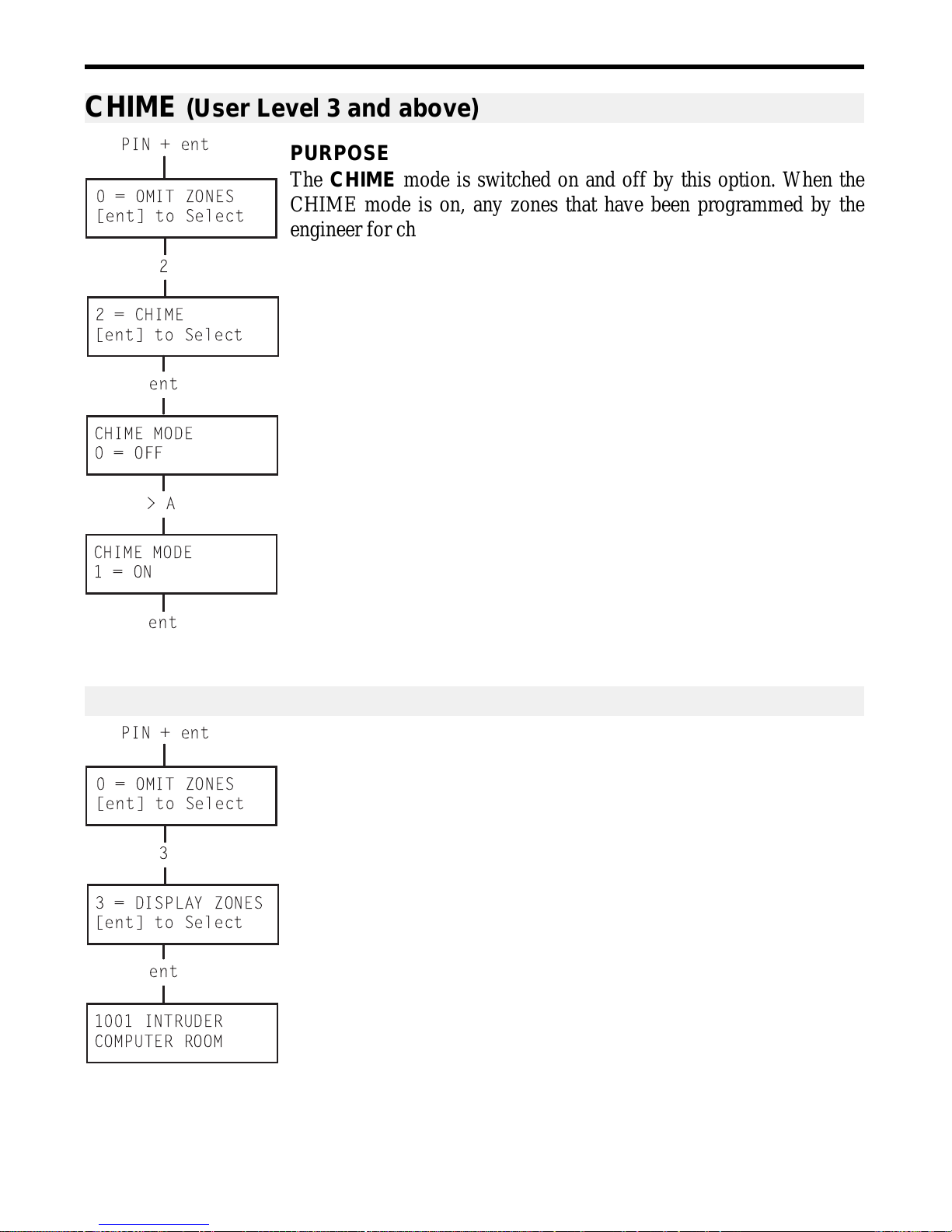

CHIME (User Level 3 and above)
PURPOSE
The CHIME mode is switched on and off by this option. When the
CHIME mode is on, any zones that have been programmed by the
engineer for chime will activate momentarily when opened.
Note: Your system may not require any zones of this type.
SELECTING CHIME
Enter the QUICK MENU. Press key 2 followed by the ent key. The
display shows the ON/OFF status of the CHIME mode. Press the >A
key to toggle between the states and press the ent key to accept the
selection.
Note: Keys 1 AND 0 can also be used to select ON and OFF
respectively.
CHIME IN OPERATION
When switched ON, the CHIME mode remains active until switched
OFF again. Zones that have been programmed with the chime attribute
by the engineer continue to chime when they are activated.
Note: The CHIME mode is suspended while the system is set or
during an alarm.
DISPLAY ZONES (User Level 4 and above)
PURPOSE
This menu option provides the user with a method of accessing the
DISPLAY ZONES mode and checking each zone for its description
and current status.
SELECTING DISPLAY ZONES
Enter the QUICK MENU. Press key 3 followed by the ent key. Details
of the first zone (1001) are displayed.
ADDRESS
The zone address provides a unique four digit address number used for
identification and selection, e.g. 1026 - line 1, RIO 02, zone 6 (Galaxy
500).
FUNCTION
The zone function is displayed and identifies the operation of the zone,
e.g. INTRUDER, FIRE.
Page 17
Galaxy 8/18/60/128/500/504/512 User Guide
11
STATUS
The current status of the zone is displayed as circuit information, e.g.
Open or Closed. This information alternates with function information.
DESCRIPTION
The zone description, if programmed, is displayed on the bottom line
of the display. The descriptor is assembled from alpha-numeric text
and describes the zone in detail, e.g. West Office Door.
SELECTING AND VIEWING
Selecting the DISPLAY ZONES option displays the first zone address
available on the system. Other zones can be viewed sequentially by
using the >A or <B keys. Zones can also be displayed by entering the
address of the zone: Galaxy 8 enter the zone number (1 digit); Galaxy
18 and 60 enter the RIO and zone number (2 digits); Galaxy 128, 500
504 and 512 enter the line, RIO and zone number (4 digits). Press the #
key to display the zone resistance and RIO voltage.
1001 INTRUDER
COMPUTER ROOM
2+1
1021 SECURITY
CASHIER DOOR
esc
ESCAPE
The esc key aborts the option and returns to the option menu.
DISPLAY LOG (User Level 4 and above)
PURPOSE
DISPLAY LOG provides the user with a means of viewing the system
history. Events are recorded in detail and stored in the non-volatile
memory.
SELECTING DISPLAY LOG
Enter the QUICK MENU. Press key 4 followed by the ent key.
Details of the most recent event to be logged are displayed.
0 = OMIT ZONES
[ent] to Select
4
4 = DISPLAY LOG
[ent] to Select
ent
PIN + ent
LOG A12345678
Groups YY------
LOG A12345678
Groups NN------
1+2
ent
08:53 TUE 22 NOV
AC FAIL-RIO108
MON 21 NOV 1999
<B (hold)
MON 20 NOV 1999
*
EVENTS
The events available for display include details of setting, unsetting
and alarms. Each event is timed and date stamped.
SELECTING A DATE
Hold down one of the view keys, the dates held in the log are rapidly
stepped through. The A> key moves forward through the dates and the
<B moves backwards. Stopping at the required date reveals the first
event for that date.
VIEWING EACH EVENT
The entire events of any one date can be viewed by progressively
stepping through the events using the A> and <B view keys.
* If the user has group choice enabled, the groups will display. Events
for each group can be displayed by entering the group number.
Page 18
User Guide Galaxy 8/18/60/128/500/504/512
12
PURPOSE
The PRINT option gives the user the opportunity to get a hard copy
print-out of the system details. This option requires a serial printer to
be connected to the system.
ADDITIONAL INFORMATION
The # key can be used to reveal additional information on some types
of events. This information is displayed on the bottom line. The
information includes details such as zone descriptors, user levels and
which keypad was used.
PRINTING
If a serial printer is connected to the system, a system history can be
printed by pressing the * key. The system will print from the event on
display until the most recent event.
Printer off-line
Escape to abort
release <B
16:31 SUN 20 NOV
FULL SET USR 98
16:31 SUN 20 NOV
KOO L6 A1-------
#
esc
*
Print
0 = OMIT ZONES
[ent] to Select
5
5 = PRINT
[ent] to Select
PIN + ent
ent
PRINTING CODES
ESC to abort
1=CODES 2=ZONES
3=LOG 4=ALL
1
PRINTING ZONES
ESC to abort
PRINTING LOG
ESC to abort
3
PRINTING ALL
ESC to abort
4
2

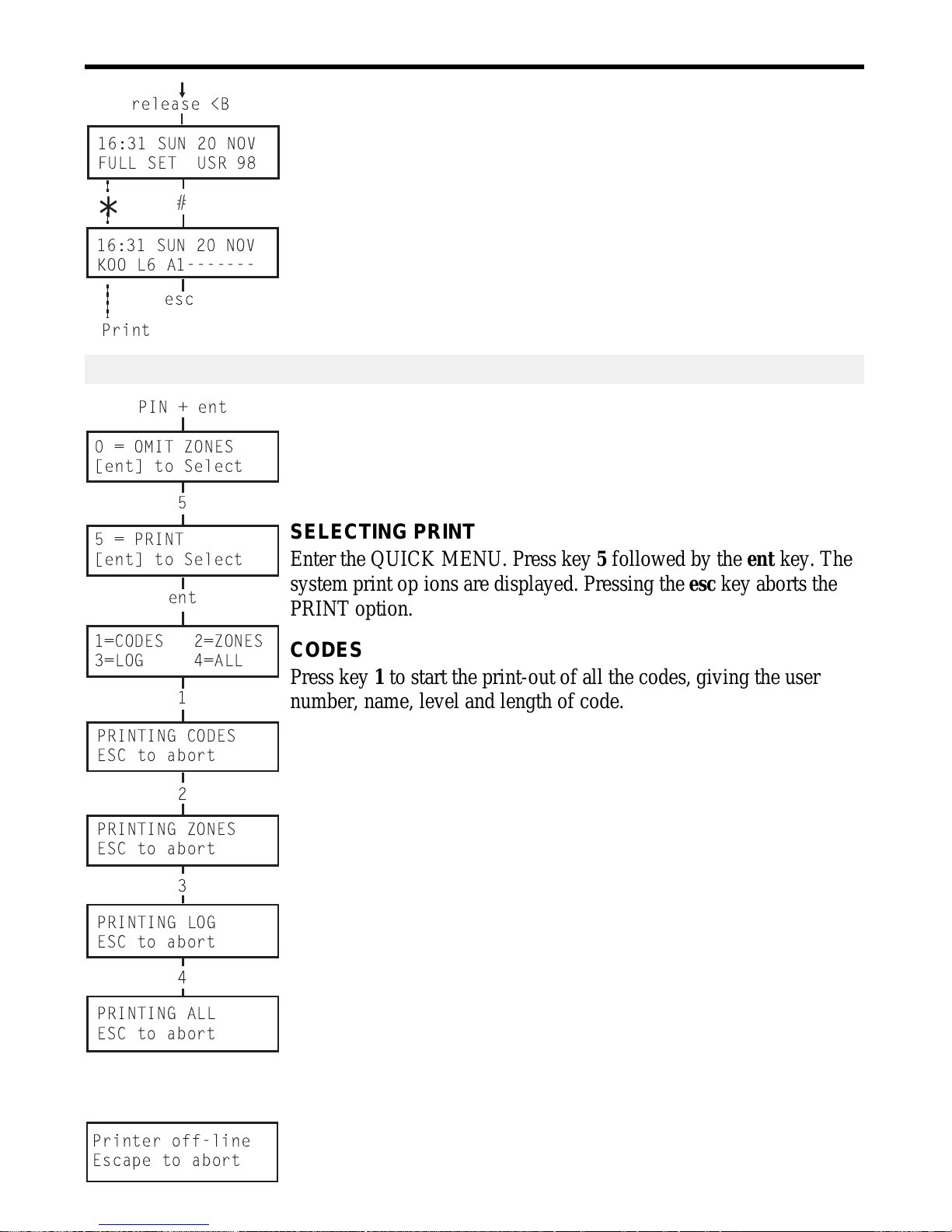

SELECTING PRINT
Enter the QUICK MENU. Press key 5 followed by the ent key. The
system print options are displayed. Pressing the esc key aborts the
PRINT option.
CODES
Press key 1 to start the print-out of all the codes, giving the user
number, name, level and length of code.
ZONES
Select the ZONES option to print-out the details of each zone in the
system. The zone address, function, and descriptor is printed. Press
key 2 to select this option.
LOG
The entire LOG can be printed out by selecting key 3. The print-out
consists of up to 1000 events depending on panel type, and details
the time and date of setting, unsetting and alarms.
ALL
All the options (CODES , ZONES, and LOG) can be printed out by
selecting the ALL option. Pressing key 4 delivers a print-out
starting with user codes.
HELP MESSAGE
If a print-out is started without a printer being connected and on-line,
the display indicates that the printer is off-line.
PRINT (User Level 4 and above)
Page 19
Galaxy 8/18/60/128/500/504/512 User Guide
13
WALK TEST (User Level 5 and above)
PURPOSE
The WALK TEST option provides a method of testing the zones to
ensure that they are operating correctly. There are two options
available:
1.All zones can be tested
2. Selected zones can be tested
In both cases the sounder indicates an open zone. The test is recorded in
the log.
SELECTING WALK TEST
Enter the QUICK MENU. Press the key 6 followed by the ent key.
When WALK TEST is selected, TEST ALL ZONES or SELECTED
ZONES displays.
ALL ZONES
Choosing ALL ZONES (press key 1) starts the test immediately. No
selection is necessary as all valid zones are included in the test. The
sounder operates whenever a zone is opened and stops when all zones
are closed.
Note: The TEST ALL ZONES option only tests zones which can
be omitted from the system.
SELECTED ZONES
Choosing the SELECTED ZONES option by pressing key 2 displays
the first zone on the system. Each zone is displayed in turn by using the
>A or <B keys. When the zone to be included in the test is displayed,
press the # key. Other zones can be included in the test in the same
manner. When all of the required zones have been selected, press the
ent key to start the WALK TEST.
Note: The SELECTED ZONES option includes non-omittable
zones.
ENDING WALK TEST
To abort the walk test option press the esc key, otherwise the walk test
option remains active for 20 minutes after the last key press.
0 = OMIT ZONES
[ent] to Select
6
6 = Walk Test
ent to select
ent
PIN + ent
1=TEST ALL ZONES
2=SELECTED ZONES
1
NO ENTRIES
WALK TEST ACTIVE
ESC to abort
1001 FINAL
#=TEST ENT=START
2
>A
1002 EXIT
#=TEST ENT=START
1002 EXIT
TEST ENT=START
#
ent
Page 20
User Guide Galaxy 8/18/60/128/500/504/512
14

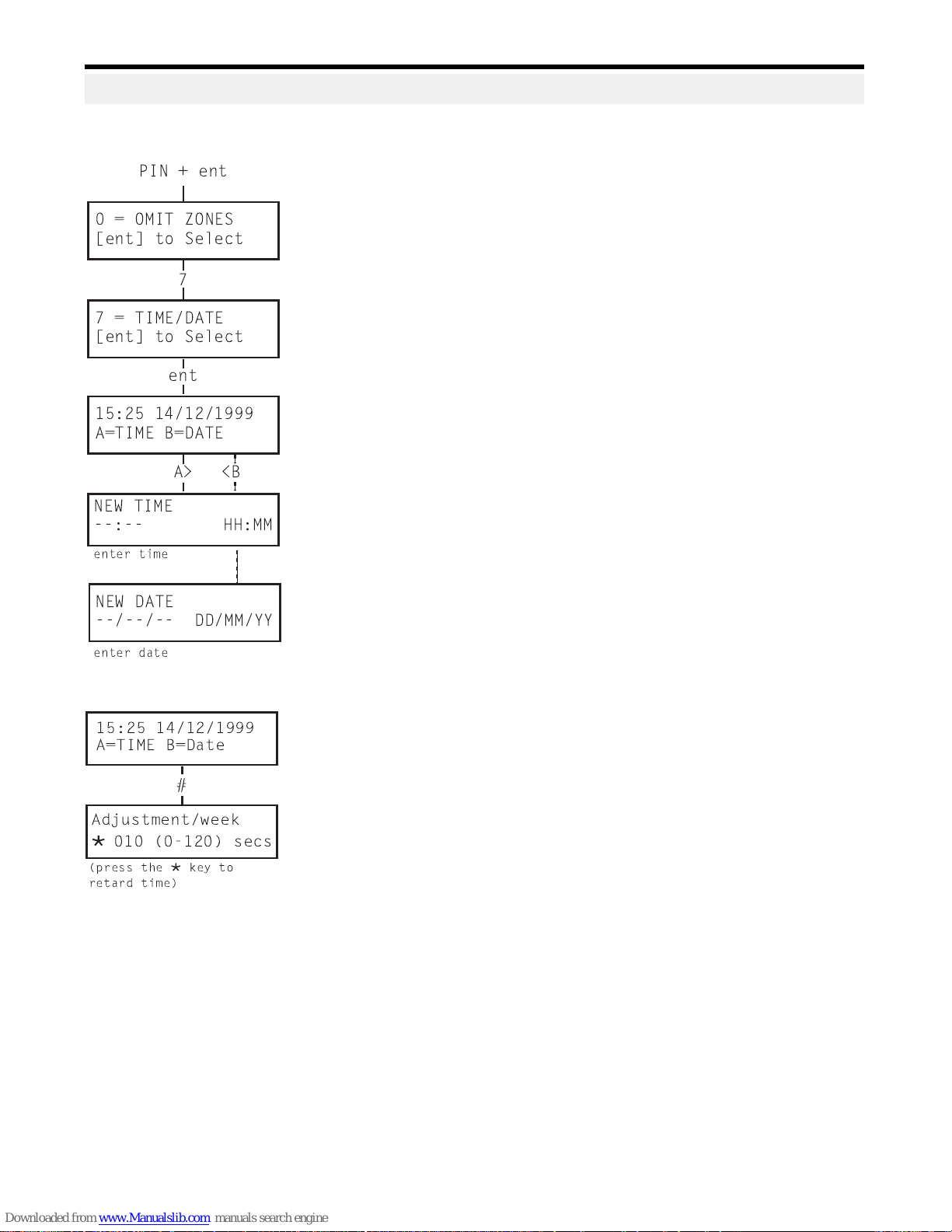

The TIME/DATE option allows the user to modify both the time (hours/
minutes) and the date (day/month/year).
SELECTING TIME/DATE
Enter the QUICK MENU. Press key 7 followed by the ent key. Once
the TIME/DATE option has been selected, the time or date can be
selected by pressing the A> or <B key.
CHANGING TIME
To change the time press the A> key. The display prompts for a NEW
TIME in hours and minutes (HH:MM). When the new time is entered,
the display immediately returns to the time or date selection screen.
The system does not accept invalid times (greater than 23 hours, greater
than 59 minutes). Pressing the esc key aborts the entry.
CHANGING DATE
To change the date press the < B The display prompts for a NEW
DATE in days, months and years (DD/MM/YY). When the new date
is entered, the display momentarily shows the day of the week, before
returning to the time or date selection screen. The system does not
accept invalid dates (e.g. 32/13/99). Pressing the esc key aborts the
entry.
ADVANCE AND RETARD
It is possible to advance and retard the time to compensate for any
variations in clock speed. Press the # key when in the time/date mode
to select the clock speed adjustment. The range is 0 to 120 seconds per
week. Pressing the * key will retard the time.
TIME/DATE (User Level 6)
PURPOSE
15:25 14/12/1999
A=TIME B=Date
Adjustment/week
Ö
010 (0-120) secs
#
(press theÖkey to
retard time)
0 = OMIT ZONES
[ent] to Select
7
7 = TIME/DATE
[ent] to Select
PIN + ent
ent
15:25 14/12/1999
A=TIME B=DATE
NEW TIME
--:-- HH:MM
enter time
enter date
NEW DATE
--/--/-- DD/MM/YY
A> <B
Page 21
Galaxy 8/18/60/128/500/504/512 User Guide
15
CODES (User Level 6)
PURPOSE
The CODES menu option enables the managers, (user level 6), to
allocate PINs and related information to users. The codes option is
divided into three sub–menus:
1. USER CODES
Sub divided into nine menus (depending on panel used and whether
the group and MAX Mode options are enabled) that determine all
of the access information for users with Personal Identification
Numbers (PINs). This menu also assigns MAX details to user
numbers.
2. PIN WARNING
Available only on the Galaxy 500, 504 and 512. This option
0 = OMIT ZONES
[ent] to Select
8
8 = CODES
[ent] to Select
PIN + ent
ent
CODES
1 = User Codes
>A
CODES
2 = PIN Warning
CODES
3 = MAX Users
>A

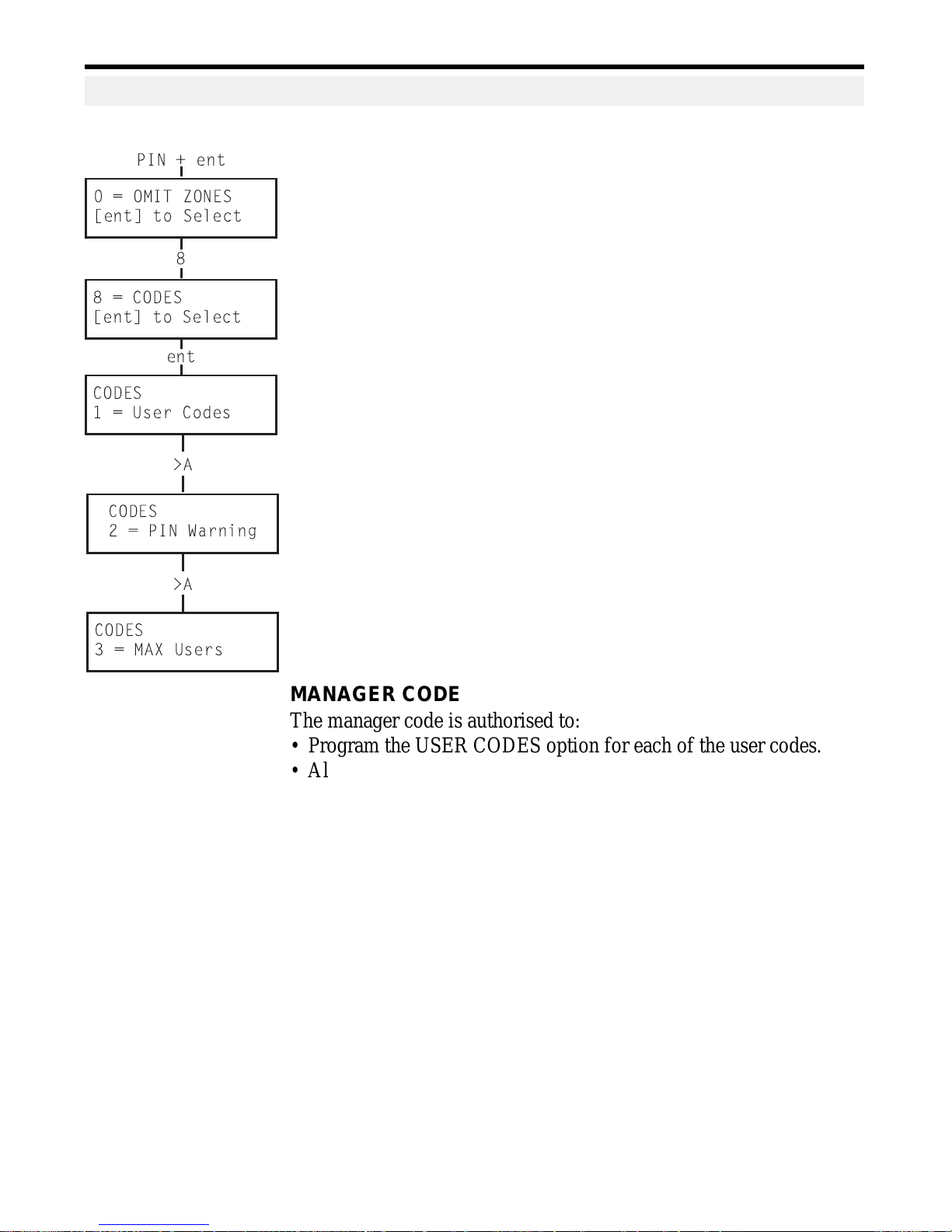

MANAGER CODE
The manager code is authorised to:
• Program the USER CODES option for each of the user codes.
• Allocate other codes to user level 6.
• Modify the manager PIN (the manager PIN cannot be deleted)
• Assign the MAX features to the code.
The manager code defaults to group choice when groups are enabled. The manager is able to toggle the group choice option on and
off (using the * key) as required.
GALAXY 8 & 18
determines the warning period given to users prior to the
programmed Pin Change date.
Note: The valid period for Pin Change codes is programmed by
the installation engineer.
3. MAX USERS
This option is only available if the MAX mode is enabled. The
option is subdivided into two menus that assign the MAX card to
users who do not have a PIN assigned.
The manager code defaults to accessing the quick menu.
Note: The MAX is the Proximity Access Reader which can be
connected to the Galaxy system. This also refers to the
MicroMAX, the enhanced version of the MAX.
Page 22
User Guide Galaxy 8/18/60/128/500/504/512
16
SELECTING CODES
Enter the QUICK MENU. Press key 8 followed by the ent key.
USER CODES
When the CODES option has been selected, press key 1 to access User
Codes. Display each of the user numbers using key A>. Each user
number offers options for PIN, level, name and where applicable time
zones and groups. When the user number to be modified is displayed,
press the ent key to access the MODIFY PIN option.
MODIFY PIN
The MODIFY PIN option allows a pin to be assigned to a user or an
existing PIN to be modified. The PIN must be a four, five or six digit
number that is unique to the system. If a duplicate PIN is assigned, the
message DUPLICATE ENTRY is displayed. As each digit is entered
it appears on the bottom line of the display. Pressing the * key erases
the last digit displayed. Continued pressing of the *key will erase all of
the digits. When the correct PIN has been assigned press the ent key to
accept the programming and return to the previous menu level.
When a PIN has been assigned to a user number, a solid box (n) is
displayed on the line of the user number details screen.
• DELETING A PIN
Existing PIN entries can be completely erased using the * key instead
of a digit entry. When there is no PIN assigned to a user number a
hollow square (o) is displayed in the top line of the users details
screen.
• ASSIGNING DUAL CODES
To program a user code as a Dual Code press the # key while the
0 = OMIT ZONES
[ent] to Select
8
8 = CODES
[ent] to Select
PIN + ent
ent
CODES
1 = User Codes
ent
001 USER
L3
ð
ent
[ent] to Select
1 = Modify PIN
ent
001 PIN
> 5678
ent
Indicates
Dual Code
001 USER
zz
L3
001 PIN
> #5678
Modify PIN option is selected. The # displays at the start of the
assigned user PIN e.g. #5678. When a PIN has been assigned as a
dual code two solid boxes (nn) are displayed in the top line of the
users details screen.
DUAL CODES OPERATION
Entry of a single dual code cannot gain access to the menu, set or unset the system. The message
NO ACCESS – ADDITIONAL CODE is displayed. A second dual code must be entered
within 60 seconds to access the menu, set or unset the system. Dual codes can be of different
levels. The highest level code entered determines the access level to the system.
• GALAXY 60, 128, 500, 504 & 512
A single entry of a dual code, without a second dual code entry within 60 seconds, results in an
Illegal Code record in the EventLog. All outputs programmed as Illegal Code are activated.
Page 23
Galaxy 8/18/60/128/500/504/512 User Guide
17
Table 2. User Access Levels
0 = OMIT ZONES
[ent] to Select
8
8 = CODES
[ent] to Select
PIN + ent
ent
CODES
1 = User Codes
ent
[ent] to Select
1 = Modify PIN
ent
>A
[ent] to Select
2 = Modify Level
ent
001 Level
>_3
ent
001 USER
L3
ð
leveLytilibaliavAsseccA
0
drauGnoitporehtoon-yromemtneveehtotnideretnE
1
renaelCmetsysehttesylnonaC
2
rekateraCmetsysehttesnudnatesylnonaC
3sresU91-11snoitpOuneM
4sresU92-11snoitpOuneM
5sresU93-11snoitpOuneM
6
reganaM94-11snoitpOuneM
.snoitcnufunemotsseccaoN
.degnahcebtonnachcihwleveldexifasahedocreganamehT
DURESS CODE
1. Galaxy 18, 60, 128, 500, 504 and 512
If the # key is pressed while Modify Level is accessed, then the
current code is assigned as a Duress Code. There is no limit to the
number of codes which can be assigned as Duress. Entering a duress
code at any time activates outputs programmed as Duress or PA.
2. Galaxy 8, 18, 60, 128, 500, 504 and 512
Any valid PIN followed by # # ent (the ent key can be replaced by
either the A> or <B key) can be used as a Duress Code.
MODIFY LEVEL
Each user is assigned an access level which determines the menu
options available to the user (see p.7, Table 1. Menu Options). On
selecting this option, enter the level to be assigned to the user and
press the ent key to accept the programming and return to the previous
menu level. See Table 2. User Access Levels, for access availability.
Page 24
User Guide Galaxy 8/18/60/128/500/504/512
18
0 = OMIT ZONES
[ent] to Select
8
PIN + ent
8 = CODES
[ent] to Select
ent
CODES
1 = User Codes
ent
ent
001 USER
L3 A1_______
ð
[ent] to Select
3 = Modify PIN
3
001 NAME USER_
EFG HIJKLMNØö0 P
ent
[ent] to Select
4 = Time Zone
[ent] to Select
3 = Modify Name
ent
ent
[ent] to Select
0 = OFF
ent
Use the A key
to step through
the four time
zone options.
>A
• QUICK MENU
All user codes default to the quick menu. This menu is made up of
a selection of ten options (0 – 9) from the menu options 11 – 68.
The user code level controls access to the quick menu. Any user
can be upgraded from the quick menu to the full menu by assigning
a * to the user while the Modify Level option is accessed. Therefore
a user with a level *5 would have access to the full menu from
options 11 – 39. No code can access both menus.
Note: The manager code defaults to the quick menu on the
Galaxy 8 and 18, but defaults to the full menu on the Galaxy
60, 128, 500, 504 and 512.
MODIFY NAME
This allows a name to be assigned to the user (maximum six characters).
Each of the user codes default to the name USER and the manager
defaults to MGR. The manager name cannot be changed. On selecting
the Modify Name option, a section of the alpha-numeric that can be
assigned to the user name is displayed on the bottom line of the keypad;
the cursor flashes on the letter L. Press * to erase the letters of the
default or previous name. When the previous name has been erased,
use the A> or <B keys to move the cursor to the first letter of the name
and press the ent key. The selected character appears on the top line,
continue this process until the name is completed. The # key toggles
between upper and lower case characters and the system library. Press
esc to save the name and exit.
TIME ZONE (Galaxy 60, 128, 500, 504 and 512)
Managers can allocate time zones to user PINs when TIMERS have
been programmed by the engineer. Time zones are used to disable the
user PIN during the times (ON to OFF) programmed in TIMER A
and B.
When 4 = TIME ZONE displays, press the ent key . Using the A> key
select the time zones option to be allocated to the PIN. The following
time zones options are available:
0=OFF
1=TIMER A
2=TIMER B
3=TIMER A+B
The times assigned to Timer A and Timer B can be viewed using
option 45 Timer Control. No access will be granted if a code, assigned
to 1=Timer A, 2=Timer B or 3= Timer A+B is entered out with the
assigned times, an Illegal Code event is recorded in the log and any
outputs programmed as Illegal Code are activated.
Page 25
Galaxy 8/18/60/128/500/504/512 User Guide
19
TEMPORARY CODES (Galaxy 128, 500, 504 and 512)
Temporary Codes allow a PIN to be temporarily allocated to a user.
On selecting this option, enter the number of days (0 – 99) that the
code is to remain active. The default setting of 0 indicates that the
code is permanent. A temporary code expires and is removed from the
codes list at midnight after the assigned number of days. A code that
has been assigned as a Temporary Code is indicated on the user code
display by a ^ between the user number and the user name, e.g. 001^
USER.
Note: The manager code cannot be assigned as a Temporary
Code.
PIN CHANGE (Galaxy 128, 500, 504 and 512)
To program a user code as a PIN Change code, select the Temporary
Codes option and press the * key instead of a number of days for a
temporary code. Press the ent key to accept the programming and return
to the previous menu level. A code assigned as a PIN Change code is
indicated on the user code display by a * between the user number and
the user name, e.g. 001 * USER. If a user is assigned the PIN Change
feature in the Temporary Code option, the user must assign a new
PIN after a predetermined period of time otherwise the PIN expires
and is no longer operational. A notification (1 – 28 days) that the PIN
requires to be changed can be assigned using the PIN Warning option.
This prompts the user to assign a new code whenever the expiring
code is entered during the PIN Warning period (except during system
unsetting). The new PIN must be four to six digits long and must be
different from any current PIN. The new PIN must be re-entered and if
confirmed, returns the user to the banner. If the esc key is pressed or
the new PIN entered is invalid, the user may continue to use the panel
as normal. The next PIN entry will prompt the PIN change.
Note: If the user has not entered a new PIN by the end of the
PIN Warning period, then the PIN is erased on the next
unsetting of the system.
0 = OMIT ZONES
[ent] to Select
8
8 = CODES
[ent] to Select
PIN + ent
ent
CODES
1 = User Codes
ent
[ent] to Select
1 = Modify PIN
ent
Temp Code
00 (0-99) days
001 USER
L3
ð
ent
Temp Code
25 (0-99) days
5
[ent] to Select
5 = Temp Code
ent
2+5
Temp Code
(0-99) days
ent
PIN Change Code
Ú
Page 26
User Guide Galaxy 8/18/60/128/500/504/512
20
MODIFY GROUPS (Galaxy 18, 60, 128, 500, 504 and 512)
This option determines the system groups that the user has access to
and operational control over. The MODIFY GROUPS option is
only available when the Group Mode has been enabled by the
engineer. The system defaults to groups disabled.
Groups allocated to the user are displayed when the MODIFY
GROUPS option is selected. All users default to Group 1. Pressing
the group number toggles the group assigned to the user. e.g.
Pressing 2 and 3 assigns Groups 2 and 3 to the user. Pressing 1
(while group 1 is already assigned) removes group 1 from the user
code. To assign group choice to the user, press the * key. When the
required groups have been assigned to the user, press the ent key to
accept the programming and return to the previous menu level.
• GALAXY 500, 504 and 512
The Galaxy 500 has 16 groups, the 504 and 512 have 32 groups. The
groups are displayed on the keypad in blocks of eight groups which
are labelled A, B, C and D:
Use A> or <B keys to move between the group blocks. Press
keys 1 – 8 to assign the groups in each block to the user.
kcolBpuorGpuorGlacisyhP
8-1A
8-1
8-1B
61-9
8-1C42-71
8-1D23-52
.005yxalaGehtnoelbaliavaspuorG
• SINGLE GROUPS
A user can be assigned to any single group. In this case a user can
only access, set and unset the single group.
• MULTIPLE GROUPS
Users can be allocated to more than one group in which case access
and operation are collective. The user cannot choose to operate on a
single or combination of the assigned groups.
8
PIN + ent
ent
ent
0 = OMIT ZONES
[ent] to Select
ent
ent
8 = CODES
[ent] to Select
CODES
1 = User Codes
001 USER
L3 A ________
[ent] to Select
1 = Modify PIN
6
[ent] to Select
6 = Modify Groups
Groups A 1_______
>A 1_______
Groups B 1_______
>B 1_______
Groups B 1_______
>B _23_____
1+2+3
>A
Page 27
Galaxy 8/18/60/128/500/504/512 User Guide
21
• GROUP CHOICE
Users can be allocated to more than one group, but also have the choice
of which of the allocated groups to view, set or unset. Pressing * key
while assigning groups to the user assigns the group choice feature.
Notes: 1.The manager has fixed access to all system groups. This
cannot be reprogrammed.
2.The manager is assigned group choice by default, but the
feature can be removed.
3.Users authorised to access the Codes option can only assign
groups that have been assigned to their user code. A user who
does not have access to group 4, cannot assign group 4 to
another user code.
MAX NUMBER
Each MAX card has a unique 10 digit number laser etched onto it. A
MAX card is assigned to a user by entering this number in the MAX No
option. The number identifies the MAX card to the system and references it to the user it has been assigned to.
Each MAX Number defaults to 0000000000 (ten zero’s):
1. Press and hold the B key until the zeros are deleted.
2. Enter the unique 10 digit number which is laser etched onto the
MAX card.
3. Press the ent key to save the programming and return to the previous
menu.
Note: A MAX number can be assigned to a user code that does not
have a PIN allocated to it. All other options for this user are valid for the
MAX card. It is recommended that MAX numbers should be assigned to
users not requiring a PIN at the MAX USERS menu option.
When a MAX number has been assigned to a user number, a lower case
(m) is displayed on the top line of the user number details screen.
ent
Ö
Groups B 1_______
Ú
23_____>B
8
8 = CODES
[ent] to Select
PIN + ent
ent
CODES
1 = User Codes
ent
[ent] to Select
1 = Modify PIN
ent
MAX No
>0000000000
001 USER
L3 A ________
ent
7
[ent] to Select
7 = MAX No
ent
0 = OMIT ZONES
[ent] to Select
Enter new
MAX number
Page 28
User Guide Galaxy 8/18/60/128/500/504/512
22
MAX FUNCTION
The MAX card can be assigned to a single menu option. The user must
be authorised to access the menu option, either by the user level assigned
or by having the menu option access level changed by the engineer.
The default option is Not Used. A new option is assigned by scrolling
using the A> or <B keys until the required option is displayed or directly
entering the option number using the keypad digits. Select the function
by pressing the ent key
[ent] to Select
9 = MAX Keypad
[ent] to Select
1 = Modify PIN
ent
MAX Function
ÚÚ
= NOT USED
8
[ent] to Select
8 = MAX Function
ent
8
8 = CODES
[ent] to Select
PIN + ent
ent
CODES
1 = User Codes
ent
001 USER
L3 A ________
0 = OMIT ZONES
[ent] to Select
1+2 (A>)
MAX Function
12 = TIMED SET
ent
9
ent
ÚÚ
- KEYPAD
# = Enable
01 - KEYPAD
# = Disable
#
A>
02 - KEYPAD
# = Disable
ent
MAX KEYPAD
The menu option assigned to the MAX card can be limited to operate
on a single keypad. On selecting this option the display shows **,
indicating that a keypad has not been specified. To specify a keypad,
press the # key. The address of the first keypad on the system is
displayed. Use the A> or <B key to select the required keypad and
press the ent key to accept the programming.
Note: A black flashing square over the first digit of the keypad
address indicates the address of the keypad currently
being used.
• “CARD- HELD” MAX OPERATION
The MAX function is activated when the card is held directly in
front of a MAX reader for three seconds. The MAX reader must be
assigned a common group to the MAX user. The keypad specified
in the MAX KEYPAD option displays the assigned MAX function.
Note: If the specified keypad is in use, then the option does not
display. If the MAX function is an “action” type option, e.g.
12 = Timed Set, then the function is carried out.
If no keypad is specified (**), the MAX menu option will operate on all
keypads that share the groups of the MAX user. If there is more than
one keypad, the message Press any key is displayed on all valid keypads.
Press any key to activate the function on that keypad. Press no key within
five seconds and the function automatically activates on all keypads.
Page 29
Galaxy 8/18/60/128/500/504/512 User Guide
23
MAX USERS
This option is used to assign additional MAX users to the system without
allocating PINs, MAX users are only authorised to operate the Access
Control functions of the MAX modules.
Enter the Codes option and select 3 = MAX Users. Press the ent key to
display the first MAX user number. Each of the users can be displayed
using the A> and <B keys, or a specific user can be selected by entering
the required user number. When the required code is displayed, press the
ent key; to display 1 = MAX Number.
Each MAX card has a unique 10 digit number laser etched onto it. A
MAX card is assigned to a user by entering this number in the MAX No
option. The number identifies the MAX card to the system and references it to the user it has been assigned to.
Each MAX Number defaults to 0000000000 (ten zero’s):
1. Press and hold the B key until the zeros are deleted.
2. Enter the unique 10 digit number which is laser etched onto the
MAX card.
3. Press the ent key to save the programming and return to the
previous menu.
Note: A MAX number can be assigned to a user code that does
not have a PIN allocated to it. All other options for this
user are valid for the MAX card. It is recommended that
MAX numbers should be assigned to users not requiring
a PIN at the MAX USERS menu option.
When a MAX number has been assigned to a MAX user number, a solid
box (n) is displayed on the top line of the MAX user number details
screen.
PIN WARNING
This option determines the number of days notification before the expiry
date of any user codes programmed as PIN Change. During the
notification period, the user is prompted to enter a new code on entry
of the expiring PIN. The default period is 99 days, with a programmable
range of 1 – 99. If a user does not assign a new code by the end of the
PIN Warning period, then the code is erased on the next unsetting of
the system.
Note: The PIN Warning ends on the last day of the month, the
PIN expires on the first day of the following month.
8 = CODES
[ent] to Select
PIN + ent
CODES
1 = User Codes
PIN Warning
28 (1-28) days
CODES
2 = PIN Warning
0 = OMIT ZONES
[ent] to Select
8
ent
>A
ent
8
8 = CODES
[ent] to Select
PIN + ent
ent
CODES
1 = User Codes
3
CODES
3 = MAX Users
0 = OMIT ZONES
[ent] to Select
201 USER
A 1-------
ent
ent
MAX Users
1 = Max No
>A
ent
Page 30
User Guide Galaxy 8/18/60/128/500/504/512
24
Max Users
2 = Groups
ent
Groups A 1_______
>A 1_______
ent
Groups B 1_______
>B 1_______
Groups B 1_______
>B 123_____
2+3
>A
MAX No
>0000000000
Enter new MAX No.
ent
>A
ent
GROUPS
This option assigns group access to the MAX user. The MAX user
must be assigned a group that is common to the MAX moduleto permit
the access control functions to operate. If the MAX user does not have
access to the group assigned to the module, the access control functions
are denied. The Modify Groups option is only available when groups
have been enabled by the engineer. The system defaults to groups
disabled.
On selecting the Modify Groups option, the groups currently allocated
to the user are displayed. All users default to group 1. Pressing the
group number toggles the group assigned to the user. Pressing 2 and 3
assigns groups 2 and 3 to the user. Pressing 1 (while group 1 is already
assigned) removes group 1 from the MAX user; press the ent key to
accept the programming and return to the previous menu level.
• GALAXY 500, 504 and 512
The Galaxy 500 has 16 groups, the 504 and 512 have 32 groups.
These are displayed on the keypad in blocks of eight groups, labelled
A, B, C and D. Use keys A> or <B to move between the group
blocks. Press keys 1 – 8 to assign the groups in each block to the
user.
SUMMER (User Level 6)
On the first day of each year, the British Summer Time (BST) Start
date is set to the last Sunday in March and the End date is set to the last
Sunday in October.
The operation of the Summer option is as follows: At 01 : 00 hours on
the Start date, the system clock advances to 02 : 00 hours. At 01 : 00
hours on the End date, the system clock goes back to 00 : 00 hours
(midnight).
The Start and End dates can be reprogrammed by authorised user codes.
Press the A> key to modify the Start date or the <B key to select the
End date. The new date must be a valid four digit number in the day
month format (dd/mm).
GALAXY 504
The Summer option can only be modified by the engineer.
0 = OMIT ZONES
[ent] to Select
PIN + ent
9 = SUMMER
[ent] to Select
ent
9
A=START
B=END
26 MAR
29 OCT
A=START
B=END
NEW DATE
--/--
DD/MM
23 MAR
29 OCT
esc
2+3+0+3
2+7+1+0
A> B<
A=START
B=END
26 MAR
27 OCT
esc
Page 31
Galaxy 8/18/60/128/500/504/512 User Guide
25
AVOIDING FALSE ALARMS
False alarms are inconvenient and may be costly. Police can withhold response from consistent
offenders.
Here are nine points to help avoid false alarms.
1. Be sure you fully understand how to operate the alarm system. In your absence someone
thoroughly instructed, should be available to operate the system.
2. Before leaving the premises ensure that all doors and windows are securely closed.
3. Where passive infra red or movement detectors are installed make sure the areas are kept
free from all animals or birds. Particular attention should be paid to swinging signs,
fluorescent lights, Christmas decorations, electric fans, heating or ventilating systems.
These should be switched off if possible
4. Always follow the exit/entry route procedure agreed with your alarm installer.
5. Treat the alarm components with care to ensure they are not damaged.
6. Consult your alarm installer about changes to your building and its contents if you think
they may affect the alarm system or its performance.
7. Always report alarm activation to your alarm installer. If necessary, an engineer will be
sent to check the system.
8. If opening or closing times are monitored by a central station be sure you notify them of
any variations from the agreed times or password.
9. The system should be fitted with a stand-by battery (not included) which will operate the
system for a limited period in the event of a mains failure. Please ensure that the mains is
restored as quickly as possible so that the stand-by battery can be recharged.
Page 32
User Guide Galaxy 8/18/60/128/500/504/512
26
OIR
------------------------
enoZnoitcnuFnoitpircseDemihCtimOtraP
1
2
3
4
5
6
7
8
OIR
------------------------
enoZnoitcnuFnoitpircseDemihCtimOtraP
1
2
3
4
5
6
7
8
1101
2101
3101
4101
5101
6101
7101
8101
enoZnoitcnuFnoitpircseDemihCtimOtraP
yxalaG
06&81
1001
2001
yxalaG
ylno06
3001
4001
Zone Reference Tables
Page 33
Galaxy 8/18/60/128/500/504/512 User Guide
27
ALARM IN
PROGRESS
PA
RESET REQUIRED
OTHER KEYPAD
IN USE
CALL MANAGER
RESET REQUIRED
NO ENTRIES
INVALID
OPTION
Invalid code
Option not
available
CALL ALARM CO.
QUOTE CODE XXXXX
NO MODULE ADDED
ESC TO CONTINUE
This message advises the user that the system is already in use. The Galaxy 8 and 18
allow only one user at a time.
ALARM IN PROGRESS
The system is currently in alarm condition and must be cancelled by a valid PIN or
keyswitch operation.
PA RESET REQUIRED
After a PA (Personal Attack) zone has been activated, the system has to be reset by a
high level code (such as a manager or engineer depending on the reset level setting).
MANAGER RESET REQUIRED
Following an alarm activation, the system requires to be reset by a manager level code.
ENGINEER RESET REQUIRED
The system has been programmed for engineer reset following an alarm activation.
The engineer must be called to reset the system before the user can set the alarm.Tamper
alarms usually require an engineer to visit the site to check all modules on the system.
This message is displayed when a tamper alarm occurs.
This message appears if a user attempts to view or inspect the log and there is nothing
in the log to be viewed or when the omit option is selected and there are no omittable
zones on the system.
INVALID SELECTION
The option selected or value entered is illegal or out of range.
INVALID CODE
The code entered is not a valid code registered in the system memory.
OPTION NOT AVAILABLE
This option is provided by the engineer, where it is specifically required. Attempting
to select an option when it has not been provided results in the display of OPTION
NOT AVAILABLE.
TECHNISTORE RESET
Call the Alarm Monitoring Station and quote the five digit number displayed. Enter
the number quoted by the monitoring station to reset the system.
NO MODULES ADDED
When exiting Engineer Mode the panel does not detect the change in the number of
modules. Press esc to continue.
OTHER KEYPAD IN USE (GALAXY 8 and 18 only)
CALL ENGINEER
RESET REQUIRED
NO ENTRIES
ALARM AND HELP MESSAGES
Page 34
User Guide Galaxy 8/18/60/128/500/504/512
28
Name: -----------------------------------------------------------------------------------
Address:---------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
Telephone:------------------------------------------------------------------------------
Office Hours:---------------------------------------------------------------------------
Other Times: ---------------------------------------------------------------------------
Account No.: ---------------------------------------------------------------------------
INSTALLER DETAILS
Page 35
Galaxy 8/18/60/128/500/504/512 User Guide
29
Page 36
User Guide Galaxy 8/18/60/128/500/504/512
30
IU1-0021/A
Loading...
