Honeywell F35F User Manual

F35F Media Air Cleaner

68-0178-2

WITH EXPANDAPAC™ MEDIA FILTER

PRODUCT DATA

FEATURES

APPLICATION

The F35F Expandapac Media Air Cleaner captures a significant amount of the airborne particles, 1.0 microns and larger from the air circulated through the unit.

• High efficiency Expandapac media filter with Ultra-

• Strong media will not tear when installing combs.

• Combs are located down stream from filter so they

• Efficiency and arrestance ratings based on the

technology captures particles as small as

Web

1.0 micron.

stay clean.

American Society of Heating, Refrigerating and Air Conditioning Engineers (ASHRAE) Standard 52.1-92. —Initial Atmospheric Dust Spot Efficiency: 25.8% —Average Atmospheric Dust Spot Efficiency: 32.0% —Average Synthetic Dust Weight Arrestance: 92.0% —ASHRAE Dust Holding Capacity: 55g The above data is for a 16 x 25 in. filter.

Contents

Application........................................................................... 1

Features .............................................................................. 1

Ordering Information ........................................................... 2

Specifications ...................................................................... 3

Planning the Installation ...................................................... 4

Installation and Checkout .................................................... 7

Future Option ...................................................................... 9

Replacement Parts.............................................................. 9

F35F Expandapac™ MEDIA AIR CLEANER

•Available in three sizes to fit most air ducts. • Compact packaging makes replacement media filters easy to fit on service trucks or mail to customers.

Media Air

Cleaner Order

Number Size cfm

F35F1008 16 x 25 1400 F35F1016 20 x 20 1400 F35F1024 20 x 25 2000

Replacement Media Filter

Order Number Size

FC35A1001 16 x 25 FC35A1019 20 x 20 FC35A1027 20 x 25

• Applicable to all gas, oil, and electric forced warm air

furnaces and to compressor cooling up to five tons. Can be used with heat pumps only if the filter is changed regularly to prevent excessive pressure drop.

• Mounts in the return air duct.

• Cabinet can support weight of residential furnace and

evaporator coil.

• Requires no electrical connections.

• Mounts in any position.

• Requires no maintenance except periodic Expandapac

media filter replacement, which is easily replaced by homeowner.

• Replacement filter comes with bag to dispose of old filter.

• FC35B Kit available to upgrade an F25F to an F35F (requires FC35A Replacement Media).

Upgrade Kit

Order Number Size

FC35B1018 16 x 25 FC35B1000 20 x 20 FC35B1026 20 x 25

• Easy to upgrade to the F50 Electronic Air Cleaner when the homeowner’s needs change.

ORDERING INFORMATION

When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the TRADELINE® Catalog or price sheets for complete ordering number, or specify—

1. Order number.

2. Duct size.

If you have additional questions, need further information, or would like to comment on our products or services, please write or phone:

1. Your local Home and Building Control Sales Office (check white pages of your phone directory).

2. Home and Building Control Customer Logistics Honeywell Inc., 1885 Douglas Drive North Minneapolis, Minnesota 55422-4386

In Canada—Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V 4Z9. International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France, Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.

68-0178—2 2

F35F Expandapac™ MEDIA AIR CLEANER

SPECIFICATIONS

IMPORTANT

The specifications in this publication do not include normal manufacturing tolerances; therefore, an individual unit may not exactly match the listed specifications. This product is tested and calibrated under closely controlled conditions, and some minor differences in performance can be expected if those conditions are changed.

Model:

F35F Expandapac Media Air Cleaner includes cabinet, access door, Expandapac media filter, filter frame, and combs.

Application:

Use with gas, oil, and electric forced warm air furnaces and with compressor cooling. Can be used with heat pumps if filter is changed regularly to prevent excessive pressure drop.

Arrestance Efficiency:

Efficiency ratings are based on National Bureau of Standards Dust Spot Method using atmospheric dust and American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.1-92.

—Initial Atmospheric Dust Spot Efficiency: 25.8% —Average Atmospheric Dust Spot Efficiency: 32.0% —Average Synthetic Dust Weight Arrestance: 92.0% —ASHRAE Dust Holding Capacity: 55g The above data is for a 16 x 25 in. filter.

Filter Media:

Expandapac.

Temperature Rating:

-40°F to +125°F (-40°C to +52°C).

Capacity and Pressure Drop:

F35 FILTER PRESSURE DROP VS AIR FLOW RATE

0.30

0.25

0.20

0.15

0.10

0.05

PRESSURE DROP (IN. WC)

0.00

400

600 800 1000

WHEN FIRST INSTALLED. PRESSURE DORP INCREASES AS FILTER BECOMES LOADED. FILTER SHOULD BE REPLACED WHEN PRESSURE DROP REACHES 0.5 IN. WC (0.1 kPa).

MAXIMUM CAPACITY BASED ON 500 fpm FACE VELOCITY.

AIRFLOW (cfm)

Fig. 2. Capacity pressure drop of

F35 Expandapac Media Filter.

1200 1400 1600 1800 2000

20" X 25" 16" X 25"

AND 20" X 20"

M12002-A

The F35F removes particles as small as 1.0 microns.

Dimensions:

1-1/8 (29)

DIM A

(SEE TABLE)

7/8 (22)

6-3/4 (171)

F35 SIZE

IN.

16 X 25 20 X 25 20 X 20

5/8

(16)

406 X 635 508 X 635 508 X 508

Fig. 1. Installation dimensions in in. (mm) of air cleaner.

DIM A

IN. MM IN. MM

14 7/16 18 7/16 18 7/16

367 468 468

DIM B

16 3/16 20 3/16 20 3/16

DIM C (SEE TABLE)

DIM D (SEE TABLE)

DIM C

IN. MM IN. MM

411

23 1/4

513

23 1/4

513

18 1/4

591 591 457

25 1/2 25 1/2 20 1/2

DIM D

648 648 521

DIM B

(SEE TABLE)

7/8 (22)

M6931

68-0178—2

F35F Expandapac™ MEDIA AIR CLEANER

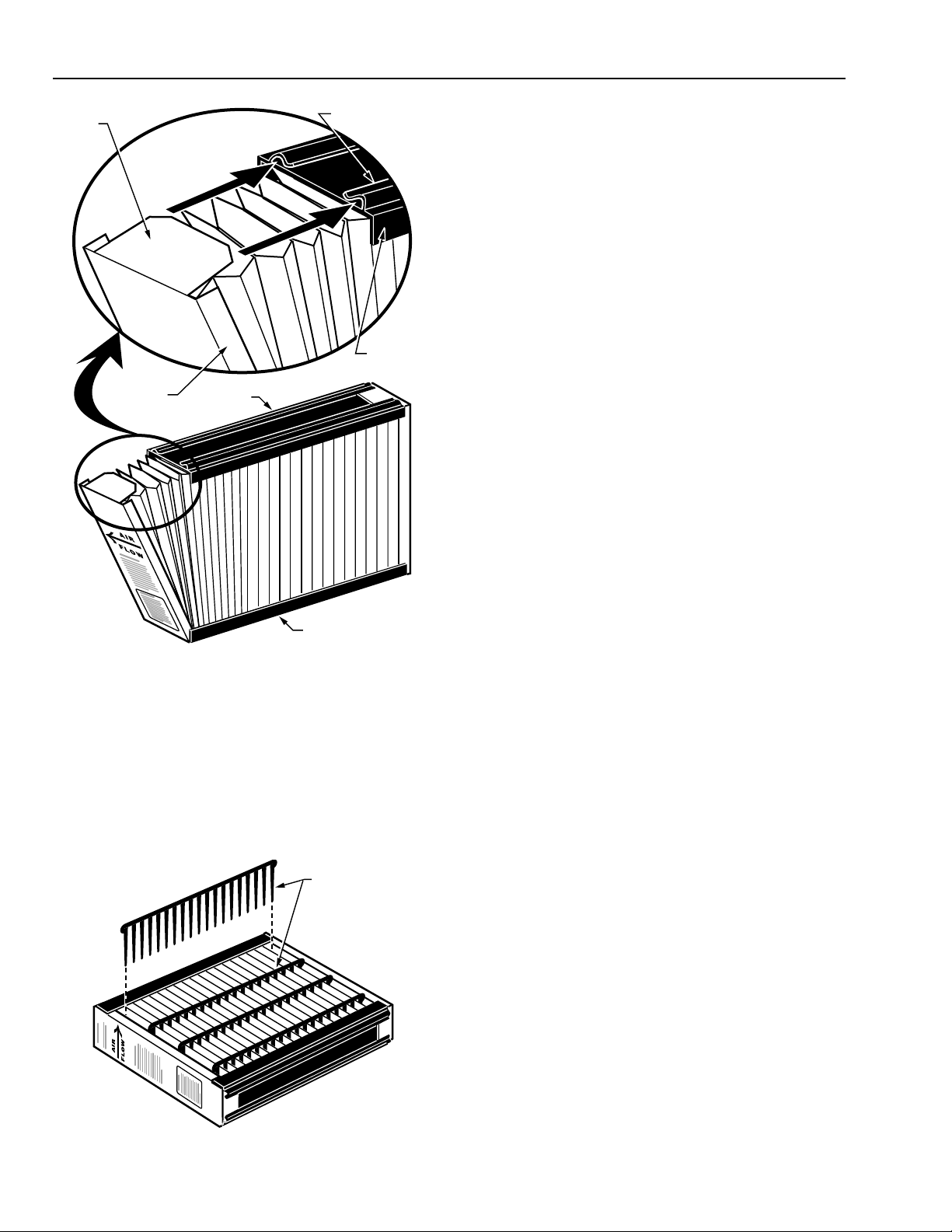

M939A

Mounting:

Mounts in any position in the return air duct next to the furnace blower compartment. Airflow must be in the direction of the arrow on the filter. Cabinet is sturdy enough to support weight of a residential furnace and evaporator coil.

Underwriters Laboratories, Inc.:

UL 900, Class 2 listed.

Upgrade Path:

The F35 uses the same cabinet as the F50 Electronic Air Cleaner. Upgrade requires installing the cell key, electronic cells, protective screens, and power box installation and wiring.

Accessory:

S830A Clogged Filter Indicator.

Replacement Parts:

Replace Expandapac media filter annually or more often if reduced airflow results in lower heating/cooling equipment performance. See Replacement Parts section for Media Filter and Frame/Comb replacement part numbers.

PLANNING THE INSTALLATION

Location

Install the media air cleaner where all the air passing through the system is circulated through it. The best location is in the return air duct next to the blower compartment so the media air filter can help to keep the blower motor and evaporator coils clean. Do not mount in the supply air duct.

Applications with a Humidifier

The media air filter is compatible with humidifiers. Avoid applications where water mist can reach the media. If an atomizing humidifier is used, the filter media will require replacement more often because of minerals in the water.

Choose Mounting Position

The media air cleaner can be mounted in any position, but the arrow on the cartridge must point in the same direction as the airflow. See Fig. 3-10 for proper location of the media air cleaner for a variety of furnace installations. Note that the media air filter cabinet is sturdy enough to easily support the weight of the furnace and evaporator coil. See Fig. 4.

For most efficient air cleaning, spread airflow evenly across the face of the media. If the duct is a different size than the media air cleaner cabinet, gradual transitions are required. If the duct turns sharply just before the air filter, turning vanes are required (Fig.12).

Choose a location that is readily accessible for checking and replacing the filter. Allow at least 26 in. (660 mm) clearance in front of the unit for removal of the filter.

Install the media air cleaner where the temperature will not exceed the ratings in the Specifications section.

Applications with Air Conditioning

Mount the media air filter upstream of the evaporator coil in a cooling system. The filter will help to keep the coil clean and reduce maintenance.

Applications with a Charcoal Filter

Add an activated charcoal filter to the air handling system to remove gaseous (nonparticulate) contaminants from the circulated air. A common residential application is to remove odors that cannot be removed by mechanical air filters. The activated charcoal filter, if used, should be installed downstream from the media air cleaner to protect the charcoal filter from lint and other particles.

Fig. 3. Highboy furnace, with side installation.

Media air cleaner is mounted vertically

where return enters side inlet of furnace.

M940A

Fig. 4 Highboy furnace, with installation

beneath furnace. Media air cleaner is mounted

horizontally where return enters from below.
