Honeywell 53000, 51500, 53001, 52000, 52500 Owner's Manual

...
I II
III
O
The Science of Clean Air
®
I II
III
O
READ AND SAVE THESE INSTRUCTIONS
I
II
0
I
II
0
I
II
0
I
II
0

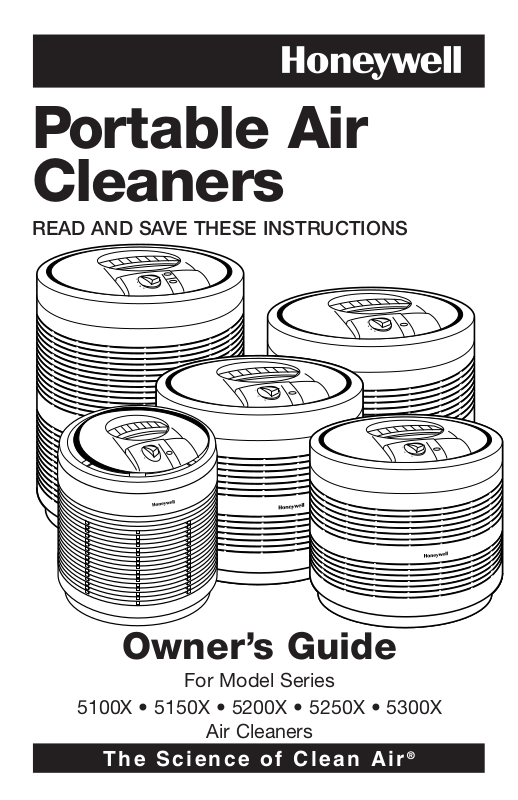

Owner’s Guide
For Model Series
5100X • 5150X • 5200X • 5250X • 5300X
Air Cleaners
I
II
PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. Save these instructions for easy reference.
When using electrical appliances, basic precautions should always be followed to reduce breakage, risk of fire, electric shock and injury to persons including the following:
1. Read all instructions before operating the air cleaner.
2. Place air cleaner where it is not easily knocked over by persons in the household.
3. Always unplug when not in use.
4. Do not use any product with a damaged cord or plug or if product malfunctions, is dropped or damaged in any manner. Keep the cord away from heated surfaces.
5. Do not use air cleaner outdoors.
6. Never use air cleaner unless it is fully assembled.
7. Do not run power cord under carpets, and do not cover with throw rugs. Arrange cord such that it will not be tripped over.
8. Do not use air cleaner where combustible gases or vapors are present.
9. Do not expose the air cleaner to rain, or use near water, in a bathroom, laundry area or other damp location.
10. To disconnect the air cleaner, first turn speed control to OFF position and remove plug from the outlet.
11. The air cleaner must be used in its upright position.
12. Do not allow foreign objects to enter ventilation or exhaust opening as this may cause electric shock or damage to the air cleaner. Do not block air outlets or intakes.
13. Locate air cleaner near power outlet and avoid using an extension cord.
14. The air cleaner has a polarized plug (one blade is wider than the other). To reduce risk of shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
15. A loose fit between the plug and the AC outlet (receptacle) may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn receptacles.
16. Do not sit, stand or place heavy objects on the air cleaner.
17. Disconnect power supply before servicing.
18.
WARNING: To reduce risk of fire or electric shock, do not use this product with any solid-state speed control device.
Important Safety Instructions
1
Congratulations
You now own a quality portable HEPA air cleaner that has been engineered and crafted for your satisfaction.
Our Consumer Relations representatives will be pleased to help with any questions or concerns you may have about your Honeywell air cleaner. Please call our Consumer Relations Dept. at (800) 332-1110 for assistance.
We recommend that you operate your Honeywell air cleaner 24 hours a day because indoor air can be quickly contaminated by activity in a room and infiltration of outside air. While all the air in a room will not be processed by the air cleaner, the more air circulated through the filter, the more filtered air returned to the room. Portable air cleaners will be much more effective in rooms where all doors and windows are closed.
The
Honeywell HEPA air cleaner is ready to operate as soon as it is removed from
the carton and plugged in. Because it circulates air in a 360° pattern around the air cleaner it can be placed on the floor in almost any location. However, for best performance the air intake grille should not be blocked for at least 3 feet (1 meter) in all directions.
Due to the large volume of air drawn towards the air cleaner, surrounding areas should be cleaned and/or vacuumed frequently to prevent buildup. This may help keep your home cleaner and may extend the life of the air cleaner pre-filter. If the unit is placed on a light colored carpeting, a small mat or rug should be used to ease cleaning and prevent any permanent staining. This is particularly important in homes with heavier contamination from smoking or fireplaces.
Construction
Your Honeywell air cleaner has five basic components:
1. Powerhead Assembly (with controls and motor)
2. Activated Carbon Pre-filter
3. HEPA Filter
4. Base Assembly
5. Locking Mechanism
Base Assembly
Activated Carbon Pre-filter
HEPA Filter
Locking Mechanism
Powerhead Assembly
For Best Performance
2
