Installation, Operation and Care of

Legacy

12 & 20-Quart Mixers

SAVE THESE INSTRUCTIONS

GENERAL

The Legacy 12-quart mixer is a bench-type mixer which features a SmartTimer™, a manual bowl lift and a #12 attachment hub as standard equipment.

The Legacy 20-quart mixer is a bench-type mixer which features a SmartTimer™, a manual bowl lift and a #12 attachment hub as standard equipment. With the use of special agitators, a 12 quart bowl may be used on the HL200 mixer.

A variety of attachments, agitators and accessories are available. These are described in a separate Use and Applications Handbook, which is furnished on the Legacy Mixer Operator Training CD provided with each mixer.

INSTALLATION

UNPACKING

Immediately after unpacking the mixer, check for possible shipping damage. If this machine is found to be damaged after unpacking, save the packaging material and contact the carrier within 15 days of delivery.

LOCATION

Prior to installation, test the electrical service to assure that it agrees with the specifications on the machine data plate.

Place the mixer on a suitable sturdy level surface. There should be adequate space around the mixer for the user to operate the controls and to install and remove bowls.

Holes are located in the base to permanently secure the mixer, although this is not necessary in normal installations.

ELECTRICAL CONNECTIONS (Cord Connected Mixers)

WARNING: THE ELECTRICAL CORD ON THIS MACHINE IS EQUIPPED WITH A THREE-

PRONGED GROUNDING PLUG WHICH MUST BE CONNECTED TO A PROPERLY GROUNDED RECEPTACLE. IF THE RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN ELECTRICIAN. DO NOT REMOVE THE GROUNDING PRONG FROM THE PLUG.

WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE PORTION OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL CODES.

Check Initial Operation

1. Apply power to the mixer by inserting the cord plug into a properly grounded outlet.

2. Install the bowl and raise into mix position, with the bowl support up and bowl guard wire cage closed.

3. Turn the SPEED dial pointer to STIR.

4. Momentarily run the machine by pushing the START and then STOP buttons.

OPERATION

WARNING: MOVING AGITATOR IN BOWL. KEEP HANDS, CLOTHING, AND UTENSILS OUT

OF BOWL WHILE IN OPERATION. DO NOT USE WITHOUT INTERLOCKED GUARD.

The Legacy mixer is equipped with SmartTimer

controls. Refer to Fig. 1 for operating parts and

OPERATION section for their functions.

The bowl guard wire cage must be in closed position or the mixer will not operate.

The bowl must remain in mix position on bowl support and the bowl support must be raised (mix position) or the mixer will not operate.

CONTROLS

BOWL GUARD WIRE CAGE

ATTACHMENT HUB

AGITATOR

SPLASH GUARD

Fig. 1

SLOT

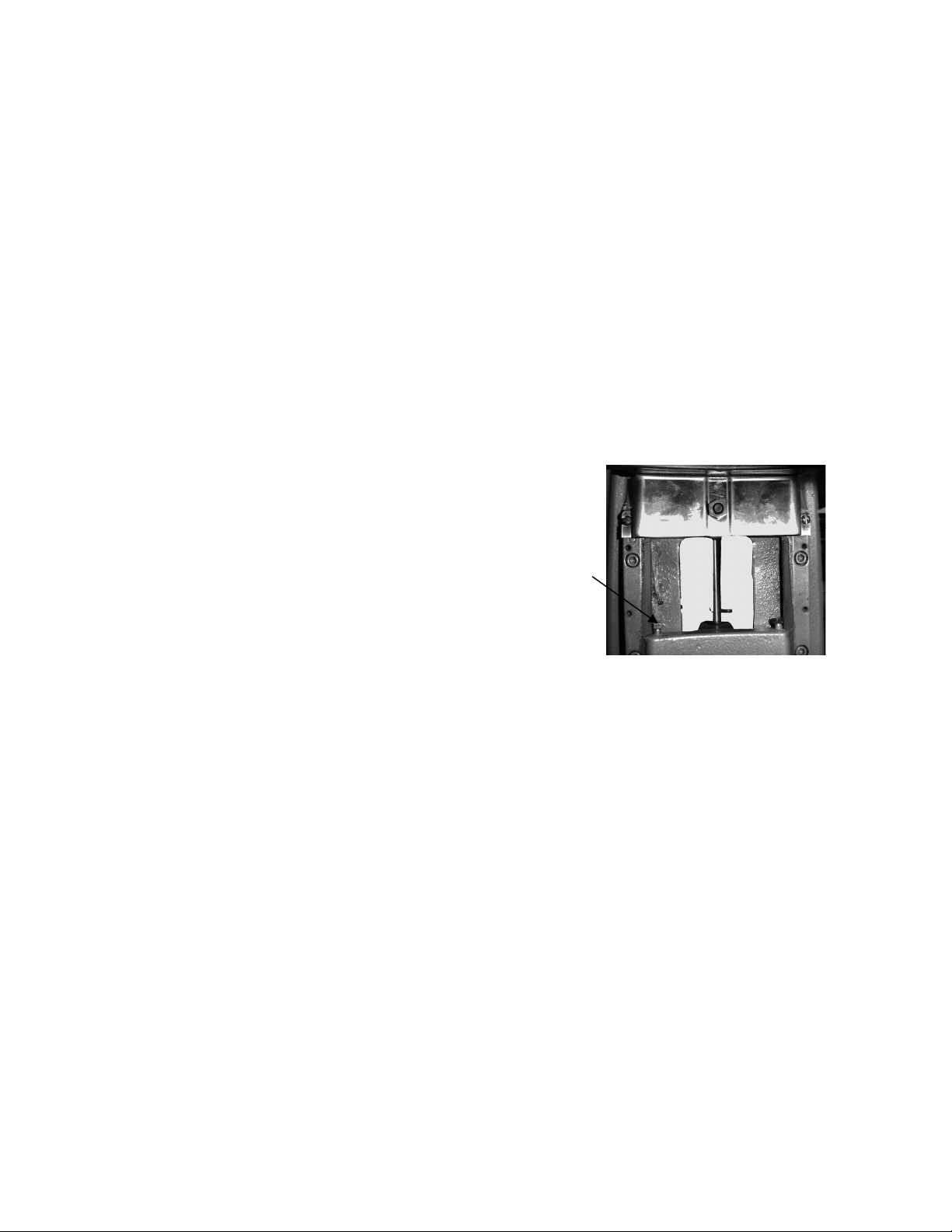

DRIP CUP

APRON

BOWL SUPPORT

Standard Controls

Models HL120/HL200 (With Three Mix Speeds Plus Stir Speed)

DISPLAY MIXING TIME

STOPS MIXER

STARTS MIXER

TIME SELECTOR

Fig. 2

SPEED SELECTOR

HL120/HL200 Mixer Speeds

STIR (Slow) The lowest speed is for incorporating ingredients.

SPEED 1 (Low) This speed is for heavy mixtures such as pizza dough, heavy batters

and potatoes.

SPEED 2 (Medium) This speed is for mixing cake batters, mashing potatoes and developing

bread dough.

SPEED 3 (High) This speed is for incorporating air into light batches, as well as finishing

whipped items
