Hobart AWS-2RL User Manual

Item # _____________________________________

Quantity ___________________________________

C.S.I. Section 11400

ACCESS AUTOMATIC

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

STANDARD FEATURES

■ Fully automatic - operator places package into
the Access, weighing, wrapping and labeling is
all done automatically.

■ Integrated scale and label applier to reduce oor
space requirements

■ 2 rolls of lm to minimize lm usage

■ Auto off/on timer for heated sealer belt

■ Hose-downable just like the meat saw or mixer

grinder

■ Dual heaters in sealer belt for improved bottom
seal

■ System automatically shuts down when not in
use

■ Swivel wand allows for label placement on all
four corners of the meat package

■ System allows for remote diagnostics/monitoring

■ Package range up to 10" L X 16" W X 6" H

■ Enlarged scale intake for manual weighing of

turkeys and whole hams

ACCESSORIES

WRAPPING SYSTEM

MODELS

❑ AWS-2LR Access Wrapping System

(Left to Right)

❑ AWS-2RL Access Wrapping System

(Right to Left)

OPTIONS AT EXTRA COST

❑ EPP-3 Access Prepack Printer without low

speed modnet (EPP-3 must be used with
EPCP-3 or EPCP-4)

❑ EPCP-3 Linux Access Prepack Windows Control

Panel

❑ EPCP-4 Windows Access Prepack Control Panel

❑ EPCP-5i HT Series Console Functionality with

Linux OS

ACCESS AUTOMATIC WRAPPING SYSTEM

❑ ACCESS-2PTRRL Access Second Printer Kit

(right to left)

❑ ACCESS-2PTRLR Access Second Printer Kit

(left to right)

❑ Wireless Communication Options – for wireless

communications options, please reference the
accessories section on the Access Prepack
System spec sheet, F40104.

❑ SHELF-ACCESS Folding Side Shelf

(Left or Right)

❑ RBG-2 Rotary Bin Gravity with Casters

❑ HRT5-3 Roller Discharge Table

❑ GRVCON-1 4 ft. Discharge Roller Conveyor

❑ BLA Bottom Label Applier

F40132 – Access Automatic Wrapping System Page 1 of 4

Specications, Details and Dimensions on Inside and Back.

ACCESS AUTOMATIC
WRAPPING SYSTEM

SPECIFICATIONS

WEIGHING

Capacity – 30 lbs. (Manual) 15 lbs. (Automatic mode)
Weighing increments – dual range capable,

12 lb. x .005 and 30 lb. x .01 lb

Minimum weight to print – .20 lb

LABELING

Label Width – 1.5", 2.25" and 3.0"
Label Length – 1.5" up to 4.0" in .5" inch increments

WRAPPING

Package Size Width – 4.5" min, 16.0" max
Length – 4.5" min, 10.1" max
Height – .4" min, 6.0" max
Wrapping Speed – Maximum of 30 packages per

minute
Number of Film Rolls – 2
Type of Film Used – PVC
Film Thickness – 60 gauge min, 100 gauge max
Film Core Size – 3" I.D.
Film Maximum Diameter – 9.5" O.D.
Film Widths – 14" min, 20" max

ELECTRICAL

120/208-240 (4 wire-2 hot lines, neutral & ground)

60 cycle, 1 phase, 20 amps

SHIPPING WEIGHT

Approximately 1,300 lbs.

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

Film load area at
rear of wrapper

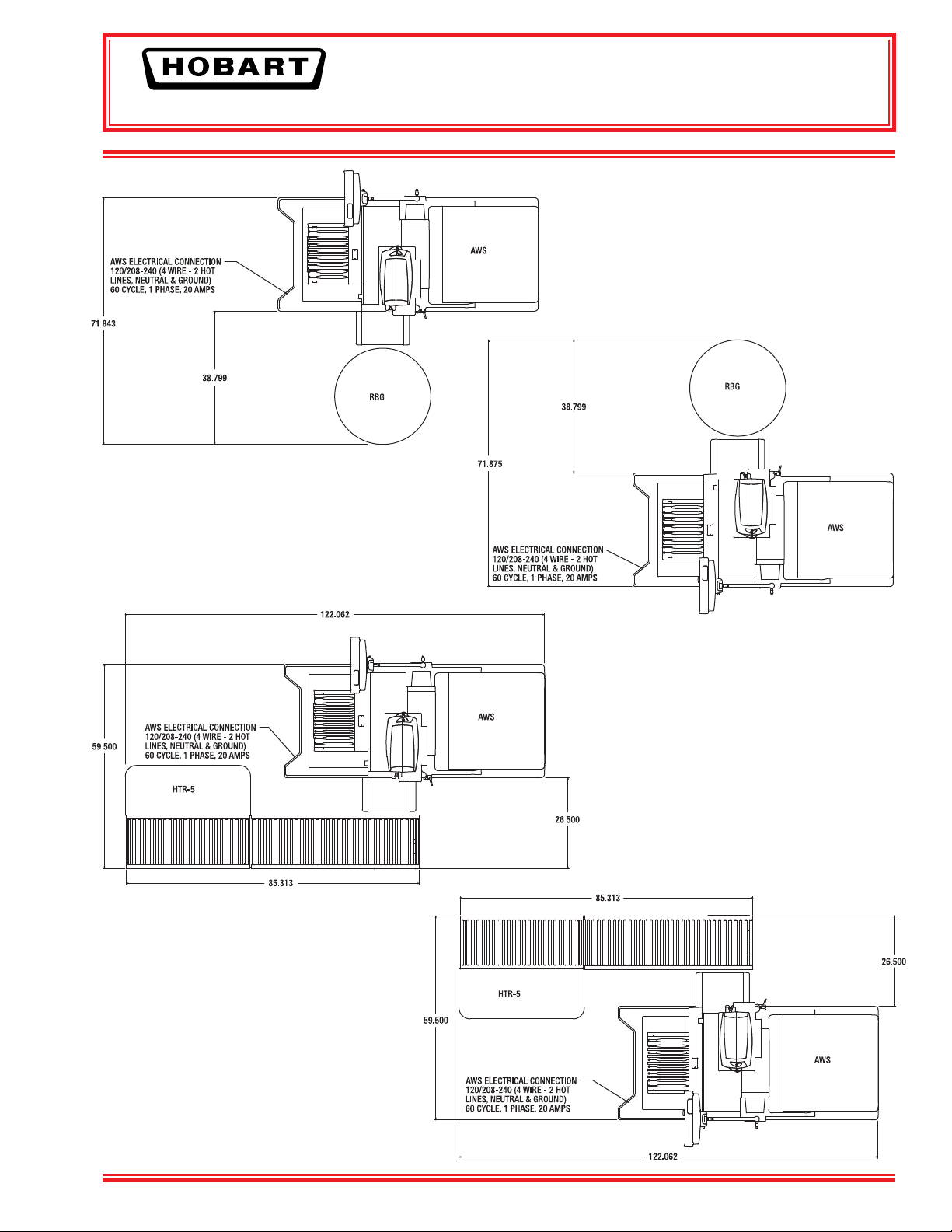

Access Wrapping System with two

EPP Printers and HRT5 L-R

Access Wrapping System with two

EPP Printers and HRT5 R-L

Page 2 of 4 F40132 – Access Automatic Wrapping System
