Hobart AWS-1B Parts Manual

CATALOG OF

REPLACEMENT

PARTS

AWS-1B ACCESS WRAPPING

SYSTEM

ML-44216 AWS-1B (L-R)
ML-44217 AWS-1B (R-L)

A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

F-43218 Rev. B (August 2015) - 2 - © HOBART 2015

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

Table of Contents

5 RUN AND STOP SWITCH
7 CONTROL BOX

9 SCALE PLATFORM
11 UPPER AND SIDE PANELS
13 LOWER AND SIDE PANELS
15 PRIMARY INTAKE
17 PRIMARY INTAKE SHIFT CONVEYOR AREA
19 INTAKE FRAME
21 GRIPPER DRIVE AND HEIGHT SENSORS
23 SIDE CLAMP AND SIDE UNDERFOLDER MOTORS
25 CAMERA ENCLOSURE
27 ELEVATOR CONVEYOR ASSEMBLY
29 ELEVATOR AND KNIFE CYLINDERS
33 KNIFE
35 ELEVATOR MOTOR
37 LEFT FRONT FOLDER
39 RIGHT FRONT FOLDER
41 SIDE UNDERFOLDERS
43 SIDE UNDERFOLDERS BELT AND PULLEYS
45 PACKAGE HOLD DOWN
47 PUSHER
49 UPPER PUSHER & FRONT FOLDER MOTORS
51 FILM SUPPLY ARBOR
53 FILM SELECTOR
55 GRIPPER
57 SIDE CLAMPS
59 SPRING ASSEMBLY
61 SEALER BELT SUPPORT
63 DISCHARGE ROLLER ASSEMBLY
65 BELT SEALER
67 BELT SEALER MOTOR
69 LABEL APPLIER
71 LABEL APPLIER ARM WITH MOTOR

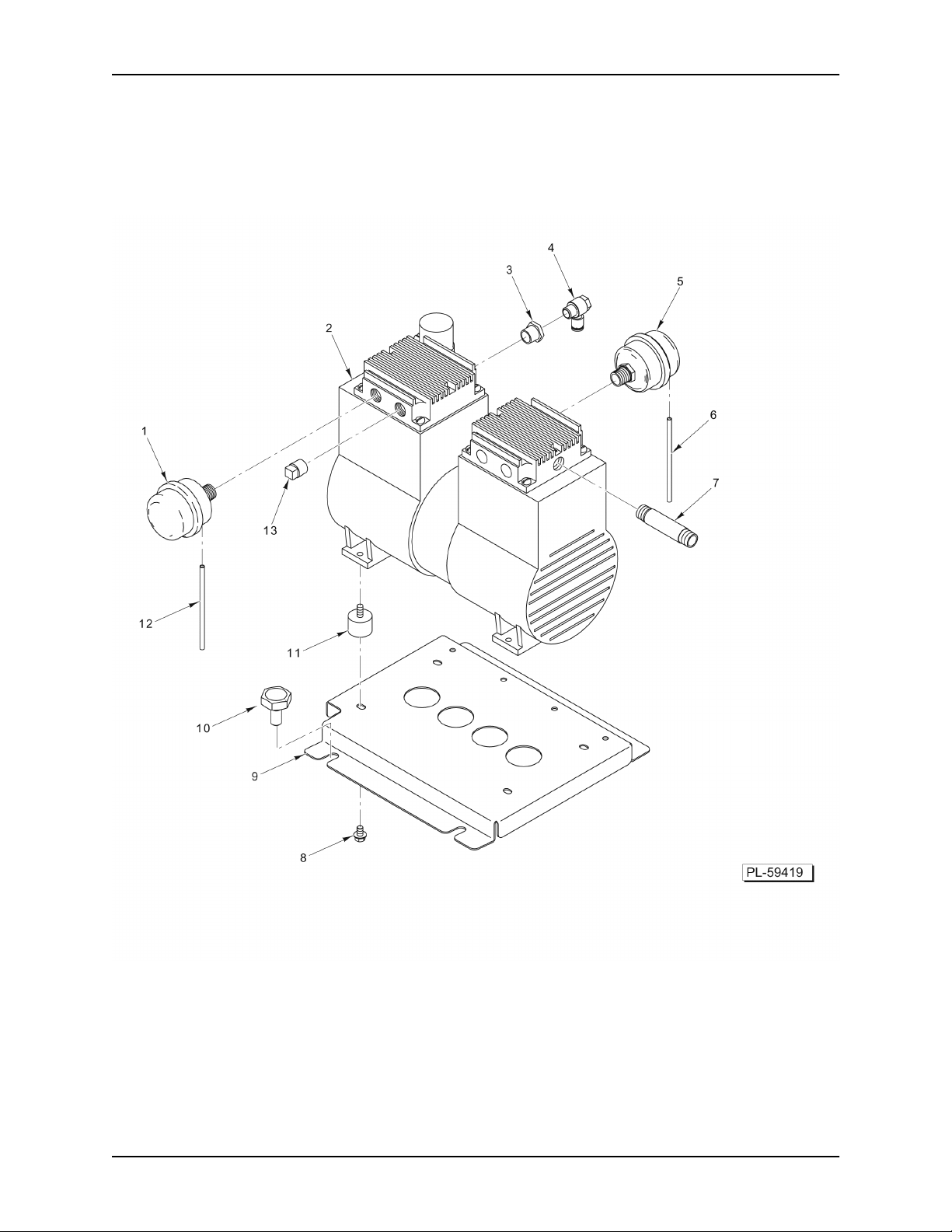

75 COMPRESSOR ASSEMBLY (THOMAS)
77 COMPRESSOR ASSEMBLY (GAST)

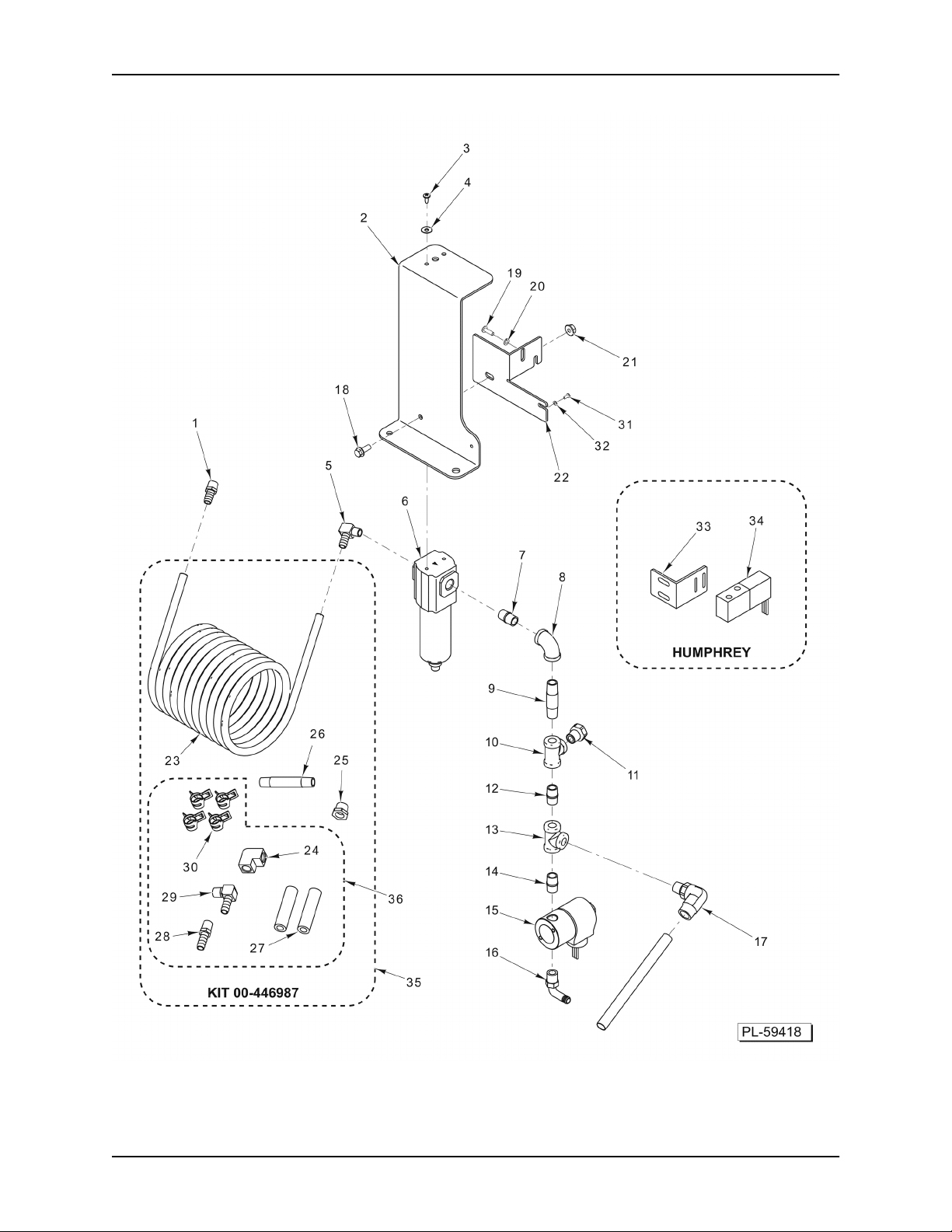

79 AIR DRYER FILTER ASSEMBLY
81 MAC VALVE
83 FILM HEATER OPTION
85 AWS SHELF OPTION
87 VACUUM HOSE DIAGRAM (MAIN)
89 VACUUM HOSE DIAGRAM (PRINTER PLATE)
91 CYCLE COUNTER

- 3 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

RUN AND STOP SWITCH

F-43218 Rev. B (August 2015) - 4 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

RUN AND STOP SWITCH

ILLUS.
PL-59431

PART NO. NAME OF PART AMT.

1 00-445456 Switch Assy. - Push Button (Illuminated) (Teknic).....................................................................1

2 00-445457 Switch Assy. - Push Button (Mushroom Type) (Teknic).............................................................1

3 SC-080-13 Mach. Screw 10-24 x 7/8 Phil. Fil. Hd. (SST).............................................................................2

- 5 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

CONTROL BOX

F-43218 Rev. B (August 2015) - 6 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

CONTROL BOX

ILLUS.
PL-59452

10 00-441406-00003 Fuse (250 V., 2 Amp.)................................................................................................................1

11 00-445078 Fuse (250 V., 1.5 Amp.).............................................................................................................1

12 00-445816 Fuse (250 V., 0.5 Amp.).............................................................................................................1

13 00-446137 Board Assy. - USB Node............................................................................................................1

14 SC-129-33 Mach. Screw 8-32 x 3/8 Phil. Pan Hd.........................................................................................1

15 00-445330-00002 Board Assy. - Combo (Node 2)..................................................................................................1

16 00-441406-00005 Fuse (250 V., 3.15 Amp.)...........................................................................................................2

17 00-445078 Fuse (250 V., 1.5 Amp.).............................................................................................................1

18 00-445816 Fuse (250 V., 0.5 Amp.).............................................................................................................3

19 00-447352 Kit - Power Supply & Cables......................................................................................................1

20 00-441406-00006 Fuse (250 V., 5 Amp.)................................................................................................................1

21 00-443398 Fuse (250 V., 20 Amp.)..............................................................................................................1

22 00-441406-00008 Fuse (250 V., 6.3 Amp.).............................................................................................................4

23 SC-018-37 Mach. Screw 8-32 x 3/4 Phil. Pan Hd.........................................................................................1

24 00-446414 Transformer (120/24 VAC) (75 Amp.)........................................................................................1

25 SC-129-33 Mach. Screw 8-32 x 3/8 Phil. Pan Hd.........................................................................................1

26 00-445440 Board - Stepper Motor................................................................................................................1

27 00-441406-00001 Fuse (250 V., 1 Amp.)................................................................................................................1

28 00-441406-00002 Fuse (250 V., 2.5 Amp.).............................................................................................................1

29 PB-004-08 Plug Button Heyco 2703.............................................................................................................1

30 FE-022-84 Connector - Strain Relief............................................................................................................1

31 00-444736 Block - Fuse...............................................................................................................................1

32 FE-026-56 Fuse (600 V., 15 Amp.)..............................................................................................................1

33 SC-110-87 Mach. Screw 10-32 x 1/4 Phil. Pan Hd.......................................................................................1

34 00-446315-00002 Gasket - Control Box..................................................................................................................2

35 00-446327 Cover - Control Box....................................................................................................................1

36 00-445330-00001 Board Assy. - Combo (Node 5)..................................................................................................1

37 00-441406-00003 Fuse (250 V., 2 Amp.)................................................................................................................1

38 00-445078 Fuse (250 V., 1.5 Amp.).............................................................................................................1

39 00-445816 Fuse (250 V., 0.5 Amp.).............................................................................................................1

40 00-445330-00001 Board Assy. - Combo (Node 4)..................................................................................................1

41 00-441406-00003 Fuse (250 V., 2 Amp.)................................................................................................................2

42 00-445078 Fuse (250 V., 1.5 Amp.).............................................................................................................1

43 00-446315-00001 Gasket - Control Box..................................................................................................................2

44 FE-016-24 Bushing - Electrical Split.............................................................................................................1

45 00-446412 Boot - Splashproof......................................................................................................................1

46 00-446410 Switch - Toggle...........................................................................................................................1

47 00-443881 Grommet..................................................................................................................................21

PART NO. NAME OF PART AMT.

1 00-445330-00001 Board Assy. - Combo (Node 3)..................................................................................................1

2 00-441406-00003 Fuse (250 V., 2 Amp.)................................................................................................................1

3 00-441406-00005 Fuse (250 V., 3.15 Amp.)...........................................................................................................1

4 00-445078 Fuse (250 V., 1.5 Amp.).............................................................................................................1

5 00-445816 Fuse (250 V., 0.5 Amp.).............................................................................................................3

6 00-446304 Control Box Assy........................................................................................................................1

7 SC-129-33 Mach. Screw 8-32 x 3/8 Phil. Pan Hd.........................................................................................1

8 00-445330-00002 Board Assy. - Combo (Node 1)..................................................................................................1

9 00-441406-00007 Fuse (250 V., 4 Amp.)................................................................................................................1

- 7 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SCALE PLATFORM

F-43218 Rev. B (August 2015) - 8 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SCALE PLATFORM

ILLUS.
PL-59425

10 00-444568 Switch Assy. - Push Button........................................................................................................1

11 00-183458 Cable Assy. - Ground.................................................................................................................1

12 00-444038 Mount - Hinge.............................................................................................................................4

13 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4

14 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4

15 00-444971 Bracket - Scale Mounting...........................................................................................................2

16 SC-109-47 Cap Screw 1/4-20 x 7/8 Hex Hd. (SST).....................................................................................2

17 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................4

18 00-444129 Seal - USB..................................................................................................................................1

19 00-444128 Support - Machined Loadcell......................................................................................................1

20 00-444641 Gasket - Loadcell Cover.............................................................................................................1

21 00-443707 Load Cell (20 kg)........................................................................................................................1

22 00-443820 Cover - Loadcell.........................................................................................................................1

23 SC-128-55 Mach. Screw 8-32 x 1/4 Hex Hd.................................................................................................4

24 00-049040 Gasket - Level Flange................................................................................................................1

25 00-043112 Level - Spirit...............................................................................................................................1

26 00-047276 Flange........................................................................................................................................1

27 SC-124-80 Mach. Screw 4-40 x 5/16 Slotted Flat Hd. (SST).......................................................................3

PART NO. NAME OF PART AMT.

1 00-444688 Support - Platter.........................................................................................................................1

2 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................2

3 SC-041-03 Cap Screw 1/4-20 x 1-1/8 Hex Hd. (SST)..................................................................................2

4 00-444476 Rod - Weigher Assy...................................................................................................................8

5 00-444689 Retainer - Platter......................................................................................................................16

6 SC-129-53 Set Screw 1/4-20 x 3/4 Hex Hdls., Dog Pt. (SST)......................................................................6

7 NS-018-10 Jam Nut 5/16-24 Hex (SST).....................................................................................................16

8 00-444701 Spacer - Loadcell.......................................................................................................................1

9 00-446167 Board Assy. - USB Weigher.......................................................................................................1

00-444515 Cover - Switch............................................................................................................................1

- 9 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

UPPER AND SIDE PANELS

F-43218 Rev. B (August 2015) - 10 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

UPPER AND SIDE PANELS

ILLUS.
PL-59433

10 00-444110 Stud - Ball...................................................................................................................................1

11 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

12 00-444111 Bracket - Cylinder.......................................................................................................................1

13 SC-100-04 Mach. Screw 10-24 x 3/8 Hex Washer Hd.................................................................................2

14 00-444108 Bracket - Cylinder.......................................................................................................................1

15 00-444053 Door - Rear.................................................................................................................................1

16 00-175999 Actuator - Magnet.......................................................................................................................1

17 00-183396 Plate - Switch.............................................................................................................................1

18 00-444054 Door - Side.................................................................................................................................1

19 00-175999 Actuator - Magnet.......................................................................................................................1

20 00-183396 Plate - Switch.............................................................................................................................1

21 00-444340 Cover - Back End.......................................................................................................................1

22 00-443994 Panel - Rear...............................................................................................................................1

23 00-444337 Cover - Corner............................................................................................................................1

24 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

25 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................2

26 00-444343 Cover - Side Door Assy..............................................................................................................1

27 00-442435 Pull - Flush Door.........................................................................................................................1

28 00-175999 Actuator - Magnetic....................................................................................................................1

29 00-443209 Interlock Harness Assy...............................................................................................................1

30 00-183396 Plate - Nut..................................................................................................................................2

31 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd.........................................................................................2

32 00-444350 Cover - Lower Right...................................................................................................................1

33 00-444338 Cover - Corner............................................................................................................................1

34 00-444331 Cover - Lower Front (RH)...........................................................................................................1

35 00-444342 Cover - Front Right.....................................................................................................................1

36 00-444057 Cover - Side (RH).......................................................................................................................1

37 SC-053-04 Mach. Screw 10-24 x 5/16 Slotted Truss Hd. (SST)................................................................10

38 00-438131-00009 Label - Warning..........................................................................................................................2

39 SD-033-56 Self-Tapping Screw #2 x 3/16 Rd. Hd., Type U (SST)...............................................................4

40 00-444058 Cover - Printer Mount.................................................................................................................2

41 00-444099 Bracket - Door Stop....................................................................................................................1

42 00-041725 Catch - Magnetic........................................................................................................................1

43 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

44 00-444056 Cover - Side (LH).......................................................................................................................1

45 00-041488 Bearing (Nyliner)........................................................................................................................1

46 00-444102 Pin - Canopy Hinge....................................................................................................................2

47 00-041488 Bearing (Nyliner)........................................................................................................................1

48 00-444104 Hinge - Canopy..........................................................................................................................1

49 00-444105 Hinge - Canopy..........................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-444055 Canopy.......................................................................................................................................1

2 00-444054 Door - Side.................................................................................................................................1

3 00-175999 Actuator - Magnet.......................................................................................................................1

4 00-183396 Plate - Switch.............................................................................................................................1

5 00-442435 Pull - Flush Door.........................................................................................................................1

6 00-445186 Bracket - Hinge Mounting...........................................................................................................1

7 00-445188 Hinge - Rear Film Door..............................................................................................................1

8 00-444110 Stud - Ball...................................................................................................................................1

9 00-445940 Spring - Gas Canopy..................................................................................................................1

00-444287 Panel - Door Switch Mounting....................................................................................................1

- 11 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

LOWER AND SIDE PANELS

F-43218 Rev. B (August 2015) - 12 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

LOWER AND SIDE PANELS

ILLUS.
PL-59432

10 00-444524 Spring - Door..............................................................................................................................2

11 00-444339 Cover - Front End.......................................................................................................................1

12 00-444337 Cover - Corner............................................................................................................................2

13 00-444330 Cover - Lower Front (LH)...........................................................................................................1

14 00-444293 Bracket - Intake Mount (LH).......................................................................................................1

15 00-444341 Cover - Front Left.......................................................................................................................1

16 00-444343 Cover - Side Door Assy..............................................................................................................1

17 00-444338 Cover - Corner............................................................................................................................2

18 00-444286 Bracket - Cover Mounting...........................................................................................................1

19 00-444348 Cover - Lower Left......................................................................................................................1

20 00-444286 Bracket - Cover Mounting...........................................................................................................1

21 00-330866 Leg - Adjustable (4 In.)...............................................................................................................1

22 00-442096 Caster - Swivel...........................................................................................................................2

23 00-330866 Leg - Adjustable (4 In.)...............................................................................................................1

24 00-444676 Caster Fixed...............................................................................................................................2

25 00-330866 Leg - Adjustable (4 In.)...............................................................................................................2

26 00-444352 Cover - Sensor...........................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-438131-00007 Plate - Warning...........................................................................................................................1

2 SD-033-56 Self-Tapping Screw #2 x 3/16 Rd. Hd., Type U (SST)...............................................................2

3 00-444333 Cover - Intake Panel...................................................................................................................1

4 SC-080-13 Mach. Screw 10-24 x 7/8 Phil. Fil. Hd. (SST).............................................................................2

5 00-444334 Cover - Intake.............................................................................................................................1

6 00-444292 Bracket - Intake Mount (RH).......................................................................................................1

7 00-444332 Cover - Intake Lower..................................................................................................................1

8 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. (SST)...................................................................2

9 00-444892-00001 Cover Assy. - Switch..................................................................................................................1

- 13 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

PRIMARY INTAKE

F-43218 Rev. B (August 2015) - 14 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

PRIMARY INTAKE

ILLUS.
PL-59428

10 00-443938 Magnet.......................................................................................................................................2

11 00-443885 Pulley - Timing Belt Idler............................................................................................................5

12 RR-012-04 Retaining Ring............................................................................................................................2

13 00-443854 Shaft - Idler.................................................................................................................................1

14 00-443821 Collar 5/8 (SST) (Incls. Item 15).................................................................................................2

15 SC-115-95 Set Screw 5/16-18 x 3/4 Hex Hdls., Cup Pt. (SST)....................................................................2

16 00-443828 Bearing 5/8 (1/8 Groove)............................................................................................................2

17 00-443861 Pulley (18T)................................................................................................................................1

18 SC-125-19 Set Screw 10-32 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................1

19 00-442248 Motor - Stepper (Shifter).............................................................................................................1

20 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................1

21 WS-029-05 Washer (SST).............................................................................................................................1

22 00-445947 Bracket Assy..............................................................................................................................1

23 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1

24 SC-129-52 Cap Screw 1/4-20 x 4-1/2 Hex Hd. (SST)..................................................................................1

25 00-443900 Spacer - Idler..............................................................................................................................1

26 00-443866 Pulley - Idler (Incls. Items 27 & 28)............................................................................................1

27 RR-012-32 Retaining Ring............................................................................................................................1

28 00-443943 Bearing - Ball..............................................................................................................................1

29 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................4

30 00-446216 Belt (450mm) (90T)....................................................................................................................1

31 00-443827 Bearing 5/8 (1/16 Groove)..........................................................................................................1

32 00-443821 Collar 5/8 (SST) (Incls. Item 33).................................................................................................2

33 SC-119-81 Set Screw 5/16-18 x 5/16 Hex Hdls. Cup Pt. (SST)...................................................................2

34 00-443889 Shaft - Drive...............................................................................................................................1

35 KW-003-10 Key - Woodruff 3/16 x 3/4...........................................................................................................1

36 00-443888 Pulley - Idler...............................................................................................................................4

37 00-445271 Belt - Intake (Gray).....................................................................................................................3

38 00-443937 Belt - Intake (White)....................................................................................................................1

39 00-445503 Pan - Intake................................................................................................................................1

40 00-445948 Spring - Shift Belt.......................................................................................................................1

41 00-446082 Collar..........................................................................................................................................2

42 00-446734 Spacer........................................................................................................................................4

43 00-446784 Pulley (5mm) (30T).....................................................................................................................5

44 00-446785 Flange......................................................................................................................................10

45 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................5

46 00-443889 Shaft - Drive...............................................................................................................................1

47 00-446732 Shaft Assy. (Idler) (Incls. Items 2 & 41 thru 46)..........................................................................1

PART NO. NAME OF PART AMT.

1 00-443827 Bearing 5/8 (1/16 Groove)..........................................................................................................1

2 00-443828 Bearing 5/8 (1/8 Groove)............................................................................................................2

3 00-443868 Pulley (30T) (Incls. Item 4).........................................................................................................1

4 SC-125-19 Set Screw 10-32 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................1

5 00-443821 Collar 5/8 (SST) (Incls. Item 6)...................................................................................................1

6 SC-119-81 Set Screw 5/16-18 x 5/16 Hex Hdls. Cup Pt. (SST)...................................................................1

7 00-445878 Pulley (30T)................................................................................................................................5

8 00-443897 Pulley - Idler...............................................................................................................................2

9 00-443936 Belt - Intake (White) (Incls. Item 10)...........................................................................................1

- 15 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

PRIMARY INTAKE SHIFT CONVEYOR AREA

F-43218 Rev. B (August 2015) - 16 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

PRIMARY INTAKE SHIFT CONVEYOR AREA

ILLUS.
PL-59430

10 00-443963 Spacer - Motor Mounting............................................................................................................1

11 00-446002 Motor - Brushless (220 W.) (82 In. Motor Lead).........................................................................1

12 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................1

13 RP-006-42 Pin - Roll 0.312 x 1-1/4 (SST)....................................................................................................1

14 00-444537 Washer.......................................................................................................................................1

15 00-443964 Shaft - Drive...............................................................................................................................1

16 00-444353 Spring - Shift Collar....................................................................................................................1

17 00-443949 Block - Bearing Mount................................................................................................................1

18 00-444539 Drive Assy. - Conveyor...............................................................................................................1

19 RR-012-01 Retaining Ring (SST).................................................................................................................1

20 00-443950 Bearing 5/8 In.............................................................................................................................1

21 00-443961 Spacer - Bearing........................................................................................................................1

22 00-443950 Bearing 5/8 In.............................................................................................................................1

23 00-443962 Spacer - Pulley...........................................................................................................................1

24 RR-012-01 Retaining Ring (SST).................................................................................................................1

25 00-445504 Pulley (30T)................................................................................................................................2

26 SC-125-19 Set Screw 10-32 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................1

27 WS-028-37 Washer (SST).............................................................................................................................1

28 NS-038-10 Lock Nut 3/8-16 Hex...................................................................................................................1

29 00-446220 Belt - Side (535mm)...................................................................................................................1

30 WS-029-05 Washer (SST).............................................................................................................................1

31 RR-012-27 Retaining Ring............................................................................................................................1

32 00-043411 Bearing (Nyliner)........................................................................................................................1

33 00-443858 Shaft...........................................................................................................................................1

34 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1

35 00-443857 Bracket - Slide............................................................................................................................1

36 00-443238 Magnet - Sensor.........................................................................................................................1

37 00-443887 Stud - Eccentric..........................................................................................................................2

38 00-443943 Bearing - Ball..............................................................................................................................2

39 RR-009-10 Retaining Ring 3/8 In. (SST)......................................................................................................2

40 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST).........................................................................1

41 00-443892 Pivot - Drive Post........................................................................................................................1

42 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1

43 00-443906 Clamp - Belt................................................................................................................................1

44 SC-128-55 Mach. Screw 8-32 x 1/4 Hex Hd.................................................................................................4

45 00-443899 Bracket - Belt Mounting..............................................................................................................1

46 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................1

47 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1

PART NO. NAME OF PART AMT.

1 00-446065 Belt - Intake Shift Conveyor........................................................................................................8

2 00-443883 Shaft (LH)...................................................................................................................................1

3 00-443826 Bearing 3/4 In.............................................................................................................................1

4 00-446064 Roller - Conveyor (Knurled)........................................................................................................1

5 00-443826 Bearing 3/4.................................................................................................................................1

6 00-443859 Shaft - Drive...............................................................................................................................1

7 00-443942 Coupling - Intake Drive...............................................................................................................1

8 00-443884 Pin - Clevis 5/16 (SST)...............................................................................................................1

9 00-443860 Pulley - Motor (16T)....................................................................................................................1

- 17 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

INTAKE FRAME

F-43218 Rev. B (August 2015) - 18 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

INTAKE FRAME

ILLUS.
PL-59427

10 00-446214 Belt - Weigher (450mm) (95T)....................................................................................................1

11 00-443860 Pulley (16T) (Incls. Item 17).......................................................................................................1

12 KW-004-09 Key - Woodruff...........................................................................................................................1

13 00-443220 Motor - Brushless (220 W.)........................................................................................................1

14 SC-059-17 Cap Screw 10-32 x 3/4 Hex Socket Hd. (SST)..........................................................................4

15 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................4

16 00-443851 Spacer - Motor............................................................................................................................3

17 SC-125-19 Set Screw 10-32 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................2

18 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

19 00-443894 Guard Assy. - Belt......................................................................................................................1

20 00-444428 Tie - Cable Releasable............................................................................................................AR

21 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................1

22 NS-031-08 Stop Nut 8-32 Special (SST)......................................................................................................2

23 00-446231 Spacer........................................................................................................................................1

24 SC-114-99 Mach. Screw 10-32 x 1/2 Phil. Flat Hd. (SST)............................................................................4

25 00-446231 Spacer........................................................................................................................................1

26 00-446036 Support - Intake Assy.................................................................................................................1

27 00-446021 Sensor Assy. - Home Limit.........................................................................................................2

28 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................4

29 00-443825 Bracket - Alignment....................................................................................................................2

30 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4

31 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

32 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST).........................................................................2

33 00-446516 Bracket - Light Tube...................................................................................................................2

34 00-443177 Housing Assy. - Tab...................................................................................................................1

35 FE-023-53 Bushing - Snap (Elect.)..............................................................................................................2

36 00-445364 Tension Assy. (Incls. Item 43)....................................................................................................2

37 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

38 00-445053 Shield - Deflector........................................................................................................................1

39 00-443893 Guard - Mercer...........................................................................................................................1

40 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4

41 00-443823 Frame - Conveyor (RH)..............................................................................................................1

42 00-446088 Tube - Light Assy.......................................................................................................................1

43 00-446022 Sensor - Position........................................................................................................................1

44 NS-018-10 Jam Nut 5/16-24 Hex (SST).......................................................................................................2

45 00-443891 Bed - Pivoting Conveyor.............................................................................................................1

PART NO. NAME OF PART AMT.

1 SC-093-04 Mach. Screw 8-32 x 1/2 Phil. Pan Hd. (SST).............................................................................2

2 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

3 00-444459 Bracket Assy. - Intake Mounting.................................................................................................2

4 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST).........................................................................2

5 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................2

6 00-445835 Bracket - Connector Mounting....................................................................................................1

7 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................3

8 00-443822 Frame - Conveyor (LH)..............................................................................................................1

9 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

- 19 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

GRIPPER DRIVE AND HEIGHT SENSORS

F-43218 Rev. B (August 2015) - 20 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

GRIPPER DRIVE AND HEIGHT SENSORS

ILLUS.
PL-59441

10 00-444362 Block - Bearing...........................................................................................................................2

11 NS-018-18 Jam Nut 3/8-24 Hex (SST).........................................................................................................1

12 WS-018-40 Washer (SST).............................................................................................................................1

13 RR-012-01 Retaining Ring............................................................................................................................1

14 00-443865 Pulley (22T)................................................................................................................................1

15 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................1

16 RR-012-01 Retaining Ring............................................................................................................................1

17 00-444360 Spacer........................................................................................................................................1

18 WS-018-40 Washer (SST).............................................................................................................................1

19 NS-018-18 Jam Nut 3/8-24 Hex (SST).........................................................................................................1

20 00-446215 Belt (200mm)..............................................................................................................................2

21 00-445470 Guide - Belt................................................................................................................................1

22 00-444198 Mount - Sealer Rear...................................................................................................................2

23 00-443983 Bracket - Front............................................................................................................................1

24 FE-026-29 Bushing - Electrical Snap...........................................................................................................1

25 00-444445 Spacer........................................................................................................................................1

26 WL-003-38 Lockwasher 1/4 Helical..............................................................................................................1

27 00-444447 Standoff - Front Cover................................................................................................................1

28 00-443730 Height Detector Assy. (LH).........................................................................................................1

29 00-443818 Bracket - Height Sensor (LH).....................................................................................................1

30 00-443817 Bracket - Height Sensor (RH).....................................................................................................1

31 00-443729 Height Detector Assy. (RH)........................................................................................................1

32 00-446003 Motor - Brushless (440 W.) (82 In. Motor Lead).........................................................................1

33 00-443963 Spacer - Motor Mounting............................................................................................................1

34 00-444447 Standoff - Front Cover................................................................................................................1

35 WL-003-38 Lockwasher 1/4 Helical..............................................................................................................1

36 00-444445 Spacer........................................................................................................................................1

37 WL-003-38 Lockwasher 1/4 Helical..............................................................................................................1

38 00-444448 Standoff - Side Cover.................................................................................................................1

39 00-443862 Pulley (18T)................................................................................................................................1

40 00-446216 Belt (450mm) (90T)....................................................................................................................1

41 NS-018-18 Jam Nut 3/8-24 Hex (SST).........................................................................................................1

42 WS-018-40 Washer (SST).............................................................................................................................1

43 00-443871 Pulley (34T)................................................................................................................................1

44 00-444358 Spacer........................................................................................................................................1

45 00-443950 Bearing.......................................................................................................................................2

46 RR-012-01 Retaining Ring............................................................................................................................2

47 00-444370 Block - Bearing...........................................................................................................................2

48 00-443865 Pulley (22T)................................................................................................................................2

PART NO. NAME OF PART AMT.

1 NS-018-18 Jam Nut 3/8-24 Hex (SST).........................................................................................................1

2 00-444357 Shaft - Gripper Drive..................................................................................................................1

3 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................2

4 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................1

5 00-443865 Pulley (22T)................................................................................................................................1

6 00-443950 Bearing.......................................................................................................................................1

7 00-444361 Shaft...........................................................................................................................................1

8 00-443950 Bearing.......................................................................................................................................1

9 RR-012-01 Retaining Ring............................................................................................................................2

00-444359 Block Assy. - Bearing.................................................................................................................2

00-444954 Emitter Assy...............................................................................................................................1

00-444953 Sensor Assy. (Package).............................................................................................................1

- 21 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SIDE CLAMP AND SIDE UNDERFOLDER MOTORS

F-43218 Rev. B (August 2015) - 22 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SIDE CLAMP AND SIDE UNDERFOLDER MOTORS

ILLUS.
PL-59442

10 WL-006-02 Lockwasher #8 Helical (SST).....................................................................................................4

11 SC-093-04 Mach. Screw 8-32 x 1/2 Phil. Pan Hd. (SST).............................................................................4

12 00-443209 Interlock Harness Assy...............................................................................................................1

13 00-183396 Plate - Screw Switch..................................................................................................................1

14 SC-021-02 Mach. Screw 4-40 x 1/2 Slotted Rd. Hd. (SST)..........................................................................2

15 WS-029-24 Washer.......................................................................................................................................2

16 WL-003-03 Lockwasher #4 Helical...............................................................................................................2

17 00-444427 Stop - Door.................................................................................................................................2

18 00-443992 Frame (RH)................................................................................................................................1

19 00-444427 Stop - Door.................................................................................................................................1

20 00-443209 Interlock Harness Assy...............................................................................................................1

21 00-183396 Plate - Screw Switch..................................................................................................................1

22 SC-021-02 Mach. Screw 4-40 x 1/2 Slotted Rd. Hd. (SST)..........................................................................2

23 WS-029-24 Washer.......................................................................................................................................2

24 WL-003-03 Lockwasher #4 Helical...............................................................................................................2

25 00-443991 Frame (LH).................................................................................................................................1

26 00-446002 Motor - Brushless (220 W.) (82 In. Motor Lead) (Side Underfolder)..........................................1

27 00-443963 Spacer - Motor Mounting............................................................................................................1

28 SD-037-72 Self-Tapping Screw 6-19 x 1/2 Phil. Pan Hd..............................................................................2

29 00-444954 Emitter Assy...............................................................................................................................1

30 00-443814 Bracket - Elevator Sensor..........................................................................................................1

31 WL-006-02 Lockwasher #8 Helical (SST).....................................................................................................4

32 SC-093-04 Mach. Screw 8-32 x 1/2 Phil. Pan Hd. (SST).............................................................................4

33 00-444020 Bracket - Motor (LH)...................................................................................................................1

34 KW-004-09 Key - Woodruff...........................................................................................................................1

35 00-443860 Pulley (16T) (Incls. Item 36).......................................................................................................1

36 SC-125-19 Set Screw 10-32 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................1

37 00-446220 Belt (535mm) (Side Underfolder)...............................................................................................1

PART NO. NAME OF PART AMT.

1 00-445634 Belt (85T) (425mm) (Side Clamps)............................................................................................1

2 SC-125-19 Set Screw 10-32 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................1

3 00-443860 Pulley (16T) (Incls. Item 2).........................................................................................................1

4 KW-004-09 Key - Woodruff...........................................................................................................................1

5 00-444021 Bracket - Motor (RH)..................................................................................................................1

6 00-443963 Spacer - Motor Mounting............................................................................................................1

7 00-446003 Motor - Brushless (440 W.) (82 In. Motor Lead) (Side Clamps).................................................1

8 00-444953 Sensor Assy. (Package).............................................................................................................1

9 00-443814 Bracket - Elevator Sensor..........................................................................................................1

- 23 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

CAMERA ENCLOSURE

F-43218 Rev. B (August 2015) - 24 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

CAMERA ENCLOSURE

ILLUS.
PL-59426

10 00-446180 Enclosure - Camera...................................................................................................................1

11 00-444445 Spacer........................................................................................................................................2

12 00-446233 Lens Assy...................................................................................................................................2

13 00-443881 Grommet....................................................................................................................................3

14 00-442143 Board Assy. - Sensor Control.....................................................................................................1

15 SC-018-34 Mach. Screw 8-32 x 1/2 Phil. Pan Hd.........................................................................................4

16 00-443199-00001 Cable (Camera-to-Camera Board).............................................................................................2

17 00-444443 Spring - Compression.................................................................................................................4

18 SC-125-69 Mach. Screw 10-32 x 1 Phil. Pan Hd..........................................................................................4

19 00-442140 Board Assy. - Sensor Array Camera..........................................................................................2

PART NO. NAME OF PART AMT.

1 SC-018-25 Mach. Screw 10-32 x 3/8 Phil. Pan Hd.......................................................................................3

2 00-446181 Cover - Camera..........................................................................................................................1

3 SC-018-25 Mach. Screw 10-32 x 3/8 Phil. Pan Hd.......................................................................................4

4 SC-125-71 Mach. Screw 10-32 x 1-1/4 Phil. Pan Hd. (SST)........................................................................2

5 NS-011-23 Nut 10-32 Hex (SST)..................................................................................................................2

6 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd.........................................................................................4

7 00-446178 Bracket - Camera.......................................................................................................................2

8 00-446179 Bracket - Angle Adjustment........................................................................................................2

9 SC-129-50 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd. (SST).....................................................................2

- 25 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

ELEVATOR CONVEYOR ASSEMBLY

F-43218 Rev. B (August 2015) - 26 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

ELEVATOR CONVEYOR ASSEMBLY

ILLUS.
PL-59429

10 RR-012-01 Retaining Ring............................................................................................................................2

11 00-443962 Spacer - Pulley...........................................................................................................................1

12 00-443868 Pulley..........................................................................................................................................1

13 WS-028-37 Washer (SST).............................................................................................................................1

14 NS-038-10 Lock Nut 3/8-16 Hex...................................................................................................................1

15 SC-114-99 Mach. Screw 10-32 x 1/2 Phil. Flat Hd. (SST)............................................................................4

16 00-443952 Rail (RH).....................................................................................................................................2

17 00-443954 Pulley - Idler...............................................................................................................................6

18 00-443953 Stud - Pulley Mounting...............................................................................................................5

19 00-443954 Pulley - Idler...............................................................................................................................6

20 00-443958 Rail - Center...............................................................................................................................1

21 00-443954 Pulley - Idler...............................................................................................................................6

22 00-443959 Stud - Pulley...............................................................................................................................1

23 SC-059-17 Cap Screw 10-32 x 3/4 Hex Socket Hd. (SST)..........................................................................1

24 00-443953 Stud - Pulley Mounting...............................................................................................................5

25 00-443954 Pulley - Idler...............................................................................................................................6

26 00-443951 Rail (LH).....................................................................................................................................2

27 SC-114-99 Mach. Screw 10-32 x 1/2 Phil. Flat Hd. (SST)............................................................................4

28 00-443957 Wearstrip....................................................................................................................................2

29 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................3

30 00-443955 Roller..........................................................................................................................................1

31 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................3

32 00-443946 Bracket - Shaft (LH)....................................................................................................................1

33 00-443947 Bracket - Shaft (RH)...................................................................................................................1

34 00-443945 Support - Conveyor....................................................................................................................1

35 00-443957 Wearstrip....................................................................................................................................2

36 00-443957 Wearstrip....................................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-443960 Bearing (5/8)...............................................................................................................................1

2 00-444463 Roller Assy.................................................................................................................................1

3 00-443948 Belt - Elevator Conveyor............................................................................................................6

4 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................1

5 00-443949 Block - Bearing Mount................................................................................................................1

6 RR-012-01 Retaining Ring............................................................................................................................2

7 00-443950 Bearing 5/8 Bore........................................................................................................................2

8 00-443961 Spacer - Bearing........................................................................................................................1

9 00-443950 Bearing 5/8 Bore........................................................................................................................2

- 27 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

ELEVATOR AND KNIFE CYLINDERS

F-43218 Rev. B (August 2015) - 28 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

ELEVATOR AND KNIFE CYLINDERS

ILLUS.
PL-59446

10 00-445004 Bracket (LH) (3 Slat)...................................................................................................................2

11 00-445011 Bracket (RH) (3 Slat)..................................................................................................................2

12 RR-006-03 Retaining Ring............................................................................................................................2

13 00-444883 Rod (3 Slat)................................................................................................................................2

14 00-444977 Spring - Slat................................................................................................................................2

15 00-334067 Slat.............................................................................................................................................6

16 RR-006-03 Retaining Ring............................................................................................................................2

17 00-445009 Post Assy. - Elevator..................................................................................................................2

18 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

19 RR-006-03 Retaining Ring............................................................................................................................2

20 00-444887 Rod (2 Slat)................................................................................................................................2

21 00-444977 Spring - Slat................................................................................................................................2

22 00-334067 Slat.............................................................................................................................................4

23 RR-006-03 Retaining Ring............................................................................................................................2

24 00-445009 Post Assy. - Elevator..................................................................................................................4

25 00-445003 Bracket (LH) (2 Slat)...................................................................................................................2

26 00-445010 Bracket (RH) (2 Slat)..................................................................................................................2

27 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4

28 00-445022 Bracket - Package Stop..............................................................................................................2

29 00-445009 Post Assy. - Elevator..................................................................................................................2

30 00-445007 Bracket - Post Mounting.............................................................................................................1

31 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

32 SC-041-45 Cap Screw 1/2-13 x 1-1/2 Hex Hd. (SST)..................................................................................1

33 WL-006-36 Lockwasher 1/2 Helical..............................................................................................................1

34 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................4

35 00-446449 Plate - Post Mounting.................................................................................................................1

36 00-446272 Bracket - Elevator Side...............................................................................................................4

37 NS-049-06 Lock Nut 1/4-20 (SST).............................................................................................................AR

38 SC-100-12 Mach. Screw 5/16-18 x 3/4 Hex Washer Hd..............................................................................1

39 00-444563 Ring - Retaining..........................................................................................................................2

40 00-444475 Seal Assy...................................................................................................................................2

41 RR-012-31 Retaining Ring............................................................................................................................1

42 00-444783 Bearing - Linear..........................................................................................................................1

43 00-444379 Link Assy. - Elevator...................................................................................................................1

44 00-445125 Link - Elevator............................................................................................................................1

45 00-444380 End - Rod 1/2-20 (RH)...............................................................................................................1

46 00-444381 End - Rod 1/2-20 (LH)................................................................................................................1

47 NS-015-16 Nut 1/2-20 Hex (SST).................................................................................................................1

48 NS-048-92 Nut 1/2-20 Hex SST) (LH)..........................................................................................................1

49 00-446271 Bracket - Elevator.......................................................................................................................2

50 00-446270 Bracket - Elevator.......................................................................................................................2

51 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

52 00-442611-00010 Bushing - Sleeve........................................................................................................................2

53 00-444767 Shaft - Elevator...........................................................................................................................2

54 00-444783 Bearing - Linear..........................................................................................................................4

55 00-444552 Spacer - Bearing........................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-446449 Plate - Post Mounting.................................................................................................................1

2 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................6

3 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................6

4 00-444977 Spring - Slat................................................................................................................................4

5 00-446046 Bracket - Slat..............................................................................................................................2

6 RR-006-03 Retaining Ring............................................................................................................................2

7 00-446050 Rod - Slat...................................................................................................................................2

8 00-333862 Slat - Smooth............................................................................................................................10

9 RR-006-03 Retaining Ring............................................................................................................................2

- 29 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

ELEVATOR AND KNIFE CYLINDERS

ILLUS.
PL-59446

56 00-444489-00002 Tubing - Natural Polyurethane (1/8)...........................................................................................2

57 00-444121 Fitting - Elbow.............................................................................................................................2

58 00-444209 Support - Elevator Center...........................................................................................................1

59 NS-048-19 Nut Assy. 10-32 Hex (SST)........................................................................................................4

60 00-445451 Stud - Knife Cylinder..................................................................................................................4

61 00-445993 Cylinder - Air...............................................................................................................................2

62 00-444768 Bar..............................................................................................................................................2

63 00-444229 Elevator Frame...........................................................................................................................1

PART NO. NAME OF PART AMT.

00-446117 Slat Assy. (LH)...........................................................................................................................1

00-446118 Slat Assy. (RH)...........................................................................................................................1

F-43218 Rev. B (August 2015) - 30 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

NOTES

- 31 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

KNIFE

F-43218 Rev. B (August 2015) - 32 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

KNIFE

ILLUS.
PL-59447

*10 Bushing - Knife Roller.................................................................................................................2

*11 Roller - Knife Guide....................................................................................................................2

12 WS-030-58 Washer (SST).............................................................................................................................2

13 RR-004-05 Retaining Ring............................................................................................................................2

14 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................2

15 SC-041-07 Cap Screw 1/4-20 x 1-1/2 Hex Hd. (SST)..................................................................................2

16 00-334272 Bumper.......................................................................................................................................1

17 00-445452 Spacer - Knife Cylinder..............................................................................................................2

18 00-443908 Jam Nut (Air Cylinder)................................................................................................................3

19 00-444242 Grommet - Knife.........................................................................................................................3

20 00-443908 Jam Nut (Air Cylinder)................................................................................................................3

21 SC-041-08 Cap Screw 1/4-20 x 2 Hex Hd. (SST)........................................................................................2

22 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................2

23 00-446097 Block - Magnet Mounting............................................................................................................1

24 00-443938 Magnet.......................................................................................................................................2

25 RR-004-05 Retaining Ring............................................................................................................................2

26 WS-030-58 Washer (SST).............................................................................................................................2

*27 Roller - Knife Guide....................................................................................................................2

*28 Bushing - Knife Roller.................................................................................................................2

29 00-444852 Bracket Assy. (Knife Sensor).....................................................................................................1

30 00-443905 Rod - Slide..................................................................................................................................1

31 00-447402 Bearing Assy..............................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-443904 Guard - Knife..............................................................................................................................1

2 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4

3 00-446197 Bracket - Motor...........................................................................................................................1

4 00-443902 Frame - Top Support..................................................................................................................1

5 00-444827 Bumper - Knife...........................................................................................................................2

6 00-443905 Rod - Slide..................................................................................................................................1

7 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................1

8 00-443903 Knife...........................................................................................................................................1

9 00-443907 Bracket - Knife............................................................................................................................1

* (Part no longer available. Order Item 31.)

- 33 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

ELEVATOR MOTOR

F-43218 Rev. B (August 2015) - 34 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

ELEVATOR MOTOR

ILLUS.
PL-59443

10 00-444408 Conduit - Electrical.....................................................................................................................1

11 FE-012-19 Lock Nut - Electrical...................................................................................................................1

12 00-445241 Fitting - Grease...........................................................................................................................1

13 00-445949 Lever - Elevator..........................................................................................................................1

14 00-445950 Bearing - Cam Follower 5/8-18..................................................................................................1

15 00-444456 Collar Assy. 1-1/4 (SST).............................................................................................................1

16 00-444386 Bearing - Flanged 1-1/4..............................................................................................................1

17 WL-006-28 Lockwasher 3/8 Helical..............................................................................................................2

18 SC-041-32 Cap Screw 3/8-16 x 1-1/2 Hex Hd. (SST)..................................................................................2

19 00-444387 Shaft - Elevator Lever.................................................................................................................1

20 00-444386 Bearing - Flanged 1-1/4..............................................................................................................1

21 00-444456 Collar Assy. 1-1/4 (SST).............................................................................................................1

22 00-442492 Wheel - Hand.............................................................................................................................1

23 00-444388 Hub - Handwheel........................................................................................................................1

24 00-444117 Gear - Reducer...........................................................................................................................1

25 00-444987 Cam - Elevator...........................................................................................................................1

26 00-443238 Magnet - Sensor.........................................................................................................................1

27 00-444495 Sleeve........................................................................................................................................1

28 00-446035 Motor - Brushless (660 W.) (54 In. Motor Lead).........................................................................1

29 00-444786 Spacer - Gearbox.......................................................................................................................4

30 00-445615 Bracket - Home Switch...............................................................................................................1

31 00-446021 Sensor - Position........................................................................................................................1

32 00-444234 Mount - Gearmotor.....................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-043411 Bearing (Nyliner) (1/2)................................................................................................................1

2 00-444380 End - Rod 1/2-20 (RH)...............................................................................................................1

3 00-444390 Plate - Spring Mounting..............................................................................................................1

4 00-444391 Bracket Assy. - Spring................................................................................................................1

5 00-444392 Spring - Elevator.........................................................................................................................1

6 00-444393 Link - Spring...............................................................................................................................1

7 SC-123-92 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd................................................................................1

8 WS-022-04 Washer (SST).............................................................................................................................1

9 00-445951 Nut - Cam Follower....................................................................................................................1

00-444389 Spring Assy................................................................................................................................1

00-445827 Lever Assy. - Elevator................................................................................................................1

- 35 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

LEFT FRONT FOLDER

F-43218 Rev. B (August 2015) - 36 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

LEFT FRONT FOLDER

ILLUS.
PL-59438

10 00-446072-00004 Belt - Pusher (Cut to Length, 277T = 54 1/2 In.)........................................................................2

11 RR-012-04 Retaining Ring............................................................................................................................1

12 00-443865 Pulley (22T)................................................................................................................................1

13 RR-012-04 Retaining Ring............................................................................................................................1

14 00-444096 Block - Belt Clamp......................................................................................................................1

15 00-443929 Retainer - Belt............................................................................................................................1

16 00-446072-00004 Belt - Rear Underfolder (Cut to Length, 175T = 34-7/16 In.)......................................................2

17 RR-012-04 Retaining Ring............................................................................................................................1

18 00-443865 Pulley (22T)................................................................................................................................1

19 RR-012-04 Retaining Ring............................................................................................................................1

20 00-444395 Standoff......................................................................................................................................1

21 00-444075 Block - Stop................................................................................................................................1

22 00-444076 Bumper.......................................................................................................................................1

23 00-446024 Rail - Front Folder......................................................................................................................1

24 00-446018 Plate - Adjusting.........................................................................................................................1

25 00-446025 Shaft - Idler.................................................................................................................................1

26 RR-012-32 Retaining Ring............................................................................................................................1

27 00-443943 Bearing - Ball..............................................................................................................................1

28 00-443866 Pulley - Idler (22T) (Incls. Items 26 & 27)...................................................................................1

29 RR-012-32 Retaining Ring............................................................................................................................1

30 00-443943 Bearing - Ball..............................................................................................................................1

31 00-443866 Pulley - Idler (Incls. Items 29 & 30)............................................................................................1

32 00-446025 Shaft - Idler.................................................................................................................................1

33 00-446017 Plate - Adjusting.........................................................................................................................1

34 00-443982 Frame Assy. - Upper Left...........................................................................................................1

35 00-444094 Standoff......................................................................................................................................1

36 00-444076 Bumper.......................................................................................................................................1

37 00-444085 Mount - Block Stop Sensor.........................................................................................................1

38 00-444086 Bar - Spacer...............................................................................................................................1

39 00-444953 Sensor Assy. (Package).............................................................................................................1

40 00-444954 Emitter Assy...............................................................................................................................1

41 00-443813 Bracket - LED Mount..................................................................................................................1

42 SD-037-72 Self-Tapping Screw 6-19 x 1/2 Phil. Pan Hd..............................................................................1

PART NO. NAME OF PART AMT.

1 00-444426 Screw - Cover Shoulder.............................................................................................................1

2 SC-129-51 Cap Screw 5/16-18 x 3/4 Hex Washer Hd. (SST)......................................................................2

3 00-444044 Mount - Slide Rods.....................................................................................................................1

4 00-443989 Support - Printer Display (LH)....................................................................................................1

5 00-446018 Plate - Adjusting.........................................................................................................................1

6 00-446025 Shaft - Idler.................................................................................................................................1

7 00-443866 Pulley - Idler (22T) (Incls. Items 8 & 9).......................................................................................1

8 00-443943 Bearing - Ball..............................................................................................................................1

9 RR-012-32 Retaining Ring............................................................................................................................1

- 37 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

RIGHT FRONT FOLDER

F-43218 Rev. B (August 2015) - 38 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

RIGHT FRONT FOLDER

ILLUS.
PL-59434

10 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

11 SC-129-50 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd. (SST).....................................................................1

12 SC-129-73 Mach. Screw 1/4-20 x 1 Hex Washer Hd.(SST).........................................................................2

13 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................2

14 00-444095 Bracket.......................................................................................................................................1

15 SC-129-50 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd. (SST).....................................................................1

16 00-443999 Shield - Belt Right.......................................................................................................................1

17 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

18 00-444092 Slide - Front Folder.....................................................................................................................1

19 00-446474 Spacer Assy. - Shuttle................................................................................................................1

20 00-443938 Magnet.......................................................................................................................................1

21 00-444841 Bar..............................................................................................................................................2

22 SC-110-98 Cap Screw 1/4-20 x 3/4 Hex Socket Hd. (SST).........................................................................4

23 WL-020-06 Lockwasher 1/4 Helical (SST)....................................................................................................4

24 00-444092 Slide - Front Folder.....................................................................................................................1

25 00-444615 Spacer Assy. - Shuttle................................................................................................................8

26 SC-059-30 Cap Screw 1/4-20 x 1 Hex Socket Hd. (SST)............................................................................1

27 00-445417 Mount - Stop...............................................................................................................................1

28 SC-022-32 Mach. Screw 1/4-20 x 1/2 Slotted Flat Hd. (SST)......................................................................2

29 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................1

30 00-443742 Bumper.......................................................................................................................................1

31 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

32 00-446211 Cover - Belt................................................................................................................................1

33 00-444840 Folder - Front..............................................................................................................................1

34 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4

35 00-444044 Mount - Slide Rods.....................................................................................................................1

36 00-443990 Support - Printer Display (RH)....................................................................................................1

37 00-444426 Screw - Cover Shoulder.............................................................................................................1

38 SC-129-51 Cap Screw 5/16-18 x 3/4 Hex Washer Hd. (SST)......................................................................3

39 00-443988 Frame - Upper Right Rear..........................................................................................................1

40 00-446017 Plate - Adjusting.........................................................................................................................1

41 00-175998 Sensor........................................................................................................................................1

42 00-443866 Pulley - Idler (Incls. Items 43 & 44)............................................................................................1

43 00-443943 Bearing - Ball..............................................................................................................................1

44 RR-012-32 Retaining Ring............................................................................................................................1

45 00-443860 Pulley (16T)................................................................................................................................1

46 00-446014 Motor - Brushless (220 W.) (120 In. Motor Lead) (Rear Underfold)...........................................1

47 00-446216 Belt - Gripper (450mm)...............................................................................................................1

48 00-446024 Rail - Front Folder......................................................................................................................1

49 00-446018 Plate - Adjusting.........................................................................................................................1

50 00-446025 Shaft - Idler.................................................................................................................................1

51 RR-012-32 Retaining Ring............................................................................................................................1

52 00-443943 Bearing - Ball..............................................................................................................................1

53 00-443866 Pulley - Idler (22T) (Incls. Items 51 & 52)...................................................................................1

54 00-444085 Mount - Block Stop Sensor.........................................................................................................1

55 00-444076 Bumper.......................................................................................................................................1

56 00-444094 Standoff......................................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-444395 Standoff......................................................................................................................................1

2 00-446072-00004 Belt (Cut to Length, 232T = 45-5/8)............................................................................................2

3 RR-012-04 Retaining Ring............................................................................................................................1

4 00-443865 Pulley (22T)................................................................................................................................1

5 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................1

6 RR-012-04 Retaining Ring............................................................................................................................1

7 00-443929 Retainer - Belt............................................................................................................................1

8 00-444096 Block - Belt Clamp......................................................................................................................1

9 00-443998 Shield - Belt Left.........................................................................................................................1

00-446886 Cover - Belt (SST)......................................................................................................................1

00-443997 Cover Assy. - Belt (Mylar)..........................................................................................................1

- 39 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SIDE UNDERFOLDERS

F-43218 Rev. B (August 2015) - 40 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SIDE UNDERFOLDERS

ILLUS.
PL-59439

10 00-443984 Rail - Underfolder Rear..............................................................................................................1

11 SC-125-83 Mach. Screw 1/4-20 x 1/2 Phil. Flat Hd. (SST)...........................................................................1

12 00-444002 Slide...........................................................................................................................................1

13 00-445105 Underfolder (RH)........................................................................................................................1

14 SC-125-83 Mach. Screw 1/4-20 x 1/2 Phil. Flat Hd. (SST)...........................................................................1

15 00-444035 Shaft - Unloader.........................................................................................................................1

16 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4

17 00-444047 Bumper - Clamp.........................................................................................................................1

18 00-445117 Collar..........................................................................................................................................1

19 00-444047 Bumper - Clamp.........................................................................................................................1

20 00-444006 Shaft...........................................................................................................................................1

21 00-444036 Bracket - Belt Clamp..................................................................................................................1

22 00-443906 Clamp - Belt................................................................................................................................1

23 00-444005 Ring - Retaining..........................................................................................................................1

24 00-444031 Bearing - Linear..........................................................................................................................2

25 00-444578 Housing Assy. - Clamp (RH)......................................................................................................1

26 00-444047 Bumper - Clamp.........................................................................................................................1

27 00-444005 Ring - Retaining..........................................................................................................................1

28 00-048624 Magnet.......................................................................................................................................1

29 00-443906 Clamp - Belt................................................................................................................................1

30 00-444019 Plate - Belt..................................................................................................................................1

31 00-444047 Bumper - Clamp.........................................................................................................................1

32 00-444005 Ring - Retaining..........................................................................................................................1

33 00-444580 Housing Assy. - Underfolder (RH)..............................................................................................1

34 00-444031 Bearing - Linear..........................................................................................................................2

35 00-444005 Ring - Retaining..........................................................................................................................1

36 00-445068 Cover - Belts...............................................................................................................................1

37 00-444006 Shaft...........................................................................................................................................1

38 00-444034 Bumper - Slide............................................................................................................................1

39 00-444005 Ring - Retaining..........................................................................................................................1

40 00-444031 Bearing - Linear..........................................................................................................................2

41 00-048624 Magnet.......................................................................................................................................1

42 00-443906 Clamp - Belt................................................................................................................................1

43 00-444005 Ring - Retaining..........................................................................................................................1

44 00-444047 Bumper - Clamp.........................................................................................................................1

45 00-444581 Housing Assy. - Underfolder (LH)..............................................................................................1

46 00-444005 Ring - Retaining..........................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-443906 Clamp - Belt................................................................................................................................1

2 00-444047 Bumper - Clamp.........................................................................................................................1

3 00-444005 Ring - Retaining..........................................................................................................................1

4 00-444579 Housing Assy. - Clamp (LH).......................................................................................................1

5 00-444031 Bearing - Linear..........................................................................................................................2

6 00-445104 Underfolder (LH).........................................................................................................................1

7 SC-127-91 Mach. Screw 1/4-20 x 5/8 Phil. Flat Hd. (SST)...........................................................................4

8 SC-125-83 Mach. Screw 1/4-20 x 1/2 Phil. Flat Hd. (SST)...........................................................................1

9 00-444002 Slide...........................................................................................................................................1

- 41 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

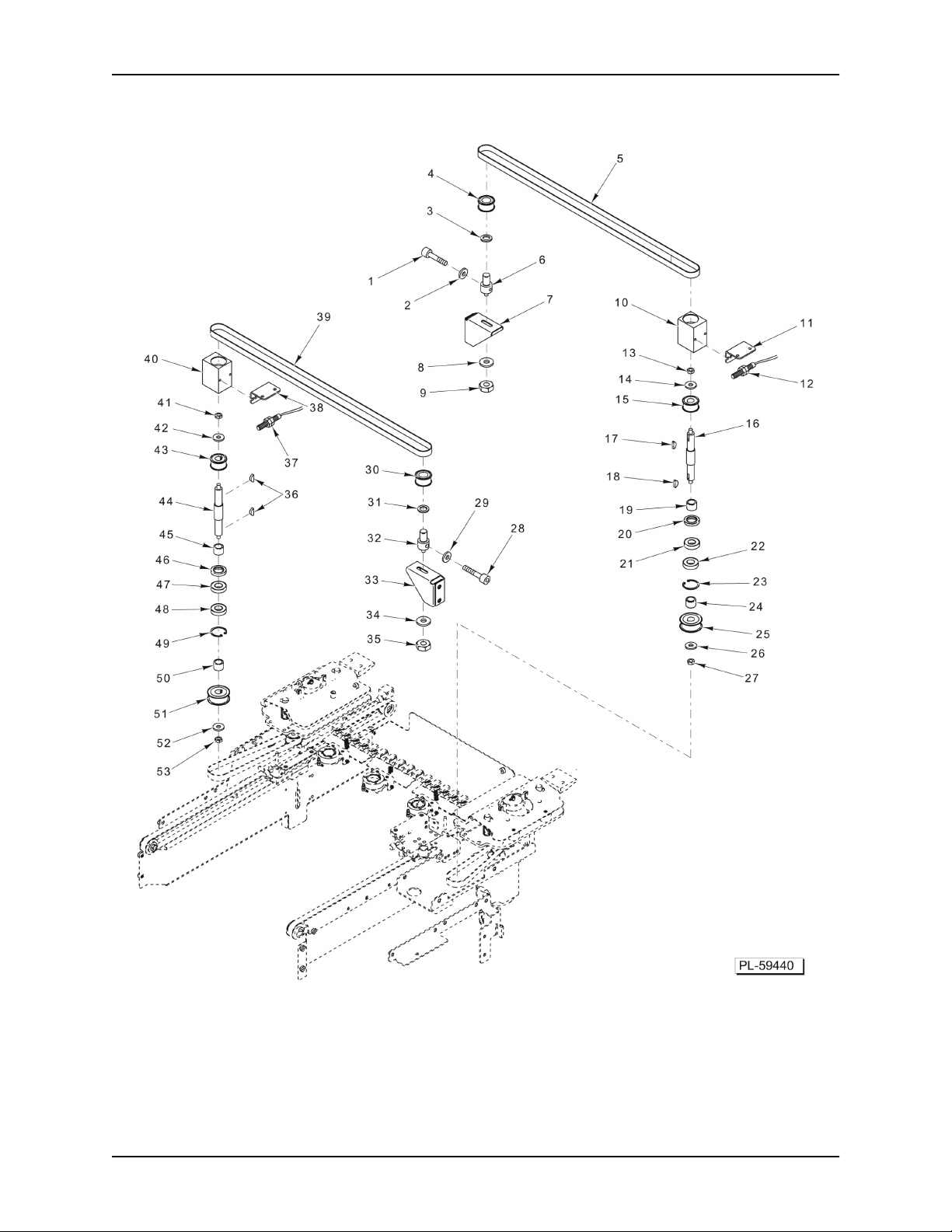

SIDE UNDERFOLDERS BELT AND PULLEYS

F-43218 Rev. B (August 2015) - 42 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SIDE UNDERFOLDERS BELT AND PULLEYS

ILLUS.
PL-59440

10 00-444015 Housing - Bearing.......................................................................................................................1

11 00-444030 Bracket - Sensor Mounting.........................................................................................................1

12 00-446021 Sensor Assy. - Home Limit.........................................................................................................1

13 NS-018-18 Jam Nut 3/8-24 Hex (SST).........................................................................................................1

14 WS-018-40 Washer (SST).............................................................................................................................1

15 00-443864 Pulley (22T)................................................................................................................................1

16 00-444016 Shaft...........................................................................................................................................1

17 KW-003-10 Key - Woodruff 3/16 x 3/4...........................................................................................................1

18 KW-003-10 Key - Woodruff 3/16 x 3/4...........................................................................................................1

19 00-444017 Spacer........................................................................................................................................1

20 00-444018 Seal - Shaft.................................................................................................................................1

21 00-443950 Bearing.......................................................................................................................................1

22 00-443950 Bearing.......................................................................................................................................1

23 RR-012-01 Retaining Ring............................................................................................................................1

24 00-444017 Spacer........................................................................................................................................1

25 00-443869 Pulley (30T)................................................................................................................................1

26 WS-018-40 Washer (SST).............................................................................................................................1

27 NS-018-18 Jam Nut 3/8-24 Hex (SST).........................................................................................................1

28 SC-129-54 Cap Screw 5/16-18 x 2-3/4 Hex Socket Hd. (SST)....................................................................1

29 WS-017-09 Washer (SST).............................................................................................................................1

30 00-443867 Pulley Assy. - Idler......................................................................................................................1

31 00-444025 Washer - Thrust..........................................................................................................................1

32 00-444024 Stud - Idler..................................................................................................................................1

33 00-444023 Bracket Assy. - Idler...................................................................................................................1

34 WS-028-37 Washer (SST).............................................................................................................................1

35 NS-048-40 Lock Nut 5/16-18 Flange (SST)..................................................................................................1

36 KW-003-10 Key - Woodruff 3/16 x 3/4...........................................................................................................2

37 00-446021 Sensor Assy. - Home Limit.........................................................................................................1

38 00-444030 Bracket - Sensor Mounting.........................................................................................................1

39 00-445635 Belt - Timing...............................................................................................................................1

40 00-444015 Housing - Bearing.......................................................................................................................1

41 NS-018-18 Jam Nut 3/8-24 Hex (SST).........................................................................................................1

42 WS-018-40 Washer (SST).............................................................................................................................1

43 00-443864 Pulley (22T)................................................................................................................................1

44 00-444016 Shaft...........................................................................................................................................1

45 00-444017 Spacer........................................................................................................................................1

46 00-444018 Seal - Shaft.................................................................................................................................1

47 00-443950 Bearing.......................................................................................................................................1

48 00-443950 Bearing.......................................................................................................................................1

49 RR-012-01 Retaining Ring............................................................................................................................1

50 00-444017 Spacer........................................................................................................................................1

51 00-443869 Pulley (30T)................................................................................................................................1

52 WS-018-40 Washer (SST).............................................................................................................................1

53 NS-018-18 Jam Nut 3/8-24 Hex (SST).........................................................................................................1

PART NO. NAME OF PART AMT.

1 SC-129-54 Cap Screw 5/16-18 x 2-3/4 Hex Socket Hd. (SST)....................................................................1

2 WS-017-09 Washer (SST).............................................................................................................................1

3 00-444025 Washer - Thrust..........................................................................................................................1

4 00-443867 Pulley Assy. - Idler......................................................................................................................1

5 00-445635 Belt - Timing...............................................................................................................................1

6 00-444024 Stud - Idler..................................................................................................................................1

7 00-444023 Bracket Assy. - Idler...................................................................................................................1

8 WS-028-37 Washer (SST).............................................................................................................................1

9 NS-048-40 Lock Nut 5/16-18 Flange (SST)..................................................................................................1

00-444517 Bearing Shaft Assy. (Incls. Items 10 & 13 thru 27 or 36 & 40 thru 53).......................................1

- 43 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

PACKAGE HOLD DOWN

F-43218 Rev. B (August 2015) - 44 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

PACKAGE HOLD DOWN

ILLUS.
PL-59253

10 00-445037 Spacer........................................................................................................................................1

11 00-445036 Disk - Roller................................................................................................................................1

12 00-445037 Spacer........................................................................................................................................1

13 00-445036 Disk - Roller................................................................................................................................1

14 00-445037 Spacer........................................................................................................................................1

15 RR-011-03 Retaining Ring............................................................................................................................1

16 RR-011-03 Retaining Ring............................................................................................................................1

17 00-445038 Core - Roller...............................................................................................................................1

18 00-444915 Shaft - Roller..............................................................................................................................1

19 00-445067 Cap - Roller................................................................................................................................1

20 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. (SST)...................................................................1

21 00-445398 Pin - Hold Down Pivot................................................................................................................1

22 00-444923 Arm - Hold Down........................................................................................................................1

23 00-445398 Pin - Hold Down Pivot................................................................................................................1

24 00-175560 Bushing - Nyliner........................................................................................................................8

25 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................8

26 00-443979 Bar - Hold Down.........................................................................................................................1

27 00-445106 Cable Assy. - Ground.................................................................................................................1

28 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................1

29 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. (SST)...................................................................1

PART NO. NAME OF PART AMT.

1 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1

2 00-444926 Bracket - Hold Down Mount.......................................................................................................1

3 00-445398 Pin - Hold Down Pivot................................................................................................................1

4 00-175560 Bushing - Nyliner........................................................................................................................8

5 00-444923 Arm - Hold Down........................................................................................................................1

6 00-445398 Pin - Hold Down Pivot................................................................................................................1

7 00-445113 Hold Down..................................................................................................................................1

8 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1

9 00-445036 Disk - Roller................................................................................................................................1

- 45 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

PUSHER

F-43218 Rev. B (August 2015) - 46 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

PUSHER

ILLUS.
PL-59435

10 00-443929 Retainer - Belt............................................................................................................................1

11 00-444083 Clip - Belt Retainer.....................................................................................................................1

12 00-444079 Block - Slide...............................................................................................................................1

13 00-443742 Bumper.......................................................................................................................................1

14 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................1

15 00-445417 Mount - Stop...............................................................................................................................1

16 SC-127-91 Mach. Screw 1/4-20 x 5/8 Phil. Flat Hd. (SST)...........................................................................2

17 00-445418 Roller Mount (End).....................................................................................................................1

18 SC-119-14 Mach. Screw 8-32 x 1/4 Phil. Flat Hd. (SST)..............................................................................4

19 00-445419 Roller Mount (Center).................................................................................................................1

20 SC-119-14 Mach. Screw 8-32 x 1/4 Phil. Flat Hd. (SST)..............................................................................1

21 00-445416 Roller - Underfolder....................................................................................................................3

22 00-444927 Roller - Underfolder....................................................................................................................1

23 00-445419 Roller Mount (Center).................................................................................................................1

24 SC-119-14 Mach. Screw 8-32 x 1/4 Phil. Flat Hd. (SST)..............................................................................1

25 00-445418 Roller Mount (End).....................................................................................................................1

26 SC-119-14 Mach. Screw 8-32 x 1/4 Phil. Flat Hd. (SST)..............................................................................4

27 SC-127-91 Mach. Screw 1/4-20 x 5/8 Phil. Flat Hd. (SST)...........................................................................2

28 00-445415 Underfolder - Rear......................................................................................................................1

29 00-443742 Bumper.......................................................................................................................................1

30 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................1

31 00-445417 Mount - Stop...............................................................................................................................1

32 00-443742 Bumper.......................................................................................................................................1

33 00-443974 Block - Stop................................................................................................................................2

34 00-444839 Pusher........................................................................................................................................1

35 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................4

36 SC-110-98 Cap Screw 1/4-20 x 3/4 Hex Socket Hd. (SST).........................................................................1

37 00-444082 Block - Clamp.............................................................................................................................1

38 00-446760 Block Assy. - Rear Underfolder..................................................................................................1

39 00-443938 Magnet.......................................................................................................................................1

PART NO. NAME OF PART AMT.

1 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4

2 00-444844 Plate...........................................................................................................................................2

3 00-443975 Pad - Pusher..............................................................................................................................2

4 SC-125-07 Cap Screw 1/4-20 x 1-1/4 Hex Socket Hd. (SST)......................................................................1

5 00-443926 Clip.............................................................................................................................................2

6 00-445183 Block - Belt Mounting.................................................................................................................2

7 00-443917 Block - Magnet...........................................................................................................................2

8 00-446762 Block Assy. - Gripper & Pusher..................................................................................................1

9 00-443938 Magnet.......................................................................................................................................1

00-445414 Underfolder Assy........................................................................................................................1

00-446014 Motor - Brushless (220 W.) (120 In. Motor Lead).......................................................................1

00-443860 Pulley (16T)................................................................................................................................1

- 47 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

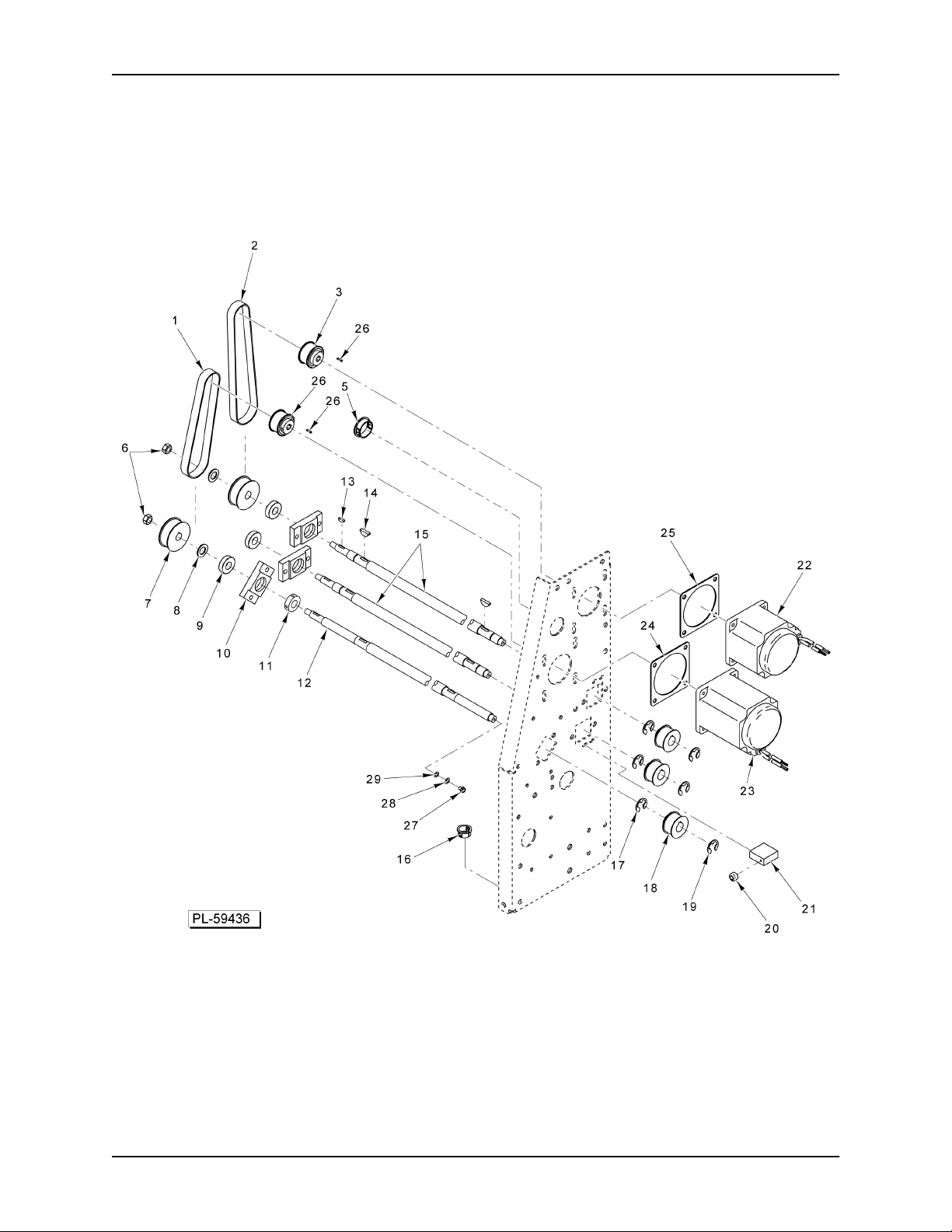

UPPER PUSHER & FRONT FOLDER MOTORS

F-43218 Rev. B (August 2015) - 48 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

UPPER PUSHER & FRONT FOLDER MOTORS

ILLUS.
PL-59436

10 00-444084 Block - Bearing...........................................................................................................................3

11 00-446082 Collar..........................................................................................................................................1

12 00-446075 Shaft (Front Underfolder)...........................................................................................................1

13 KW-003-04 Key 1/8 x 1/2..............................................................................................................................3

14 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................6

15 00-446074 Shaft - Pusher/Rear Underfolder................................................................................................2

16 FE-016-24 Bushing - Electrical Split.............................................................................................................1

17 RR-012-04 Retaining Ring............................................................................................................................3

18 00-443865 Pulley (22T)................................................................................................................................3

19 RR-012-04 Retaining Ring............................................................................................................................3

20 00-444076 Bumper.......................................................................................................................................1

21 00-444450 Block - Stop................................................................................................................................1

22 00-446014 Motor - Brushless (220 W.) (120 In. Motor Lead) (Upper Pusher).............................................1

23 00-446408 Motor - Brushless (440 W.) (Front Underfolder) (120 In. Motor Lead).......................................1

24 00-443963 Spacer - Motor Mounting............................................................................................................1

25 00-443963 Spacer - Motor Mounting............................................................................................................1

26 KW-003-23 Key - Woodruff 3/32 x 5/8...........................................................................................................2

27 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1

28 WS-029-40 Washer (SST).............................................................................................................................1

29 WS-022-02 Washer (SST).............................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-445634 Belt (85T) (Front Folder Drive)...................................................................................................1

2 00-446219 Belt - Pusher (500mm) (Upper Pusher Drive)............................................................................1

3 00-443860 Pulley (16T)................................................................................................................................1

4 00-443863 Pulley (22T)................................................................................................................................1

5 FE-026-29 Bushing - Electrical Snap...........................................................................................................1

6 NS-038-10 Lock Nut 3/8-16 Hex...................................................................................................................2

7 00-443870 Pulley (30T)................................................................................................................................2

8 WS-008-48 Washer (SST).............................................................................................................................3

9 00-444077 Bearing - Sealed.........................................................................................................................3

- 49 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

FILM SUPPLY ARBOR

F-43218 Rev. B (August 2015) - 50 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

FILM SUPPLY ARBOR

ILLUS.
PL-59449

10 WL-013-02 Lockwasher #4 Internal Shakeproof (SST)................................................................................1

11 WS-031-61 Washer (SST).............................................................................................................................1

12 NS-011-01 Nut 4-40 Hex (SST)....................................................................................................................1

13 00-443223 Sensor Assy. - Film Detect.........................................................................................................2

14 WS-018-40 Washer (SST).............................................................................................................................1

15 00-446482 Bracket - Film Roll......................................................................................................................1

16 00-446212 Bracket - Board Mounting...........................................................................................................1

17 00-446486 Cover - Brake.............................................................................................................................1

18 00-442308 Board Assy. - Film Sensor Interface...........................................................................................1

19 00-444153 Disc - Sensor..............................................................................................................................1

20 00-444146 Brake Assy.................................................................................................................................1

21 00-444986-00003 Shim - Brake...............................................................................................................................1

22 00-444147 Housing - Bearing.......................................................................................................................1

23 00-444144 Bearing - Film Supply.................................................................................................................2

24 00-446875 Collar..........................................................................................................................................2

25 SC-129-72 Cap Screw 3/8-16 x 3/4 Hex Washer Hd. (SST)........................................................................1

26 00-445978 Shaft - Film.................................................................................................................................1

27 RR-012-44 Retaining Ring............................................................................................................................1

28 00-445980 Collar..........................................................................................................................................2

29 RR-012-44 Retaining Ring............................................................................................................................1

30 00-446483 Brace..........................................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-446482 Bracket - Film Roll......................................................................................................................1

2 00-444156 End Cap - Idler Roller.................................................................................................................1

3 00-444150 Bearing - Film Supply.................................................................................................................1

4 00-444149 Shaft - Idler Roller......................................................................................................................1

5 00-444145 Roller - Idler................................................................................................................................1

6 00-444150 Bearing - Film Supply.................................................................................................................1

7 00-444156 End Cap - Idler Roller.................................................................................................................1

8 00-445505 Bracket - Film Sensor.................................................................................................................1

9 SC-125-30 Mach. Screw 4-40 x 3/8 Phil. Pan Hd. (SST).............................................................................1

00-518938 Key (T-Handle 5/32)...................................................................................................................1

- 51 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

FILM SELECTOR

F-43218 Rev. B (August 2015) - 52 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

FILM SELECTOR

ILLUS.
PL-59448

10 NS-018-10 Jam Nut 5/16-24 Hex (SST).......................................................................................................1

11 RP-006-04 Pin - Roll (0.187)........................................................................................................................1

12 RP-006-41 Pin - Roll.....................................................................................................................................1

13 00-446209 Slide (LH)...................................................................................................................................1

14 00-446208 Slide (RH)...................................................................................................................................1

15 SC-129-53 Set Screw 1/4-20 x 3/4 Hex Hdls., Dog Pt. (SST)......................................................................4

16 00-445127 Block - Roller Adjust...................................................................................................................4

17 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................2

18 00-043411 Bearing (Nyliner)........................................................................................................................1

19 00-446205 Bracket - Support (LH)...............................................................................................................1

20 00-446204 Bracket - Support (RH)...............................................................................................................1

21 00-444257 Shaft - Slide................................................................................................................................2

22 RR-009-10 Retaining Ring 3/8 In. (SST)......................................................................................................2

23 RR-009-10 Retaining Ring 3/8 In. (SST)......................................................................................................2

24 SC-116-32 Cap Screw 10-32 x 3/8 Hex Hd. (SST)......................................................................................1

25 00-444267 Stud - Film Roller (Rear)............................................................................................................1

26 00-444264 Washer.......................................................................................................................................1

27 SC-116-32 Cap Screw 10-32 x 3/8 Hex Hd. (SST)......................................................................................4

28 00-445278 Roller Assy. (Rubber).................................................................................................................1

29 00-444264 Washer.......................................................................................................................................1

30 00-444267 Stud - Film Roller (Rear)............................................................................................................1

31 SC-116-32 Cap Screw 10-32 x 3/8 Hex Hd. (SST)......................................................................................1

32 00-444268 Stud - Film Roller (Front)............................................................................................................1

33 00-444264 Washer.......................................................................................................................................1

34 00-444263 Roller Assy. - Film Selector........................................................................................................1

35 00-444264 Washer.......................................................................................................................................1

36 00-444268 Stud - Film Roller (Front)............................................................................................................1

37 00-445491 Separator - Film..........................................................................................................................1

38 00-444253 Guide - Film................................................................................................................................1

39 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................2

40 SC-067-13 Mach. Screw 10-32 x 1/2 Slotted Hex Hd. (SST).......................................................................2

41 00-444269 Guide - Lower.............................................................................................................................1

42 RR-010-12 Retaining Ring............................................................................................................................3

43 00-444258 Shaft - Latch...............................................................................................................................1

44 RR-010-12 Retaining Ring............................................................................................................................3

45 00-446203 Spacer - Film Changer...............................................................................................................1

46 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

47 00-446206 Bracket - Support (RH)...............................................................................................................1

48 00-446207 Bracket - Support (LH)...............................................................................................................1

49 00-041488 Bearing (Nyliner)........................................................................................................................4

PART NO. NAME OF PART AMT.

1 SC-067-13 Mach. Screw 10-32 x 1/2 Slotted Hex Hd. (SST).......................................................................1

2 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................1

3 00-444271 Bushing......................................................................................................................................1

4 00-444272 Link - Latch.................................................................................................................................1

5 00-444273 Spring - Latch.............................................................................................................................1

6 00-444270 Washer.......................................................................................................................................1

7 00-444259 Link - Latch.................................................................................................................................1

8 KW-003-04 Key 1/8 x 1/2..............................................................................................................................2

9 00-444261 Handle........................................................................................................................................1

- 53 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

GRIPPER

F-43218 Rev. B (August 2015) - 54 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

GRIPPER

ILLUS.
PL-59444

10 00-443914 Shaft - Gripper Pivot...................................................................................................................1

11 00-183765 Bearing - Nyliner.........................................................................................................................1

12 RR-012-29 Retaining Ring............................................................................................................................1

13 00-183765 Bearing - Nyliner.........................................................................................................................1

14 RR-012-29 Retaining Ring............................................................................................................................1

15 SC-059-39 Cap Screw 3/8-16 x 1-1/2 Hex Washer Hd. (SST).....................................................................1

16 00-443866 Pulley - Idler (Incls. Items 17 & 18)............................................................................................2

17 RR-012-32 Retaining Ring............................................................................................................................2

18 00-443943 Bearing - Ball..............................................................................................................................2

19 00-444366 Spacer - Idler..............................................................................................................................2

20 00-446171 Bracket - Rail Support (RH)........................................................................................................1

21 00-446170 Bracket - Rail Support (LH)........................................................................................................1

22 00-445326 Spring - Weigher Belt.................................................................................................................2

23 SC-131-25 Cap Screw 1/4-20 x 3-1/2 Hex Hd. (SST)..................................................................................2

24 00-446133 Bracket Assy. (LH).....................................................................................................................1

25 00-446134 Bracket Assy. (RH).....................................................................................................................1

26 00-258300-00004 Standoff......................................................................................................................................1

27 SC-119-51 Mach. Screw 6-32 x 1 Slotted Pan Hd. (SST)............................................................................1

28 NS-009-07 Nut 6-32 Hex..............................................................................................................................1

29 00-444356 Stud - Guide...............................................................................................................................2

30 SC-114-97 Mach. Screw 10-24 x 3/4 Slotted Flat Hd...................................................................................2

31 00-441580-00004 O-Ring........................................................................................................................................1

32 00-443921 Piston.........................................................................................................................................1

33 00-443922 Seal - Piston...............................................................................................................................1

34 00-445021 Cylinder......................................................................................................................................1

35 00-443924 Bracket - Pivot............................................................................................................................1

36 00-043452 Pad - Gripper (Gray) (Set of 15).................................................................................................1

37 00-443923 Plate - Gripper............................................................................................................................1

38 SC-129-80 Mach. Screw 10-24 x 3/4 Phil. Flat Hd. (SST)..........................................................................15

39 SC-022-33 Mach. Screw 1/4-20 x 3/4 Slotted Flat Hd. (SST)......................................................................4

40 00-443913 Fitting - Elbow.............................................................................................................................3

41 00-443742 Bumper.......................................................................................................................................1

42 SC-125-07 Cap Screw 1/4-20 x 1-1/4 Hex Socket Hd. (SST)......................................................................2

43 SC-022-40 Mach. Screw 1/4-20 x 3/4 Phil. Flat Hd. (SST)...........................................................................2

44 00-445930 Bracket - Gripper Slide...............................................................................................................1

45 00-444049 Plate - Nut..................................................................................................................................1

46 00-443926 Clip.............................................................................................................................................2

47 SC-046-07 Set Screw 8-32 x 1/4 Slotted Hdls., Cup Pt................................................................................3

48 00-444364 Rail - Gripper..............................................................................................................................1

49 00-446831 Block - Belt Mounting.................................................................................................................4

50 00-443930 Plate - Nut..................................................................................................................................3

51 00-446762 Block Assy. - Gripper & Pusher (Incls. Items 52 & 53)...............................................................1

52 00-443917 Block - Magnet...........................................................................................................................1

53 00-443938 Magnet.......................................................................................................................................1

54 00-446072-00004 Belt - Pusher (Cut to Length, 277T = 54 1/2 In.) (Gripper).........................................................1

PART NO. NAME OF PART AMT.

1 00-443815 Shield (LH).................................................................................................................................1

2 00-444356 Stud - Guide...............................................................................................................................2

3 00-446742 Stop - Package...........................................................................................................................1

4 00-444369 Block - Bumper...........................................................................................................................2

5 00-443742 Bumper.......................................................................................................................................2

6 SC-129-48 Cap Screw 10-32 x 3/16 Hex Socket Hd. (SST)........................................................................1

7 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................1

8 00-444985 Spring - Gripper Opening...........................................................................................................1

9 00-445863 Plate Assy. (Lower)....................................................................................................................3

00-913102-00162 Kit - Bracket Rail (LH) (Incls. Items 22, 23, 24, 26, 27, & 28).....................................................1

00-913102-00167 Kit - Bracket Rail (RH) (Incls. Items 22, 23, & 25 thru 28)..........................................................1

SC-123-92 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd................................................................................2

- 55 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SIDE CLAMPS

F-43218 Rev. B (August 2015) - 56 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SIDE CLAMPS

ILLUS.
PL-59445

10 00-444038 Mount - Hinge.............................................................................................................................2

11 00-444033 Spring - Clamp Return................................................................................................................2

12 00-444011 Stud............................................................................................................................................2

13 00-444010 Bushing......................................................................................................................................2

14 00-447234 Piston & Seal Assy.....................................................................................................................1

15 00-444007 Cylinder......................................................................................................................................2

16 00-444652 Fitting - Elbow 10-32 Adjustable.................................................................................................2

PART NO. NAME OF PART AMT.

1 00-444037 Clamp - Upper............................................................................................................................2

2 00-447243 Pad - Clamp Upper.....................................................................................................................2

3 00-444046 Block - Clamp Slide....................................................................................................................2

4 00-444045 Bracket - Slide Mounting............................................................................................................2

5 00-444003 Pad - Clamp Lower.....................................................................................................................2

6 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................1

7 00-444026 Plate - Side Clamp.....................................................................................................................2

8 00-444009 Yoke...........................................................................................................................................2

9 00-444039 Guide..........................................................................................................................................2

- 57 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SPRING ASSEMBLY

F-43218 Rev. B (August 2015) - 58 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SPRING ASSEMBLY

ILLUS.

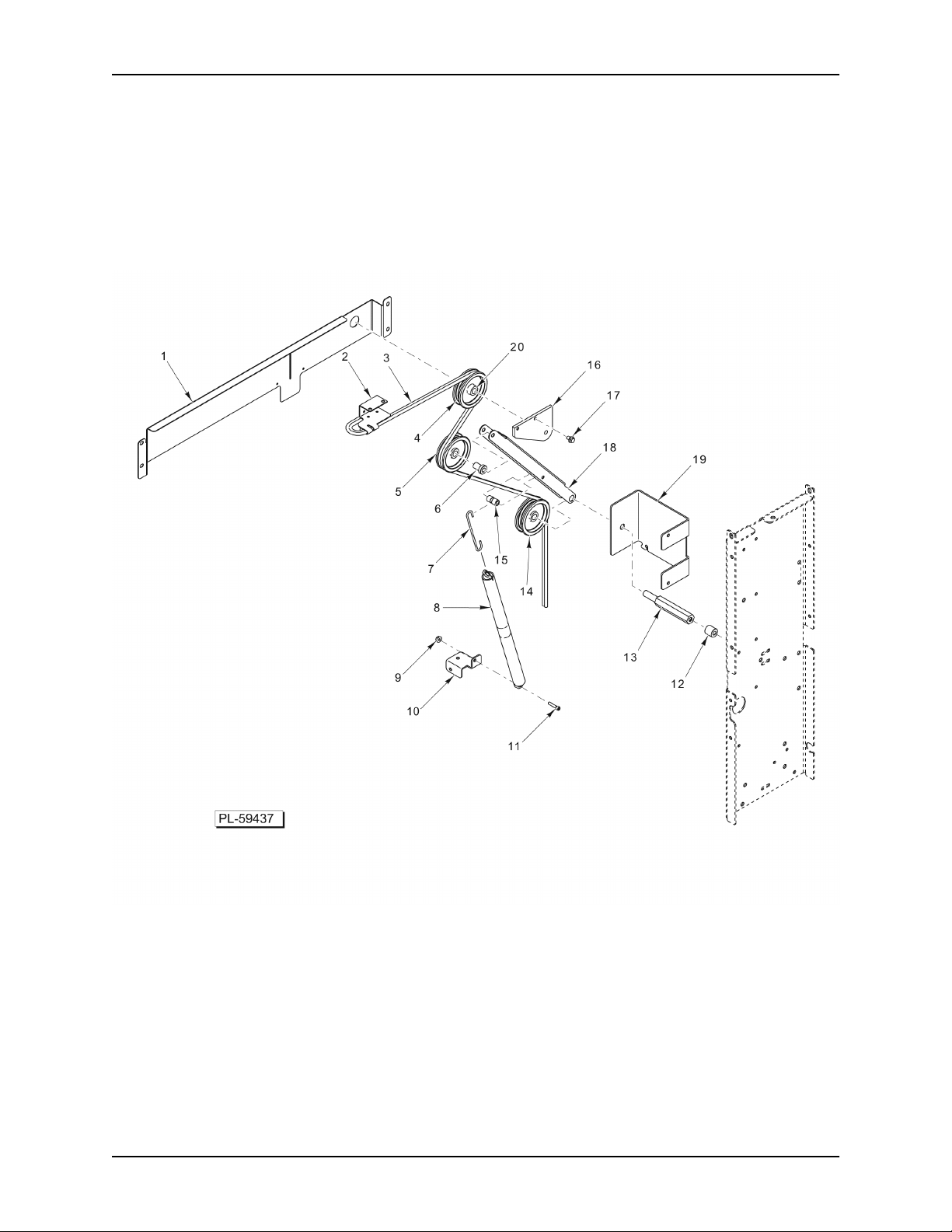

PL-59437

10 00-444901 Bracket - Gripper Spring.............................................................................................................1

11 SC-041-03 Cap Screw 1/4-20 x 1-1/8 Hex Hd. (SST)..................................................................................1

12 00-444899 Spacer - Short Gripper Pulley....................................................................................................1

13 00-444898 Spacer - Gripper Pulley..............................................................................................................1

14 00-444904 Pulley - Gripper Hose.................................................................................................................1

15 00-444905 Spacer - Torsion Spring.............................................................................................................1

16 00-444897 Plate - Pulley..............................................................................................................................1

17 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................1

18 00-444895 Gripper Arm - Hose Take Up......................................................................................................1

19 00-444896 Bracket - Pivot Arm....................................................................................................................1

20 00-445041 Bushing......................................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-445056 Shield - Right..............................................................................................................................1

2 00-444959 Bracket - Gripper Hose...............................................................................................................1

3 00-445055 Tubing - Gripper.........................................................................................................................1

4 00-444904 Pulley - Gripper Hose.................................................................................................................1

5 00-444904 Pulley - Gripper Hose.................................................................................................................1

6 00-444902 Bushing - Gripper Pulley............................................................................................................1

7 00-445042 Hook - Spring.............................................................................................................................1

8 00-049043 Spring Assy. - Pulldown.............................................................................................................1

9 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................2

- 59 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SEALER BELT SUPPORT

F-43218 Rev. B (August 2015) - 60 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

SEALER BELT SUPPORT

ILLUS.
PL-59424

PART NO. NAME OF PART AMT.

1 00-445343 Bracket - Sealer (LH)..................................................................................................................1

2 00-446310 Mount - Sealer Belt.....................................................................................................................1

3 00-446211 Cover - Belt................................................................................................................................1

4 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2

5 00-446310 Mount - Sealer Belt.....................................................................................................................1

6 00-445342 Bracket - Sealer (RH).................................................................................................................1

7 00-446043 Collar..........................................................................................................................................1

8 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST).........................................................................2

- 61 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

DISCHARGE ROLLER ASSEMBLY

F-43218 Rev. B (August 2015) - 62 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

DISCHARGE ROLLER ASSEMBLY

ILLUS.

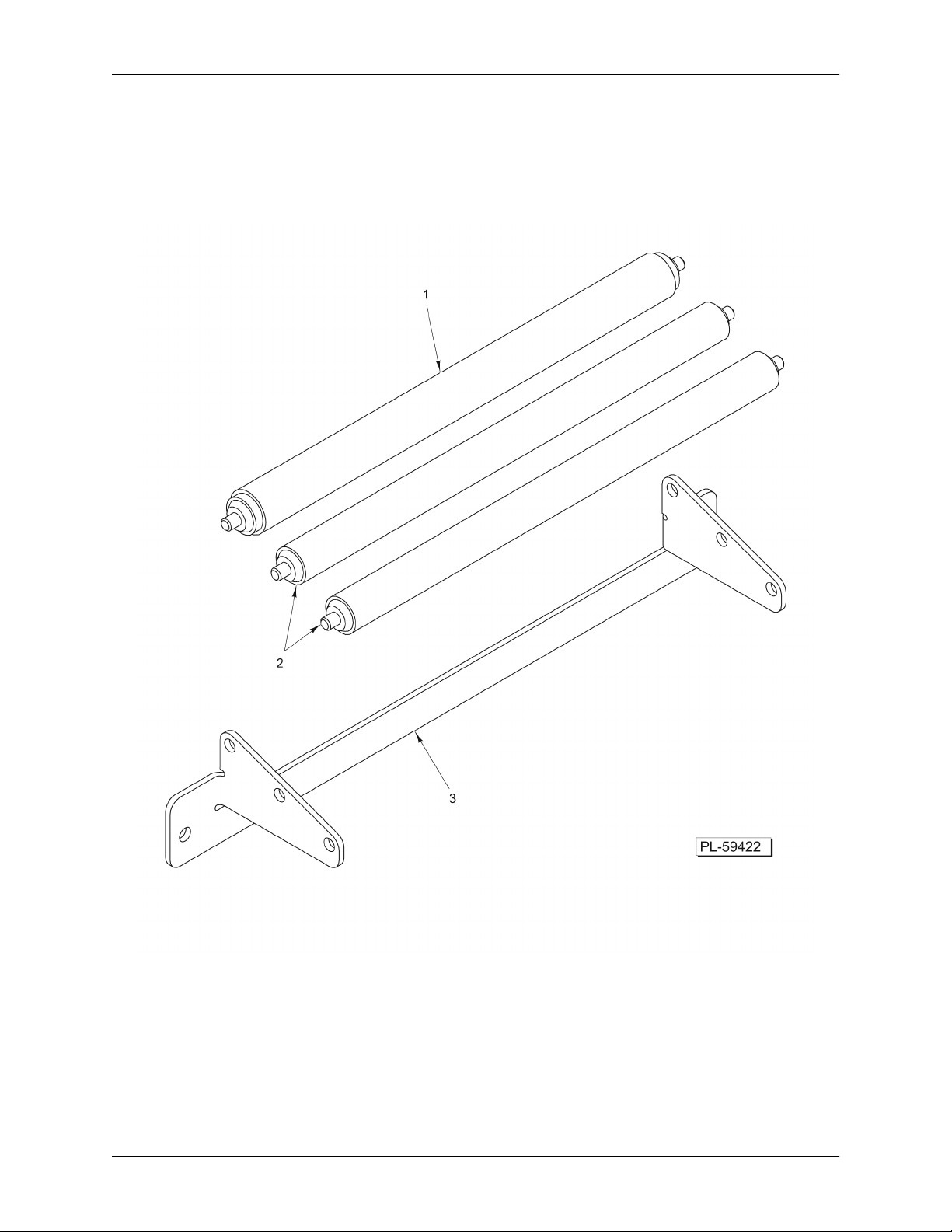

PL-59422

PART NO. NAME OF PART AMT.

1 00-444790 Spring Roller Assy. (With Cover)................................................................................................1

2 00-445040 Roller Assy.................................................................................................................................2

3 00-447238 Bracket - Discharge Rollers........................................................................................................1

- 63 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

BELT SEALER

F-43218 Rev. B (August 2015) - 64 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

BELT SEALER

ILLUS.
PL-59450

10 00-087017 Element - Bottom Plate (700 W.)................................................................................................1

11 00-086780 Ball Bearing................................................................................................................................1

12 00-444180 Block - Bearing...........................................................................................................................1

13 00-444182 Spacer - Bearing........................................................................................................................1

14 WL-003-47 Lockwasher 5/16 Helical............................................................................................................1

15 NS-014-11 Nut 5/16-18 Hex (Brass).............................................................................................................1

16 SC-123-93 Mach. Screw 1/4-20 x 1 Hex Washer Hd...................................................................................1

17 00-446223-00001 Rail Assy. (Left)..........................................................................................................................1

18 RR-009-10 Retaining Ring 3/8 In. (SST)......................................................................................................1

19 00-041488 Bearing (Nyliner)........................................................................................................................1

20 00-444184 Bracket - Spring Retainer...........................................................................................................1

21 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................1

22 00-444174 Spring - Sealer Belt....................................................................................................................1

23 00-444186 Shaft - Sealer.............................................................................................................................1

24 NS-017-20 Jam Nut 3/8-24 Hex...................................................................................................................1

25 00-444189 Bushing - Rod End Bearing........................................................................................................1

26 RR-009-10 Retaining Ring 3/8 In. (SST)......................................................................................................1

27 00-334055 Rod - End (Female)....................................................................................................................1

28 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................1

29 00-444849 Belt - Sealer (Durasil).................................................................................................................1

30 00-444194 Pulley Assy.................................................................................................................................1

31 00-446224 Pan - Sealer Belt........................................................................................................................1

32 00-048514 Sensor - Thermal Hi-Limit..........................................................................................................1

33 00-443350 Probe Assy. - Thermistor............................................................................................................1

34 00-444181 Bar - Cross.................................................................................................................................1

35 00-444191 Shaft - Pulley Drive.....................................................................................................................1

36 00-086780 Ball Bearing................................................................................................................................1

37 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................1

38 00-444182 Spacer - Bearing........................................................................................................................1

39 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................1

40 00-444180 Block - Bearing...........................................................................................................................1

41 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................1

42 00-444575 Support - Operator Cover...........................................................................................................1

43 00-446223-00002 Rail Assy. (Right)........................................................................................................................1

44 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................1

45 SC-123-93 Mach. Screw 1/4-20 x 1 Hex Washer Hd...................................................................................1

46 00-041488 Bearing (Nyliner)........................................................................................................................1

47 RR-009-10 Retaining Ring 3/8 In. (SST)......................................................................................................1

48 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................1

49 00-444184 Bracket - Spring Retainer...........................................................................................................1

50 00-444186 Shaft - Sealer.............................................................................................................................1

51 00-444174 Spring - Sealer Belt....................................................................................................................1

52 NS-017-20 Jam Nut 3/8-24 Hex...................................................................................................................1

53 00-444189 Bushing - Rod End Bearing........................................................................................................1

54 RR-009-10 Retaining Ring 3/8 In. (SST)......................................................................................................1

55 00-334055 Rod - End (Female)....................................................................................................................1

56 00-446475 Cable Assy - Sealer Belt Harness (Extension)...........................................................................1

PART NO. NAME OF PART AMT.

1 00-446221 Plate - Heater.............................................................................................................................1

2 00-444177 Spacer........................................................................................................................................1

3 SC-029-47 Mach. Screw 5/16-18 x 1 Slotted Flat Hd. (Brass).....................................................................1

4 00-444177 Spacer........................................................................................................................................1

5 SC-112-03 Mach. Screw 10-24 x 1/2 Pan Hd...............................................................................................1

6 00-446222 Bracket - Side.............................................................................................................................1

7 00-087017 Element - Bottom Plate (700 W.)................................................................................................1

8 00-446253 Standoff - Sealer Belt.................................................................................................................2

9 00-446222 Bracket - Side.............................................................................................................................1

- 65 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

BELT SEALER MOTOR

F-43218 Rev. B (August 2015) - 66 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

BELT SEALER MOTOR

ILLUS.

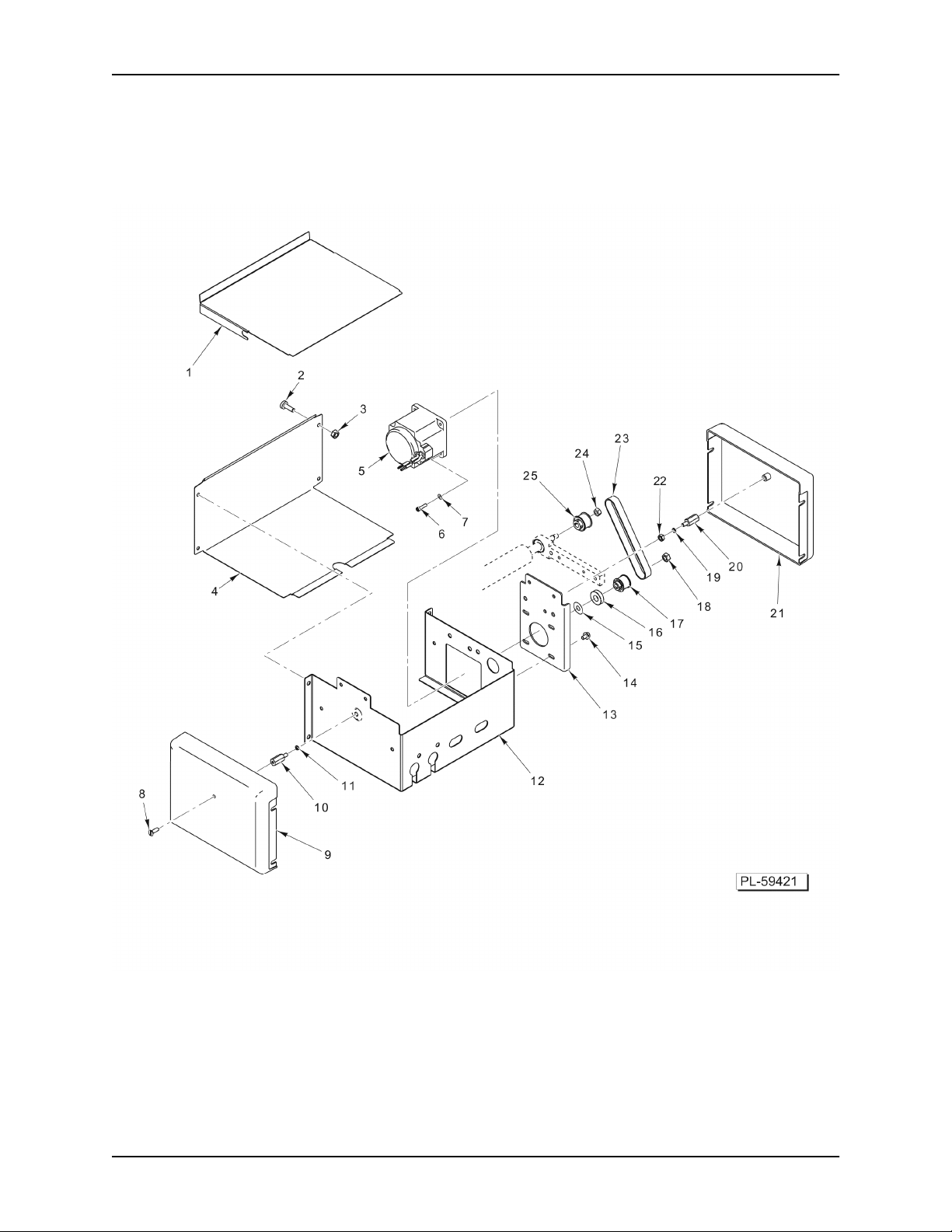

PL-59421

10 00-444449 Standoff - Sealer Cover..............................................................................................................1

11 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................1

12 00-444203 Cover - Motor.............................................................................................................................1

13 00-446165 Bracket - Motor...........................................................................................................................1

14 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................4

15 WS-018-31 Washer (SST).............................................................................................................................1

16 00-444077 Bearing - Sealed.........................................................................................................................1

17 00-443862 Pulley (16T)................................................................................................................................1

18 NS-038-10 Lock Nut 3/8-16 Hex...................................................................................................................1

19 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................1

20 00-444449 Standoff - Sealer Cover..............................................................................................................1

21 00-444335 Cover - Belt Sealer Motor...........................................................................................................1

22 00-047347-00009 Nut 1/4-20 Hex...........................................................................................................................1

23 00-446218 Belt - Sealer (360mm)................................................................................................................1

24 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................1

25 00-443862 Pulley (18T)................................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-444803 Shield - Sealer Motor..................................................................................................................1

2 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. (SST)...................................................................4

3 00-047347-00009 Nut 1/4-20 Hex...........................................................................................................................1

4 00-444336 Cover - End (Feed).....................................................................................................................1

5 00-443220 Motor - Brushless (220 W.)........................................................................................................1

6 SC-123-01 Cap Screw 10-24 x 3/4 Hex Socket Hd. (SST)..........................................................................4

7 WL-006-06 Lockwasher #10 Helical (SST)...................................................................................................4

8 SC-093-27 Mach. Screw 10-24 x 7/8 Phil. Truss Hd. (SST).........................................................................1

9 00-444335 Cover - Belt Sealer Motor...........................................................................................................1

- 67 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

LABEL APPLIER

F-43218 Rev. B (August 2015) - 68 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

LABEL APPLIER

ILLUS.
PL-59464

10 SC-049-03 Set Screw 1/4-20 x 1-1/4 Slotted Hdls., Oval Pt. (SST).............................................................2

11 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................2

12 NS-009-02 Nut 4-40 Hex..............................................................................................................................1

13 00-443326 Sensor Assy. Applier Home.......................................................................................................1

14 WL-003-03 Lockwasher #4 Helical...............................................................................................................2

15 00-443031 Bracket - Sensor.........................................................................................................................1

16 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd.........................................................................................1

17 SC-098-06 Mach. Screw 10-24 x 1-3/4 Slotted Rd. Hd. (SST).....................................................................2

18 SC-123-92 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd................................................................................3

19 SC-100-04 Mach. Screw 10-24 x 3/8 Hex Washer Hd.................................................................................2

20 00-443001 Plate - Printer Support................................................................................................................1

21 00-446029 Cylinder - Applier 0.75 x 3.5 In. Stroke.......................................................................................1

22 NS-017-60 Jam Nut 1/4-28 Hex...................................................................................................................1

23 00-444121 Fitting - Elbow.............................................................................................................................2

24 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST)...................................................................12

25 00-442995 Retainer - Foot...........................................................................................................................3

26 NS-049-06 Lock Nut 1/4-20 (SST)..............................................................................................................12

27 00-445759 Valve - MAC (6 In. Lead) (Before S/N 451088494)....................................................................1

28 00-447301 Valve (Humphrey) (Starting S/N 451088494).............................................................................1

29 00-446346 Plate - Valve Seal (Before S/N 451088494)...............................................................................1

30 00-447303 Plate - Valve Seal (Humphrey) (Starting S/N 451088494).........................................................1

31 00-445759 Valve - MAC (6 In. Lead) (Before S/N 451088494)....................................................................1

32 00-447301 Valve (Humphrey) (Starting S/N 451088494).............................................................................1

33 00-445159 Standoff......................................................................................................................................2

34 00-444052 Fitting - Tube (Banjo Elbow).......................................................................................................1

35 00-444051 Manifold - Mac Valve (Before S/N 451088494)..........................................................................1

36 00-446798 Manifold - Valve (Humphrey) (Starting S/N 451088494)............................................................1

37 00-443017 Fitting - Tube Male Connector....................................................................................................4

38 00-444464 Fitting - Tube (Straight Male)......................................................................................................1

39 00-445091 Fitting - Straight (1/8 In.) Barbed................................................................................................1

40 00-444052 Fitting - Tube (Banjo Elbow).......................................................................................................1

41 00-445158 Standoff......................................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-444460 Tray - Cable Support..................................................................................................................1

2 00-444326 Support Assy. - Pivot Display.....................................................................................................1

3 00-442734 Knob - Console Mount................................................................................................................1

4 00-444321 Support - Printer.........................................................................................................................1

5 NS-046-30 Jam Nut 7/16-20 Hex (SST).......................................................................................................2

6 NS-009-30 Nut 10-32 Hex............................................................................................................................2

7 00-443010 Connector - Cylinder..................................................................................................................2

8 00-444124 Chain - Connecting Link #25......................................................................................................2

9 00-444123 Chain #25 Single Strand............................................................................................................1

- 69 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

LABEL APPLIER ARM WITH MOTOR

F-43218 Rev. B (August 2015) - 70 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

LABEL APPLIER ARM WITH MOTOR

ILLUS.
PL-59465

10 00-041681 Pinion.........................................................................................................................................1

11 SC-053-15 Mach. Screw 5/16-18 x 1/2 Slotted Truss Hd. (SST).................................................................1

12 00-443028 Spring - Torsion..........................................................................................................................1

13 00-446341 Handle - Detent Hub...................................................................................................................1

14 00-520228 Adhesive (Loctite 242).............................................................................................................AR

15 00-446342 Stop - Rotation...........................................................................................................................1

16 SC-066-01 Mach. Screw 6-32 x 1/4 Phil. Truss Hd. (SST)...........................................................................2

17 00-446288 Belt - Drive..................................................................................................................................1

18 00-446335 Pulley - Motor Belt......................................................................................................................1

19 NS-038-02 Lock Nut 10-24...........................................................................................................................4

20 00-443011 Bracket - Motor...........................................................................................................................1

21 00-443368 Motor Assy.-Stepper L.A............................................................................................................1

22 SC-100-04 Mach. Screw 10-24 x 3/8 Hex Washer Hd.................................................................................4

23 00-443002 Pivot - Applier.............................................................................................................................1

24 00-042120 Spring - Applier...........................................................................................................................1

25 SD-008-17 Self-Tapping Screw 6-20 x 3/8 Phil. Bndg. Hd., Type B.............................................................2

26 00-041850 Pin - Upper Pivot........................................................................................................................1

27 00-444525 Spacer - Torsion Spring.............................................................................................................1

28 RR-004-01 Retaining Ring............................................................................................................................1

29 00-041850 Pin - Upper Pivot........................................................................................................................1

30 00-447235 Spring - Applier...........................................................................................................................1

31 00-175560 Bushing - Nyliner........................................................................................................................2

32 RR-004-01 Retaining Ring............................................................................................................................1

33 00-446314 Link - Applier..............................................................................................................................2

34 00-175560 Bushing - Nyliner........................................................................................................................2

35 RR-004-01 Retaining Ring............................................................................................................................1

36 00-041845 Support - Slide............................................................................................................................1

37 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................1

38 SC-081-44 Mach. Screw 10-32 x 1-1/2 Slotted Rd. Hd................................................................................1

39 00-041853 Spacer - Arm Pivot.....................................................................................................................1

40 00-443896 Block - Cylinder Stop..................................................................................................................1

41 NS-038-02 Lock Nut 10-24...........................................................................................................................1

42 00-443742 Bumper.......................................................................................................................................1

43 00-443004 Block - Slide...............................................................................................................................1

44 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

45 NS-009-30 Nut 10-32 Hex............................................................................................................................1

46 00-042073 Arm - Label Applier.....................................................................................................................1

47 SD-008-17 Self-Tapping Screw 6-20 x 3/8 Phil. Bndg. Hd., Type B.............................................................1

48 00-443966 Applier - Label............................................................................................................................1

49 SC-015-08 Mach. Screw 6-32 x 1/4 Slotted Oval Hd...................................................................................4

50 RR-004-01 Retaining Ring............................................................................................................................1

51 00-043253 Bushing - Nyliner........................................................................................................................1

52 00-443007 Pin - Applier................................................................................................................................1

53 00-443035 Spring - Torsion..........................................................................................................................1

54 00-443036 Support - Applier Pad.................................................................................................................1

55 00-042076 Block - Pin..................................................................................................................................1

PART NO. NAME OF PART AMT.

1 SC-123-92 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd.............................................................................AR

2 00-441525 Wand Assy. - Pop Up (Incls. Item 6)..........................................................................................1

3 00-443494 Cup - Short Wand.......................................................................................................................1

4 00-443583 Sleeve - Bearing.........................................................................................................................1

5 SC-100-04 Mach. Screw 10-24 x 3/8 Hex Washer Hd..............................................................................AR

6 00-441526 Seal - Rear Housing...................................................................................................................1

7 00-441580-00002 O-Ring........................................................................................................................................2

8 00-441496 Tube - Swing Assy.....................................................................................................................1

9 00-443041 Wand Shaft & Bearing Assy.......................................................................................................1

- 71 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

LABEL APPLIER ARM WITH MOTOR

ILLUS.
PL-59465

56 00-042114 Pin - Applier................................................................................................................................1

57 00-444048 Plate - Nut..................................................................................................................................1

58 00-443006 Pivot Assy. - Applier Pad (Incls. Item 56)...................................................................................1

59 SC-100-04 Mach. Screw 10-24 x 3/8 Hex Washer Hd.................................................................................3

60 00-446345 Plunger - Spring.........................................................................................................................1

61 00-446343 Block - Rotation Detent..............................................................................................................1

62 00-444464 Fitting - Tube (Straight Male)......................................................................................................1

63 RR-010-12 Retaining Ring (SST).................................................................................................................1

64 WL-003-09 Lockwasher #6 Helical...............................................................................................................1

65 SC-092-36 Cap Screw 6-32 x 1/2 Hex Socket Hd........................................................................................1

66 00-443021 Key - 1/4 Sq. x 1 In. Lg...............................................................................................................1

67 00-446336 Pulley - Wand Drive....................................................................................................................1

68 00-443038 Pivot - Block Assy. (Incls. Item 70).............................................................................................1

69 RR-010-12 Retaining Ring............................................................................................................................1

*70 00-442611-00007 Bearing - Sleeve.........................................................................................................................1

71 00-442611-00011 Bearing - Flanged.......................................................................................................................1

72 00-446340 Hub - Rotation Detent.................................................................................................................1

73 00-442611-00011 Bearing - Flanged.......................................................................................................................1

74 00-443027 Sleeve-Spring.............................................................................................................................1

75 00-041680 Gear...........................................................................................................................................1

PART NO. NAME OF PART AMT.

00-443033 Pad - Arm Applier Assy. (Incls. Items 48, 49, 54, & 57).............................................................1

* Order 00-443038 Pivot - Block Assy

F-43218 Rev. B (August 2015) - 72 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

NOTES

- 73 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

COMPRESSOR ASSEMBLY (THOMAS)

F-43218 Rev. B (August 2015) - 74 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

COMPRESSOR ASSEMBLY (THOMAS)

ILLUS.
PL-59419

10 00-444426 Screw - Cover Shoulder.............................................................................................................2

11 00-444038 Mount - Hinge.............................................................................................................................4

12 00-444728 Hose - Braided (1/4 I.D.)............................................................................................................1

13 FP-028-11 Pipe Plug 3/8 Sq. Hd. (Brass)....................................................................................................1

PART NO. NAME OF PART AMT.

1 00-444513 Muffler........................................................................................................................................2

2 00-444518 Pump Assy.................................................................................................................................1

3 FP-027-42 Bushing - Pipe 3/8 to 1/4 (Brass)...............................................................................................1

4 00-444052 Fitting - Tube (Banjo Elbow).......................................................................................................1

5 00-444513 Muffler........................................................................................................................................2

6 00-444728 Hose - Braided (1/4 I.D.)............................................................................................................1

7 FP-040-26 Pipe 3/8 x 3 TBE (Brass)............................................................................................................1

8 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................4

9 00-443993 Plate - Compressor Mounting.....................................................................................................1

00-446005 Compact Connector...................................................................................................................1

- 75 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

COMPRESSOR ASSEMBLY (GAST)

F-43218 Rev. B (August 2015) - 76 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

COMPRESSOR ASSEMBLY (GAST)

ILLUS.
PL-60374

10 00-443993 Plate - Compressor Mounting.....................................................................................................1

11 00-446424 Tube - Muffler.............................................................................................................................2

12 00-446290 Muffle - Compressor (Gast)........................................................................................................2

13 00-446328 Baffle - Airflow............................................................................................................................1

14 00-444496 Fan Assy. - Heater.....................................................................................................................1

15 00-446382 Seal - Foam................................................................................................................................1

16 00-446997 Support Assy..............................................................................................................................1

17 SD-024-18 Self-Tapping Screw 10-24 x 1/2 Hex Hd., Type TT....................................................................4

18 SC-123-92 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd................................................................................4

19 NS-038-08 Lock Nut 1/4-20 x 1 Hex.............................................................................................................4

20 00-446990 Kit - Compressor Hose...............................................................................................................1

21 00-447236 Kit - Compressor Repair.............................................................................................................1

PART NO. NAME OF PART AMT.

1 00-447300 Kit - Compressor (Gast) (Used to install Gast Compressor on AWS built with Thomas

Compressor) (Incls. Items 2 thru 19)..........................................................................................1

2 00-447240 Compressor Assy. (Gast) (Incls. Items 3 thru 12)......................................................................1

3 00-446992 Fitting - Elbow 3/8 Tube.............................................................................................................1

4 00-446995 Fitting - Pipe 1/4.........................................................................................................................1

5 FP-090-76 Pipe Plug 1/4 Hex Hd.................................................................................................................4

6 00-444052 Fitting - Tube (Banjo Elbow).......................................................................................................1

7 WS-022-04 Washer (SST).............................................................................................................................4

8 00-444038 Mount - Hinge.............................................................................................................................4

9 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................4

- 77 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

AIR DRYER FILTER ASSEMBLY

F-43218 Rev. B (August 2015) - 78 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

AIR DRYER FILTER ASSEMBLY

ILLUS.
PL-59418

10 FP-019-08 Tee - Pipe (Brass)......................................................................................................................1

11 FP-090-76 Pipe Plug 1/4 Hex Hd.................................................................................................................1

12 FP-040-08 Pipe 1/4 x 7/8 TBE (Brass).........................................................................................................1

13 FP-019-08 Tee - Pipe (Brass)......................................................................................................................1

14 FP-040-08 Pipe 1/4 x 7/8 TBE (Brass).........................................................................................................1

15 00-444483 Valve - Dump (Before S/N 451088490)......................................................................................1

16 00-333153 Fitting - Hose (90 Deg.)..............................................................................................................1

17 00-444473 Elbow - Swivel Male...................................................................................................................1

18 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1

19 SC-018-25 Mach. Screw 10-32 x 3/8 Phil. Pan Hd.......................................................................................2

20 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................2

21 NS-038-04 Lock Nut 1/4-20..........................................................................................................................1

22 00-446728 Bracket - Dump Valve Support...................................................................................................1

23 00-446986 Coil - Cooling..............................................................................................................................1

24 00-446993 Fitting - Elbow 1/4.......................................................................................................................1

25 FP-027-42 Bushing - Pipe 3/8 to 1/4 (Brass)...............................................................................................1

26 FP-075-70 Pipe 1/4 x 3 TBE (Brass)............................................................................................................1

27 00-446996-00001 Tubing 3/8..................................................................................................................................2

28 00-446994 Fitting 3/8 Tube Straight.............................................................................................................1

29 00-446991 Fitting - Elbow 3/8 Tube.............................................................................................................1

30 00-446989 Clamp - Hose.............................................................................................................................4

31 SD-009-41 Self-Tapping Screw 8-32 x 3/8 Phil. Pan Hd., Type F (SST).....................................................1

32 WL-013-08 Lockwasher #8 Internal Shakeproof...........................................................................................1

33 00-447304 Bracket - Valve...........................................................................................................................1

34 00-447299 Valve (120 In. Lead) (Humphrey) (Starting S/N 451088490).....................................................1

35 00-446987 Kit - Cooling Coil Replacement (Incls. Items 23 thru 30)............................................................1

36 00-447279 Kit - Cooling Coil Mounting (Incls. Items 24 & 27 thru 30)..........................................................1

PART NO. NAME OF PART AMT.

1 00-446994 Fitting 3/8 Tube Straight.............................................................................................................1

2 00-446298 Bracket - Filter Dryer..................................................................................................................1

3 SD-009-41 Self-Tapping Screw 8-32 x 3/8 Phil. Pan Hd., Type F (SST).....................................................2

4 WS-019-10 Washer (SST).............................................................................................................................2

5 00-446991 Fitting - Elbow 3/8 Tube.............................................................................................................1

6 00-444510 Filter - Dryer...............................................................................................................................1

7 FP-040-08 Pipe 1/4 x 7/8 TBE (Brass).........................................................................................................1

8 FP-015-05 Elbow - Pipe 1/4 x 90 Deg. (Brass)............................................................................................1

9 FP-040-14 Pipe 1/4 x 2 TBE (Brass)............................................................................................................1

- 79 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

MAC VALVE

F-43218 Rev. B (August 2015) - 80 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

MAC VALVE

ILLUS.
PL-59420

10 00-446828 Manifold (Humphrey) (Starting S/N 451088494)........................................................................1

11 FP-090-76 Pipe Plug 1/4 Hex Hd.................................................................................................................1

12 FP-040-13 Pipe 1/4 x 1-1/2 TBE (Brass)......................................................................................................1

13 00-444474 Regulator - Pressure (Incls. Gauge)...........................................................................................1

14 00-444473 Elbow - Swivel Male...................................................................................................................1

15 00-041685 Silencer - Valve..........................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-444490-00031 Tubing (Yellow).......................................................................................................................AR

2 00-333153 Fitting - Hose (90 Deg.)..............................................................................................................1

3 00-444467 Fitting - Swivel 90 Deg. Elbow Tube..........................................................................................1

4 00-041720 Silencer - Valve..........................................................................................................................2

5 00-444467 Fitting - Swivel 90 Deg. Elbow Tube..........................................................................................2

6 00-446378 Bracket - Four Valve Manifold....................................................................................................1

7 00-445982 Valve Assy. - MAC (Before S/N 451088494).............................................................................4

8 00-447302 Valve (Humphrey) (Starting S/N 451088494).............................................................................4

9 00-446379 Manifold - MAC Valve (Before S/N 451088494).........................................................................1

- 81 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

FILM HEATER OPTION

F-43218 Rev. B (August 2015) - 82 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

FILM HEATER OPTION

ILLUS.
PL-59451

10 00-444410 Plate - Heater.............................................................................................................................1

11 FE-016-24 Bushing - Electrical Split.............................................................................................................1

12 SD-024-38 Self-Tapping Screw 10-24 x 3/8 Phil. Pan Hd., Type TT............................................................1

13 00-442454 Standoff......................................................................................................................................2

PART NO. NAME OF PART AMT.

1 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST).........................................................................1

2 00-444411 Cover - Heater............................................................................................................................1

3 SD-038-05 Self-Tapping Screw 8-32 x 1-3/4 Phil. Pan Hd., Type TT..........................................................1

4 00-444413 Heater Assy................................................................................................................................1

5 00-444412 Fan Assy. - Heater.....................................................................................................................1

6 NS-031-08 Stop Nut 8-32 Special (SST)......................................................................................................1

7 00-443298 Cable Assy.................................................................................................................................1

8 00-442423 Thermostat - Bulb & Capillary....................................................................................................1

9 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST).........................................................................1

00-444409 Heater Assy................................................................................................................................1

- 83 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

AWS SHELF OPTION

F-43218 Rev. B (August 2015) - 84 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

AWS SHELF OPTION

ILLUS.
PL-59453

10 SC-022-19 Mach. Screw 10-24 x 1/2 Slotted Flat Hd. (SST).......................................................................2

11 00-184135 Spacer - Hinge Mounting............................................................................................................2

12 00-184134 Block - Hinge Mounting..............................................................................................................2

13 WS-019-06 Washer.......................................................................................................................................6

14 SC-067-07 Mach. Screw 10-24 x 1/2 Hex Hd. (SST)...................................................................................6

15 SC-122-99 Cap Screw 10-24 x 1/2 Hex Socket Hd......................................................................................4

16 00-184132 Hinge - Shelf...............................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-440960 Shelf Assy. (Platter)....................................................................................................................1

2 00-445084 Brace Assy.................................................................................................................................1

3 SC-129-51 Cap Screw 5/16-18 x 3/4 Hex Washer Hd. (SST)......................................................................2

4 NS-048-40 Lock Nut 5/16-18 Flange (SST)..................................................................................................2

5 00-445107-00001 Support - Shelf (LH)...................................................................................................................1

6 00-445107-00002 Support - Shelf (RH)...................................................................................................................1

7 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................4

8 00-444542 Bracket - Shelf Mounting............................................................................................................2

9 SC-129-50 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd. (SST).....................................................................4

00-444449 Standoff - Sealer Cover..............................................................................................................2

WS-003-09 Washer.......................................................................................................................................2

NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................2

- 85 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

VACUUM HOSE DIAGRAM (MAIN)

F-43218 Rev. B (August 2015) - 86 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

VACUUM HOSE DIAGRAM (MAIN)

ILLUS.
PL-59454

10 00-443913 Fitting - Elbow.............................................................................................................................1

11 00-444493-00005 Tubing - Polyurethane (1/4)........................................................................................................1

12 00-443913 Fitting - Elbow.............................................................................................................................1

13 00-444490-00010 Tubing - Yellow Polyurethane (1/4)............................................................................................1

14 00-444466 Fitting - Union Tube (Y)..............................................................................................................1

15 00-444490-00008 Tubing - Yellow Polyurethane (1/4)............................................................................................1

16 00-444490-00008 Tubing - Yellow Polyurethane (1/4)............................................................................................1

17 00-444490-00006 Tubing - Natural Polyurethane (1/4)...........................................................................................1

18 00-444466 Fitting - Union Tube (Y)..............................................................................................................1

19 00-444467 Fitting - Swivel 90 Deg. Elbow Tube..........................................................................................1

20 00-444490-00006 Tubing - Natural Polyurethane (1/4)...........................................................................................1

21 00-444490-00006 Tubing - Natural Polyurethane (1/4)...........................................................................................1

22 00-445452 Spacer - Knife Cylinder..............................................................................................................2

23 00-445993 Cylinder - Air...............................................................................................................................2

24 00-444121 Fitting - Elbow.............................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-444491-00002 Tube - Nylon (1/2)......................................................................................................................1

2 00-444490-00012 Tubing - Blue Polyurethane (1/4)...............................................................................................1

3 00-444624 Connector - Straight (1/4)...........................................................................................................1

4 00-444624 Connector - Straight (1/4)...........................................................................................................1

5 00-444490-00011 Tubing - Red Polyurethane (1/4)................................................................................................1

6 00-444493-00004 Tubing - Polyurethane (1/4)........................................................................................................1

7 00-444640 Fitting - Hose Tee (1/8)..............................................................................................................1

8 00-445055 Tubing - Natural & Black Gripper (1/4).......................................................................................1

9 00-443913 Fitting - Elbow.............................................................................................................................1

- 87 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

VACUUM HOSE DIAGRAM

(PRINTER PLATE)

F-43218 Rev. B (August 2015) - 88 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

VACUUM HOSE DIAGRAM

(PRINTER PLATE)

ILLUS.
PL-59455

PART NO. NAME OF PART AMT.

1 00-444490-00001 Tubing - Black Polyurethane (1/4)..............................................................................................1

2 00-445759 Valve Assy. - MAC.....................................................................................................................3

3 00-444490-00013 Tubing - Blue Polyurethane (1/4)...............................................................................................1

4 00-041720 Silencer - Valve..........................................................................................................................1

5 00-444490-00009 Tubing - Red Polyurethane (1/4)................................................................................................1

6 00-444489-00002 Tubing - Natural Polyurethane (1/8)...........................................................................................1

7 00-444489-00002 Tubing - Natural Polyurethane (1/8)...........................................................................................1

- 89 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

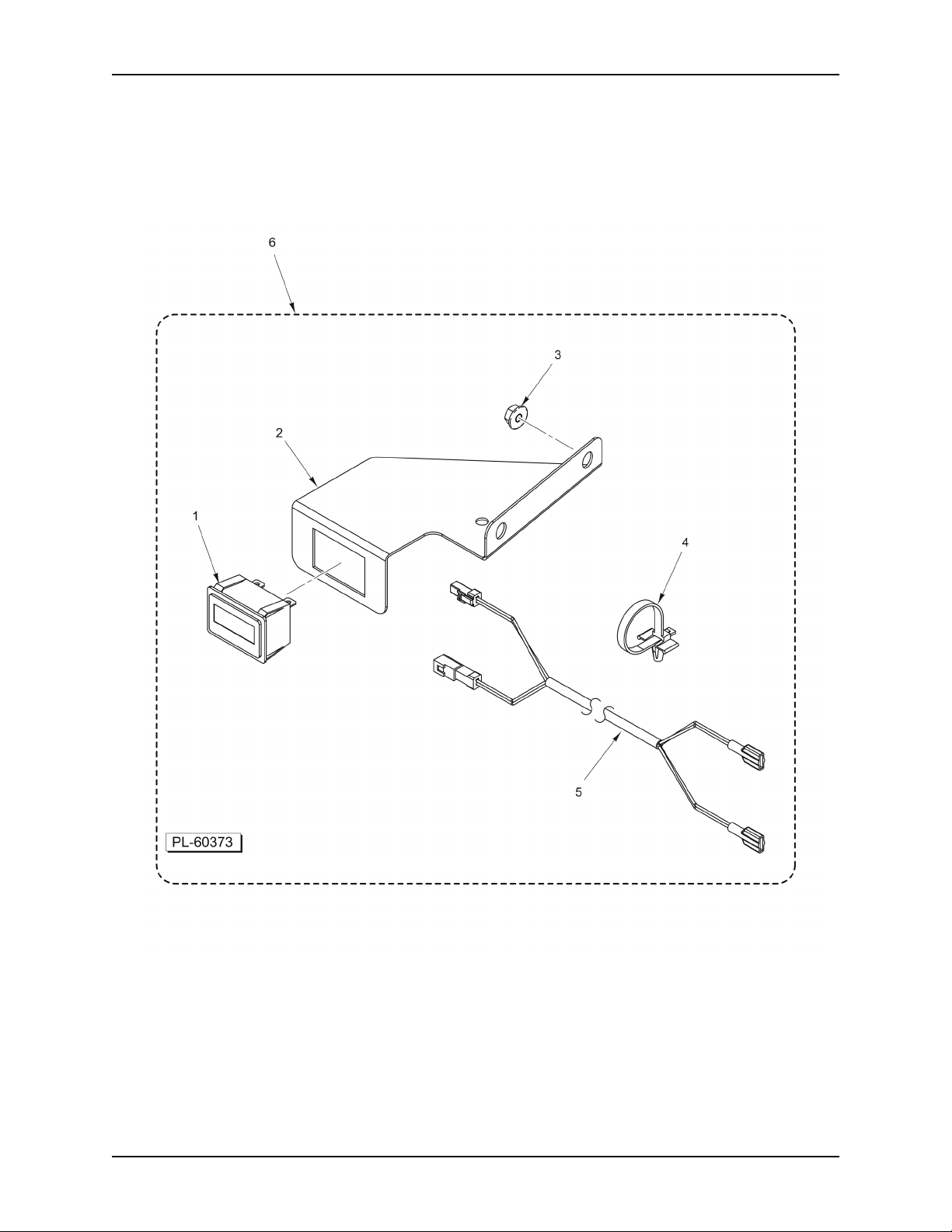

CYCLE COUNTER

F-43218 Rev. B (August 2015) - 90 -

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

CYCLE COUNTER

ILLUS.
PL-60373

PART NO. NAME OF PART AMT.

1 00-446975 Counter - Cycle..........................................................................................................................1

2 00-446976 Bracket - Counter.......................................................................................................................1

3 NS-048-40 Lock Nut 5/16-18 Flange (SST)..................................................................................................2

4 00-444428 Tie - Cable Releasable...............................................................................................................1

5 00-446999 Cable Assy. (Counter)................................................................................................................1

6 00-446988 Kit - Cycle Counter (Incls. Items 1 thru 5)..................................................................................1

- 91 - F-43218 Rev. B (August 2015)

AWS-1B ACCESS WRAPPING SYSTEM REPLACEMENT PARTS

FORM 43218 Rev. B AUGUST 2015 PRINTED IN U.S.A.
