AWS-2 ACCESS WRAPPING
SYSTEM
ML-44230 AWS-2 (L-R)
ML-44231 AWS-2 (R-L)
ML-44233 AWS-2C (L-R)
ML-44234 AWS-2C (R-L)
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
F-43303 Rev. A (September 2015) - 2 - © HOBART 2015
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
Table of Contents
7 RUN AND STOP SWITCH
9 CONTROL BOX
11 UPPER AND SIDE PANELS
13 LOWER AND SIDE PANELS
15 CANOPY AND REAR PANELS
17 SCALE PLATFORM
19 PRIMARY INTAKE AND SHIFTER
21 PRIMARY INTAKE SHIFT CONVEYOR AREA
23 INTAKE FRAME
25 CAMERA ENCLOSURE
27 ELEVATOR CONVEYOR ASSEMBLY
29 ELEVATOR MOTOR
31 ELEVATOR SLAT AND POST ASSEMBLY
33 ELEVATOR AND KNIFE CYLINDERS
35 KNIFE FRAME AND SELECTOR SUPPORT
37 FILM SELECTOR AIR CYLINDERS
39 SIDE CLAMP AND SIDE UNDERFOLDER MOTORS
41 SIDE CLAMPS
43 SIDE UNDERFOLDERS
45 SIDE CLAMP, SIDE UNDERFOLDER BELTS, AND PULLEYS
47 GRIPPER AND GRIPPER DRIVE BELT
49 GRIPPER SPRING ASSEMBLY
51 GRIPPER DRIVE, SEALER BELT SENSORS, AND HEIGHT SENSORS
53 LEFT FRONT FOLDER AND SEALER BELT PACKAGE SENSOR
55 RIGHT FRONT FOLDER, SHUTTLE, AND REAR UNDERFOLDER MOTOR
57 UPPER PUSHER AND FRONT FOLDER MOTORS
59 PACKAGE HOLD DOWN (ML-44230 & ML-44231)
61 PUSHER AND HOLD DOWN (COSTCO) (ML-44233 & ML-44234)
63 PUSHER AND REAR UNDERFOLDER
65 FILM SELECTOR
67 FILM SUPPLY ARBOR
69 FILM HEATER
71 HEAT EXCHANGER
73 BELT SEALER
75 BELT SEALER MOTOR
77 LABEL APPLIER
79 LABEL APPLIER ARM WITH MOTOR
81 LABEL APPLIER (WAND AND BLOCK)
83 COMPRESSOR ASSEMBLY (GAST)
85 AIR DRYER FILTER ASSEMBLY
87 AIR MANIFOLD ASSEMBLY
89 HOSE DIAGRAM (MAIN)
- 3 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
91 HOSE DIAGRAM (PRINTER PLATE)
93 AWS SHELF
95 CYCLE COUNTER
97 DISCHARGE ROLLER ASSEMBLY
F-43303 Rev. A (September 2015) - 4 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
NOTES
- 5 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
RUN AND STOP SWITCH
F-43303 Rev. A (September 2015) - 6 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
RUN AND STOP SWITCH
ILLUS.
PL-59964
PART NO. NAME OF PART AMT.
1 SC-080-13 Mach. Screw 10-24 x 7/8 Phil. Fil. Hd. (SST).............................................................................2
2 00-445456 Switch Assy. - Push Button (Illuminated) (Teknic)....................................................... ..............1
3 00-445457 Switch Assy. - Push Button (Mushroom Type) (Teknic)............................................... ..............1
- 7 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
CONTROL BOX
F-43303 Rev. A (September 2015) - 8 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
CONTROL BOX
ILLUS.
PL-59965
10 00-441406-00003 Fuse (250 V., 2 Amp.)................................................................................................................1
11 00-445078 Fuse (250 V., 1.5 Amp.).............................................................................................................1
12 00-445816 Fuse (250 V., 0.5 Amp.).............................................................................................................1
13 00-446137 Board Assy. - USB Node............................................................................................................1
14 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd......................................................................................AR
15 00-445330-00002 Board Assy. - Combo (Node 2)..................................................................................................1
16 00-441406-00005 Fuse (250 V., 3.15 Amp.)...........................................................................................................2
17 00-445078 Fuse (250 V., 1.5 Amp.).............................................................................................................1
18 00-445816 Fuse (250 V., 0.5 Amp.).............................................................................................................3
19 00-447352 Kit - Power Supply & Cables......................................................................................................1
20 00-441406-00006 Fuse (250 V., 5 Amp.)................................................................................................................1
21 00-443398 Fuse (250 V., 20 Amp.)..............................................................................................................1
22 00-441406-00008 Fuse (250 V., 6.3 Amp.).............................................................................................................4
23 SC-018-37 Mach. Screw 8-32 x 3/4 Phil. Pan Hd.........................................................................................2
24 00-446414 Transformer (120/24 VAC) (75 Amp.)........................................................................................1
25 SC-018-37 Mach. Screw 8-32 x 3/4 Phil. Pan Hd.........................................................................................2
26 00-445440 Board - Stepper Motor................................................................................................................1
27 00-441406-00001 Fuse (250 V., 1 Amp.)................................................................................................................1
28 00-441406-00002 Fuse (250 V., 2.5 Amp.).............................................................................................................1
29 PB-004-08 Plug Button Heyco 2703.............................................................................................................1
30 FE-022-84 Connector - Strain Relief............................................................................................................1
31 00-444736 Block - Fuse...............................................................................................................................1
32 FE-026-56 Fuse (600 V., 15 Amp.)..............................................................................................................1
33 SC-018-37 Mach. Screw 8-32 x 3/4 Phil. Pan Hd.........................................................................................2
34 00-446315-00002 Gasket - Control Box..................................................................................................................2
35 00-446327 Cover - Control Box....................................................................................................................1
36 00-445330-00001 Board Assy. - Combo (Node 5)..................................................................................................1
37 00-441406-00003 Fuse (250 V., 2 Amp.)................................................................................................................1
38 00-445078 Fuse (250 V., 1.5 Amp.).............................................................................................................1
39 00-445816 Fuse (250 V., 0.5 Amp.).............................................................................................................1
40 00-445330-00001 Board Assy. - Combo (Node 4)..................................................................................................1
41 00-441406-00003 Fuse (250 V., 2 Amp.)................................................................................................................2
42 00-445078 Fuse (250 V., 1.5 Amp.).............................................................................................................1
43 00-446315-00001 Gasket - Control Box..................................................................................................................2
44 FE-016-24 Bushing - Electrical Split.............................................................................................................1
45 00-446412 Boot - Splashproof......................................................................................................................1
46 00-446410 Switch - Toggle...........................................................................................................................1
47 00-446900 Shield - Switch............................................................................................................................1
48 00-443881 Grommet..................................................................................................................................21
PART NO. NAME OF PART AMT.
1 00-445330-00001 Board Assy. - Combo (Node 3)..................................................................................................1
2 00-441406-00003 Fuse (250 V., 2 Amp.).................................................................................................. ..............1
3 00-441406-00005 Fuse (250 V., 3.15 Amp.)............................................................................................. ..............1
4 00-445078 Fuse (250 V., 1.5 Amp.)............................................................................................... ..............1
5 00-445816 Fuse (250 V., 0.5 Amp.)............................................................................................... ..............3
6 00-446304 Control Box Assy........................................................................................................................1
7 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd......................................................................................AR
8 00-445330-00002 Board Assy. - Combo (Node 1)..................................................................................................1
9 00-441406-00007 Fuse (250 V., 4 Amp.).................................................................................................. ..............1
- 9 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
UPPER AND SIDE PANELS
F-43303 Rev. A (September 2015) - 10 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
UPPER AND SIDE PANELS
ILLUS.
PL-59966
10 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................2
11 00-444350 Cover - Lower Right...................................................................................................................1
12 00-444338 Cover - Corner............................................................................................................................1
13 00-444331 Cover - Lower Front (RH)...........................................................................................................1
14 00-444342 Cover - Front Right.....................................................................................................................1
15 00-444057 Cover - Side (RH).......................................................................................................................1
16 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. (SST).................................................................10
17 00-438131-00009 Label - Warning..........................................................................................................................2
18 SD-033-56 Self-Tapping Screw #2 x 3/16 Rd. Hd., Type U (SST)...............................................................4
19 00-444058 Cover - Printer Mount.................................................................................................................2
20 00-444056 Cover - Side (LH).......................................................................................................................1
21 00-444328 Arm - Support (Display Assy.)....................................................................................................1
22 00-442734 Knob - Console Mount................................................................................................................2
PART NO. NAME OF PART AMT.
1 00-444343 Cover - Side Door Assy..............................................................................................................1
2 00-442435 Pull - Flush Door........................................................................................................... ..............1
3 00-446772 Actuator - Magnet......................................................................................................... ..............1
4 00-175998 Sensor.......................................................................................................................... ..............1
5 00-183396 Plate - Nut.................................................................................................................... ..............2
6 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd........................................................................... ..............2
7 00-443209 Interlock Harness Assy. (Incls. Item 4)......................................................................... ..............1
8 00-444337 Cover - Corner.............................................................................................................. ..............1
9 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST)....................................................... ..............2
- 11 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
LOWER AND SIDE PANELS
F-43303 Rev. A (September 2015) - 12 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
LOWER AND SIDE PANELS
ILLUS.
PL-59967
10 00-444524 Spring - Door..............................................................................................................................2
11 00-444339 Cover - Front End.......................................................................................................................1
12 00-444337 Cover - Corner............................................................................................................................2
13 00-444330 Cover - Lower Front (LH)...........................................................................................................1
14 00-446857 Bracket - Intake Mount (LH).......................................................................................................1
15 00-444341 Cover - Front Left.......................................................................................................................1
16 00-444343 Cover - Side Door Assy..............................................................................................................1
17 00-444338 Cover - Corner............................................................................................................................2
18 00-444286 Bracket - Cover Mounting...........................................................................................................1
19 00-444348 Cover - Lower Left......................................................................................................................1
20 00-444286 Bracket - Cover Mounting...........................................................................................................1
21 00-330866 Leg - Adjustable (4 In.)...............................................................................................................1
22 00-447427 Caster - Swivel (With Brake)......................................................................................................1
23 00-330866 Leg - Adjustable (4 In.)...............................................................................................................1
24 00-444676 Caster Fixed...............................................................................................................................2
25 00-330866 Leg - Adjustable (4 In.)...............................................................................................................2
26 00-444352 Cover - Sensor...........................................................................................................................1
27 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. (SST)...................................................................2
PART NO. NAME OF PART AMT.
1 00-438131-00007 Plate - Warning...........................................................................................................................1
2 SD-033-56 Self-Tapping Screw #2 x 3/16 Rd. Hd., Type U (SST)................................................. ..............2
3 00-444333 Cover - Intake Panel..................................................................................................... ..............1
4 SC-080-13 Mach. Screw 10-24 x 7/8 Phil. Fil. Hd. (SST)............................................................... ..............2
5 00-444334 Cover - Intake............................................................................................................... ..............1
6 00-446858 Bracket - Intake Mount (RH)......................................................................................... ..............1
7 00-446874 Kit - Intake Cover (Incls. Item 8)................................................................................... ..............1
8 00-446873 Bushing - Cover............................................................................................................ ..............2
9 00-444892-00001 Cover Assy. - Switch.................................................................................................... ..............1
- 13 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
CANOPY AND REAR PANELS
F-43303 Rev. A (September 2015) - 14 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
CANOPY AND REAR PANELS
ILLUS.
PL-59968
10 00-444102 Pin - Canopy Hinge....................................................................................................................2
11 RR-009-10 Retaining Ring 3/8 In. (SST)......................................................................................................2
12 00-446668 Door - Rear (Incls. Items 13 thru 19)..........................................................................................1
13 00-446772 Actuator - Magnet.......................................................................................................................1
14 00-183396 Plate - Screw Switch..................................................................................................................1
15 00-542795 Tape - Double Sided (Very High Bonding)..............................................................................AR
16 00-446594 Brace - Door...............................................................................................................................2
17 SC-021-02 Mach. Screw 4-40 x 1/2 Slotted Rd. Hd. (SST)..........................................................................2
18 WL-003-03 Lockwasher #4 Helical...............................................................................................................2
19 WS-029-24 Washer.......................................................................................................................................2
20 00-446702 Kit - Corner Door (Incls. Items 21 thru 24, 28, 29, 34 thru 38, 43, & 44)....................................1
21 00-446772 Actuator - Magnet.......................................................................................................................1
22 SC-018-68 Mach. Screw 4-40 x 1/4 Phil. Pan Hd.........................................................................................2
23 WL-003-03 Lockwasher #4 Helical...............................................................................................................2
24 WS-029-24 Washer.......................................................................................................................................2
25 00-445188 Hinge - Rear Film Door..............................................................................................................1
26 00-445186 Bracket - Hinge Mounting...........................................................................................................1
27 00-443994 Panel - Rear...............................................................................................................................1
28 00-446664 NLA - Obsolete--Bracket - Switch Mounting...............................................................................1
29 00-446572 Bracket - Door Magnet...............................................................................................................2
30 00-444340 Cover - Back End.......................................................................................................................1
31 00-446572 Bracket - Door Magnet...............................................................................................................1
32 00-041725 Catch - Magnetic........................................................................................................................1
33 00-446702 Kit - Corner Door (Incls. Items 28, 29, & 34 thru 44)..................................................................1
34 00-446578 NLA - Obsolete--Bracket - Door Stop (RH Door - Upper; LH Door - Lower)..............................1
35 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2
36 WS-003-49 Washer 0.266 x 0.563 x 0.062 (SST).........................................................................................2
37 00-442435 Pull - Flush Door.........................................................................................................................1
38 00-446579 NLA - Obsolete--Bracket - Door Stop (RH Door - Lower; LH Door - Upper)..............................1
39 00-446772 Actuator - Magnet.......................................................................................................................1
40 WS-029-24 Washer.......................................................................................................................................2
41 WL-003-03 Lockwasher #4 Helical...............................................................................................................2
42 SC-018-68 Mach. Screw 4-40 x 1/4 Phil. Pan Hd.........................................................................................2
43 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2
44 WS-003-49 Washer 0.266 x 0.563 x 0.062 (SST).........................................................................................2
45 00-446712 Spring - Gas Canopy (Incls. Items 47 & 51)...............................................................................1
46 00-444110 Stud - Ball...................................................................................................................................1
47 00-446709 Bracket - Cylinder.......................................................................................................................1
48 NS-048-40 Lock Nut 5/16-18 Flange (SST)..................................................................................................2
49 SC-100-04 Mach. Screw 10-24 x 3/8 Hex Washer Hd.................................................................................2
50 00-444110 Stud - Ball...................................................................................................................................1
51 00-446665 Bracket - Strut Mounting.............................................................................................................1
52 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2
53 00-444105 Hinge - Canopy..........................................................................................................................1
54 00-444060 Hinge - Female (LH)...................................................................................................................2
55 00-444061 Hinge - Female (RH)..................................................................................................................2
56 00-444062 Hinge - Male (LH).......................................................................................................................2
57 00-444063 Hinge - Male (RH)......................................................................................................................2
58 00-443209 Interlock Harness Assy...............................................................................................................4
PART NO. NAME OF PART AMT.
1 00-913102-00165 Kit - Canopy & Gas Spring (Incls. Items 2 thru 6 & 45 thru 51)..................................................1
2 00-183396 Plate - Screw Switch.................................................................................................... ..............1
3 00-446772 Actuator - Magnet......................................................................................................... ..............1
4 WS-029-24 Washer......................................................................................................................... ..............2
5 SC-021-02 Mach. Screw 4-40 x 1/2 Slotted Rd. Hd. (SST)............................................................ ..............2
6 00-446573 Hinge - Canopy..........................................................................................................................1
7 00-041488 Bearing (Nyliner).......................................................................................................... ..............4
8 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST)....................................................... ..............4
9 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST)....................................................... ..............2
- 15 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
SCALE PLATFORM
F-43303 Rev. A (September 2015) - 16 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
SCALE PLATFORM
ILLUS.
PL-59969
10 00-445153 Cover - Switch............................................................................................................................1
11 00-046869 Screw - Sealing 10-24 x 3/8 Slotted Fil. Hd................................................................................1
12 00-444568 Switch Assy. - Push Button........................................................................................................1
13 00-183458 Cable Assy. - Ground.................................................................................................................1
14 00-444038 Mount - Hinge.............................................................................................................................4
15 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4
16 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4
17 00-444971 Bracket - Scale Mounting...........................................................................................................2
18 SC-109-47 Cap Screw 1/4-20 x 7/8 Hex Hd. (SST).....................................................................................2
19 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................4
20 00-444129 Seal - USB..................................................................................................................................1
21 00-444128 Support - Machined Loadcell......................................................................................................1
22 00-444641 Gasket - Loadcell Cover.............................................................................................................1
23 00-446240 Load Cell (20 kg) (Multiple Range).............................................................................................1
24 00-443820 Cover - Loadcell.........................................................................................................................1
25 SC-128-55 Mach. Screw 8-32 x 1/4 Hex Hd.................................................................................................4
26 00-049040 Gasket - Level Flange................................................................................................................1
27 00-043112 Level - Spirit...............................................................................................................................1
28 00-047276 Flange........................................................................................................................................1
29 SC-124-80 Mach. Screw 4-40 x 5/16 Slotted Flat Hd. (SST).......................................................................3
30 SC-123-74 Mach. Screw 8-32 x 5/8 Phil. Pan Hd. (SST).............................................................................1
31 00-444424 Seal - Wire Roto (8 In.) (Not Shown).......................................................................................AR
32 00-441937-00003 Cable - USB (2.0 A-B) (15 Ft.) (Not Shown)..............................................................................1
PART NO. NAME OF PART AMT.
1 00-444688 Support - Platter.........................................................................................................................1
2 WL-006-17 Lockwasher 1/4 Helical (SST)...................................................................................... ..............2
3 SC-041-03 Cap Screw 1/4-20 x 1-1/8 Hex Hd. (SST).................................................................... ..............2
4 00-444476 Rod - Weigher Assy..................................................................................................... ..............8
5 00-444689 Retainer - Platter........................................................................................................................2
6 SC-129-53 Set Screw 1/4-20 x 3/4 Hex Hdls., Dog Pt. (SST)........................................................ ..............6
7 NS-018-10 Jam Nut 5/16-24 Hex (SST).....................................................................................................16
8 00-444701 Spacer - Loadcell.......................................................................................................................1
9 00-446167 Board Assy. - USB Weigher......................................................................................... ..............1
- 17 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
PRIMARY INTAKE AND SHIFTER
F-43303 Rev. A (September 2015) - 18 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
PRIMARY INTAKE AND SHIFTER
ILLUS.
PL-59970
10 00-443938 Magnet.......................................................................................................................................1
11 00-445271 Belt - Intake (Gray).....................................................................................................................3
12 00-443937 Belt - Intake (White)....................................................................................................................1
13 00-443888 Pulley - Idler...............................................................................................................................4
14 KW-003-10 Key - Woodruff 3/16 x 3/4...........................................................................................................1
15 00-443889 Shaft - Drive...............................................................................................................................1
16 00-443821 Collar 5/8 (SST) (Incls. Item 17).................................................................................................1
17 SC-119-81 Set Screw 5/16-18 x 5/16 Hex Hdls. Cup Pt. (SST)...................................................................1
18 00-445503 Pan - Intake................................................................................................................................1
19 00-443827 Bearing 5/8 (1/16 Groove)..........................................................................................................1
20 00-446216 Belt (450mm) (90T)....................................................................................................................1
21 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................4
22 00-443943 Bearing - Ball..............................................................................................................................1
23 RR-012-32 Retaining Ring............................................................................................................................1
24 00-443866 Pulley - Idler (Incls Items 22 & 23).............................................................................................1
25 00-443900 Spacer - Idler..............................................................................................................................1
26 00-445948 Spring - Shift Belt.......................................................................................................................1
27 SC-129-52 Cap Screw 1/4-20 x 4-1/2 Hex Hd. (SST)..................................................................................1
28 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1
29 00-445947 Bracket Assy..............................................................................................................................1
30 WS-029-05 Washer (SST).............................................................................................................................1
31 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................1
32 00-442248 Motor - Stepper (Shifter).............................................................................................................1
33 00-443861 Pulley (18T) (Incls. Item 34).......................................................................................................1
34 SC-125-19 Set Screw 10-32 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................1
35 00-443828 Bearing 5/8 (1/8 Groove)............................................................................................................2
36 00-443821 Collar 5/8 (SST)..........................................................................................................................2
37 00-446082 Collar..........................................................................................................................................2
38 00-443889 Shaft - Drive...............................................................................................................................1
39 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................5
40 00-446785 Flange......................................................................................................................................10
41 00-446784 Pulley (5mm) (30T).....................................................................................................................5
42 00-446734 Spacer........................................................................................................................................4
43 00-443897 Pulley - Idler...............................................................................................................................2
PART NO. NAME OF PART AMT.
1 00-443827 Bearing 5/8 (1/16 Groove)..........................................................................................................1
2 SC-119-81 Set Screw 5/16-18 x 5/16 Hex Hdls. Cup Pt. (SST)...................................................................1
3 00-443868 Pulley (30T) (Incls. Item 4)........................................................................................... ..............1
4 SC-125-19 Set Screw 10-32 x 1/4 Hex Hdls., Cup Pt. (SST)......................................................... ..............1
5 00-443821 Collar 5/8 (SST) (Incls. Item 6)..................................................................................... ..............1
6 SC-119-81 Set Screw 5/16-18 x 5/16 Hex Hdls. Cup Pt. (SST)...................................................................1
7 00-446785 Flange......................................................................................................................................10
8 00-446784 Pulley (5mm) (30T).......................................................................................................
9 00-443936
00-446732 Shaft Assy. (Idler) (Incls. Items 35 thru 42)................................................................................1
Belt - Intake (White) (Incls. Item 10)...........................................................................................1
..............5
- 19 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
PRIMARY INTAKE SHIFT CONVEYOR AREA
F-43303 Rev. A (September 2015) - 20 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
PRIMARY INTAKE SHIFT CONVEYOR AREA
ILLUS.
PL-59971
10 00-443963 Spacer - Motor Mounting............................................................................................................1
11 00-443857 Bracket - Slide............................................................................................................................1
12 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST)................................................................................................1
13 RP-006-42 Pin - Roll 0.312 x 1-1/4 (SST)....................................................................................................1
14 00-444537 Washer.......................................................................................................................................1
15 00-443964 Shaft - Drive...............................................................................................................................1
16 00-444353 Spring - Shift Collar....................................................................................................................1
17 00-443949 Block - Bearing Mount................................................................................................................1
18 00-444539 Drive Assy. - Conveyor (Incls. Items 12 thru 17 & 19 thru 26)...................................................1
19 RR-012-01 Retaining Ring............................................................................................................................1
20 00-443950 Bearing.......................................................................................................................................1
21 00-443961 Spacer - Bearing........................................................................................................................1
22 00-443950 Bearing.......................................................................................................................................1
23 00-443962 Spacer - Pulley...........................................................................................................................1
24 RR-012-01 Retaining Ring............................................................................................................................1
25 00-445504 Pulley (30T) (Use with 15mm Belt).............................................................................................2
26 NS-038-10 Lock Nut 3/8-16 Hex...................................................................................................................1
27 WS-028-37 Washer (SST).............................................................................................................................1
28 00-443934 Belt - Conveyor Drive (9mm) .....................................................................................................1
29 00-446220 Belt - Conveyor Drive (15mm) (107T)........................................................................................1
30 00-446002 Motor - Brushless (220 W.) (82 In. Motor Lead) (Secondary Intake Drive)................................1
31 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1
32 00-443858 Shaft...........................................................................................................................................1
33 00-043411 Bearing (Nyliner)........................................................................................................................1
34 WS-029-05 Washer (SST).............................................................................................................................1
35 RR-012-27 Retaining Ring............................................................................................................................1
36 00-443238 Magnet - Sensor.........................................................................................................................1
37 00-443887 Stud - Eccentric..........................................................................................................................2
38 00-443943 Bearing - Ball..............................................................................................................................2
39 RR-009-10 Retaining Ring 3/8 In. (SST)......................................................................................................2
40 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST).........................................................................1
41 00-443892 Pivot - Drive Post........................................................................................................................1
42 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1
43 00-443906 Clamp - Belt................................................................................................................................1
44 SC-128-55 Mach. Screw 8-32 x 1/4 Hex Hd.................................................................................................4
45 00-443899 Bracket - Belt Mounting..............................................................................................................1
46 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd................................................................................1
47 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................1
48 KW-003-23 Key - Woodruff 3/32 x 5/8...........................................................................................................1
PART NO. NAME OF PART AMT.
1 00-446065 Belt - Intake Shift Conveyor (Clear)............................................................................................8
2 00-443883 Shaft (LH)...................................................................................................................................1
3 00-443826 Bearing 3/4................................................................................................................... ..............1
4 00-446064 Roller - Conveyor (Knurled) (Incls. Items 2 & 6)........................................................... ..............1
5 00-443826 Bearing 3/4................................................................................................................... ..............1
6 00-443859 Shaft - Drive...............................................................................................................................1
7 00-443942 Coupling - Intake Drive................................................................................................. ..............1
8 00-443884 Pin - Clevis 5/16 (SST)................................................................................................. ..............1
9 00-443860 Pulley (16T).................................................................................................................. ..............1
- 21 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
INTAKE FRAME
F-43303 Rev. A (September 2015) - 22 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
INTAKE FRAME
ILLUS.
PL-59972
10 00-446214 Belt - Weigher (450mm) (95T)....................................................................................................1
11 00-443860 Pulley (16T) (Incls. Item 17).......................................................................................................1
12 KW-004-09 Key - Woodruff...........................................................................................................................1
13 00-443220 Motor - Brushless (220 W.) (Primary Intake Drive)....................................................................1
14 SC-059-17 Cap Screw 10-32 x 3/4 Hex Socket Hd. (SST)..........................................................................4
15 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................4
16 00-443851 Spacer - Motor............................................................................................................................3
17 SC-125-19 Set Screw 10-32 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................2
18 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2
19 00-443894 Guard Assy. - Belt......................................................................................................................1
20 00-444428 Tie - Cable Releasable...............................................................................................................1
21 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................1
22 NS-031-08 Stop Nut 8-32 Special (SST)......................................................................................................1
23 00-443886 Spacer........................................................................................................................................1
24 SC-059-17 Cap Screw 10-32 x 3/4 Hex Socket Hd. (SST)..........................................................................4
25 00-443886 Spacer........................................................................................................................................1
26 00-446036 Support - Intake Assy.................................................................................................................1
27 NS-049-06 Lock Nut 1/4-20 (SST)................................................................................................................4
28 00-443825 Bracket - Alignment....................................................................................................................2
29 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4
30 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2
31 00-443177 Housing Assy. - Tab...................................................................................................................1
32 00-446516 Bracket - Light Tube...................................................................................................................2
33 00-442143 Board Assy. - Sensor Control.....................................................................................................1
34 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST).........................................................................2
35 FE-023-53 Bushing - Snap...........................................................................................................................2
36 00-445364 Tension Assy. (Incls. Item 40)....................................................................................................2
37 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2
38 00-445053 Shield - Deflector........................................................................................................................1
39 00-443893 Guard - Mercer...........................................................................................................................1
40 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4
41 00-443823 Frame - Conveyor (RH)..............................................................................................................1
42 00-446088 Tube - Light Assy.......................................................................................................................1
43 00-446022 Sensor - Position (Primary Home)..............................................................................................1
44 NS-018-10 Jam Nut 5/16-24 Hex (SST).......................................................................................................2
45 00-443890 Block - Pivot...............................................................................................................................1
46 00-443891 Bed - Pivoting Conveyor.............................................................................................................1
47 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST).........................................................................2
48 00-446021 Sensor - Position (Home Limit)..................................................................................................2
49 00-443868 Pulley (5mm) (30T).....................................................................................................................1
PART NO. NAME OF PART AMT.
1 SC-093-04 Mach. Screw 8-32 x 1/2 Phil. Pan Hd. (SST).............................................................................2
2 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST)....................................................... ..............2
3 00-444459 Bracket Assy. - Intake Mounting................................................................................... ..............2
4 00-445835 Bracket - Connector Mounting....................................................................................................1
5 SC-066-22 Mach. Screw 10-32 x 3/8 Phil. Truss Hd. (SST)........................................................... ..............2
6 WL-006-07 Lockwasher #10 Helical (SST)..................................................................................... ..............2
7 NS-049-06 Lock Nut 1/4-20 (SST).................................................................................................. ..............2
8 00-443822 Frame - Conveyor (LH)..............................................................................................................1
9 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST)....................................................... ..............2
00-446254 Kit - Light Tube Replacement (Incls. Items 31, 32, 33, & 42).....................................................1
- 23 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
CAMERA ENCLOSURE
F-43303 Rev. A (September 2015) - 24 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
CAMERA ENCLOSURE
ILLUS.
PL-60532
10 SC-125-69 Mach. Screw 10-32 x 1 Phil. Pan Hd..........................................................................................4
11 00-446178 Bracket - Camera.......................................................................................................................2
12 SC-018-25 Mach. Screw 10-32 x 3/8 Phil. Pan Hd.......................................................................................4
13 SC-125-71 Mach. Screw 10-32 x 1-1/4 Phil. Pan Hd. (SST)........................................................................2
14 NS-011-23 Nut 10-32 Hex (SST)..................................................................................................................2
15 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd.........................................................................................4
16 00-442140 Board Assy. - Sensor Array Camera..........................................................................................2
17 00-446179 Bracket - Angle Adjustment........................................................................................................2
18 SC-129-50 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd. (SST).....................................................................2
19 00-444445 Spacer........................................................................................................................................2
20 00-443378 Cable (Camera Control) (Camera Board to Node 1)..................................................................1
PART NO. NAME OF PART AMT.
1 00-446181 Cover - Camera..........................................................................................................................1
2 SC-018-25 Mach. Screw 10-32 x 3/8 Phil. Pan Hd......................................................................... ..............3
3 00-443881 Grommet....................................................................................................................................3
4 00-446233 Lens Assy. (Incls. Gasket)............................................................................................ ..............2
5 00-446180 Enclosure - Camera...................................................................................................................1
6 00-447415 Board Assy. - Sensor Control....................................................................................... ..............1
7 SC-018-34 Mach. Screw 8-32 x 1/2 Phil. Pan Hd........................................................................... ..............4
8 00-443199-00001 Cable (Camera-to-Camera Board)............................................................................... ..............2
9 00-444443 Spring - Compression................................................................................................... ..............4
- 25 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
ELEVATOR CONVEYOR ASSEMBLY
F-43303 Rev. A (September 2015) - 26 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
ELEVATOR CONVEYOR ASSEMBLY
ILLUS.
PL-59974
10 RR-012-01 Retaining Ring............................................................................................................................1
11 00-443962 Spacer - Pulley...........................................................................................................................1
12 00-445504 Pulley (30T)................................................................................................................................1
13 WS-028-37 Washer (SST).............................................................................................................................1
14 NS-038-10 Lock Nut 3/8-16 Hex...................................................................................................................1
15 SC-114-99 Mach. Screw 10-32 x 1/2 Phil. Flat Hd. (SST)............................................................................2
16 00-443952 Rail (RH).....................................................................................................................................2
17 00-443954 Pulley - Idler...............................................................................................................................2
18 00-443953 Stud - Pulley Mounting...............................................................................................................3
19 00-443954 Pulley - Idler...............................................................................................................................1
20 00-443958 Rail - Center...............................................................................................................................1
21 00-443954 Pulley - Idler...............................................................................................................................1
22 00-443959 Stud - Pulley...............................................................................................................................1
23 SC-059-17 Cap Screw 10-32 x 3/4 Hex Socket Hd. (SST)..........................................................................1
24 00-443953 Stud - Pulley Mounting...............................................................................................................2
25 00-443954 Pulley - Idler...............................................................................................................................2
26 00-443951 Rail (LH).....................................................................................................................................2
27 SC-114-99 Mach. Screw 10-32 x 1/2 Phil. Flat Hd. (SST)............................................................................2
28 00-443957 Wearstrip....................................................................................................................................2
29 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2
30 00-443955 Roller..........................................................................................................................................1
31 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................4
32 00-447254 Bracket - Conveyor (LH).............................................................................................................1
33 00-447253 Bracket - Conveyor (RH)............................................................................................................1
34 00-447255 Bar - Conveyor...........................................................................................................................1
35 00-443957 Wearstrip....................................................................................................................................2
36 00-443957 Wearstrip....................................................................................................................................2
37 SC-129-73 Mach. Screw 1/4-20 x 1 Hex Washer Hd.(SST).......................................................................10
PART NO. NAME OF PART AMT.
1 00-443960 Bearing (5/8)...............................................................................................................................1
2 00-444463 Roller Assy................................................................................................................... ..............1
3 00-443948 Belt - Elevator Conveyor.............................................................................................. ..............6
4 KW-004-05 Key - Woodruff 3/16 x 3/4 (SST).................................................................................. ..............1
5 00-443949 Block - Bearing Mount.................................................................................................. ..............1
6 RR-012-01 Retaining Ring.............................................................................................................. ..............1
7 00-443950 Bearing......................................................................................................................... ..............2
8 00-443961 Spacer - Bearing.......................................................................................................... ..............1
9 00-443950 Bearing......................................................................................................................... ..............2
- 27 - F-43303 Rev. A (September 2015)
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
ELEVATOR MOTOR
F-43303 Rev. A (September 2015) - 28 -
AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
ELEVATOR MOTOR
ILLUS.
PL-59975
10 00-444408 Conduit - Electrical.....................................................................................................................1
11 FE-012-19 Lock Nut - Electrical...................................................................................................................1
12 00-445241 Fitting - Grease...........................................................................................................................1
13 00-445950 Bearing - Cam Follower 5/8-18..................................................................................................1
14 00-445949 Lever - Elevator..........................................................................................................................1
15 00-445951 Nut - Cam Follower....................................................................................................................1
16 00-444386 Bearing - Flanged 1-1/4..............................................................................................................2
17 00-444387 Shaft - Elevator Lever.................................................................................................................1
18 00-444456 Collar Assy. 1-1/4 (SST).............................................................................................................1
19 00-444456 Collar Assy. 1-1/4 (SST).............................................................................................................1
20 00-442492 Wheel - Hand.............................................................................................................................1
21 00-444388 Hub - Handwheel........................................................................................................................1
22 00-444117 Gear - Reducer...........................................................................................................................1
23 KW-004-10 Key - Woodruff...........................................................................................................................1
24 00-443238 Magnet - Sensor.........................................................................................................................1
25 00-444495 Sleeve........................................................................................................................................2
26 00-446035 Motor - Brushless (660 W.) (54 In. Motor Lead).........................................................................1
27 KW-003-23 Key - Woodruff 3/32 x 5/8...........................................................................................................1
28 00-444786 Spacer - Gearbox.......................................................................................................................4
29 SC-129-49 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (SST).....................................................................2
30 00-446021 Sensor - Position........................................................................................................................1
31 00-445615 Bracket - Home Switch...............................................................................................................1
32 00-444234 Mount - Gearmotor.....................................................................................................................1
33 SC-041-32 Cap Screw 3/8-16 x 1-1/2 Hex Hd. (SST)..................................................................................2
34 WL-006-28 Lockwasher 3/8 Helical..............................................................................................................2
35 00-444987 Cam - Elevator...........................................................................................................................1
36 SC-075-15 Set Screw 5/16-18 x 3/8 Hex Hdls., Cup Pt...............................................................................2
37 00-557865 Lubricant - Oil..........................................................................................................................AR
38 00-445827 Lever Assy. - Elevator (Incls. Items 12 thru 16).........................................................................1
PART NO. NAME OF PART AMT.
1 00-043411 Bearing (Nyliner)........................................................................................................................1
2 00-444380 End - Rod 1/2-20 (RH)................................................................................................. ..............1
3 00-444390 Plate - Spring Mounting..............................................................................................................1
4 00-444391 Bracket Assy. - Spring................................................................................................................1
5 00-444392 Spring - Elevator.........................................................................................................................1
6 00-444393 Link - Spring...............................................................................................................................1
7 SC-123-92 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd.................................................................. ..............1
8 WS-022-04 Washer (SST)............................................................................................................... ..............1
9 00-444389 Spring Assy. (Incls. Items 1 thru 8).............................................................................. ..............1
- 29 - F-43303 Rev. A (September 2015)

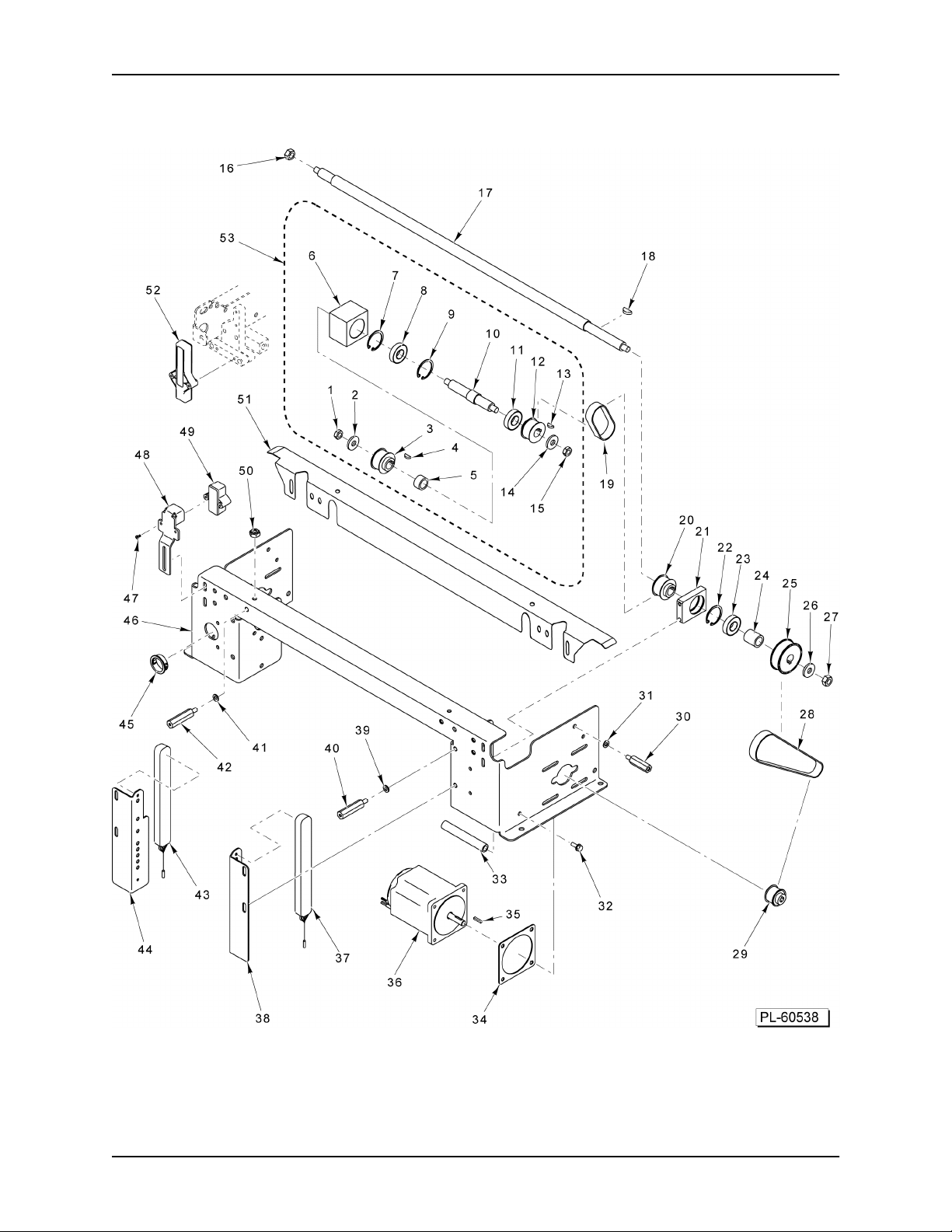

AWS-2 ACCESS WRAPPING SYSTEM REPLACEMENT PARTS
ELEVATOR SLAT AND POST ASSEMBLY
F-43303 Rev. A (September 2015) - 30 -
