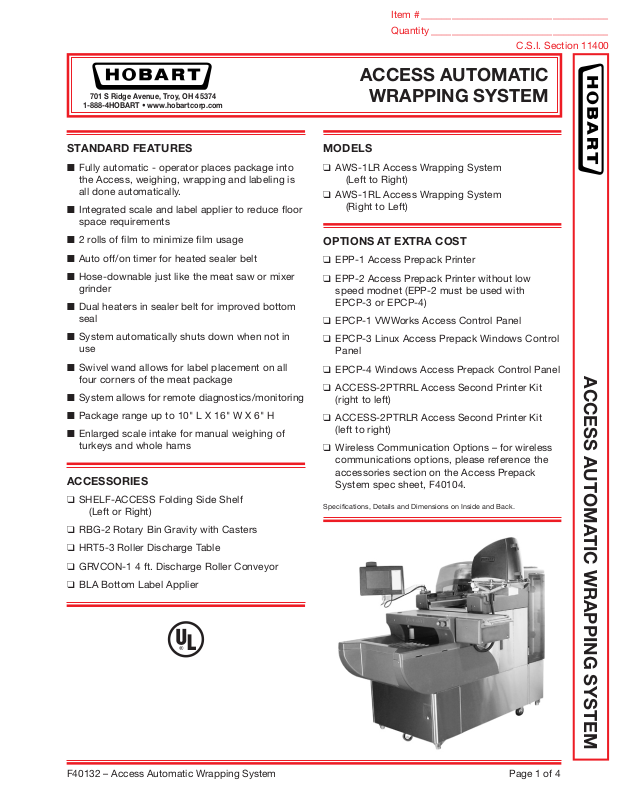

Hobart AWS-1LR User Manual
Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400
ACCESS AUTOMATIC
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Fully automatic - operator places package into
the Access, weighing, wrapping and labeling is
all done automatically.
■ Integrated scale and label applier to reduce oor
space requirements
■ 2 rolls of lm to minimize lm usage
■ Auto off/on timer for heated sealer belt
■ Hose-downable just like the meat saw or mixer
grinder
■ Dual heaters in sealer belt for improved bottom
seal
■ System automatically shuts down when not in
use
■ Swivel wand allows for label placement on all
four corners of the meat package
■ System allows for remote diagnostics/monitoring
■ Package range up to 10" L X 16" W X 6" H
■ Enlarged scale intake for manual weighing of
turkeys and whole hams
ACCESSORIES
❑ SHELF-ACCESS Folding Side Shelf
(Left or Right)
WRAPPING SYSTEM
MODELS
❑ AWS-1LR Access Wrapping System
(Left to Right)
❑ AWS-1RL Access Wrapping System
(Right to Left)
OPTIONS AT EXTRA COST
❑ EPP-1 Access Prepack Printer
❑ EPP-2 Access Prepack Printer without low
speed modnet (EPP-2 must be used with
EPCP-3 or EPCP-4)
❑ EPCP-1 VWWorks Access Control Panel
❑ EPCP-3 Linux Access Prepack Windows Control
Panel
❑ EPCP-4 Windows Access Prepack Control Panel
❑ ACCESS-2PTRRL Access Second Printer Kit
(right to left)
❑ ACCESS-2PTRLR Access Second Printer Kit
(left to right)
❑ Wireless Communication Options – for wireless
communications options, please reference the
accessories section on the Access Prepack
System spec sheet, F40104.
Specications, Details and Dimensions on Inside and Back.
ACCESS AUTOMATIC WRAPPING SYSTEM
❑ RBG-2 Rotary Bin Gravity with Casters
❑ HRT5-3 Roller Discharge Table
❑ GRVCON-1 4 ft. Discharge Roller Conveyor
❑ BLA Bottom Label Applier
F40132 – Access Automatic Wrapping System Page 1 of 4
ACCESS AUTOMATIC
WRAPPING SYSTEM
SPECIFICATIONS
WEIGHING
Capacity – 30 lbs. (Manual) 15 lbs. (Automatic mode)
Weighing increments – .01 lb
Minimum weight to print – .20 lb
LABELING
Label Width – 1.5", 2.25" and 3.0"
Label Length – 1.5" up to 4.0" in .5" inch increments
WRAPPING
Package Size Width – 4.5" min, 16.0" max
Length – 4.5" min, 10.1" max
Height – .4" min, 6.0" max
Wrapping Speed – Maximum of 30 packages per
minute
Number of Film Rolls – 2
Type of Film Used – PVC
Film Thickness – 60 gauge min, 100 gauge max
Film Core Size – 3" I.D.
Film Maximum Diameter – 9.5" O.D.
Film Widths – 13" min, 20" max
ELECTRICAL
120/208-240 (4 wire-2 hot lines, neutral & ground)
60 cycle, 1 phase, 20 amps
SHIPPING WEIGHT
Approximately 1,300 lbs.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Film load area at
rear of wrapper
Access Wrapping System with two
EPP Printers and HRT5 L-R
Access Wrapping System with two
EPP Printers and HRT5 R-L
Page 2 of 4 F40132 – Access Automatic Wrapping System
