INSTALLATION INSTRUCTIONS

2009+ FORD F-150 2WD;4WD

7705 REAR STABILIZER BAR

Thank you for purchasing a quality Hellwig Product.

PLEASE READ THISINSTRUCTIONSHEET COMPLETELY BEFORE STARTING YOUR INSTALLATION

7705 ( R-7705 ) 11/17/2009

Clevis

Shock Crossmember

Threaded Plate

2

3

1

559-734-7451 800-367-5480 FAX [phone]

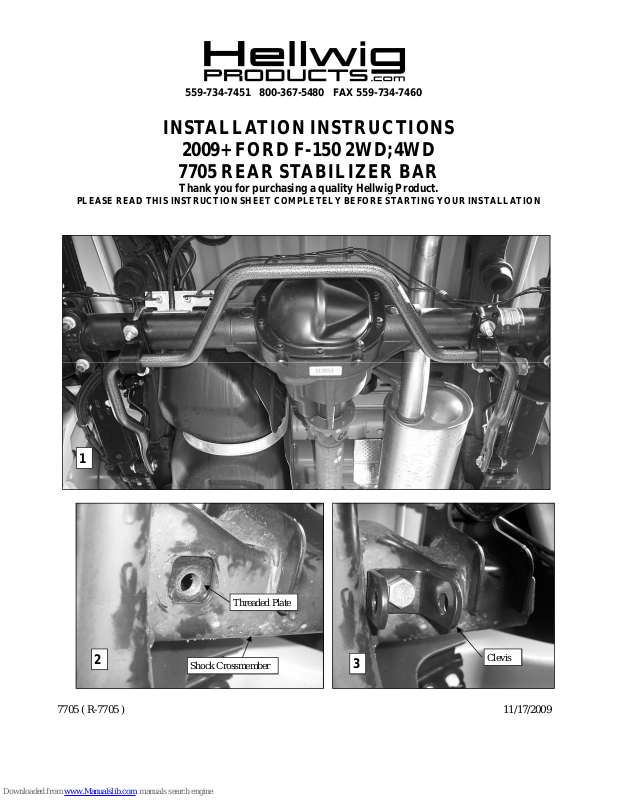

1. Install the Threaded Plates inside the rear shock crossmember as shown in Photo 2.

2. Attach clevis to threaded plate using the 1/2-20 X 1” bolts provided as shown in Photo 3. Align clevis as
shown in photo and torque bolt to 40 ft-lb.

3. Insert hourglass bushings into the loops of the end links. Lubricate bushings with supplied lubricant to aid
installations. Install sleeves into hourglass bushings.

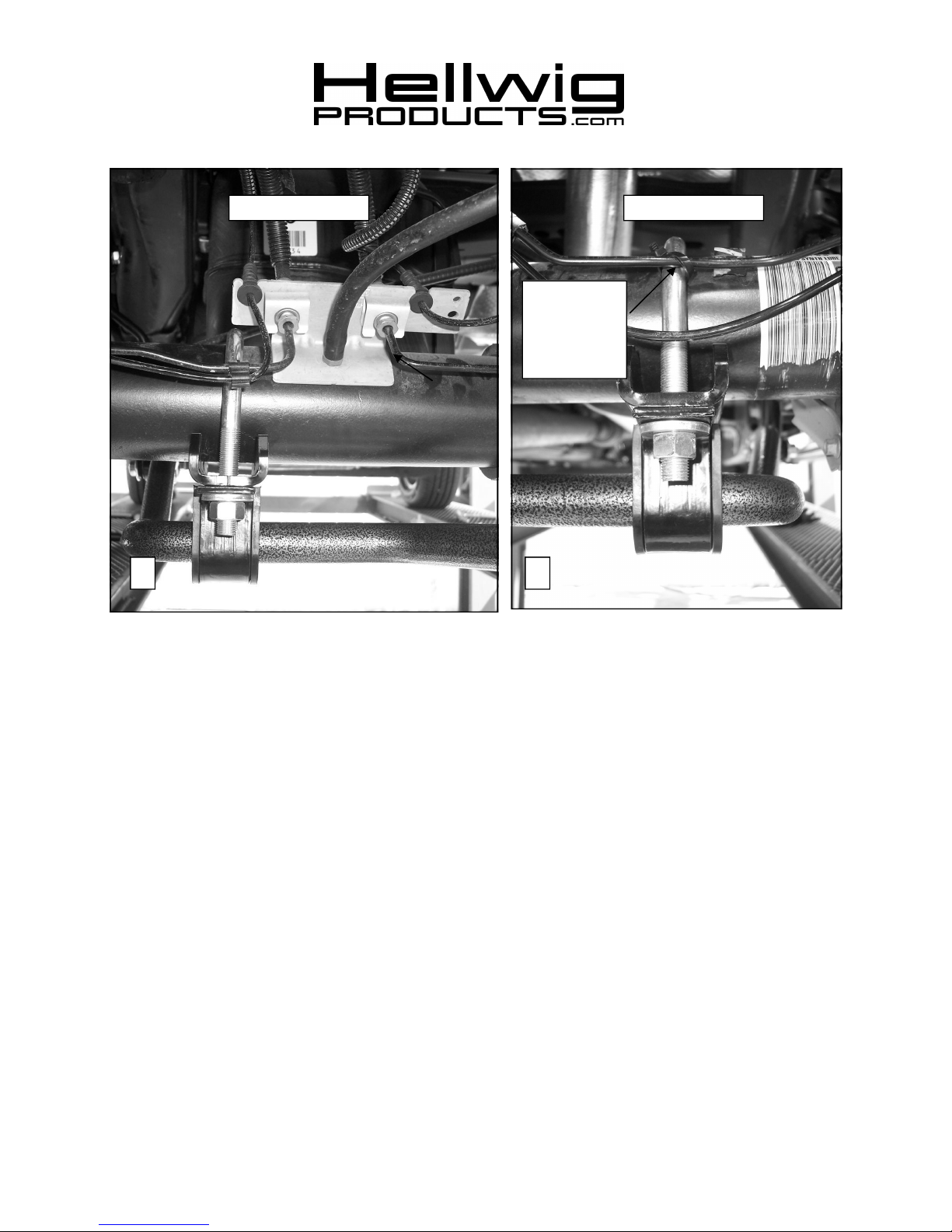

4. Assemble end links together as shown in photo 4 with 9/16” jam nut on threaded portion of end link. Leave
loose for adjustment later.

5. Loosely attach end links to clevis using 7/16-20 X 2-1/4” bolt and locknut as shown in photo 4. Leave loose

for adjustment later.

6. Prepare axle to attach sway bar by unclipping brake line from tab on axle as shown in photo 7. Install U­bolts over axle as shown in photos 6&7. Make sure that the U-bolts are under any brake lines, wires
or hoses on the axle to avoid pinching or crushing when the U-bolts are tightened.

SAFETY: BEFORE STARTING YOUR INSTALLATION, BE SURE TO SET PARKING BRAKE AND CHOCK TIRES.
NOTE: TO EASE INSTALLATION AND TO PROPERLY ADJUST THE BAR, THE WEIGHT OF THE VEHICLE MUST BE

ON THE SUSPENSION, AS IF DRIVING DOWN THE ROAD. DO NOT RAISE VEHICLE BY THE FRAME.

NOTE: THIS SWAYBAR IS DESIGNEDTO MOUNT ON THE REAROF THE DIFFERENTIAL WITH THE ARMS TO

WARDS THE FRONTOF THE VEHICLE.

NOTE: THIS KIT INCLUDES LOCK NUTS WHICH REQUIRES TIGHTENINGWITH A WRENCH AFTER BEING

STARTEDBY HAND.

TORQUE TABLE

BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – ½” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.-5/8”=120 ft. lbs.

559-734-7451 800-367-5480 FAX [phone]

9/16” Jam Nut

4 5

7705 ( R-7705 ) 11/17/2009

Attach end link to
this hole
