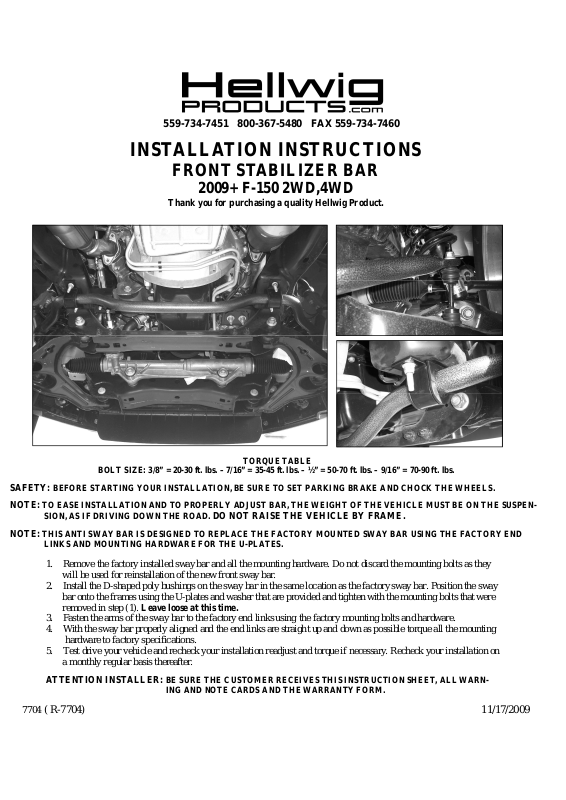

Hellwig 7704 User Manual

559-734-7451 800-367-5480 FAX 559-734-7460

INSTALLATION INSTRUCTIONS

FRONT STABILIZER BAR

2009+ F-150 2WD,4WD

Thank you for purchasing a quality Hellwig Product.

TORQUETABLE

BOLT SIZE:3/8” =20-30 ft. lbs. – 7/16”= 35-45 ft. lbs. – ½” = 50-70ft. lbs. – 9/16” = 70-90ft. lbs.

SAFETY: BEFORESTARTINGYOUR INSTALLATION,BE SURE TO SET PARKING BRAKE AND CHOCKTHE WHEELS. NOTE: TO EASEINSTALLATIONAND TO PROPERLY ADJUST BAR, THE WEIGHT OF THE VEHICLEMUST BE ON THE SUSPEN-

SION, AS IF DRIVING DOWNTHE ROAD. DO NOT RAISE THE VEHICLEBY FRAME.

NOTE: THIS ANTI SWAYBAR IS DESIGNED TOREPLACE THE FACTORYMOUNTED SWAY BAR USING THEFACTORY END

LINKS AND MOUNTING HARDWARE FOR THE U-PLATES.

1. Remove the factory installed sway bar and all the mounting hardware. Do not discard the mounting bolts as they will be used for reinstallation of the new front sway bar.

2. Install the D-shaped poly bushings on the sway bar in the same location as the factory sway bar. Position the sway bar onto the frames using the U-plates and washer that are provided and tighten with the mounting bolts that were removed in step (1). Leave loose at this time.

3. Fasten the arms of the sway bar to the factory end links using the factory mounting bolts and hardware.

4. With the sway bar properly aligned and the end links are straight up and down as possible torque all the mounting

hardware to factory specifications.

5. Test drive your vehicle and recheck your installation readjust and torque if necessary. Recheck your installation on a monthly regular basis thereafter.

ATTENTION INSTALLER:BE SURE THE CUSTOMERRECEIVES THIS INSTRUCTION SHEET, ALL WARN-

ING AND NOTE CARDS ANDTHE WARRANTY FORM.

7704 ( R-7704) 11/17/2009
