Harman Kardon BDP 230, BDP120 Service Manual

harman/kardon

BDP 1 / BDP 10 Service Manual

harman/kardon Service Manual

BDP 1/120 BDP 10/230

Blu-ray players

BDP 10 SPECIFICATIONS…………………………2

BDP 1 SPECIFICATIONS…………………………..3 BDP 10 SAFETY INFORMATION………………….4 BDP 1 SAFETY INFORMATION…………………...6 FRONT PANEL CONTROLS……………………….8

MESSAGE DISPLAY………………………….……10 BDP 10 REAR-PANEL CONNECTIONS…………11 BDP 1 REAR-PANEL CONNECTIONS…………..13

REMOTE CONTROL FUNCTIONS………………15 BDP 10 INSTALLATION…………………………...17 BDP1 INSTALLATION……………………………..19

8500 Balboa Blvd.

CONTENTS

harman/kardon, Inc.

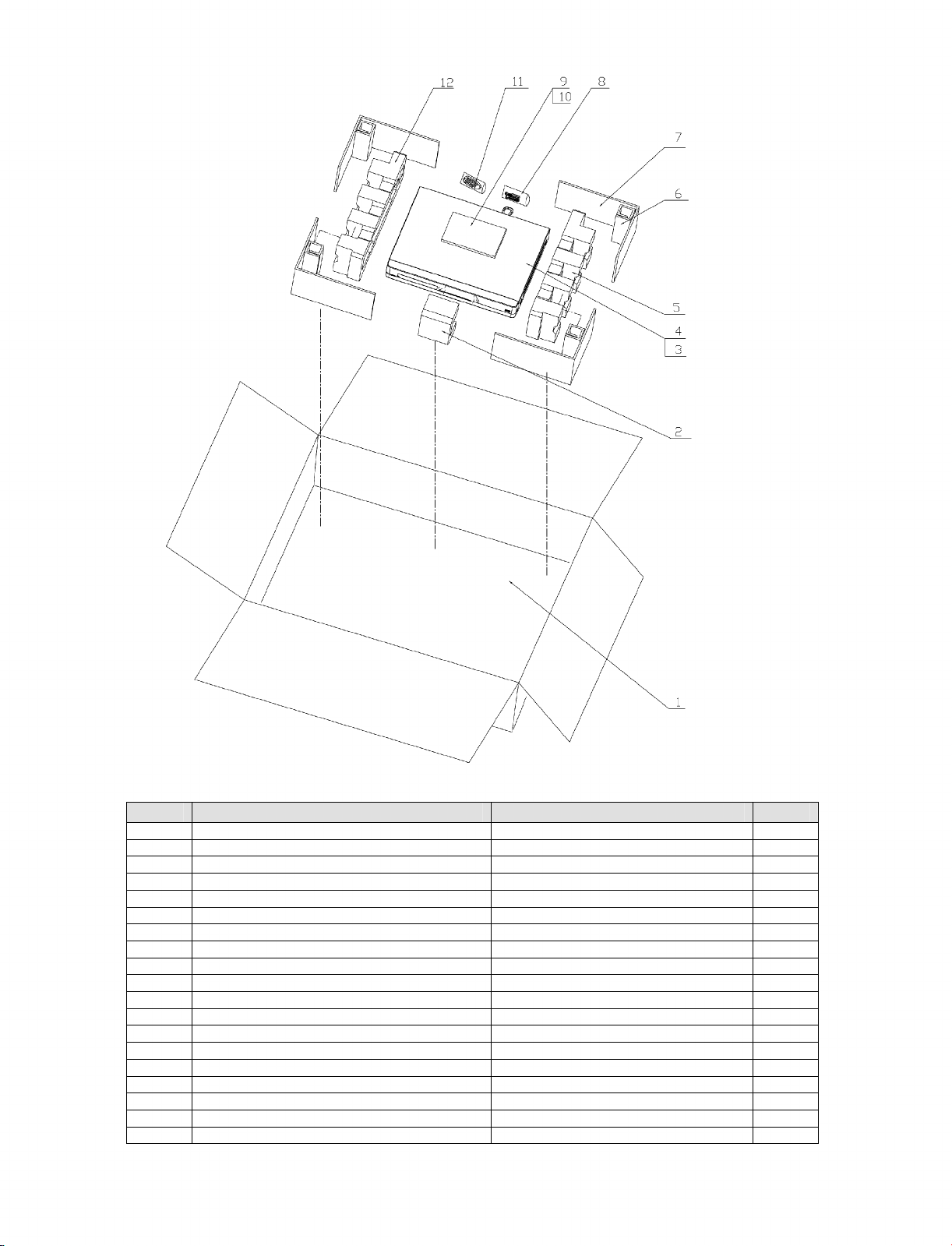

SOFTWARE UPGRADE INSTRUCTIONS….21 PACKAGING……………………………………22 EXPLODED VIEW……………………………..23

BDP 10 PARTS LIST………………………….24 BDP 1 PARTS LIST…………………………...25

TROUBLE SHOOTING CHARTS……………26 PCB DRAWINGS………………………………32 BLOCK DIAGRAM……………………………..38

SCHEMATIC DIAGRAMS…………………….39 TECH TIP HKTT2010-01…….………………..54

Released 2010 Northridge, CA. 91329 Rev0 8/2010 Discontinued XXXX

harman/kardon BDP 1 / BDP 10 Service Manual

BDP 10 TECHNICAL SPECIFICATIONS

Applicable Disc:

Disc Formats: 12cm (5”) or 8cm (3”) BD-Video, DVD-Video,

standard-conforming DVD-R, DVD+R, DVD-RW

$6$27$6$2!-#$#$2#$27$IV8 OR-0DISCS

Region Code: BD-Video disc with Code B or Open Region DVD-

Video disc with Code 2 or 0 only

DVD Layers: Single-side/single-layer, single-side/dual-layer,

dual-side/dual-layer

Video Format: -0%'-0%'!6#(3-04%6#

(VC-9)

Audio Formats: Dolby

TrueHD; Dolby Digital Plus; Dolby Digital;

$43($-ASTER!UDIO©PASSTHROUGHONLY ,0#--0%'ANDLAYER-07INDOWS

-EDIA

Still-Image format: JPEG

Video Signal System:

HDMI™ Output:

PAL or NTSC

Video: up to 1080p

($-)©6AWITHXV#OLOR©$OLBY 4RUE($$43($-ASTER!UDIOAND0#-UPTO

7.1 channels)

HDCP: version 1.1-compliant

Composite Video Output:

Component Video Output:

1V p-p/75 ohms, sync negative polarity

Y: 1V p-p/75 ohms, sync negative polarity

Pr: 0.7V p-p/75 ohms

Pb: 0.7V p-p/75 ohms

Analog Audio Output:

62-3K(ZD"

Frequency Response:

$6$,INEAR0#- 2Hz – 22kHz +0/–0.5dB (48kHz sampling)

2Hz – 44kHz +0/–1.5dB (96kHz sampling)

2Hz – 88kHz +0/–0.5dB (192kHz sampling)

CD: 2Hz – 20kHz +0/–0.5dB

Signal/Noise Ratio (SNR):

-100dB (± 3dB), A-weighted

Dynamic Range:

DVD: 100dB (18-bit)/105dB (20-bit)

CD/DVD: 96dB (16-bit)

THD/1kHz:

Wow & Flutter:

AC Power:

Power Consumption:

Dimensions (H x W x D):

DVD/CD: 0.0025%

Below measurable limits

110-240V AC/50-60Hz

≤1 Watt (standby)/28 watts (max)

66mm x 440mm x 352mm (2-5/8” x 17-5/16” x 13-7/8”)

Weight:

Shipping Dimensions (H x W x D):

Shipping Weight:

3.7kg (8.2 lb)

149mm x 470mm x 565mm (5-7/8” x 18-1/2” x 22-1/4”)

5.5kg (12 lb)

Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis.

All features, specifications and apperance are subject to change without notice. Harman Kardon and Logic 7 are trademarks of Harman International Industries, Incorporated,

registered in the United States and/or other countries. Designed to Entertain is a trademark of Harman International Industries, Incorporated.

BD-Live, the “BD-LIVE” logo, Blu-ray Disc, the “Blu-ray Disc” logo, BonusView and the “BONUSVIEW” logo are trademarks of the Blu-ray Disc Association.

$OLBYAND0RO,OGICAREREGISTEREDTRADEMARKSANDTHEDOUBLE$SYMBOLAND-,0,OSSLESS

are trademarks, of Dolby Laboratories. DTS, DTS-ES, DTS Neo:6, DTS 96/24 and DTS Digital Surround are registered trademarks

ANDTHE$43LOGOS3YMBOL$43($$43($-ASTER!UDIO$43($(IGH2ESOLUTION

-ANUFACTUREDUNDERLICENSEUNDER530ATENTS

5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929 & other U.S. and worldwide patents issued & pending.

HD-DVD and the DVD logos are trademarks of the DVD Format/Logo Licensing Corporation (DVD FLLC).

($-)(IGH$EFINITION-ULTIMEDIA)NTERFACEISATRADEMARKORREGISTEREDTRADEMARKOF($-)

Licensing LLC. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. Java and all Java-based trademarks and logos are trademarks or registered trademarks of

3UN-ICROSYSTEMS)NCINTHE53ANDOTHERCOUNTRIES

Kodak is a registered trademark, and Photo CD is a trademark, of Eastman Kodak Company. DivX, DivX Certified, and associated logos are trademarks of DivX Networks, Inc and are

used under license.

Please register your product at www.harmankardon.com. Note: You’ll need your serial number. At the same time, you can choose to be notified about new products and/or special promotions.

-ICROSOFT7INDOWSAND7INDOWS-EDIAAREREGISTEREDTRADEMARKSOF-ICROSOFT#ORPORATION INTHE5NITED3TATESANDOROTHERCOUNTRIES7-!7INDOWS-EDIA!UDIOISAPROPRIETARYFILE FORMATDEVELOPEDBY-ICROSOFT

SACD is a trademark of Sony Corporation. “x.v.Color” and the “x.v.Color” logo are trademarks of Sony Corporation.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must

BEAUTHORIZEDBY-ACROVISIONANDISINTENDEDFORHOMEANDOTHERLIMITEDVIEWINGUSES ONLYUNLESSOTHERWISEAUTHORIZEDBY-ACROVISION2EVERSEENGINEERINGORDISASSEMBLYIS

prohibited.

harman/kardon BDP 1 / BDP 10 Service Manual

BDP 1 TECHNICAL SPECIFICATIONS

Applicable Disc:

Disc Formats: 5" (12cm) or 3" (8cm) BD-Video, DVD-

Video, standard-conforming DVD-R, DVD+R, DVD-RW, DVD+RW, DVD-RAM, CD, CD-R, CD-RW or MP3 discs

Region Code: BD-Video disc with Code A or Open Region

DVD-Video disc with Code 1 or 0 only

DVD Layers: Single-side/single-layer, single-side/

dual-layer, dual-side/dual-layer

Video Format: MPEG-2, MPEG-4 AVC (H.264), SMPTE

VC1 (VC-9)

Audio Formats: Dolby

TrueHD; Dolby Digital Plus; Dolby Digital; DTS-HD Master Audio through only); LPCM; MPEG-1 and 2, layer 2; MP3; Windows Media

™

(pass-

Still-Image format: JPEG

Video Signal System: NTSC

™

Output: Video: up to 1080p

HDMI

™

HDMI

: (V.1.3a with x.v.Color™, Dolby TrueHD, DTS-HD Master Audio and PCM up to 7.1 channels) HDCP: version 1.1-compliant

Composite Video Output: 1V p-p/75 ohms, sync negative polarity

Component Video Output: Y: 1V p-p/ 75 ohms, sync negative polarity

Pr: 0.7V p-p/ 75 ohms Pb: 0.7V p-p/ 75 ohms

Analog Audio Output: 2V RMS (1kHz, 0dB)

Frequency Response:

DVD (Linear PCM): 2Hz – 22kHz +0/–0.5dB (48kHz sampling)

2Hz – 44kHz +0/–1.5dB (96kHz sampling) 2Hz – 88kHz +0/–0.5dB (192kHz sampling)

CD: 2Hz – 20kHz +0/–0.5dB

3dB), A-weighted

Signal/Noise Ratio (SNR): –100dB (

Dynamic Range:

DVD: 100dB (18-bit)/105dB (20-bit )

CD/DVD: 96dB (16-bit)

THD/1kHz: DVD/CD: 0.0025%

Wow & Flutter: Below measurable limits

AC Power: 110–240V AC/50–60Hz

Power Consumption:

1 Watt (standby)/28 watts (max)

–

Dimensions (H x W x D): 2-5/8" x 17-5/16" x 13-7/8"

(66mm x 440mm x 352mm)

Weight: 8.2 lb (3.7kg)

Shipping Dimensions (H x W x D): 5-7/8" x 18-1/2" x 22-1/4"

(149mm x 470mm x 565mm)

Shipping Weight: 12 lb (5.5kg)

Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis.

Features, specifications and appearance are subject to change without notice. Harman Kardon and Logic 7 are trademarks of Harman International Industries, Incorporated,

registered in the United States and/or other countries. Designed to Entertain is a trademark of Harman International Industries, Incorporated.

BD-Live, the “BD-LIVE” logo, Blu-ray Disc, the “Blu-ray Disc” logo, BonusView and the “BONUSVIEW” logo are trademarks of the Blu-ray Disc Association.

Dolby and Pro Logic are registered trademarks, and the double-D symbol and MLP Lossless are trademarks, of Dolby Laboratories.

DTS, DTS-ES, DTS Neo:6, DTS 96/24 and DTS Digital Surround are registered trademarks and the DTS logos, Symbol, DTS-HD, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS-HD High Res Audio and DTS-HD Advanced Digital Out are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929 & other U.S. and worldwide patents issued & pending.

HD-DVD and the DVD logos are trademarks of the DVD Format/Logo Licensing Corporation (DVD FLLC).

HDMI (High-Definition Multimedia Interface) is a trademark or registered trademark of HDMI Licensing LLC.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries. Java and all Java-based trademarks and logos are trademarks or registered trademarks of

Sun Microsystems, Inc. in the U.S. and other countries. Kodak is a registered trademark, and Photo CD is a trademark, of Eastman Kodak Company.

Please register your product at www.harmankardon.com. Note: You’ll need your serial number. At the same time, you can choose to be notified about new products and/or special promotions.

Microsoft, Windows and Windows Media are registered trademarks of Microsoft Corporation in the United States and/or other countries. WMA (Windows Media Audio) is a proprietary file format developed by Microsoft.

SACD is a trademark of Sony Corporation. “x.v.Color” and the “x.v.Color” logo are trademarks of Sony Corporation.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

harman/kardon BDP 1 / BDP 10 Service Manual

SAFETY INFORMATION

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by the

manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.

17. The mains plug of the power supply cord shall remain readily operable.

18. Do not expose batteries to excessive heat such as sunshine, fire or the

like.

that may be of sufficient magnitude to constitute a risk of electric shock to persons.

accompanying the product.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

declare in own responsibility, that the product described in this owner’s manual is in compliance with technical standards:

EN 55013:2001

EN 55020:2002

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

EN 60065:2002

for BDP10

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature

Declaration of Conformity

We, Harman Consumer Group, Inc.

2, Route de Tours 72500 Château-du-Loir, FRANCE

Jurjen Amsterdam

Harman Consumer Group, Inc.

02/09

CLASS 1

LASER PRODUCT

Class II equipment symbol

This symbol indicates that the unit has

a double insulation system

for BDP10

harman/kardon BDP 1 / BDP 10 Service Manual

SAFETY INFORMATION

for BDP10

Important Safety Information

Verify Line Voltage Before Use

Your BDP 10 has been designed for use with 110–240-volt AC current, and the plug is specifically designed for 230-volt applications. Connection to a line voltage other than that for which the plug is intended can create a safety and fire hazard and may damage the unit.

If you have any questions about the voltage requirements for your specific model, or about the line voltage in your area, contact your selling dealer before plugging the unit into a wall outlet.

Do Not Use Extension Cords

To avoid safety hazards, use only the power cord attached to your unit. We do not recommend that extension cords be used with this product. As with all electrical devices, do not run power cords under rugs or carpets or place heavy objects on them. Damaged power cords should be replaced immediately by an authorized service center with a cord meeting factory specifications.

Handle the AC Power Cord Gently

When disconnecting the power cord from an AC outlet, always pull the plug; never pull the cord. If you do not intend to use the unit for any considerable length of time, disconnect the plug from the AC outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product. Opening the cabinet may present a shock hazard, and any modification to the product will void your guarantee. If water or any metal object such as a paper clip, wire or staple accidentally falls inside the unit, disconnect it from the AC power source immediately, and consult an authorized service center.

Installation Location

s4OENSUREPROPEROPERATIONANDTOAVOIDTHEPOTENTIALFORSAFETYHAZARDSPLACE

the unit on a firm and level surface. When placing the unit on a shelf, be certain that the shelf and any mounting hardware can support the weight of the product.

s-AKECERTAINTHATPROPERSPACEISPROVIDEDBOTHABOVEANDBELOWTHEUNITFOR

ventilation. If this product will be installed in a cabinet or other enclosed area, make certain that there is sufficient air movement within the cabinet. Under some circumstances, a fan may be required. The unit should be placed on its own shelf, not directly on top of another component.

s$ONOTPLACETHEUNITDIRECTLYONACARPETEDSURFACE

s!VOIDINSTALLATIONINEXTREMELYHOTORCOLDLOCATIONSORINANAREATHATISEXPOSED

to direct sunlight or heating equipment.

s!VOIDMOISTORHUMIDLOCATIONS

s$ONOTOBSTRUCTTHEVENTILATIONSLOTSONTHEUNITORPLACEOBJECTSDIRECTLYOVER

them.

s  $UETOTHEHEATGENERATEDBYOPERATIONOFTHE"$0ANDOTHER

componentsin your system, there is the remote possibility that the rubber padding on the bottom of the unit’s feet may leave marks on certain wood or veneer materials. Use caution when placing the unit on soft woods or other materials that may be damaged by heat or heavy objects. Some surface finishes may be particularly sensitive to absorbing such marks, due to a variety of factors beyond Harman Kardon’s control, including the nature of the finish, cleaning materialsused, and normal heat and vibration caused by the use of the product, or otherfactors. We recommend that caution be exercised in choosing an installation location for the component and in normal maintenance practices, as your warranty will not cover this type of damage to furniture.

Cleaning

When the unit gets dirty, wipe it with a clean, soft, dry cloth. If necessary, and only after unplugging the AC power cord, wipe it with a soft cloth dampened with mild soapy water, then a fresh cloth with clean water. Wipe it dry immediately with a dry cloth. NEVER use benzene, aerosol cleaners, thinner, alcohol or any other volatile cleaning agent. Do not use abrasive cleaners, as they may damage the finish of metal parts. Avoid spraying insecticide near the unit.

Moving the Unit

Before moving the unit, be certain to disconnect any interconnection cords with other components, and make certain that you disconnect the unit from the AC outlet.

NOTE: To avoid damage to the BDP 10 that may not be covered by the warranty, remove the disc from the unit before it is moved. Once the BDP 10 is installed, a disc may be left in the unit when it is turned off, but the unit should NEVER be moved with a disc left in the disc tray.

Important Information for the User

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. The limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio-frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

s2EORIENTORRELOCATETHERECEIVINGANTENNA

s)NCREASETHESEPARATIONBETWEENTHEEQUIPMENTANDRECEIVER

s#ONNECTTHEEQUIPMENTINTOANOUTLETONACIRCUIT

receiver is connected.

s#ONSULTTHEDEALERORANEXPERIENCEDRADIO46TECHNICIANFORHELP

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

NOTE: Changes or modifications may cause this unit to fail to comply with Part the FCC Rules and may void the user’s authority to operate the equipment.

CAUTION: The BDP 10 uses a laser system. To prevent direct exposure to the laser beam, do not open the cabinet enclosure or defeat any of the safety mechanisms

PROVIDEDFORYOURPROTECTION$/./434!2%).4/4(%,!3%2"%!-4OENSUREPROPER USEOFTHISPRODUCTPLEASEREADTHIS/WNERS-ANUALCAREFULLYANDRETAINITFORFUTUREUSE

Should the unit require maintenance or repair, please contact your local Harman Kardon service center. Refer servicing to qualified personnel only.

different from that to which the

15 of

Unpacking

The carton and shipping materials used to protect your new player during shipment were specially designed to cushion it from shock and vibration. We suggest that you save the carton and packing materials for use in shipping if you move, or should the unit ever need repair.

To minimize the size of the carton in storage, you may wish to flatten it. This is done by carefully slitting the tape seams on the bottom and collapsing the carton. Other cardboard inserts may be stored in the same manner. Packing materials that cannot be collapsed should be saved along with the carton in a plastic bag.

If you do not wish to save the packaging materials, please note that the carton and other sections of the shipping protection are recyclable. Please environment and discard those materials at a local recycling center.

It is important that you remove the protective plastic film from the front-panel lens. Leaving the film in place will affect the performance of your remote control.

respect the

for BDP10

ENGLISH

harman/kardon BDP 1 / BDP 10 Service Manual

SAFETY INFORMATION

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by

the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.

17. The mains plug of the power supply cord shall remain readily operable.

18. Do not expose batteries to excessive heat such as sunshine, fire or the like.

for BDP1

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

harman/kardon BDP 1 / BDP 10 Service Manual

SAFETY INFORMATION

Important Safety Information

Verify Line Voltage Before Use

Your BDP 1 has been designed for use with 110–240-volt AC current, and the plug is specifically designed for 120-volt applications. Connection to a line voltage other than that for which the plug is intended can create a safety and fire hazard and may damage the unit.

If you have any questions about the voltage requirements for your specific model, or about the line voltage in your area, contact your selling dealer before plugging the unit into a wall outlet.

Do Not Use Extension Cords

Handle the AC Power Cord Gently

Do Not Open the Cabinet

Installation Location

• To ensure proper operation and to avoid the potential for safety hazards, place

the unit on a firm and level surface. When placing the unit on a shelf, be certain that the shelf and any mounting hardware can support the weight of the product.

• Make certain that proper space is provided both above and below the unit for

• Do not place the unit directly on a carpeted surface.

• Avoid installation in extremely hot or cold locations, or in an area that is exposed

to direct sunlight or heating equipment.

• Avoid moist or humid locations.

• Do not obstruct the ventilation slots on the unit, or place objects directly

over them.

• Due to the heat generated by operation of the BDP 1 and other components

in your system, there is the remote possibility that the rubber padding on the bottom of the unit’s feet may leave marks on certain wood or veneer materials. Use caution when placing the unit on soft woods or other materials that may be damaged by heat or heavy objects. Some surface finishes may be particularly sensitive to absorbing such marks, due to a variety of factors beyond Harman Kardon’s control, including the nature of the finish, cleaning materials used, and normal heat and vibration caused by the use of the product, or other factors. We recommend that caution be exercised in choosing an installation location for the component and in normal maintenance practices, as your warranty will not cover this type of damage to furniture.

Cleaning

When the unit gets dirty, wipe it with a clean, soft, dry cloth. If necessary, and only after unplugging the AC power cord, wipe it with a soft cloth dampened with mild soapy

for BDP1

water, then a fresh cloth with clean water. Wipe it dry immediately with a dry cloth. NEVER use benzene, aerosol cleaners, thinner, alcohol or any other volatile cleaning agent. Do not use abrasive cleaners, as they may damage the finish of metal parts. Avoid spraying insecticide near the unit.

Moving the Unit

Before moving the unit, be certain to disconnect any interconnection cords with other components, and make certain that you disconnect the unit from the AC outlet.

NOTE: To avoid damage to the BDP 1 that may not be covered by the warranty, remove the disc from the unit before it is moved. Once the BDP 1 is installed, a disc may be left in the unit when it is turned off, but the unit should NEVER be moved with a disc left in the disc tray.

Important Information for the User

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. The limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

NOTE: Changes or modifications may cause this unit to fail to comply with Part the FCC Rules and may void the user’s authority to operate the equipment.

CAUTION: The BDP 1 uses a laser system. To prevent direct exposure to the laser beam, do not open the cabinet enclosure or defeat any of the safety mechanisms provided for your protection. DO NOT STARE INTO THE LASER BEAM. To ensure proper use of this product, please read this Owner’s Manual carefully and retain it for future use. Should the unit require maintenance or repair, please contact your local Harman Kardon service center. Refer servicing to qualified personnel only.

uses and can radiate radio- frequency energy

different from that to which the

and, if not

15 of

Unpacking

It is important that you remove the protective plastic film from the front-panel lens. Leaving the film in place will affect the performance of your remote control.

respect the

ENGLISH

harman/kardon BDP 1 / BDP 10 Service Manual

FRONT-PANEL CONTROLS

USB PortRemote IR Sensor-ESSAGE$ISPLAYDIsc Drawer

Forward

Skip/Step

Stop

Open / ClosePower

Resolution

Video Output

Skip /

Reverse

Play / Pause

PowerIndicator

NOTE: To make it easier to follow the instructions throughout the manual that refer to this illustration, a copy of this page may be downloaded from the Product Support section at

www.harmankardon.com.

harman/kardon BDP 1 / BDP 10 Service Manual

FRONT-PANEL CONTROLS

Power Indicator: Turns amber when the BDP 10 is plugged in and

THEREARPANEL-ASTER0OWER3WITCHISTURNEDONINDICATINGTHATTHE

BDP 10 is in Standby mode and may be turned on using either the front-panel or remote Power switch. Turns white when the BDP 10 is turned on.

Power: Press to turn on the BDP 10, when it is connected to an AC

POWERSOURCEANDTHEREARPANEL-ASTER0OWER3WITCHISON

Disc Drawer: Holds the discs to be played. Carefully seat all discs in the recess in the tray. To avoid damaging the drawer, do not press down on it when open.

Message Display: Various status messages appear in the text display. When content is playing, the track and chapter information and the running time appear. Other indicators will light to display the current playback mode, video settings or other aspects of the BDP 10’s status. See page 10 for details.

Open/Close: Press to open or close the disc drawer.

Play/Pause (

Stop (

): Press to start, pause or resume playback.

): Press to stop playback. When a video is playing, press it

once for Resume mode, and twice to fully stop playback.

Skip Reverse (

): Press once to return to the beginning of the

current chapter or track. Quickly press again to skip to previous chapters or tracks.

Skip/Step Forward (

I): Each press advances to the next chapter

or track. For frame-by-frame advance (forward only), press the Pause Button, then tap the Skip/Step Forward Button.

Video Output Resolution: Press to display the current video output resolution. Each additional press changes to the next setting. Only settings compatible with the TV and type of video connection will be available.

Remote IR Sensor: This sensor receives infrared commands from the

REMOTECONTROL-AKESURETHATITISNOTBLOCKED

USB Port: Connect a USB storage device, such as a flash drive or external hard-disc drive, to play additional content. DO NOT connect card readers, computers, keyboards, pointing devices or other peripheral products to the BDP 10. Do not connect an iPod here.

ENGLISH

harman/kardon BDP 1 / BDP 10 Service Manual

MESSAGE DISPLAY

Disc Type USB Network ParentalLock Repeat 0LAYBACK-ODE

TimeTrack / ChapterTitleVideo OutputResolution

NOTE: To make it easier to follow the instructions that refer to the controls and connectors in this illustration, a larger copy may be downloaded from the Product Support section for this product at www.harmankardon.com.

Disc Type: Indicates the current disc as BD (Blu-ray Disc), DVD or CD.

USB: Lights when a USB drive is selected as the playback source.

Network: This indicator lights when the RJ45 jack is connected to a

live network.

Parental Lock: Lights in red when the parental-lock system is active.

Repeat: These indicators light when any of the Repeat functions are in

use.

Playback Mode: These indicators light to show the current playback mode:



Lights when content is playing in the Normal or Slow Play mode.

Lights in the Fast Search Forward mode, with the speed shown on

screen.

II Lights when the disc is paused.



Lights when the disc is in the Fast Search Reverse mode, with the

speed shown on screen.

Time: These positions show the running time of the current media.

Track/Chapter: When a video disc is playing, these two positions

show the current chapter. When a CD is playing, they will show the current track number.

Title: These two positions show the current title number when a video disc is playing.

Video Output Resolution: Indicates the current video output

RESOLUTION&ORTHE($-)/UTPUTTHERESOLUTIONISSETAUTOMATICALLYTO

the maximum capability of the TV, but may be changed to a lower setting. For the Component Video Output, it must be adjusted manually by pressing the front-panel Video Output Resolution Button, and it may be set lower than the TV’s maximum capability. When the Composite Video Output is in use, this indicator will always default to 576i/480i (interlaced scan), and cannot be changed.

NOTE4HEIIRESOLUTIONISNOTAVAILABLEVIATHE($-) /UTPUT)FTHE($-)/UTPUTISCONNECTEDSIMULTANEOUSLYWITH THE#OMPOSITE6IDEO/UTPUTTHISINDICATORWILLREFLECTTHE($-)

Output’s resolution, and the signal at the Composite Video Output will remain at 576i/480i.

harman/kardon BDP 1 / BDP 10 Service Manual

REAR-PANEL CONNECTIONS

for BDP10

-ASTER0OWER3WITCH

AC Power Input

ENGLISH

Fan Vents

Outputs

Analog Audio

Audio Output

Coaxial Digital

Output

Composite Video

Network Jack

($-)/UTPUT

Output

Optical DigitalAudio

Outputs

Component Video

Input

Remote IR

Output

Remote IR

NOTE: To make it easier to follow the instructions throughout the manual that refer to this illustration, a copy of this page may be downloaded from the Product Support section at

www.harmankardon.com.

harman/kardon BDP 1 / BDP 10 Service Manual

REAR-PANEL CONNECTIONS

Remote Infrared (IR) Input and Output: When the front-panel Remote IR sensor is blocked, connect the IR Output of your receiver/ processor or an optional IR receiver to the Remote IR Input jack. The Remote IR Output may be connected to the Remote IR Input of a compatible product for remote control through the BDP 10. When several devices are used, connect them in “daisy chain” fashion.

Composite Video Output:)FYOURVIDEODISPLAYDOESNOTHAVE($-)

or component video inputs, connect this video output to your A/ V receiver/processor or directly to the display.

Component Video Outputs: If your A/ V receiver, surround processor

ORVIDEODISPLAYISNOTEQUIPPEDFOR($-)OR$6)CONNECTTHESEJACKS

to the corresponding inputs on the receiver or TV. If your video display has component input jacks marked “High Definition,” use those jacks.

Analog Audio Outputs:)FYOUARENOTUSINGEITHER($-)ORASEPARATE

optical or coaxial digital audio connection, connect these jacks to the A/V receiver or TV. Connect these jacks in addition to a digital audio connection to make recordings for personal use, or for a multizone system.

Coaxial and Optical Digital Audio Outputs: If your A/ V receiver or surround processor is not capable of processing the audio from an

($-)STREAMCONNECTEITHEROFTHESEDIGITALAUDIOOUTPUTSBUTNOT

both) to the receiver/processor.

HDMI Output:#ONNECTTOAN($-)COMPATIBLE!  6RECEIVERORVIDEO

display device. If your A/ V receiver or surround processor is capable of

DECODINGAUDIOFROMTHE($-)STREAMNOFURTHERAUDIOCONNECTIONIS

needed.

NOTE: If your A/V receiver or video display uses DVI connections,

USEANOPTIONAL($-)TO$6)ADAPTERORCABLEANDMAKEA

separate audio connection. If your DVI-equipped display is not HDCP-compliant, you must use an analog video connection.

Network Jack: Connect this standard RJ45 jack to a broadband network (Ethernet) connection so that you may take full advantage of BD-Live updates, features and enhancements of the BonusView system. When the network connection is “live,” the lights on either side of the jack will flash to indicate network activity.

NOTE: When the BDP 10 is used with an IP-based or wireless control device, connect a router/access point here, making certain that one connection runs from the router to a broadband Internet connection.

Master Power Switch: Flip on to apply power to the BDP 10, placing it in the Standby mode. When the unit will not be used for an extended period of time, or whenever it is necessary to remove the unit from the AC power lines, flip the switch off.

AC Power Input: Connect the supplied AC power cord to this socket first, and then to an unswitched AC outlet. Should the cord become damaged, contact your authorized Harman Kardon dealer for a replacement.

for BDP10

Fan Vents: This area contains vents used by the BDP 10’s fan to cool

THESYSTEM-AINTAINACLEARANCEOFATLEASTINCHESTOTHENEAREST

surface, to avoid overheating the unit.

harman/kardon BDP 1 / BDP 10 Service Manual

REAR-PANEL CONNECTIONS

for BDP1

Master Power

Switch

ON OFF

AC Power

Input

ENGLISH

Fan Vents

Coaxial Digital

Audio Output

Analog Audio

Outputs

Composite

Video Output

HDMI

Output

Component

Video Outputs

Remote

IR Output

Network Jack

Optical Digital

Audio Output

Remote

IR Input

www.harmankardon.com.

NOTE: To make it easier to follow the instructions throughout the manual that refer to this illustration, a copy of this page may be downloaded from the Product Support section at

harman/kardon BDP 1 / BDP 10 Service Manual

REAR-PANEL CONNECTIONS

Remote Infrared (IR) Input and Output: When the front-panel Remote IR sensor is blocked, connect the IR Output of your receiver/processor or an optional IR receiver to the Remote IR Input jack. The Remote IR Output may be connected to the Remote IR Input of a compatible product for remote control through the BDP 1. When several devices are used, connect them in “daisy chain” fashion.

Composite Video Output: If your video display does not have HDMI or component video inputs, connect this video output to your A/ V receiver/processor or directly to the display.

Component Video Outputs: If your A/V receiver, surround processor or video display is not equipped for HDMI or DVI, connect these jacks to the corresponding inputs on the receiver or TV. If your video display has component input jacks marked “High Definition,” use those jacks.

Analog Audio Outputs: If you are not using either HDMI or a separate optical or coaxial digital audio connection, connect these jacks to the A/V receiver or TV. Connect these jacks in addition to a digital audio connection to make recordings for personal use, or for a multizone system.

Coaxial and Optical Digital Audio Outputs: If your A/V receiver or surround processor is not capable of processing the audio from an HDMI stream, connect either of these digital audio outputs (but not both) to the receiver/processor.

HDMI Output: Connect to an HDMI-compatible A/ V receiver or video display device. If your A/V receiver or surround processor is capable of decoding audio from the HDMI stream, no further audio connection is needed.

NOTE: If your A/V receiver or video display uses DVI connections, use an optional HDMI-to-DVI adapter or cable, and make a separate audio connection. If your DVI-equipped display is not HDCP-compliant, you must use an analog video connection.

NOTE: When the BDP 1 is used with an IP-based or wireless control device, connect a router/access point here, making certain that one connection runs from the router to a broadband Internet connection.

Master Power Switch: Flip on to apply power to the BDP 1, placing it in the Standby mode. When the unit will not be used for an extended period of time, or whenever it is necessary to remove the unit from the AC power lines, flip the switch off.

for BDP1

Fan Vents: This area contains vents used by the BDP 1’s fan to cool the system. Maintain a clearance of at least 3 inches to the nearest surface, to avoid overheating the unit.

harman/kardon BDP 1 / BDP 10 Service Manual

REMOTE CONTROL FUNCTIONS

IR Transmitter Lens

Open/Close

Power On

Dimmer

$ISC-ENU

Return

Search Reverse

Play

Setup

Repeat

A-B Repeat

Power Off

Status

ENGLISH

0OPUP4ITLE-ENU

Find

q/r

/s/t Navigation

Next/Step

Search/Slow Forward

Stop

Pause

Soft Keys

Subtitle

Audio

Angle

Numeric Keys

Backlight

PIP

PIP Audio

Clear

NOTE: To make it easier to follow the instructions throughout the manual that refer to this illustration, a copy of this page may be downloaded from the Product Support section at www.harmankardon.com.

harman/kardon BDP 1 / BDP 10 Service Manual

REMOTE CONTROL FUNCTIONS

IR Transmitter Lens: When buttons are pressed on the remote,

INFRAREDCODESAREEMITTEDTHROUGHTHISLENS-AKESUREITISPOINTING

toward the BDP 10.

Power On: Press to turn on the BDP 10 when it is in the Standby mode.

Power Off: Press to turn off the BDP 10, placing it in the Standby mode.

Open/Close: Press to open or close the disc drawer.

Dimmer: Press to change the front-panel display to half- or full-

brightness, or to turn it off. When the indicators are fully dimmed, the Power Indicator will remain lit to remind you that the unit is on. Press any button to temporarily return the front panel to full-brightness.

Status: Press during playback to display the current title and chapter or track.

Disc Menu: Press to view a disc’s main menu. Playback will pause.

Popup/Title Menu: Press while a BD-Video disc is playing to display

a menu bar at the bottom of the screen or elsewhere, depending on the disc. This is one of the Blu-ray Disc system’s most exciting innovations, as video playback will continue while you access the disc’s setup, scene selection and special features submenus and make

ADJUSTMENTSONTHEFLY)FYOUSELECTh$ISC-ENUvPLAYWILLSTOPANDTHE

main disc menu will appear. Depending on the disc, other functions may be implemented as popup menus during playback.

q/r

Navigation

on-screen menus. When still images are displayed, use the Buttons to scroll through the images in the folder.

OK Button: Press to enter a menu selection.

Return: Press to return to the previous menu or menu selection level.

Find: While a disc is playing, press to jump to a different location

on the disc. Each press changes the search mode: Title, Chapter or Time. Use the Numeric Keys to specify the location, and press the OK Button.

Previous: Press once to return to the start of the current chapter or track. Press it again to step through previous chapters or tracks.

(

/s/

): These buttons are used to navigate the

s/t

Pause: Press to momentarily pause playback. Press again to resume. While paused, press the Next Step Button for frame-by-frame advance, or press the Search Forward Button for slow-motion play.

Stop: When audio content is playing, press to stop playback. When a BD or DVD disc is playing, press once to place the unit in the Resume mode, where pressing the Play button will resume playback from the place where it stopped. Press the Stop Button twice when a BD or DVD disc is playing to bring the unit to a “full stop.”

Soft Keys: These four color-coded buttons are used for Blu-ray Disc special features, and are defined by the disc.

Repeat: Press to repeat the current title or chapter while a DVD disc is playing, or to repeat the current track or all tracks on an audio CD. Each press changes the Repeat mode, or turns off Repeat play. To repeat content on a data disc or USB drive, first create a playlist. See pages 23 to 24 for more information.

A-B Repeat: Press to select a passage for repeat play. The first press determines the beginning of the passage, the second press defines the end point and the third press cancels A-B Repeat play. The A-B Repeat function is only available for some Blu-ray Disc media.

Audio: Press to select from the available audio format and/or language options.

Subtitle: Press to select from the available subtitle language options.

Angle: When a BD or DVD disc is playing and multiple-angle content

is available (as indicated on screen), press this button to toggle through the available views.

PIP: Press to switch to a secondary video stream while playing a BD-Video disc with BonusView special features.

PIP Audio: Press to switch to a secondary audio track while playing a BD-Video disc with BonusView special features.

Numeric Keys: Press these buttons to enter numeric data.

Backlight: Press to activate the remote’s backlighting system.

Clear: Press to clear menus from the on-screen display, or to cancel

alphanumeric entries.

Next/Step: When content is playing, each press advances to the next chapter or track. When video content is playing, press the Pause Button first, then each press of this button advances the video one frame. The Step function is not available in reverse.

Search Reverse: Press to scan backward through the current program. Each press changes the speed: 2x, 4x, 8x, 16x, 32x, 64x or 128x. The slow-motion function is not available in reverse.

Play: Press to begin playback.

Search/Slow Forward: Press to scan forward through the current

program. Each press changes the speed: 2x, 4x, 8x, 16x, 32x, 64x or 128x. For slow-motion play of video content, press the Pause Button first, then each press of this button changes the speed: 1/8x, 1/4x or 1/2x.

Setup: Press to configure system options.

harman/kardon BDP 1 / BDP 10 Service Manual

INSTALLATION

for BDP10

IMPORTANT NOTE: All components, including the BDP 10, should be turned off and unplugged from AC power before beginning installation. Do not plug any components back in until after all connections are completed.

Step One – Placement

Other system components, especially audio/video receivers and amplifiers, generate massive amounts of heat that will damage the sensitive laser components of the BDP 10. Although the BDP 10 is equipped with a fan that will turn on occasionally to compensate for heat conditions, it is strongly recommended that you place the BDP 10 on its own shelf. Do not stack components on top of each other.

Step Two – Connect the BDP 10 to an A/V Receiver or Processor (Preferred)

)FTHERECEIVERIS($-)CAPABLECONNECTTHE($-)/UTPUTTOTHE RECEIVERS($-)INPUT3EE&IGURE

&IGUREn($-)/UTPUT

)FTHERECEIVERHASA$6)INPUTANDIS($#0COMPLIANTUSEAN($-)

to-DVI adapter, and make a separate audio connection.

)FTHERECEIVERDOESNOTHAVEAN($-)OR$6)INPUTSELECTONEVIDEO

connection, in order of preference: component video or composite video. See Figure 2.

Figure 4 – Analog Audio Outputs

Skip to Step Four.

Step Three – Connect the BDP 10 Directly to a Television (Alternate)

If an A/ V receiver or processor was used, you may skip this step, or you may make a second connection from the BDP 10 directly to the TV to bypass the home theater system for casual viewing. If you do not have an audio system, connect the BDP 10 to the TV as explained below.

)FTHETELEVISIONIS($-)CAPABLECONNECTTHE($-)/UTPUTTOTHE46S ($-)INPUT3EE&IGURE

)FTHE46HASONLYA$6)INPUTANDIS($#0COMPLIANTUSEAN($-)

to-DVI adapter, and make a separate audio connection.

)FTHETELEVISIONDOESNOTHAVEAN($-)OR$6)INPUTSELECTONEVIDEO

connection, in order of preference: component video or composite video. See Figure 2.

&ORNON($-)46SASEPARATEAUDIOCONNECTIONISREQUIRED!LTHOUGH

some TVs may be equipped with an optical or coaxial digital audio connection, most likely you will use a 2-channel analog connection. Connect the Analog Audio Outputs shown in Figure 4 to the TV.

Step Four – Connect a USB Storage Device

Connect a compatible USB client device to the front-panel USB port. The USB drive may be used as virtual memory for the BD-Live system, or as a playback source. See Figure 5 and page 22.

ENGLISH

Figure 2 – Component and Composite Video Outputs

&ORNON($-)PRODUCTSASEPARATEAUDIOCONNECTIONISREQUIRED)F

available, connect either the Optical or Coaxial Digital Audio Output to the receiver. See Figure 3.

Figure 3 – Coaxial and Optical Digital Audio Outputs

Connect the Analog Audio Outputs to a receiver that does not have an available digital audio input. If digital audio connections have been made to the receiver, make an analog connection for recording, multizone systems or as a backup. See Figure 4.

Figure 5 – Front-Panel USB Port

Step Five – Connect the Remote IR Input and Output (Optional)

Connect the BDP 10’s Remote IR Input to the compatible IR output of another product, or to an IR receiver or controller, such as the optional Harman Kardon HE 1000. When daisychaining devices to allow for remote control up and down the chain, connect the Remote IR Output to the next product’s IR input. See Figure 6. The BDP 10 is compatible with “stripped carrier” IR signals.

+ 37 hidden pages
