Harman Kardon BDP-20, BDP-2 Service Manual

FEATURES 2

TROUBLESHOOTING CHARTS 9

CONTENTS

harman/kardon Service Manual

BDP 20/230
BDP 2/120

Blu-ra y p laye r

FRONT PANEL CONTROLS 3
REAR-PANEL CONNECTIONS 4
REMOTE CONTROL FUNCTIONS 5
TROUBLESHOOTING 6
SPECIFICATIONS 7
SOFTWARE UPGRADE INSTRUCTIONS 8

EXPLODED VIEW 14
BDT 2 PARTS LIST 15
BDT 20 PARTS LIST 16

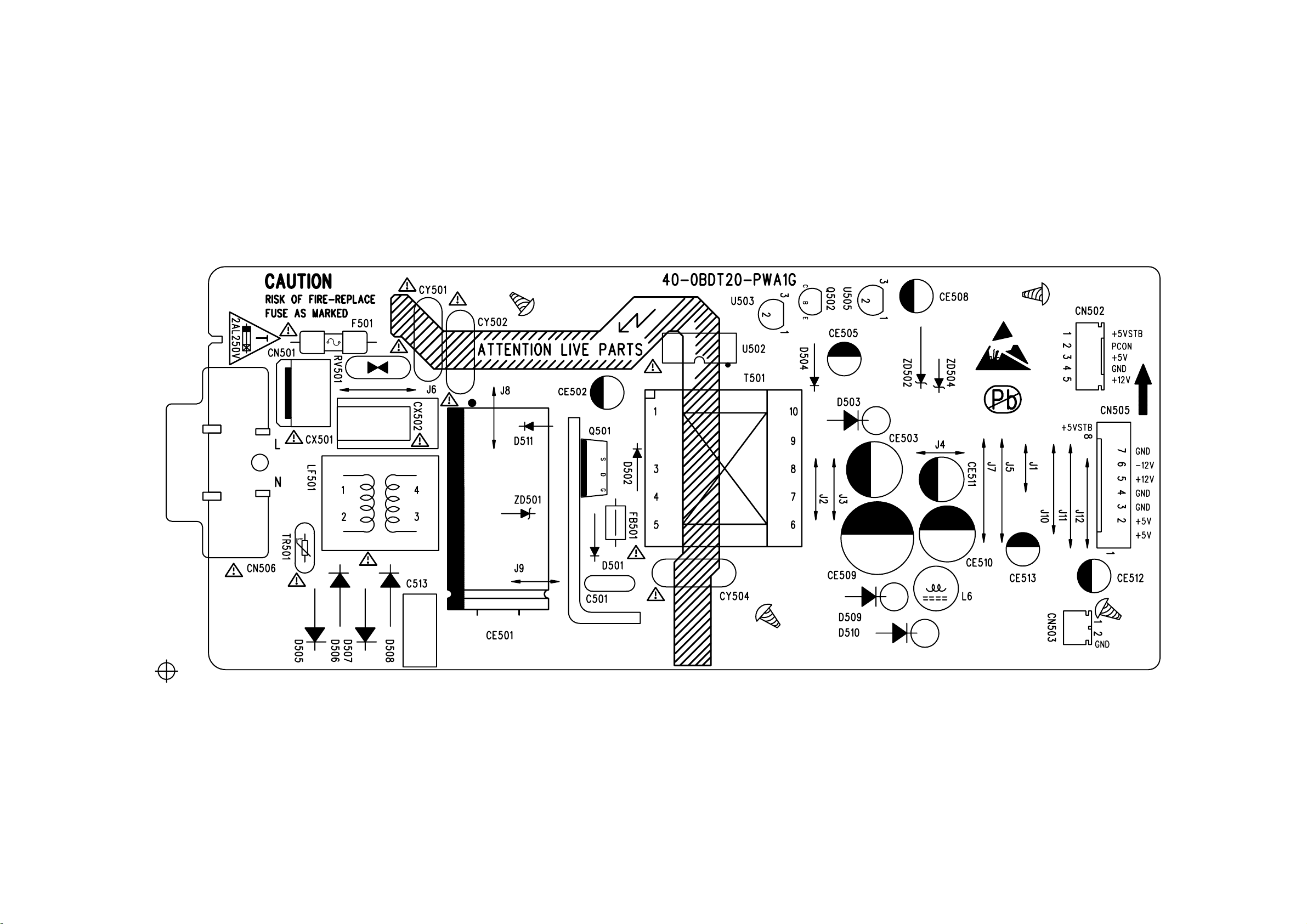

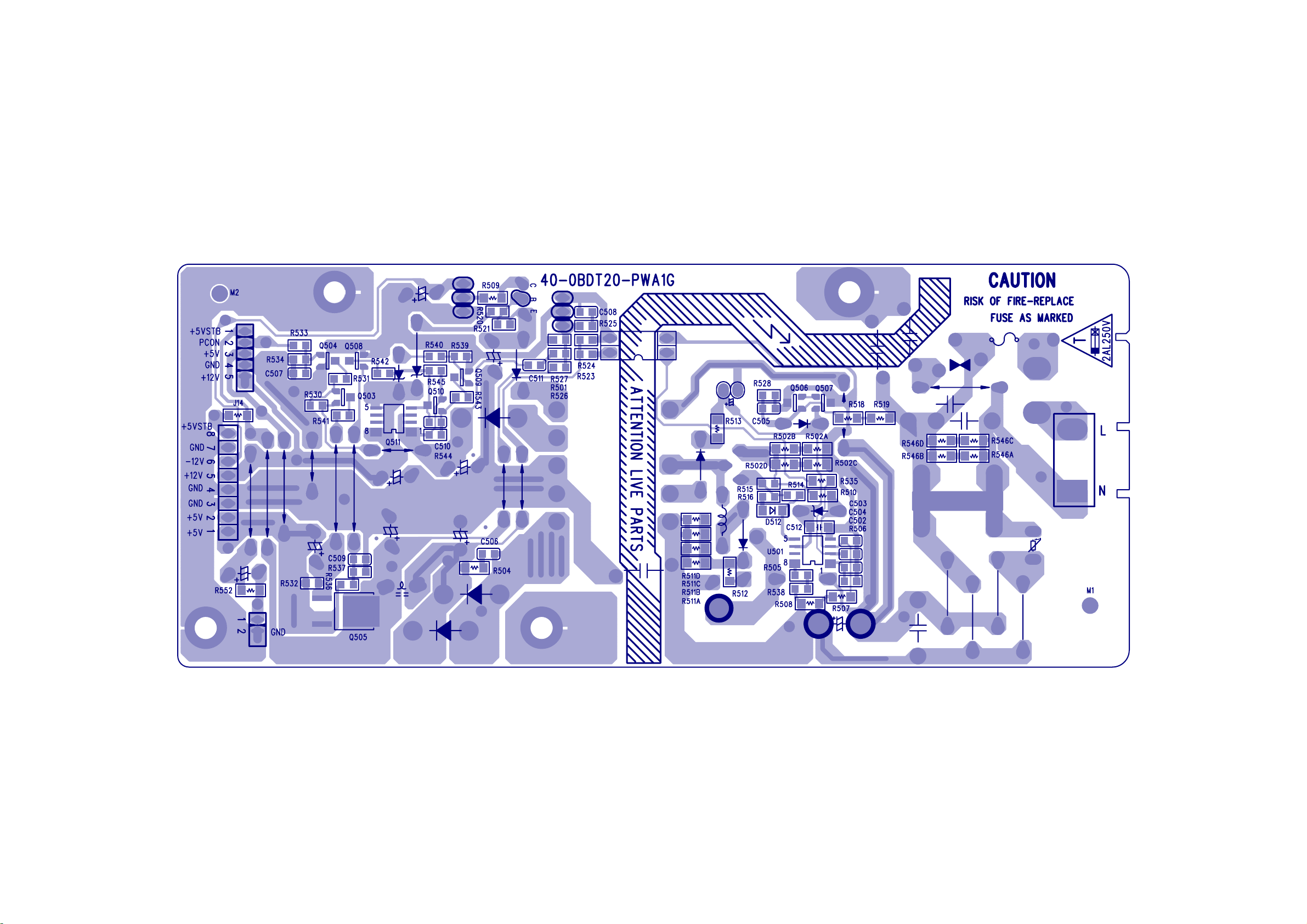

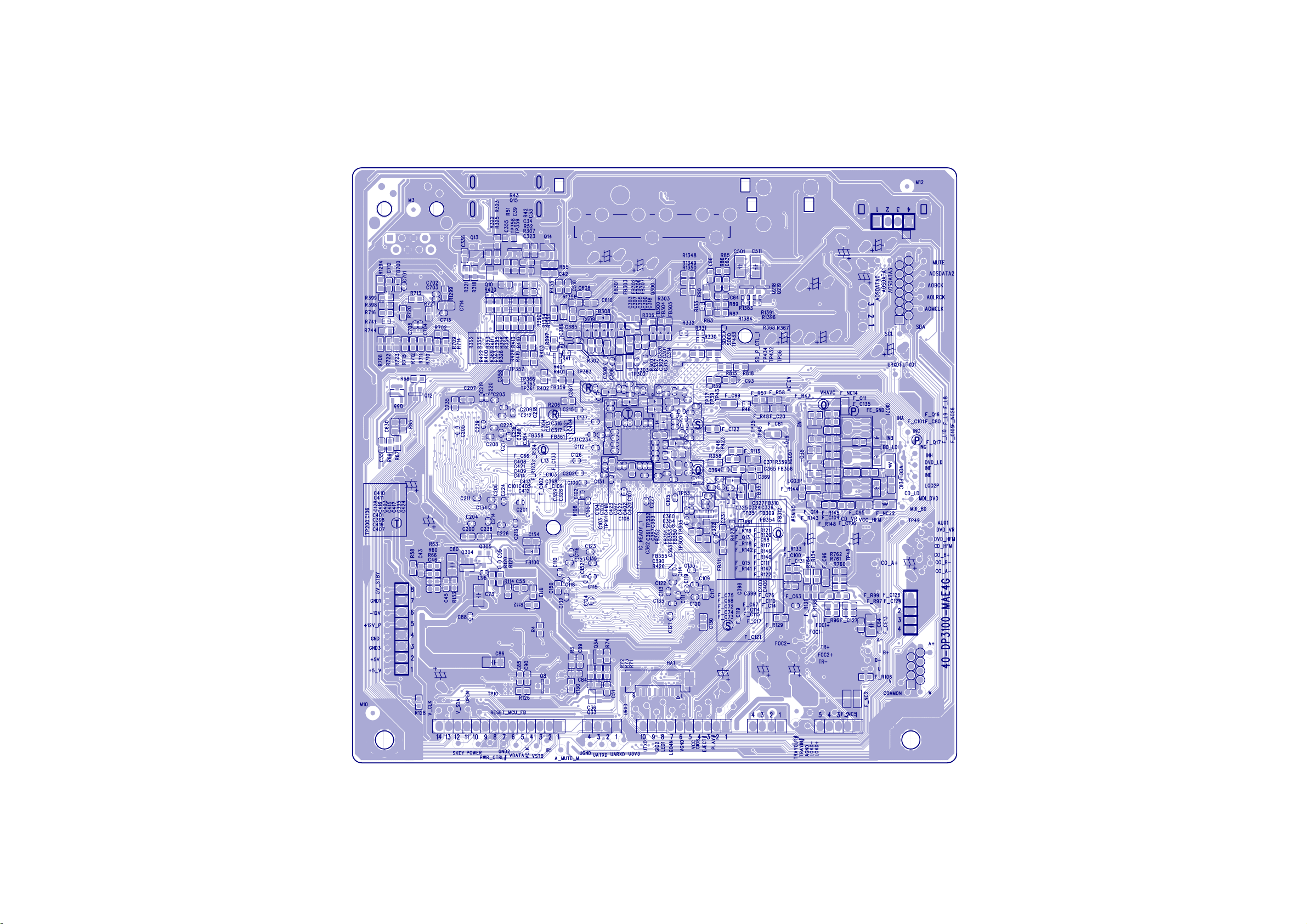

PCB DRAWINGS 17
WIRING DIAGRAM 22

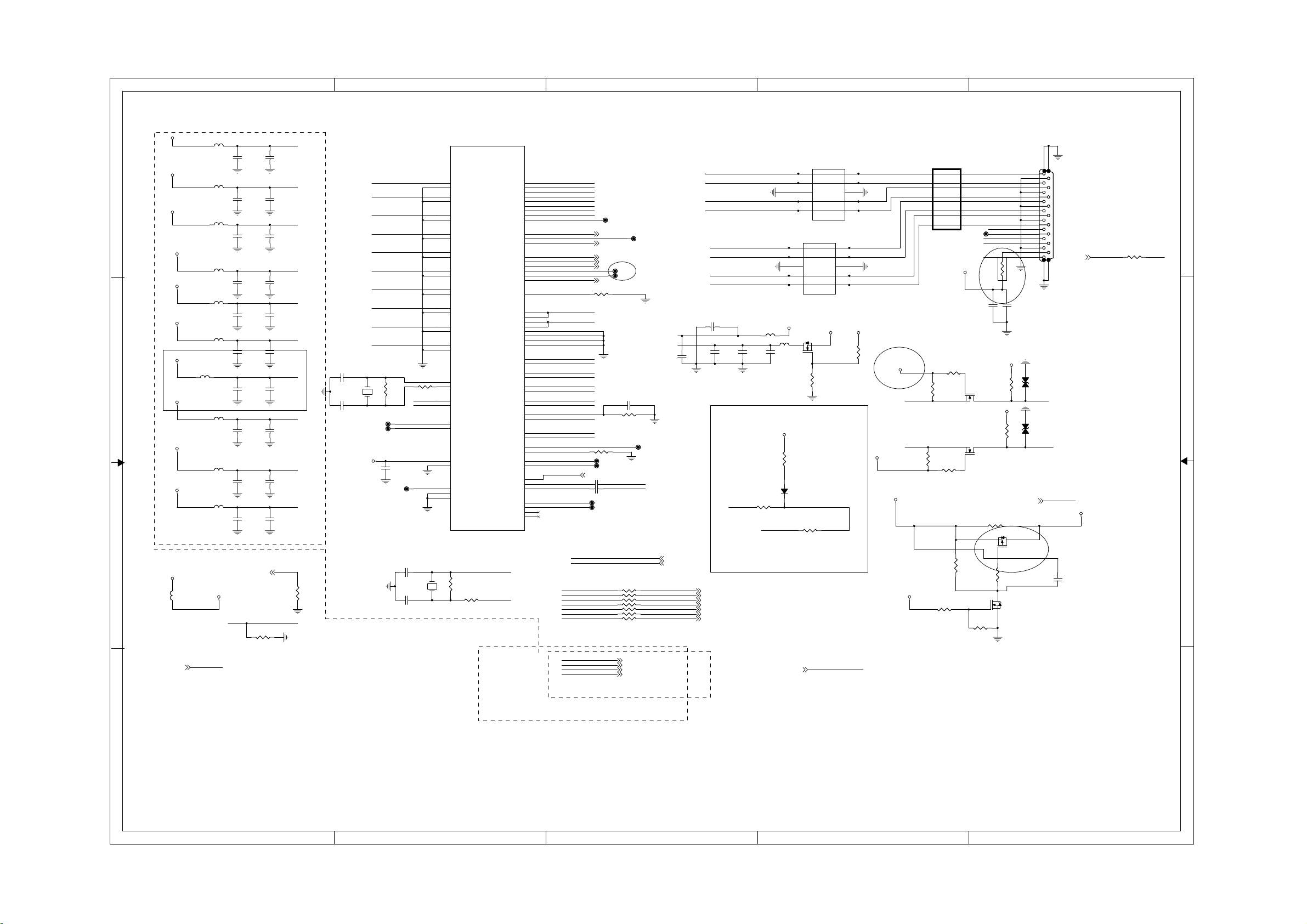

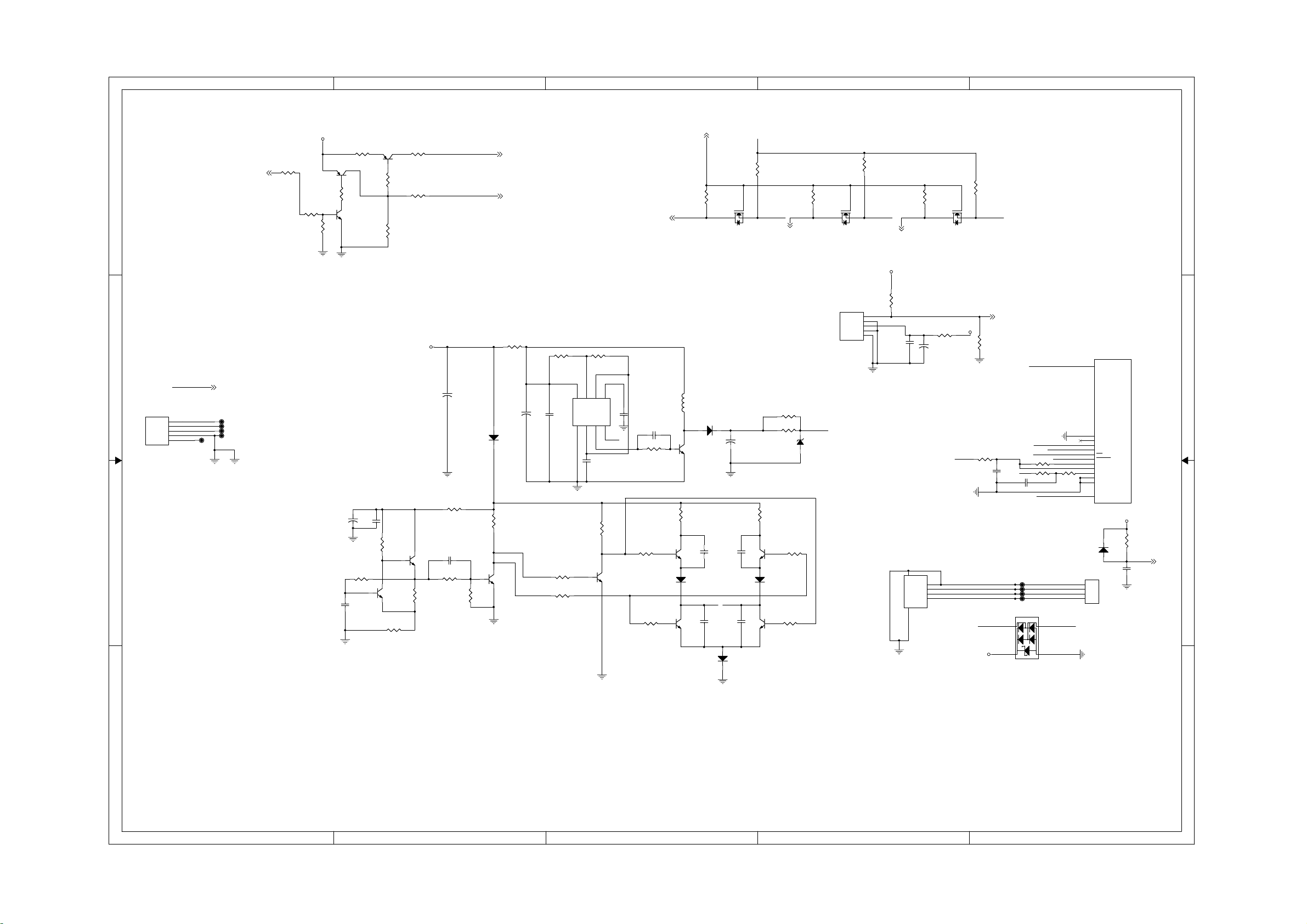

SCHEMATIC DIAGRAMS 23- 37

IMPORTANT INFORMATION ABOUT PAIRING A NEW LOADER WITH THE MAIN BOARD
ON PAGE 38-39.

Released EU2011 Harman Consumer Group, Inc. Rev 1, 03/2012
8500 Balboa Boulevard
Northridge, California 91329

BDT 2/BDT 20

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 2 of 37

BDT 2/BDT 20 Features

BDT 2/BDT 20 Features

Connectivity

One HDMI ver. 1.3a with 30/36-bit Deep Color connection •
One coaxial digital-audio output •
One USB 2.0 port that plays video, audio and photo content from USB devices •
Connects to your LAN (local area network) for BD-Live interactivity via the Internet •

Ease of Use

On-screen menu system •
Dot-matrix front-panel information display •
Full-function remote control •

Disc Player Features

Region coding: Blu-ray Disc Region A/DVD Region 1 (BDT 2 models); •
Blu-ray Disc Region B/DVD Region 2 (BDT 20 models)

Plays five-inch (12cm) and 3-inch (8cm) discs •
Video formats supported: BD-Video (single-layer or double-layer), DVD-Video, •

DVD+R/+RW, DVD-R/-RW, CDDA (CD digital audio), CD-R/RW
Audio formats supported: Dolby •

Digital, DTS-HD™ High Resolution Audio, DTS-HD Master Audio,™ PCM, WMA
(DRM-free version only): WMA9, CBR @192kbps, VBR @ 355kbps, MP3: 32kbps –
320kbps bitrates, including variable bitrate encoding

Supports JPEG still-image format •
Supports BD-Live interactivity •
Video upscaling to 720p and 1080p •
Progressive-scan video output •
JPEG resolution supported: five megapixels, 5MB file size •
JPEG still-image rotation in 90-degree increments •
Thumbnail JPEG still-image menu •
Fast play rates: 2x, 4x, 8x, 16x, 32x •
Slow play rates: 1/2x, 1/4x, 1/8x, 1/16x •
Random play (CDs only) •
Repeat play •
Parental-control system with user-programmable password •
Disc recognition for up to 10 discs •
Aspect-ratio adjustment •

®

Digital, Dolby Digital Plus, Dolby TrueHD, DTS

Supplied Accessories

If any of these items are missing, please contact Harman Kardon Customer Service via
www.harmankardon.com.

Power cord

(Note: The power cord included will
vary depending on where the unit
is sold.)

®

Remote control

HDMI cable

Two AA batteries

6

BDT 2/BDT 20

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 3 of 37

Front-Panel Controls

Front-Panel Controls

Power

Indicator

Power
Button

Power Indicator:

switch is set to “On,” the LED turns amber to indicate that the player is in Standby mode.
When you turn the BDT 2/BDT 20 on (by the Power button or the remote control), the
LED turns white.

Power Button

modes.

Disc Drawer:

5-inch (12cm) and 3-inch (8cm) discs.

Open/Close Button:

this button, make sure that no objects are blocking the disc drawer.

Play Button:

drawer. Pressing this button when viewing photos begins a slide show with all photos in
the current folder.

Pause Button:

while a Blu-ray Disc program or DVD program is playing will freeze-frame on the current
video frame. Pressing the button while the disc is paused will resume play. Pressing this
button while viewing photos freezes the current photo on the screen.

Stop Button:

button will resume playback from the point where it stopped.) Press the Stop button
twice to stop playback fully.

When the BDT 2/BDT 20 is plugged into AC power and its Main Power

: This button toggles the BDT 2/BDT 20 between the On and Standby

Insert a compatible disc into the drawer. The BDT 2/BDT 20 will accept

Press this button to open and close the disc drawer. Before pressing

Press this button to play a disc that has been loaded into the player’s disc

Press this button to pause a disc that is playing. Pressing the button

Press this button to stop playback. (With some discs, pressing the Play

Disc

Drawer

Open/Close

Button

Play

Button

Information

Display

Pause

Button

Previous/

Step

Button

Stop

Button

Information Display:

and to provide information about the BDT player’s status as described throughout this
manual.

Previous/Step Button:

or chapter being played – or, when viewing photos, to the previous photo. Press the
button twice to skip to the beginning of the previous chapter or track. Press the button
repeatedly to skip back through the previous chapters or tracks. When video content is
playing, press the Pause button, after which each press of the Previous/Step button will
step the video back by one frame.

Next/Step Button:

chapter – or, when viewing photos, to the next photo. Press the button repeatedly to skip
ahead through the subsequent chapters or tracks. When video content is playing, press
the Pause button, after which each press of the Next/Step button will step the video
forward by one frame.

USB Port:

cable to this port.

IMPORTANT:
may damage both the BDT 2/BDT 20 and your device.

Orient the device’s plug so it fits all the way into the BDT 2/BDT 20’s USB connector.
You may insert or remove the device at any time – there is no installation or ejection
procedure.

Next/Step

Button

Various messages appear on this display in response to commands

Press this button once to skip to the beginning of the track

Press this button once to skip to the beginning of the next track or

Gently insert a USB flash drive or an HDD disk drive with a USB Standard-A

Do not connect a PC or other USB host/controller to this port, or you

USB
Port

7

BDT 2/BDT 20

ON OFF

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 4 of 37

Rear-Panel Connections

Rear-Panel Connections/Remote Control Functions

Main Power

Switch

Power-Cord

Connector

NOTE: See Connecting the Player, on page 10, for detailed information
about making connections.

Main Power Switch: This mechanical switch turns the BDT 2/BDT 20’s power

supply on or off. After you have made and verified all connections (see Connecting
the Player, on page 10), set this switch to the “On” position. If you will not be using

the player for an extended period of time, you can set this switch to the “Off” position
to save energy.

Power-Cord Connector: After you have made and verified all other connections,
plug the supplied AC power cord into this input and into an unswitched AC outlet.

Network Connector: To be able to use the BD-Live feature, connect this port to
your local area network (LAN) using a Cat. 5/Cat. 5e/RJ45 network cable. See
BD-Live Interactivity, on page 15, for more information.

HDMI Output (HDMI ver. 1.3a): Connect the BDT player’s HDMI output to the HDMI
input on your TV, audio/video receiver or surround-sound processor. The HDMI cable
transmits both video and audio, so if you’re connecting it directly to the TV and are
connecting the BDT 2/BDT 20’s coaxial digital audio output to a home theater audio
system, we recommend that you disable the BDT 2/BDT 20’s HDMI Audio Out to take
full advantage of the home theater audio system’s superior audio performance. See
Audio Settings: Audio Output, on page 13, for more information.

IMPORTANT: Your BDT 2/BDT 20 is in compliance with HDCP (High-Definition Copy
Protection). Your TV must also be HDCP-compliant to be used with the player’s HDMI
output. For the best results, we do not recommend HDMI connections in excess
of ten feet without a repeater. If your TV has a DVI input, you may use an optional
HDMI-to-DVI cable or adapter for the video connection to the TV. (The DVI connection
is video-only.)

Coaxial Digital Audio Output: Connect this output to the coaxial digital audio input
of your audio/video receiver or surround-sound decoder.

Fan Vents: The BDT 2/BDT 20 has a built-in fan to provide cooling air. To insure
proper operation, make sure that these vents are not blocked.

Network

Connector

HDMI

Output

Coaxial Digital Audio

Output

Fan

Vents

Remote Control Functions

Power On Button

Options Button

Top Menu Button

Exit Button

Prev/Step Button

OK Button

Search/Slow
Reverse Button

Home Button

Play Button

Bookmark Button

Program Button

Audio Button

Angle Button

Numeric Buttons

Open/Close Button

Power Off Button

Settings Button

Popup Menu Button

Display Button

Next/Step Button

Cursor Button

Search/Slow
Forward Button

Stop Button

Pause Button
Thumbnail Button

Zoom Button

Subtitle Button

A-B Button

Repeat Button

Find Button

Dimmer Button

8

Backlight Button

Clear Button

BDT 2/BDT 20

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 5 of 37

Remote Control Functions

Open/Close Button:

this button, make sure that no objects are blocking the disc drawer.

Power On Button:

to turn it on.

Power Off Button:

Standby mode.

Options Button:

active at the time you press the button.

Settings Button:

Menus

, on page 12, for more information.

Top Menu Button:

recording or DVD that is playing. NOTE: This feature is disc-dependent. Not all DVDs have
top menus. If the DVD has no top menu, pressing the Top Menu button may display the
disc menu, depending on how the disc’s menu system was authored.

Popup Menu Button:

displays its disc menu. NOTE: This feature is disc-dependent. Not all discs have pop-up
menus. If a DVD has no pop-up menu, pressing the Popup Menu button may display the
disc menu, depending on how the disc’s menu system was authored.

Exit Button:

Display Button:

the disc or program that is currently playing.

Previous/Step Button:

track – or when viewing photos, to the previous photo. Press the button twice to skip
to the beginning of the previous track. Press the button repeatedly to step through the
previous chapters or tracks. When video content is playing, press the Pause button, after
which each press of the Previous/Step button will reverse the video by one frame.

Next/Step Button:

when viewing photos, to the next photo. Press the button repeatedly to step through the
previous chapters or tracks. When video content is playing, press the Pause button first;
each subsequent press of the Next/Step button advances the video one frame.

OK Button:

Cursor Buttons:

menu.

Search/Slow Reverse Button:

track. For Blu-ray Disc programs and DVD programs, each press cycles through 2x, 4x,
8x, 16x and 32x reverse speed. Pressing the button while a Blu-ray Disc recording or DVD
is paused will reverse through the chapter in slow motion. Each press cycles through 1/2,
1/4, 1/8 and 1/16 normal speed.

Search/Slow Forward Button:

For Blu-ray Disc recordings and DVDs, each press cycles through 2x, 4x, 8x, 16x and 32x
normal speed. Pressing the button while a Blu-ray Disc recording or DVD is paused will
play through the chapter in slow motion. Each press cycles through 1/2, 1/4, 1/8 and
1/16 normal speed.

Home Button:

whatever screen is active when the button is pressed.

Stop Button:

playback from the point where it stopped.) Press the Stop button twice to stop playback
fully. NOTE: Some settings and functions will only be available when the player is fully
stopped.

Play Button:

drawer or a music file that has been highlighted on the on-screen menu. Pressing this
button when viewing photos begins a slide show of the photos.

Pause Button:

the button while a Blu-ray Disc program or DVD program is playing will freeze-frame on
the current video frame. Pressing the button while the disc is paused will resume play.
Pressing this button while viewing photos freezes the current photo on the screen.

Press this button to open and close the disc drawer. Before pressing

Press this button when the BDT 2/BDT 20 is in the Standby mode

Press this button when the BDT 2/BDT 20 is on to place it in the

Press this button to display any available options for the item that is

Press this button to display the player’s Settings menu. See

Press this button to display the top menu of the Blu-ray Disc

Pressing this button while playing a Blu-ray Disc recording or DVD

Press this button to return to the previous menu or menu level.

Press this button to activate a bar display containing information about

Press this button once to skip to the beginning of the current

Press this button once to skip to the beginning of the next track or

Press this button to select a highlighted item on the on-screen menu.

Press these buttons to navigate through items on the on-screen

Press this button to reverse through the current disc

Press this button to fast-forward through a disc track.

Press this button to return the on-screen display to the Home screen from

Press this button to stop playback. (Pressing the Play button will resume

Press this button to play a disc that has been loaded into the player’s disc

Press this button to pause a disc or music file that is playing. Pressing

Settings

Bookmark (green) Button:

Bookmark Function, on page 15, for more information.

Thumbnail (yellow) Button:

display thumbnail images of all photos in the active directory.

Program (red) Button:

disc that is playing. See Programmed Play, on page 15, for more information.

Zoom (blue) Button:

slide. Use the Navigation buttons to zoom in on different sections of the image. NOTE:
This function is disc-dependent. Not all discs allow this function.

Red, green, yellow and blue buttons:

recording, these buttons can activate features and menus that may vary from disc to
disc. Refer to the menu instructions for each particular disc for more information. NOTE:
These Blu-ray Disc functions may override the Bookmark, Thumbnail, Program and Zoom
functions.

Audio Button:

available for a disc. NOTE: This feature is disc-dependent. Not all discs feature multiple
audio tracks and allow you to change audio tracks.

Subtitle Button:

are available for the current disc. NOTE: This feature is disc-dependent. Not all discs
feature multiple subtitle options.

Angle Button:

for the current disc. NOTE: This feature is disc-dependent. Not all discs feature multiple
camera angles and allow you to change camera angles.

A-B Button:

“A” repeat point; the second press sets the “B” repeat point and begins repeating the
section of the program between the two points. Pressing the A-B button while the A-B
repeat mode is active cancels the A-B repeat mode.

Repeat Button:

press this button to cycle through the following repeat modes: Chapter, Title, All, Off.
When the BDT 2/BDT 20 is playing a CD, this button cycles through the following repeat
modes: Track, All, Off.

Numeric Buttons:

Find Button:

which allows you to jump to a specific location on the disc. You can find a location by
title, chapter or elapsed time.

Dimmer Button:

the player’s front-panel display: 100%, 50%, 25%, Auto/Off. When the brightness is set
to Off, the display will temporarily return to full brightness whenever you press any button
on the remote.

Backlight Button:

will remain on for a few seconds and then will turn off to conserve battery power.

Clear Button:

buttons.

Press this button to toggle through the different audio tracks that are

Press this button to toggle through the different subtitle options that

Press this button to toggle through the multiple camera-angle options

Press this button to activate the A-B repeat mode. The first press sets the

When the BDT 2/BDT 20 is playing a Blu-ray Disc recording or DVD,

Press this button during disc playback to activate the search function,

Press this button to toggle through the different brightness levels for

Press this button to clear an incorrect entry made using the Numeric

Press this button to activate the Bookmark function. See

Press this button while playing a photo slide show to

Press this button to create a programmed playback list for the

Press this button to zoom in on or recede from a video image or

When the BDT 2/BDT 20 is playing a Blu-ray Disc

Press these buttons to enter numbers for various items.

Press this button to activate the remote’s backlight. The backlight

9

BDT 2/BDT 20

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 6 of 37

Troubleshooting

Troubleshooting

If your BDT 2/BDT 20 isn’t performing the way you think it should, check to see if the problem is covered in this section before calling your dealer or contacting Harman Kardon.

Problem Solution

The player won’t power up (the Power indicator is not lit ): Check that the player’s AC power cord is properly plugged into the player’s power- •

The disc does not play: Check that the disc is inserted correctly (label side up). •

No picture: Check the connection between the player and the TV. •

No sound: Check that the HDMI and/or coaxial digital connections are properly made. •

The picture appears in the wrong aspect ratio: Change the Aspect Ratio setting in the Display Settings menu to match the TV. •

There is noise or other interference in the picture while playing a Blu-ray Disc
recording or DVD:

Cannot access media on a connected USB device: Check that the device is formatted in the FAT32 file system. Other file systems are •

The player does not respond to remote-control commands: Replace both remote-control batteries with fresh ones, and make sure that they are •

cord connection.
Check that the player’s AC power cord is plugged into a working AC outlet and that •

the AC outlet is not controlled by a switch.
Make sure that the Master Power switch (on the player’s rear panel) is in the “On” •

position.

Check that the disc is the correct type: BD-Video (single-layer or double-layer), •
DVD-Video, DVD+R/+RW, DVD-R/-RW, CDDA (CD digital audio), CD-R/RW. Other
disc types will not play.

Check that the TV is turned on and that it is set to the correct input source. •
Confirm that all of the choices made in the Display Settings menu are correct for •

your TV.
Check that the TV is HDCP-compliant. The player cannot be used with a TV that is •

not HDCP-compliant.

If you’re using the coaxial digital connection, check that the digital audio settings on •
the connected device have been properly set.

If you’re using only the HDMI connection, check that the HDMI audio settings on the •
connected device have been properly set.

If you’re using only the HDMI connection, check that the BDT 2/BDT 20’s HDMI •
Audio Output is set to “On.”

Check that the disc surface is clean and not scratched. •

not compatible with the BDT 2/BDT 20.

installed correctly.
Hold the remote control closer to the player. •
Check that the player’s remote sensor is in the remote control’s line of sight. •
Make sure that the protective shipping film has been removed from the player’s •

front panel.

The Ø symbol appears on the screen when you press a remote-control button: The selected function is not permitted at the time you press the button. •

The player does not respond to commands, or it behaves in an erratic way: Unplug the player’s power cord from the AC outlet, wait 30 seconds, and plug it •

You can find ad ditional troublesho oting infor mation in th e FAQs link on th e Suppor t page at ww w.harmanka rdon.com.

back in.

19

BDT 2/BDT 20

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 7 of 37

Specifications

Specifications

Supported disc formats: 5-inch (12cm) or 3-inch (8cm) BD-Video (single-layer or double-layer), DVD-Video,

Region code (BD/DVD): A/1 (BDT 2); B/2 (BDT 20)

Audio formats: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital, DTS-HD High Resolution

Still-image format: JPEG

Video signal system: NTSC (BDT 2); PAL (BDT 20)

HDMI version: 1.3a with 30/36-bit Deep Color

Power requirement: AC 100 – 240V, 50/60Hz

Power consumption: 25W maximum, <1W standby

Dimensions (H x W x D): 2-5/8" x 17-5/16" x 13-7/8" (66mm x 440mm x 352mm)

Weight: 8.2 lb (3.7kg)

Depth includes Volume button and loudspeaker terminals.

DVD+R/+RW, DVD-R/-RW, CDDA (CD digital audio), CD-R/RW discs

Audio, DTS-HD Master Audio, PCM, WMA (DRM-free version only): WMA9, CBR
@192kbps, VBR @ 355kbps, MP3: 32kbps – 320kbps bitrates, including variable
bitrate encoding

4-1

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 8 of 37

Software upgrade

Preparation to upgrade software

1.Power on the set and press “settings” button on the remote.

2.Press left cursor to select "Information" .check the Software Version.

3. According the software version to check the correct software in UPG folder.
For example:if the software version is display “BDT20 XX.XX.XX”,the correct

software is “BDT20_BD.bin”,otherwise the software is “BDT2_BD.bin”.

4.Start the CD Burning software and cr eate a new CD project (Data Disc),copy
the UPG folder to the root directory of data disc.

5.Burn the data onto a blank CDR

Procedure for software upgrade:
A) Upgrade software via CDR:

1.Power on the set and insert the prepared Upgrade CDR.

2.The set will starts reading disc .

3.When the set recognize the disc,press Setting-->System-->System

Upgrade-->Disc, follow the instructions on the screen.

4.About 3 minute later,the set will automatically turn off when upgrading

completed.

B) Upgrade software via USB Flash Drive:

1.Decompress the packed file, copy the UPG folder to the root directory of a
USB memory device.

2.Insert the USB, the player will recognize the USB device automatically.

3.Press Setting-->System-->System Upgrade-->Disc, follow the instructions on

the screen.

4.About 3 minute later,the set will automatically turn off when upgrading

completed.

Read out the software versions to confirm upgrading

1.Power on the set and press “settings” button on the remote.

2.Press left cursor on remote control to select "Information" .The software

version and other informations will be displayed on the TV screen as follows:

Software Version: BDTX XX.XX.XX
Mac Address:XX-XX-XX-XX-XX-XX

Caution: The set must not be pow er off during upgrading, Otherwise the
Main board will be damaged entirely.

5-1

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 9 of 37

Trouble shooting chart

No display on VFD, and buttons do not work

No disp lay on VF D, and

buttons do not work

Yes

Check ever y suppl y
voltage on main board is
normal

No

Refer to Power supply board part

Yes

Check38V,5V,+12V

voltage on th e po wer
and front board

No

Fix the c onnection XS603 on front
board and ZD602

Yes

Check th e front bo ard
signal VDIN,VCLK,
VSTB，

No

Check the U721’s pin 61,60,59singal

Yes

1.Check whether bad so lder exist s

on U721 and pins of VFD,

2.Check w hether the circuit
connected to K7, K2, K3, K4, K5,
K6 is broken.

No

Correct connection

Yes

Replace U721

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 10 of 37

Remote control does not work

Remote c ontrol

does not work

Go

Check whether the remote

controller’s batter y is

exhausted or not.

NO

Check the IR1 power
supply+3.3V_STBIR

Yes

Replace IR1

Yes

5-2

yes

No

Trouble shooting chart

Replace th e batter y for remote

controller

Check the +3.3 V net no front board

5-3

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 11 of 37

Can’t read disc or can’t open the disk door

Can’t rea d disc or can’t

open the disk door

GO

Check w hether the

DVD loa der ru nning is

normal

Yes

Check SA TA cable from
main bo ard conn ection to
the loader is normal

Yes

Replace the loader

Trouble shooting chart

NO

NO

Check the c onnection of the 4PIN cabl e h e

Power Board.

Fix the connection the And SATA cable from

main board

5-4

harman/kardon

BDT 2 / BDT 20 Service Manual

Page 12 of 37

No VFD display

No VFD display

Go

Check whether the volt age

5V,12V on th e front bo ard is

normal work or not.

Yes

Check whether the volt age

between VF D F+ &VFD F- is

DC 4V+/-0.4

Yes

No

No

Fix the conn ection po wer board

CN502 front board XS603

Check DC12V to

Trouble shooting chart

AC 4V switch circuit

Check w hether the

voltage 38 V is normal

Replace U

602

No

Check the ZD602 on the front board
