HandHeld 9500 User Manual 2

Dolphin® 9500 Series

Mobile Computer

Microsoft® Windows Mobile® 5.0

™

Quick Start Guide

Dolphin 9500 Series Quick Start Guide

Dolphin 9500 Series Terminals

There are four terminals in the Dolphin 9500 Series:

Dolphin 9500 Ergonomic form factor for single-handed use.
Dolphin 9550 Integrated pistol grip for high-volume scanning applications.
Dolphin 9501 Flashlight form factor with a laser scanner and imager.
Dolphin 9551 Integrated pistol-grip with a laser scanner and imager.

Out of the Box

Verify that the carton contains the following items:

• Dolphin 9500 Series mobile computer (the terminal)

• Main battery pack (7.4v Li-ion)

• Microsoft Companion CD-ROM

• Dolphin 9500 Series Quick Start Guide

Note: If you ordered peripherals and/or accessories, verify that they are also

included with the order.

Be sure to keep the original packaging in case the Dolphin terminal needs to be
returned for service - see page 9.

Dolphin® 9500 Series Mobile Computer Quick Start Guide 1

Hardware Overview

+

The front, side, and bottom panels of all the terminals in the Dolphin 9500 Series are the same.

Front Panel Side Panel

Image Engine window

Decode LED

Magnesium-

alloy top cover

LCD with

Touch Screen

SCAN key

Navigation keys

Keyboard

Bottom Panel

17-pin industrial-grade

mechanical connector

POWER

SCAN

+

L

O

V

SFT

NUM

V

O

L

P

1 2 3

AB

4 5 6

F

E

7 8 9

I

J

- 0

MNO

F1 F2 F3 F4

; :

*

RQ

F5 F6 F7 F8

@

UV

START INS BKSP DEL

Y

Z

CTRL ALT

Scan LED

IrDA COM Port

Access Door to the
Secure Digital (SD)

memory interface

Audio Jack

ESC

P

G

TAB

ENT

G

SEND

C

D

END

G

H

K

L

,

P

S

T

X

W

SP

(2.5mm)

Hand Strap

Hand Strap Clip

Note: Dolphin 9550/9551 terminals do not have a hand strap.

2 Dolphin® 9500 Series Mobile Computer Quick Start Guide

Dolphin 9500/9501 Back Panel

Stylus (in slot)

Speaker

Microphone

(underneath the battery)

Battery Well

Battery

Note: The back panel of the Dolphin 9501 has an expanded bottom housing to

accommodate the laser engine.

Dolphin 9550/9551 Back Panel

Dolphin 9550/9551 terminals feature an integrated pistol-grip on the back panel.

Image Engine

Window

Rubber

Bumpers

Scan Trigger

Pistol-Grip Handle

Rubber Bumper

Stylus (stored in
the handle)

Note: The back panel of the Dolphin 9551 has an expanded bottom housing to

accommodate the laser engine.

Dolphin® 9500 Series Mobile Computer Quick Start Guide 3

Setting Up Dolphin 9500 Series Terminals

1. Unpack the carton and verify its contents - page 4.

2. Install the battery in the terminal - page 4.

3. Charge the main battery in the terminal for a minimum of four hours - page 4.

4. Initialize the terminal - page 5.

Step 1: Install the Main Battery Pack

Use only the Li-ion battery packs provided by
battery pack not sold/manufactured by

!

terminal will void your warranty and may result in damage to the Dolphin terminal or
battery.

Remove the Dolphin 9500/9501 Hand Strap

Dolphin 9500/9501 terminals ship with the
hand strap installed and fastened with a clip on
the bottom panel.

Push the clip of the hand strap down and away
from the terminal. Move the strap up and away
from the bottom panel.

To re-attach the hand strap, slide the clip back
into place on the bottom panel.

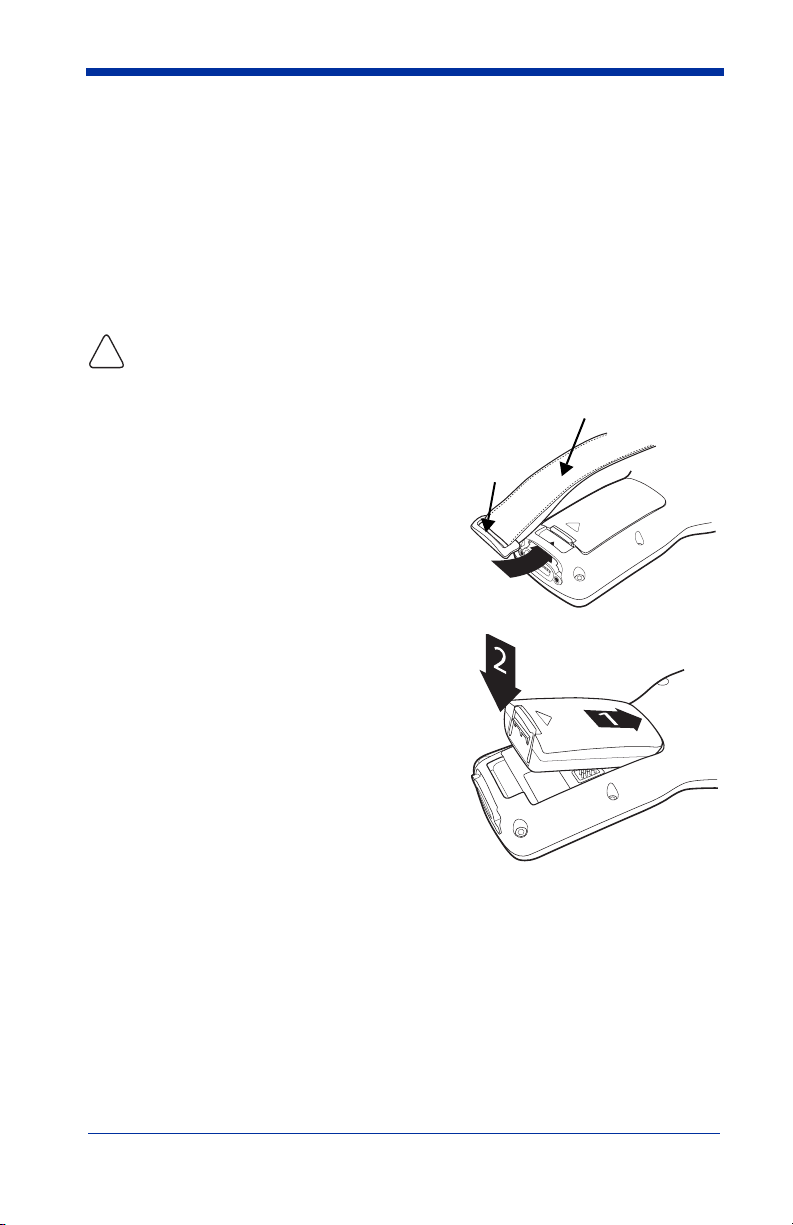

Install the Battery

1. Remove the Li-ion battery pack from its
package.

2. Hold the terminal with the front panel
(keyboard) facing down.

3. If necessary, detach the hand strap.

4. Take the battery and insert the end without
the locking tab into the top of the battery
well and push down with a hinging motion
until the locking tab snaps.

5. If necessary, re-attach the hand strap.

To remove the battery pack, detach the hand
strap, press the locking tab on the battery pack away from the bottom panel, and
pull the battery pack up with a hinging motion.

Hand Held Products

Hand Held Products

Clip

. The use of any

in the Dolphin 9500 Series

Hand Strap

Step 2: Charge the Main and Backup Batteries

The power supply consists of two types of battery power: the main battery pack
installed in the back panel and the backup battery located inside the terminal.

The main battery powers the terminal and charges the internal backup battery.
The internal backup battery maintains the data stored in RAM memory and the
keeps the system clock running for up to 30 minutes when the main battery is
completely discharged or removed.

4 Dolphin® 9500 Series Mobile Computer Quick Start Guide

Terminals are shipped with both batteries completely discharged. Charge the
main battery pack for a minimum of four hours before initial use in the
terminal!

For charging, use a Dolphin 9500 Series peripheral and the power cables provided by
Hand Held Products. Use of peripherals or cables not sold/manufactured by Hand Held

!

Products will void the warranty and may damage the terminal.

Step 3: Initialize the Dolphin Terminal

Note: Do NOT press any keys while the terminal is initializing!

1. Apply power to the Dolphin terminal. The screen turns white and the LEDs
flash as the system performs a hard reset.

2. The kernel splash screen displays for a few seconds. The Build numbers
indicate software version numbers for the operating system.

KeyboardBootloader

Kernel

3. When the Windows Mobile splash screen appears, follow the on-screen
directions using the stylus provided by Hand Held Products.

Note: When aligning the screen, press firmly into the center of the cross-hair

target once and release. Do not “double-tap” the target. Alignment should
always be performed with a stylus designed for touch screen
applications. The small point is required for accurate calibration.

4. Wait as Autoinstall begins installing programs. A status bar appears on the
screen that identifies each program as it installs.

Do NOT touch the screen or the keyboard while programs are installing!

5. When Autoinstall is complete, the screen turns white and the LEDs flash as
the terminal performs a soft reset.

6. The kernel splash screen appears again for a few seconds.

7. When initialization is complete, the Today screen appears.

9.XX/9.XX/9.XX/9.XX

Initial
Program
Loader (IPL)

Dolphin® 9500 Series Mobile Computer Quick Start Guide 5

Resetting the Terminal

There are two ways to reset the terminal: a soft reset and a hard reset.

Soft Reset: Press and hold the CTRL + SFT keys.

A soft reset re-boots the terminal without erasing RAM data.

Hard Reset: Press and hold the CTRL + ESC keys.

A hard reset erases all data and applications stored in RAM
memory and re-initializes the terminal.

Peripherals and Accessories

™

Dolphin HomeBase

Dolphin MobileBase

Dolphin QuadCharger

Dolphin Mobile Charger Charges a Dolphin terminal by plugging into a vehicle

Dolphin Net Base Four-slot charging/communication cradle designed for

Dolphin ChargeBase Four-slot charging cradle that stores, powers, and charges a

Dolphin Cable Kits USB or serial cables that charge and communicate with the

Charging/communications cradle with auxiliary battery well.
Data transfers via RS-232 serial or USB ports.

™

Mobile charging/communication cradle. RS-232 serial
transfers data transfers and powers out at 5 volts.

™

Four-slot battery charger that charges four Li-ion batteries in
under four hours. One slot doubles as a battery analyzer.

cigarette lighter/power port.

Ethernet-based communications.

terminal in each slot.

terminal directly, without a cradle.

6 Dolphin® 9500 Series Mobile Computer Quick Start Guide
