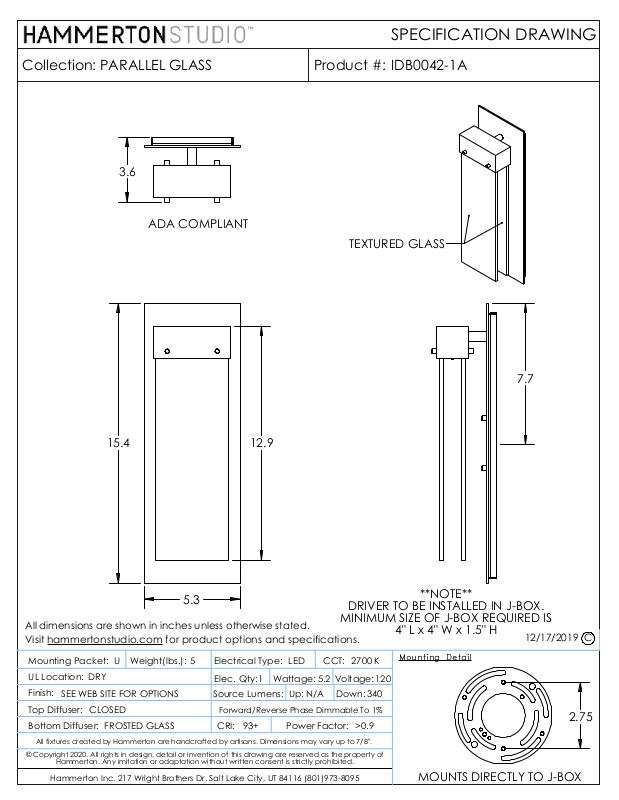

SPECIFICATION DRAWING
Collection:
PARALLEL GLASS
3.6
ADA COMPLIANT
Product #:
TEXTURED GLASS
IDB0042-1A
15.4 12.9
5.3
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED
Weight(lbs.):
U
FROSTED GLASS
for product options and specifications.
5
Electrical Type:
Elec. Qty:
Source Lumens:
Forward/Reverse Phase Dimmable To 1%
CRI:
93+
Wattage:
1
LED
5.2
Up:
N/A
Power Factor:
DRIVER TO BE INSTALLED IN J-BOX.
MINIMUM SIZE OF J-BOX REQUIRED IS
CCT:
2700 K
Voltage:
Down:
>0.9
**NOTE**
4" L x 4" W x 1.5" H
Mounting Detail
120
340
MOUNTS DIRECTLY TO J-BOX
7.7
12/17/2019
C
2.75
