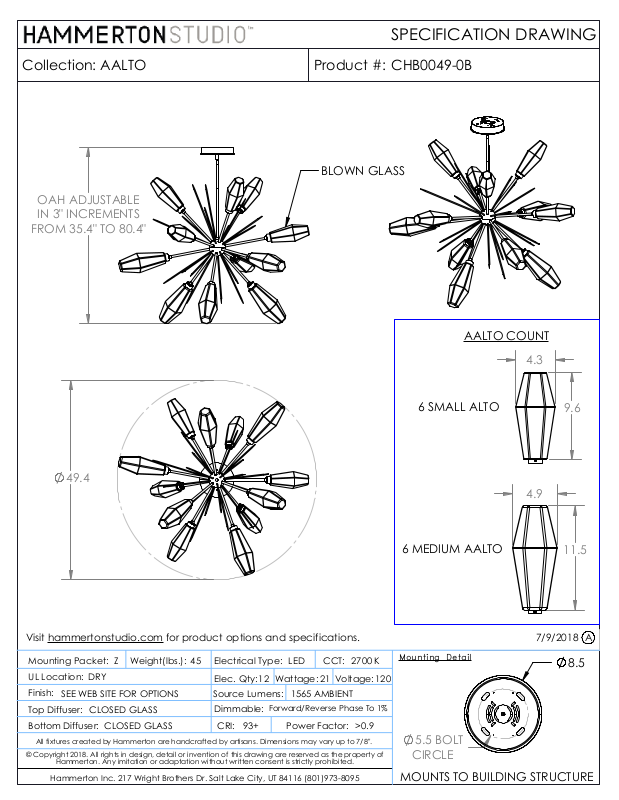

SPECIFICATION DRAWING
Collection:
AALTO
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 35.4" TO 80.4"
Product #:
BLOWN GLASS
CHB0049-0B
AALTO COUNT
49.4
Visit
hammertonstudio.com
for product options and specifications.
6 SMALL ALTO
6 MEDIUM AALTO
4.3
4.9
7/9/2018
9.6
11.5
A
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2018. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED GLASS
Weight(lbs.):
Z
CLOSED GLASS
45
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
1565 AMBIENT
Forward/Reverse Phase To 1%
93+
Power Factor:
CCT:
2112
2700 K
Voltage:
>0.9
Mounting Detail
120
5.5 BOLT
CIRCLE
MOUNTS TO BUILDING STRUCTURE
8.5
