Page 1

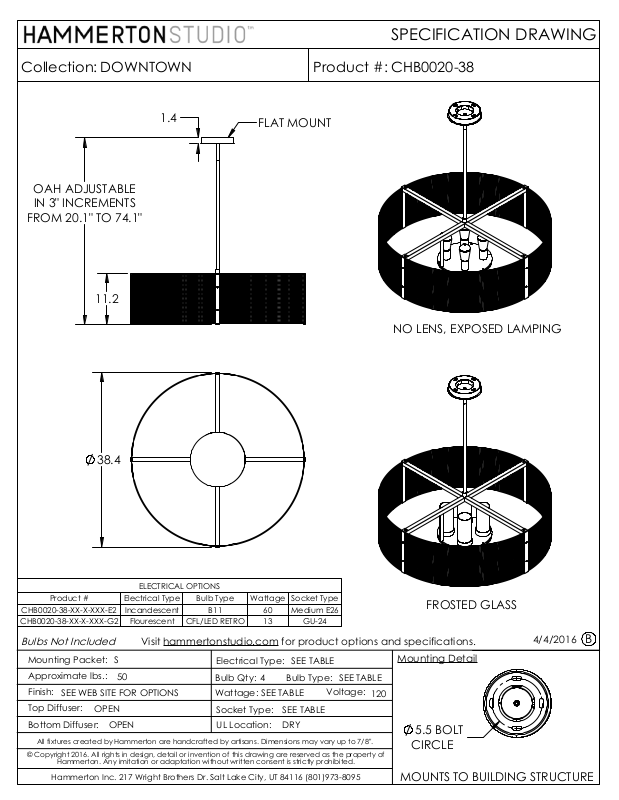

SPECIFICATION DRAWING
Collection:
DOWNTOWN
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 20.1" TO 74.1"
11.2
1.4
Product #:
FLAT MOUNT
CHB0020-38
NO LENS, EXPOSED LAMPING
38.4
ELECTRICAL OPTIONS
Product #
CHB0020-38-XX-X-XXX-E2
CHB0020-38-XX-X-XXX-G2
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
OPEN
OPEN
Electrical Type
Incandescent
Flourescent
Visit
S
50
Bulb Type
B11
CFL/LED RETRO
Wattage
60
13
hammertonstudio.com
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
4
SEE TABLE
Socket Type
Medium E26
GU-24
for product options and specifications.
SEE TABLE
Bulb Type:
SEE TABLE
DRY
SEE TABLE
Voltage:
FROSTED GLASS
Mounting Detail
120
5.5 BOLT
CIRCLE
MOUNTS TO BUILDING STRUCTURE
4/4/2016
B
