Page 1

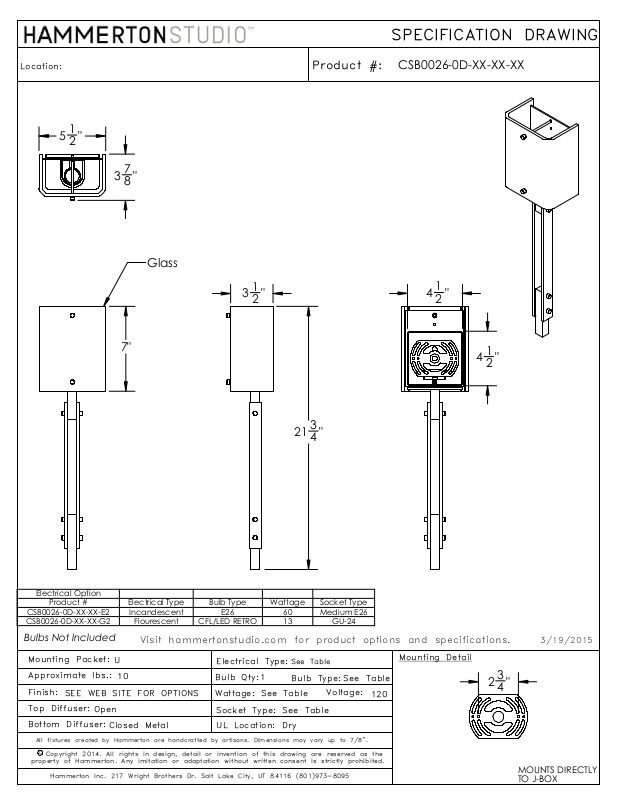

SPECIFICATION DRAWING
Location:
1
5 "
2
3
7
8
7"
"
Glass
3
Product #:
1
"
2
CSB0026-0D-XX-XX-XX
1
4 "
2
1
4
"
2
3
21
"
4
Electrical Option
Product # Electrical Type Bulb Type Wattage Socket Type
CSB0026-0D-XX-XX-E2 Incandescent E26 60 Medium E26
CSB0026-0D-XX-XX-G2 Flourescent CFL/LED RETRO 13 GU-24
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
Top Diffuser:
Bottom Diffuser:
SEE WEB SITE FOR OPTIONS
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
C
Copyright 2014. All rights in design, detail or invention of this drawing are reserved as the
property of Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
U
10
Open
Closed Metal
hammertonstudio.comVisit
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
for product options and specifications.
See Table
1
Bulb Type:
See Table
See Table
Dry
See Table
Voltage:
Mounting Detail
120
2
3/19/2015
3
"
4
MOUNTS DIRECTLY
TO J-BOX
