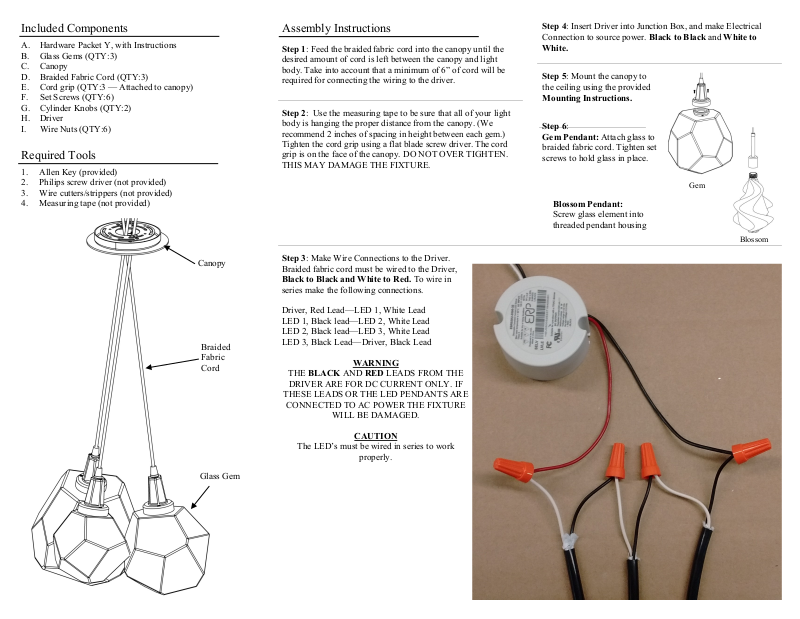

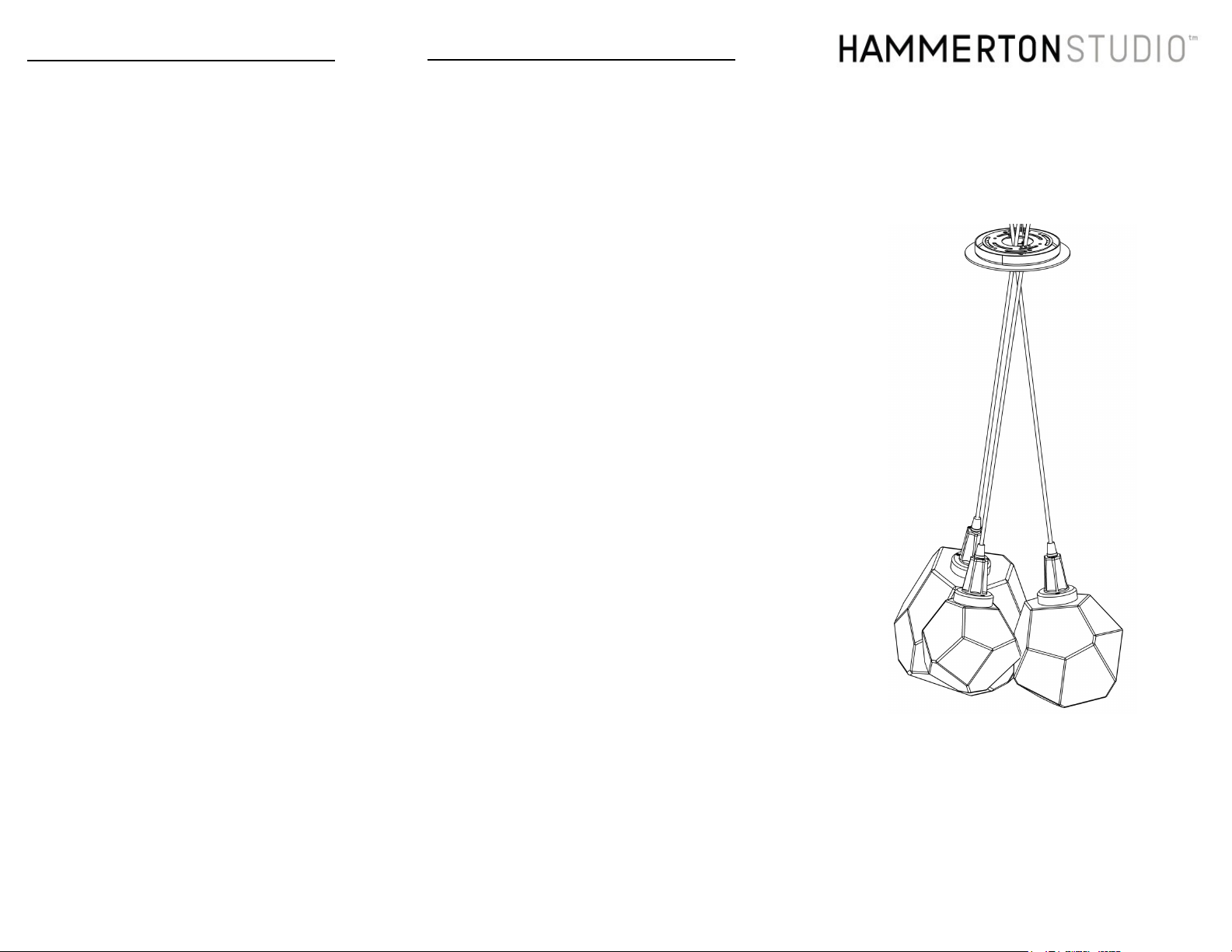

Included Components
A. Hardware Packet Y, with Instructions
B. Glass Gems (QTY:3)
C. Canopy
D. Braided Fabric Cord (QTY:3)
E. Cord grip (QTY:3 — Attached to canopy)
F. Set Screws (QTY:6)
G. Cylinder Knobs (QTY:2)
H. Driver
I. Wire Nuts (QTY:6)
Required Tools
1. Allen Key (provided)
2. Philips screw driver (not provided)
3. Wire cutters/strippers (not provided)
4. Measuring tape (not provided)
Assembly Instructions

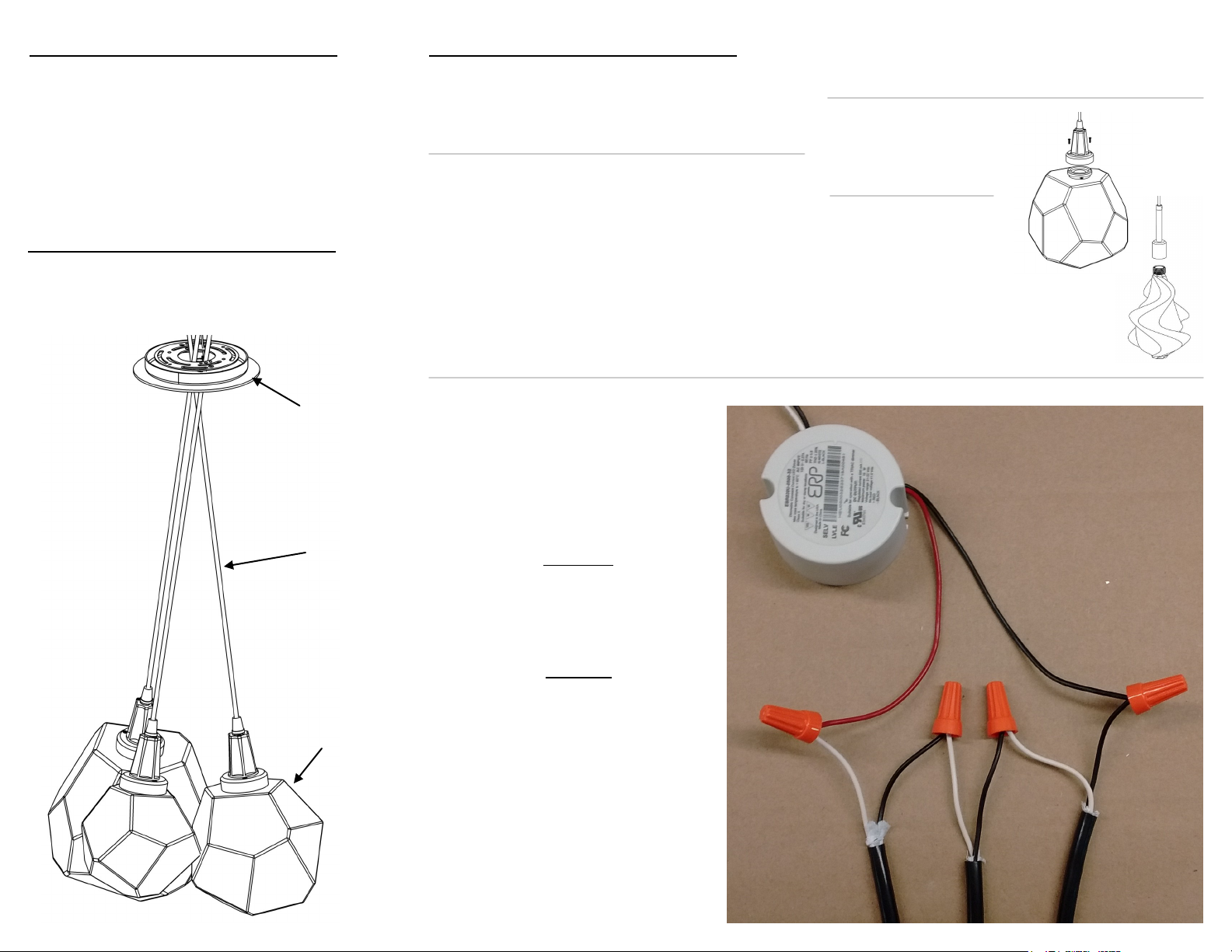

Step 1: Feed the braided fabric cord into the canopy until the
desired amount of cord is left between the canopy and light
body. Take into account that a minimum of 6” of cord will be
required for connecting the wiring to the driver.
Step 2: Use the measuring tape to be sure that all of your light
body is hanging the proper distance from the canopy. (We
recommend 2 inches of spacing in height between each gem.)
Tighten the cord grip using a flat blade screw driver. The cord
grip is on the face of the canopy. DO NOT OVER TIGHTEN.
THIS MAY DAMAGE THE FIXTURE.
Step 4: Insert Driver into Junction Box, and make Electrical
Connection to source power. Black to Black and White to
White.
Step 5: Mount the canopy to
the ceiling using the provided
Mounting Instructions.
Step 6:
Gem Pendant: Attach glass to
braided fabric cord. Tighten set
screws to hold glass in place.
Gem
Blossom Pendant:
Screw glass element into
threaded pendant housing
Blossom
Canopy
Braided
Fabric
Cord
Glass Gem
Step 3: Make Wire Connections to the Driver.
Braided fabric cord must be wired to the Driver,
Black to Black and White to Red. To wire in
series make the following connections.
Driver, Red Lead—LED 1, White Lead
LED 1, Black lead—LED 2, White Lead
LED 2, Black lead—LED 3, White Lead
LED 3, Black Lead—Driver, Black Lead
WARNING
THE BLACK AND RED LEADS FROM THE
DRIVER ARE FOR DC CURRENT ONLY. IF
THESE LEADS OR THE LED PENDANTS ARE
CONNECTED TO AC POWER THE FIXTURE
WILL BE DAMAGED.
CAUTION
The LED’s must be wired in series to work
properly.
