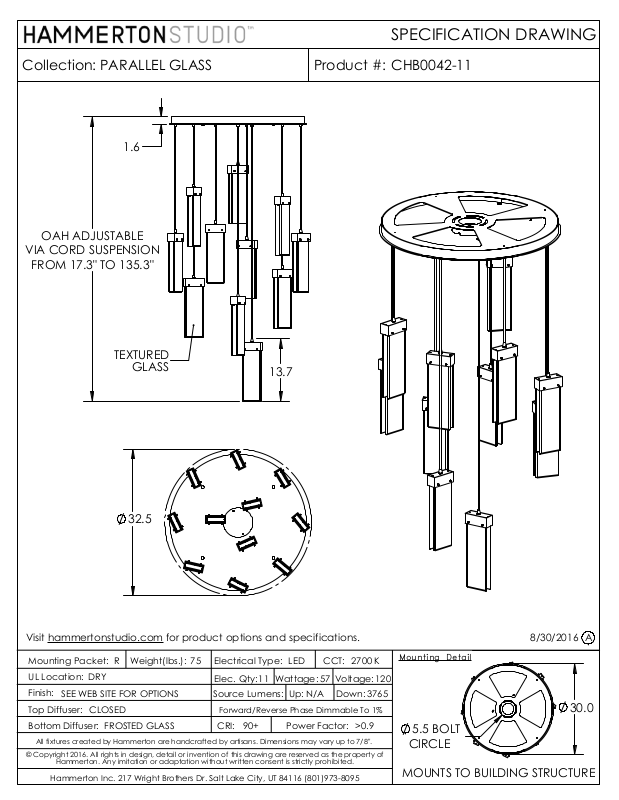

SPECIFICATION DRAWING
Collection:
PARALLEL GLASS
1.6
OAH ADJUSTABLE
VIA CORD SUSPENSION
FROM 17.3" TO 135.3"
TEXTURED
GLASS
13.7
Product #:
CHB0042-11
32.5
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED
Weight(lbs.):
R
FROSTED GLASS
for product options and specifications.
75
Electrical Type:
Elec. Qty:
Source Lumens:
Forward/Reverse Phase Dimmable To 1%
CRI:
90+
LED
Wattage:
Up:
Power Factor:
N/A
CCT:
5711
Voltage:
Down:
2700 K
>0.9
120
3765
8/30/2016
Mounting Detail
30.0
5.5 BOLT
CIRCLE
MOUNTS TO BUILDING STRUCTURE
A
