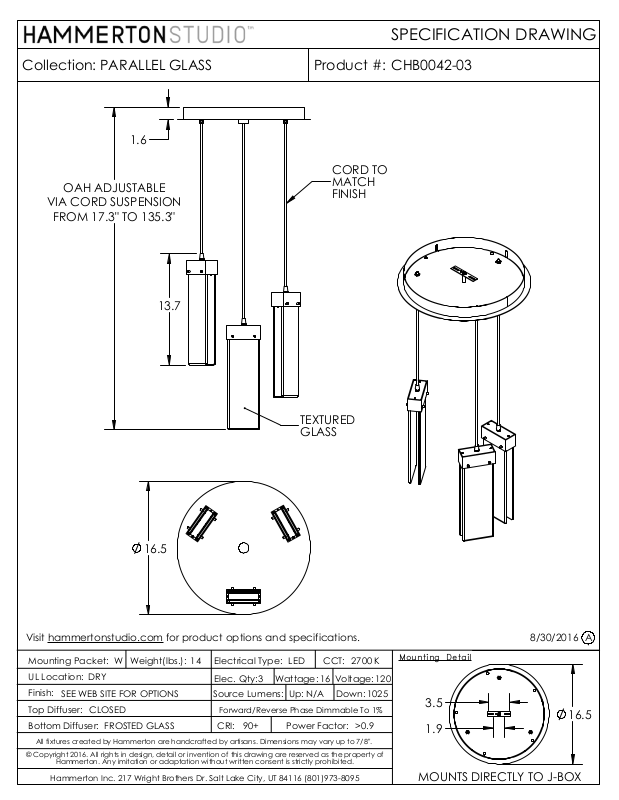

SPECIFICATION DRAWING
Collection:
PARALLEL GLASS
OAH ADJUSTABLE
VIA CORD SUSPENSION
FROM 17.3" TO 135.3"
1.6
13.7
Product #:
CORD TO
MATCH
FINISH
CHB0042-03
TEXTURED
GLASS
16.5
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED
Weight(lbs.):
W
FROSTED GLASS
for product options and specifications.
14
Electrical Type:
Elec. Qty:
Source Lumens:
Forward/Reverse Phase Dimmable To 1%
CRI:
90+
Wattage:
3
LED
Up:
Power Factor:
N/A
CCT:
16
Voltage:
Down:
2700 K
1025
>0.9
Mounting Detail
120
8/30/2016
3.5
16.5
1.9
MOUNTS DIRECTLY TO J-BOX
