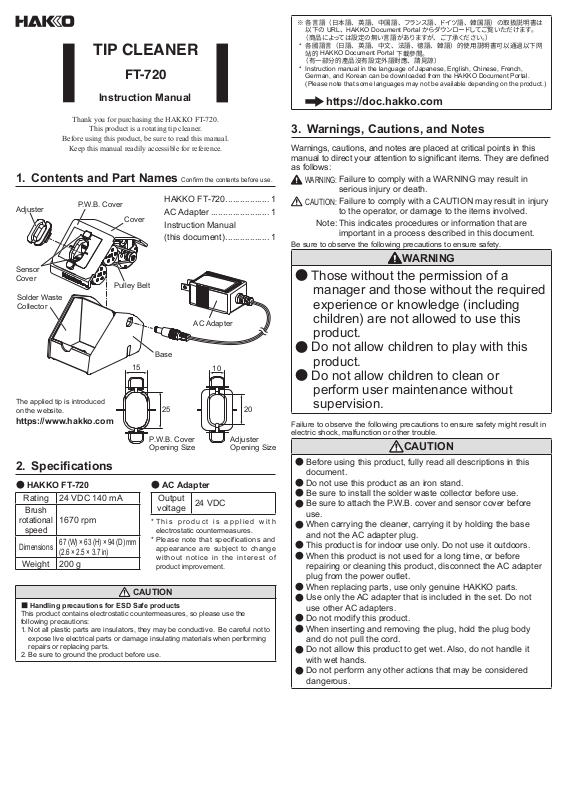

TIP CLEANER

FT-720

Instruction Manual

Thank you for purchasing the HAKKO FT-720.

This product is a rotating tip cleaner.

Before using this product, be sure to read this manual.

Keep this manual readily accessible for reference.

1. Contents and Part Names

P.W.B. Cover

Cover

Pulley Belt

Solder Waste
Collector

15

2. Specications

HAKKO FT-720

●

Rating 24 VDC 140 mA

Brush

rotational

speed

Dimensions

Weight 200 g

■

This product contains electrostatic countermeasures, so please use the
following precautions:

1. Not all plastic parts are insulators, they may be conductive. Be careful not to

2. Be sure to ground the product before use.

1670 rpm

67 (W) × 63 (H) × 94 (D) mm
(2.6 × 2.5 × 3.7 in)

CAUTION

Handling precautions for ESD Safe products

expose live electrical parts or damage insulating materials when performing
repairs or replacing parts.

Conrm the contents before use.

AC Adapter ........................ 1

Instruction Manual

(this document) .................. 1

AC Adapter

Base

10

25 20

P.W.B. Cover
Opening Size

AC Adapter

●

Output

voltage

* This product is applied with

electrostatic countermeasures.

* Please note that specifications and

appearance are subject to change
without notice in the interest of
product improvement.

24 VDC

Adjuster
Opening Size

※

各言語（日本語、英語、中国語、フランス語、ドイツ語、韓国語）の取扱説明書は

URL、HAKKO Document Portal

以下の

（商品によっては設定の無い言語がありますが、ご了承ください。）

*

各國語言（日語、英語、中文、法語、德語、韓語）的使用説明書可以通過以下网

HAKKO Document Portal

站的

（有一部分的產品沒有設定外語對應、請見諒）

* Instruction manual in the language of Japanese, English, Chinese, French,

German, and Korean can be downloaded from the HAKKO Document Portal.
(Please note that some languages may not be available depending on the product.)

https://doc.hakko.com

からダウンロードしてご覧いただけます。

下載參閲。

3. Warnings, Cautions, and Notes

Warnings, cautions, and notes are placed at critical points in this
manual to direct your attention to signicant items. They are dened
as follows:

WARNING:

Failure to comply with a WARNING may result in
serious injury or death.

CAUTION:

Failure to comply with a CAUTION may result in injury
to the operator, or damage to the items involved.

Note: This indicates procedures or information that are

important in a process described in this document.

Be sure to observe the following precautions to ensure safety.

WARNING

Those without the permission of a

●

manager and those without the required
experience or knowledge (including
children) are not allowed to use this
product.

Do not allow children to play with this

●

product.

Do not allow children to clean or

●

perform user maintenance without
supervision.

Failure to observe the following precautions to ensure safety might result in
electric shock, malfunction or other trouble.

CAUTION

Before using this product, fully read all descriptions in this

●

document.

Do not use this product as an iron stand.

●

Be sure to install the solder waste collector before use.

●

Be sure to attach the P.W.B. cover and sensor cover before

●

use.

When carrying the cleaner, carrying it by holding the base

●

and not the AC adapter plug.

This product is for indoor use only. Do not use it outdoors.

●

When this product is not used for a long time, or before

●

repairing or cleaning this product, disconnect the AC adapter
plug from the power outlet.

When replacing parts, use only genuine HAKKO parts.

●

Use only the AC adapter that is included in the set. Do not

●

use other AC adapters.

Do not modify this product.

●

When inserting and removing the plug, hold the plug body

●

and do not pull the cord.

Do not allow this product to get wet. Also, do not handle it

●

with wet hands.

Do not perform any other actions that may be considered

●

dangerous.

© 2020 HAKKO Corporation. All Rights Reserved.

Please access the web address below for other distributors.

4. Operation

(1) Insert the AC adapter plug in the DC jack.
(2)

The sensor reacts when the tip is inserted and cleaning will begin.

Do not intentionally rotate the brush continuously.

Note

Remove the adjuster when using a large tip. The adjuster

Note

can be stored in the base.
This product cleans the tip in a short time. If the tip is left

Note

in for a long time, it may accelerate deterioration of the tip
or the cleaning brush.

Place this product on grounded surface with electrostatic

Note

measurement, or connect a wire to the ground screw
upon use.

Adjuster

Ground Attachment Part

Cleaning the Sensor Cover

●

Remove stains on the upper and lower recess areas of the
P.W.B. cover using a soft brush.

Recess

If the sensor cover is considerably stained, remove the

Note

sensor cover and clean it with alcohol damp cloth. In this
case, be careful not to let solder waste or other debris fall
into the device.

Replace the sensor cover if it has cracked or there is a

Note

considerable amount of scratches.

6. Troubleshooting

The cleaning brush
continues to rotate.

Is the P.W.B. cover
or adjuster bent or
out of alignment?

Is the sensor cover
stained?

Attach it in the
correct position.

Please clean it.

5. Maintenance

CAUTION

Regularly remove solder waste and ux residue that adhere
solder waste collector, cleaner interior, and cleaning brush.

To remove the cover you must rst remove the AC

Note

adapter plug from the DC jack.

Removal of Solder Waste

●

Remove the cover and
remove solder waste.

Replacing the Brushes

●

Replace the cleaning brushes by pulling them straight out of
their brush xing shafts.
* Tools are not required.

Solder Waste

Brush xing shaft

to the

The motor does not
move.

The motor moves but the
cleaning brush does not rotate.

Are the AC adapter
and plug connected?

Has the pulley belt
come off?

Connect.

Reattach it.

When other problems occur or the above remedies do not resolve
a problem, contact your nearest agent.

7. Parts List

Replacement Parts

●

Part No. Part Name Specications

A5063 Cleaning brush C Fluoroplastic brush, qty 2

A5060 P.W.B. cover With sensor cover

A5061 Adjuster

A5062 Sensor cover qty 10

B5284 Pulley belt

B3528 AC adapter Flat pin plug

B5118 AC adapter Chinese plug

B5119 AC adapter BS plug CE

B5120 AC adapter European plug CE

B5121 AC adapter Australian plug

Options

●

Part No. Part Name Specications

A1566 Cleaning brush A Plastic brush, qty 2

A1567 Cleaning brush B Metal brush, qty 2

HEAD OFFICE

4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN
TEL: [phone] FAX: [phone]
https:// www.hakko.com E-mail: [e-mail]

https://www.hakko.com
