Grindmaster CPO-3P-E Operators Manual

Operator Manual

Portable Pourover Coffee Brewers

CPO-1P	CPO-3P	CPO-4RP
CPO-1P-E	CPO-3P-E	CPO-4RP-E
CPO-2P	CPO-3CP	CPO-5RP
CPO-2P-E	CPO-3RP	CPO-5RP-E
CPO-2CP	CPO-3RP-E	CPO-SAPP
	CPO-3RCP	CPO-SAPP-E

Model CPO-3P

Table of Contents

Specifications...........................	2	Cleaning & Maintenance	........5

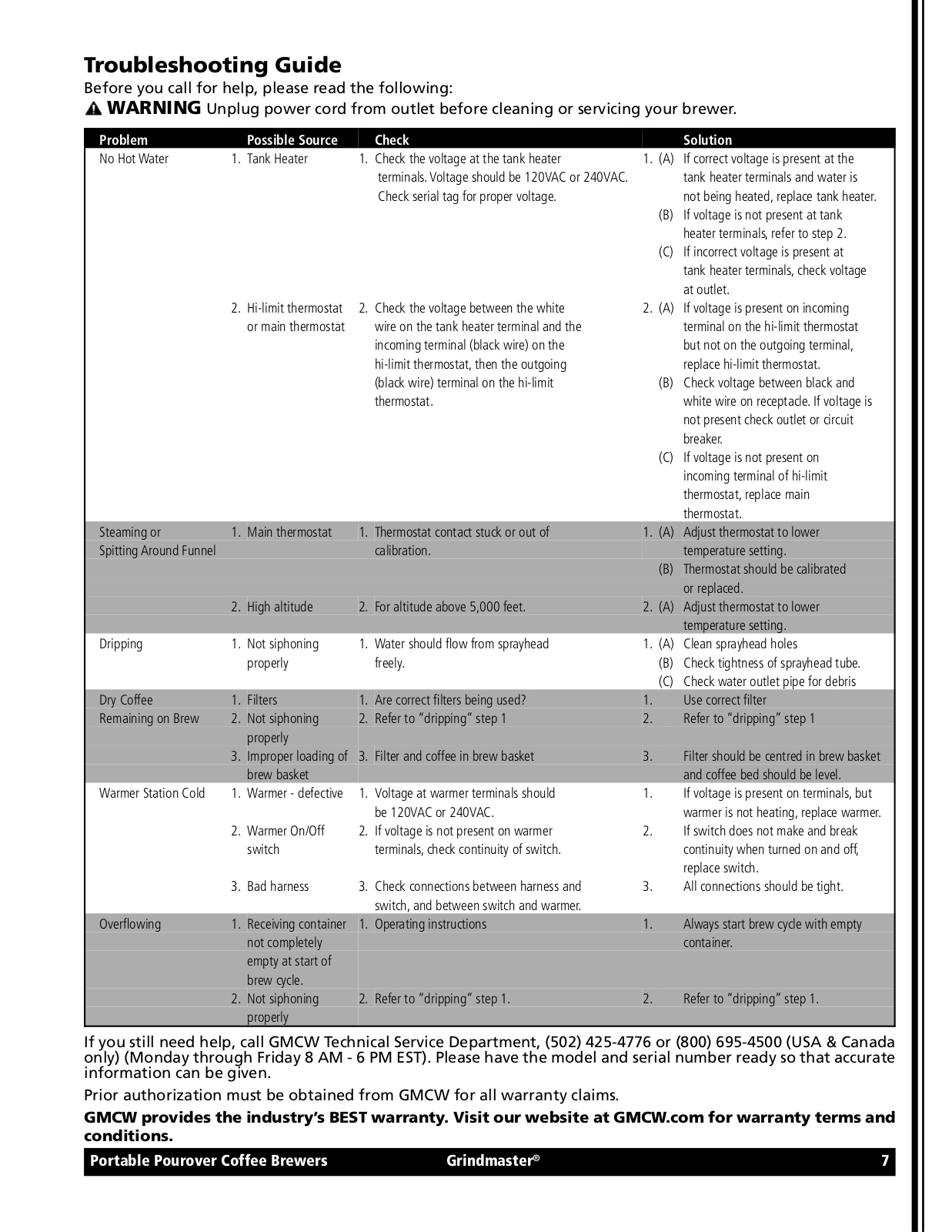

Safety Information..................	3	Troubleshooting Guide...........	7
General Information...............	4	Parts Diagram and List ...........	8
Installation...............................	4	Wiring Diagram.....................	17
Operation ................................	4

Thank you for purchasing this quality coffee brewer. For your safety and the safety of others, read all warnings and the operator’s manual before installing or using the product. Properly instruct all operators. Keep training records. For future reference, record serial number here:

GMCW

4003 Collins Lane, Louisville, KY 40245 USA Phone: [phone] Toll Free: 800.695.4500 Fax: [phone]

Web: gmcw.com Email: [e-mail]

GMCW provides the industry’s BEST warranty. Visit gmcw.com for warranty terms and conditions.

©2015 GMCW	0715 Form # BW-328-01
Printed in Thailand	Part # 390-00038

Specifications

	Model	Part No.	Certifications	No. of Warmers	Electrical	Product Dimensions
						(H x W x D)
	CPO-1P-15A	(0002-10001)	NSF Sanitation;	1 bottom	120V / 15A / 1500W / 1 Ph	17.5” x 8.12” x 18.35”
			NSFus Electrical
	CPO-2P-15A	(0002-20001)	NSF Sanitation;	2 total:	120V / 15A / 1600W / 1 Ph	18.5” x 8.12” x 18.35”
			NSFus Electrical	1 top, 1 bottom
	CPO-2CP-20A	(0002-20003)	NSF Sanitation;	2 total:	120V / 20A / 1600W / 1 Ph	18.5” x 8.12” x 18.35”
			NSFus Electrical	1 top, 1 bottom
	CPO-3P-15A	(0002-30001)	NSF Sanitation;	3 total:	120V / 15A / 1700W / 1 Ph	18.5” x 8.12” x 18.35”
			NSFus Electrical	2 top, 1 bottom
	CPO-3CP-20A	(0002-30003)	NSF Sanitation;	3 total:	120V / 20A / 1700W / 1 Ph	18.5” x 8.12” x 18.35”
			NSFus Electrical	2 top, 1 bottom
	CPO-3RP-15A	(0002-30005)	NSF Sanitation;	3 total: 1 right top,	120V / 15A / 1700W / 1 Ph	17.5” x 16.2” x 18.35”
			NSFus Electrical	1 bottom, 1 right bottom
	CPO-3RCP-20A	(0002-30007)	NSF Sanitation;	3 total: 1 right top,	120V / 20A / 1700W / 1 Ph	17.5” x 16.2” x 18.35”
			NSFus Electrical	1 bottom, 1 right bottom
	CPO-4RP-20A	(0002-40001)	NSF Sanitation;	4 total: 1 top, 1 right top,	120V / 20A / 1900W / 1 Ph	18.5” x 16.2” x 18.35”
			NSFus Electrical	1 bottom, 1 right bottom
	CPO-5RP-20A	(0002-50001)	NSF Sanitation;	5 total: 2 top, 1 right top	120V / 20A / 1900W / 1 Ph	18.5” x 16.2” x 18.35”
			NSFus Electrical	1 bottom, 1 right bottom
	CPO-SAPP	(0002-00003)	NSF Sanitation;	No warmers -	120V / 15A / 1400W / 1 Ph	25” x 8.12” x 18.35”
			NSFus Electrical	brews into airpot
	CPO-1P-E	(0002-10004)		1 bottom	240V / 16A / 2600W / 1 Ph	17.5” x 8.12” x 18.35”
	CPO-2P-E	(0002-20004)		2 total:	240V / 16A / 2700W / 1 Ph	18.5” x 8.12” x 18.35”
				1 top, 1 bottom
	CPO-3P-E	(0002-30008)		3 total:	240V / 16A / 2800W / 1 Ph	18.5” x 8.12” x 18.35”
				2 top, 1 bottom
	CPO-3RP-E	(0002-30009)		3 total: 1 right top,	240V / 16A / 2800W / 1 Ph	17.5” x 16.2” x 18.35”
				1 bottom, 1 right bottom
	CPO-4RP-E	(0002-40002)		4 total: 1 top, 1 right top,	240V / 16A / 2900W / 1 Ph	18.5” x 16.2” x 18.35”
				1 bottom, 1 right bottom
	CPO-5RP-E	(0002-50002)		5 total: 2 top, 1 right top	240V / 16A / 3000W / 1 Ph	18.5” x 16.2” x 18.35”
				1 bottom, 1 right bottom
	CPO-SAPP-E	(0002-00006)		No warmers -	240V / 16A / 2500W / 1 Ph	25” x 8.12” x 18.35”
				brews into airpot

Model CPO-3P

2	Grindmaster®	Portable Pourover Coffee Brewers

Safety Information

Important Safety Information

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

For your safety and the safety of others, read all warnings and the operator’s manual before installing or using the product.

DANGER: This term warns the user of imminent hazard that will result in serious injury or death.

WARNING: This term refers to a potential hazard or unsafe practice, which could result in serious injury or death. CAUTION: This term refers to a potential hazard or unsafe practice, which could result in minor or moderate injury.

NOTICE: This term refers to information that needs special attention or must be fully understood.

WARNING

•The brewer must only be connected to a dedicated, grounded electrical circuit (refer to serial tag on machine for voltage and amperage requirements).

•To prevent the possibility of electrocution, burns, or other injuries and to prevent damage to your brewer, do not immerse in water or any cleaning liquids.

•Do not operate a damaged brewer. Inspect the power supply cord and water supply often. If cord or plug is damaged or worn, do not use your brewer. Disconnect the electrical power.

•Turn off and unplug the brewer before cleaning or maintenance. Allow brewer to cool before cleaning or maintaining.

•Disconnect power if the machine functions abnormally and notify qualified service personnel for repairs.

•Do not permit non-qualified service personnel to attempt repairs. No user serviceable components inside the brewer. Do not disassemble the brewer.

FAILURE TO COMPLY RISKS PERSONAL INJURY, SHOCK HAZARD, FIRE, OR DAMAGE TO EQUIPMENT.

CAUTION

•Risk of burns. The brewer uses 185°F - 200°F water that, if not properly handled, could cause burns. Do not permit children to use this appliance unless there is direct adult supervision. Keep away from pets and other animals.

•For indoor use only. Do not install or use outdoors, in moving equipment, or watercraft.

•Use the product for its intended purpose only. Any other usage is inappropriate and may be dangerous. The manufacturer assumes no responsibility for injury, loss, or damage resulting from improper machine use.

•Hot surfaces may cause burns. Do not touch the brewer while in operation.

•To prevent scalding by hot water, do not remove the brew basket while in operation.

•To prevent scalding by hot water, do not move or tilt the brewer. Moving or tilting the brewer could result in water spilling from the reservoir.

NOTICE

A qualified professional should perform maintenance and repairs.

Installation, maintenance, or repairs by unqualified personnel may damage the brewer and void the manufacturer’s warranty.

This equipment must be installed in accordance with the appropriate national and local codes of the country and/or region in which the appliance is installed.

Contact the manufacturer to report any malfunction of or damage to the brewer.

When turning the machine off for an extended period, be sure to evacuate the water inside the piping completely, otherwise the water inside the machine could freeze and lead to damage or cause mold to appear.

Portable Pourover Coffee Brewers	Grindmaster®	3

General Information

This operating manual includes instructions for using and maintaining your coffee brewer; keep this manual readily available.

After unpacking your brewer, check to ensure that your machine has not been damaged during shipping and includes all components. Notify your service representative regarding any questions or concerns before installing.

Please note that packaging material can be dangerous. Keep away from children. Discard promptly.

To ensure food safety and proper operation, clean machine regularly following the daily and weekly cleaning instructions. Cleaning and water evacuation instructions are found in the Cleaning and Maintenance Section of this manual.

When turning off the machine for an extended period, be sure to evacuate the water inside the piping completely. Otherwise, the water inside the machine could freeze and lead to damage or cause mold to appear.

heat to brewing temperature. (Hot water may drip from brew basket on initial thermal expansion of water in the tank). This will not occur thereafter.

8.After water has reached brewing temperature (thermostat will click off, heating noise will stop), pour 1 decanter (60 oz.) of water through pour-in opening. More than 1 decanter of water will flow into decanter below brew basket due to water expansion in tank. Machine is now ready to use.

9.Pour 1 decanter of water through pour-in opening to check for proper temperature setting with an accurate thermometer. Take the temperature of this water at a point below the brew basket opening at the start of the brew cycle and when the decanter is half full. Recommended temperature of the water is approximately 195°F.

10.In higher altitude locations (5,000 feet above sea level) the thermostat may have to be adjusted lower to prevent boiling.

Installation

WARNING Read and follow installation instructions before plugging machine into an electrical circuit. Warranty will be void if unit is connected to any voltage other than that listed on the name plate.

NOTICE: Fill brewer tank with water before connecting to power supply.

Please read this manual before operating the brewer.

1.Carefully remove brewer from carton.

2.Place brewer in position on shelf, counter or other flat surface.

3.FILL BREWER TANK WITH WATER BEFORE CONNECTING TO POWER SUPPLY

4.Place the decanter under brew basket, raise pour-in opening cover and pour three decanters of water through the top pourin opening. Water should come through the brew basket as the third decanter of water drains out of the pour-in basin.

5.Brewer is shipped with thermostat turned on (full clockwise position). Plug brewer into a dedicated, grounded 120V/15A or 120V/20A (240V for export models) circuit depending on model (refer to serial tag on machine).

6.Turn power switch on.

7.Allow 10-15 minutes for water in tank to

Operation

Your new coffee brewer is easy to operate and maintain. Before you place it in service, please have all personnel familiarize themselves with these instructions. Keep this manual in a convenient place for ready reference.

Coffee Preparation Procedures

1.Place filter into brew basket.

2.Put the proper amount of coffee into the filter.

3.Slide the brew basket into holder.

4.Place empty decanter on warmer located directly under the brew basket and turn corresponding warmer switch ON.

NOTE: For airpots, open airpot lid, remove pump stem from airpot and place airpot opening directly under center hole in brew basket.

5.Pour decanter of fresh water through pourin opening at top of brewer. (Make sure ready light is on before brewing).

6.Hot water will be delivered through the sprayhead. This distributes the hot water evenly over the coffee bed within the brew basket. The coffee will drain from brew basket into the container below.

7.TURN OFF WARMER WHEN NOT IN USE. (Red light indicates warmer is ON). Not for airpot brewers.

4	Grindmaster®	Portable Pourover Coffee Brewers

Operation (continued)

8.Before brewing next pot, remove brew basket from brew rails and dump filter into waste basket.

If you need help, call GMCW Technical Service Department for help, [phone] or [phone] (USA & Canada only) 8 AM - 6 PM EST.

Prior authorization must be obtained from GMCW for all warranty claims.

Cleaning & Maintenance

WARNING Burn Hazard. Hot liquids and surfaces are present in this equipment. To avoid burns, use caution when cleaning. Rinse hot parts with cold water before cleaning. Use gloves or a heavy cloth when removing hot parts from brewer.

Cleaning Instructions

After Each Brew:

1.Dispose of grounds and rinse brew basket.

2.Rinse decanter or airpot containers before reuse.

Every Day:

1.Wash brew basket with warm soapy water, thoroughly rinse and dry using a clean absorbent towel.

2.Remove spray head, located above brew basket, using gloves or a heavy towel. Wash off coffee oils and clean any plugged holes.

3.Wash Brew Funnel and Decanters or Airpot by hand as needed with warm soapy water, thoroughly rinse, and dry using a clean absorbent towel. Do not use dishwasher, which may cause airpot breakage.

4.To avoid scratches, use a soft cloth and warm soapy water or stainless steel polish on the outside.

5.Wipe exterior of brewer with a damp cloth. Do not use abrasives which will scratch surface.

6.If decanters are to be left on warmer all night, fill with water to avoid coffee oil burn-in.

Sanitizing:

•All food dispensing units should be sanitized periodically.

• All parts to be sanitized must be washed and rinsed before.

To prepare a sanitizing solution:

1.ADD 2 TSP. of LIQUID BLEACH (5.25% CONCENTRATION) TO 1 GALLON OF WATER AT ROOM TEMPERATURE (70°F - 90°F).

2.Soak all parts for a minimum of 3 minutes in the sanitizing solution.

NOTE: Always start with an unopened bottle of bleach since the solution from an opened bottle has a short life span.

3.Let all sanitized parts drain and dry naturally. DO NOT WIPE THEM DRY.

4.Before using the sanitized unit (or parts) with food stuffs, rinse all parts thoroughly with water.

Maintenance Draining Water Tank

Always empty the tank before shipping or storage. WARNING Draining of tank should be

performed by a qualified service technician. The tank contains very hot water. May cause severe burns.

1.Prepare a heat resistant container to drain tank water into.

2.Unplug the unit’s electrical plug and allow the tank water to cool.

3.Remove the top lid and disconnect the top warmers if applicable.

4.Tip over unit allowing the water to flow out of the inlet pan into a heat resistant container.

5.Allow the tank to drain completely.

6.Reinstall top lid.

Portable Pourover Coffee Brewers	Grindmaster®	5

Cleaning & Maintenance (continued)

Descaling the coffee brewer

WARNING Disconnect power before servicing. Risk of electric shock.

1.Unplug the brewer and remove the deflector from the outlet nozzle.

2.Slide the descaling tool into the nozzle outlet. Continue to put it into the unit about 12 inches and remove it. Clean off the tool between each time. Repeat until the tool comes out clean.

3.Run water through coffee brewer to remove any loose scaling.

4.Reinstall deflector.

Component Replacement Instructions

WARNING Disconnect power before servicing. Risk of electric shock.

These steps apply to replacement of TANK, TANK HEATER, and HI-LIMIT or MAIN THERMOSTAT

1.Remove brewer lid. Disconnect electrical connectors from upper warmer plate if applicable.

2.Remove pour in basin assembly (receiving pan).

3.Disconnect electrical terminals and hoses as needed.

4.Remove four nuts mounting the tank.

5.Lift tank and lid completely out of unit.

6.Remove eight nuts that mount the tank to tank lid.

7.Reverse steps 1-6 to reassemble new tank assembly.

THERMOSTAT, HI-LIMIT

1.Disconnect wires to hi-limit thermostat.

2.Remove hi-limit thermostat from containment clip.

3.Check continuity of the new hi-limit thermostat before installing.

4.Install thermostat in containment clip and reconnect wires.

5.Make sure the hi-limit thermostat is securely mounted and that all electrical connections are tight and isolated.

MAIN THERMOSTAT

1.Disconnect wires and remove tank and tank lid assembly.

2.Remove eight nuts that mount the tank to tank lid.

3.Remove screws which secure thermostat to tank lid.

4.Loosen thumb nut securing capillary bulb.

5.Remove capillary bulb from the grommet in top of tank lid by pressing up with thumb from under side and pulling capillary bulb out through hole.

6.Reverse steps 1-5 to reassemble new tank assembly.

TANK HEATING ELEMENT

1.Disconnect wires and remove tank and tank lid assembly.

2.Remove eight nuts that mount the tank to tank lid.

3.Loosen thumb nut securing capillary bulb and remove bracket.

4.Remove two nuts and remove element.

5.Install new element and washers with nuts secured tightly.

6.Inspect tank lid gasket and replace if necessary.

7.Reverse steps 1-3 to reassemble.

WARMER ELEMENT

1.Remove retaining nut from warmer plate.

2.Lift plate and disconnect leads.

3.Remove warmer element from plate.

4.Reverse steps 1-3 to reassemble.

5.Plug the brewer back in.

6	Grindmaster®	Portable Pourover Coffee Brewers
