Introduction

Use these instructions to install the Analog Composite Monitor board into a
PDR100 Video Disk Recorde r or PDR200 Video File Server . The Monitor boar d
provides four channels of analog composite video output with Time-code burn-in
and text ov erlay. With this board y ou can si multaneously di splay inde pendent ti me
codes of the four playback channels on a picture monitor display. Each channel
also provides text overl ay for source identification.

The instructions include procedures for opening the Profile chassis, removing
existing boards ( if necessary) to make room for the new board, installing the new
board, closing the Profile chassis, and verifying that the board is correctly
installed.

You can install the bo ard with the Pr ofile chassis fu lly extende d on the rac k slides
if the equipment rack is adequately mounted to prevent tipping, and if there is
sufficient sl ack in the cables connected to t he rear panel to allow t he chassis to fully
extend on the slides.

If it is nec essary for you to remove the Profile cha ssis from the equip ment rack to
perform this insta lla tio n , refe r to the Pr ofile system’s Installation Manual for
instructions.

WARNING: Unless the eq uip m ent rac k is adeq uat ely a nch o r ed, th e rac k

!

could tip when the chassis is extended on the rack slides. To avoid possible
injury, make sure the rack is firmly anchored before ext ending the chassis on
the rack slides.

Analog Composit e Monitor Installation 9

Monitor Board Installation

System Requirements

The Profile System Softwar e installed in the Profi le system must be version 2.2 or
higher. To check the software version installed in your Profile system, open the
VrdPanel applicati on and choose
listed in the Product Version field in the displayed window.

Kit Contents

In additio n to thes e instr uctions, t he Analog C omposite Monitor board ki t include s
the following:

• One Monitor circuit board

• One stick-on identific ation label sheet

• One packet of mesh gaskets ( use d for EMI suppression on BNC connec tors)

Tools Required

Tools required, but not supplied, to install this kit are:

• Torx tool with T10 and T15 tips

Help | About VdrPanel. The software version is

• ESD grounding straps

10 Analog Composite Moni tor Installation

Electrostatic Precautions

CAUTION: This product contains components that are highly sensitive to

!

!

electrostatic discharge. To protect these components from damage and to
maintain product reliability, take the following precautions when handling
the circuit boards:

• Handle all circuit boards in a static-protected area capable of controlling
static charge on conductive materials, people, and no n-conductive mate rials.
Static-prote cted are as include non-sta tic t able t ops and non-st at ic floor mats.

• Handle the circuit board s only by the edges . Avoid touc hing the printed
wires on the back of the circuit board as much as possible.

• Leave the board in its static-shielded bag until you are ready to install the
board.

Electrostatic Precautions

Analog Composit e Monitor Installation 11

Monitor Board Installation

Installation Procedures

The procedures that follow take you step-by-step through the installation of the
Monitor board.

Before you install the new board, prepa re the Profile system for installa tion.
Preparation invol ves extending the chassis, removing the top covers, removing the
circuit board hold-downs, and moving currently installed boards as necessary to
make room for the Monitor board.

The installation procedures include a discussion on board locations. This
discussion simpli fies installing and, if necessary, moving boards around, and
provides consistency when doing so. The procedures also include internal audio
clock cabling informat ion.

WARNING: The Profile chassis is too heavy for one person to remove from

!

!

an equipment rack. To avoid possible inju ry, get help if removing the Profile
chassis from the rack.

Removing the Chassis Covers

To remove the chassis covers, refer to Figure 1 and:

NOTE: Take care not to lose these chassis scre ws. They are require d to meet
the EMI sp e cificati o n s f o r the P r o f il e sys t e m.

1. Turn Profile system power off and remove the power cord .

2. Loosen the front panel ret aining screw and pull the chassis out until the slide
sect i ons la tch.

NOTE: Not all the screws shown in Figure 1 may be present on a PDR100.

3. Use the Torx tool with the T10 to remove the top screws from the front
chassis cover (

The front cover must be removed first becaus e it overlaps the rear cover.

4. Use the Torx tool with the T10 tip to remove the rear chassis cover (
Figure 1) which covers the circuit boards.

12 Analog Composite Moni tor Installation

in Figure 1) and use the T15 tip to rem ove the sid e s crews.

Ê

Ë

in

9675-9

Removing the Chassis Covers

2

1

Figure 1. Removing the Top Covers

Analog Composit e Monitor Installation 13

Monitor Board Installation

Removi ng Hold-downs

There are two hold-down brackets loc a ted in the circuit board area that must be
removed in order to remove and replace circuit boards. Figure 2 shows these
brackets.

To remove the hold-down brackets:

1. Use the Torx tool with the T10 tip to remove the screw (
secures the rear b oard hold -d ow n .

2. Lift the hold-down (

3. Use the Torx tool with the T10 tip to remove the screw (
secures the front board hold-down.

4. Lift the hold-down (

in Figure 2) up and out of the chassis and set aside.

Ë

in Figure 2) up and out of the chassis and set aside.

Í

in Figure 2) which

Ê

in Figure 2) which

Ì

14 Analog Composite Moni tor Installation

Removing Hold-downs

3

4

2

Figure 2. Removing the Circuit Board Hol d-downs

1

9675-2

Analog Composit e Monitor Installation 15

Monitor Board Installation

Removing Circuit Boards

Installing the Monit or board may require that you remove or reposition one or
more currently instal led boards to make room for the new board or to meet internal
cabling constraints. When unplugging boards you may also find it necessar y to
remove the screw mounting an adjacent circuit board, and in the case of som e short
circuit boards, it might be necessary to re move an adjacent tall circuit board to ease
removal of the shorter board.

Use the following procedure to unplug circuit boards from the motherboard.

1. Remove all interior and rear panel cables from the circuit boards that a re to
be removed.

2. Use the Torx tool with the T15 tip to remove the screw from the bracket
inside the chassis (

outside the chassis (

CAUTION: To avoid damage to the circuit board when removing or

!

installing it:

• Do not rock the circuit boar d in the EISA Bus connector — pull straight up
to remove.

in Figure 3) and the screw through the rear panel

Ê

in Figure 3).

Ë

• Do not grasp or push on the rear-panel connectors when removing or
installing circuit boards in the card slots.

3. Extract the circuit boa rd. If the circuit board is a tall circuit board, use the
extraction leve r on the front of the board and the extraction ring at the back
of the board to lift the circuit boa r d free of the connectors on the
motherboard.

For short circu it boards, carefull y gras p the boa rd and lif t upward t o free the
circuit board from the motherboard connectors. You might need to remove
an adjacent tall board to get enough room for a safe hold on the boar d.

16 Analog Composite Moni tor Installation

1

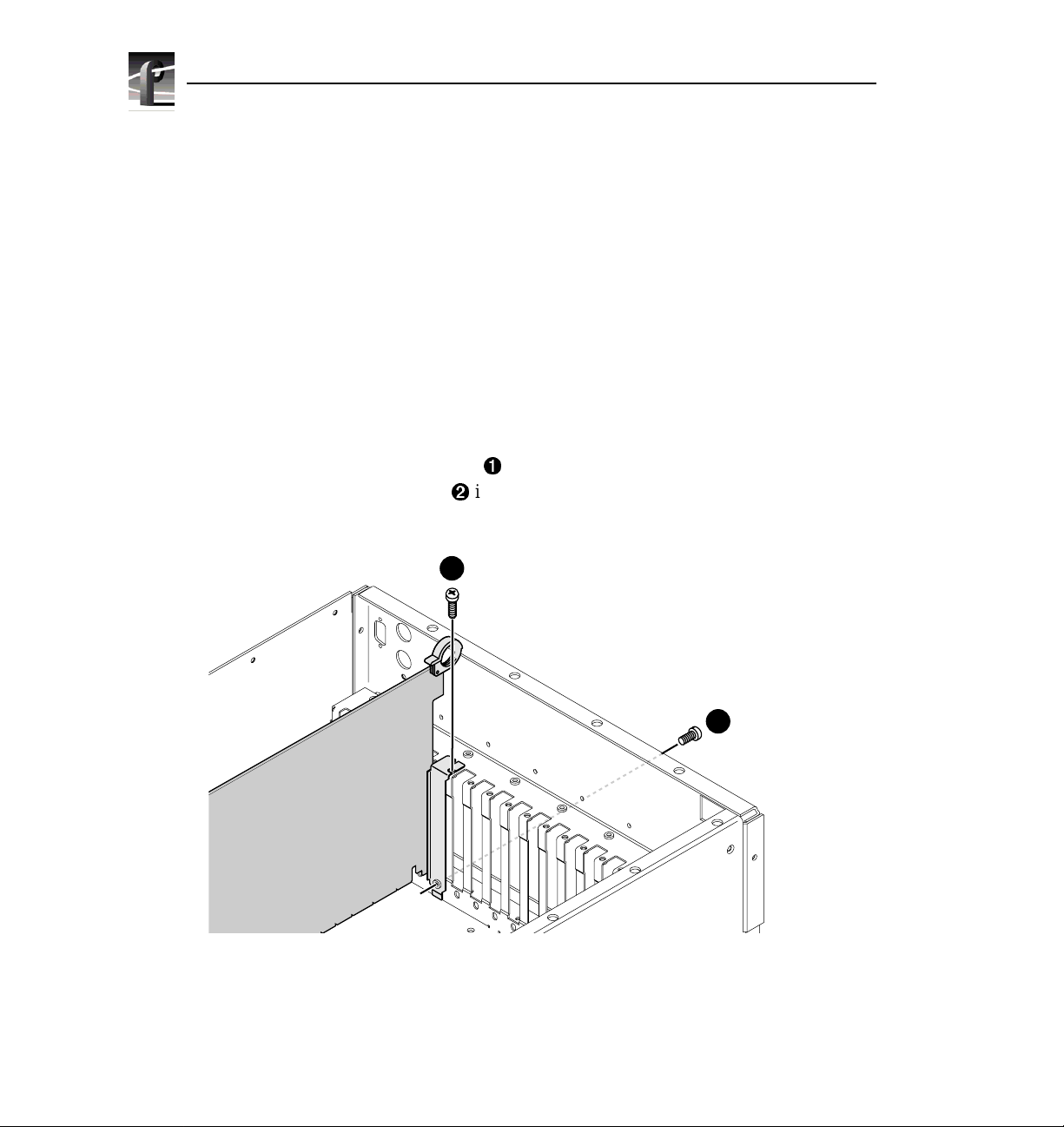

Figure 3. Screw Locations for Board Mounti ng Bracket

Removing Circuit Boards

2

9040-13

Analog Composit e Monitor Installation 17

Monitor Board Installation

Board Location Guide

This board location guide ide ntifies the inputs and outputs of each Profi le board
currently avail able for a PDR100 or PDR200, as well as the input and output
connections on the Video Router connectors on the motherboard. Use this
information when:

• you add a new circuit board to the Profile system and need to select a slot
into which you can install it;

• you need to move boards around to meet requirements for new boards.

As you move boards around, remember that some circuit boards must occupy
specific slots , while others can be installed in almost any slot a s long as their I/O
requirements are met.

This section provides a simple approach to board location. It explains the
relationship bet ween the motherboa rd and Video Router connect ors and provide s
tables, charts and examples to as sist you in installing boards.

Video Router to Motherboard Relationship

The Video Router provides and controls video data to twelve connectors on the
motherboard. These video dat a connectors are align ed with the main motherboard
connectors for slo ts J5 through J16. Since the Ref Gen board must occupy J16 to
provide the necessary system clocks, this discussion excludes J16.

When choosing a slot for a board, the major constraint on a slot is how the boar d
connects to the Video Router. Not all boa rds requir e the same nu mber of video I/O
connections, and not all video data connectors provi de the same number of vi deo
I/O connections. Therefore, you must know how many input and output
connections the board need s, and the slots available that meets those needs.

Board I/O Requirements and Restrictions

Table 1 lists each of the boards which may be instal le d in the Profile system and
the recommended slots, possible alternatives, and restrictions for each board.

Note that if more than one slot is recommended or possible for a board, those slots
are listed in the order of preference.

18 Analog Composite Moni tor Installation

Table 1. Board I/O Requirements and Restrictions

Board Location Guide

Board Video Router

connection
requirements

Inputs Outputs PDR 100 PDR 200

CPU none n/a J1 J1 none
VGA n/a n/a J2 J2 none
LAN n/a n/a J3 J3 none
SCSI n/a n/a J4 J4 none
RefGen n/a n/a J16 J16 none
RS422 n/a n/a J17 J17 none
FibreChannel n/a n/a J15 J8 J5-J15 Must be adjacent to Mast er EDR
Master EDR 2 2 J14 J9 J5-J15 Must be adjacent to Slave EDR

Slave EDR 2 2 J13 J10 J5-J15 Must be adjacent to Master EDR
Master DR 2 2 J14 n/a J5-J15 Must be in adjacent to Slave DR
Slave DR 2 2 J15 n/a J5-J15 Must be adjacent to Master DR
Serial Digital

I/O
Decoder None None J8 J5 J7, J11 Must be adjacent to Analog

Analog
Composite In

Analog
Composite I/O

Mix Effects 6 2 J7 J7 J6 Only J6 and J7 have 5 inputs;

4 Ch. Analog
Out

Analog
Composite

Monitor

Audio Signal
Processing Bd
(ASPB)

CAV In None 1 J5 J5 J5-J15
Audio I/O None None J5-J15 n/a J5-J15

2 2 J11 J14, J15 J11, J5,

None 1 J9 J6 J8, J12 Must be adjacent to Decoder

2 2 J11 J14, J15 J11, J5,

4 None J6 J6 J12, J7,

4 None J12 J12 J6, J7,

None None J13 J 13 J5-J15

Slot Recommended Other

Possible
Slots

J11

J11

Restrictions

and (if installed) Fibre Channel

Can’t go in J5 if Mix Effects is in

J7

J6 or in J8 if Mix Effect s is i n J7

Composite In

Can’t go in J5 if Mix Effects is in

J7

J6 or in J8 if Mix Effect s is i n J7

board must be able to get a
shared input (the 6th) from an
adjacent slot (J5 or J8)

Only J6, J7 , J11, an d J1 2 hav e 3
(or more) inpu ts. I f in J11 or J12,
board must be able get a shared
input (the 4th) fr om an a djacent
slot (J10 or J13)

Only J6, J7 , J11, an d J1 2 hav e 3
(or more) inpu ts. I f in J11 or J12,
board must be able get a shared
input (the 4th) fr om an a djacent
slot (J10 or J13)

Analog Composit e Monitor Installation 19

Monitor Board Installation

Video Router I/O Connections

Now let’s look at the Vide o Router connections a vailable at slots J5-J15. Table 2
is a board location chart with the Video Router input and output connections. In
the table:

• The Slots column lists each slot on the motherboard connected to the Video
Router.

• The Board column is where you e nter the boards currently installed and the
name of the board you want to install.

• The Inputs column identifi es data input connections to the slots (boards)
from the Video Router. The numbers in the blocks correspond to the order
input connections are assigned at the Video Router connector.

• The Outputs column identifies data output connections from the slots
(boards) to the Video Router. The numbers in the blocks correspond to the
order output connecti ons are assigned at the Video Router connector.

• The shaded blocks in the d iagram indicate Video R outer conn ections sha red
between slots. A shar ed connec tion is avail abl e to eithe r slot, but not both a t
the same time.

For instance :

• The shaded blocks between slots J5 and J6, slots J7 and J8, slo ts J10 and J11,
and slots J12 and J13 indicate shared input connections.

• The shaded blocks between slots J8 and J9, slots J10 and J11, and slots J12
and J13 indicate shared output c onne ctions.

20 Analog Composite Moni tor Installation

Table 2. Boar d Loca tio n Ch art

Board Location Guide

Slot Board Inputs

J5

1

2

J6

1
2

J7

3
4
5
6

J8

1

J9

2

1

J10

2

J11

1

J12

2
3

4

J13

J14

1
2

J15

1
2

6

5

4
3
2
1

2

1

4
3
2
1

2

1

Outputs

1
2

3

1

2

1

2

3
4

1
2
3
4

1
2

3
4

1

2

3

1
2

3

2

1

4

3

2
1

4
3

2
1

4

3

2

1

Analog Composit e Monitor Installation 21

Monitor Board Installation

Selecting a Location

Here’s how to use the tables to select a location for a board.

1. In the Board Location Char t, Table 2, enter the board na me and, refe rring to
Board I/O Requi rements a nd Rest rictions, Table 1, put a check mark in ea ch
input and output block u sed by each board currently inst alle d in your Profil e
syst e m. Sta rt wi th th e 1 block for each board.

2. Look in the Board I/O Requirements and Restrictions, Table 1, to see the
input and output requirements and both the recommended slot and
alternative slots for the board you want to install.

3. Look in the Boar d Location Char t, Table 2, for a slot wi th the required Video
Router connections ava ilable. Starting with the 1 block, put an “X” in each
block that corresponds to an input and output requirement for the board. If
the recommended slot is occupied, or there are not enough input or output
blocks avail abl e, lo ok at the al te rnat iv e slo ts.

4. If all input and output require ments f or the board match the available ones
for the slot , write the b oard name in the Boa rd column for the slot and in stall
the board.

NOTE: If you ca n’ t find an ope n slot wit h t he I/O which meet s the I/O
requirements of the board you want to instal l, y ou will have to move boards
around. You can use the Boa rd I/O Requiremen ts and Restri ction s table an d
the Board Locat ion Chart to experiment with various board locations before
deciding on one.

The following examples de monstrate how to u se the Board I /O Requirements and
Restrictions , Tabl e 1, and the Board Location Chart, Table 2.

22 Analog Composite Moni tor Installation

Board Location Guide

Example 1

This example shows how to use the Board I/O Requirements and Restrictions,
Table 1, and the Board Location Chart, Tab le 2, to install an Analog Composite
Monitor board into a 4-channel PDR200 with Fibre Channel and Mix Effects.

1. Fill in the Board Location Chart with the information for all the boards
currently installed in the system.

a. For the Mix Effects in slot J7, which requires six inputs and two outputs:

- Put check marks in the five J7 Input blocks, 1-5.

- Put a check mark in the J8 shared Input Block.

- Put check marks in the J7 Output blocks 1 and 2.
b. For the Fibre Channel in slot J8 - no Video Router I/O requir ements
c. For the Master EDR in slo t J 9, whic h re quires t wo i nputs and t wo out puts:

- Put check marks in the J9 Input blocks 1 and 2.

- Put check marks in the J9 Output blocks 1 and 2.
d. For the Slave EDR in s lot J10, whic h requir es t wo inpu ts and two out puts:

- Put check marks in the J10 Input blocks 1 and 2.

- Put check marks in the J10 Output blocks 1 and 2.
e. For the ASPB in slot J13 - no Video Router I/O requirements
f. For the Serial Digital I/O in slots J14 and J15, which both require two

inputs and two outputs:

- Put check marks in both J14 and J15 Input blocks 1 and 2.

- Put check marks in both J14 and J15 Output blocks 1 and 2.

Analog Composit e Monitor Installation 23

Monitor Board Installation

2. From the Board I/O Requirements and Restrictions table, note that the
Analog Composite Monitor board requires four inputs and no outputs and
that the recommended slot is J12, with J6 and J7 as other possible slots.

3. Looking at your Board Location Chart , you see tha t the recommended slot,
J12, is open.

4. On your Board Location Chart:

- Put Xs in the J12 Input blocks 1-3.

- Put an X the shared J13 input block.

5. Write Analog Composite Monitor in the Boards column for slot J12 and
install the board.

Your Board Location Chart would then look similar to Table 3: Example 1.

24 Analog Composite Moni tor Installation

Board Location Guide

Table 3: Example 1 - Installing an Analog Composite Monit or Board

Slot Board Inputs

J5

1

2

J6

3

1

3

2

3

3
4

3

3

5
6

3

1

3

2

3

1

3

2

3

J7

J8

J9

J10

Mix

Effects

Fibre Channel

Master Enhanced

Disk Recorder

Slave Enhanced

Disk Recorder

J11

X

1
2

X

3

X
X

4

1

3

2

3

1

3

3

2

J12

J13

J14

J15

Analog Composite

Monitor

ASPB

Serial Digital I/O

Serial Digital I/O

6

5

4
3
2
1

2

1

4
3
2
1

2

1

Outputs

1
2

3

1

3

2

3

1

2

3
4

3

3

3

1
2

3

3
4

1
2

3
4

1

3

3

2

3

1

3

2

3

3

2

1

4

3

2
1

4
3
2
1

4

3

2

1

Analog Composit e Monitor Installation 25

Monitor Board Installation

Example 2

If you next want to install an Analog Composite I/O board:

1. From the Board I/O Requirements and Restrictions table, note that the
Analog Composite I/O board requir es 2 inputs and 2 outputs and that the first
recommended slot is J14 and the second rec ommended slot is J15, with slots
J11, J5, and J7 as other possibilities.

2. Looking at your Board Location Chart , you see tha t slot J11 is open.

3. On your Board Location Chart:

- Put Xs in the J11 Input blocks 1 and 2.

- Put Xs in the J11 Output blocks 1 and 2.

4. Write Analog Composite I/O in the Board column for slot J11 and insta ll
the board.

Your Board Location Chart would then look similar to Table 4: Example 2.

26 Analog Composite Moni tor Installation

Board Location Guide

Table 4: Examp le 2 - Installing an Anal og Co m p oci te I/O Board

Slot Board Inputs

J5

1

2

J6

3

1

3

2

3

3
4

3

3

5
6

3

1

3

2

3

1

3

2

3

X

X

X

1
2

X
X

3

X

4

1

3

2

3

1

3

3

2

J7

J8

J9

J10

J11

J12

J13

J14

J15

Mix

Effects

Fibre Channel

Master Enhanced

Disk Recorder

Slave Enhanced

Disk Recorder

Analog Composite

I/O

Analog Composite

Monitor

ASPB

Serial Digital I/O

Serial Digital I/O

6

5

4
3
2
1

2

1

4
3
2
1

2

1

Outputs

1
2

3

1

3

2

3

1

2

3
4

3

3

3

1
2

3

3
4

X
X

1
2

3
4

1

3

3

2

3

1

3

2

3

3

2

1

4

3

2
1

4
3

2
1

4

3

2

1

Analog Composit e Monitor Installation 27

Monitor Board Installation

Audio Clock Cabling

NOTE: The Analog Composite Monitor board does not require audio clock
cabling. Audio clock cabling information is included here in the event that
you have to move boards around.

This section provides inf ormation a bout audio cloc k cabling. In general, if al l your
audio/video devices are connected to house reference, audio clock cabling is not
required. The need for audio clock cabling arises when an external audio clock
signal from the a ppropriate video boar d must be used to synchr onize the audio to
the video. Cabling between connectors on the top of the video boards and
connectors on the top of the ASPB provide the external audio clock signals.

ASPB Audio Clock Cabling

The ASPB provides for input of four external a udio clock signals, one to each
Audio 1-Audio 4 bank, where each bank consists of four audio channels. ASPB
Audio 1-Audio 4 connectors begin close st to the rear panel and go toward the front
panel.

In general, the video board in the lowest numbered slot must provide the audio
clock signal to the Audio 1 bank, the video board in the next lowest numbered slot
must provide the audio clock signal to the Audio 2 bank, etc. For example, if you
have video boards in slots J5 and J11, the audio clock signal from the one in J5
must be connected to Audio 1 on the ASPB and the audio clock signal from the
video board in slot J11 must be connected to Audio 2 on the ASPB.

Figures 4 and 5 show examp les of exter nal a udio clo ck cabli ng wit h the ASPB . In
Figure 4, Analog Co mposite I/O boa rds, installe d in slots J14 a nd J15, are the only
video boards. The audio clock cable connections are:

• Channel A of the board in slot J14 to Audio 1 on the ASPB in slot J13

• Channel B of the board in slot J14 to Audio 2 on the ASPB in slot J13

• Channel A of the board in slot J15 to Audio 3 on the ASPB in slot J13

• Channel B of the board in slot J15 to Audio 4 on the ASPB in slot J13

28 Analog Composite Moni tor Installation

Audio Clock Cabling

Ch. B

Ch. A

Composite I/O

Figure 4. Example of Audio Clock Cabl ing i n a PDR204A

Audio 4
Audio 3

Audio 2
Audio 1

ASPBAnalog

0044-2

Analog Composit e Monitor Installation 29

Monitor Board Installation

In Figure 5, the Analog Composite I/O board install ed in slot J11 makes it the firs t
video board, counti ng from J 5 to J15, and the Serial Di gital I/O b oard becomes the
second video board. You would have to move the Serial Digital I/O audio clock
cables from the AS PB Audio 1 and Audio 2 connectors t o, respectively, the Audio
3 and Audio 4 connectors. Audio clock cable connections are then:

• Analog Composite I/O Channel A to ASPB Audio 1

• Analog Composite I/O Channel B to ASPB Audio 2

• Serial Digital I/O Channel 1 to ASPB Audio 3

• Serial Digital I/O Channel 2 to ASPB Audio 4

Bear in mind that the ASPB only provid es for input of four audio clock si gnals
and note the following:

a. Figure 5 is an example of a 2-channel PDR 200 with one Serial Digital

I/O board.

b. If you have a 4-channel PDR200 with two Serial Digital I/O boards, all

four ASPB audio clock inputs may be connected.

c. If all four ASPB clock inputs are connected and you then install an Analog

Composite I/O board , you will ha ve more aud io cloc k signals than you ha ve
connections on the ASPB (two from the Analog Composite I/O board and
four from the two Serial Digital I/ O boards).

You will have to determi ne how you want to set your syste m up, that is, what you
want as the sources of the signals sychronizing the audio to the video. This is
primarily a software configuration function. However, how you configure the
audio clocks in sof tware must match the physi cal connec tions but If you choo se to
have the system clock as the synchroniz ing signalaudio clocks for the ASPB
Audio 1-Audio 4 banks. You will have to remove any unused cl ock cables and you
may have to move boards around to accommodate your setup.

Note that through Configur ation Manager (see the Profile Family User Manual),
you may assign the source of audio clocks as either from the system clock or a
video source. If a video source is sele cted, you must then ensure that the audio
associated with that video source is connected to the correct audio channel
connectors.

30 Analog Composite Moni tor Installation

Audio 4
Audio 3
Audio 2

Audio 1

Ch. 2
Ch. 1

Digital I/O

ASPBSerial

Audio Clock Cabling

Ch. B
Ch. A

0044-3

Analog

Composite I/O

Figure 5. Example of Audio Clock Cabl ing i n a PDR202D

Analog Composit e Monitor Installation 31

Monitor Board Installation

Audio I/O Audio Clock Cabling

Figure 6 shows an example of an Analog Composite I/O board installation in a
PDR100 with two Analog Audio I/O boards. In the Figure 6, audio clock cable
connections are from:

• Analog Composite I/O Channel A to the RECORD connector on the Analog
Audio I/O board in the lowest numbered slot from slot J5 to slot J15.

• Analog Composite I/O Channel B to the RECORD connector on the Analog
Audio I/O board in the next lowest slot.

• PLAY connectors on both Audio I/O boards to any of the syste m clocks on
the RefGen board, or to any boar d which has system clock conn ectors (suc h
as the Analog Composite Output board).

Figure 6 is an example only. If you have other video boards installed, or add Audio
I/O boards,, you will have t o determine which video sour ce you want to use for t he
audio clock signals and make Audio I/O board connection adjustments
accordingly.

32 Analog Composite Moni tor Installation

Play Cables

Record Cables

Audio Clock Cabling

Ch. B

Ch. A

Ref Gen Analog

Figure 6. Example of Audio Clock Cabling With an Audio I/O Board

Audio

2 or 4

Audio

1 or 3

Composite I/O

Analog Composit e Monitor Installation 33

0044-4

Monitor Board Installation

Installing the Mo nitor Boa rd

Refer to “Board Location Guide” beginning on pa ge 10 and insta ll the Analog
Composite Monitor board as follows:

1. If necessary, remove the slot cover where you want to install the board.

2. Align the board with the connectors on the motherboard. Make sure the
extractor on the front en d of the board is in the up position, then press down
on the board f irmly until the board is seated. As you push the board into the
connectors, you will feel the board engage first one, then a second set of
contacts in the connector. The board is properly seated when the top of the
rear mounting bracket is resting on the rear chassis wall shelf.

3. Use the Torx tool with the T15 tip to install the mounting screws in the top
of the bracket inside the chassis (

at the bottom of the bracket (

in Figure 7) and through the rear panel

Ê

in Figure 7).

Ë

1

Figure 7. Screw Locations for Board Mounting Bracket

34 Analog Composite Moni tor Installation

2

9040-13

Installing the Monitor Board

4. Install th e blank circ uit boar d brackets ( if necessa ry) in t he empty boar d slots
on the rear panel.

5. Refer to “Audio Clock Cabling” beginning on page 20 and reconnect any
audio clock cables previ ously removed.

6. Use the Torx tool with the T10 tip to reinstall the rear board hold-down
bracket (see Figure 2, page 7).

CAUTION: To prevent damage to the Monitor boar d, a short board extension

!

on the front hold-down bracket must not be installed at the Monitor board
location.

7. If necessary, reconfigure the front board hold- down, moving or removing a
short board extension and use the Torx tool with the T10 tip to reinstall the
front board hold-down bracket (see Figure 2, page 7).

8. Use the Torx tool with the T10 tip to reinstall the rea r top cover with the
screws previously removed.

9. Use the Torx tool with the T10 and T15 tips to reinstall the front top cover
with the screws previousl y removed.

10. Apply the stic k-on label at the appropriate loca tion in the Prof ile chassis rear
panel to identify the location of the Analog Composite Monitor board and
any board you repositioned .

11. Reinstall the Profile chassis in the rack and reconnect all cables previously
removed. Before attaching c ables to the BNC connectors, install the mesh
washers as shown in Figure 8.

Figure 8. Installi ng Mesh Washers

Analog Composit e Monitor Installation 35

Monitor Board Installation

12. Instal l mesh was hers (Figure 8) and conne ct anal og compo site ou tput cables
to the Analog Composite Monitor board. See Figure 9 for an example

J17 J13J16

J15 J14 J6J7

Analog Composite (Monitor)

Figure 9. Analog Composite Monitor Board Cable Connections

J11 J9

J12

Video Out

J10

J8

Out A
Out B
Out C
Out D

J5

J4 J3 J2

J1

0043-1

13. Apply power to the Profile system and start the Profile Configuration
Manager application. Check the graphic representation of the Profile rear

panel. It should indicate the presence of the Analog Composite Monitor
board in slot J12 where you install ed the board.

14. Configure the syst em for the Analog Composi te Monitor board a s instructe d
in the Profile Family User Manual.

36 Analog Composite Moni tor Installation

Installation Verification

Verification of ins tallation of the Analog Composite Monitor board c onsists of
ensuring that the system recognizes the boa rd. Use the Diagnostics window, which
lists all inst alled and rec ognized boa rds, to see if the sys te m recognizes t he board.
To check for Analog Composite Monitor board rec ognition:

Installation Verification

1. Open the Diagnostics window by selecting

Diagnostics

.

PDR Debug Tool s | PDR

2. On the left side of the window, ensure that AnaCompMon appea rs at
Slot J12 (see Figure 10 for an example).

.

Slot J1
Slot J2
Slot J3
Slot J4
Slot J5
Slot J6
Slot J7
Slot J8
Slot J9
Slot J10
Slot J11
Slot J12
Slot J13
Slot J14
Slot J15
Slot J16
Slot J17
Mother Bd

Pentium CPU

Non-EISA slot

SMCA010

BUS4202

Mix Effects (Rev 0)

Fibrechannel I/F (Re v 0 )

Master EDR (Rev 0)

Slave EDR (Rev 0)

AnaCompMon (Rev 1)

ASPB (Rev 1)
Serial UA (Rev 1)
Serial UA (Rev 1)

Ref Gen (4 LTC) (Rev 0)

RS422, if installed

Mother Board (Rev 0)

Quit

Figure 10. Diagnostics Window Board Recognition Example

Analog Composit e Monitor Installation 37

Monitor Board Installation

38 Analog Composite Moni tor Installation
