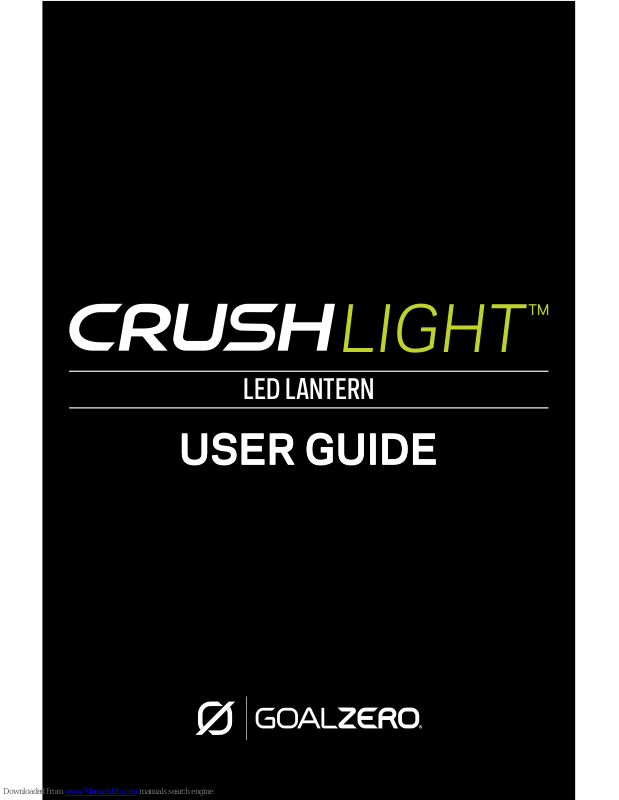

GOAL ZERO CRUSH LIGHT User Manual

LED LANTERN

1

Table of Contents

Get To Know Your Gear 2
How It Works 3
Recharge Your Crush Light Lantern 4
Technical Specifications 5
Français 6
Deutsch 10
Español 14

日本語

18

BEFORE FIRST USE:

Take the Crush Light Chroma out of DEMO mode

by pressing the on/off button for 10 seconds.

2 3

GET TO KNOW YOUR GEAR HOW IT WORKS

Micro USB Input

Removable Hanger

Solar Panel

On/Off Button

Rechargeable

by Sun

RUNTIME LUMENS CHARGE TIME

High 3 hours 60 lumens USB source 3.5 hours
Medium 6 hours 25 lumens Built-in panel 20 hours
Low 35 hours 6 lumens
Candle Flicker 3.5 hours

Hour Runtime

on Lowest

Setting

TIP:

Fully charge the crush light before its first use.

3 WHITE MODES + CANDLE FLICKER.

Push the On/Off Button to select brightness modes.

Press 1X for High

Press 2X for Medium

Press 3X for Low

Press and hold for 2 seconds for candle flicker

Press and hold for 3 seconds to turn it off

Still in DEMO MODE? See the front cover for instructions.

USB

Rechargeable

Weatherproof

IPX4 Rated

4

TECHNICAL SPECIFICATIONS

Recharge from USB or solar panel.

RECHARGE YOUR CRUSH LIGHT LANTERN

5

2.5 Hrs

USB Port

20 Hrs

Full Sun

Goal Zero Crush
Light Lantern

Built-in
Solar Panel

Know it’s charging with the LED indicator light next to the
charging port turns red. The Crush Light is fully charged when
the light turns green.

LED Indicator

Micro USB Input

Helpful Recharging Hint:

Place your Crush Light so the solar panel is directly angled at
the sun. For the best charge, reposition it throughout the day
so it stays at the best angle.

Battery

Cell chemistry

Li-ion Polymer

Cell capacity

1.85Wh (3.7V, 500mAh)

Lifecycles

Hundreds of cycles

Shelf-life

Charge every 3-6 months

Solar

Rated Power

~0.12W

Cell type

Monocrystalline

Ports

USB port (input)

5V, up to 0.5A (2.5W max)

General

Durability

IPX4

Weight

3.2oz (91g)

Dimensions (Open)

4.95 x 4.95 x 3.9in (125 x 125 x 100mm)

Dimensions (Closed)

4.95 x 4.95 x 0.6in (125 x 125 x 15mm)

Operating usage temp.

32-104 F (0-40 C)

Certs

Warranty

12 months

Be sure to activate your warranty at goalzero.com/warranty
