Giles GVH-C User Manual

Project Name/No:______________________ Item No: ________________

APPLIANCE A B C D MAX. AMP.

MAX. SURFACE

AREA

MAX. SHORTENING

CAPACITY

MAX.

TEMP

MAX

ELEMENTS

FRYER(S) 1-1/2 8 N/A 19

100 TOTAL* (MAX 50AMP

THROUGH HOOD

INTERLOCK CONTACTOR)

576 SQ. IN. 140LBS/9.1 GAL N/A N/A

GRIDDLE 3-7/8 8-3/4 19 N/A 35 480 SQ. IN. N/A 450F N/A

RANGE 4 8-3/4 19 N/A 44 TOTAL ALL BURNERS N/A N/A N/A 4

OVEN 1 8-3/4 19 N/A

55 TOTAL* (MAX 50AMP

THROUGH HOOD

INTERLOCK CONTACTOR)

N/A N/A 500F N/A

CONVEYOR

OVEN

5-1/2 8 19 N/A

55 TOTAL* (MAX 50AMP

THROUGH HOOD

INTERLOCK CONTACTOR)

N/A N/A 500F N/A

TOASTER 1 8-3/4 19 N/A

55 TOTAL* (MAX 50AMP

THROUGH HOOD

INTERLOCK CONTACTOR)

N/A N/A 500F N/A

A

Quantity: _____ SIS#: _______________ AIA/CSI#: __________________

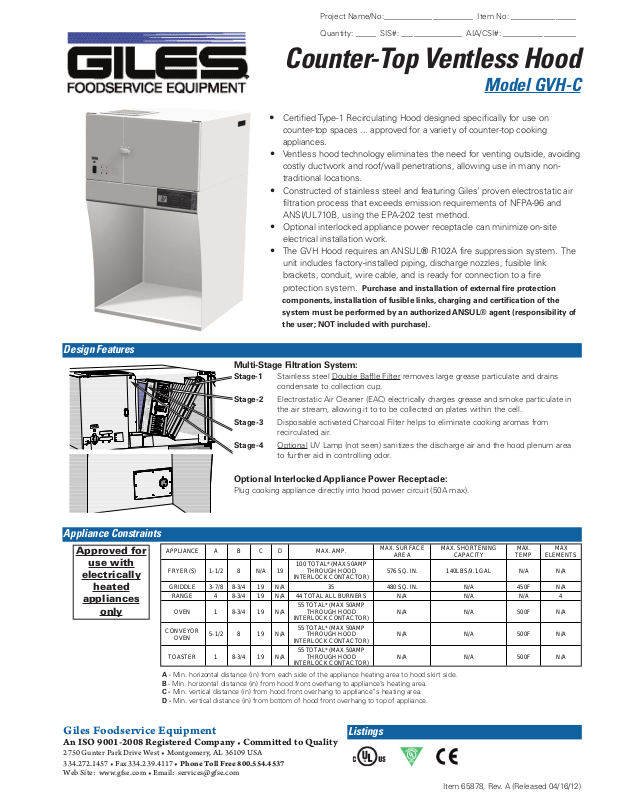

Counter-Top Ventless Hood

Model GVH-C

• CertifiedType-1 Recirculating Hood designed specifically for use on

counter-top spaces ... approved for a variety of counter-top cooking
appliances.

• Ventless hood technology eliminates the need for venting outside, avoiding

costly ductwork and roof/wall penetrations, allowing use in many non­traditional locations.

• Constructed of stainless steel and featuring Giles’ proven electrostatic air

filtration process that exceeds emission requirements of NFPA-96 and
ANSI/UL710B, using the EPA-202 test method.

• Optional interlocked appliance power receptacle can minimize on-site

electrical installation work.

• The GVH Hood requires an ANSUL® R102A fire suppression system. The

unit includes factory-installed piping, discharge nozzles, fusible link
brackets, conduit, wire cable, and is ready for connection to a fire
protection system.

components, installation of fusible links, charging and certification of the
system must be performed by an authorized ANSUL® agent (responsibility of
the user; NOT included with purchase).

Purchase and installation of external fire protection

Design Features

Appliance Constraints

Approved for

use with

electrically

heated

appliances

only

Multi-Stage Filtration System:

Stage-1 Stainless steel Double Baffle Filter removes large grease particulate and drains

Stage-2 Electrostatic Air Cleaner (EAC) electrically charges grease and smoke particulate in

Stage-3 Disposable activated Charcoal Filter helps to eliminate cooking aromas from

Stage-4 Optional

condensate to collection cup.

the air stream, allowing it to to be collected on plates within the cell.

recirculated air.

UV Lamp (not seen) sanitizes the discharge air and the hood plenum area

to further aid in controlling odor.

Optional Interlocked Appliance Power Receptacle:

Plug cooking appliance directly into hood power circuit (50A max).

A - Min. horizontal distance (in) from each side of the appliance heating area to hood skirt side.

Giles Foodservice Equipment

An ISO 9001-2008 Registered Company • Committed to Quality

2750 Gunter Park Drive West • Montgomery, AL 36109 USA

334.272.1457 • Fax [phone] • Phone Toll Free 800.554.4537
Web Site: www.gfse.com • Email: [e-mail]

B - Min. horizontal distance (in) from hood front overhang to appliance’s heating area.
C - Min. vertical distance (in) from hood front overhang to appliance”s heating area.
D - Min. vertical distance (in) from bottom of hood front overhang to top of appliance.

Listings

Item 65878, Rev. A (Released 04/16/12)

DEPT.:

RAW MAT'L:

.XXX = ±.020

DECIMALS/FRACT IONS ±1/32

SHEET METAL DEPT.

WELDING/ASSEMBLY DEPT.

DECIMALS

ANGULAR ± 2°

DECIMALS

DATE:

MACHINE SHOP

.XXX = ±.005

.XX = ±.010

.XX = ±.031

TITLE:

DWG. BY:
CH. BY:

DWG. NO.:

MONTGOMERY, ALABAMA

RESTRICTED CO NFIDENTIAL DOCUM ENT

THIS DRAW IN G AND ALL THE I NFORMATION S HOWN HEREO N A RE THE
EXCLUSIVE PROPERTY OF GILES ENTERPRISES, INC. AND ARE SUBMITTED ONLY
ON A CONFIDENTIAL BASIS. THE RECIPIENT AGREES NOT TO REPRODUCE THE
DRAWING, TO RETURN IT UPON REQUEST, AND THAT NO DISCLOSURE OF THE
DRAWING OR THE INFORMATION SHOWN HEREON WILL BE MADE TO A THIRD
PARTY WITHOUT THE PRIOR WRITTEN CONSENT OF GILES ENTERPRISES, INC.

3 VIEW DRAWING

GVH-C

SUBJECT/MODEL:

CYost

1/11/2012

ENTERPRISES, INC.

ASSEMBLY

BY

SYM.

DATE

REVISIONS

DESCRIPTION

ECO #

ENTIRE UNIT CHANGED.D 03/01/12 CSY ECO1451

FRONT

RIGHT

30 1/2 INSIDE

54 7/8

34 5/16

56 1/4

20 7/8 DOOR SWING

BACK

INCOMING POWER

HOLE SIZE FOR 1 INCH CONDUIT

CONNECTOR

(FOR POWERING APPLIANCE(S)

AND HOOD)

FIRE EXTINGUISHER PIPE (3/8 NPT)

FIRE ALARM CONNECTION
(HOLE SIZE FOR
1/2 INCH CONDUIT
CONNECTOR)

TOP

12

2 1/2

11

2 15/16

18 1/2

18 MIN. EXHAUST CLEARANCE

EXHAUST

FUSIBLE LINK CONNECTION (1/2 CONDUIT)

31 7/8 INSIDE

0" CLEARANCE
TO COMBUSTIBLES

0" CLEARANCE

TO COMBUSTIBLES

0" CLEARANCE
TO COMBUSTIBLES

18" CLEARANCE
TO COMBUSTIBLES

29 11/16

27 1/2
INSIDE

32

5 7/8

31 5/16

1 1/4

APPLIANCE RECEPTICLE
PLATE. STANDARD BLANK,
CONSULT FACTORY
FOR OPTIONS.

Counter-Top Ventless Hood - Model GVH-C

Specifications

We reserve the right to change specifications and/or product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements
additions or replacements for previously purchased equipment.

Construction:

20Ga to 18Ga Stainless Steel

Dimensions:

Width: 32” [813 mm]
Depth: 34-5/16” [872 mm]
Height: 54-7/8” [1393 mm]

Ventless Hood:

Exhaust CFM: 393 - 491
Approx. Decibel Level: 65
Uncrated Weight: 290 lbs [131.5 kg]

Electrical Specification (Hood Only):

208 / 240 V; 60 Hz AC; 1 Ph; 1.5 A
50A max. appliance can be powered through hood; Greater than 50A must be powered
on separate circuit & interlocked through separate contactor..
(No service cord provided)

Shipping Specifications:

Crated Weight: 345 lbs [156.5 kg]
Crated Cube Size: 40” X 48” X 60-7/8” = 67.6 cu ft
[1016mm X 1219mm X 1546mm = 1.9 cu m]

Accessories Included

Unit is shipped with Complete Filter Set (Double Baffle, EAC, Charcoal), EAC Soak Tank and Operations Manual.

Available Options

OPTION DESCRIPTION

ILS (Interlocked Start)

UV Lamp Package

Interlocked Appliance

Power Receptacle

Additional Accessories (extra charge)

Giles Foodservice Equipment

2750 Gunter Park Drive West • Montgomery, AL 36109 USA

334.272.1457 • Fax [phone] • Phone Toll Free 800.554.4537
Web Site: www.gfse.com • Email: [e-mail]

Qty Description Part Number

Double Baffle Filter 41043

EAC Filter Assembly 93302

Charcoal Filter Assembly 31964

power is restored until attended by an operator. This feature is required by some
jurisdictions for hood approval ... check local code for applicability.

4-th Stage air cleaning; sanitizes discharge air and plenum area of the Hood to aid in
reduction of cooking aromas.

Plug appliance directly into Hood; no additional wiring (50A maximum)

If power to Hood is interrupted, neither Hood nor interlocked Appliance will restart when

Item 65878, Rev. A (Released 04/16/12)
