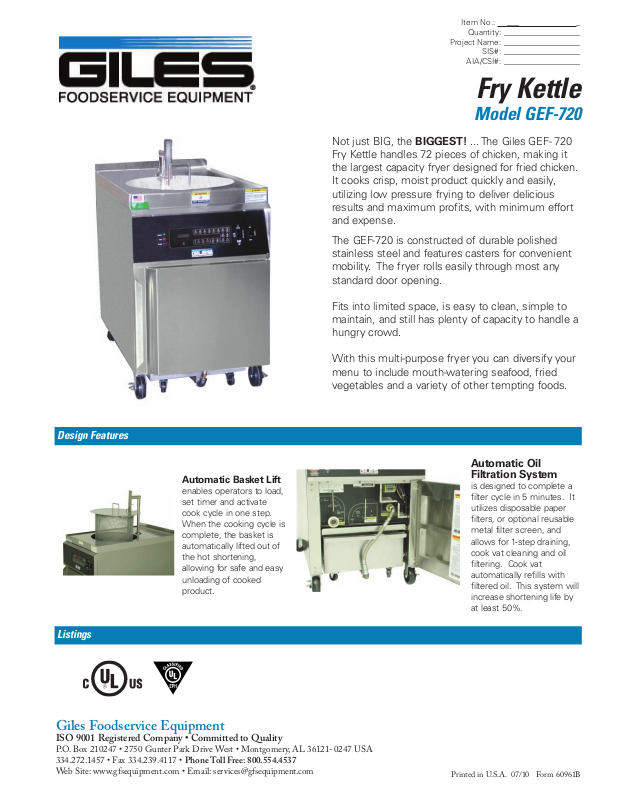

Giles GEF-720 User Manual

Item No.: ___ _

Quantity: ___________________

Project Name: ___________________

SIS#: ___________________

AIA/CSI#: ___________________

Fry Kettle

Model GEF-720

Not just BIG, the BIGGEST! ... The Giles GEF-720 Fry Kettle handles 72 pieces of chicken, making it the largest capacity fryer designed for fried chicken. It cooks crisp, moist product quickly and easily, utilizing low pressure frying to deliver delicious results and maximum profits, with minimum effort and expense.

The GEF-720 is constructed of durable polished stainless steel and features casters for convenient mobility. The fryer rolls easily through most any standard door opening.

Fits into limited space, is easy to clean, simple to maintain, and still has plenty of capacity to handle a hungry crowd.

Design Features

Listings

Automatic Basket Lift

enables operators to load, set timer and activate cook cycle in one step. When the cooking cycle is complete, the basket is automatically lifted out of the hot shortening, allowing for safe and easy unloading of cooked product.

With this multi-purpose fryer you can diversify your menu to include mouth-watering seafood, fried vegetables and a variety of other tempting foods.

Automatic Oil Filtration System

is designed to complete a filter cycle in 5 minutes. It utilizes disposable paper filters, or optional reusable metal filter screen, and allows for 1-step draining, cook vat cleaning and oil filtering. Cook vat automatically refills with filtered oil. This system will increase shortening life by at least 50%.

Giles Foodservice Equipment

ISO 9001 Registered Company • Committed to Quality

P.O. Box 210247 • 2750 Gunter Park Drive West • Montgomery, AL 36121-0247 USA

334.272.1457 • Fax 334.239.4117 • Phone Toll Free: 800.554.4537 Web Site: www.gfsequipment.com • Email: services@gfsequipment.com

Printed in U.S.A. 07/10 Form 60961B

24 1/16

611.58

61 1/2

1561.91

MAX DOOR SWING

38 7/8

987.6

17 1/4

438.42

55 5/16

1405.61

43 7/16

1103.99

36 7/16

924.79

POWER

ENTERANCE

BASKET ELEVATOR

IN UP POSITION

Fry Kettle

Model GEF-720

Item No.: ___

Quantity: ___________________

Project Name: ___________________

SIS#: ___________________

AIA/CSI#: ___________________

Front

Inches [millimeters]

Side

Back

39124-A

Specifications

We reserve the right to change specifications and/or product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

Construction:

Cabinet, Fry Vat, and Fry Basket: 16 to 20-Ga Stainless Steel Door Swing: Reversible Heating Element: Incoloy Tubular Sheath

Dimensions: Floor space - 6.5 sq ft [0.60 sq m]

Width: 24-1/16” [612 mm] Depth: 38-7/8” [988 mm] Height: 43-7/16” [1104 mm] Fry Vat: 18-5/8”diameter X 15-1/8”depth [473 mm X 384 mm] Fry Basket: 14-1/2” diameter X 13-7/8” depth [368 mm X 352 mm]

Cooking Computer:

8 Programmable Menu Selections Cooking Temp Range: 190° - 350°F [88° - 177°C] High Limit Temp: 425°F [220°C]

Capacity:

Shortening Capacity: 75 lbs. [34 kg] Production Capacity: 24 lbs. [11 kg] chicken (approx. 72 pieces)

Electrical Specifications:

Wattage: 20,000 W Available Voltages: 3 phase - 208/220/240/480 V : 58/49/49/25 AMPS 3 phase - 380/415 V : 21 AMPS

(Service cord NOT provided)

Product Designation: GEF-720

Shipping Specifications:

Crated Weight: 464 lbs [211 kg] Crated Cube Size: 44” X 50” X 57” = 73 cu ft

[1118mm X 1270mm X 1448mm = 2.1 cu meters]

Accessories Included:

(1) Fry Basket, (1) Fry Basket Cover, (1) Oil Discharge Hose, (5) Sheets Filter Paper, (1) Pot Brush, (1) Kettle Drain Brush, (1) Stir Paddle, (1) Crumb Shovel, Operations/Service Manual.

How To Specify

Electrical Options

Specify part number from the following:

Voltage Hz Phase

208 60 3 Delta 240 60 3 Delta 480 60 3 Delta 220 50 3 380 50 3 415 50 3

Config

Load

Delta 70849

Wye Wye

Part

Number

70848 70849 70850

70914 70915

Accessories (additional charge)

Specify part number and quantity of accessory items needed:

Qty Description

Shipping

Specify preferred shipping method

Fry Basket 91811 Filter Paper, Case of (100) sheets 60810 Filter Powder, Case of (60) packets 72004 Boil Out, Case of (4) 8-lb containers 72003
