GILERA FUOCO User Manual

GILERA WOULD LIKE TO THANK YOU for choosing one of its products. We have prepared this manual to help you to get the very best from your scooter. Please read it carefully before riding

the scooter for the first time. It contains information, tips and precautions for using your scooter. It also describes features, details and devices to assure you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new vehicle and it will serve you well for a long time to come. This booklet forms an integral part of the scooter; should the scooter be sold, it must be transferred to the new owner.

Fuoco 500ie

Ed. 2

The instructions given in this manual are intended to provide a clear, simple guide to using your scooter; this booklet also details routine maintenance procedures and regular checks that should be carried out on the vehicle at an authorised Dealer or Service Centre. The booklet also contains instructions for simple repairs. Any operations not specifically described in this manual require the use of special tools and/or particular technical knowledge: to carry out these operations refer to any authorised Dealer of Service Centres.

Personal safety

Failure to completely observe these instructions will result in serious risk of personal

Safeguarding the environment

Sections marked with this symbol indicate the correct use of the vehicle to prevent dam-

aging the environment.

The incomplete or non-observance of these regulations leads to the risk of serious

damage to the vehicle and sometimes even the invalidity of the guarantee.

The signs that you see on this page are very important. They are used to highlight those parts of the booklet that should be read with particular care. As you can see, each sign consists of a different graphic symbol, making it quick and easy to locate the various topics.

injury.

Vehicle intactness

INDEX

VEHICLE...................................................................................... 7

Dashboard................................................................................ 9

Analogue instrument panel....................................................... 11

Clock......................................................................................... 12

Digital lcd display...................................................................... 12

Maintenance icons................................................................ 13

*MODE* button...................................................................... 13

Key switch................................................................................. 14

Locking the steering wheel.................................................... 14

Releasing the steering wheel................................................ 15

Switch direction indicators........................................................ 15

Horn button............................................................................... 16

Light switch............................................................................... 16

Emergency flashing light button................................................ 16

Start-up button.......................................................................... 17

Engine stop button.................................................................... 17

Front suspension unlock-lock switch........................................ 17

The immobilizer system............................................................ 18

Keys...................................................................................... 18

Immobilizerdevice enabled indicator led............................... 19

Operation............................................................................... 19

Programming the immobilizer system................................... 20

Saddle opening remote control................................................. 21

Remote control programming................................................ 22

Accessing the fuel tank............................................................. 23

Power supply socket................................................................. 24

The saddle................................................................................ 24

Opening the saddle to access the helmet compartment by

remote control....................................................................... 24

Opening the saddle............................................................... 25

Identification.............................................................................. 26

Bag clip..................................................................................... 26

USE.............................................................................................. 27

Checks...................................................................................... 28

Refuelling.................................................................................. 28

Tyre pressure............................................................................ 30

Shock absorbers adjustment.................................................... 31

Running in................................................................................. 32

Starting up the engine............................................................... 33

Precautions........................................................................... 35

Difficult start up......................................................................... 35

Stopping the engine.................................................................. 36

anello antifurto.......................................................................... 36

Stand......................................................................................... 37

Automatic transmission............................................................. 37

Safe driving............................................................................... 37

Front suspension locking system.............................................. 40

MAINTENANCE........................................................................... 45

Engine oil level.......................................................................... 46

Engine oil level check............................................................ 46

Engine oil top-up................................................................... 46

Warning light (insufficient oil pressure)................................. 46

Engine oil change.................................................................. 47

Hub oil level.............................................................................. 48

Tyres......................................................................................... 50

Spark plug dismantlement........................................................ 51

Removing the air filter............................................................... 52

Air filter cleaning....................................................................... 52

Cooling fluid level...................................................................... 53

Checking the brake oil level...................................................... 55

Braking system fluid top up................................................... 55

Battery....................................................................................... 57

Use of a new battery............................................................. 57

Long periods of inactivity.......................................................... 58

Fuses........................................................................................ 58

Front light group........................................................................ 63

Headlight adjustment............................................................. 64

Front direction indicators........................................................... 67

Rear optical unit........................................................................ 68

Rear turn indicators................................................................... 68

Number plate light..................................................................... 69

Helmet compartment lighting bulb............................................ 69

Rear-view mirrors...................................................................... 69

Front and rear disc brake.......................................................... 70

Puncture.................................................................................... 71

Periods of inactivity................................................................... 71

Cleaning the vehicle.................................................................. 72

TECHNICAL DATA...................................................................... 77

Kit equipment............................................................................ 82

SPARE PARTS AND ACCESSORIES........................................ 83

Warnings................................................................................... 84

PROGRAMMED MAINTENANCE............................................... 87

Scheduled maintenance table................................................... 88

Fuoco 500ie

Chap. 01

Vehicle

01_01

Dashboard (01_01)

1 Vehicle

A = Ignition key-switch B = Hand brake C = Bag hook D = HAZARD button E= Horn button F = Turn indicator switch G = Rear brake lever H = Light switch + PASSING I = Analogue instrument panel L = Digital instrument panel M = Warning light unit N = RUN/OFF switch O = Front brake lever P = Throttle grip Q= Front suspension locking-unlocking switch R = Starter button S = Mode button

01_02

Analogue instrument panel (01_02)

1 Vehicle

A = Immobilizer / antitheft LED B= Speedometer with twin scale (Km/h and Mph) C = CLOCK switch D = Digital display E = Front suspension locking system warning light F= SET switch G = Rpm indicator H = Fuel gauge I = Warning light for helmet compartment courtesy light on L = Engine control telltale light and injection system failure warning light M = Low fuel warning light N = Engine stop warning light O= Turn indicator warning light P = Low oil pressure warning light Q = Front suspension locking system failure warning light R = Warning light for parking brake engaged S = High-beam warning light

01_03

01_04

Clock (01_03)

Pushing the «CLOCK» button for less than 1 second displays the following sequence:

•

TIME

•

DATE

To set the clock push and hold the «CLOCK» button longer than 3 seconds. The numbers showing the hours will begin flashing. Set the hour using the «SET» button. Push the «CLOCK» button again and the mi-

nutes numbers start flashing. Set the minutes using the «SET»button. Push the «CLOCK» button again and the day

numbers start flashing. Set the day with the «SET» button. Push the «CLOCK» button again and the month

numbers start flashing. Set the month with the «SET» button. Push the «CLOCK» button again and the year

numbers start flashing. Set the year with the «SET» button. Press the «CLOCK » button again for 4 seconds

to exit the adjustment menu. During the reset process, not pressing any buttons for a period longer than 8 seconds

ends the process automatically and the display shows the modified time.

Digital lcd display (01_04)

A = Total odometer gauge B = «BELT» maintenance icon C = «SERVICE» maintenance icon D = Engine coolant temperature indicator E = Trip odometer (A-B) and ambient temperature gauge (selected with the MODE

button) F = TIME-DATE indicator

1 Vehicle

G = Low fuel warning light H = Trip odometer gauge (B) I = Trip odometer gauge (A) L = Kilometre - mile indicator M = «SET» button N = «CLOCK» button

01_05

01_06

Maintenance icons

The icons signal the user that scheduled maintenance operations should be carried out. A flashing «SERVICE» icon signals the need to carry out the scheduled maintenance service. A flashing «BELT» icon signals the driving belt needs replacing. In any case, vehicle maintenance must be carried out at the kilometre service intervals recommended in this booklet.

WARNING REFER TO THE «SCHEDULED MAINTENANCE TABLE» FOR FURTHER MAIN-

TENANCE OPERATIONS

*MODE* button (01_05, 01_06)

Pushing the ''MODE'' «S» button for less than a second displays the following sequence of functions:

Trip odometer «A»

2. Trip odometer «B»

3. Ambient temperature «°»

Push the ''MODE'' «S» button for longer than 3 seconds to zero set the trip odometer.

UNIT OF MEASUREMENT SETTING

Press and hold the "MODE" «S» button for at least 3 seconds and at the same time turn the ignition key to "on".

The icons "kmi" and "°E" will start flashing.

01_07

"Kmi" represents the combination of "km" (kilometres) and "mi" (miles) "°E" represents the combination of "°C" (degrees Celsius) and "°F" (degrees Fahren-

heit). By pushing the "MODE" «S» button for less than a second, the icons "km" and "mi"

are selected sequentially. Push the "SET" button «M» to confirm the selection. Now the ambient temperature icon "°C" or "°F" starts flashing. By pushing the "MODE" «S» button for less than a second, the icons "°C" and "°F"

are selected sequentially. Push the "SET" button «M» to confirm the selection.

Key switch (01_07)

The key switch «A» is located on the front knee-guard panel near the bag hook.

SWITCH POSITIONS

1. LOCK = Ignition disabled, extractable key, mechanical antitheft device enabled. The parking brake cannot be released when engaged and can be engaged when released. « OFF » = Ignition disabled, extractable key, mechanical antitheft device dis-

2. abled and enabled/disabled parking brake.

3. ON = Ready to start, non-extractable key, mechanical antitheft device disabled.

4. «HELMET COMPARTMENT OPENING» = Helmet compartment opening position. Press the key when in «OFF» or «ON» and turn it anticlockwise.

5. «FUEL TANK COVER OPENING» = Fuel tank cover opening position. Press the key when in «OFF» or «ON» and turn it clockwise.

01_08

Locking the steering wheel (01_08)

Turn the handlebar to the left as far as it will go; turn the key «B» to «LOCK » and remove it.

1 Vehicle

CAUTION

DO NOT TURN THE KEY TO «LOCK» OR «OFF» WHILE RIDING.

Releasing the steering wheel

Reinsert the key «B» and turn it to «KEY OFF». CAUTION

DO NOT TURN THE KEY TO «LOCK» OR «OFF» WHILE RIDING.

Switch direction indicators (01_09)

Lever «F» towards «1» = left turn indicators switched on; Lever «F» towards «2» = right turn indicators switched on; The lever «F» automatically returns to «0 » and the turn indicators remain on; push

the lever «F» to turn them off.

01_09

01_10

01_11

Horn button (01_10)

Push the button «E» to sound the horn.

Light switch (01_11)

When the light switch «H» is set to «0», the low-beam light is on. When set to «1», the high-beam light is activated. If the light switch «H» is pressed when set to «2», the high-beam light is activated. The switch goes back to «0» automatically.

When the ignition key is set to «ON» and the vehicle is not running, only the tail light is on.

When the ignition key is set to «ON» and the vehicle is running, the low-beam lights will turn on two seconds after the ignition; when the high-beam lights turn on, the lowbeam lights turn off.

Emergency flashing light button (01_12)

It enables the activation of the 4 turn indicators simultaneously. The control «D» can be enabled only with the key set to «ON», but once enabled, it keeps functioning even if the key is set to «OFF» or «LOCK». To disable this function, simply turn the key switch to «ON».

01_12

1 Vehicle

Start-up button (01_13)

To start the engine, press the starter button «R» after pulling one of the two brake levers.

If the rider is not on the vehicle, the suspension lock will start the engine at idling speed.

01_13

Engine stop button (01_14)

The engine can be started when the emergency cut-off switch «N» is set to «1» RUN; if the emergency cut-off switch «N» is set to «0» OFF , the engine cannot be

started or it shuts off if already running.

CAUTION

01_14

01_15

DO NOT OPERATE THE ENGINE STOP SWITCH "N" WHILE RIDING UNLESS THERE IS AN EMERGENCY.

Front suspension unlock-lock switch (01_15)

The «Q» switch engages and disengages the front suspension locking system. As the topic is so complex, find the instructions for using this control in the Use chapter.

The immobilizer system

In order to enhance theft protection, the scooter is equipped with a «PIAGGIO IMMOBILIZER » electronic engine locking device that is activated automatically when

the starter key is removed. Upon start-up, the «PIAGGIO IMMOBILIZER» system checks the starter key, and only if this key is recognised will the immobilizer system allow the scooter to be started.

Keys (01_16, 01_17, 01_18)

01_16

01_17

01_18

Two types of keys come with the vehicle. The key «A» is the «MASTER» key. Only a single copy of this key is supplied, which is necessary to program all your other

keys and for your dealer to perform some maintenance operations. For this reason it is advised that it be used only in exceptional circumstances.

The key «B» (single copy supplied) is used for regular operations such as:

- Engine start-up.

- Remote control saddle opening. Together with the two keys, you will be given a CODE CARD bearing the same code

imprinted onto the two keys.

WARNING

LOSING THE RED KEY PREVENTS ANY REPAIRS OF THE "PIAGGIO IMMOBILIZER" SYSTEM AND THE ENGINE CONTROL UNIT.

1 Vehicle

01_19

WARNING

KEEP THE "CODE CARD" AND THE RED HANDGRIP KEY IN A SAFE PLACE (NOT ON YOUR VEHICLE).

Immobilizerdevice enabled indicator led (01_19)

Activation of the "PIAGGIO IMMOBILIZER" system is signalled by a flashing «A» indicator. In order to reduce battery discharge, the indicator LED turns off automatically after 48 hours of uninterrupted functioning. Should the system fail, different LED flashing patterns will provide the Authorised Service Centre with information on the type of fault detected.

Operation

Each time the starter key «B» is removed while in the «OFF», or «LOCK» position, the protection system activates the engine lock. Turning the key to "ON" disables the engine lock, provided that the safety system recognises the code transmitted by the key. If the code is not recognised, turn the key first to "OFF" and then to "ON"; if lock persists, try again using the «A» MASTER key. If the engine cannot be started, contact an Authorised Service Centre, which is provided with the electronic equipment re- quired to detect and repair the system.

When supplementary keys are required, remember that the programming must be performed on all the keys whether they are new or existing ones.

Contact an Authorised Service Centre and bring the «A» MASTER key and all «B» starter keys that you own.

The codes of keys not submitted for the new storage procedure are deleted from the memory. Any lost keys will therefore not be enabled to start the engine.

WARNING

EACH KEY HAS ITS OWN AND UNIQUE CODE, WHICH MUST BE STORED BY THE SYSTEM CONTROL UNIT.

VIOLENT SHOCKS MAY AFFECT THE ELECTRONIC COMPONENTS OF THE KEY.

IF THE VEHICLE IS SOLD, THE MASTER-HANDGRIP KEY (AS WELL AS THE OTHER STARTER KEYS) AND THE "CODE CARD" MUST ALSO BE TRANSFERRED TO THE NEW OWNER.

Programming the immobilizer system

Below is described the procedure to follow for programming the PIAGGIO IMMOBILIZER system and/or for storing other key codes. The programming procedure should be carried out with the engine stop switch set to «RUN».

START PROCEDURE

Insert the «MASTER» key into the switch (in "OFF" position), turning it to «ON» position. After 1 - 3 seconds, turn the key to "OFF" again and pull it out.

INTERMEDIATE STAGE

After extracting the «MASTER» key, insert, within ten seconds, the key that is going to be programmed and turn it immediately to «ON» position. After 1-3 seconds, turn the key to "OFF" again and pull it out. In this way, a maximum of 7 keys can be programmed by repeating the above procedure and keeping the indicated times.

FINAL STAGE

After extracting the key to be programmed, insert the «MASTER» key again and turn it to «ON» position (perform this operation within the ten seconds following the ex-

traction of the previous key). Leave it in this position for 1 to 3 seconds and return it

1 Vehicle

to the «OFF» position.

01_20

CORRECT PROGRAMMING CHECK PHASE

Insert the «MASTER» key, disabling the transponder (i.e., by tilting the key cap by 90°), and turn the key to «ON» position. Perform the engine start-up operation. Ensure that the engine does not start. Insert the programmed key and repeat the start-up operation. Check that engine starts.

WARNING

SHOULD YOU STAR THE ENGINE WITH THE MASTER KEY (WITH TRANSPONDER OFF) OR IN THE EVENT OF WRONG OPERATION DURING PROGRAMMING, REPEAT THE PROCEDURE FROM THE BEGINNING.

Saddle opening remote control (01_20)

The scooter is fitted with a remote control to open the saddle. This remote control is supplied together with the keys and it has been programmed to control the opening device control unit at the manufacturing stage. If the remote control is lost, a new one can be requested and programmed at any Authorised Service Centre. The remote control is powered by inner batteries that get discharged after extended used; If the green LED turns on when the button is pressed, the remote control is working properly. You may need to replace the batteries if the remote control fails or if its range of operation is reduced. To separate the two halves of the remote control, insert the blade of a plain slot screwdriver at one point on the edge and slide it all around. When the remote control is open, remove the two batteries from the contact terminal. Install the two new CR1616 3V batteries with the positive pole facing the contact terminal.

Reassemble the remote control by pressing the two clip-on halves gently with your fingers.

To open the saddle without the remote control, follow the procedure described in the «Emergency Saddle Opening» section.

Remote control programming

Follow these steps to program the remote controls:

1. Insert the remote control key to be programmed in the steering lock key block.

2. Turn the key to «ON», press the button on the remote control, release the button, turn the key back to «OFF» from the «ON» position, all within 4 seconds.

3 Wait 1 to 8 seconds.

4. Repeat steps 2 and 3 for 4 times without removing the key.

The control unit confirms the programming has been successfully executed by opening the saddle.

WARNING

TO STORE THE OTHER REMOTE CONTROLS TO MEMORY, (MAXIMUM 8), YOU NEED TO REPEAT THE WHOLE PROCEDURE AGAIN. FAILURE TO CARRY OUT THESE OPERATIONS WITHIN THE INDICATED TIMES WILL RESULT IN THE AUTOMATIC CANCELLATION OF THE PROCESS FOR PROGRAMMING THE REMOTE-CONTROLLED KEYS.

WARNING

AVOID PRESSING THE REMOTE CONTROL BUTTON MORE THAN ONCE WHEN FAR AWAY FROM THE SCOOTER. THE SYNCHRONISM BETWEEN THE REMOTE CONTROL AND THE RECEIVER CAN BE IMPAIRED. SHOULD THIS BE THE CASE, REPEAT THE PROGRAMMING PROCEDURE. DO NOT KEEP THE REMOTE CONTROL IN PLACES WITH TEMPERATURES EXCEEDING 60° C THE BATTERY WILL RUN DOWN TOO QUICKLY.

1 Vehicle

WARNING

TO AVOID BATTERY DISCHARGE, THE SADDLE OPENING REMOTE CONTROL RADIO RECEIVER DEACTIVATES 7 DAYS AFTER THE LAST TIME THE VEHICLE WAS SHUT OFF.

JUST TURN THE KEY TO «ON» TO REACTIVATE THE RECEIVER.

Accessing the fuel tank (01_21, 01_22)

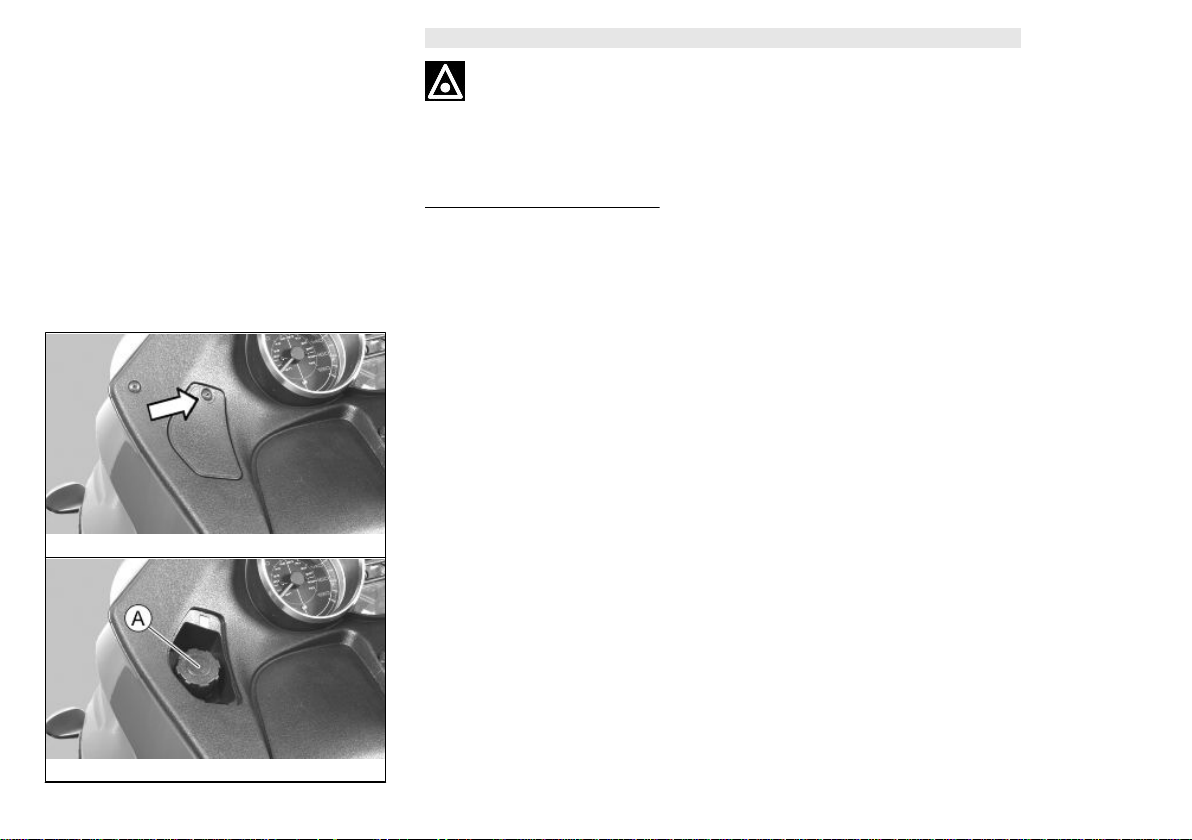

To open the fuel tank cover, set the key to «OFF» or « ON», then press and turn it clockwise.

01_21

01_22

Power supply socket (01_23)

There is a plug socket "D" inside the helmet compartment. The plug socket may be used for external consumers (mobile phone, inspection light,

etc.).

CAUTION

01_23

01_24

PROLONGED USE OF THE PLUG SOCKET MAY RESULT IN PARTIAL DISCHARGE OF THE BATTERY

Electric characteristic

Plug socket

12 V - 180 W MAX

The saddle (01_24, 01_25)

The saddle is supplied with a protection cover which may be used in case of rain. Lift the saddle and extract the cover from its housing, then extend it over the whole

length of the saddle, starting from the front-end; do not over stretch the cover to avoid tearing the material; close the saddle.

CAUTION

DO NOT USE THE VEHICLE WITHOUT THE PROTECTION COVER.

Opening the saddle to access the helmet compartment by remote control (01_26)

When the key is in «LOCK» or «OFF» position you can open the saddle using the remote control. The saddle cannot be opened only when the key is set to "ON".

1 Vehicle

01_25

01_26

WARNING

OBJECTS INAPPROPRIATELY ARRANGED INSIDE THE HELMET COMPARTMENT MAY DEFORM THE SADDLE CAUSING THE COURTESY LIGHT TO REMAIN ON AND THIS WILL DISCHARGE THE BATTERY. IN ANY CASE, THE WARNING LIGHT "I" ON THE INSTRUMENT PANEL SIGNALS IF THE LIGHT IS ON OR OFF.

WARNING

THE REMOTE CONTROL OPERATES WITHIN A DISTANCE OF ABOUT 3/5 METRES WITH FULLY CHARGED BATTERIES. WHEN YOU ARE NEAR THE SCOOTER, HANDLE THE REMOTE CONTROL CAREFULLY SO AS TO AVOID UNINTENTIONAL OPENING OF THE SADDLE. REFER TO THE «OPENING THE SADDLE WITH REMOTE CONTROL» SECTION TO REPLACE BATTERIES.

Opening the saddle (01_27)

With the key set to «ON» or «OFF», press it and turn it anticlockwise.

01_27

Identification (01_28, 01_29)

Identification registration numbers are made up of a prefix and a number stamped on the chassis and on the engine. These numbers must always be quoted when ordering spare parts. We recommend checking that the chassis registration number stamped on the vehicle corresponds with that on the vehicle documentation.

CAUTION

01_28

01_29

01_30

BE REMINDED THAT ALTERING IDENTIFICATION REGISTRATION NUMBERS CAN LEAD TO SERIOUS PENAL SANCTIONS (IMPOUNDING OF THE VEHICLE, ETC.).

Chassis number To read the chassis number, remove the lid «A» in the helmet compartment.

Engine number The engine number «B» is stamped near the rear left shock absorber lower support.

Bag clip (01_30)

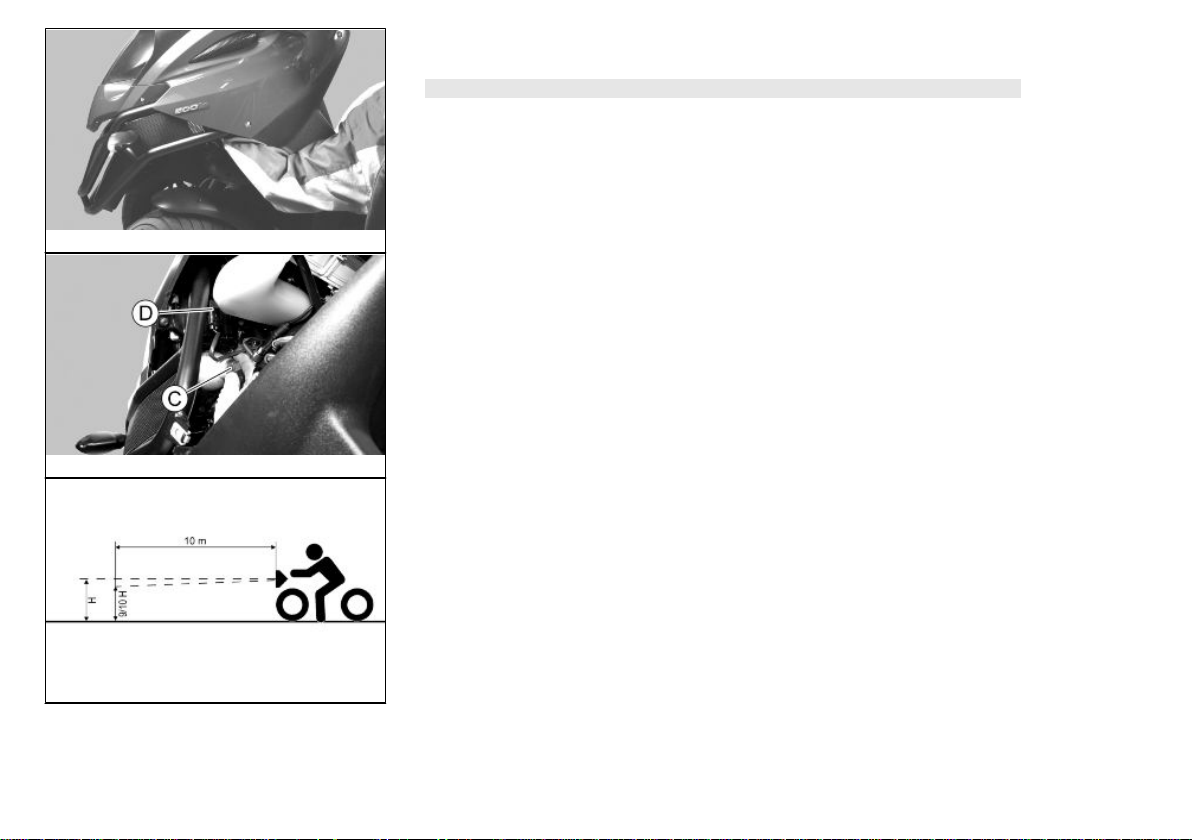

To use the bag hook «C» mounted on the counter shield, pull it slightly towards the back part of the vehicle.

Fuoco 500ie

Chap. 02

Use

Checks

Before using the vehicle, check:

1. There is enough fuel in the fuel tank.

2. The correct fluid level for front and rear brakes.

3. That tyres are properly inflated.

4. The correct functioning of tail lights, headlamp, turn indicators, stop light and license

plate light.

5. The correct functioning of front and rear brakes.

6. The oil level in the gearcase.

7. The engine oil level.

8. The coolant level.

Refuelling (02_01, 02_02)

Fuel: Open the access door to the fuel tank cap and remove the cap«T».

Recommended fuel: Unleaded petrol, min octane rating of 95. The instrument «H» indicates the fuel level and the warning light «M» indicates the reserve.

WARNING

02_01

SWITCH OFF THE ENGINE BEFORE REFUELLING WITH PETROL. PETROL IS HIGHLY INFLAMMABLE. DO NOT SMOKE AND KEEP OPEN FLAMES AT A DISTANCE:FIRE HAZARD. DO NOT INHALE FUEL FUMES. DO NOT ALLOW PETROL TO COME INTO CONTACT WITH HOT ENGINE OR

ANY PLASTIC PARTS.

2 Use

CAUTION

PETROL DAMAGES THE PLASTIC PARTS OF THE BODYWORK. WARNING

02_02

DO NOT RIDE WITH THE FUEL TANK ALMOST EMPTY, LACK OF FUEL CAN DAMAGE THE CATALYTIC CONVERTER.

CAUTION

USING NON-RECOMMENDED PETROL REDUCES THE EFFICIENCY OF THE EXHAUST AND FUEL SUPPLY SYSTEMS.

CAUTION

DO NOT USE THE VEHICLE TO THE COMPLETE EXHAUSTION OF THE FUEL; IN THE EVENT THAT THIS SHOULD OCCUR, DO NOT ATTEMPT TO START THE ENGINE. TURN THE KEY SWITCH TO OFF AND TOP-UP THE TANK AS SOON AS POSSIBLE. FAILURE TO FOLLOW THESE GUIDELINES COULD DAMAGE THE FUEL PUMP AND/OR THE CATALYTIC CONVERTER.

WARNING

IT IS HIGHLY INADVISABLE TO REFUEL USING METHODS OTHER THAN NORMAL FUEL PUMPS. IF PETROL IS NOT COMPLETELY CLEAN, IT CAN DAMAGE THE FUEL SUPPLY SYSTEM FILTERS.

02_03

CAUTION

USING OILS OTHER THAN THOSE RECOMMENDED CAN SHORTEN THE LIFE OF THE ENGINE.

Characteristic

Fuel tank (reserve)

~ 12 l (~2 l)

Tyre pressure (02_03)

Check the tyre pressure and wear periodically (roughly every 500 km). Tyres feature wear indicators; replace tyres as soon as these indicators become visible on the tyre tread. Also check that the tyres do not show signs of splitting at the side or irregular tread wear; if this occurs, go to an authorised workshop or at least to a workshop equipped to perform the replacement.

CAUTION

TYRE PRESSURE SHOULD BE CHECKED WHEN TYRES ARE COLD.INCORRECT TYRE PRESSURE CAUSES ABNORMAL TYRE WEAR AND MAKES RIDING DANGEROUS.

TYRES MUST BE REPLACED WHEN THE TREAD REACHES THE WEAR LIMITS SET FORTH BY LAW.

TYRES

Front tyre Tubeless 120/70-12" 51S or 51P

Rear tyre Tubeless 140/70 - 14" 68S or 68P

2 Use

reinf

TYRE INFLATION PRESSURE

Front tyre pressure (with passenger)

Rear tyre pressure (with passenger)

1.6 bar (1.8 bar)

2.4 bar (2.6 bar)

Shock absorbers adjustment (02_04, 02_05)

The preloading of the springs can be adjusted to 4 positions using the ring nut located in the lower part of the shock absorbers and the specific spanner supplied.

Position 1: minimum preload: driver only Position 2 medium preloading: driver only Position 3 medium preloading: rider and passenger Position 4: maximum preloading: driver, passenger, and luggage.

02_04

In order to carry out this operation you will need to use the specific spanner in the kit. Spring preloading increases by turning the ring nut towards «A», but decreases if the ring nut is turned towards «B».

CAUTION

02_05

RIDING THE VEHICLE WITH THE SPRING PRELOADING NOT CORRECTLY SET FOR THE RIDER AND POSSIBLE PASSENGER, COULD REDUCE THE COMFORT OF THE RIDE AND THE PRECISION OF THE STEERING.

WARNING

WE RECOMMEND WEARING GLOVES WHILE CARRYING OUT THIS OPERATION IN ORDER TO AVOID INJURIES.

WARNING

WE STRONGLY RECOMMEND NOT TO ADJUST BOTH SHOCK ABSORBERS WITH DIFFERENT PRELOADING

Running in

DURING THE FIRST 1000 KM DO NOT RIDE THE VEHICLE OVER 80% OF ITS MAX. SPEED. AVOID OPENING THE THROTTLE GRIP COMPLETELY OR KEEPING A CONSTANT SPEED ALONG LONG SECTIONS OF ROAD. AFTER THE FIRST 1000 KM INCREASE SPEED PROGRESSIVELY, IF POSSIBLE, UNTIL THE MAXIMUM PERFORMANCE IS OBTAINED.

CAUTION

IN ORDER TO AVOID DAMAGING THE VEHICLE, PLEASE COMPLY WITH THE RULES LISTED ABOVE.

2 Use

02_06

02_07

Starting up the engine (02_06, 02_07, 02_08)

The vehicle is supplied with an ignition cut-off system, activated by the emergency cut-off switch. The engine cannot be started if the ignition cut-off switch is in the OFF

position

A running engine automatically switches off when the ignition cut-off switch is set to OFF.

The vehicle is equipped with automatic transmission with direct drive, so that starting is effected by turning the throttle grip to idle speed; to start-off from stationary position, progressively twist the throttle grip. The vehicle is equipped with an electrical fuel pump that switches on automatically as soon as the engine is started. The vehicle has a front suspension locking system; a sensor placed under the saddle will prevent the vehicle riding, but not its starting-up, if the rider is not seated in riding position.

To start-up the engine:

1. Rest the vehicle on its centre-stand, ensuring the rear wheel is not touching the ground.

2. Maintain the throttle grip "P" completely untwisted.

3. Insert the key into the ignition switch «A» and turn it onto the ON position.

4. Make sure that the «N» switch is set to the RUN position.

5. Pull either the front «O» or rear «G» brake lever, while pressing the starter button «R».

WARNING

02_08

THE AUTOMATIC TRANSMISSION MAKES THE REAR WHEEL TURN EVEN WHEN THE THROTTLE IS SLIGHTLY TWISTED. RELEASE THE BRAKE CAREFULLY AFTER STARTING, AND THEN ACCELERATE GRADUALLY.

CAUTION

DO NOT START-UP THE ENGINE IN CLOSED AREAS BECAUSE EXHAUST GASES ARE TOXIC.

CAUTION

DUE TO THE HIGH TEMPERATURES THE CATALYTIC CONVERTER CAN REACH, ALWAYS TAKE CARE, WHEN PARKING THE SCOOTER, THAT THE EXHAUST DOES NOT COME INTO CONTACT WITH FLAMMABLE MATERIALS, TO AVOID SERIOUS BURNS.

CAUTION

DO NOT SWITCH OFF THE ENGINE WHILE THE VEHICLE IS MOVING. UNBURNED FUEL COULD ENTER THE CATALYTIC CONVERTER AND BURN, CAUSING IT TO OVERHEAT AND POSSIBLY DESTROYING IT.

CAUTION

NEITHER PUSH THE STARTER BUTTON NOR TURN THE KEY SWITCH TO «ON» WHEN THE TANK IS EMPTY SINCE THE START-UP SYSTEM MAY GET DAMAGED.

2 Use

WARNING

NEVER TRY TO START-UP THE ENGINE WITH THE THROTTLE GRIP TWISTED. THIS MAY LEAD TO LOSING CONTROL OF THE VEHICLE AND TO ROLLOVER, WITH CONSEQUENT SERIOUS OR, IN SOME CASES, LETHAL INJURIES.

Precautions

CAUTION

NEVER STRESS THE ENGINE AT LOW TEMPERATURES IN ORDER TO AVOID POSSIBLE DAMAGE. BE CAREFUL NEVER TO EXCEED THE MAXIMUM SPEED WHILE RUNNING DOWNHILL, IN ORDER TO AVOID DAMAGING THE ENGINE. IN ANY CASE, IN ORDER TO PRESERVE THE ENGINE FROM PROLONGED EXCESSIVE REVOLUTIONS, THE REVOLUTION LIMITER WILL BE ACTIVATED IF THE ENGINE SPEED EXCEEDS THE ESTABLISHED THRESHOLD.

WARNING

AFTER A LONG DISTANCE COVERED AT THE MAXIMUM SPEED, DO NOT STOP THE ENGINE IMMEDIATELY, BUT LET IT RUN AT IDLE FOR A FEW SECONDS.

Difficult start up

In the rare case of flooding the engine, to facilitate start-up, it is possible to try to put the vehicle into action with the gas hand grip partially or completely open. It is however necessary, once the engine is started, to take your vehicle to an Authorised Service Centre to determine the cause of this problem and to re-establish the vehicle proper functioning.

02_09

Stopping the engine (02_09)

Fully untwist the throttle grip, then rotate the key in the switch «A » to «KEY OFF» (extractable key).

CAUTION

DO NOT SWITCH OFF THE ENGINE WHILE THE VEHICLE IS MOVING. UNBURNED FUEL COULD ENTER THE CATALYTIC CONVERTER AND BURN, CAUSING IT TO OVERHEAT AND POSSIBLY DESTROYING IT.

anello antifurto (02_10)

The «D» ring on the right side of the vehicle is used to fasten the vehicle to an object using a scooter chain. Do not use the ring for other purposes.

WARNING

02_10

THIS ACCESSORY IS NOT A THEFT PREVENTION GUARANTEE, IT IS ONLY A DETERRENT.

2 Use

Stand (02_11)

Push with your foot on the centre stand's fork "F" while lifting the vehicle backward, holding onto the handlebar.

02_11

Automatic transmission

To ensure simple, pleasurable riding, the vehicle is equipped with automatic transmission with regulator and centrifugal clutch. The system is designed to provide the best performance (acceleration and consumption) while riding on both flat roads and uphill.

If you have to stop on an uphill slope (traffic lights, traffic jam, etc.) use only the brake

to keep the vehicle still, leaving the engine running at idle speed. Using the engine to keep the vehicle still can cause the clutch to overheat, due to the friction of the clutch masses against the capstan. Besides, avoid accelerating with the hand brake engaged. It is therefore recommended to avoid conditions of

prolonged clutch slippage (besides those previously indicated) like driving uphill fully laden on steep slopes or starting off with driver and passenger at slopes greater than 25%.

Observe the following precautions if the clutch overheats:

1. Do not continue riding in such conditions.

2. Let the clutch cool down with the engine at idle speed for a few minutes.

Safe driving

Some simple tips are provided below that will enable you to use your vehicle on a daily basis, confidently and safely. Your skill and your mechanical knowledge are the basis

of safe riding. We recommend practising riding in traffic-free zones, in order to acquire a good knowledge of your vehicle.

1. Before riding off, remember to put on your helmet and fasten it correctly.

2.Reduce speed on rough roads and drive with care.

3. After riding on a long stretch of wet road without using the brakes, braking can be

poor at the beginning. Given these conditions, it is a good idea to operate the brakes from time to time.

4. Avoid setting off by mounting the vehicle while it is resting on the support. In any case, the rear wheel should not be turning when in comes into contact with the ground, in order to avoid abrupt departures.

5. If driving over roads affected by sand, mud, snow mixed with salt, etc., we recommend cleaning the brake disc with a non-corrosive detergent frequently in order to prevent corrosive particles from building up in the holes, which may cause early break pad wear.

CAUTION

ALWAYS RIDE WITHIN YOUR LIMITS RIDING UNDER THE INFLUENCE OF ALCOHOL OR OTHER DRUGS AND CERTAIN MEDICATIONS IS EXTREMELY DANGEROUS.

CAUTION

IN ORDER TO PREVENT ANY ACCIDENTS RIDE VERY CAREFULLY AFTER ADDING ACCESSORIES AND WHILE CARRYING LUGGAGE. ADDING ACCESSORIES AND LUGGAGE CAN REDUCE THE VEHICLE'S STABILITY, PERFORMANCE AND SAFETY DURING USE.

2 Use

WARNING

NEVER RIDE THE VEHICLE WITH ADDED ACCESSORIES (CASE AND/OR WINDSHIELD) FASTER THAN 120 KM/H. WITHOUT THESE ACCESSORIES THE VEHICLE MAY BE DRIVEN AT A HIGHER SPEED WITHIN THE LEGAL LIMITS. IF THERE ARE NOT-PIAGGO ACCESSORIES FITTED, OR AN ABNORMAL LOAD, OR IF THE VEHICLE IS NOT IN A GENERALLY GOOD CONDITION, OR WHENEVER WEATHER CONDITIONS DEMAND IT, SPEED SHOULD BE FURTHER REDUCED.

CAUTION

DO NOT ADJUST THE MIRRORS WHILE RIDING. THIS COULD CAUSE YOU TO LOOSE CONTROL OF THE VEHICLE.

CAUTION

ANY CHANGES TO THE VEHICLE PERFORMANCE AS WELL AS ALTERATIONS TO ORIGINAL STRUCTURAL PARTS IS STRICTLY FORBIDDEN BY LAW, AND RENDERS THE VEHICLE NO LONGER CONFORMING TO THE APPROVED TYPE AND DANGEROUS FOR RIDING.

02_12

02_13

Front suspension locking system (02_12, 02_13, 02_14, 02_15, 02_16, 02_17)

The front suspension locking system simply prevents vehicle tilting when the «Q» switch is pressed.

The warning light «E» starts flashing when the key switch is set to «ON». This means that the system is enabled for locking activation.

When the «Q» switch is turned to «1», a continuous sound alarm signals that the locking system is engaged and, at the same time, the warning light «E» turns on steadily.

When the «Q» switch is turned to «2» , an intermittent sound alarm signals that the locking system is disengaged and, at the same time, the warning light «E» starts flashing again. Warning light «E » turns off when riding starts. This means that the system allows for vehicle tilting.

Engaging tilt locking is possible only if the following conditions occur at the same time:

•

Throttle completely untwisted

•

Engine rpm below 2500 rpm

•

Vehicle speed below 10 km/h

•

Locking system WARNING light «C» off (the system has not detected failures)

If one of these conditions is not checked, the warning light «E » remains off and locking cannot be engaged (in normal riding conditions, the warning light «E» is off).

With engine on, system locked and warning light «E» on, the suspension locking system is disengaged automatically and the warning light «E » turns off when the throttle is twisted to start the ride.

02_14

For riders' safety, the vehicle has a rider detection sensor in the saddle which enables the system to prevent vehicle motion and suspension unlocking (in case of locked suspension) when the rider is not properly seated in riding position: in such case, the WARNING light «C» turns on steadily

2 Use

02_15

02_16

02_17

CAUTION

THE RIDER DETECTION SENSOR IS LOCATED IN THE FRONT PART OF THE SADDLE. AVOID PLACING BAGS OR HEAVY OBJECTS ACCIDENTALLY ON THE SADDLE.

NOT OBSERVING THIS RULE MAY MOVE THE VEHICLE FORWARD AND RELEASE THE SUSPENSION LOCKING SYSTEM EVEN IF THE RIDER IS NOT SEATED, BY SIMPLY TWISTING THE THROTTLE. THE VEHICLE COULD FALL ACCIDENTALLY AS A CONSEQUENCE.

WARNING

EVERY TIME THE VEHICLE IS STOPPED, MAKE SURE THE FRONT SUSPENSION LOCKING SYSTEM IS ENGAGED. OTHERWISE, PLACE YOUR FEET ON THE GROUND TO KEEP THE VEHICLE UPRIGHT.

WARNING

AVOID USING THE LOCKING SYSTEM WHEN RIDING THE VEHICLE ALONG IRREGULAR ROADS OR ROADS WITH OBSTACLES(E.G. ROAD HUMPS, SIDEWALK, ETC.).

IN CASE OF ENGINE FAILURE (DISCHARGED BATTERY) AVOID PULLING THE VEHICLE WITH THE LOCKING SYSTEM ENGAGED.

WITH THE LOCKING SYSTEM ENGAGED AND THE ENGINE OFF, AVOID MOVING THE VEHICLE AT SPEEDS ABOVE 5 Km/h.

WARNING

IF THE RIDER IS NOT SEATED ON THE SADDLE WHILE THE VEHICLE IS IN MOTION AND THE LOCKING SYSTEM IS ENGAGED, AVOID OPERATING THE THROTTLE CONTROL PURPOSELESSLY AS THIS MAY DAMAGE THE CATALYTIC CONVERTER.

CAUTION

DO NOT RIDE DOWNHILL WITH THE SUSPENSION LOCKING SYSTEM ENGAGED AND THE KEY SWITCH SET TO OFF.

With the vehicle off and the suspension locking system engaged, it is possible to get off the vehicle without using the stand. For safety reasons, it is recommended to press the hand brake lever shown in the figure, moving it form position «A » to position «B».

When the hand brake «B» is engaged, warning light «R» on the instrument panel turns on.

When the hand brake is set to «B» and the key switch is turned to position «1», the safety system that prevents the hand brake from getting released is activated. To release the hand brake, turn the key switch to «2» or «3». If the switch is set to «1 » , the hand brake can also be engaged.

WARNING

IT IS PREFERABLE TO USE THE STAND IF THE VEHICLE STOPS ON A STEEP SLOPE.

ALWAYS OBSERVE THE CUSTOMARY SAFETY PRECAUTIONS FOR CASES WHEN THE VEHICLE STOPS ON A STEEP SLOPE. TURN THE WHEELS SO

2 Use

THAT THE POTENTIAL MOVEMENT CAUSED BY THE SLOPE TAKES THAT WHEEL AGAINST THE SIDEWALK. WITH THE STEERING LOCK ENGAGED, MANOEUVRE SO THAT THE SIDEWALK IS TO THE RIGHT WHEN YOUR VEHICLE IS PARKED UPHILL AND TO THE LEFT WHEN PARKED DOWNHILL.

If the WARNING light «C» turns on (flashes), it means that there is a failure in the front suspension locking system. Therefore, it is necessary to contact an Authorised Serv- ice Centre. If the front suspension is locked , it can be unlocked by operating the «Q» switch twice quickly on the unlocking position «2». Once the suspension is unlocked, the vehicle can be normally used, except for the locking system which will be disengaged.

For some cases of failure, the vehicle speed is auto-limited to 30 Km/h. This automatic procedure is activated to enhance safety until the failure is eliminated.

Always contact an Authorised Service Centre. If the continuous sound alarm is activated when the WARNING light «C» turns on

(steadily), try to unlock the system by operating the «Q» switch twice quickly to the unlocking position «2». If it cannot be unlocked, contact an Authorised Service Cen-

tre.

Fuoco 500ie

Chap. 03

Maintenance

03_01

03_02

Engine oil level

In 4T engines, engine oil is used to lubricate the distribution elements, main bearings and thermal group. An insufficient quantity of oil can cause serious damage to the engine itself. In all four-stroke engines, a loss of efficiency in oil performance and consumption should be considered normal. Consumption can particularly reflect the conditions of use (i.e. when driving at "full acceleration" all the time, oil consumption increases). The replacement frequencies provided for by the maintenance programme are defined, depending on the total contents of oil in the engine and average consumption measured following standardised methods. In order to prevent any prob-

lems, we recommend checking oil level more frequently than indicated in the Scheduled Maintenance table or before setting off on long journeys. The vehicle is, however, equipped with an oil pressure warning light on the instrument panel.

Engine oil level check (03_01, 03_02)

Every time the vehicle is used, visually inspect the level of the engine oil when the engine is cold (after completely unscrewing the oil cap/dipstick). The oil level should be somewhere between the MAX and MIN reference marks on the dipstick «A»; during the oil check, the vehicle must be resting on its centre stand on an even, horizontal surface.

If the check is carried out after the vehicle has been used, and therefore with a hot engine, the level line will be lower; in order to carry out a correct check, wait at least 10 minutes after the engine has been stopped so as to get the correct level.

Engine oil top-up

Always check the oil level before carrying out top ups and add oil without exceeding the MAX level. Getting an oil level between the MIN and MAX levels requires ~ 400

cm³ of oil. An oil check-up and top-up should be carried out at any Authorised Service Centre, as indicated in the scheduled maintenance table.

03_03

Warning light (insufficient oil pressure)

The vehicle is equipped with a warning light that lights up when the key is turned to the «ON». However, this light should switch off once the engine has been started. If

the light comes on while braking, at idle speed or while turning a corner, it is

3 Maintenance

03_04

necessary to check the oil level and top it up if required. If after having toppedup the oil, the warning light still comes on while braking, at idle speed or while turning a corner, it will be necessary to take your vehicle to an Authorised Service Centre.

Engine oil change (03_03, 03_04)

The oil and the filter must be changed as indicated in the scheduled maintenance table at an Authorised Service Centre. The engine should be emptied by draining the oil via the drainage tap «B» of the mesh filter on the transmission side. In order to facilitate oil drainage, loosen the cap/dipstick «A». Unscrew and remove the oil cartridge filter «C». Install a new oil filter taking care to lubricate the sealing O-rings with engine oil. Since a certain quantity of oil still remains in the circuit, add approximately 1500 cm³ of oil through cap «A». Then start up the scooter, leave it running for a few minutes and switch it off: after five minutes, check the level and if necessary, top-up without exceeding the MAX. level. The cartridge filter must be replaced at every oil change. For top-ups and oil changes, use new oil of the recommended type.

CAUTION

RUNNING THE ENGINE WITH INSUFFICIENT LUBRICATION OR WITH INADEQUATE LUBRICANTS ACCELERATES THE WEAR AND TEAR OF THE MOVING PARTS AND CAN CAUSE IRRETRIEVABLE DAMAGE.

TOPPING UP THE ENGINE WITH AN EXCESSIVE AMOUNT OF OIL MAY CAUSE MALFUNCTION AND/OR A DROP IN PERFORMANCE OF THE VEHICLE.

USING OILS OTHER THAN THOSE RECOMMENDED CAN SHORTEN THE LIFE OF THE ENGINE.

CAUTION

USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR OIL REPLACEMENT, CONTACT AN AUTHORISED SERVICE CENTRE, WHICH IS EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIENDLY AND LEGAL WAY.

03_05

03_06

Recommended products

AGIP CITY HI TEC 4T

Engine oil

SAE 5W-40, API SL, ACEA A3, JASO MA Synthetic oil

Hub oil level (03_05, 03_06)

Check the oil in the rear hub. (oil content ~ 250 cc). To check the rear hub oil level, proceed as follows:

1) Rest the vehicle onto its centre stand, on level ground.

2) Unscrew the dipstick «A», dry it with a clean cloth and then reinsert it screwing it

fully into place.

3) Pull out the dipstick to control that the oil level reaches the second notch from the bottom, as indicated by the arrow in figure, this is the correct level and must remain constant at all times.

4) Screw the dipstick back in, checking that it is correctly locked in place.

CAUTION

RIDING THE VEHICLE WITH INSUFFICIENT HUB LUBRICATION OR WITH CONTAMINATED OR IMPROPER LUBRICANTS ACCELERATES THE WEAR AND TEAR OF THE MOVING PARTS AND CAN CAUSE SERIOUS DAMAGE.

CAUTION

USED OIL CAN HARM THE ENVIRONMENT. COLLECTION AND DISPOSAL SHOULD BE CARRIED OUT IN COMPLIANCE WITH CURRENT REGULATIONS.

3 Maintenance

CAUTION

AN EXCESSIVE QUANTITY OF OIL CAN LEAD TO LEAKAGE, WHICH MAY CAUSE THE ENGINE AND THE WHEEL TO GET DIRTY.

CAUTION

WHEN REPLACING THE HUB OIL DO NOT LET THE OIL COME INTO CONTACT WITH THE REAR BRAKE DISC.

CAUTION

FOR OIL REPLACEMENT, CONTACT ANY AUTHORISED SERVICE CENTRE AS THEY ARE EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIENDLY AND LEGAL WAY.

Recommended products

AGIP ROTRA 80W-90

Rear hub oil

SAE 80W/90 Oil that exceeds the requirements of API GL3 specifications

Characteristic

Transmission oil

250 cm³

Tyres (03_07)

CAUTION

03_07

TYRE PRESSURE SHOULD BE CHECKED WHEN TYRES ARE COLD.INCORRECT TYRE PRESSURE CAUSES ABNORMAL TYRE WEAR AND MAKES RIDING DANGEROUS.

TYRES MUST BE REPLACED WHEN THE TREAD REACHES THE WEAR LIMITS SET FORTH BY LAW.

WARNING

THE WHEELS FITTED WITH TYRES SHOULD ALWAYS BE BALANCED. RIDING THE VEHICLE WITH VERY LOW TYRE PRESSURE OR WITH INCORRECTLY BALANCED TYRES CAN LEAD TO DANGEROUS STEERING VIBRATIONS.

TYRES

Front tyre Tubeless 120/70-12" 51S or 51P Rear tyre Tubeless 140/70 - 14" 68S or 68P

reinf

3 Maintenance

Front tyre pressure (with passenger)

Rear tyre pressure (with passenger)

TYRE INFLATION PRESSURE

1.6 bar (1.8 bar)

2.4 bar (2.6 bar)

03_08

Spark plug dismantlement (03_08, 03_09)

This engine has two spark plugs. Remove the port on the left-hand side panel of the vehicle by undoing the fixing screw

«A» and using a small screwdriver in the rear notch shown in the figure, then proceed as follows:

1. Disconnect the spark plug HV wire caps «B».

2. Unscrew the spark plugs using the supplied spark plug wrench.

3. When refitting, place the spark plugs into the hole at the due inclination and tighten

it by hand until it is finger tight;

4. Only use the wrench to lock it in place.

5. Place the «B» caps fully over the spark plugs.

6. Refit the port making sure the rear hook is inserted. CAUTION

03_09

SPARK PLUGS MUST BE REMOVED WHEN THE ENGINE IS COLD. SPARK PLUGS MAINTENANCE OPERATIONS ARE DESCRIBED IN THE SCHEDULED MAINTENANCE TABLE. USING NON-CONFORMING ELECTRONIC CENTRAL UNITS AND ELECTRONIC IGNITIONS OR SPARK PLUGS OTHER THAN THOSE PRESCRIBED MAY SERIOUSLY DAMAGE THE ENGINE.

03_10

N.B. THE USE OF SPARK PLUGS OTHER THAN THE INDICATED TYPE OR OF

SHIELDLESS SPARK PLUG CAPS CAN CAUSE ELECTRICAL SYSTEM FAILURES.

Characteristic

Spark plug

NGK CR7EKB

Electrode gap

0.7 ÷ 0.9 mm

Removing the air filter (03_10)

Proceed as follows: Unscrew the nine fixing screws «A» and remove the air filter cover «B».

Air filter cleaning

1. Wash the sponge with water and neutral soap.

2. Dry it with a clean cloth and small blasts of compressed air.

3. Impregnate the sponge with a mixture of 50% petrol and 50% specified oil.

4. Gently squeeze the filter element, let it drip and then refit it.

3 Maintenance

03_11

03_12

CAUTION

IF THE VEHICLE IS USED ON DUSTY ROADS IT IS NECESSARY TO CARRY OUT MAINTENANCE CONTROLS OF THE AIR FILTER TO AVOID DAMAGING THE ENGINE.

Recommended products

AGIP FILTER OIL

Oil for air filter sponge

Mineral oil with specific additives for increased adhesiveness

Cooling fluid level (03_11, 03_12, 03_13, 03_14)

The engine cooling system operates by forcing circulation of fluid. The cooling circuit contains about 2 litres of coolant consisting of a mixture of 50% de-ionised water and glycol ethylene-based antifreeze solution with corrosion inhibitors. Recommended coolant: supplied with the vehicle, already mixed and ready for use. For proper functioning of the engine, the coolant temperature must be between the 4th and 7th lit segment, as indicated by the instrument «D» on the digital instrument panel. When the 9th segment lights up, the icon and all the segments start flashing; stop the engine, let it cool down and check the fluid level; if the level is OK, contact an Authorised

Service Centre.

Check coolant when the engine is cold as indicated in the scheduled maintenance table.

a) Rest the vehicle in vertical position on the stand and remove the screw of the expansion tank cap shown in the photo

b) Remove the expansion tank cover "A", turning in anticlockwise direction. c) Look inside the expansion tank; the fluid level must always be between the min and

the max level d) If the coolant level is near the minimum mark, top up when the engine is cold.

If it is necessary to top up the coolant frequently, or if the expansion tank is completely dry, you should look for the cause in the cooling system. It is therefore essential to have the cooling system checked at an Authorised Service Centre. Replace coolant as indicated in the scheduled maintenance table. Take your vehicle to an Authorised

Service Centre for this operation. CAUTION

03_13

03_14

THE RECOMMENDED COOLANT MUST BE USED FOR TOP-UPS TO AVOID DAMAGING THE ENGINE.

N.B. SHOULD THE 9th SEGMENT OF THE COOLANT TEMPERATURE INDICATOR

COME ON DURING A NON-DEMANDING RIDE, SHUT OFF THE ENGINE AND LET IT COOL DOWN. THEN CHECK THE COOLANT LEVEL; IF THE LEVEL IS OK, CONTACT AN AUTHORISED SERVICE CENTRE.

WARNING

IN ORDER TO AVOID BURNS, DO NOT UNSCREW THE EXPANSION TANK CAP WHILE THE ENGINE IS STILL HOT.

WARNING

IN ORDER TO AVOID HARMFUL FLUID LEAKS WHILE RIDING, IT IS IMPORTANT TO MAKE SURE THAT THE LEVEL NEVER EXCEEDS THE MAXIMUM VALUE.

IN ORDER TO GUARANTEE THE PROPER FUNCTION OF THE ENGINE, IT IS NECESSARY TO KEEP THE RADIATOR GRILLE CLEAN.

3 Maintenance

03_15

03_16

Recommended products

SPECIAL AGIP PERMANENT fluid

coolant

Monoethylene glycol-based antifreeze fluid, CUNA NC 956-16

Checking the brake oil level (03_15)

The front and rear brake fluid reservoirs are both positioned on the handlebars. Proceed as follows:

1. Place the scooter on its centre stand and make sure the handlebar is centred;

2. Check the fluid through the specific sight glass «C».

A certain lowering of the level is caused by wear on the pads. Should the level appear to be below the minimum mark, please contact an Authorised Service Centre or

Dealer in order to have braking system thoroughly checked.

Braking system fluid top up (03_16)

Proceed as follows: Undo the screws «B» and remove the fuel tank cap «A». Top-up using only the fluid specified, without exceeding the maximum level.

This procedure applies to the rear brake pump top-up operation; follow the same procedure for the front brake pump.

Under standard climatic conditions, replace fluid as indicated in the scheduled maintenance table.

This operation must be carried out by trained personnel; take your vehicle to an au-

thorised Service centre or Dealer.

WARNING

ONLY USE DOT 4 CLASS BRAKE FLUIDS. COOLING SYSTEM FLUIDS ARE HIGHLY CORROSIVE. MAKE SURE THAT IT DOES NOT COME INTO CONTACT WITH THE PAINTWORK

. CAUTION

AVOID CONTACT OF BRAKE FLUID WITH EYES, SKIN, AND CLOTHING. IN CASE OF CONTACT, RINSE WITH WATER. THE BRAKING CIRCUIT FLUID IS HYGROSCOPIC, THAT IS, IT ABSORBS HUMIDITY FROM THE SURROUNDING AIR. IF THE HUMIDITY IN THE BRAKING FLUID EXCEEDS A CERTAIN VALUE, IT WILL LEAD TO INEFFICIENT BRAKING. NEVER USE BRAKING FLUID KEPT IN CONTAINERS THAT HAVE ALREADY BEEN OPENED, OR PARTIALLY USED.

Recommended products

AGIP BRAKE 4

Brake fluid

FMVSS DOT 4 Synthetic fluid

3 Maintenance

Battery (03_17)

To access the battery, proceed as follows:

1. Place the scooter on its centre stand;

2. Open the saddle, following the previously described procedure;

3. Remove the two fasteners "A" and the cover "B". WARNING

03_17

IN ORDER TO AVOID DAMAGING THE ELECTRICAL SYSTEM, NEVER DISCONNECT THE WIRING WHILE THE ENGINE IS RUNNING.

Use of a new battery (03_18)

Make sure that the terminals are connected correctly.

CAUTION

03_18

DO NOT REVERSE THE POLARITY: RISK OF SHORT CIRCUIT AND DAMAGE TO THE ELECTRICAL SYSTEM.

WARNING

SPENT BATTERIES ARE HARMFUL FOR THE ENVIRONMENT. COLLECTION AND DISPOSAL SHOULD BE CARRIED OUT IN COMPLIANCE WITH CURRENT REGULATIONS.

03_19

Long periods of inactivity

If the vehicle has not been used for long periods, it is necessary to periodically recharge the battery, bearing in mind that the battery tends to go completely flat within around three months. The battery must be recharged with a current load equal to 1/10 of the battery rated capacity (~ 1A ), for a period not longer than 8 hours. For this operation contact an Authorised Service Centre. When refitting a removed battery, make sure that all terminals are properly connected.

Fuses (03_19, 03_20, 03_21, 03_22, 03_23)

The electrical system has twelve fuses divided into two fuse boxes to protect the different installation circuits. One of them is inside the battery compartment «A» and the other is at the internal side of the right footrest «B».To have access, loosen the screw «C» and remove the plastic cover. The chart shows the position and characteristics of the fuses in the vehicle.

CAUTION

BEFORE REPLACING THE BLOWN FUSE, FIND AND SOLVE THE FAILURE THAT CAUSED IT TO BLOW. NEVER TRY TO REPLACE THE FUSE WITH ANY OTHER MATERIAL (E.G., A PIECE OF ELECTRIC WIRE).

03_20

3 Maintenance

03_21

03_22

03_23

FUSE TABLE

Fuse No. 1 Capacity: 7.5 A

Protected circuits:Injection ECU

battery power

Fuse No. 2 Capacity: 15 A

Protected circuits:Batterypowered injection loads, electrical fan

Fuse No. 3 Capacity: 15 A

Protected circuits:Batterypowered saddle opening switch, glove-box lighting, light switch, turn indicator switch, antitheft installation, fuse No. 12

Fuse No. 4 Capacity: 20A

Protected circuits:batterypowered ECU for parking control

Fuse No. 5 Capacity: 20A

Protected circuits:batterypowered fuse No. 7, live fuses No. 8 - No. 9 - No.10 - No.11

Fuse No. 6 Capacity: 15 A

Protected circuits:L.V. socket.

Fuse No. 7 Capacity: 7.5 A

Protected circuits:Battery-

3 Maintenance

powered instrument panel

Fuse No. 8 Capacity: 10A

Protected circuits:Live stop, start-up and start-up enabling switch and start-up circuit.

Fuse No. 9 Capacity: 7.5 A

Protected circuits:live passing and horn

Fuse No. 10 Capacity: 7.5A

Protected circuits:Live injection ECU, immobilizer aerial, electric fan remote control, injection loads remote control

Fuse No. 11 Capacity: 7.5A

Protected circuits:Live ECU parking lever, antitheft installation, instrument panel, headlight remote control, horn

Fuse No. 12 Capacity: 7.5A

Protected circuits:Live turn indicator control, saddle opening switch, tail lights, panel lighting

LIGHT BULBS TABLE

Low-beam bulb Type: HALOGEN (H8)

Power: 12V - 35W Quantity: 1 RHS + 1 LHS

High-beam light bulb Type: HALOGEN (H8)

Power: 12V - 35W Quantity: 1 RHS + 1 LHS

Helmet compartment light bulb Type: FESTOON BULB

Power: 12V - 5W Quantity: 1

Rear turn indicator light bulb Type: WITH BULB

Power: 12V - 10W Quantity: 1 RHS + 1 LHS

Rear tail light bulb Type: WITH BULB

Power: 12V - 5W Quantity: 1 RHS + 1 LHS

Stop light bulb Type: WITH BULB

Power: 12V - 10W Quantity: 1 RHS + 1 LHS

License plate light bulb Type: ALL GLASS

Power: 12V - 5W

3 Maintenance

Quantity: 1

Front turn indicator bulb Type: WITH BULB

Power: 12V - 10W Quantity: 1 RHS + 1 LHS

Front tail light bulb Type: ALL GLASS

Power: 12V - 5W Quantity: 1

Instrument panel bulb Type: ALL GLASS

Power: 12V - 2W Quantity: 4

03_24

Front light group (03_24, 03_25, 03_26, 03_27, 03_28, 03_29)

To access the tail light bulb:

- Insert a screwdriver in the notch on the side (see picture) of the Gilera emblem and remove it.

- Undo the screw «A» and the four screws «B».

- Push the two indicated tongues to unlock the tail lights and remove the rubber bulb holder

To replace it, slide off the bulb from the bulb holder and insert a new bulb.

To access the high-beam light bulbs and the low-beam light bulbs:

- Actuating on the inside of the front wheel housing, hold the high-beam light bulb holder «C» or the low-beam bulb holder «D» and then turn it anticlockwise.

03_25

03_26

To replace it, disconnect the connector and insert a new bulb

WARNING

HIGH AND LOW BEAM LIGHT ARE OF THE HALOGEN TYPE: DO NOT TOUCH WITH YOUR FINGERS TO AVOID DAMAGING THEIR FUNCTION.

Headlight adjustment (03_30, 03_31, 03_32, 03_33, 03_34)

Proceed as follows:

- Position the unloaded vehicle, in running order and with the tyres inflated to the prescribed pressure, onto a flat surface 10 m away from a half-lit white screen; make sure the vehicle axis is perpendicular to the screen.

- Remove the headlight assembly central cover.

- Turn on the headlight and check that the borderline of the projected light beam should

be lower than 9/10 of the distance from the ground to the centre of the vehicle's headlight, and higher than 7/10.

- Otherwise, adjust the headlight. N.B. THE ABOVE PROCEDURE COMPLIES WITH THE EUROPEAN STANDARDS RE-

GARDING MAXIMUM AND MINIMUM HEIGHT OF LIGHT BEAMS. REFER TO THE STATUTORY REGULATIONS IN FORCE IN EVERY COUNTRY WHERE THE vehicle IS USED.

03_27

To access the headlight adjusting screws:

- Unscrew the four screws «A» (two on each side) and remove the front cowl.

- Unscrew the five screws «B» and remove the side cover.

Each bulb has two light beam adjusting screws, one for horizontal adjustment «C» and one for the vertical adjustment «D». Adjust each headlamp at a time. In order to

3 Maintenance

do that, remove the connector from the other bulbs so that you can adjust one headlamp at a time.

N.B. THE HEADLAMPS CAN ONLY BE LIT WHEN THE ENGINE IS ON. ADJUST THE

LIGHT BEAM IN A WELL VENTILATED PLACE.

03_28

03_29

03_30

03_31

03_32

03_33

3 Maintenance

03_34

Front direction indicators (03_35)

To access the bulb, undo the screw «A» and remove the glass «B». To replace the bulb, hold it and then turn it clockwise.

03_35

03_36

03_37

Rear optical unit (03_36, 03_37)

To access the rear light unit bulbs, undo the screw «A» and remove the glass «B». Now tighten the screw «A» in its seat.

To replace the stop light bulb «C», hold it and turn it anticlockwise. To replace the rear tail light bulb «D», hold it and pull it outwards.

Rear turn indicators (03_38)

To access the bulb, undo the screw «A» and remove the glass «B». To replace the bulb, hold it and then turn it clockwise.

03_38

3 Maintenance

Number plate light (03_39)

Remove the screw «C», then take out the bulb holder.

03_39

Helmet compartment lighting bulb (03_40)

Open the rear boot and insert a small plain slot screwdriver in the lateral notch to detach the snap-on glass "D", then replace the bulb.

03_40

Rear-view mirrors (03_41)

The mirrors can be set to the desired position by adjusting the mirror frame.

03_41

Front and rear disc brake

The brake disc and pad wear is automatically compensated, therefore it has no effect on the functioning of the front and rear brakes. For this reason it is not necessary to adjust the brakes. An excessively elastic brake lever stroke may indicate the presence of air in the braking circuit or a failure in the braking system. In this case, mainly due to the importance of brakes to guarantee safe riding conditions, the vehicle should be taken to an Authorised Service Centre or Dealer.

CAUTION

THE BRAKING ACTION SHOULD BEGIN AFTER ABOUT 1/3 OF THE BRAKE LEVER STROKE.

CAUTION

HAVE THE BRAKE PADS CHECKED BY THE DEALER ACCORDING TO THE CHECKS SPECIFIED IN THE SCHEDULED MAINTENANCE TABLE. HOWEVER, IN THE EVENT OF NOISES COMING FROM THE FRONT AND/OR REAR BRAKE SYSTEM DURING OPERATION, IT IS ADVISABLE TO HAVE THE BRAKE SYSTEM CHECKED BY A PIAGGIO DEALER OR AUTHORISED SERVICE CENTRE. AFTER REPLACING THE BRAKE PADS, DO NOT USE THE SCOOTER UNTIL YOU HAVE OPERATED THE BRAKE LEVER SEVERAL TIMES IN ORDER TO ALLOW THE PLUNGERS TO SETTLE AND THE LEVER STROKE TO BE SET TO THE CORRECT POSITION.

CAUTION

THE PRESENCE OF SAND, MUD, SNOW MIXED WITH SALT, ETC. ON THE ROAD, CAN DRASTICALLY REDUCE THE DURATION OF THE BRAKE PADS. IN

3 Maintenance

ORDER TO AVOID THIS, WE RECOMMEND WASHING THE VEHICLE FREQUENTLY WHEN RIDING IN THESE ROAD CONDITIONS.

Puncture

The vehicle is equipped with tubeless tyres (without inner tube). In the event of a puncture, contrary to the situation with a tyre with inner tube, the tyre deflates more slowly, resulting in a greater steering safety. In the event of a puncture, it is admissible to make an emergency repair using an "inflate and repair" spray can. For a final repair, take your vehicle to an Authorised Service Centre or Dealer. The replacement of a tyre involves removing the wheel in question. Take your vehicle to an Authorised

Service Centre or Dealer for these operations. CAUTION

TO USE THE "INFLATE AND REPAIR" SPRAY PROPERLY FOLLOW THE INSTRUCTIONS ON THE PACKAGING.

WARNING

THE WHEELS FITTED WITH TYRES SHOULD ALWAYS BE BALANCED. RIDING THE VEHICLE WITH VERY LOW TYRE PRESSURE OR WITH INCORRECTLY BALANCED TYRES CAN LEAD TO DANGEROUS STEERING VIBRATIONS.

Periods of inactivity

We recommend carrying out the following operations:

1. Clean the scooter thoroughly and then cover it with a canvas;

2. Be careful to rest the vehicle on its centre stand disabling the front suspension locking system;

3. With engine off and piston at the bottom dead centre, remove the spark plug, add 1÷2 cc of oil through the opening (adding more oil may damage the engine). Operate the starter button 1-2 times for roughly 1 second to turn the engine over slowly, then insert the spark plug again;

4. Empty all fuel; spread antirust grease on the unpainted metal parts; keep the wheels lifted above the ground by resting the chassis on two wooden wedges;

5. For the battery, follow the procedures described in the «Battery» section.

Recommended products

AGIP CITY HI TEC 4T

Engine oil

SAE 5W-40, API SL, ACEA A3, JASO MA Synthetic oil

Cleaning the vehicle

In order to soften the dirt and mud deposited on the painted surfaces, use a low pressure jet of water. Once softened, mud and dirt must be removed with a soft sponge for bodywork soaked in lots of water and "shampoo" (2-4% of car shampoo in water). Then rinse abundantly with water, and dry with a shammy cloth. For the outside of the engine, use petroleum, a brush and clean cloths. Petroleum can damage paintwork. Remember that any polishing with silicone wax must always be preceded by washing

CAUTION

DETERGENTS CAN POLLUTE WATER. THE VEHICLE MUST BE WASHED AT A WASH STATION EQUIPPED WITH A SPECIAL WATER PURIFICATION SYSTEM.

3 Maintenance

CAUTION

PER IL LAVAGGIO DEL MOTORE E DEL VEICOLO É SCONSIGLIATO L'UTILIZZO DELL'IDROPULITRICE; NEL CASO CHE NON SIA POSSIBILE EFFETTUARE TALE OPERAZIONE IN UN ALTRO MODO, É NECESSARIO:

• USARE SOLAMENTE IL GETTO A VENTAGLIO.

• NON AVVICINARE LA LANCIA A MENO DI 2 FT (60 CM).

• NON USARE ACQUA A TEMPERATURE SUPERIORI A 100° F (40°C).

• NON UTILIZZARE IL GETTO AD ALTA PRESSIONE.

• NON UTILIZZARE IL LAVAGGIO A VAPORE.

• NON INDIRIZZARE IL GETTO DIRETTAMENTE VERSO: IL MOTORE, I CABLAGGI ELETTRICI, LE FERITOIE DI RAFFREDDAMENTO DEL COPERCHIO TRASMISSIONE E DEL COPERCHIO CHIOCCIOLA.

CAUTION

NEVER WASH THE SCOOTER IN DIRECT SUNLIGHT, ESPECIALLY IN SUMMER WHEN THE BODYWORK IS STILL HOT AS THE SHAMPOO COULD DAMAGE THE PAINTWORK IF IT DRIES BEFORE BEING RINSED OFF. NEVER USE CLOTHS SOAKED IN ALCOHOL, PETROL, DIESEL OIL OR KEROSENE FOR CLEANING THE PAINTED OR PLASTIC SURFACES, IN ORDER NOT TO DAMAGE THE LUSTRE FINISH OR ALTER THE MECHANICAL PROPERTIES. USING SILICONE-BASED WAX CAN DAMAGE THE PAINTED SURFACES, DEPENDING ON THE VEHICLE COLOUR (SATIN COLOURS). FOR FURTHER INFORMATION ON THIS MATTER, CONTACT AN AUTHORISED SERVICE CENTRE .

STARTING FAILURE

Emergency switch in «OFF» Set the switch back to «ON» Fuse blown Replace the blown fuse and have

the vehicle checked by an

Authorised Service Centre.

IGNITION PROBLEM

Faulty spark plug Contact an Authorised Service

Faulty ignition / injection control unit.

Faulty coil. Due to the presence of high voltage, this check should only be carried out by an expert.

Centre. Contact an Authorised Service

Centre.

LACK OF COMPRESSION

Loosen spark plug. Cylinder head loose, piston gas

rings worn. Valve stuck Contact an Authorised Service

Screw in the spark plug tightly Contact an Authorised Service

Centre.

HIGH CONSUMPTION AND LOW PERFORMANCE

3 Maintenance

Air filter blocked or dirty. Clean with water and shampoo and

impregnate with petrol and specific oil (section «Removing the air filter»)

INSUFFICIENT BRAKING

Greasy disc. Worn pads. Faulty braking system. Presence of air in the front and rear brake circuit.

Contact an Authorised Service

Centre.

INEFFICIENT SUSPENSIONS

Shock absorber fault, oil leak, end buffer damaged; shock absorber preloading incorrectly set

Contact an Authorised Service

Centre.

IRREGULAR AUTOMATIC TRANSMISSION

Variator rollers and/or driving belt damaged

Contact an Authorised Service

Centre.

STAND DOES NOT RETURN TO POSITION

Presence of dirt Clean and grease

Fuoco 500ie

Chap. 04

Technical data

04_01

ENGINE TECHNICAL DATA

4 Technical data

Type Single-cylinder, 4-stroke Cubic capacity 493 cm³ Bore x Stroke 94 x 71 mm Compression ratio 10.5 ± 0.5 : 1 Engine idle speed 1,500 ± 100 rpm Timing system Four valves, single overhead

Valve clearance Inlet: 0.15 mm

MAX. power 29.5 kW at 7,250 rpm MAX Power for crossover version 25 kW MAX torque 46.5 Nm at 5.250 rpm Transmission Automatic expandable pulley

Final reduction Gear reduction unit in oil bath. Lubrication Engine lubrication with lobe pump

Cooling Forced coolant circulation system. Start-up Electric

camshaft, chain driven.

Outlet: 0.15 mm

variator with torque server, V belt, dry self-ventilating automatic centrifugal clutch and transmission housing with forced air circulation.

(inside crankcase) controlled by a chain with double filter: mesh and paper.

Ignition Highly efficient electronic inductive

Ignition advance Three-dimensional map managed

Spark plug NGK CR7EKB Alternative spark plug Fuel supply Electronic injection with electric

Fuel Unleaded petrol (95 RON) exhaust muffler Absorption-type exhaust muffler

Emission regulations EURO 3

ignition, integrated with the injection system, with variable advance, separate HV coil and double spark plug.

by control unit

fuel pump.

with catalytic converter and lambda probe.

VEHICLE TECHNICAL DATA

Chassis Tubular and sheet steel Front suspension The tilt mechanism is composed of

Rear suspension Two double-acting shock

an articulated parallelogram suspension with die-cast aluminium control arms and two side headstocks plus shock absorbers with hydraulic locking system.

absorbers, adjustable to four positions at preloading.

Front brake Ø 240 mm double disk with

4 Technical data

Rear brake disc brake, diameter 240 mm, with

Wheel rim type Light alloy rims. Front rim 12'' x 3.00 Rear rim 14'' x 4.50 Front tyre Tubeless 120/70-12" 51S or 51P Rear tyre Tubeless 140/70 - 14" 68S or 68P

Front tyre pressure (with passenger)

Rear tyre pressure (with passenger)

Kerb weight 253 ± 5 kg Maximum weight allowed 445 kg Battery 12 V / 14 Ah, SEALED BATTERY

hydraulic control activated by the handlebar right-hand lever.

hydraulic servo operated from the handlebar with the left-hand lever.

reinf

1.6 bar (1.8 bar)

2.4 bar (2.6 bar)

CAPACITY

Engine oil 1.7 l Transmission oil 250 cm³ Cooling system fluid ~ 2 l Fuel tank (reserve) ~ 12 l (~2 l)

04_02

Kit equipment (04_02)

The toolkit comprises:

- One box-spanner.

- One twin screwdriver

- One special spanner for adjusting the rear shock absorbers

- One plastic clip for removing the fuses. The tools are stored in the helmet compartment.

Fuoco 500ie

Chap. 05

Spare parts and

accessories

05_01

Warnings (05_01)

WARNING

TO PREVENT ACCIDENTS AND TO GUARANTEE PROPER STABILITY, PERFORMANCE AND SAFETY, RIDE THE VEHICLE VERY CAREFULLY WHEN IT IS FITTED WITH ACCESSORIES OR WITH UNUSUAL LOADS.

WARNING

IT IS ALSO RECOMMENDED THAT "ORIGINAL PIAGGIO SPARE PARTS" BE USED, AS THESE ARE THE ONLY ONES OFFERING YOU THE SAME QUALITY GUARANTEE AS THOSE INITIALLY FITTED ON THE SCOOTER. THE USE OF NON-ORIGINAL SPARE PARTS RENDERS THE WARRANTY VOID.

WARNING

PIAGGIO MARKETS ITS OWN LINE OF ACCESSORIES THAT ARE RECOGNISED AND GUARANTEED FOR USE. IT IS THEREFORE ESSENTIAL, IN ORDER TO CHOOSE AND MOUNT THE ACCESSORIES CORRECTLY, TO CONTACT AN AUTHORISED DEALER OR SERVICE CENTRE. THE USE OF NON-ORIGINAL ACCESSORIES MAY AFFECT THE STABILITY AND OPERATION OF YOUR VEHICLE AND REDUCE SAFETY LEVELS WITH POTENTIAL RISKS FOR THE RIDER.

WARNING

NEVER RIDE THE VEHICLE WITH ADDED ACCESSORIES (CASE AND/OR WINDSHIELD) FASTER THAN 120 KM/H. WITHOUT THESE ACCESSORIES THE VEHICLE MAY BE DRIVEN AT A HIGHER SPEED WITHIN THE LEGAL LIMITS. IF

5 Spare parts and accessories

THERE ARE NOT-PIAGGO ACCESSORIES FITTED, OR AN ABNORMAL LOAD, OR IF THE VEHICLE IS NOT IN A GENERALLY GOOD CONDITION, OR WHENEVER WEATHER CONDITIONS DEMAND IT, SPEED SHOULD BE FURTHER REDUCED.

WARNING

BE EXTREMELY CAREFUL WHEN INSTALLING AND REMOVING THE MECHANICAL ANTITHEFT DEVICE ON THE VEHICLE (U-SHAPED PADLOCK, DISC BLOCK, ETC.).

MAINLY DUE TO THE PROXIMITY TO THE BRAKE PIPES, TRANSMISSIONS AND/OR ELECTRIC CABLES, AN INCORRECT INSTALLATION OR REMOVAL OF THE ANTITHEFT DEVICE AS WELL AS LEAVING IT ON BEFORE STARTING THE VEHICLE CAN SERIOUSLY DAMAGE ITS COMPONENTS AND AFFECT THE CORRECT FUNCTIONING OF THE VEHICLE AND HARM THE USER.

Fuoco 500ie

Chap. 06

Programmed

maintenance

EVERY 2 YEARS

Coolant - change Brake fluid - change Parking control unit software upgrading (if available)

AFTER 1,000 KM

Safety locks - check Throttle lever - adjustment Engine oil - change Electrical system and battery - check Coolant level - check Brake fluid level - check

Scheduled maintenance table

Adequate maintenance is fundamental to ensuring long-lasting, optimum operation and performance of your vehicle.

To this end, a series of checks and maintenance operations (at the owner's expense) have been suggested, which are included in the summary table on the following page. Any minor faults should be reported without delay to an Authorised Service Centre or Dealer without waiting until the next scheduled service to solve it.

All scheduled maintenance services must be carried out at the specified times, even if the stated mileage has not yet been reached. Carrying out scheduled services on time is necessary to ensure your warranty remains valid. For any further information concerning Warranty procedures and "Scheduled Maintenance", please refer to the "Warranty Booklet".

Engine oil - replacement

6 Programmed maintenance

Brake pads - check condition and wear Tyre pressure and wear - check Vehicle and brake test - road test Hub oil - change Steering - Check Parking control unit software upgrading (if available)

AFTER 5,000 KM; 25,000 KM; 35,000 KM; 55,000 KM;

65,000 KM

Engine oil - level check/ top-up Brake pads - check condition and wear Centre stand - lubrication Parking control unit software upgrading (if available)

AFTER 10,000 KM; 50,000 KM; 70,000 KM

Safety locks - check Driving belt - replacement Throttle lever - adjustment Air filter - clean Engine oil - change Electrical system and battery - check

Coolant level - check Brake fluid level - check Engine oil - replacement Brake pads - check condition and wear Sliding block / variable speed rollers - change Tyre pressure and wear - check Vehicle and brake test - road test Hub oil - check Suspensions - check Steering - Check Centre stand - lubrication Spark plugs - replacement Tilt locking gripper control cable - adjustment Parking control unit software upgrading (if available)

AFTER 15,000 KM; 45,000 KM; 75,000 KM

Engine oil - level check/ top-up Brake pads - check condition and wear Centre stand - lubrication Parking control unit software upgrading (if available)

AFTER 20,000 KM; 40,000 KM; 60,000 KM AND 80,000

6 Programmed maintenance

Spark plugs - replacement Driving belt - replacement Throttle lever - adjustment Air filter - check Engine oil - change Valve clearance - check Electrical system and battery - check Coolant level - check Engine oil - replacement Brake pads - check condition and wear Sliding block / variable speed rollers - change Tyre pressure and wear - check Vehicle and brake test - road test Hub oil - change Suspensions - check Steering - Check Centre stand - lubrication Brake fluid level - check Tilt locking gripper control cable - adjustment Parking control unit software upgrading (if available)

30,000 KM

Safety locks - check Driving Belt - replacement Throttle lever - adjustment Air filter - clean Engine oil - change Electrical system and battery - check Coolant level - check Brake fluid level - check Engine oil - replacement Hub oil - check Brake pads - check condition and wear Sliding block / variable speed rollers - change Tyre pressure and wear - check Vehicle and brake test - road test Suspensions - check Steering - Check Centre stand - lubrication Spark plugs - replacement Tilt locking gripper control cable - adjustment Parking control unit software upgrading (if available)

GILERA FUOCO User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
