Gigaset M270 T
Gigaset
Inhaltsverzeichnis
M270T/d
h/A31008
N1080
R10119W19/Gi
M270
TIVZf/3010
2007
Inhaltsverzeichnis
Zu Ihrer Sicherheit . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Hinweise zu Aufstellort und Betrieb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Ihre Set-Top Box Gigaset M 270 T . . . . . . . . . . . . . . . 3
Bedienelemente und funktionale Komponenten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Fernbedienung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Set-Top Box in Betrieb nehmen . . . . . . . . . . . . . . . . 6
Batterie in die Fernbedienung einlegen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Geräte anschließen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Bedienung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Set-Top Box einschalten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Bildschirmmenü bedienen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Erstinstallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Sendersuche . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TV-Betrieb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Antenne positionieren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Sender wählen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Lautstärke regeln . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Wiedergabeptionen auswählen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Elektronische Programmzeitschrift (EPG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Radio-Betrieb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Einstellungen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Spracheinstellungen auswählen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Allgemeine Einstellungen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Einblenddauer der Info-Box einstellen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Bildschirmformat einstellen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Videoausgangsformat einstellen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Werkseinstellungen wiederherstellen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Favoritenliste verwalten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Systeminformationen und Software-Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Anhang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Fehlerbehebung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Kundenservice (Customer Care) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Garantie-Urkunde . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
1
Zu Ihrer Sicherheit
M270T/d
h/A31008
N1080
R10119W19/S
f
Hi
f/30102007
Zu Ihrer Sicherheit
Die Set-Top Box Gigaset M 270 T dient ausschließlich dem Empfang und der Wiedergabe von DVB-T-Signalen. Für einen sicheren Gebrauch beachten Sie bitte die folgenden Hin­weise.
Sicherheitshinweise
u Verwenden Sie für den Anschluss des Geräts nur die mitgelieferten Kabel bzw. zuläs-
siges Zubehör, wie in dieser Anleitung angegeben.
u Schließen Sie das Gerät nicht während eines Gewitters an, um sich nicht der Gefahr
eines elektrischen Schlags auszusetzen.
u Sofern Sie eine Außenantenne verwenden, muss diese fachgerecht installiert und
gegen Blitzschlag gesichert sein.
u Schützen Sie das Gerät vor Nässe, aggressiven Flüssigkeiten und Dämpfen, um eine
Brandgefahr und die Gefahr eines elektrischen Schlags zu vermeiden. Benutzen Sie das Gerät nicht in Feuchträumen (z. B. Badezimmer) oder in explosionsgefährdeten Bereichen.
u Das Gerät und die Fernbedienung dürfen nur von autorisiertem Service-Personal
repariert werden. Öffnen Sie niemals das Gerät.
u Bewahren Sie diese Bedienungsanleitung gut auf und geben Sie das Gerät nur mit
der Anleitung und dem mitgelieferten Zubehör an Dritte weiter.
Alle Elektro- und Elektronikgeräte sind getrennt vom allgemeinen Hausmüll über dafür staatlich vorgesehene Stellen zu entsorgen. Wenn dieses Symbol eines durchgestrichenen Abfalleimers auf einem Pro­dukt angebracht ist, unterliegt dieses Produkt der europäischen Richtlinie 2002/96/EEC. Die sachgemäße Entsorgung und getrennte Sammlung von Altgeräten die­nen der Vorbeugung von potenziellen Umwelt- und Gesundheitsschäden. Sie sind eine Voraussetzung für die Wiederverwendung und das Recycling gebrauchter Elektro- und Elektronikgeräte. Ausführlichere Informationen zur Entsorgung Ihrer Altgeräte erhalten Sie bei Ihrer Kommune, Ihrem Müllentsorgungsdienst oder dem Fachhändler, bei dem Sie das Produkt erworben haben.
Hinweise zu Aufstellort und Betrieb
u Stellen Sie das Gerät auf eine ebene, rutschfeste Unterlage. Stellen Sie es nicht auf
eine hitzeempfindliche Oberfläche. Schützen Sie besonders sensible Oberflächen.
u Stellen Sie das Gerät entfernt von Wärmequellen auf und vermeiden Sie eine direkte
Sonneneinstrahlung.
u Legen Sie keine Gegenstände auf dem Gerät ab. Die Lüftungsöffnungen müssen zur
Luftzirkulation frei sein.
u Trennen Sie das Gerät vor der Reinigung vom Stromnetz.
Reinigen Sie das Gerät und die Fernbedienung mit einem weichen, trockenen Tuch.
2
Ihre Set-Top Box Gigaset M 270 T
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Ihre Set-Top Box Gigaset M 270 T
Mit Ihrer neuen Set-Top Box steht Ihnen die ganze Welt des Fernsehens offen - in Top­Qualität!
Diese Bedienungsanleitung hilft Ihnen, die umfangreichen Funktionen und Möglichkeiten Ihrer neuen Set-Top Box optimal zu nutzen.
Alle Möglichkeiten auf einen Blick:
u Separate Senderlisten für TV und Radio u Automatischer und manueller Sendersuchlauf u Schnelle Sendersuche u Direkte Eingabe der Frequenz u Software-Upgrade über Antennenempfang u Einfach bedienbare Elektronische Programmzeitschrift (EPG) u Bildschirmmenü / On Screen Display (OSD) u Hilfefunktionen u Einfach bedienbare, grafische Bedienoberfläche u Lautstärke-Regelung für analogen Tonausgang u Sehr kurze Umschaltzeiten u Videotextunterstützung über TV u Unterstützt 4:3, 4:3 Letterbox und 16:9 Videoformate u MPEG-2 digital und voll DVB kompatibel
Lieferumfang
Prüfen Sie den Packungsinhalt auf Vollständigkeit und evtl. Beschädigungen. Zum Lieferumfang gehören:
u 1 Set-Top Box u 1 Bedienungsanleitung u 1 Fernbedienung u 2 Batterien vom Typ AAA (R6) 1,5 V für die Fernbedienung u 1 SCART-Kabel u 1 Netzteil
3
Ihre Set-Top Box Gigaset M 270 T
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Bedienelemente und funktionale Komponenten
Vorderansicht
A B
A IR Sensor: empfängt die Infrarot-Signale von der Fernbedienung. B Power LED: zeigt den Betriebszustand Ihrer Set-Top Box an.
Grün blinkend: Das Gerät wird gestartet. Grün: Das Gerät ist eingeschaltet. Orange blinkend: Jede Operation mit der Fernbedienung wird bestätigt. Rot: Das Gerät ist in Standby-Betrieb. Aus: Das Gerät ist nicht an das Stromnetz angeschlossen oder ist
nicht betriebsbereit.

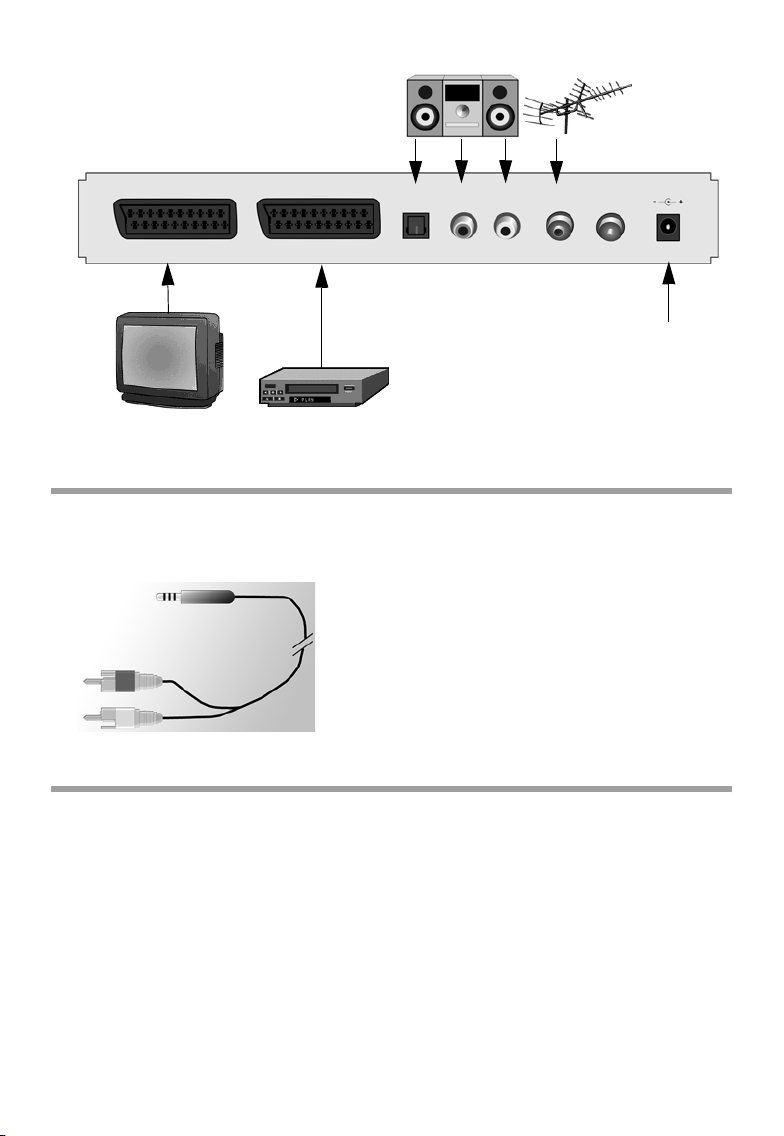

Rückansicht
ACEFGDB H
A TV: AV SCART-Anschluss, optimiert für den Fernsehanschluss B VCR: AV SCART-Anschluss, zum Beispiel für Videorekorder oder DVD-Gerät C S/PDIF: digitaler Audio-Ausgang (optisch) D Audio Out R: Analoger Stereokanal, rechts (Cinch, rot) E Audio Out L: Analoger Stereokanal, links (Cinch, weiß) F In: Koaxialer Antennenanschluss für die Verbindung zur Antenne G Out: Koaxialer Antennenanschluss, über den ein Fernseher oder eine weitere Set-
Top Box mit dem gleichen Antennensignal versorgt werden kann (loop through)
H 12 V DC: Anschluss für das mitgelieferte Netzteil
4
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Fernbedienung
Ihre Set-Top Box Gigaset M 270 T
Gerät ein- und ausschalten
A
Zwischen Fernseher und Radio wechseln
$
OSD (Bildschirmmenü) anzeigen
Info-Box einblenden; Hilfe zum Bildschirmmenü
%
einblenden
Auswahlmenü anzeigen (z.B. für Ton-Auswahl)
O
EPG (Electronic Programme Guide, elektronische
E
Programmzeitschrift) öffnen
Vorgang abbrechen; Menü verlassen
!
Auswahl bestätigen
o
Fernsehen: Senderliste anzeigen Bildschirmmenü: Navigieren und Menüeinträge
v
auswählen EPG: Wochentag auswählen (rechts/links); voriges/
nächstes Programm wählen (oben/unten)
Farbtasten
EPG: rot: keine Funktion
gelb: Auswahlmenü einblenden Im Videotext navigieren (Videotext eingeblendet)
Videotext einblenden/Videotext ausblenden
Lautstärke: erhöhen/verringern
ˆ
Sender: Nächster/voriger Sender
ˆ
Ziffern: Text und Zahlen eingeben; Sender wählen
#
Senderliste: zurück/vor wechseln zwischen den
letzten zwei Sendern Zwischen Senderliste und Favoriten wechseln Ton stummschalten; erneutes Drücken schaltet den
ƒ
Ton wieder ein
grün: Audioausgang wählen (Mono, Stereo) blau: Uhrzeit einblenden
5
Set-Top Box in Betrieb nehmen
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Set-Top Box in Betrieb nehmen
Hinweis: In dieser Bedienungsanleitung werden die Schritte, die Sie ausführen
müssen, verkürzt dargestellt. Zum Beispiel:
> Programmsuchlauf > Automatischer Suchlauf ist das Gleiche wie:
1. Drücken Sie auf die Taste
2. Markieren Sie mit den Pfeiltasten
3. Drücken Sie auf die Taste
4. Markieren Sie mit den Pfeiltasten
5. Drücken Sie auf die Taste
Batterie in die Fernbedienung einlegen
ì Legen Sie die Batterien so ein, wie am Boden des Batteriefachs dargestellt. Beachten
Sie die Polarität.
Geräte anschließen
Achtung: Achten Sie darauf, dass alle Geräte ausgeschaltet sind, bevor Sie sie
anschließen. Stecken Sie das Netzteil erst ganz am Schluss, wenn alle anderen Anschlüsse hergestellt sind, in die Steckdose. Sie vermeiden dadurch mögliche Schäden.
, um das Bildschirmmenü anzuzeigen.
v den Eintrag Programmsuchlauf.
o um Ihre Auswahl zu bestätigen.
v den Eintrag Automatischer Suchlauf.
o um Ihre Auswahl zu bestätigen.
Antenne anschließen
ì Verbinden Sie die Antennenbuchse Ihrer Set-Top Box über ein Koaxialkabel mit Ihrer
Zimmerantenne oder der Antennenanlage Ihres Hauses. Dieses Kabel gehört nicht zum Lieferumfang.
Fernseher anschließen
Mit dem SCART-Kabel verbinden Sie Set-Top Box und Fernseher.
1. Stecken Sie das SCART-Kabel in die Set-Top Box.
2. Stecken Sie das andere Ende des SCART-Kabels in den SCART-Eingang Ihres Fernsehers oder Ihres Videogeräts.
Hinweis: Wenn Sie neben digitalen auch analoge Sender empfangen wollen, muss das analoge Signal dieser Sender durchgeschleift werden. Verbinden Sie dazu mit einem Koaxialkabel die Set-Top Box mit dem Antenneneingang Ihres Fernsehers.
Achtung: Verwenden Sie auf keinen Fall den Dekoder-Eingang den es an einigen Fernsehern gibt. Lesen Sie hierzu die Bedienungsanleitung Ihres Fernsehers.
6
Set-Top Box in Betrieb nehmen
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Stereoanlage
Antenne
SPDIF
SCART
SCART
Netz­anschluss
Fernseher
VCR / DVD
Stereoanlage anschließen
1. Schließen Sie ein Stereo-Cinch-Kabel (Rot für rechts, Weiß für Links) an den analogen Audio-Ausgang an.
2. Verbinden Sie die Cinch-Stecker (Rot für rechts, Weiß für Links) mit dem Toneingang Ihrer Stereoanlage.
Netzkabel anschließen
Achtung: Schließen Sie das Gerät nur an eine vorschriftsmäßig installierte 230 V ~ 50
Hz Steckdose an, die entsprechend abgesichert ist. Schalten Sie das Gerät erst ein, nachdem die Verbindungen mit der Antenne und dem
SCART-Kabel hergestellt wurden.
Verbinden Sie Set-Top Box und Steckdose mit dem Netzteil.
1. Stecken Sie das Netzkabel in die Netzanschlussbuchse der Set-Top Box.
2. Stecken Sie das Netzteil in eine Steckdose.
7
Bedienung
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Bedienung
Set-Top Box einschalten
Sobald Sie das Netzteil der Set-Top Box in eine Steckdose gesteckt haben, schaltet sich die Set-Top Box ein und die LED der Gehäusevorderseite leuchtet grün.
Hinweis: Wenn die LED rot leuchtet, schalten Sie das Gerät mit Fernbedienung ein.
Schalten Sie alle an die Set-Top Box angeschlossen Geräte ein. Wechseln Sie an Ihrem Fernseher auf den AV-Kanal oder auf den Eingang, an dem Sie die Set-Top Box angeschlossen haben.
Hinweis: Weitere Informationen finden Sie in der Gebrauchsanleitung Ihres Fernsehers.
Bildschirmmenü bedienen
Über das Bildschirmmenü nehmen Sie Einstellungen vor; das Bildschirmmenü bedienen Sie mit der Fernbedienung.
Hinweis: Beachten Sie auch die auf dem Bildschirm angezeigten Informationen und Meldungen.
So bedienen Sie das Bildschirmmenü:
Navigation im Bildschirmmenü und Auswahl von Menüeinträgen. Der
v
ausgewählte Eintrag ist farbig eingerahmt.
Auswahl bestätigen. Der ausgewählte Eintrag wird aufgerufen oder ausgeführt.
o
Aauf der
Bildschirmmenü ausblenden oder aktivierter Menüpunkt verlassen.
!
Die rote, die grüne, die gelbe und die blaue Taste auf der Fernbedienung
haben unterschiedliche Funktionen. Diese sind abhängig von dem Menü, in dem Sie sich befinden.
Ist im Bildschirmmenü eine Taste rot, grün, gelb oder blau dargestellt, wird die entsprechende Funktion durch Druck auf die gleichfarbige Taste der Fernbedienung ausgelöst.
Erstinstallation
Das Erstinstallationsmenü erscheint beim ersten Einschalten oder nach Zurücksetzen auf Werkseinstellungen und hilft Ihnen beim Einrichten Ihrer Set-Top Box.
1. Wählen Sie die gewünschte Menüsprache und bestätigen Sie Ihre Auswahl.
2. Wählen Sie das gewünschte Land, Bildschirmformat und den Video-Ausgang TV. Gehen Sie zu Übernehmen und bestätigen Sie Ihre Auswahl.
3. Wählen Sie die gewünschten Frequenzen und Sender. Gehen Sie zu Suchlauf starten und bestätigen Sie Ihre Auswahl. Im Anschluss führt das Gerät einen automatischen Sendersuchlauf aus.
8
Bedienung
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
4. Folgen Sie den Anweisungen auf dem Bildschirm, bis die Erstinstallation abgeschlossen ist für den automatischen Sendersuchlauf. Ihre Set-Top Box wechselt dann automatisch in den Fernsehbetrieb.
Sendersuche
Zu Beginn empfehlen wir den automatischen Suchlauf zu starten, da in diesem Suchlauf normalerweise alle Sender automatisch gefunden werden. Der manuelle Sendersuchlauf erlaubt es Ihnen, gezielt nach einem einzelnen Sender zu suchen. Dies ist vor allem dann sinnvoll, wenn Sie nur einen einzelnen Sender in Ihre Senderliste aufnehmen möchten und Ihnen die Informationen über Kanal und Frequenz bekannt sind.
Während des Suchlaufs werden die bereits gefundenen Sender in einer Liste eingetragen und zwei Anzeigen informieren Sie über Signalpegel und Qualität.
Sie können den Suchlauf durch Drücken von
! abbrechen.
Automatische Sendersuche
> Programmsuchlauf > Automatischer Suchlauf
Hinweis: Ändern Sie die Werte für den Suchlauf nur, wenn dies wirklich erforderlich ist, da der automatische Suchlauf mit den voreingestellten Werten in der Regel alle Sender findet.
1. Wählen Sie, nach welchen Sendern Sie suchen möchten (empfohlen: Alle).
Hinweis: Wir empfehlen Ihnen grundsätzlich stets nach allen Sendern zu suchen und die voreingestellten Werte nicht zu ändern.
2. Wählen Sie Suchlauf starten und bestätigen Sie Ihre Auswahl. Nach Beendigung des Sendersuchlaufs erscheint ein Dialog, der Sie auf den
abgeschlossenen Suchlauf hinweist.
3. Legen Sie fest, ob die neu gefundenen Sender zur aktuellen Senderliste hinzugefügt, die aktuelle Liste ersetzt, oder das Ergebnis des Suchlaufs verworfen werden soll. Bestätigen Sie Ihre Auswahl.
4. Drücken Sie ein Mal auf Übersichtsmenü zurückzukehren. Weiteres Drücken auf Bildschirmmenü aus.
Hinweis: Wurden keine Sender gefunden, prüfen Sie, ob das Antennenkabel korrekt angeschlossen ist.
! um das Suchlaufmenü zu verlassen und zum
! blendet das
Manuelle Sendersuche
> Programmsuchlauf > Expertensuchlauf
1. Nehmen Sie alle erforderlichen Einstellungen vor. Die Frequenz können Sie mit den Ziffern-Tasten eingeben. Außerdem können Sie über Zu suchende Programme eine Vorauswahl treffen, nach welchen Sendern überhaupt gesucht werden soll, z. B. Nur frei empfangbare.
9
TV-Betrieb
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
2. Wählen Sie anschließend Suchlauf starten und bestätigen Sie Ihre Auswahl. Nach Beendigung des Sendersuchlaufs erscheint ein Dialog, der Sie auf den
abgeschlossenen Suchlauf hinweist.
3. Legen Sie fest, ob die neu gefundenen Sender zur aktuellen Senderliste hinzugefügt, die aktuelle Liste ersetzt, oder das Ergebnis des Suchlaufs verworfen werden soll. Bestätigen Sie Ihre Auswahl.
4. Drücken Sie ein Mal auf Übersichtsmenü zurückzukehren. Weiteres Drücken auf Bildschirmmenü aus.
! um das Suchlaufmenü zu verlassen und zum
! blendet das
TV-Betrieb
Antenne positionieren
In der Regel hat eine Antenne, die in der Nähe eines Fensters positioniert ist, die besten Empfangsmöglichkeiten. Finden Sie die optimale Position für Ihre Antenne:
> Technische Informationen > Programminformation
Die Programminformationen des aktuellen Senders werden angezeigt.
1. Verändern Sie die Position der Antenne so lange, bis der Dialog Signalqualität den maximal möglichen Wert erreicht (100%) oder zumindest einen annähernd hohen Wert anzeigt.
Hinweis: Beachten Sie, dass je nach Antennentyp auch die Ausrichtung der Antenne eine Rolle spielen kann. In diesem Fall schwenken Sie zusätzlich die Antenne, um festzustellen, ob dies einen Einfluss auf die Signalqualität hat. Informieren Sie sich in der Bedienungsanleitung Ihrer Antenne, ob es sich um ein Gerät mit Rundstrahlcharakteristik handelt.
1. Schalten Sie anschließend mit den Sendertasten und korrigieren Sie bei Bedarf die Position der Antenne.
2. Wenn Sie mit der eingestellten Empfangsqualität zufrieden sind, drücken Sie auf um die Senderinformationen auszublenden und den Vorgang abzuschließen.
ˆ auf verschiedene Sender um
!
Sender wählen
Allgemeine Bedienung
wechseln zwischen nächsten/vorigen Sender
ˆ
Direkte Eingabe der Speicherplatznummer eines Senders, um zu einem
#
bestimmten Sender zu springen. Abschließen von Nummern mit weniger als vier Ziffern. Beispiel: Wechseln zu
o
Sender 45 mit
Bei Senderwechsel wird am unteren Bildschirmrand eine Info-Box eingeblendet.
10
4 5 o .
TV-Betrieb
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Listen und Zapping-Taste nutzen
Eine andere Möglichkeit, ein Sender aufzurufen, ist die Sender- oder die Favoritenliste. Sie können eine Favoritenliste erstellen, um sich die Speicherplatznummern leichter merken zu können, da Sie in dieser Liste die Speicherplatznummern selbst bestimmen können.
Bestimmter Sender: Die Senderliste wird angezgeigt und der aktuelle Sender ist
o
farbig markiert. In Senderliste: Wechseln zwischen der ganzen Senderliste und der Favoritenliste.
Bestimmter Sender: Wechseln vom aktuellem zum zuletzt aufgerufenen Sender und umgekehrt.
Programminformation aufrufen
Bei Senderwechsel wird am unteren Bildschirmrand kurz eine Info-Box eingeblendet. Die Info-Box zeigt an:
u die gewählte Speicherplatznummer und den Sendername. u am linken Rand der Info-Box die Uhrzeit. Der Balken rechts neben der Uhrzeit gibt
grafisch die bereits verstrichene Dauer der Sendung an.
u die aktuelle und die nachfolgende Sendung mit Sendezeit.
Nach einigen Sekunden wird die Info-Box automatisch wieder ausgeblendet. Die Einblenddauer der Info-Box können Sie selbst bestimmen, siehe Seite 15.
Info-Box anzeigen (ohne Senderwechsel).
%
Während die Info-Box eingeblendet ist: Die erweiterte Info-Box aufrufen. In der erweiterten Info-Box werden nähere Details zur aktuellen Sendung gegeben.
Wiederholtes Drücken: Wechseln zwischen den Informationen zur aktuellen und folgenden Sendung.
Schließen der Info-Box.
!
Lautstärke regeln
Zusätzlich zur Lautstärkeregelung Ihres Fernsehers oder Ihrer Stereoanlage können Sie die Lautstärke auch über Ihre Set-Top Box einstellen.
erhöhen/verringern der Lautstärke. Die eingestellte Lautstärke wird als grafischer
ˆ
Balken eingeblendet. Ton ganz ausschalten. Erneutes Drücken stellt den Ton wieder an mit vorheriger
ƒ
Lautstärke.
Wiedergabeptionen auswählen
Einige Sender stellen Ihnen gelegentlich mehrere Kameraperspektiven, Tonspuren und/ oder Videotexte zur Auswahl. Stehen bei einem Programm eine oder mehrere dieser
11
TV-Betrieb
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Optionen zur Verfügung, wird beim Aufrufen des Programms in der rechten Ecke der Info-Box das Option-Symbol angezeigt.
Das bedeutet, dass entweder eine Bild-, eine Ton- oder eine Videotextauswahl oder mehrere Auswahlmöglichkeiten zugleich zur Verfügung stehen.
1. Rufen Sie den gewünschten Sender auf.
O zeigt das Auswahlmenü an.
2.
3. Wählen Sie die gewünschte Option (Perspektive, Tonspur oder Videotext) aus bestätigen Sie Ihre Auswahl. Die gewählte Option wird aufgerufen.
Hinweis: Es ist möglich, dass z. B. Bild- und Tonauswahl zur Verfügung stehen. In diesem Fall müssen Sie
O mehrmals drücken, um zur Tonauswahl zu gelangen.
Elektronische Programmzeitschrift (EPG)
Die Elektronische Programmzeitschrift (Electronic Programm Guide, EPG) bietet Ihnen eine Übersicht aller Sendungen, die in den nächsten Tagen auf dem aktuellen Sender ausgestrahlt werden.
Hinweis:
Nicht alle Sender bieten eine umfassende elektronische Programmzeitschrift. Viele Sendeanstalten senden das aktuelle Tagesprogramm, bieten jedoch keine
detaillierten Beschreibungen. Es gibt auch Sendeanstalten, die keinerlei EPG-Informationen anbieten. Bedingt durch die fortschreitende technische Entwicklung werden jedoch in Zukunft
immer mehr Sender dieses Angebot erweitern.
E ˆ v
% / o !
12
Öffnen Sie die Programmvorschau.
Sender wechseln
Rechts oder links: Beliebigen Wochentag wählen. Hoch und runter: Vorige oder nächste Sendung. Die Programmvorschau
wechselt automatisch zum nächsten Tag, wenn Sie in der aktuellen Liste weit genug nach unten blättern. Den Farbtasten sind bestimmte Tageszeiten zugeordnet:
Rote Taste: vormittag (ab 6:00 Uhr) Grüne Taste: nachmittag (ab 12:00 Uhr) Gelbe Taste: abend (ab 18:00 Uhr) Hinweis: Mit der blauen Taste können Sie eine Timer-Programmierung
vornehmen, siehe Seite 13. In einem weiteren Dialog wird Ihnen eine Zusammenfassung der Sendung angezeigt. Bei besonders langen Texten nutzen Sie die Pfeil-Tasten hoch und runter um im Text weiterzublättern.
Beendet die Programmvorschau.
TV-Betrieb
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Timer
Mit Setzen eines Timers können Sie Ihre Set-Top Box zu bestimmten Zeiten ein- und ausschalten, um sich beispielsweise eine ausgewählte Sendung anzusehen. Das Gerät schaltet sich dann automatisch im Standby-Betrieb ein.
Ist das Gerät bereits eingeschaltet, schaltet das Gerät automatisch zu dem ausgewählten Sender um.
Sendungen zu Timer-Liste hinzufügen
Die Timer-Funktion ist über das EPG in der Timer-Liste integriert.
1. Drücken Sie auf
2. Markieren Sie die gewünschte Sendung.
3. Drücken Sie auf
Das Fenster wird geschlossen und die ausgewählte Sendung ist in der Timer-Liste gespeichert.
Hinweis: Im EPG erkennen Sie Timer-Sendungen daran, dass ein kleines Weckersymbol neben dem Namen der Sendung angezeigt wird.
E. g und bestätigen Sie.
Timer-Liste bearbeiten
> Timer
Sendungen löschen
1. Wählen Sie in der Timer-Liste die gewünschten Sendungen aus.
2. Drücken Sie auf die entsprechende Farbtaste und bestätigen Sie das Löschen:
rot: löscht die ausgewählte Sendung gelb: löscht alle Sendungen.
Timer bearbeiten
1. Wählen Sie in der Timer-Liste die gewünschte Sendung aus und bestätigen Sie Ihre Auswahl.
2. Verändern Sie die angezeigten Einstellungen für Datum, Zeit (Start- und Endzeit), Turnus (interessant bei Serien und regelmäßig wiederkehrenden Sendungen): Wählen Sie wiederholt eine Option und ändern Sie sie mit den numerischen Tasten.
3. Markieren Sie abschließend OK neben Übernehmen und bestätigen Sie Ihre Einstellungen.
Laufende Timer-Funktionen ausschalten
Während Sie eine Timer-Sendung sehen, stehen Ihnen nur einige Tasten zur Verfügung,
ˆ Lautstärkeregelung, O und ƒ. Das Bildschirmmenü steht während dieser
z. B. Zeit ebenfalls nicht zur Verfügung.
13
Einstellungen
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Um die laufenden Timer-Funktionen auszuschalten:
ì Drücken Sie auf A Ihrer Fernbedienung und drücken Sie nochmals auf diese Taste.
Radio-Betrieb
Ihre Set-Top Box kann über den Antennenanschluss auch Radiosender empfangen. Diese wurden beim Sendersuchlauf automatisch in einer separaten Liste gespeichert. Während des Radio-Betriebs haben alle Fernbedienungstasten dieselbe Funktion wie beim Fernsehbetrieb.
Um zum Radio-Betrieb zu wechseln, gehen Sie wie folgt vor:
ì Drücken Sie auf $ um zum Radio-Betrieb zu schalten. ì Drücken Sie nochmals auf $ um zum Fernseh-Betrieb zurückzuschalten.
Hinweis: Es werden derzeit nicht in allen Sendegebieten Radiosender ausgestrahlt.
Einstellungen
Spracheinstellungen auswählen
In diesem Menü haben Sie Möglichkeit, eine Vielzahl unterschiedlicher Spracheinstellungen vorzunehmen. Die Auswahl von Audiosprache und Untertitel steht nur dann zur Verfügung, wenn die Sendung in mehr als einer Sprache ausgestrahlt wird.
> Einstellungen > Sprache
ì Machen Sie Ihre Einstellungen wie gewünscht mit Hilfe der Pfeiltasten.
Menüsprache:
Audiosprache:
Zweite Audiosprache:
Untertitelsprache:
Untertitel automatisch:
ì Drücken Sie auf ! um das Menü zu verlassen.
Stellen Sie ein, in welcher Sprache das Bildschirmmenü angezeigt wird. Es stehen zahlreiche Sprachen zur Verfügung, z. B. Englisch, Französisch, Spanisch.
Wählen Sie die Sprache aus, in der Sendungen wiedergegeben werden.
Wählen Sie eine optionale Sprache aus, in der Sendungen wiedergegeben werden.
Hinweis: Sollte Ihre gewünschte Sendung nicht in der unter
Audiosprache eingestellten Sprache ausgestrahlt werden, wird automatisch die Zweite Audiosprache verwendet.
Wählen Sie die Sprache, in der Untertitel ausgestrahlt werden. Die Vorgehensweise für die Wahl einer ersten und einer zweiten
Untertitelsprache ist gleich wie bei der Wahl der ersten und zweiten Audiosprache.
Stellen Sie diese Option auf Ein, wenn Sie möchten, dass in der gewählten Untertitelsprache ausgestrahlte Untertitel automatisch eingeblendet werden sollen (Standard: Aus).
14
Einstellungen
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Allgemeine Einstellungen
Im Dialog Allgemeines können Sie Einstellungen für Uhrzeit und Audio-Ausgabeformat vornehmen. Dabei kann die Uhrzeit der Set-Top Box automatisch oder von Hand aktualisiert werden.
> Einstellungen > Allgemeines
1. Wählen Sie die Zeitumstellung von Winterzeit auf Sommerzeit bzw. umgekehrt: – Wählen Sie über Zeitzone einstellen die Einstellung Automatisch, damit die
Set-Top Box die Zeit-Information über den aktuell gewählten Sender bezieht. Oder:
– Stellen Sie die Option Zeitzone einstellen auf Manuell ein, für Sommerzeit (wie
angebracht) An oder Aus und bestimmen Sie dann über Zeitzone (GMT) den Versatz zur Greenwich Mean Time (GMT). In Mitteleuropa beträgt der Versatz plus 1 Stunde (+01:00).
2. Stellen Sie das gewünschte Audio-Ausgabeformat ein (interessant, wenn Sie eine Stereo-Anlage an die Set-Top Box angeschlossen haben).
3. Drücken Sie auf
! um das Menü zu verlassen.
Einblenddauer der Info-Box einstellen
Sie können einstellen, nach welcher Zeit die Info-Box, siehe Seite 11, wieder ausgeblendet werden soll.
> Einstellungen > Menü-Einstellungen > Infobanner-Einblenddauer
1. Wählen Sie die gewünschte Verzögerungszeit für die Infobanner-Einblenddauer aus, nach der die Info-Box automatisch wieder ausgeblendet wird:
Permanent: verhindert das automatische Ausblenden der Info-Box. – Keine: verhindert die automatische Anzeige der Info-Box bei Senderwechsel.
2. Drücken Sie auf
! um das Menü zu verlassen.
Bildschirmformat einstellen
Da das Bildschirmformat z. B. bei Kinofilmen und normalen Serien variiert, können Sie im Einstellungen-Menü ein passendes Bildschirmformat für die aktuelle Sendung wählen.
Folgende Formate stehen zur Auswahl:
16:9-Format: Stellt Kinofilme auf einem 16:9-Fernseher in voller Größe
dar.
15
Einstellungen
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
4:3-Format Breitbild (Letterbox): Verkleinert Filme, die im 16:9-Format dargestellt werden, für 4:3-Fernseher maßstabsgetreu und setzt dafür oben und unten einen schwarzen Balken ein.
4:3-Format CCO/Pan Scan (vergrößert): Stellt Filme im 16:9-Format Bildschirmfüllend dar. Bei 4:3­Fernsehern wird der linke und der rechte Bildrand abgeschnitten.
4:3 (Letterbox 14:9): Verkleinert Filme, die im 16:9-Format dargestellt werden, für 4:3-Fernseher maßstabsgetreu und setzt oben und unten einen schwarzen Balken ein. Zusätzlich wird der linke und rechte Bildschirmrand geringfügig abgeschnitten.
> Einstellungen > Bildeinstellungen > Bildschirmformat
1. Wählen Sie das Bildschirmformat.
2. Drücken Sie auf ! um das Menü zu verlassen.
Videoausgangsformat einstellen
Im Einstellungen-Menü nehmen Sie u. a. die Einstellung für den Videoausgang vor. Beachten Sie:
u Für den Video-Ausgang TV stehen die Formate RGB, Video und S-Video zur
Verfügung.
u Für den Video-Ausgang VCR (Videorekorderausgang) stehen lediglich Video und
S-Video zur Auswahl.
u Bei RGB-Einstellung am TV-Ausgang ist für den VCR-Ausgang nur die Option Video
verfügbar.
Hinweis: Wenn Sie nicht wissen, welches Format Ihr Fernseher unterstützt, probieren Sie einfach aus, bei welcher Einstellung Ihr Fernseher das beste Bild anzeigt.
> Einstellungen > Bildeinstellungen > Video-Ausgang TV / Video-Ausgang VCR
1. Wählen Sie das Videoformat mit der besten Bildwiedergabe. Unter Video-Ausgang VCR können Sie das Bildformat für einen angeschlossenen Videorekorder einstellen.
2. Drücken Sie auf
! um das Menü zu verlassen.
Werkseinstellungen wiederherstellen
Sie können das Gerät auf die Werkseinstellungen zurücksetzen. Dabei wird die individuell zusammengestellte Favoritenliste gelöscht.
> Einstellungen > Werkseinstellung abrufen
ì In dem angezeigten Dialog wählen Sie mit den Pfeiltasten Ja und bestätigen Sie die
Wiederherstellung der Werkseinstellungen.
Das Gerät führt einen Neustart durch. Es schaltet sich aus und kurz darauf wieder ein.
16
Einstellungen
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Favoritenliste verwalten
Nach dem Sendersuchlauf werden die gefundenen Sender in einer allgemeinen Senderliste gespeichert. Die Reihenfolge, in der die Sender in dieser Liste gespeichert sind, ist fest.
Hinweis: Wenn es in dem bei den in den Einstellungen gewählten Land Sender mit vorgegebener Speicherplatznummer gibt, werden diese auf fest vordefinierten Speicherplätzen abgegelegt. Zwischen diesen Speicherplätzen können Lücken entstehen. Dieses Verfahren nennt sich Logic Channel Numbering (LCN). Alle weiteren Sender werden hinter dem letzten gefundenen LCN-Sender aufgelistet.
Sender als Favorit festlegen
Mit Hilfe der Favoritenliste können Sie Ihre Lieblingssender in beliebiger Reihenfolge anordnen und entsprechend mit der Fernbedienung aufrufen.
Hinweis: Hier können auch die LCN-Sender (falls vorhanden), in die Favoritenliste aufgenommen werden und an einen beliebigen Platz innerhalb der Liste abgelegt werden. Dadurch können innerhalb der Favoritenliste Lücken vermieden werden. Innerhalb der vollständigen Senderliste können Lücken zwischen LCN-Sendern nicht vermieden werden.
> TV-Programme sortieren (durch ein Listen-Symbol am linken Bildschirmrand
dargestellt) Das Menü TV-Programme sortieren wird angezeigt. In der Liste werden alle
gefundenen Sender dargestellt, wobei Ihre Favoriten mit einem Stern (*) gekennzeichnet sind.
Hinweis: Wenn die Favoritenliste sehr lang ist, können Sie sie mit der Filter-Funktion übersichtlicher strukturieren, siehe Seite 18.
1. Wählen Sie den Sender, den Sie als Favoriten kennzeichnen wollen und bestätigen Sie Ihre Auswahl.
2. Widerholen Sie den zuletzt beschriebenen Schritt, um weitere Sender in die Favoritenliste einzufügen.
3. Drücken Sie auf
4. Sie werden gefragt, ob Sie die gemachten Änderungen speichern möchten. Bestätigen Sie dies.
! um den Dialog zu schließen.
Senderliste bearbeiten
Die Senderliste kann Ihnen u. U. zu unübersichtlich sein oder auch Sender enthalten, die Sie nicht interessieren. Über das Hauptmenü bearbeiten Sie die Senderliste.
> TV-Programme sortieren
1. Drücken Sie auf
2. Nehmen Sie die gewünschten Einstellungen vor.
3. Drücken Sie auf ! um den Dialog zu schließen.
4. Sie werden gefragt, ob Sie die gemachten Änderungen speichern möchten. Bestätigen Sie dies.
um zwischen Senderliste und Favoritenliste zu wechseln.
17
Einstellungen
M270T/d
h/A31008
N1080
R10119W19/d
i
i
f/30102007
Sender verschieben
Sie können die Reihenfolge der Sender in der Favoritenliste anpassen.
1. Drücken Sie auf
2. Markieren Sie den Sender, den Sie verschieben möchten und bestätigen Sie Ihre Auswahl.
Der Sendername wird eingerückt.
3. Verschieben Sie den markierten Sender an die gewünschte Position und bestätigen Sie, um den Sender an der gewünschten Position abzuspeichern.
4. Drücken Sie auf
Sender filtern
Mit Hilfe dieser Funktion können Sie die Senderliste nach gewünschten Kriterien darstellen.
Hinweis: Ein Filter ist nicht dauerhaft und wird nicht gespeichert. Sobald Sie den Dialog
TV-Programme sortieren schließen, werden die gemachten Filter-Einstellungen verworfen.
1. Drücken Sie auf
2. Wählen Sie, welche Sender angezeigt werden sollen.
3. Bestimmen Sie über Sortierung die Art der Sortierung (nach Nummer oder nach alphabetischer Reihenfolge) und bestätigen Sie Ihre Auswahl.
Hinweis: Beachten Sie die jeweiligen Informationen am unteren Ende des Fensters. Sie helfen Ihnen, die richtigen Einstellungen vorzunehmen.
um zur Favoritenliste zu wechseln.
! und bestätigen Sie die nachfolgende Abfrage.
b um die Filterfunktion aufzurufen.
Sender löschen
Aus der gesamten Senderliste können Sie keine Sender löschen. Haben Sie Sender aus der Favoritenliste gelöscht, bleiben diese in der gesamten Senderliste gespeichert.
1. Markieren Sie den Sender, den Sie löschen möchten.
2. Drücken Sie auf Drücken auf
3. Verlassen Sie die Favoritenliste mit
i wenn Sie lediglich den ausgewählten Sender löschen möchten.
b bewirkt Löschen aller Favoriten.
! und bestätigen Sie Ihre Änderungen.
Systeminformationen und Software-Update
Die Systeminformationen sind vor allem im Support-Fall interessant. Außerdem können Sie manuell nach einem neuen Software-Update für Ihre Set-Top Box suchen.
> Technische Informationen > Systeminformation
1. Ein Dialog wird angezeigt. Wählen Sie Software-Aktualisierung und bestätigen Sie, um die Suche nach einem neuen Software-Update zu starten.
2. Drücken Sie auf
18
! um das Menü zu verlassen.
Anhang
M270T/d
h/A31008
N1080
R10119W19
/
dif/3010
2007
Anhang
Fehlerbehebung
Bei allen elektronischen Geräten können Fehler auftreten. Dabei muss es sich jedoch nicht immer um einen Defekt handeln. Oft liegt die Ursache an mangelhaften Zuleitungen, Steckverbindungen oder an Fehlern beim Anschluss.
Bevor Sie fachmännische Hilfe in Anspruch nehmen, prüfen Sie bitte die folgenden Punkte:
Problem Mögliche Ursache Abhilfen
Gerät startet nicht Keine Netzspannung (keine
LED-Anzeige)
Kein Bild, kein Ton Keine Netzspannung Anschlusskabel und
Keine oder falsche Senderliste Automatische Sendersuche
Verlorener Anschluss Anschluss prüfen Kein oder schlechtes Bild
Ton vorhanden, kein Bild
Kein Empfang von Sendern, die vorher empfangen werden konnten Fernbedienung reagiert nicht
SCART-Stecker nicht komplett
angeschlossen
Antenne schlecht postioniert Antenne neu positionieren,
Antenne zu klein Größere Antenne nutzen
Sender wird mit anderen
Parametern übertragen
Sender wird mit anderen
Parametern übertragen
SCART-Stecker nicht komplett
angeschlossen
Gerät ist in Radio-Betrieb Zu Fernseh-Betrieb wechseln
Sender wird nicht mehr
ausgestrahlt
Hindernis zwischen
Fernbedienung und Set-Top
Box
Defekter Datenstrom, Gerät
blockiert
Batterien verbraucht Alte Batterien der
Anschlusskabel und Steckernetzteil prüfen
Steckernetzteil prüfen
ausführen
SCART-Verbindung prüfen
(siehe S. 10)
Automatische Sendersuche ausführen (siehe S. 9)
Automatische Sendersuche ausführen (siehe S. 9) SCART-Verbindung prüfen
mit
$
Keine
Hindernis beseitigen
Steckernetzteil ziehen, nach 10 Sek. Verbindung wieder herstellen
Fernbedienung gegen neue austauschen
19
Anhang
M270T/d
h/A31008
N1080
R10119W19
/
dif/3010
2007
Problem Mögliche Ursache Abhilfen
Einige Sender werden von Zeit zu
Diese Sender übertragen nicht 24 Stunden täglich und sind
manchmal nicht verfügbar. Dies ist kein Fehler. Zeit nicht empfangen Gerät kann nicht bedient werden
Hindernis zwischen
Fernbedienung und Set-Top
Hindernis beseitigen
Box Schlechte Bildqualität Falsches TV SCART-
Ausgangssignal
Anderes Videoausgangsformat wählen (siehe S. 16)
Weitere Problemlösungen und FAQs (Frequently Asked Questions, häufig gestellte Fragen) finden Sie im Internet unter http://www.siemens.com/gigaset
.
Technische Daten
Modell: Gigaset M 270 T TV: 1 DVB-T Tuner RF: INPUT: 1 Buchse (IEC)
OUTPUT (loop through): 1 Buchse (IEC)
SCART: 2 Euro AV Buchsen:
TV (OUT): CVBS, RGB, YC
VCR (OUT): CVBS, RGB, YC Cinch: 1 ANALOG OUT (AUDIO R/L) SPDIF (optisch): 1 Audio digital (Dolby Digital, AC3, PCM stereo) LED Display Power ein/aus/standby, RCU Aktivität Gerätekonfiguration: über TV-Menü Versorgungsspannung: 230 V AC / 50 Hz bis 12 V DC Stromverbrauch: weniger als 10 Watt Zulässige Umgebungstemperatur: 5 °C bis 40 °C Abmessungen: ca. 250 x 140 x 32 mm Gewicht: ca. 1,0 kg
20
Anhang
M270T/d
h/A31008
N1080
R10119W19
/
dif/3010
2007
Zulassung
Die Übereinstimmung des Gerätes mit den einschlägigen harmonisierten Normen der LV-Directive 2006/95/EC und der EMC-Directive 2004/108/EC ist durch das CE-Zeichen bestätigt.
Eine Kopie der Konformitätserklärung finden Sie über folgende Internetadresse: www.siemens.com/gigasetdocs
Kundenservice (Customer Care)
Wir bieten Ihnen schnelle und individuelle Beratung! Unser Online-Support im Internet ist immer und überall erreichbar: http://www.siemens.com/gigasetcustomercare Sie erhalten 24 Stunden Unterstützung rund um unsere Produkte. Sie finden dort eine
Zusammenstellung der am häufigsten gestellten Fragen und Antworten sowie Bedie­nungsanleitungen und aktuelle Software-Updates (wenn für das Produkt verfügbar) zum Download.
Häufig gestellte Fragen und Antworten finden Sie auch im Anhang in dieser Bedie­nungsanleitung.
Persönliche Beratung zu unserem Angebot erhalten Sie bei der Premium-Hotline:
Deutschland 09001 745 820 (1,24 l/Min.) Österreich 0900 400 651(1,35 Euro/Min.)
Es erwarten Sie qualifizierte Mitarbeiter, die Ihnen bezüglich Produktinformation und Installation kompetent zur Seite stehen.
Im Falle einer notwendigen Reparatur, evtl. Garantie- oder Gewährleistungsansprüche erhalten Sie schnelle und zuverlässige Hilfe bei unserem Service-Center:
Deutschland 01805 333 220 Österreich 05 17 07 50 04
Bitte halten Sie Ihren Kaufbeleg bereit. In Ländern, in denen unser Produkt nicht durch autorisierte Händler verkauft wird, wer-
den keine Austausch- bzw. Reparaturleistungen angeboten.
21
Anhang
M270T/d
h/A31008
N1080
R10119W19
/
dif/3010
2007
Garantie-Urkunde
Dem Verbraucher (Kunden) wird unbeschadet seiner Mängelansprüche gegenüber dem Verkäufer eine Haltbarkeitsgarantie zu den nachstehenden Bedingungen eingeräumt:
u Neugeräte und deren Komponenten, die aufgrund von Fabrikations- und/oder Mate-
rialfehlern innerhalb von 24Monaten ab Kauf einen Defekt aufweisen, werden von Siemens nach eigener Wahl gegen ein dem Stand der Technik entsprechendes Gerät kostenlos ausgetauscht oder repariert. Für Verschleißteile (z. B. Akkus, Tastaturen, Gehäuse) gilt diese Haltbarkeitsgarantie für sechs Monate ab Kauf.
u Diese Garantie gilt nicht, soweit der Defekt der Geräte auf unsachgemäßer Behand-
lung und/oder Nichtbeachtung der Handbücher beruht.
u Diese Garantie erstreckt sich nicht auf vom Vertragshändler oder vom Kunden selbst
erbrachte Leistungen (z.B. Installation, Konfiguration, Softwaredownloads). Hand­bücher und ggf. auf einem separaten Datenträger mitgelieferte Software sind eben­falls von der Garantie ausgeschlossen.
u Als Garantienachweis gilt der Kaufbeleg, mit Kaufdatum. Garantieansprüche sind
innerhalb von zwei Monaten nach Kenntnis des Garantiefalles geltend zu machen.
u Ersetzte Geräte bzw. deren Komponenten, die im Rahmen des Austauschs an Sie-
mens zurückgeliefert werden, gehen in das Eigentum von Siemens über.
u Diese Garantie gilt für in der Europäischen Union erworbene Neugeräte.
Garantiegeberin für in Deutschland gekaufte Geräte ist die Siemens Home and Office Communication Devices GmbH & Co. KG, Schlavenhorst 66, D-46395 Bocholt. Garantiegeberin für in Österreich gekaufte Geräte ist die Siemens Home & Office Communication Devices GmbH, Erdberger Lände 26, A - 1031 Wien.
u Weiter gehende oder andere Ansprüche aus dieser Herstellergarantie sind ausge-
schlossen. Siemens haftet nicht für Betriebsunterbrechung, entgangenen Gewinn und den Verlust von Daten, zusätzlicher vom Kunden aufgespielter Software oder sonstiger Informationen. Die Sicherung derselben obliegt dem Kunden. Der Haf­tungsausschluss gilt nicht, soweit zwingend gehaftet wird, z. B. nach dem Produkt­haftungsgesetz, in Fällen des Vorsatzes, der groben Fahrlässigkeit, wegen der Verlet­zung des Lebens, des Körpers oder der Gesundheit oder wegen der Verletzung wesentlicher Vertragspflichten. Der Schadensersatzanspruch für die Verletzung wesentlicher Vertragspflichten ist jedoch auf den vertragstypischen, vorhersehbaren Schaden begrenzt, soweit nicht Vorsatz oder grobe Fahrlässigkeit vorliegt oder wegen der Verletzung des Lebens, des Körpers oder der Gesundheit oder nach dem Produkthaftungsgesetz gehaftet wird.
u Durch eine erbrachte Garantieleistung verlängert sich der Garantiezeitraum nicht. u Soweit kein Garantiefall vorliegt, behält sich Siemens vor, dem Kunden den Aus-
tausch oder die Reparatur in Rechnung zu stellen. Siemens wird den Kunden hierüber vorab informieren.
u Eine Änderung der Beweislastregeln zum Nachteil des Kunden ist mit den vorstehen-
den Regelungen nicht verbunden.
Zur Einlösung dieser Garantie wenden Sie sich bitte an den Siemens Telefonservice. Die Rufnummer entnehmen Sie bitte der Bedienungsanleitung.
22
M270T/d
h/A31008
N1080
R10119W19/Gi
M270
TSIXf/3010
2007
Index
A
Allgemeine Einstellungen . . . . . . . . . 15
Anschließen
Antenne Fernseher Netzteil
Stereoanlage Anschlüsse Antenne
anschließen . . . . . . . . . . . . . . . . . . . 6
positionieren Antennenanschluss Audio Out Audio-Ausgabe,Format Audiosprache
zweite Aufstellort Auswahlmenü,anzeigen Automatische Sendersuche Automatische Untertitel
. . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . 5
. . . . . . . . . 9
. . . . . . . . . . . 14
Index
EPG
. . . . . . . . . . . . . . . . . . . . . . . . . . 12
Farbtasten
Fernbedienungstaste Erstinstallation Expertensuchlauf
. . . . . . . . . . . . . . . . . . 5, 8
. . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . 9
F
Favoriten . . . . . . . . . . . . . . . . . . . . . . 17
Favoritenliste
Reihenfolge der Sender
verwalten Fehlerbehebung Fernbedienung Fernseher,anschließen
. . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . 6
G
Garantie-Urkunde. . . . . . . . . . . . . . . . 22
H
Hilfe zum Bildschirmmenü . . . . . . . . . . 5
B
Bildschirmformat . . . . . . . . . . . . . . . . 15
14:9
. . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . 15
16:9 4:3 Breitbild 4:3 vergrößert
Bildschirmmenü
. . . . . . . . . . . . . . . . . . . . . . . . . 5
Hilfe
Bildschirmmenü siehe Menü
. . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . 16
C
Cinch-Kabel . . . . . . . . . . . . . . . . . . . . . 7
Customer Care
. . . . . . . . . . . . . . . . . . 21
E
Ein / Aus Taste . . . . . . . . . . . . . . . . . . . 5
Einschalten Electronische Programmzeitschrift siehe
. . . . . . . . . . . . . . . . . . . . . 8
EPG
I
Info-Box . . . . . . . . . . . . . . . . . . . . . . . 11
Einblenddauer einstellen IR Sensor
. . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . 15
K
Kundenservice . . . . . . . . . . . . . . . . . . 21
L
Lautstärkeregelung . . . . . . . . . . . . . . 11
M
Manuelle Sendersuche. . . . . . . . . . . . . 9
Menü
anzeigen
bedienen
Hilfe
verlassen Menüsprache Menü-Taste Möglichkeiten
. . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . 3
23
Index
M270T/d
h/A31008
N1080
R10119W19/Gi
M270
TSIXf/3010
2007
N
Netzteil
anschließen Anschluss
. . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . 4
O
OSD
Hilfe
. . . . . . . . . . . . . . . . . . . . . . . . . 5
OSD siehe Menü
P
Power LED . . . . . . . . . . . . . . . . . . . . . . 4
Programmliste siehe Senderliste
Programmvorschau . . . . . . . . . . . . . . 12
verlassen
Programmzeitschrift, elektronische
. . . . . . . . . . . . . . . . . . . . 12
. . 12
R
Radio-Betrieb. . . . . . . . . . . . . . . . . . . . 5
Radiosender RGB
. . . . . . . . . . . . . . . . . . . . . . . . . . 16
Rückansicht
. . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . 4
S
SCART-Kabel . . . . . . . . . . . . . . . . . . . . 6
Sender
als Favorit definieren . . . . . . . . . . . 17
aus Favoritenliste löschen Favoriten filtern Programminformation Reihenfolge in der Favoritenliste wechseln
Senderliste
bearbeiten sortieren
Sendersuche
automatisch . . . . . . . . . . . . . . . . . . . 9
Expertensuchlauf manuell
Sendung
bearbeiten in Timer-Liste . . . . . . . . 13
löschen aus Timer-Liste
. . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . 9, 10, 11, 17
. . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . 18
. . . . . . . . . . 10
. . . 18
. . . . . . . . . . . . . . . 9
. . . . . . . . . 13
Zusammenfassung Set-Top Box
einschalten
Einschalten/Ausschalten über Timer
Radio-Betrieb
Wechseln zu Standby-Betrieb Sicherheitshinweise Signalqualität Software-Update SPDIF
. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Spracheinstellungen Standby-Betrieb
Anzeige . . . . . . . . . . . . . . . . . . . . . . 4
Automatisch anschalten Stereoanlage, anschließen S-Video Systeminformationen
. . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . 8
13
. . . . . . . . . . . . . . . . . 14
. . . . . 13
. . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . 14
. . . . . . . . . 13
. . . . . . . . . . 7
. . . . . . . . . . . . . 18
T
Technische Daten. . . . . . . . . . . . . . . . 20
Timer
. . . . . . . . . . . . . . . . . . . . . . . . . 13
einschalten/ausschalten Timer-Liste Ton, stummschalten TV SCART
. . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . 13
. . . . . . . . . . . . . . . 5
U
Untertitelsprache . . . . . . . . . . . . . . . . 14
V
Video . . . . . . . . . . . . . . . . . . . . . . . . . 16
Video SCART Videoausgangsformat Vorderansicht
. . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . 4
W
Warenzeichen . . . . . . . . . . . . . . . . . . 21
Werkseinstellungen, wiederherstellen Wiedergabeoptionen
. . . . . . . . . . . . . 12
16
Z
Zeitzone einstellen. . . . . . . . . . . . . . . 15
Zulassung
. . . . . . . . . . . . . . . . . . . . . 22
24
Sommaire
M270T/f
öih/A31008
N1080
R10119W19/Gi
M270
TIVZf/3010
2007
Sommaire
Sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Consignes de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Informations sur l’emplacement d’installation et sur le fonctionnement . . . . . . . . . . . 2
Adaptateur Gigaset M 270 T . . . . . . . . . . . . . . . . . . . 3
Eléments de commande et composants fonctionnels . . . . . . . . . . . . . . . . . . . . . . . . . 4
Télécommande . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mise en service de l'adaptateur . . . . . . . . . . . . . . . . 6
Placer les piles dans la télécommande . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecter les périphériques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Fonctionnement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mise en marche du adaptateur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Utilisation du menu OSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation initiale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Recherche des chaînes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Réception TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Réglage de l’antenne . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Sélectionner une chaîne . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Réglage du volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sélectionner les options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Guide électronique des programmes (EPG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Mode radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Paramètres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Sélectionner les paramètres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Différents réglages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Régler la durée d’affichage du bandeau d’information . . . . . . . . . . . . . . . . . . . . . . . . 15
Formats d’écran . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Régler le format vidéo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Rétablir les paramètres usine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Gérer la liste des favoris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Informations sur le système & mise à jour du logiciel . . . . . . . . . . . . . . . . . . . . . . . . 18
Annexe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Elimination des pannes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Caractéristiques techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Service clients (Customer Care) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Certificat de garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
1
Sécurité
M270T/f
öih/A31008
N1080
R10119W19/S
f
Hi
f/30102007
Sécurité
Cet équipement est utilisé exclusivement pour le réception et la diffusion de signaux DVB (Digital Video Broadcast) qui correspondent aux signaux TNT (Télévision Numéri­que Terrestre) en France. Lire attentivement les informations ci-après de manière à l’utiliser en toute sécurité.
Consignes de sécurité
u Pour raccorder l’appareil, utilisez exclusivement les câbles fournis ou des accessoires
homologués (comme indiqué dans le présent manuel).
u Ne raccordez jamais l’appareil durant un orage afin d’éviter tout risque de choc élec-
trique.
u Lorsque vous utilisez une antenne externe, celle-ci doit avoir été installée par un pro-
fessionnel et disposer d’une protection contre la foudre.
u Protégez l’appareil de l’humidité, des liquides et vapeurs corrosifs afin d’éviter tout
risque d’incendie ou de choc électrique. N’utilisez pas l’appareil dans les pièces d’eau (par ex. salles de bains) ou dans des locaux où il existe des risques d’explosion.
u Faites réparer l’appareil et sa télécommande exclusivement par des techniciens
homologués. N’ouvrez jamais l’appareil.
u Conservez ces instructions en lieu sûr et lorsque vous cédez cet appareil à un tiers,
joignez impérativement les présentes consignes de sécurité et les accessoires qui ont été fournis.
La procédure d'élimination des produits électriques et électroniques diffère de celle des déchets municipaux et nécessite l'intervention de services désignés par le gouver­nement ou les collectivités locales. Le symbole de la poubelle barrée signifie que la directive européenne 2002/96/EC s'applique à ce produit. Le tri et la collecte séparée de vos appareils usagés aide à prévenir toute conséquence négative pour l'environnement ou pour la santé publique. Il s'agit d'une condition pri­mordiale pour le traitement et le recyclage des équipements électriques et électroni­ques usagés. Pour plus d'informations sur le traitement des appareils usagés, contacter votre mairie, la déchetterie la plus proche ou le revendeur du produit.
Informations sur l’emplacement d’installation et sur le fonctionnement
u Placez l’appareil sur une surface bien plane et non glissante. Ne posez pas l’appareil
sur une matière sensible à la chaleur. Veillez à protéger les supports particulière­ment fragiles.
u Eloignez l’appareil de toute source de chaleur et ne l’exposez pas au rayonnement
direct du soleil.
u Ne placez pas d’objet sur l’appareil. Assurez-vous que tous les orifices de ventilation
ne sont pas obstrués et que la circulation d’air n’est pas bloquée.
u Avant de nettoyer l’appareil, débranchez-le du réseau électrique.
Utilisez un chiffon doux et sec pour nettoyer l’appareil et la télécommande.
2
Adaptateur Gigaset M 270 T
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Adaptateur Gigaset M 270 T
Votre nouveau adaptateur numérique vous permet d’accéder au monde de la télévision haute qualité !
Lisez attentivement ce mode d’emploi afin d’utiliser parfaitement toutes les fonctions et options proposées par votre adaptateur.
Aperçu sur l’ensemble des fonctions
u Listes séparées pour les chaînes TV et les stations radio u Sélection automatique ou manuelle des chaînes u Balayage rapide des chaînes u Option d’entrée directe de la fréquence u Guide électronique des programmes (EPG) d’une utilisation aisée u Menu Affichage à l’écran (OSD) u Fonctions d’aide contextuelles u Interface graphique d’une utilisation très simple u Commande du volume pour le son analogique u Intervalles de reparamétrage très courts u Fonction télétexte u Formats vidéo disponibles : 4:3, 4:3 letterbox et 16:9 u Compatible avec MPEG-2 et DVB
Contenu de l’emballage
Vérifiez que le contenu de l’emballage est bien complet et qu’aucun élément n’est endommagé. Contenu de l’emballage :
u 1 adaptateur M270 T u 1 manuel d’utilisation u 1 télécommande et 2 piles 1,5 V type AAA (R6) pour la télécommande u 1 câble péritel u 1 cordon d'alimentation externe
3
Adaptateur Gigaset M 270 T
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Eléments de commande et composants fonctionnels
Face avant
A B
A Capteur IR : capte les signaux infrarouges en provenance de la télécommande. B Voyant Alimentation (LED) : indique l’état de fonctionnement de l'adaptateur.
Vert clignotant : mise en route de l'adaptateur. Vert : adaptateur en fonctionnement. Orange clignotant : confirmation d’une opération de la télécommande. Rouge : adaptateur en mode veille. Eteint : adaptateur hors tension ou non opérationnel.
Face arrière
ACEFGDB H
A TV : prise péritel (Scart) AV, optimisée pour le branchement de la télévision ou d'un
récepteur TV
B VCR : prise péritel (Scart), pour connecter par exemple un magnétoscope ou un lec-
teur de DVD
C S/PDIF : sortie audio numérique (visual) D Sortie audio droite : canal stéréo droit analogique (RCA, rouge) E Sortie audio gauche : canal stéréo gauche analogique (RCA, blanc) F In : prise antenne coaxiale pour enficher le connecteur d’antenne G Out : prise antenne coaxiale pour la transmission des signaux analogiques vers
le téléviseur ou vers un autre périphérique (bouclée sur le signal d'antenne de l'entrée)
H 12 V CC : prise pour le cordon d'alimentation externe fourni
4
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Télécommande
Adaptateur Gigaset M 270 T
Bouton Marche/Arrêt
A
Sélecteur de mode TV/radio
$
Menu d’affichage à l’écran
(On-Screen Display - OSD) Affichage de la fenêtre d’information ; affichage
%
du menu d’aide Menu d’options (par ex. sélection de la bande
O
sonore)
Guide électronique des programmes (EPG)
E
Annulation d’une opération ; quitter un menu
!
Valider une sélection
o
TV : afficher la liste des chaînes OSD : navigation et sélection des options de menu
v
EPG : sélection d’un jour de la semaine (droite/gau­che) ; programme précédent/suivant (haut/bas)
‚ ˆ
ˆ #
„ ƒ
Boutons de couleur
EPG : rouge : n on utilisé
vert : sélection des sorties audio (mono, stéréo)
bleu : affichage de l’heure jaune : affichage des options de menu
Navigation dans vidéotexte (si activé)
Ouvrir/Fermer le télétexte
Volume : augmenter/réduire le volume
Chaînes : chaîne suivante/précédente
Pavé numérique : saisie de textes et de chiffres ; sélection de chaîne
Liste des chaînes : avant/arrière pour alterner entre les deux dernières chaînes sélectionnées Sélection liste des chaînes/liste des favoris
Coupure du le son ; appuyer de nouveau pour rétablir le son
5
Mise en service de l'adaptateur
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Mise en service de l'adaptateur
Remarque - ce mode d’emploi utilise des séquences de symboles qui vous indiquent
des opérations à exécuter. Par exemple :
> Recherche des chaînes > Recherche automatique correspond à :
1. Appuyez sur
2. Sélectionnez l’option Recherche des chaînes à l’aide des boutons fléchés
3. Appuyez sur
4. Sélectionnez l’option Recherche automatique à l’aide des boutons fléchés
5. Appuyez sur
Placer les piles dans la télécommande
ì Placez les piles de la manière indiquée en bas du logement de batterie. Bien respec-
ter la polarité !
Connecter les périphériques
Attention - Avant de brancher un périphérique, vérifiez qu’il est en position Arrêt.
Réalisez toutes les autres connexions nécessaires, puis branchez le cordon d’alimentation dans une prise électrique. Le respect de cette procédure vous permettra d’éviter des dommages possibles.
pour l’affichage OSD.
v.
o pour confirmer la sélection.
v.
o pour confirmer la sélection.
Prise d’antenne
ì Connectez la prise d’antenne du adaptateur à une antenne intérieure ou à une
antenne extérieure à l’aide d’un câble coaxial (non fourni).
Connecter un téléviseur
Utilisez le câble péritel pour relier le adaptateur au téléviseur.
1. Enfichez le câble péritel dans la prise correspondante du adaptateur.
2. Enfichez l’autre extrémité du câble péritel dans la prise vidéo In de votre téléviseur ou du magnétoscope.
Remarque - si vous souhaitez recevoir les programmes analogiques en plus des programmes numériques, vous devez assurer la réception des signaux correspondant aux chaînes analogiques. Donc, reliez la prise correspondante du adaptateur à l’entrée antenne de votre téléviseur en utilisant un câble coaxial.
Attention - N’utilisez jamais l’entrée décodeur qui équipe certains téléviseurs. Pour plus d’informations, consultez le mode d’emploi de votre téléviseur.
6
Mise en service de l'adaptateur
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Chaîne hi-fi
Antenne
SPDIF
péritel
péritel
Secteur
Téléviseur
Magnétoscope/Lecteur de DVD
Branchement d’une chaîne hi-fi
1. Branchez un câble RCA (jack 3,5 mm 2x RCA) à la sortie audio analogique.
2. Connectez les fiches RCA (droit=rouge, gauche=blanc) à l’entrée Son de votre chaîne stéréo.
Connexion du câble d'alimentation externe électrique
Attention - Branchez l’appareil exclusivement sur une prise 230 V ~ 50 Hz installée
conformément aux normes et équipée d’un coupe-circuits adapté. Ne mettez le adaptateur en marche qu’une fois l’antenne et le câble péritel branchés.
Reliez le adaptateur à la prise électrique à l’aide du câble d'alimentation externe.
1. Branchez tout d’abord le connecteur du câble d’alimentation dans la prise électrique du adaptateur.
2. Branchez ensuite le bloc-secteur dans une prise électrique.
7
Fonctionnement
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Fonctionnement
Mise en marche du adaptateur
Dès que vous avez branché le bloc-secteur dans une prise électrique, le adaptateur se met en marche, le voyant de la face avant s’allume (vert).
Remarque - Si le voyant est allumé en rouge, mettez le adaptateur en marche en appuyant sur la touche
1. Mettez en marche tous les périphériques connectés au adaptateur.
2. Activez le canal AV ou l’entrée de votre téléviseur auquel vous avez connecté le adaptateur.
Remarque - Pour plus d’informations, consultez le mode d’emploi de votre téléviseur.
Utilisation du menu OSD
Le menu OSD vous permet de régler les différents paramètres de votre adaptateur à par­tir de votre télécommande.
Remarque - Tenez compte des informations et des messages d’aide affichés à l’écran.
Utilisation des fonctionnalités offertes par l’affichage OSD :
Navigation OSD et sélection des options de menu. L’option de menu sélectionnée
v
est entourée d’un cadre de couleur. Confirmez votre sélection. L’option de menu sélectionnée est maintenant activée
o
ou exécutée.
de la télécommande.
A
!
Masquez l’affichage OSD ou quittez un menu. Les touches rouge, verte, jaune et bleue de la télécommande correspondent à des
fonctionnalités différentes selon le menu sélectionné. Lorsqu’un bouton affiché à l’écran (OSD) est de couleur rouge, verte, jaune ou
bleue, pour activer la fonction correspondante appuyez sur le bouton de la même couleur sur la télécommande.
Au bas de l’écran OSD figurent des informations à propos des boutons à utiliser pour définir les réglages spécifiés par le menu en cours.
Installation initiale
Le menu d’installation initiale s’affiche. Ce menu n’apparaît que lors du démarrage du adaptateur ou après que vous ayez rétabli les réglages usine pour vous aider à installer votre adaptateur.
1. Choisissez votre Langue des menus préférée et validez ce choix.
2. Spécifiez vos préférences : Pays, Format de l'écran et Sortie vidéo. Utilisez la barre Activer pour confirmer vos choix.
3. Sélectionnez vos fréquences et chaînes préférées. Allez à Commencer la recherche et validez ce choix. Le adaptateur lance alors une recherche automatique de chaînes.
8
Fonctionnement
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
4. Respectez les instructions affichées à l’écran jusqu’à ce que l’installation initiale soit terminée. Le adaptateur passe alors en mode TV.
Recherche des chaînes
Au départ, nous vous recommandons de procéder à une recherche automatique des chaînes, étant donné que le mode Balayage détecte normalement toutes les chaînes disponibles. La recherche manuelle des chaînes vous permet de sélectionner une chaîne particulière. Cela est surtout utile lorsque vous voulez ajouter une chaîne spécifique à votre liste de programmes et que vous connaissez déjà les réglages correspondant à cette chaîne et sa fréquence.
Lors du balayage, les chaînes détectées sont ajoutées à la liste, les deux affichages vous informent de l’intensité et de la qualité du signal.
Remarque - Vous pouvez interrompre le balayage à tout moment en appuyant sur
!.
Recherche automatique des chaînes
> Recherche des chaînes > Recherche automatique
Remarque - Lorsque cela est possible, ne modifiez pas les valeurs de balayage, étant donné que les valeurs par défaut garantissent généralement la détection de toutes les chaînes.
1. Choisissez les chaînes à rechercher (option recommandée : Toutes).
Remarque - Nous vous conseillons de rechercher toutes les chaînes et de ne pas modifier les valeurs par défaut.
2. Sélectionnez Commencer la recherche et validez ce choix. A la suite de la recherche, une boîte de dialogue vous informe que le balayage est
terminé.
3. Indiquez si les chaînes trouvées doivent s’ajouter à la liste des chaînes actuelles, la remplacer ou bien si vous souhaitez ne pas tenir compte des chaînes qui viennent d’être détectées. Confirmez votre sélection.
4. Appuyez une fois sur nérale. Appuyez une nouvelle fois pour masquer l’affichage OSD.
Remarque - Si aucune chaîne n’a été trouvée, vérifiez que le câble d’antenne est bien branché.
! pour quitter le menu de recherche et revenir à la vue gé-
Recherche manuelle des chaînes
> Recherche des chaînes > Recherche manuelle
1. Procédez à tous les réglages nécessaires. Les boutons numériques vous permettent de régler la fréquence. De plus, vous pou­vez présélectionner les chaînes à recherche en activant la fonction Chaînes à re- chercher (par ex. pour toutes les chaînes Libre accès).
9
Réception TV
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
2. Ensuite, sélectionnez Commencer la recherche et validez ce choix. A la suite de la recherche, une boîte de dialogue vous informe que le balayage est
terminé.
3. Indiquez si les chaînes trouvées doivent s’ajouter à la liste des chaînes actuelles, la remplacer ou bien si vous souhaitez ne pas tenir compte des chaînes qui viennent d’être détectées.
4. Appuyez une fois sur nérale. Appuyez une nouvelle fois pour masquer l’affichage OSD.
! pour quitter le menu de recherche et revenir à la vue gé-
Réception TV
Réglage de l’antenne
En principe, une antenne placée à proximité d’une fenêtre permet une réception opti­male. Recherchez la position idéale pour votre antenne :
> Information technique > Informations sur la chaîne
Les informations concernant la chaîne captée s’affichent.
1. Essayez de positionner votre antenne de différentes manières jusqu’à ce que l’affi­chage Qualité du signal soit parvenu à la valeur maximale (100%) ou à la valeur la plus élevée possible.
Remarque - N’oubliez pas que, en fonction du type d’antenne, l’orientation de celle-ci est peut-être également un facteur important. Si c’est le cas, faites pivoter votre antenne pour vérifier si cela influence ou non la qualité du signal. Consultez le mode d’emploi de votre antenne pour voir si celle-ci est de type omnidirectionnel.
2. Ensuite, utilisez les boutons de réglage des chaînes nes. Affinez le réglage de la position de votre antenne si cela est nécessaire.
3. Lorsque vous êtes satisfait de la qualité de réception, appuyez sur afficher les informations sur la chaîne et terminer le processus.
ˆ pour passer à d’autres chaî-
! pour ne plus
Sélectionner une chaîne
Généralités
Sélection de la chaîne précédente/suivante enregistrée
ˆ
Entrée du numéro d’enregistrement de la chaîne pour une sélection directe
#
Validation des numéros de chaînes de moins de 4 chiffres. Exemple : Sélectionnez
o
la chaîne 45 en appuyant sur
Un bandeau d’information s’affiche en bas de l’écran dès que vous changez de chaîne.
10
4 5 o.
Réception TV
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Utilisation de la liste et des boutons de zapping
Au lieu de rechercher les chaînes, vous pouvez utiliser la liste des chaînes ou la liste des favoris. Créer une liste des favoris vous permet de mémoriser plus facilement les numé­ros individuels, étant donné que vous êtes libre de désigner comme vous le souhaitez les chaînes enregistrées.
Dans une chaîne : lancement de la liste des chaînes ; la chaîne sélectionnée actuel-
o
lement est identifiée par une couleur. A l’intérieur d’une liste de chaînes : alterner entre la liste complète des chaînes et
la liste des favoris. Dans une chaîne : revenir à la chaîne précédente et vice versa.
Affichage des informations sur les chaînes
Chaque fois que vous passez à une autre chaîne, un bandeau d’informations s’affiche brièvement en bas de l’écran. Ce bandeau contient les indications suivantes :
u Numéro d’enregistrement de la chaîne sélectionnée et nom de la chaîne. u Heure, affichée à gauche du bandeau. La barre d’affichage à droite de l’heure indi-
que de manière graphique la durée du programme déjà écoulée.
u Programme actuel et programme suivant, y compris l’heure de diffusion.
Au bout de quelques secondes, le bandeau d’information disparaît. Vous pouvez pro­grammer la durée d’affichage de ce bandeau (voir page 15).
Afficher le bandeau d’information (sans avoir à changer de chaîne).
%
Lorsque le bandeau d’information est affiché : faire apparaître le bandeau d’infor­mation étendu qui précise d’autres détails concernant le programme en cours.
Appuyez plusieurs fois : afficher les informations sur le programme en cours ou sur le programme suivant.
Refermez le bandeau d’information.
!
Réglage du volume
En plus du réglage de volume disponible sur votre téléviseur ou votre chaîne stéréo, vous pouvez également régler le volume à l’aide de la commande de volume du adaptateur.
Augmenter/Réduire le volume. Le volume réglé est indiqué par une barre
ˆ
graphique.
Boucler entièrement le son. Appuyez de nouveau pour rétablir le son au volume
ƒ
réglé précédemment.
11
Réception TV
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Sélectionner les options
Certaines chaînes vous proposent parfois différentes points de vue d’image, bandes son et/ou messages télétexte. Lorsqu’une ou plusieurs de ces options sont disponibles sur une chaîne, l’icône des options s’affiche dans le coin droit du bandeau d’information lorsque la chaîne est sélectionnée.
Cela vous indique que vous pouvez sélectionner entre différentes vues, bandes son ou messages télétextes ou n’importe quelle autre combinaison de ces options.
1. Réglez la chaîne désirée.
O Appelez le menu de sélection.
2.
3. Choisissez l’option souhaitée (point de vue, bande son ou télétexte) puis confirmez ce choix. L’option sélectionnée est validée.
Remarque - Vous pouvez choisir simultanément une perspective et une bande audio. Dans ce cas, vous devez appuyer plusieurs fois sur sélection de la bande son.
pour accéder au menu de
O
Guide électronique des programmes (EPG)
Le guide électronique des programmes (EPG) vous donne un aperçu de tous les pro­grammes qui seront diffusés dans la semaine suivante sur la chaîne sélectionnée.
Remarque -
Toute chaîne ne présente pas un guide électronique des programmes détaillé. De nombreuses chaînes se contentent d’indiquer le programme du jour sans aucun
détail. Il existe même des stations de télévision qui n’affichent aucune information sur leur
programme. Etant donné les développements techniques permanents, un nombre croissant de
stations proposera à l’avenir ce type d’offre.
E ˆ
v
12
Ouvrez la présentation du programme.
Changez de chaîne. Droite ou gauche : sélectionnez un jour de la semaine.
Haut et bas : programme précédent ou suivant. Faites défiler jusqu’au bout la liste des programmes actuelle pour basculer automatiquement sur l’aperçu des programmes du lendemain. Les boutons de couleur correspondent à certaines périodes de la journée :
Bouton rouge : matin (à partir de 6h00) Bouton vert : après-midi (à partir de 12h00) Bouton jaune : soirée (à partir de 18h00)
Remarque - Le bouton bleu sert à la programmation à l’aide d’un timer, voir page 13.
Réception TV
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
% / o !
Un autre écran affiche un résumé du contenu du programme. Lorsque le texte d’information est long, utilisez la flèche Haut et la flèche Bas pour le faire défiler.
Quittez la présentation des programmes.
Timer
Le timer sert à mettre en marche ou à arrêter le adaptateur à une heure précise afin que vous puissiez regarder une émission qui vous intéresse tout spécialement, par exemple. A l’heure réglée, le adaptateur se place automatiquement en mode veille.
Si le adaptateur est déjà en position Marche, il se place automatiquement sur le pro­gramme sélectionné.
Ajouter des programmes à la liste du timer
La fonction Timer est intégrée à la liste du timer par le biais du guide EPG.
1. Appuyez sur
2. Sélectionnez le programme désiré.
3. Appuyez sur
La fenêtre se referme et le programme sélectionné est enregistré dans la liste du timer.
Remarque - Les "programmes timer" sont signalés par une petite icône de réveil affichée à côté du titre du programme.
Modifier la liste du timer
E. g et confirmez.
> Timer
Effacer des programmes
1. Dans la liste du timer, sélectionnez le programme souhaité.
2. Appuyez sur le bouton de couleur correspondant et confirmez l’effacement :
Rouge : effacer le programme sélectionné Jaune : effacer tous les programmes.
Modifier le timer
1. Dans la liste du timer, sélectionnez un programme et validez ce choix.
2. Une fois sélectionnés les réglages de la date, de l’heure (heure de début et heure de fin) et le cycle (intéressant pour les séries et pour les programmes diffusés réguliè­rement) : sélectionnez de nouveau un des réglages et modifiez-le à l’aide des bou­tons numériques.
3. Ensuite, sélectionnez OK à côté de Appliquer et confirmez vos réglages.
13
Paramètres
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Désactiver les fonctions actuelles du timer
Lorsque vous regardez un programme sélectionné à l’aide du timer, seul un nombre res­treint de boutons est disponible, à savoir chage OSD n’est pas accessible.
Pour désactiver les fonctions actuelles du timer :
réglage du volume, O et ƒ. L’affi-
ˆ
ì Appuyez sur A sur la télécommande, puis appuyez de nouveau.
Mode radio
La connexion d’antenne sur adaptateur vous permet de recevoir également des stations de radio. Celles-ci ont été sélectionnées dans une liste distincte lors de la recherche des chaînes. En mode radio, tous les boutons de la télécommande ont les mêmes fonctions qu’en mode TV. Pour passer en mode radio, procédez de la manière suivante :
ì Appuyez sur $ pour activer le mode radio. ì Appuyez de nouveau sur $ pour retourner au mode télé.
Remarque - Actuellement, toutes les plages de diffusion n’intègrent pas des stations radio.
Paramètres
Sélectionner les paramètres
Le menu vous permet de définir un très grand nombre de paramètres de langue.
> Paramètres > Langues
ì Utilisez les touches fléchées pour définir vos paramètres.
Langue des menus :
Langue audio : Sélectionnez la langue de diffusion des programmes.
Seconde langue audio :
Langue des sous­titres :
Sous-titres automatiques :
ì Appuyez sur ! pour quitter le menu.
14
Réglez la langue de l’affichage OSD. Un vaste choix de langues est disponible, par exemple anglais, français, espagnol.
Sélectionnez une seconde langue de diffusion des programmes.
Remarque - Si votre programme favori n’est pas diffusé dans la langue choisie dans Langue audio, la Seconde langue audio est automatiquement utilisée.
Sélectionnez une langue pour les sous-titres. Le choix de la première et de la seconde langue des sous-titres
s’effectue selon le même principe que le choix de la première et de la seconde langue audio.
Réglez cette option sur Marche si vous voulez que s’affichent automatiquement les sous-titres dans la langue sélectionnée (par défaut : Arrêt).
Paramètres
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Différents réglages
La boîte de dialogue Différents réglages vous permet d’effectuer des choix concernant l’heure et les formats audio. La sélection des langues audio et des sous-titres n’est pos­sible que si le programme est diffusé en plusieurs langues.
L’heure adaptateur peut être mise à jour automatiquement ou manuellement.
> Paramètres > Différents réglages
1. Sélectionnez le passage à l’heure d’été ou à l’heure d’hiver – Sélectionnez Automatique dans l’option Réglage du fuseau horaire, pour que
adaptateur intègre les informations concernant l’heure à partir de la chaîne actuellement réglée ou
– Placez le réglage Réglage du fuseau horaire sur Manuel, sélectionnez Activer
ou Désactiver pour Heure d'été selon le cas, puis spécifiez l’écart par rapport à l’heure GMT (Greenwich Mean Time) à l’aide de la fonction Fuseau horaire (GMT). Pour l’Europe centrale, cet écart est de une heure (+01:00).
2. Spécifiez le format audio (s’applique au cas où vous avez branché une chaîne stéréo au adaptateur).
3. Appuyez sur
! pour quitter le menu.
Régler la durée d’affichage du bandeau d’information
Vous pouvez régler l’intervalle de temps à l’issue duquel le bandeau d’information, voir page 11, disparaîtra de l’écran.
> Paramètres > Paramètres d'affichage > Durée du bandeau d'info
1. Sélectionnez la valeur de temps correspondant à la Durée du bandeau d'info, à l’is- sue de laquelle le bandeau d’information sera automatiquement désactivé :
Permanent : pas de masquage automatique du bandeau d’information. – Aucun supprime l’affichage du bandeau d’information lors de chaque change-
ment de chaîne.
2. Appuyez sur
! pour quitter le menu.
Formats d’écran
Etant donné que le format d’écran varie, par ex. lors de la diffusion d’un film de cinéma ou d’une série, vous pouvez sélectionner celui qui correspond au programme actuel en utilisant le menu de réglage.
Les formats suivants sont disponibles :
Format 16:9 : sur un téléviseur 16:9, affiche le film sur la totalité de l’écran.
15
Paramètres
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Format 4:3 écran large (letterbox) : Opère une réduction des films au format 16:9 pour afficher
le format 4:3 TV en ajoutant un bandeau noir en haut et en bas de l’image à l’écran.
Format 4:3 CCO/Pan Scan (large) : Affiche les films au format 16:9, de manière à remplir l’écran.
Par rapport au 4:3 TV, le bord gauche et le bord droit de l’image sont rognés.
4:3 (letterbox 14:9) Opère une réduction des films au format 16:9 pour afficher
le format 4:3 TV en ajoutant un bandeau noir en haut et en bas de l’image à l’écran.
De plus, les bords droit et gauche sont légèrement rognés.
> Paramètres > Paramètres vidéo > Format de l'écran
1. Sélectionnez le format de l’écran.
2. Appuyez sur
Régler le format vidéo
! pour quitter le menu.
Le menu Paramètres vous permet de spécifier notamment les réglages de sortie du signal vidéo. Remarque -
u Les formats RGB, Vidéo et S-Vidéo sont disponibles pour la "Sortie vidéo TV". u La "Sortie vidéo VCR" (sortie magnétoscope) propose uniquement les réglages
Vidéo et S-Vidéo.
u Si vous avez sélectionnez RGB pour la sortie TV, seule l’option Vidéo sera disponible
pour la sortie VCR.
Remarque - Si vous ne connaissez pas les formats gérés par votre téléviseur, faites un essai avec les différents réglages jusqu’à ce que vous ayez la meilleure représentation possible de l’image.
> Paramètres > Paramètres vidéo > Sortie vidéo / Sortie VCR/DVD
1. Sélectionnez le format vidéo qui offre la reproduction d’image optimale. Sortie VCR/ DVD permet de régler le format d’écran pour magnétoscope.
2. Appuyez sur
! pour quitter le menu.
Rétablir les paramètres usine
Vous pouvez rétablir les paramètres par défaut sur votre adaptateur. Toutefois, cette opération effacera votre liste des favoris.
> Paramètres > Paramètres d'usine
16
Paramètres
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
ì Dans la boîte de dialogue, sélectionnez Oui à l’aide des boutons fléchés et confir-
mez le rétablissement des paramètres d’usine.
Le adaptateur se réinitialise, puis s’éteint pour se rallumer aussitôt après.
Gérer la liste des favoris
A la suite d’une recherche, les chaînes détectées sont enregistrées dans une liste géné­rale. La séquence d’enregistrement de ces chaînes dans la liste est définie.
Remarque - Lorsque le pays sélectionné dispose de chaînes à emplacements prédéfinis, ceux-ci sont enregistrés dans des emplacements mémoire prédéfinis. Ces divers emplacements peuvent ne pas s’ordonner selon une séquence continue. Cette méthode de tri est appelée Logic Channel Numbering (LCN). Les autres chaînes sont ajoutées après la dernière chaîne LCN trouvée.
Classer des chaînes parmi les favoris
A l’aide de la fonction Liste des favoris, vous pouvez classer vos chaînes favorites parmi vos préférences et les sélectionner ainsi à partir de la télécommande.
Remarque - Vous pouvez ajouter les chaînes LCN (si nécessaire) dans votre liste des favoris et les enregistrer dans ce cas sur n’importe quel emplacement de la liste, ce qui permet d’avoir une liste des favoris sans aucun vide. En effet, dans la liste de toutes les chaînes (All channels list), il n’est pas possible de disposer d’une séquence continue des chaînes LCN.
> Organiser les chaînes TV (identifié par une icône de liste à gauche de l’écran)
Le menu Organiser les chaînes TV s’affiche. Cette liste énumère toutes les chaînes trouvées, vos chaînes favorites sont signalées par un astérisque (*).
Remarque - Lorsque la liste des chaînes est très longue, il peut être intéressant d’appliquer la fonction de filtrage de manière à disposer d’une présentation mieux structurée, voir page 18.
1. Sélectionnez la chaîne que vous souhaitez faire figurer parmi vos favoris et validez ce choix.
2. Répétez la procédure décrite ci-dessous pour ajouter d’autres chaînes à la liste des favoris.
3. Appuyez sur
4. Le système vous invite à enregistrer les modifications apportées. Confirmez.
! pour fermer la fenêtre.
Modifier la liste des chaînes
Il est possible que la liste des chaînes vous semble trop compliquée ou qu’elle contienne des chaînes que vous ne souhaitez pas regarder. A partir du menu principal, vous pou­vez modifier la liste des chaînes.
> Organiser les chaînes TV
1. Appuyez sur
2. Effectuez les réglages souhaités.
3. Appuyez sur ! pour fermer la fenêtre.
4. Le système vous invite à enregistrer les modifications apportées. Confirmez.
pour passer d’une chaîne à la liste des favoris et inversement.
17
Paramètres
M270T/f
öih/A31008
N1080
R10119W19/d
i
i
f/30102007
Déplacer les chaînes
Vous pouvez adapter l’ordre des chaînes dans votre liste des favoris.
1. Appuyez sur
2. Sélectionnez la chaîne à déplacer et validez ce choix. Le nom de la chaîne est inséré.
3. Dé pla cez la c haî ne s éle ctionnée ver s sa nou velle pos iti on en uti lis ant les bou ton s fl é­chés, puis confirmez lorsque la chaîne est à l’endroit désiré.
4. Appuyez sur
Filtrer des chaînes
Cette fonction vous permet d’afficher une liste des chaînes correspondant à des critères spécifiques.
Remarque - Un filtre est toujours temporaire, il n’est donc pas enregistré. Dès que vous refermez l’écran de filtrage des chaînes, les réglages actuels sont supprimés.
1. Appuyez sur
2. Sélectionnez les chaînes à afficher.
3. Déterminez le type de tri (par nombre ou par ordre alphabétique) à l’aide de Triage et validez ce choix.
Remarque - Tenez compte des informations qui s’affichent en bas de la fenêtre. Elles vous aideront à paramétrer vos choix correctement.
pour accéder à la liste des favoris.
! et validez le message.
b pour activer la fonction de filtrage.
Effacer des chaînes
Vous n’êtes pas autorisé à effacer des chaînes dans la liste générale. Lorsque vous effa­cez des chaînes dans la liste des favoris, elles restent enregistrées dans la liste générale.
1. Sélectionnez la chaîne que vous souhaitez effacer.
2. Appuyez sur contre, appuyez sur
3. Quittez la liste des chaînes en appuyant sur
i si vous souhaitez effacer uniquement la chaîne sélectionnée. Par
pour effacer toutes vos chaînes favorites.
b
! et validez vos modifications.
Informations sur le système & mise à jour du logiciel
Les informations sur le système sont particulièrement intéressantes lorsque vous avez besoin d’une assistance. Vous pouvez également effectuer une recherche manuelle afin de vérifier s’il n’y a pas de mise à jour logicielle pour adaptateur.
> Information technique > Informations système
1. Une boîte de dialogue s’affiche. Sélectionnez Mise à jour du logiciel et confirmez pour lancer la recherche de nouvelles mises à jour.
2. Appuyez sur
18
! pour quitter le menu.
Annexe
M270T/f
öih/A31008
N1080
R10119W19
/
dif/3010
2007
Annexe
Elimination des pannes
Tous les équipements électroniques sont susceptibles de connaître des défaillances. Toutefois, celles-ci ne sont pas nécessairement des défauts. Elles sont souvent provo­quées par de mauvaises liaisons ou des défauts de contacts ou encore par des con­nexions mal établies.
Avant de demander l’aide d’un expert, vérifiez les points suivants.
Problème Cause possible Remèdes
Le adaptateur ne se met pas en marche Aucune image, aucun son
Aucune image ou image de mauvaise qualité
Son sans image Diffusion de la chaîne à par-
Plus de réception des chaînes qui étaient auparavant disponibles Télécommande ne répond plus
De temps en temps, la réception de plusieurs chaînes est impossible
Pas d’alimentation électrique (voyant non allumé) Pas d’alimentation électrique Contrôlez le câble d’alimen-
Liste de chaînes non disponi­ble ou incorrecte Perte de la connexion Vérifiez la connexion Connecteur péritel mal inséré Antenne mal positionnée Modifiez la position de
Antenne trop petite Utilisez une antenne de plus
Diffusion de la chaîne à par­tir d’autres paramètres
tir d’autres paramètres Connecteur péritel mal inséré Le adaptateur est en mode radio La chaîne a cessé d’émettre Aucun.
Obstacle entre la télécom­mande et le adaptateur Flux de données incorrect, le adaptateur se verrouille
Piles usagées Remplacez les anciennes
Ces chaînes ne sont pas diffusées 24 heures par jour et elles ne sont donc pas disponibles à tout moment. Ceci n’est pas un défaut.
Contrôlez le câble d’alimen­tation et le bloc-secteur
tation et le bloc-secteur Lancez la recherche automa­tique des chaînes
Contrôlez l’enfichage du connecteur péritel
l’antenne, (voir p. 10)
grande taille Lancez la recherche automa­tique des chaînes (voir p. 9) Lancez la recherche automa­tique des chaînes (voir p. 9) Contrôlez l’enfichage du connecteur péritel Passez au mode TV en appuyant sur
Supprimez l’obstacle
Débranchez le bloc-secteur, attendez 10 secondes et branchez-le de nouveau
piles de la télécommande par de nouvelles
$
19
Annexe
M270T/f
öih/A31008
N1080
R10119W19
/
dif/3010
2007
Problème Cause possible Remèdes
Impossible de com­mander le adaptateur Mauvaise qualité de l’image
Obstacle entre la télécom-
Supprimez l’obstacle mande et le adaptateur Signal Péritel TV incorrect Sélectionnez un format
vidéo différent (voir p. 16)
Vous trouverez d’autres solutions encore ainsi que les réponses aux FAQ (Frequently Asked Questions) sur Internet, à l’adresse suivante : http://www.siemens.com/gigaset
Caractéristiques techniques
Modèle : Gigaset M 270 T (TNT) TV : 1 tuner DVB-T RF : ENTREE : 1 prise (CEI)
SORTIE (bouclée sur l'ENTREE) : 1 prise (CEI)
PERITEL : 2 prises Euro AV :
TV (SORTIE) : CVBS, RGB, YC
VCR (SORTIE) : CVBS, RGB, YC RCA : 1 SORTIE ANALOGIQUE (AUDIO R/L) SPDIF : 1 Audio digital (Dolby Digital, AC3, PCM stéréo) Voyants (LED) Marche/Arrêt/Veille, télécommande active Configuration du adaptateur : Par menu TV Tension d’alimentation : 230 V CA / 50 Hz converti en 12 V CC Puissance absorbée : inférieure à 10 W Température ambiante : 5 °C à 40 °C Dimensions : env. 250 x 140 x 32 mm Poids : env. 1,0 kg
.
Homologation
La conformité de l’appareil avec les normes fondamentales harmonisées de la directive LV 2006/ 95/EC et de la directive CEM 2004/108/EC est confirmée par le label CE.
Vous trouverez une reproduction de la déclaration de conformité d'après la directive 1999/5/CE sur Internet à l'adresse : http://www.siemens.com/gigasetdocs
.
Service clients (Customer Care)
Nous vous proposons une aide rapide et personnalisée. Notre assistance technique en ligne sur Internet : www.siemens.fr/servicegigaset Accessible en permanence et de n'importe où. Vous disposez d'une assistance 24 heures sur 24 sur
tous nos produits. Vous trouverez à cette adresse un système de détection d'erreurs interactif, une compilation des questions les plus fréquemment posées et de leurs réponses, ainsi que les modes d’emploi des produits à télécharger. La liste des questions les plus fréquemment posées et les réponses figurent également dans ce mode d’emploi en annexe.
20
Annexe
M270T/f
öih/A31008
N1080
R10119W19
/
dif/3010
2007
Pour bénéficier de conseils personnalisés sur nos offres, contactez notre
Assistance Premium par la France :
08 99 70 01 85 (1,35 EuroTTC/Appel puis 0,34 EuroTTC/Minute) Des collaborateurs compétents Siemens se tiennent à votre disposition pour vous fournir des infor-
mations sur nos poduits et vous expliquer leur installation. Pour vos besoins en matière de répara­tion ou vos questions liées aux droits de garantie, vous obtiendrez une assistance rapide et fiable auprès de notre Service Clients.
Centre d'Appel France :
01 56 38 42 00 Munissez-vous de votre preuve d'achat. Dans les pays où notre produit n'est pas distribué par des revendeurs autorisés, nous ne proposons
pas d'échange ou de services de réparation.
Certificat de garantie
La présente garantie bénéficie, dans les conditions ci-après, à l'utilisateur final ayant procédé à l'acquisition de ce Produit Siemens (ci-après le Client).
Pour la France, la présente garantie ne limite en rien, ni ne supprime, les droits du Client issus des articles suivants du Code Civil Français et du Code de la Consommation Français:
Article L.211-4 du Code de la Consommation : « Le vendeur est tenu de livrer un bien conforme au contrat et répond des défauts de conformité
existant lors de la délivrance. Il répond également des défauts de conformité résultant de l'emballage, des instructions de mon-
tage ou de l'installation lorsque celle-ci a été mise à sa charge par le contrat ou a été réalisée sous sa responsabilité. »
Article L.211-5 du Code la Consommation : « Pour être conforme au contrat, le bien doit :
1º Être propre à l'usage habituellement attendu d'un bien semblable et, le cas échéant :
- correspondre à la description donnée par le vendeur et posséder les qualités que celui-ci a présentées à l'acheteur sous forme d'échantillon ou de modèle ;
- présenter les qualités qu'un acheteur peut légitimement attendre eu égard aux déclara­tions publiques faites par le vendeur, par le producteur ou par son représentant, notam­ment dans la publicité ou l'étiquetage ;
2º Ou présenter les caractéristiques définies d'un commun accord par les parties ou être propre à tout usage spécial recherché par l'acheteur, porté à la connaissance du vendeur et que ce der­nier a accepté. »
Article L.211-12 du Code de la Consommation :
« L'action résultant du défaut de conformité se prescrit par deux ans à compter de la délivrance du bien. »
Article 1641 du Code Civil :
« Le vendeur est tenu de la garantie à raison des défauts cachés de la chose vendue qui la rendent impropre à l'usage auquel on la destine, ou qui diminuent tellement cet usage, que l'acheteur ne l'aurait pas acquise, ou n'en aurait donné qu'un moindre prix, s'il les avait connus. »
Article 1648 du Code Civil, alinéa premier :
« L'action résultant des vices rédhibitoires doit être intentée par l'acquéreur dans un délai de deux ans à compter de la découverte du vice. »
– Si ce Produit Siemens et ses composants présentent des vices de fabrication et/ou de
matière dans les 24 mois suivant son achat neuf, Siemens procédera à sa réparation ou le
21
Annexe
M270T/f
öih/A31008
N1080
R10119W19
/
dif/3010
2007
remplacera gratuitement et de sa propre initiative par un modèle identique ou par modèle équivalent correspondant à l'état actuel de la technique. La présente garantie n'est valable que pendant une période de 6 mois à compter de sa date d'achat neuf pour les pièces et éléments de ce Produit Siemens qui sont soumis à l'usure (par ex. batteries, claviers et boî­tiers).
– La présente garantie n'est pas valable en cas de non-respect des informations contenues
dans le mode d'emploi, ou en cas de dommage manifestement provoqué par une manipu­lation ou une utilisation inadéquate.
– La présente garantie ne s'applique pas aux éléments et données fournis par le vendeur du
Produit Siemens, ou installés par le Client lui-même (par ex. l'installation, la configuration, le téléchargement de logiciels, l'enregistrement de données). Sont également exclus de la présente garantie le manuel d'utilisation ainsi que tout logiciel fourni séparément sur un autre support de données, ainsi que les Produits Siemens dotés d'éléments ou d'accessoires non homologués par Siemens, les Produits dont les dommages sont causés volontairement ou par négligence (bris, casses, humidité, température inadéquate, oxydation, infiltration de liquide, surtension électrique, incendie, ou tout autre cas de force majeure), les Produits Siemens présentant des traces d'ouverture (ou de réparation et/ou modifications effec­tuées par un tiers non agréé par Siemens), et les Produits envoyés en port dû à Siemens ou à son centre agréé.
– La facture ou le ticket de caisse comportant la date d'achat par le Client sert de preuve de
garantie. Une copie de ce document justifiant de la date de départ de la garantie est à four­nir pour toute mise en œuvre de la présente garantie. Un justificatif d'achat doit au moins compo rter le nom et le lo go de l 'enseigne, la date d'achat, le modèle concerné et le prix. Le Client doit faire valoir ses droits à garantie dans les deux mois de la découverte du vice du Produit, sauf disposition impérative contraire.
– Le présent Produit Siemens ou ses composants échangés et renvoyés à Siemens ou son
prestataire deviennent propriété de Siemens.
– La présente garantie s'applique uniquement aux Produits Siemens neufs achetés au sein de
l'Union Européenne. Elle est délivrée par Siemens Home and Office Communication Devi­ces SAS, 9, boulevard du Docteur Finot, Bât Renouillères 93200 SAINT DENIS.
– La présente garantie représente l'unique recours du Client à l'encontre de Siemens pour la
réparation des vices affectant le Produit Siemens. Siemens exclut donc toute autre respon­sabilité au titre des dommages matériels et immatériels directs ou indirects, et notamment la réparation de tout préjudice financier découlant d'une perte de bénéfice ou d'exploita­tion, ainsi que des pertes de données. En aucun cas Siemens n'est responsable des domma­ges survenus aux biens du Client sur lesquels est connecté, relié ou intégré le Produit Sie­mens, sauf disposition impérative contraire. De même, la responsabilité de Siemens ne peut être mise en cause pour les dommages sur­venus aux logiciels intégrés dans le Produit Siemens par le Client ou tout tiers à l'exception de Siemens.
– La mise en jeu de la présente garantie, et l'échange ou la réparation concernant le Produit
Siemens ne font pas naître une nouvelle période de garantie, qui demeure en tout état de cause la durée initiale, sauf disposition impérative contraire.
– Siemens se réserve le droit de facturer au client les frais découlant du remplacement ou de
la réparation du Produit Siemens lorsque le défaut du Produit Siemens n'est pas couvert par la garantie. De même Siemens pourra facturer au Client les frais découlant de ses interven-
tions sur un Produit Siemens remis par le Client et en bon état de fonctionnement. Pour faire usage de la présente garantie, veuillez contacter en priorité votre revendeur, ou bien le service téléphonique de Siemens dont vous trouverez le numéro dans le manuel d'utilisation ci-joint.
22
M270T/f
öih/A31008
N1080
R10119W19/Gi
M270
TSIXf/3010
2007
Index
Index
A
Adaptateur
marche/arrêt par timer mise en marche mode radio passage en mode veille
Alimentation
connexion . . . . . . . . . . . . . . . . . . . . 7
Alimentation 12 V CC Antenne
connexion . . . . . . . . . . . . . . . . . . . . 6
réglage
. . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . 13
. . . . . . . . . . . . . . . . 8
. . . . . . . . . 13
. . . . . . . . . . . . . 4
B
Bandeau d’information . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . 15
durée Bouton de menu Bouton Marche/Arrêt
. . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . 5
C
Câble Cinch . . . . . . . . . . . . . . . . . . . . . 7
Câble PERITEL (SCART) Capteur IR Caractéristiques techniques Certificat de garantie Chaîne
balayage . . . . . . . . . . . . . . . . . . . . 10
classer parmi les favoris
effacer de la liste
favoris
filtrer
informations
ordre dans la liste des favoris Chaîne hi-fi
connexion . . . . . . . . . . . . . . . . . . . . 7
Connecteurs Connexion
alimentation . . . . . . . . . . . . . . . . . . 7
antenne
chaîne hi-fi
téléviseur Consignes de sécurité Contenu de l’emballage
. . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . 6
. . . . . . . . 20
. . . . . . . . . . . . . 21
. . . . . . . . . 17
. . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . 10
. . . . . 18
. . . . . . . . . . . . . 2
. . . . . . . . . . . . 3
Customer Care . . . . . . . . . . . . . . . . . . 20
D
Différents réglages . . . . . . . . . . . . . . . 15
E
Elimination des pannes . . . . . . . . . . . 19
Emplacement d’installation EPG
. . . . . . . . . . . . . . . . . . . . . . . . . . 12
bouton sur la télécommande boutons de couleur
. . . . . . . . . 2
. . . . . . 5
. . . . . . . . . . . . 5, 8
F
Face arrière . . . . . . . . . . . . . . . . . . . . . 4
Face avant Favoris Fonctions Format d’écran
14:9 16:9 4:3 écran large 4:3 large
Format vidéo
. . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . 16
G
Guide des programmes, électronique . 12 Guide électronique des programmes, voir
EPG
H
Homologation . . . . . . . . . . . . . . . . . . 20
I
Informations sur le fonctionnement. . . 2 Informations système Installation initiale
. . . . . . . . . . . . . . . . . . . . . . . . 8
menu
. . . . . . . . . . . . . 18
L
Langue audio. . . . . . . . . . . . . . . . . . . 14
seconde Langue des menus Langue des sous-titres
. . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . 14
. . . . . . . . . . . . 14
23
Index
M270T/f
öih/A31008
N1080
R10119W19/Gi
M270
TSIXf/3010
2007
Liste des chaînes . . . . . . . . 9, 10, 11, 17
modifier tri
Liste des favoris
gérer ordre des chaînes
Liste du timer
. . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . 13
M
Menu
affichage aide quitter
utilisation Menu d’aide Menu d’options
affichage Menu OSD, voir Menu
Mise à jour du logiciel . . . . . . . . . . . . 18
Mise en marche Mode radio Mode veille
activation automatique
indication
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . 4
O
Options d’affichage . . . . . . . . . . . . . . 12
Programme
effacer de la liste du timer modifier dans la liste du timer présentation du contenu
. . . . . . . 13
. . . . . 13
. . . . . . . . . 13
Q
Qualité du signal . . . . . . . . . . . . . . . . 10
R
Recherche automatique des chaînes. . . 9 Recherche des chaînes
automatique. . . . . . . . . . . . . . . . . . . 9
en mode expert Recherche manuelle des chaînes Réglage du volume Réglages des fuseaux horaires RGB
. . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . 9
. . . . . 9
. . . . . . . . . . . . . . . 11
. . . . . . 15
S
Service clients . . . . . . . . . . . . . . . . . . 20
Son, couper Sortie audio
format Sous-titres automatiques SPDIF Station de radio S-Vidéo
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . 16
P
Paramètres de langue . . . . . . . . . . . . 14
Paramètres usine, rétablir Présentation des programmes
. . . . . . . . . . . . . . . . . . . . . . 13
quitter Présentation du programme Prise antenne Prise Péritel TV (scart) Prise Péritel vidéo (scart)
24
. . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . 16
. . . . . . . 12
. . . . . . . . . . . . . 4
. . . . . . . . . . . 4
T
Télécommande . . . . . . . . . . . . . . . . . . 5
Téléviseur
connexion
Timer
activer/désactiver
. . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . 14
V
Vidéo . . . . . . . . . . . . . . . . . . . . . . . . . 16
Voyant Alimentation (LED)
. . . . . . . . . . 4
Contents
M270T/lih/
A31008
N1080
R10119W19/Gi
M270
TIVZf/3010
2007
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Information on Installation Location and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 2
The set-top box Gigaset M 270 T . . . . . . . . . . . . . . . 3
Control elements and functional components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Starting up the set-top box . . . . . . . . . . . . . . . . . . . . 6
Inserting the battery into the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecting the devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Switching on the set-top box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Applying the OSD menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Initial installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Channel search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TV operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Choosing a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Controlling the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electronic programme guide (EPG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Radio operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Selecting settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Miscellaneous settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Specifying the display duration of the information banner . . . . . . . . . . . . . . . . . . . . 15
Specifying screen formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the video output format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Restoring factory defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Managing the favourites list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
System information & software update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Authorisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1
Safety
M270T/lih/
A31008
N1080
R10119W19/S
f
Hi
f/30102007
Safety
This device is used exclusively for receiving, recording and replaying DVB signals. Please read the following information carefully to ensure safe usage.
Safety Precautions
u Only use the cables supplied or authorised accessories, as indicated in this manual,
for connecting the device.
u Do not connect the device during a storm to avoid the risk of electric shock. u If you are using an external antenna, this must be installed professionally and
protected from lightening.
u Protect the device from moisture, aggressive liquids and vapours in order to avoid
the danger of fire and electric shock. Do not use the device in damp places (e. g. bathrooms) or in explosive areas.
u The device and remote control may only be repaired by authorised service staff.
Never open the device.
u Keep these instructions in a safe place and make sure the device is accompanied by
these instructions and the supplied accessories when you give it to others to use.
All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. This crossed-out wheeled bin symbol on the product means the product is covered by the European Directive 2002/96/EC. The correct disposal and separate collection of your old appliance will help prevent potential negative consequences for the environment and human health. It is a precondition for reuse and recycling of used electrical and electronic equipment. For more detailed information about disposal of your old appliance, please contact your local council refuse centre or the original supplier of the product.
Information on Installation Location and Operation
u Install the device on a level, non-slip surface. Do not place the device on a heat-
sensitive surface. Protect particularly sensitive surfaces.
u Place the device away from heat sources and avoid direct sunlight. u Do not place objects on the device. Ensure that the air openings for air circulation
are not blocked.
u Before cleaning the device disconnect it from the power supply.
Use a soft, dry cloth to clean the device and remote control.
2
The set-top box Gigaset M 270 T
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
The set-top box Gigaset M 270 T
Your new digital set-top box opens up the whole world of top quality television for you! Study these Operating Instructions to make perfect use of your set-top box's extensive
functions and options.
All features at one glance:
u separate channel lists for TV and radio u automatic as well as manual channel scan u quick channel scan u direct frequency input option u easy-to-operate electronic programme guide (EPG) u OSD menu/on-screen display (OSD) u content-related help functions u easy to use graphical user interface u volume control for analogue sound output u very short change-over intervals u teletext support via TV u support of 4:3, 4:3 letterbox and 16:9 video formats u compatible to MPEG-2 digital and DVB
Scope of delivery
Check whether the package's contents are complete and without damage. The scope of delivery includes:
u 1 set-top box u 1 operating instructions u 1 remote control and 2 type AAA (R6) 1.5 V batteries for the remote control u 1 SCART cable u 1 pluggable power supply
3
The set-top box Gigaset M 270 T
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Control elements and functional components
Front side
A B
A IR Sensor: Receives the infrared signals from the remote control. B Power LED: Indicates the operating status of the digital receiver.
Flashing green: The device is starting. Green: The device is on. Flashing orange: Each operation with the remote control is confirmed. Red: The device is in standby mode. Off: The device is disconnected from the mains or is not operational.
Rear side
ACEFGDB
A TV: AV Scart connector, optimised for connection of a TV B VCR: AV Scart connector, for example for video recorder or DVD device C S/PDIF: Audio output digital (visual) D Audio Out R: Right stereo channel analogue (Cinch, red) E Audio Out L: Left stereo channel analogue (Cinch, white) F In: Coaxial antenna socket for plugging in the antenna connector G Out: Coaxial antenna connector for transmitting analogue signals to the television
or to another device (loop through)
H 12 V DC: Socket for connecting the supplied plug-type AC adapter
4
H
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Remote control
The set-top box Gigaset M 270 T
Switch on/off device
A
Toggle between TV and radio modes
$
Display the OSD (On-Screen Display) menu
Show the info box; Display help on menu
%
Display options menu (e.g. sound track selection)
O
Open EPG (Electronic Programme Guide)
E
Cancel a process; Quit a menu
!
Confirm selection
o
TV operation: Display the channel list OSD: Navigation and selection of menu items
v
EPG: Select any day of the week (right/left); previous/next programme (up/down)
Colour buttons
EPG: red: not assigned
green: to select audio outputs (mono, stereo)
blue: informs on the time yellow: displays the options menu Videotext navigation (if activated)
Open/close teletext
Volume: Increase/decrease volume
ˆ
Channels: Next/preceding channel
ˆ
Numeric keypad: Enter text and digits; Select
#
channel Channel list: backward/forward between the last
two channels selected Toggle between channel list and favourites list
Mutes the sound; press again to turn sound back on
ƒ
5
Starting up the set-top box
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Starting up the set-top box
Note: In this user guide, sequences of symbols are used to show you which steps you
must carry out. For example:
> Search for Channels > Automatic Search is the same as:
1. Press
2. Highlight the menu's item Search for Channels using the arrow buttons
3. Press
4. Highlight the menu's item Automatic Search using the arrow buttons
5. Press
Inserting the battery into the remote control
ì Insert the batteries as shown on the bottom of the battery compartment. Observe
Connecting the devices
Caution: Prior to connecting a unit, verify that it is switched off. First establish all other
connections, then plug the power supply connector into the mains socket. This helps to avoid possible damage.
Antenna port
to run the OSD.
v.
o to confirm your selection.
v.
o to confirm your selection.
the polarity!
ì Connect the set-top box's antenna socket with your room antenna or the antenna
system of your home using a coaxial cable, which is not included in the scope of delivery.
Connecting to a TV Set
Use the SCART cable to establish the connection between set-top box and TV set.
1. Plug the SCART cable into the set-top box's socket.
2. The other end of the SCART cable is connected to the Video In connection of your TV set or video recorder.
Note: If you intend to receive analogue channels in addition to the digital ones, you need to have the analogue signal of these channels fed through. Therefore, connect the set-top box's socket with the antenna input of your TV set using a coaxial cable.
Caution: Do by no means use the decoder input some TV sets dispose of. For further information refer to the Operating Instructions of your TV set.
6
Starting up the set-top box
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Stereo set
Antenna
SPDIF
SCART
SCART
Mains connection
TV set
VCR / DVD
Connecting to a stereo set
1. Connect a cinch cable (3.5 mm jack to 2x cinch) to the analogue audio output.
2. Connect the cinch plugs (right=red, left=white) with the sound input of your stereo system.
Connecting the power supply cord
Caution: Only connect the device to a 230 V ~ 50 Hz power outlet installed according
to regulations, being accordingly fused. Only switch the device on after the connections with the antenna and the SCART cable
have been established.
Connect set-top box and mains socket with the pluggable power supply.
1. First plug the power supply cord into the power supply socket of the set-top box.
2. Connect the pluggable power supply to a power outlet.
7
Operation
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Operation
Switching on the set-top box
As soon as you have connected the set-top box's pluggable power supply to a power outlet, the set-top box switches on, the LED on the front housing lighting up in green.
Note: If the LED is showing red light, switch the device on by pressing Aof the remote
control.
1. Switch on all devices connected to the set-top box.
2. Activate that AV channel or input of your TV set to which you have connected the set-top box.
Note: For further information refer to the Operating Instructions of your TV set.
Applying the OSD menu
Via the OSD menu you are enabled to carry out settings on the device using your RC unit.
Note: Also observe the information and help messages displayed on the screen.
This is how you use the on-screen display functionality:
OSD navigation and selection of menu items. The selected menu item is framed
v
with colour.
Confirm your selection. The selected menu item is now activated or executed.
o
Hide the OSD or exit an activated menu.
!
The remote control's red, green, yellow and blue keys are assigned different
functionalities, dependent on the currently selected menu. If a button of the OSD shows red, green, yellow or blue colour, the respective
function is triggered by pressing the button of the same colour on the remote control.
Notes are displayed on the lower screen edge of the OSD, on which buttons to use for specifying the settings of the currently activated menu.
Initial installation
You are presented with the initial installation menu. This menu is displayed only at first start of the device or when you have returned to factory settings to support you in installing your set-top box.
1. Specify your preferred Menu Language and confirm your selection.
2. Specify your preferred Country, Screen Format and TV Output Format. Go to the Apply bar and confirm your selection.
8
Operation
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
3. Specify your preferred frequencies and channels. Go to Start Scan and confirm your selection.
The device then initiates an automatic channel search.
4. Follow the instructions as displayed on the screen until initial installation is completed, the device then changes to TV operation.
Channel search
For a start we recommend to have an automatic search done as this scan mode normally detects all channels available. The expert scan mode enables the specific search for an individual channel. This in particular makes sense if you only want to include one individual channel into your channel list and you know the information on the channel and frequency.
In the course of scanning already detected channels are added to a list, two displays informing you on signal strength and quality.
Note: You may cancel scanning at any time by pressing
!.
Automatic channel search
> Search for Channels > Automatic Search
Note: If feasible at all, leave the scanning values unchanged, as the defaulted values generally guarantee the detection of all channels.
1. Choose those channels to be searched for (recommended: All).
Note: We generally advise you to search for all channels and to not alter the defaulted values.
2. Select Start Scan and confirm your selection. Following the scanning procedure a dialog informs you on the completion of the
search.
3. Specify whether the found channels should add to the current channel list or replace the former list or whether you want the newly detected channels to be discarded. Confirm your selection.
4. Pressing repeated activation hides the OSD.
Note: If no channels were found at all check the antenna cable for correct connection.
! once makes you quit the scan menu and return to the overview. The
Expert scan mode
> Search for Channels > Manual Search
1. Implement all required settings. The numerical buttons enable for input of the frequency. In addition, you can preselect the channels to be searched for by activating the Channels to search for function (e.g. for all channels Free to air).
2. Then select Start Scan and and confirm your selection.
9
TV operation
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Following the scanning procedure a dialog informs you on the completion of the search.
3. Specify whether the found channels should add to the current channel list or replace the former list or whether you want the newly detected channels to be discarded.
4. Pressing repeated activation hides the OSD.
! once makes you quit the scan menu and return to the overview. The
TV operation
Adjusting the antenna
On principle, an antenna being stationed nearby a window will effect the most optimal reception. Find the ideal position for your antenna:
> Technical Information > Channel Information
You are displayed the current channel's channel information.
1. Try out different positions of your antenna, until the display for Signal Quality shows its maximum value (100%) or some value similarly high.
Note: Please mind that depending on your type of antenna the antenna's orientation may be of importance as well. If this is the case, swing your antenna around to see whether this influences the quality of the signal. Refer to your antenna's operating instructions to find out if your device owns omnidirectional qualities.
2. Afterwards, use the channel buttons your antenna's position, if appropriate.
3. Feeling content with the reception quality set, press information and complete the process.
ˆ to sw it ch to di verse channels. Fur ther ad ju st
! to hide the channel
Choosing a channel
General operation
switches to the following/previous channel memory
ˆ
Direct input of a channel's memory number to immediately jump to a certain
#
channel Complete input of channel numbers with less than 4 figures. Example: Skip to
o
channel 45 pressing
An info banner pops up at the lower edge of the screen whenever you change the channel.
10
4 5 o .
TV operation
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Making use of the list and zapping buttons
An alternative to activating a channel is offered by the channel or favourites list. Establishing a favourites list may make it easier to remember the single memory numbers, as there you are free to define the channel memories as desired.
In certain channel: The channel list is run and the current channel is highlighted
o
with colour. In channel list: Toggle between the entire channel list and the favourites list.
In certain channel: Switch from the current to the previous channel and vice versa.
Calling up information on channels
Every time you switch to another channel an info banner will pop up for a short period of time at the lower edge of the screen. The information banner displays:
u the selected channel memory number and the channel name. u the time on the left edge of the information banner. The display bar on the right next
to the time graphically indicates the programme time that has already elapsed.
u the current and the next programme including its broadcasting time.
After several seconds, the information banner is automatically hidden again. It is up to you to define for how long the info banner will be shown, see page 15.
Display the info banner (without having to change channels).
%
While the information banner is displayed: Display extended information banner for supply of further details with regard to the current programme.
Repeatedly pressing: Toggling between the current and subsequent programme information.
Close the info banner.
!
Controlling the volume
In addition to the volume control of your TV or stereo set, you can also adjust the volume via the set-top box's volume control.
increases/decreases the volume. You are displayed the set volume by means of a
ˆ
graphical bar. Entirely switch off the sound. Pressing again resets the volume to its previous
ƒ
loudness level.
Selecting options
Some channels occasionally provide several camera perspectives, sound tracks and/or teletexts. If one or several of these options are available for a channel, the option icon appears in the right-hand corner of the info banner when that channel is selected.
11
TV operation
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
You then know that you can select from various views, sounds or teletexts or any combination of these options.
1. Call up the desired channel.
O call the selection menu.
2.
3. Choose the desired option (perspective, sound track or teletext) and confirm your selection. The selected option is enabled.
Note: You may find that both a view and an audio track can be selected. In this case you have to press
O repeatedly to be taken to the sound selection menu.
Electronic programme guide (EPG)
The electronic programme guide (EPG) offers you an overview of all programmes to be broadcasted in the next week on the current channel.
Note:
Not all channels offer an extensive EPG. Many broadcasting services broadcast the current day programme but do not offer
detailed descriptions. There are also TV stations that do not broadcast any EPG information. Due to the progressive technical development, more and more broadcasting services ill
extend this offer in the future.
E ˆ v
% / o !
12
Open the programme preview.
Change the current channel.
Right or left: Select any day of the week. Up and down: Previous or next programme. Scrolling far enough down the
current programme preview list automatically takes you to the preview of the coming day.
The colour buttons are assigned certain times of the day: Red button: morning (starting at 6:00 am) Green button: afternoon (starting at 12:00 am) Yellow button: evening (starting at 6:00 pm)
Note: The blue button serves to effect programming via timer, see page 13.
A further screen presents you with a summary of the programme's contents. In case of lengthy text information use the up and down arrow buttons for scrolling.
Quits the programme preview.
TV operation
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Timer
Setting a timer allows you to switch your set-top box on or off at a specified time to watch a programme that is of special interest to you, for example. The device then automatically switches on in the standby mode.
If the device is already switched on, the device automatically switches to the selected programme.
Adding programmes to the timer list
The timer function is included in the timer list via the EPG.
1. Press
2. Highlight the desired programme.
3. Press
The window is closed and the selected programme is stored in the timer list.
Note: "Timer programmes" are marked by a small alarm clock icon being displayed besides the title of the respective programme.
E. g and confirm.
Editing the timer list
> Timer
Deleting programmes
1. In the timer list select the desired programme.
2. Press the respective colour button and confirm the deleting:
red: deletes the selected programme yellow: all programmes are deleted.
Timer editing
1. In the timer list select a programme and confirm your selection.
2. Alter the settings for date, time (starting and end time) and cycle (interesting for series and regularly recurring programmes): Repeatedly select one setting and modify it using the numerical buttons.
3. Then highlight OK besides Apply and confirm your settings.
Switching off current timer functions
When watching a timer programme only few buttons can be activated, i.e. ˆ volume
controls, For switching off the current timer functions:
O and ƒ. During this time the OSD is also not available.
ì Press A on your remote control and press the button again.
13
Settings
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Radio operation
The antenna connection of your set-top box enables for reception of radio programmes. These were stored in a separate list when implementing channel search. When in radio mode all buttons of the remote control maintain the same functionalities as with TV operation. Proceed as follows to switch over to radio operation:
ì Press $ to activate the radio mode. ì Press $ again to return to TV operation.
Note: Currently not all broadcast areas transmit radio programmes.
Settings
Selecting settings
The menu leaves you with the opportunity of defining numerous different language settings.
> Box Settings > Language Settings
ì Do your settings as desired using the arrow buttons.
Menu Language:
Audio Language: Select a reproduction language for the programmes.
Audio Language #2:
Subtitle Language:
Subtitles Automatic:
Set the language of the OSD. A wide range of languages is available for you to choose from, e.g. English, French, Spanish.
Select an optional reproduction language for the programmes.
Note: In case your favoured programme is not broadcast in the language set in Audio Language, the Audio Language #2 is used automatically.
Select a language for the captions. Proceeding in selecting a first and a second subtitle language
follows the same principles as with the first and second audio language.
Set this option to On if you want to automatically show broadcast subtitles in the selected subtitle language (default: Off).
ì Press ! to exit the menu.
14
Settings
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Miscellaneous settings
The Miscellaneous Settings dialog allows for settings regarding time and audio output formats. Selection of audio language and subtitling is only supported if the programme is broadcasted in more than one language.
The set-top box time can be updated either automatically or manually.
> Box Settings > Miscellaneous Settings
1. Select the time change type from winter time to summer time or vice versa – choosing the Automatic setting from the Time Zone Adjustment option,
making the set-top box take its time information from the currently chosen channel, or
– setting the Time Zone Adjustment option to Manual, selecting On or Off for
Summertime / DST as appropriate, then specifying the difference to the Greenwich Mean Time (GMT) via the Time Zone (GMT) function. For Central Europe this difference amounts to one hour ahead (+01:00).
2. Specify the desired audio output format (of special interest in case you have connected a stereo system to the set-top box).
3. Press
! to exit the menu.
Specifying the display duration of the information banner
You can set the time after which the info banner, see page 11, is to disappear from the screen again.
> Box Settings > Menu Settings > Info Banner Duration
1. Select the desired time of delay for the Info Banner Duration after which the info banner is to be deactivated automatically:
Permanent: No automatic hiding of the info banner. – None prevents the info banner from being displayed at each channel change.
2. Press
! to exit the menu.
Specifying screen formats
Due to the screen format varying e.g. in case of cinema films or general series you can select the appropriate screen format for the current programme in the settings menu.
The following formats are available for selection:
16:9 format: Presents films on a 16:9 TV in full size.
15
Settings
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
4:3 format wide screen (letterbox): Zooms out of 16:9 format films to scale down to 4:3 format
TVs by adding a black bar above and below the picture on the screen.
4:3 format CCO/Pan Scan (enlarged): Presents films in the 16:9 format in a screen-filling manner.
With regard to 4:3 TVs, the left and right picture border is cut off.
4:3 (Letterbox 14:9) Zooms out of 16:9 format films to scale down to 4:3 format
TVs by adding a black bar above and below the picture on the screen.
Additionally the left and right border is slightly cut off
> Box Settings > Video Settings > Screen Format
1. Select the screen format.
2. Press
! to exit the menu.
Setting the video output format
The Settings menu enables for specifying a.o. the video output settings. Please note:
u The formats RGB, Video and S-Video are provided for the "TV video output". u The "VCR video output" (video recorder output) only disposes of the Video and
S-Video settings.
u Having selected RGB for the TV output, only the Video option will be made available
for the VCR output.
Note: If you are not aware of the format your TV set supports, simply check which setting brings about the best picture representation.
> Box Settings > Video Settings > TV Output Format / VCR Output Format
1. Select the video format with the optimal image reproduction. VCR Output Format enables for setting the screen format of a video recorder if connected.
2. Press
! to exit the menu.
Restoring factory defaults
You can reset the device to default settings. In doing so, the individually composed favourites list is deleted.
> Box Settings > Restore Factory Settings
16
Settings
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
ì In the dialog box displayed set the option to Yes using the arrow buttons and
confirm the restoration of factory settings.
The device reboots, switches off, and shortly afterwards switches on again.
Managing the favourites list
Following channel scan the detected channels are stored to a general channel list. The storing sequence of these channels in the list is fixed.
Note: If the set country disposes of channels with preset slots, these are stored to predefined channel memories. These diverse slots may not follow a continuous sequence. This sorting method is called Logic Channel Numbering (LCN). All further channels are added following the last LCN channel found.
Defining channels as favourites
Applying the favourites list function you can sort your favourite channels according to your own preferences and activate these via the remote control accordingly.
Note: You may include the LCN channels (if appropriate) in the favourites list and store them at any slot within this list, thus preventing the favourites list from showing breaks. It is not possible to ensure a continuous sequence of the LCN channels in the "All channels list".
> Sort TV channels (represented by a list icon on the left edge of the screen)
The Sort TV channels menu is displayed. The list comprises all found channels, your favourites being indicated by an asterisk (*).
Note: In case of a rather long channel list you may wish to apply the filter function to achieve a more structured overview, see page 18.
1. Select the channel you want to mark as a favourite and confirm your selection.
2. Repeat the step described above to add further channels to the favourites list.
3. Press
4. You will be prompted whether to store the changes made. Confirm this.
! to close the window.
Editing channel list
Possibly the channel list may appear too complex to you or contain channels that you are not interested in watching. Via the main menu, you edit the channel list.
> Sort TV channels
1. Press
2. Carry out the desired settings.
3. Press
4. You will be prompted whether to store the changes made. Confirm this.
to toggle between channel and favourites list. ! to close the window.
17
Settings
M270T/lih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Shifting channels
You can adapt the order of channels in the favourites list.
1. Press
2. Highlight the channel intended for shifting and confirm your selection.
3. Move the chosen channel to its new position as desired by means of the arrow
4. Press
Filtering channels
By means of this function, you can display the channel list according to desired criteria.
Note: A filter is always temporary, thus not being stored. As soon as you close the Sort TV channels screen, the current filter settings are discarded again.
1. Press
2. Select the channels to be displayed.
3. Determine the sorting type (according to number or alphabetical order) via Sorting
Note: Observe the respective information on the lower part of the window. They help you to carry out the correct settings.
to switch to the favourites list.
The channel name is inserted.
buttons and confirm to store the channel at the desired place.
! and confirm the subsequent prompt.
b to call up the filter function.
and confirm your selection.
Deleting channels
You are not allowed to delete channels from the general channel list. If you have deleted channels from the favourites list, they still remain stored in the channel list.
1. Highliht the channel you wish to delete.
2. Press
3. Quit the channel list by pressing
i if you want to delete the selected channel only. Pressing b initiates
deletion of all favourites.
! and confirm your changes.
System information & software update
The system information is of special interest in case support is needed. Additionally you may as well search manually for a new set-top box software update.
> Technical Information > System Information
1. A dialog box is displayed. Select Update Software and confirm to start searching for a new software update.
2. Press
18
! to exit the menu.
Appendix
M270T/lih/
A31008
N1080
R10119W19
/
dif/3010
2007
Appendix
Troubleshooting
All electronic devices may have faults. However, these faults need not be defects in every case. Instead, they are often caused by bad leads or plug-and-socket joints or by connections being incorrectly established.
Prior to seeking expert help, please check the following points:
Problem Possible cause Remedies
Device does not start No mains voltage (no LED
display)
No picture, no sound No mains voltage Check connector cable and
No channel list or incorrect channel list Lost connection Check connection
No picture or bad picture
Sound available, no picture
SCART plug not completely connected
Inadequate positioning of the antenna Antenna too small Make use of a larger antenna Channel is broadcast by means of other parameters Channel is broadcasted by means of other parameters SCART plug not completely connected Device is in radio mode Switch to TV mode pressing
Check connector cable and pluggable power supply
pluggable power supply Carry out automatic channel scan
Check SCART connection
Re-adjust the antenna, (see p. 10)
Implement automatic channel scan (see p. 9) Implement automatic channel scan (see p. 9) Check SCART connection
$
No reception of channels that could be received before
Remote control without reaction
Several channels are not received from time to time
Channel is no longer broadcasted
Obstacle between remote control and set-top box Faulty data stream, the device locks
Batteries used up Exchange old batteries of the
These channels are not broadcasted 24 hours a day and sometimes are not available. This is not a fault.
Not any
Eliminate obstacle
Disconnect pluggable power supply, re-establish connection after 10 seconds
remote control for new ones
19
Appendix
M270T/lih/
A31008
N1080
R10119W19
/
dif/3010
2007
Problem Possible cause Remedies
Device cannot be operated Bad picture quality Incorrect TV SCART output
You will find additional solutions and FAQs (Frequently Asked Questions) on the Internet at http://www.siemens.com/gigaset
Obstacle between remote control and set-top box
signal
.
Eliminate obstacle
Select different video output format (see p. 16)
Technical data
Model: Gigaset M 270 T TV: 1 DVB-T tuner RF: INPUT: 1 socket (IEC)
OUTPUT (loop through): 1 socket (IEC)
SCART: 2 Euro AV sockets:
TV (OUT): CVBS, RGB, YC
VCR (OUT): CVBS, RGB, YC Cinch: 1 ANALOG OUT (AUDIO R/L) SPDIF (visual): 1 Audio digital (Dolby Digital, AC3, PCM stereo) LED Display Power on/off/standby, RCU activity Device configuration: Via TV menu Supply voltage: 230 V AC / 50 Hz to 12 V DC Power consumption: less than 10 Watt Permissible ambient temperature: 5 °C to 40 °C Dimensions: approx. 250 x 140 x 32 mm Weight: approx. 1.0 kg
Authorisation
The CE mark certifies conformity of the device with the relevant harmonised standards of the LV Directive 2006/95/EC and EMC Directive 2004/108/EC.
A copy of the declaration of conformity is available at this Internet address: http://www.siemens.com/gigasetdocs
20
.
M270T/lih/
A31008
N1080
R10119W19/Gi
M270
TSIXf/3010
2007
Index
Index
A
Antenna
. . . . . . . . . . . . . . . . . . . . . . . 10
adjust
connect Antenna socket Audio language
second Audio output
format Authorisation Automatic channel search Automatic subtitles
. . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . 20
. . . . . . . . . . 9
. . . . . . . . . . . . . . 14
C
Channel
define as favourite
delete from channel list
favourites
filter
information
order in the favourites list
toggling Channel list
edit
sort Channel search
automatic. . . . . . . . . . . . . . . . . . . . . 9
in expert mode Cinch cable Connect
antenna . . . . . . . . . . . . . . . . . . . . . . 6
power supply
stereo set
TV set Connectors
. . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . 9, 10, 11, 17
. . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . 17
. . . . . . . . . 18
. . . . . . . . . . . . . . . . . . 10
. . . . . . . . 18
. . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . 7
D
Display options . . . . . . . . . . . . . . . . . 11
E
Electronic programme guide see EPG
. . . . . . . . . . . . . . . . . . . . . . . . . . 12
EPG
button on remote control colour buttons
Expert scan mode
. . . . . . . . . . . . . . . 5, 8
. . . . . . . . . . . . . . . . 9
. . . . . . . . . 5
F
Factor y default settings, restore . . . . . 16
Favourites Favourites list
manage
order of channels Features Front side
. . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . 4
H
Help on menu . . . . . . . . . . . . . . . . . . . 5
I
Information banner . . . . . . . . . . . . . . 11
set disappear time Information on operation Initial installation
menu . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation location IR Sensor
. . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . 15
. . . . . . . . . . . 2
. . . . . . . . . . . . . . . 2
L
Language settings . . . . . . . . . . . . . . . 14
M
Menu
. . . . . . . . . . . . . . . . . . . . . . . 5
display
exit
. . . . . . . . . . . . . . . . . . . . . . . . . . 5
handling
help Menu button Menu language Miscellaneous settings
. . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . 15
21
Index
M270T/lih/
A31008
N1080
R10119W19/Gi
M270
TSIXf/3010
2007
O
On / Off button . . . . . . . . . . . . . . . . . . 5
Options menu
display
. . . . . . . . . . . . . . . . . . . . . . . 5
OSD menu see Menu
P
Power 12 V DC. . . . . . . . . . . . . . . . . . . 4
Power LED Power supply
connect . . . . . . . . . . . . . . . . . . . . . . 7
Programme
delete from timer list edit in timer list
summary of contents Programme guide, electronic Programme preview
exit
. . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . 13
. . . . . . . . . . . . . . . 13
. . . . . . . . . . . 12
. . . . . . . 12
. . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . 12
R
Radio mode . . . . . . . . . . . . . . . . . . . . . 5
Radio programme Rear side Remote control RGB
. . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . 5
S
Safety precautions. . . . . . . . . . . . . . . . 2
SCART cable Scope of delivery Screen format
14:9
16:9
4:3 enlarged
4:3 wide screen
. . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . 16
Set-top box
radio mode switch on switch on/off via timer
switch to standby mode Signal quality Software update Sound, mute
. . . . . . . . . . . . . . . . . . . . . . . . . . 4
SPDIF Standby mode
automatically switch on . . . . . . . . . 13
indication Stereo set
connect . . . . . . . . . . . . . . . . . . . . . . 7
Subtitle language S-Video Switch on System information
. . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . 13
. . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . 18
T
Technical data . . . . . . . . . . . . . . . . . . 20
Time zone adjustment
. . . . . . . . . . . . . . . . . . . . . . . . . 13
Timer
switch on/off Timer list Troubl esh ooting TV scart TV set
. . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . 4
connect
. . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . 19
V
Video . . . . . . . . . . . . . . . . . . . . . . . . . 16
Video output format Video scart Volume control
. . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . 11
22
Innehåll
M270T/h
dih/
A31008
N1080
R10119W19/Gi
M270
TIVZf/3010
2007
Innehåll
Säkerhet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Säkerhetsåtgärder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Information om installationsplats och användning . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Digitalboxen Gigaset M 270 T . . . . . . . . . . . . . . . . . . 3
Kontrollelement och funktionella komponenter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Fjärrkontroll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Starta digitalboxen . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Sätta i batteriet i fjärrkontrollen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Ansluta enheterna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Användning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Slå på digitalboxen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Använda skärmmenyn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Första installationen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Kanalsökning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Använda TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Justera antennen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Välja en kanal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Kontrollera volymen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Välja alternativ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
EPG (elektronisk programguide) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Använda radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Inställningar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Göra inställningar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Övriga inställningar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ange varaktighet för informationsfält . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ange bildformat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ställa in utformat för bild . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Återställa fabriksinställningar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Hantera favoritlistan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Systeminformation & uppdatering av programvara . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Bilaga . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Felsökning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Tekniska data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Kundservice (Customer Care) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Tillverkarens garanti . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
1
Säkerhet
M270T/h
dih/
A31008
N1080
R10119W19/S
f
Hi
f/30102007
Säkerhet
Den här enheten används uteslutande för att ta emot och spela upp DVB-signaler. Läs följande information noggrannt för säker användning.
Säkerhetsåtgärder
u Använd endast de medföljande kablarna eller auktoriserade tillbehör enligt uppgif-
terna i denna handbok, när du ansluter enheten.
u Undvik elektriska stötar genom att inte ansluta enheten vid storm. u Om du använder en extern antenn ska den installeras professionellt och vara skyd-
dad mot blixtnedslag.
u Undvik risk för brand och elektriska stötar genom att skydda enheten mot fukt,
aggressiva vätskor och ånga. Använd inte enheten på fuktiga platser (t. ex. badrum) eller på explosiva platser.
u Enheten och fjärrkontrollen får endast repareras av auktoriserad servicepersonal.
Öppna aldrig enheten.
u Förvara dessa instruktioner på en säker plats och se till att de medföljer enheten och
levererade tillbehör när du lämnar enheten till någon annan.
Alla elektriska apparater ska avfallshanteras separat från vanligt hushållsav­fall på för ändamålet avsedda platser.
Om en symbol med en överstruken soptunna finns på en produkt gäller direktiv 2002/96/EC för produkten.
Korrekt avfallshantering och separat insamling av förbrukade apparater före­bygger potentiella skador på miljö och hälsa. Dessutom är det en förutsätt­ning för återanvändning och återvinning av förbrukade elektriska apparater.
Utförlig information om avfallshantering av förbrukade apparater finns hos din kommun, avfallshanteringstjänst eller hos fackhandlaren där du köpte produkten.
Information om installationsplats och användning
u Ställ enheten på en jämn, halkfri yta. Placera inte enheten på en värmekänslig yta.
Skydda särskilt känsliga ytor.
u Placera enheten på avstånd från värmekällor och undvik direkt solljus. u Placera inga föremål på enheten. Se till att luftöppningarna för cirkulation inte
blockeras.
u Innan du rengör enheten ska du koppla bort den från elnätet.
Använd en mjuk, torr duk när du rengör enheten och fjärrkontrollen.
2
Digitalboxen Gigaset M 270 T
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Digitalboxen Gigaset M 270 T
Din nya digitalbox öppnar en hel värld av tv med hög kvalitet åt dig! Läs igenom denna användarhandbok så att du kan använda digitalboxens omfattande
funktioner och alternativ på bästa möjliga sätt.
Alla funktioner i översikt:
u separat kanallista för TV och radio u automatisk och manuell kanalsökning u snabbsökning efter kanaler u alternativ för direkt frekvensingång u lättanvänd EPG (elektronisk programguide) u meny på skärmen u innehållsrelaterade hjälpfunktioner u lättanvänt grafiskt användargränssnitt u volymkontroll för analogt ljud u mycket korta växelintervaller u stöd för text-tv u stöd för bildformaten 4:3, 4:3 letterbox och 16:9 u kompatibel med MPEG-2 digital och DVB
Leveransomfattning
Kontrollera att förpackningens innehåll är komplett och att det inte skadats. Förpack­ningen innehåller:
u 1 digitalbox u 1 användarhandbok u 1 fjärrkontroll och 2 AAA (R6) 1,5 V-batterier för fjärrkontrollen u 1 SCART-kabel u 1 nätdel
3
Digitalboxen Gigaset M 270 T
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Kontrollelement och funktionella komponenter
Framsida
A B
A IR-sensor: Tar emot de infraröda signalerna från fjärrkontrollen. B Ström-LED: Anger status för digitalmottagaren.
Blinkande grön: Enheten startas. Grön: Enheten är på. Blinkande orange: Varje åtgärd med fjärrkontrollen bekräftas. Röd: Enheten befinner sig i standby-läget. Av: Enheten är frånkopplad från elnätet eller används inte.
Baksida
ACEFGDB
A TV: AV-scart-anslutning, optimerad för anslutning till TV B Video: AV-scart-anslutning, till exempel för video- eller DVD-spelare C S/PDIF: Digital ljudutgång D Ljudutgång H: Höger analog stereokanal (cinch, röd) E Ljudutgång V: Vänster analog stereokanal (cinch, vit) F In: Koxialkontakt för antennanslutning G Ut: Koaxialkontakt för överföring av analoga signaler till tv eller en annan enhet
(loopthrough, genomföring)
H 12 V DC: Anslutning för den medföljande AC-adaptern av instickstyp
4
H
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Fjärrkontroll
Digitalboxen Gigaset M 270 T
Slå på/stänga av enhet
A
Växla mellan TV- och radioläge
$
Visa skärmmenyn
Visa informationsfält; Visa hjälp om meny
%
Visa alternativmenyn (t.ex. val av ljudspår)
O
Öppna EPG (elektronisk programguide)
E
Avbryt en process; Lämna en meny
!
Bekräfta val
o
Använda TV: Visa kanallista Skärmmeny: Navigering och val av menyposter
v
EPG: Välj nästa/föregående kanal i listan (ned/upp); välj nästa/föregående program i listan (höger/ vänster);
‚ ˆ ˆ # „
ƒ
Färgknappar
röd: ej tilldelad grön: välj ljudalternativ (mono, stereo) blå: information om tid gul: visa alternativmenyn Navigering i text-tv (om aktiv)
Öppna/stäng text-tv
Volym: Höj/sänk volymen
Kanaler: Nästa/föregående kanal
Numerisk knappsats: Ange text och siffror; välj kanal
Kanallista: fram och tillbaka mellan de två senast valda kanalerna Växla mellan kanal- och favoritlistan
Stänger av ljudet; tryck igen om du vill slå på ljudet
5
Starta digitalboxen
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Starta digitalboxen
Obs! I den här användarhandboken används symbolsekvenser för att visa hur du utför
processer. Till exempel:
> Sök efter kanaler > Automatisk sökning är detsamma som:
1. Tryck på
2. Markera menyposten Sök efter kanaler med pilknapparna
3. Tryck på
4. Markera menyposten Automatisk sökning med pilknapparna
5. Tryck på
Sätta i batteriet i fjärrkontrollen
ì Sätt in batterierna enligt figuren i batterifacket. Observera polariteten!
Ansluta enheterna
Varning! Innan du ansluter en enhet kontrollerar du att den är avstängd. Gör först alla
andra anslutningar och sätt sedan in elkontakten i eluttaget. På så sätt undviker du eventuella skador.
Antennport
för att öppna skärmmenyn.
v.
o om du vill bekräfta valet.
v.
o om du vill bekräfta valet.
ì Anslut digitalboxens antennuttag med din rumsantenn eller antennsystemet i hem-
met med en koaxialkabel, som inte medföljer digitalboxen.
Ansluta till en TV
Använd SCART-kabeln och anslut digitalboxen och TV:n.
1. Sätt in SCART-kabeln i digitalboxens uttag.
2. Den andra kontakten på SCART-kabeln ska anslutas till anslutningen Video In på din TV eller video.
Obs! Om du vill ta emot analoga kanaler utöver de digitala, är du tvungen att mata igenom kanalernas analoga signaler. Därför ska du ansluta digitalboxens uttag med antenningången på TV:n med en koaxialkabel.
Varning! Använd aldrig dekoderingången som finns på vissa TV-apparater. Mer information om detta finns i användarhandboken som tillhör TV:n.
6
Starta digitalboxen
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Stereo
Antenn
SPDIF
SCART
SCART
Elnät­anslutning
TV
VCR/DVD
Ansluta till en stereo
1. Anslut en cinchkabel (3,5 mm jack till 2x cinch) till utgången för analogt ljud.
2. Anslut cinchkontakterna (höger=röd, vänster=vit) med ljudingången på stereon.
Ansluta elkabeln
Varning! Anslut enheten endast till ett eluttag med specifikationerna 230 V ~ 50 Hz
som installerats enligt föreskrifterna med rätt säkringar. Anslut enheten först när anslutningarna till antennen och SCART-kabeln har gjorts.
Anslut digitalboxen och eluttaget med hjälp av nätdelen.
1. Sätt först in elkabeln i digitalboxens elanslutning.
2. Anslut nätdelen till ett eluttag.
7
Användning
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Användning
Slå på digitalboxen
Så snart du anslutit digitalboxens nätdel till ett eluttag slås digitalboxen på och LED-lam­pan på framsidan lyser grönt.
Obs! Om LED-lampan lyser rött slår du på enheten genom att trycka på A
fjärrkontrollen.
1. Slå på alla enheter som är anslutna till digitalboxen.
2. Aktivera AV-kanalen eller signalen till TV:n som digitalboxen anslutits till.
Obs! Mer information om detta finns i användarhandboken som tillhör TV:n.
Använda skärmmenyn
Via skärmmenyn kan du göra inställningar på enheten med fjärrkontrollen.
Obs! Observera även information och hjälpmeddelanden som visas på skärmen.
Så här använder du skärmens funktioner:
Navigering i skärmmenyn och val av menyposter. Den valda menyposten har en
v
färgad ram.
Bekräfta ditt val. Den valda menyposten körs eller utförs nu.
o
Dölj skärmmenyn eller lämna en aktiverad meny.
!
Fjärrkontrollens röda, gröna, gula och blå knapp tilldelas olika funktioner, bero-
ende på vilken meny du befinner dig i. Om en knapp på skärmen har röd, grön, gul eller blå färg utförs respektive funktion
genom att du trycker på knappen med motsvarande färg på fjärrkontrollen. Information visas längst ned på skärmen i menyn om vilka knappar du kan använda
för att göra inställningar i den aktuella menyn.
Första installationen
Nu visas menyn för första installationen. Den här menyn visas endast första gången enheten startas eller när du återställt fabriksinställningarna och du kan använda den för att installera digitalboxen.
1. Välj önskat Menyspråk och bekräfta valet.
2. Ange Land, Skärmbildsformat och TV-utgångsformat. Gå till fältet Apply (Tillämpa) och bekräfta ditt val.
8
Användning
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
3. Ange frekvenser och kanaler. Gå till Starta sökning och bekräfta valet. Enheten inleder sedan en automatisk kanalsökning.
4. Följ instruktionerna som visas på skärmen tills att den första installationen är slut­förd, då enheten övergår till TV-läget.
Kanalsökning
Inledningsvis rekommenderar vi att du genomför en automatisk sökning, eftersom detta sökläge normalt hittar alla tillgängliga kanaler. Läget för expertsökning gör det möjligt att söka efter en viss kanal. Detta är särskilt användbart om du endast vill lägga till en enskild kanal i kanallistan och du har information om kanalen och frekvensen.
Under sökningen läggs upptäckta kanaler till i en lista och information om signalstyrka och signalkvalitet visas.
Obs! Du kan avbryta sökningen när som helst genom att trycka på
!.
Automatisk kanalsökning
> Sök efter kanaler > Automatisk sökning
Obs! Om möjligt, ska du lämna sökvärdena oförändrade, eftersom standardvärdena i allmänhet garanterar att alla kanaler upptäcks.
1. Välj de kanaler som du vill söka efter (rekommenderat: Alla).
Obs! Vi rekommenderar dig att i allmänhet söka efter alla kanaler och inte ändra standardvärdena.
2. Tryck på Starta sökning och bekräfta valet. Efter sökproceduren visas ett meddelande om att sökningen slutförts.
3. Ange huruvida de hittade kanalerna ska läggas till i den aktuella kanallistan eller er­sätta den föregående listan, eller huruvida du vill att nya kanaler som upptäckts ska kasseras. Bekräfta valet.
4. Om du trycker på du trycker en gång till stängs skärmmenyn.
Obs! Om inga kanaler hittades ska du kontrollera att antennkabeln är korrekt ansluten.
! en gång stänger du sökmenyn och återgår till översikten. Om
Läge för expertsökning
> Sök efter kanaler > Manuell sökning
1. Utför alla erfordrade inställningar. De numeriska knapparna gör det möjligt att ange frekvensen. Dessutom kan du välja vilka kanaler du vill söka efter genom att aktivera funktionen Kanaler som ska sö- kas (t.ex. för alla kanaler som är Gratis kanaler).
2. Välj sedan Starta sökning och bekräfta ditt val. Efter sökproceduren visas ett meddelande om att sökningen slutförts.
9
Använda TV
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
3. Ange huruvida de hittade kanalerna ska läggas till i den aktuella kanallistan eller er­sätta den föregående listan, eller huruvida du vill att nya kanaler som upptäckts ska kasseras.
4. Om du trycker på du trycker en gång till stängs skärmmenyn.
! en gång stänger du sökmenyn och återgår till översikten. Om
Använda TV
Justera antennen
I allmänhet tar antenner som placerats nära ett fönster emot bästa möjliga signal. Hitta den bästa positionen för din antenn:
> Teknisk information > Kanalinformation
Nu visas kanalinformation om den aktuella kanalen.
1. Prova olika placeringar för antennen tills att Signalkvalitet visar bästa möjliga värde (100 %) eller ett ungefär lika högt värde.
Obs! Tänk på att antennens inriktning kan ha betydelse, beroende på vilken typ av antenn du använder. Om så är fallet ska du vrida runt antennen och prova om detta påverkar signalkvaliteten. Läs antennens användarhandbok för information om den fungerar i alla riktningar.
2. Använd därefter cering ytterligare om det behövs.
3. När du är nöjd med mottagningskvaliteten trycker du på mationen och slutföra processen.
ˆ-knapparna för att växla till olika kanaler. Justera antennens pla-
! för att dölja kanalinfor-
Välja en kanal
Allmän användning
växlar till nästa/föregående kanalminne
ˆ
Direkt inmatning av kanalens minnesnummer så att du går direkt till en viss kanal
#
Slutför inmatning av kanalnummer med färre än 4 siffror. Exempel: Gå till kanal
o
45 genom att trycka på
Ett informationsfält visas längst ned i bild när du byter kanal.
10
4 5 o.
Använda TV
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Använda listknapparna och knappar för snabbt kanalbyte
Ett alternativ till att aktivera en viss kanal finns i kanal- eller favoritlistan. Genom att skapa en favoritlista blir det lättare att minnas enskilda kanalnummer, eftersom du kan ange kanalerna i minnet med vilket nummer du vill.
Med viss kanal: Kanallistan körs och den aktuella kanalen markeras med en färg.
o
I kanallistan: Växla mellan hela kanallistan och favoritlistan.
Med viss kanal: Växla från den aktuella kanalen till föregående kanal och tillbaka.
Öppna information om kanaler
Varje gång du byter till en annan kanal visas ett informationsfält kort längst ned i bilden. Informationfältet visar:
u minnesnumret för den valda kanalen och kanalnamnet. u tiden till vänster på informationsfältet. Stapeln till höger om tiden visar program-
mets förlopp grafiskt.
u det aktuella programmet och nästa program, samt dess sändningstid.
Efter några sekunder döljs informationsfältet igen. Du kan ange hur länge informations­fältet ska visas, se s. 15.
Visa informationsfält (utan att byta kanaler).
%
När informationsfältet visas: Visa det utökade informationsfältet med fler detaljer om det aktuella programmet.
Tryck flera gånger: Växla mellan information aktuellt program och nästa program.
Stäng informationsfältet.
!
Kontrollera volymen
Utöver att ändra volymen på TV:n kan du justera volymen med digitalboxens volymkontroll.
höj/sänk volymen. Den inställda volymen visas med en grafisk stapel.
ˆ
Stäng av ljudet helt. Om du trycker igen återgår du till föregående volymnivå.
ƒ
11
Använda TV
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Välja alternativ
Vissa kanaler erbjuder ibland flera kameraperspektiv, ljudspår och/eller text-tv-alterna­tiv. Om en eller flera av dessa alternativ finns för kanalen visas alternativikonen i höger hörn av informationsfältet när kanalen väljs.
Du vet då att du kan välja på flera olika vyer, ljud eller text-tv-alternativ eller en kombi­nation av dessa alternativ.
1. Öppna den önskade kanalen.
O öppnar urvalsmenyn.
2.
3. Välj önskat alternativ (perspektiv, ljudspår eller text-tv) och bekräfta ditt val. Det val­da alternativet aktiveras.
Obs! Du kanske kan välja både vy och ljudspår. I så fall måste du trycka på gånger för att komma till menyn där du kan välja ljud.
O flera
EPG (elektronisk programguide)
Den elektroniska programguiden (EPG) innehåller en översikt över alla kanaler och pro­gram som sänds upp till ett dygn framåt. Notera att det även finns kanaler som inte sän­der utförlig EPG-information eller helt saknar EPG-information.
E v
g „ %
!
Se också hjälpinformationen som visas på skärmen.
Öppna EPG.
Ned och upp: Välj nästa/föregående kanal i listan. Genom att trycka på o
så byter du kanal i bakgrunden. Höger eller vänster: Välj nästa/föregående
program. Genom att trycka på o så byter du kanal i bakgrunden om du
valt ett program som sänds på en annan kanal än den du tittar på. Den blå knappen används för timerprogrammering. Du måste först mar-
kera ett program, se “Timer“ på sidan 13. Växla mellan kanal- och favoritlistan. En förutsättning är att du har skapat en favoritlista tidigare. En ny skärm visar en sammanfattning av programinnehållet. Vid lång text­information kan du använda upp- och nedpilarna för att bläddra. Tryck på
för att lämna menyn.
!
Stäng EPG.
12
Använda TV
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Timer
Om du ställer in en timer kan du slå på eller stänga av digitalboxen en viss tid och till exempel titta på ett program som du är särskilt intresserad av. Enheten slås då automa­tiskt på i standby-läget.
Om enheten redan är aktiverad går enheten automatiskt till det valda programmet.
Lägga till program i timerlistan
Timerfunktionen inkluderas i timerlistan via EPG.
1. Tryck på
2. Markera det önskade programmet.
3. Tryck på
Det valda programmet lagras i timerlistan.
E. g och bekräfta.
Redigera timerlistan
> Timer
Ta bort program
1. Välj det önskade programmet i timerlistan.
2. Tryck på respektive färgknapp och bekräfta borttagningen:
röd: ta bort det valda programmet gul: alla program tas bort.
Timerredigering
1. I timerlistan väljer du ett program och bekräftar valet.
2. Ändra inställningarna för datum, tid (start- och sluttid) och cykel (vid serier och re­gelbundna program): Välj en inställning i taget och ändra den med nummerknap­parna.
3. Markera sedan OK bredvid Apply (Tillämpa) och bekräfta inställningarna.
Stänga av aktuella timerfunktioner
När du tittar på ett timerprogram kan du använda endast ett fåtal knappar, dvs.
-volymkontroller O och
ˆ
Stänga av aktuella timerfunktioner:
. Du kan inte öppna menyskärmen.
ƒ
ì Tr yck på A på fjärrkontrollen och tryck en gång till på knappen.
13
Inställningar
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Använda radio
Antennanslutningen på digitalboxen gör det möjligt att ta emot radioprogram. Dessa lagras i en separat lista när kanalsökningen genomförs. I radioläget har alla knappar på fjärrkontrollen samma funktioner som när du tittar på TV. Gör så här när du vill gå till radioläget:
ì Tr yck på $ om du vill aktivera radioläget. ì Tr yck på $ igen om du vill återgå till TV-läget.
Obs! För närvarande sänds inte radioprogram i alla sändningsområden.
Inställningar
Göra inställningar
I den här menyn kan du ange olika språkinställningar.
> Boxinställningar > Språkinställningar
ì Ställ in inställningarna enligt dina behov med pilknapparna.
Menyspråk:
Audiospråk: Välj vilket språk program ska återges på.
Audiospråk 2:
Undertextspråk:
Automatiska under­texter:
Välj ett språk för skärmmenyn. En rad språk finns tillgängliga, t.ex. engelska, franska, spanska.
Välj ett alternativt språk som program ska återges på.
Obs! Om programmet du tittar på inte återges på språket som du ställt in i Audiospråk, används Audiospråk 2 automatiskt.
Välj ett språk för undertexterna. Du väljer ett första och ett andra språk för undertexter på samma
sätt som du väljer ett första och andra ljudspråk. Med inställningen På visas undertexter som sänds automatiskt
på det valda undertextspråket (standard: Av).
ì Tr yck på ! om du vill lämna menyn.
14
Inställningar
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Övriga inställningar
Dialogrutan Övriga inställningar gör det möjligt att ställa in format för tid och ljud. Val av ljudspråk och undertext stöds endast om programmet sänds på mer än ett språk.
Tiden på digitalboxen kan uppdateras automatiskt eller manuellt.
> Boxinställningar > Övriga inställningar
1. Välj typ av tidsändring från vintertid till sommartid eller tvärtom – välj Automatisk för alternativet Inställning av tidszon så att digitalboxen häm-
tar tidsinformation från den aktuella kanalen eller
– ställ in alternativet Inställning av tidszon på Manuell, och välj eller Av för
Sommartid enligt dina behov, och sedan ange skillnaden i förhållande till Green­wich Mean Time (GMT) med funktionen Tidszon (GMT). För centrala Europa är skillnaden en timme framåt (+01:00).
2. Ange det önskade ljudformatet (särskilt viktigt om du anslutit en stereo till digital­boxen).
3. Tryck på
! om du vill lämna menyn.
Ange varaktighet för informationsfält
Du kan ställa in hur lång tid informationsfältet, se s. 11, ska visas på skärmen.
> Boxinställningar > Menyinställningar > Varaktighet för infobanner
1. Välj den önskade fördröjningstiden för Varaktighet för infobanner efter vilken in- formationsfältet automatiskt inaktiveras:
Permanent: Informationsfältet döljs inte automatiskt. – Med alternativet Inga visas inte informationsfältet när du byter kanal.
2. Tryck på
! om du vill lämna menyn.
Ange bildformat
Eftersom bildformatet varierar t.ex. för filmer eller allmänna serier kan du välja det lämpliga formatet för det aktuella programmet på inställningsmenyn.
Följande format finns tillgängliga:
16:9-format: Visar filmer i full storlek på tv-apparater med formatet 16:9.
15
Inställningar
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
4:3-format bredbild (letterbox): Zoomar ut från filmer i formatet 16:9 för TV-apparater med
formatet 4:3 genom att lägga till ett svart fält över och under bilden på skärmen.
4:3-format CCO/Pan Scan (förstorad): Visar filmer i 16:9-formatet över hela skärmen. För TV-appa-
rater med formatet 4:3 skärs vänster och höger kant av.
4:3 (Letterbox 14:9) Zoomar ut från filmer i formatet 16:9 för TV-apparater med
formatet 4:3 genom att lägga till ett svart fält över och under bilden på skärmen.
Dessutom skärs vänster och höger kant av något.
> Boxinställningar > Videoinställningar > Skärmbildsformat
1. Välj bildformat.
2. Tryck på
! om du vill lämna menyn.
Ställa in utformat för bild
I inställningsmenyn kan du bl.a. ange inställningar för bild. Observera:
u Formaten RGB, Video och S-Video gäller för "TV video output" (utformat för TV-
bild).
u "VCR video output" (utformat för videobandspelare) använder endast inställning-
arna Video och S-Video.
u Om du valt RGB för TV-utformat finns endast alternativet Video tillgängligt som
VCR-utformat.
Obs! Om du inte vet vilket format din TV stöder kan du helt enkelt prova vilken inställningen som ger bäst bild.
> Boxinställningar > Videoinställningar > TV-utgångsformat /
VCR-utgångsformat
1. Välj det bildformat som ger bäst bild. VCR-utgångsformat gör det möjligt att ställa in bildformat för en videobandspelare om en sådan finns ansluten.
2. Tryck på
16
! om du vill lämna menyn.
Inställningar
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
Återställa fabriksinställningar
Du kan återställa enheten till standardinställningarna. Om du gör det tas din individu­ella favoritlista bort.
> Boxinställningar > Återställ fabriksinställningar
ì I dialogrutan som visas ställer du in alternativet till Ja med pil-knapparna och bekräf-
tar återställningen till fabriksinställningarna.
Enheten stängs av och slås på efter ett ögonblick igen.
Hantera favoritlistan
Efter en kanalsökning lagras de upptäckta kanalerna i en allmän kanallista. Lagringssek­vensen för dessa kanaler i listan är fast.
Obs! Om det inställda landet har kanaler med förbestämda platser lagras de på bestämda minnesplatser. Dessa olika platser kan inte utgöra en kontinuerlig sekvens. Sorteringsmetoden kallas LCN (Logic Channel Numbering, logisk kanalnumrering). Alla nya kanaler läggs till efter den senaste LCN-kanalen som hittades.
Ange kanaler som favoriter
Med hjälp av favoritlistan kan du sortera dina favoritkanaler enligt dina behov och akti­vera dessa med fjärrkontrollen.
Obs! Du kan inkludera LCN-kanaler (om tillämpligt) i favoritlistan och lagra dem på någon plats i listan och på så sätt undvika att favoritlistan innehåller tomrum. Det är inte säkert att LCN-kanalerna i kanallistan med alla kanaler ligger i en kontinuerlig sekvens.
> Ordna tv-kanaler (symboliseras av en listikon till vänster på skärmen)
Menyn Ordna tv-kanaler visas. Listan innehåller alla hittade kanaler och dina favoriter markeras med en stjärna (*).
Obs! Om kanallistan är lång kanske du vill använda en filterfunktion för en mer strukturerad översikt, se s. 18.
1. Välj den kanal som du vill markera som favorit och bekräfta valet.
2. Upprepa steget ovan om du vill lägga till fler kanaler i favoritlistan.
3. Tryck på
4. Du blir tillfrågad om du vill spara ändringarna. Bekräfta detta.
! för att stänga fönstret.
Redigera kanallistan
Kanallistan kanske framstår som för komplex eller den kanske innehåller kanaler som du är ointresserad av. Via huvudmenyn kan du redigera kanallistan.
> Ordna tv-kanaler
1. Tryck på
2. Gör inställningarna.
du vill växla mellan kanal- och favoritlistan.
17
Inställningar
M270T/h
dih/
A31008
N1080
R10119W19/d
i
i
f/30102007
3. Tryck på ! för att stänga fönstret.
4. Du blir tillfrågad om du vill spara ändringarna. Bekräfta detta.
Flytta kanaler
Du kan anpassa kanalordningen i favoritlistan.
1. Tryck på
2. Markera den kanal som du vill flytta och bekräfta valet. Kanalnamnet infogas.
3. Flytta den valda kanalen till dess nya plats, enligt dina behov, med pil-knapparna och bekräfta om du vill lagra kanalen på platsen.
4. Tryck på
Filtrera kanaler
Med denna funktion kan du visa kanallistan enligt önskade villkor.
Obs! Ett filter är alltid tillfälligt och lagras inte. Så snart du stänger skärmen Sortera TV­kanaler tas de aktuella filterinställningarna bort.
1. Tryck på
2. Välj de kanaler som ska visas.
3. Ställ in sorteringstyp (numeriskt eller alfabetiskt) via Sortering och bekräfta valet.
Obs! Observera respektive information i nedre delen av fönstret. Informationen kan hjälpa dig göra rätt inställningar.
för att gå till favoritlistan.
! och bekräfta efterföljande fråga.
b för att öppna filterfunktionen.
Ta bort kanaler
Du kan inte ta bort kanaler från den allmänna kanallistan. Om du tar bort kanaler från favoritlistan finns de fortfarande kvar i kanallistan.
1. Markera kanalen som du vill ta bort.
2. Tryck på alla favoriter bort.
3. Stäng kanallistan genom att trycka på knappen
i om du vill ta bort endast den valda kanalen. Om du trycker på b tas
! och bekräfta ändringarna.
Systeminformation & uppdatering av programvara
Systeminformationen är viktig om du behöver support. Du kan dessutom söka manuellt efter nya uppdateringar av digitalboxens programvara.
> Teknisk information > Systeminformation
1. En dialogruta visas. Välj Uppgradera mjukvara och bekräfta om du vill börja söka efter nya uppdateringar av programvaran.
2. Tryck på
18
! om du vill lämna menyn.
Bilaga
M270T/h
dih/
A31008
N1080
R10119W19
/
dif/3010
2007
Bilaga
Felsökning
Alla elektroniska apparater kan ha fel. Men dessa fel behöver inte utgöra defekter i samtliga fall. De orsakas istället ofta av felaktiga sladdar, kopplingen mellan kontakter i uttag eller felaktiga anslutningar.
Innan du söker experthjälp bör du kontrollera följande:
Problem Möjlig orsak Åtgärder
Enheten startar inte Ingen spänning från elnätet
(ingen markering på dis­playen)
Ingen bild, inget ljud Ingen spänning från elnätet Kontrollera anslutningska-
Ingen kanallista eller felaktig kanallista
Förlorad anslutning Kontrollera anslutningen Ingen bild eller dålig bild
Ljud tillgängligt, ingen bild
Ingen mottagning av kanaler som tidigare tagits emot Ingen reaktion när du trycker på fjärrkon­trollen
Flera kanaler tas inte emot då och då Enheten kan inte styras.
SCART-kontakten är inte kor-
rekt ansluten
Felaktig antennposition Justera antennen, (se s. 10)
Antennen för liten Använd en större antenn
Kanalen sänds med andra
parametrar
Kanalen sänds med andra
parametrar
SCART-kontakten är inte kor-
rekt ansluten
Enheten är i radioläget
Kanalen sänds inte längre Ingen
Hinder mellan fjärrkontrollen
och digitalboxen
Felaktig dataström, enheten
låses
Batterierna är förbrukade Ersätt gamla batterier i fjärr-
Dessa kanaler sänds inte 24 timmar om dygnet och finns
ibland inte tillgängliga. Detta är inget fel.
Hinder mellan fjärrkontrollen
och digitalboxen
Kontrollera anslutningska­beln och anslutningen till elnätet
beln och anslutningen till elnätet
Genomför en automatisk kanalsökning
Kontrollera SCART­anslutningen
Använd automatisk kanalsökning (se s. 9)
Använd automatisk kanalsökning (se s. 9) Kontrollera SCART­anslutningen
Växla till TV-läge med
Avlägsna hindret
Ta ut elkabeln och sätt till­baka den efter 10 sekunder.
kontrollen med nya batterier
Avlägsna hindret
$
19
Bilaga
M270T/h
dih/
A31008
N1080
R10119W19
/
dif/3010
2007
Problem Möjlig orsak Åtgärder
Dålig bildkvalitet Felaktig utsignal från TV
SCART
Välj ett annat utformat för video (se s. 16)
Fler lösningar och vanliga frågor finns på Internet på http://www.siemens.com/gigaset.
Tekniska data
Modell: Gigaset M 270 T TV: 1 DVB-T-mottagare RF: INPUT: 1 uttag (IEC)
OUTPUT (loop-through): 1 uttag (IEC)
SCART: 2 Euro AV-uttag:
TV (OUT): CVBS, RGB, YC
VCR (OUT): CVBS, RGB, YC Cinch: 1 ANALOG OUT (AUDIO R/L) SPDIF (synlig): 1 digitalt ljud (Dolby Digital, AC3, PCM-stereo) LED-display Ström on/off/standby, RCU-aktivitet Enhetskonfiguration: Via TV-meny Försörjningsspänning: 230 V AC / 50 Hz till 12 V DC Strömförbrukning: mindre än 10 Watt Tillåten omgivningstemperatur: 5 °C till 40 °C Mått: cirka 250 x 140 x 32 mm Vikt: cirka 1,0 kg
20
Bilaga
M270T/h
dih/
A31008
N1080
R10119W19
/
dif/3010
2007
Auktorisering
Apparatens överensstämmelse med tillämpliga harmoniserade standarder i LVD-direktiv 2006/95/EC och EMC-direktiv 2004/108/EC bekräftas genom CE-märkningen.
Du kan få en kopia av överensstämmelsedeklarationen på följande Internetadress: http://www.siemens.com/gigasetdocs
.
Kundservice (Customer Care)
Vi erbjuder snabb och individuell rådgivning! Vår onlinesupport på Internet är alltid tillgänglig, överallt:
http://www.siemens.com/gigasetcustomercare Du får stöd och hjälp för våra produkter dygnet runt. Här finns det ett interaktivt felsök­ningssystem, en sammanställning av de vanligaste frågorna och svar på dessa. Det finns dessutom bruksanvisningar och aktuella programvaruuppdateringar (om tillgängliga) att ladda ner.
I bilagan till den här bruksansvisningen kan du också hitta vanliga frågor samt svaren på dem.
Du kan få personlig information om vårt sortiment via vår Premium-hotline: Sverige 0900 204 18 00 Erfaren personal hjälper dig med produktinformation och installation. Om reparation skulle bli nödvändig och vid ev. garantianspråk kan du få snabb och till-
förlig hjälp via vårt servicecentrum: Sverige 0 87 50 99 11 Se till att du har tillgång till kvittot. I länder där denna produkt inte säljs av auktoriserade återförsäljare erbjuds ingen bytes-
rätt eller reparationsservice.
21
Bilaga
M270T/h
dih/
A31008
N1080
R10119W19
/
dif/3010
2007
Tillverkarens garanti
Användaren skall beviljas garanti av tillverkaren, utan att återförsäljarens skyldigheter därmed påverkas, enligt de villkor som anges nedan:
u Om nya enheter och tillhörande komponenter uppvisar defekter, som är ett resultat
av tillverknings- och/eller materialfel, inom 24 månader efter köpet skall Siemens, efter eget gott-finnande och utan kostnad, antingen ersätta enheten med en likvär­dig enhet som motsvarar enhetens aktuella utförande, eller reparera den aktuella enheten. Delar som utsätts för normalt slitage (t.ex. batterier, knappsats, hölje) omfattas av garantin under sex månader från inköpsdatum.
u Garantin gäller inte om felet på utrustningen har orsakats av felaktig användning,
eller underlåtande att följa den information som finns i användarhandboken.
u Garantin omfattar inte tjänster som utförs av auktoriserade återförsäljare eller kun-
den själv (t.ex. installation, konfiguration, nerladdning av mjukvara). Användar­handböcker och sådan mjukvara som medföljer på ett separat datamedium omfat­tas inte heller av garantin.
u Inköpskvitto där inköpsdatum framgår skall uppvisas vid garantianspråk. Garantian-
språk skall göras inom två månader från det datum då fel som omfattas av garantin upptäcks.
u Äganderätten till enheter eller komponenter som ersatts och returnerats till Sie-
mens skall övergå till Siemens.
u Garantin gäller nya enheter som köpts inom den Europeiska unionen. För enheter
köpta i Sverige utfärdas garantin av Siemens Home & Office Communication Devices AB, Röntgenvägen 2, 171 95 Solna, Sverige.
u Garantianspråk som skiljer sig från eller som sträcker sig utöver anspråk som anges
i denna garanti är inte giltiga. Siemens är inte ansvarigt för driftstörningar, förlorad vinst eller förlust av data, ytterligare mjukvara eller annan information som laddats ned av kunden.
u Om skadan inte omfattas av garantin, förbehåller sig Siemens rätten att fakturera
kunden för ersättningsprodukten eller reparationen.
u Ovanstående villkor innebär ingen förändring av bevisbördan till kundens nackdel.
För att framställa garantianspråk ber vi dig kontakta Siemens telefonservice. Aktuellt telefonnummer återfinns i den medföljande användarhandboken.
22
M270T/h
dih/
A31008
N1080
R10119W19/Gi
M270
TSIXf/3010
2007
Index
A
Alternativmeny
. . . . . . . . . . . . . . . . . . . . . . . . . 5
visa
Ansluta
antenn. . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . 7
stereo strömförsörjning
. . . . . . . . . . . . . . . . . . . . . . . . . . 6
TV Anslutningar Antenn
ansluta. . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . 10
justera Antennuttag Auktorisering Automatisk kanalsökning Automatiska undertexter
. . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . 9
. . . . . . . . . . 14
Index
Favorit
. . . . . . . . . . . . . . . . . . . . . . . . 17
Favoritlista
hantera
kanalordning Felsökning Fjärrkontroll Framsida Funktioner Första installationen
meny
. . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . 8
G
Garanticertifikat . . . . . . . . . . . . . . . . . 22
H
Hjälp om meny. . . . . . . . . . . . . . . . . . . 5
B
Baksida . . . . . . . . . . . . . . . . . . . . . . . . 4
Bildformat
14:9 16:9 4:3 bredbild 4:3 förstorad
. . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . 16
C
Cinchkabel. . . . . . . . . . . . . . . . . . . . . . 7
D
Digitalbox
radioläge slå på slå på/stänga av via timer växla till standby-läge
. . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . 13
. . . . . . . . . . . 13
E
Elektronisk programguide, se EPG
. . . . . . . . . . . . . . . . . . . . . . . . . . 12
EPG
färgknappar knapp på fjärrkontroll
. . . . . . . . . . . . . . . . . 5, 8
. . . . . . . . . . . . 5
F
Fabriksinställningar, återställ . . . . . . . 17
I
Information om användning. . . . . . . . . 2
Informationsfält
ställa in visningstid Installationsplats IR-sensor
. . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . 4
J
Justering för tidszon. . . . . . . . . . . . . . 15
K
Kanal
ange som favorit
favoriter
filter
information
ordning i favoritlistan
ta bort från kanallista
växla Kanallista
redigera
sortera Kanalsökning
automatisk
i expertläge Kundtjänst
. . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . 9, 10, 11, 17
. . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . 18
. . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . 9
23
Index
M270T/h
dih/
A31008
N1080
R10119W19/Gi
M270
TSIXf/3010
2007
L
Leveransomfattning . . . . . . . . . . . . . . 3
Ljud, tyst Ljudspråk
Ljudutgång Läge för expertsökning
. . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . 14
andra
. . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . 9
M
Meny
hantera hjälp stäng
visa Menyknapp Menyspråk
. . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . 14
P
Program
redigera i timerlista ta bort från timerlista
Programförhandstitt
. . . . . . . . . . . . . . . . . . . . . . . 12
stäng Programguide, elektronisk På/av-knapp
. . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . 13
. . . . . . . . . . . 13
. . . . . . . . . . . . . 12
. . . . . . . . . 12
R
Radioläge . . . . . . . . . . . . . . . . . . . . . . 5
Radioprogram RGB
. . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . 14
S
SCART-kabel . . . . . . . . . . . . . . . . . . . . 6
Service Signalkvalitet Skärmmeny, se Meny Slå på SPDIF
. . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Språkinställningar Standby-läge
indikering slå på automatiskt
Stereo
ansluta Ström 12 V DC Strömförsörjning
ansluta Ström-LED S-Video Systeminformation Säkerhetsåtgärder
. . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . 2
T
Tekniska data . . . . . . . . . . . . . . . . . . . 20
. . . . . . . . . . . . . . . . . . . . . . . . . 13
Timer
slå på/stänga av Timerlista TV
ansluta . . . . . . . . . . . . . . . . . . . . . . . 6
TV-scart
. . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . 13
U
Undertextspråk . . . . . . . . . . . . . . . . . 14
Uppdatering av programvara Uteffekt ljud
. . . . . . . . . . . . . . . . . . . . . . 15
format Utformat för bild
. . . . . . . . . . . . . . . . 16
. . . . . . . 18
V
Video . . . . . . . . . . . . . . . . . . . . . . . . . 16
Video-scart Visningsalternativ Volymkontroll
. . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . 11
Ö
Övriga inställningar . . . . . . . . . . . . . . 15
24
Loading...
