Geovision GV-AS8111-Kit User Manual
GV-AS4111/8111 Kit
User’s Manual
Before attempting to connect or operate this product, please
read these instructions carefully and save this manual for future use.
AS4111.8111_UL_B
© 2016 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part, without the
written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is accurate.
GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no
responsibility for errors or omissions. No liability is assumed for incidental or consequential
damages arising from the use of the information or products contained herein. Features and
specifications are subject to change without notice.
GeoVision, Inc.
9F, No. 2
Neihu District, Taipei, Taiwan
Tel: +886-2-8797-8377
Fax: +886-2-8797-8335
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV series products are
trademarks of GeoVision, Inc.
September 2016
46, Sec. 1, Neihu Rd.,
Contents
Compatible Devices ................................................................................................. 1
Installation Considerations ...................................................................................... 2
Definition ................................................................................................................... 3
1 Introduction ........................................................................................................... 4
1.1 Main Features .................................................................................................. 4
1.2 Packing List ..................................................................................................... 5
2 Installation ............................................................................................................. 7
2.1 Connecting Card Readers ................................................................................ 7
2.1.1 Wiegand Readers .................................................................................. 7

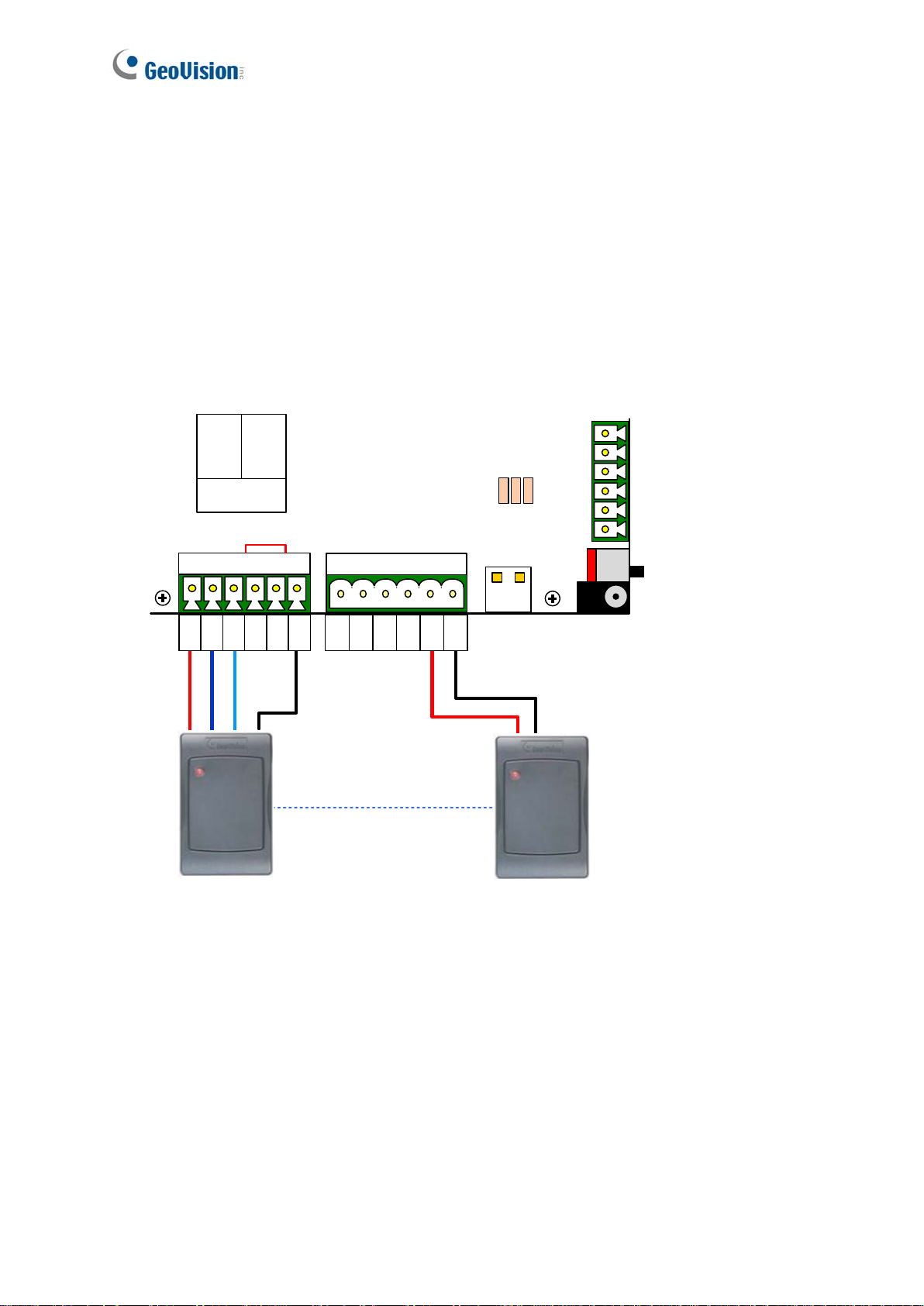

2.1.2 RS-485 Readers .................................................................................... 8
2.2 Connecting Input Devices ...............................................................................10
2.3 Connecting Output Devices .............................................................................11

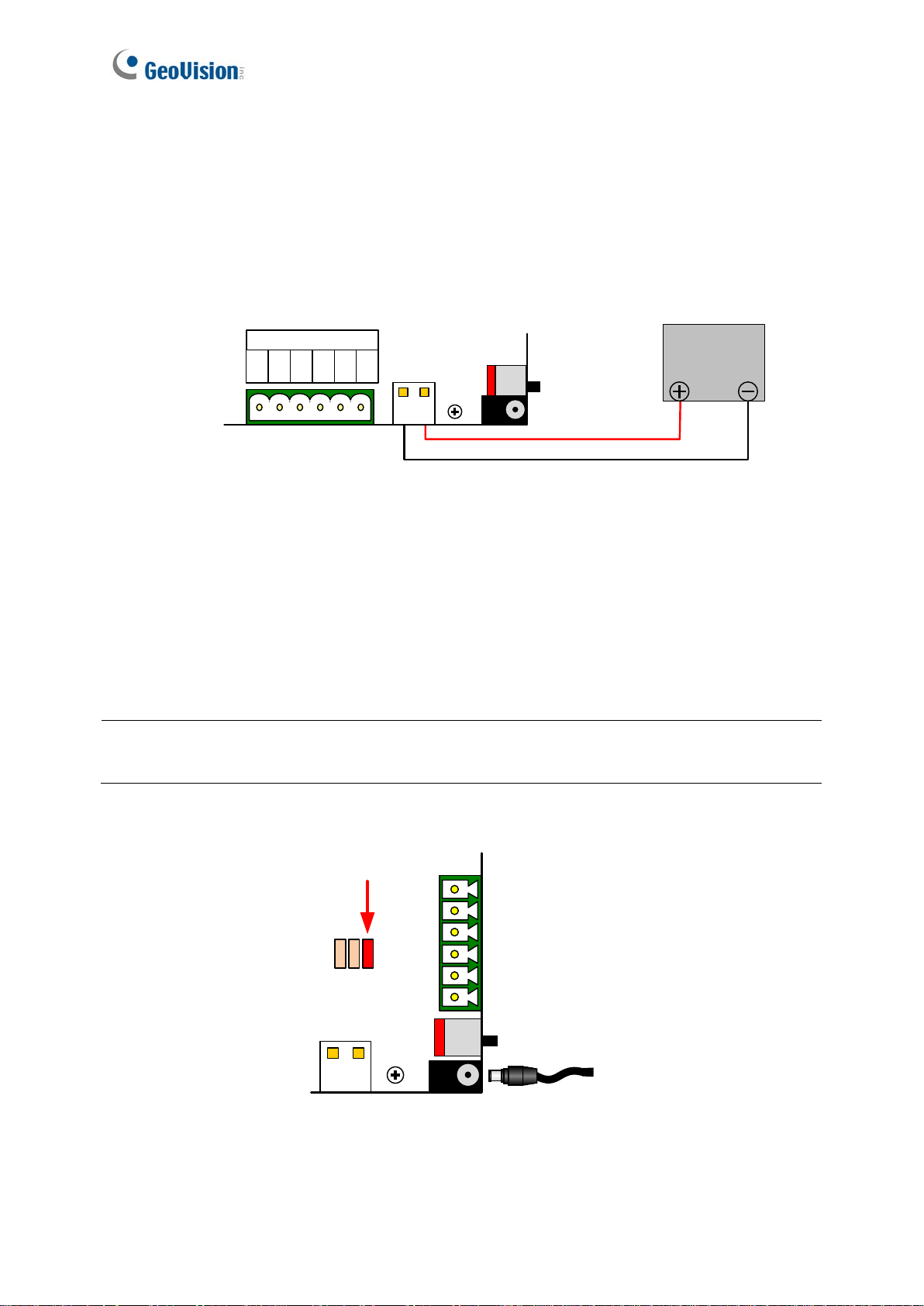

2.4 Connecting Backup Battery .............................................................................12
2.5 Connecting the Power .....................................................................................12

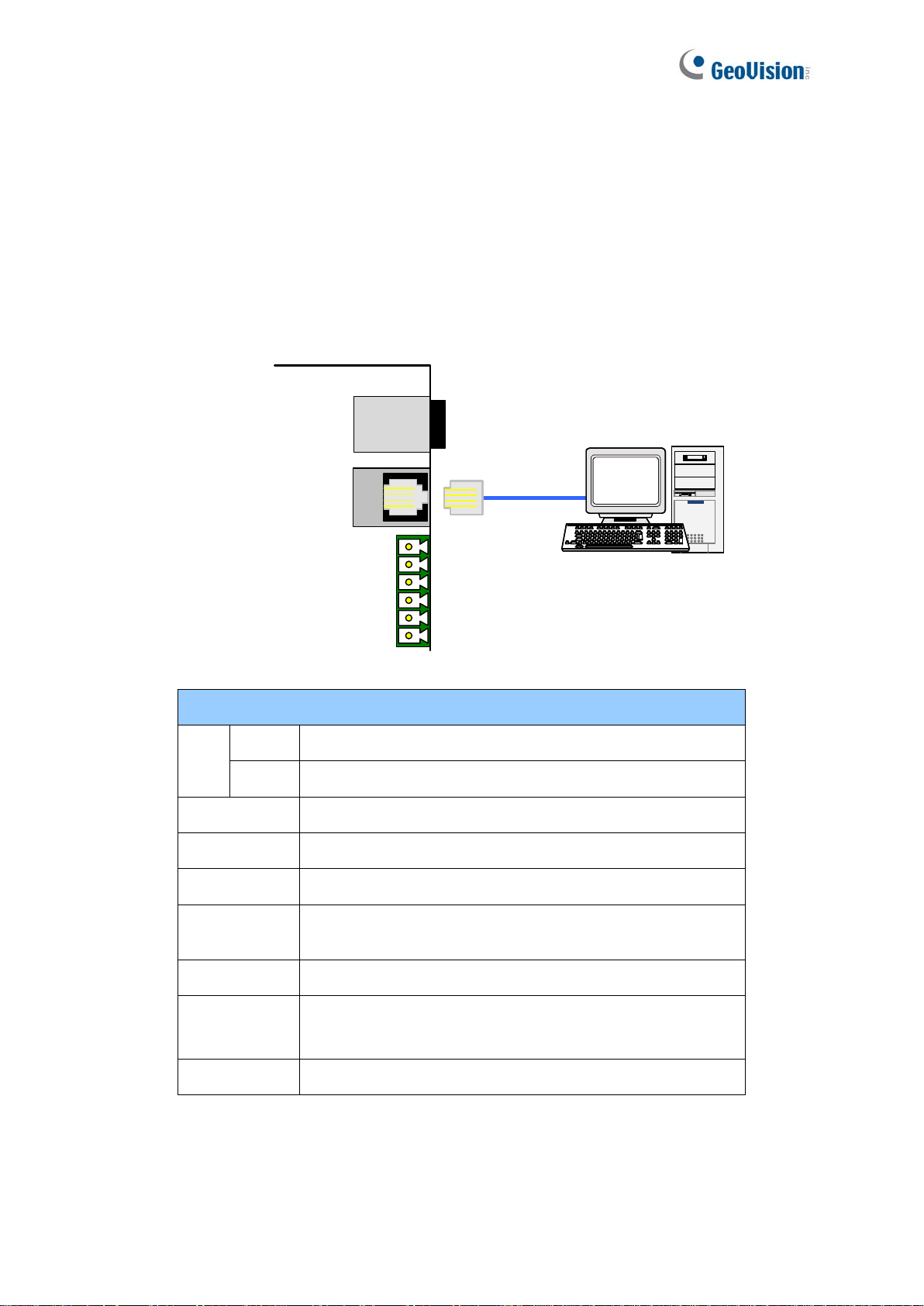

2.6 Connecting the PC ..........................................................................................13
3 Other Settings ..................................................................................................... 15

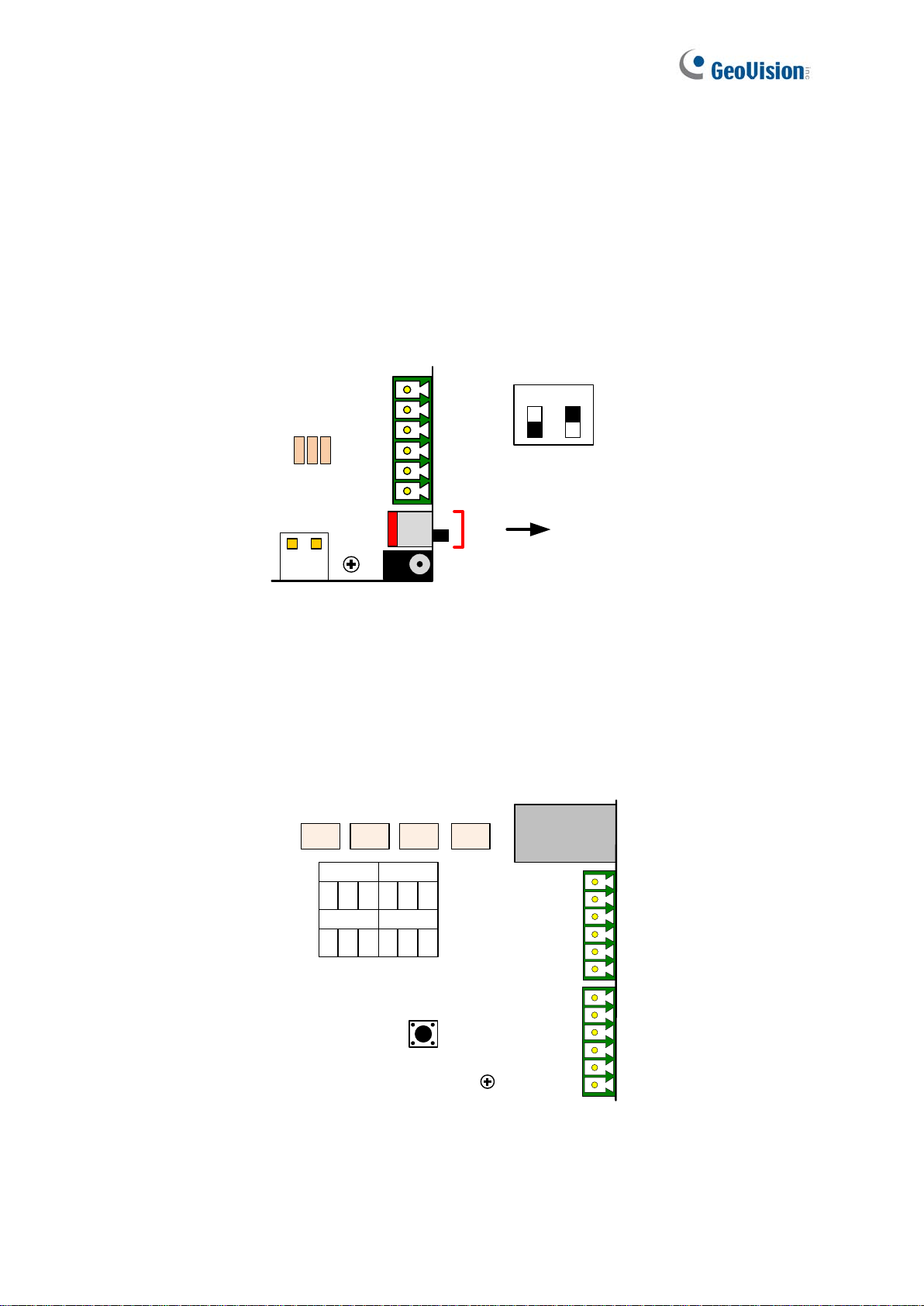

3.1 Web Setting Switch .........................................................................................15
3.2 Resetting the GV-AS4111 / 8111 ....................................................................15
3.3 Restoring Factory Defaults ..............................................................................16
4 GV-AS4111 / 8111 Kit.......................................................................................... 17
4.1 Packing List ....................................................................................................17

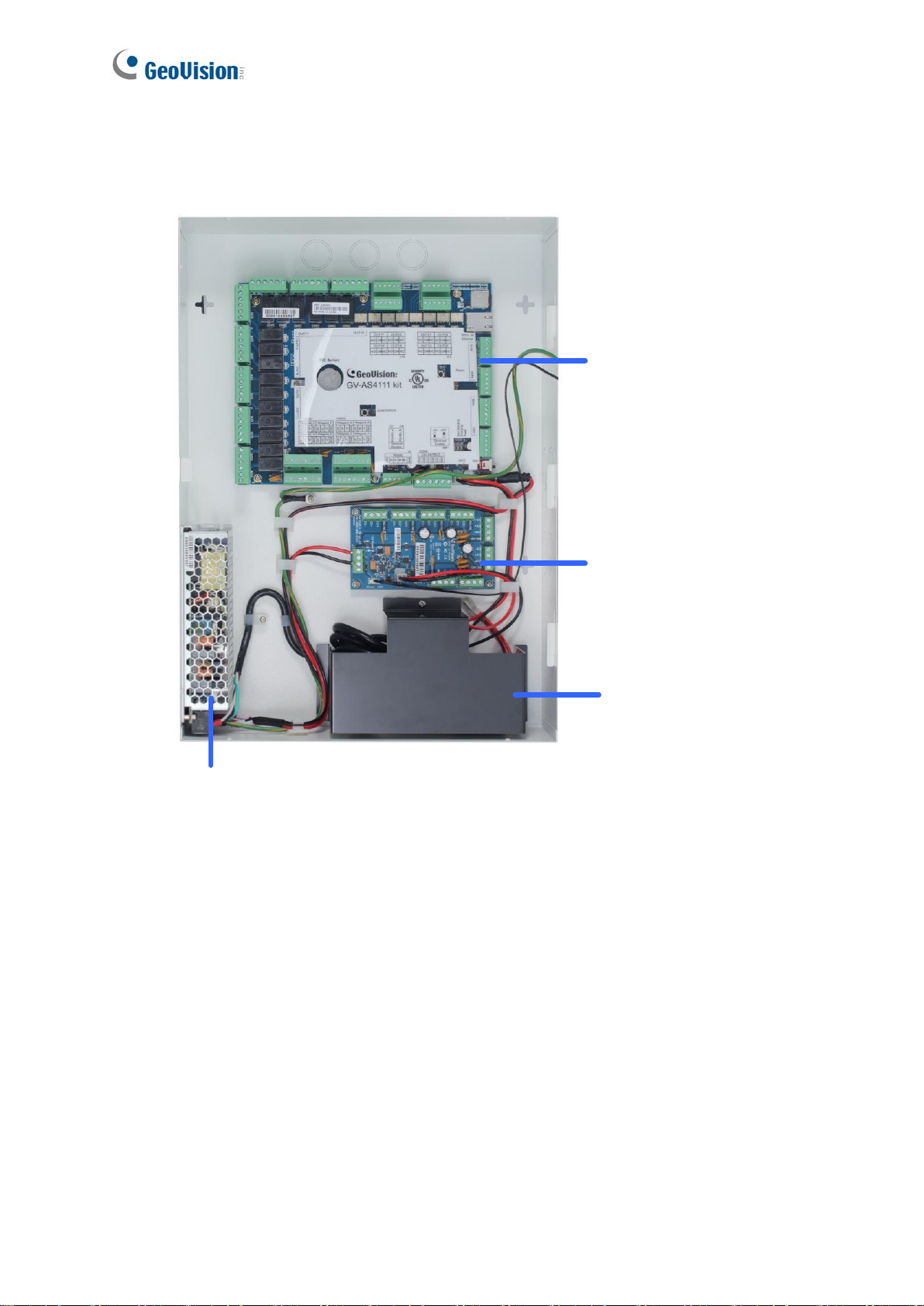

4.2 GV-AS4111 / 8111 Kit Overview .....................................................................18
4.3 GV-AS4111 / 8111 Kit Standard Application ...................................................19

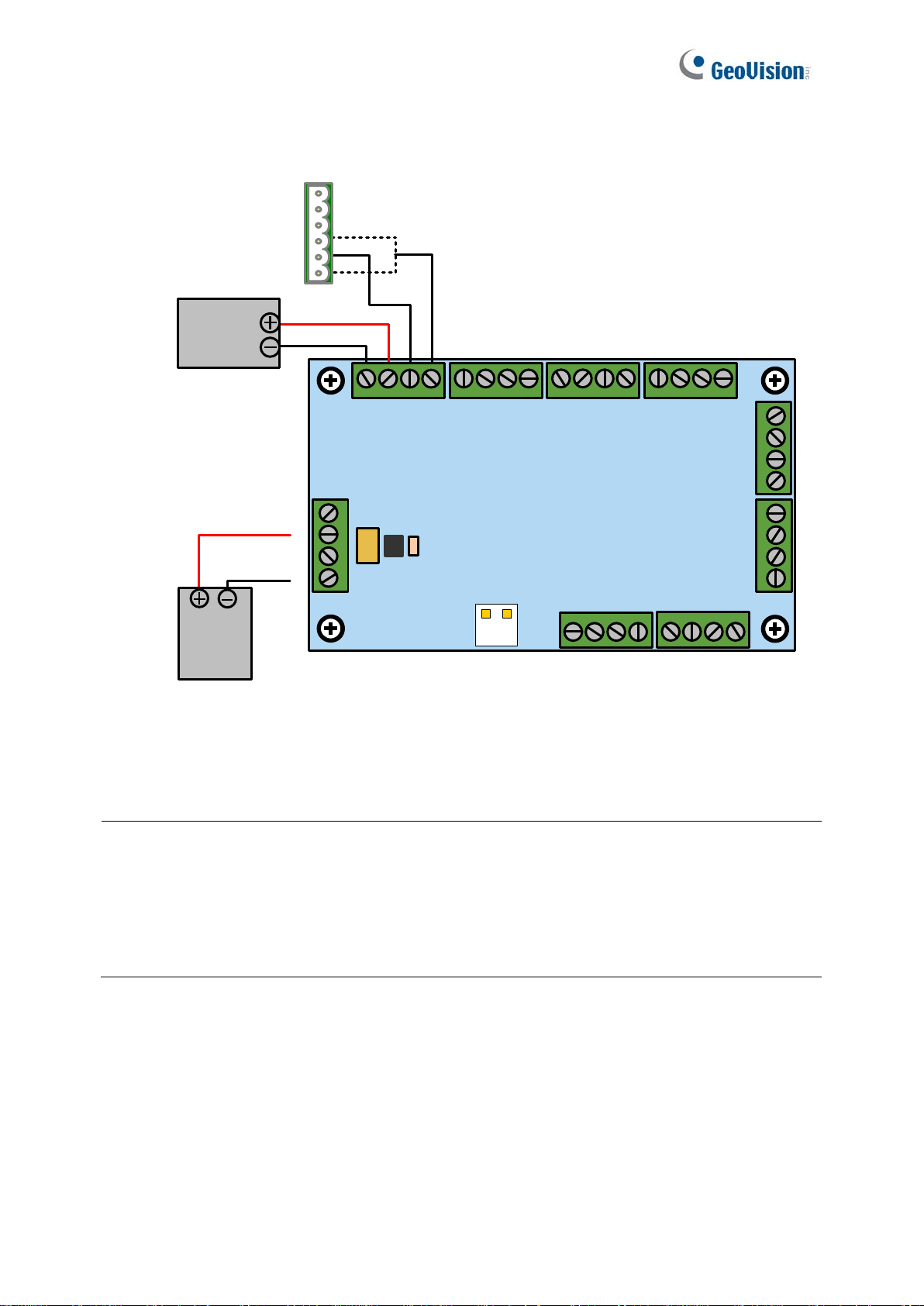

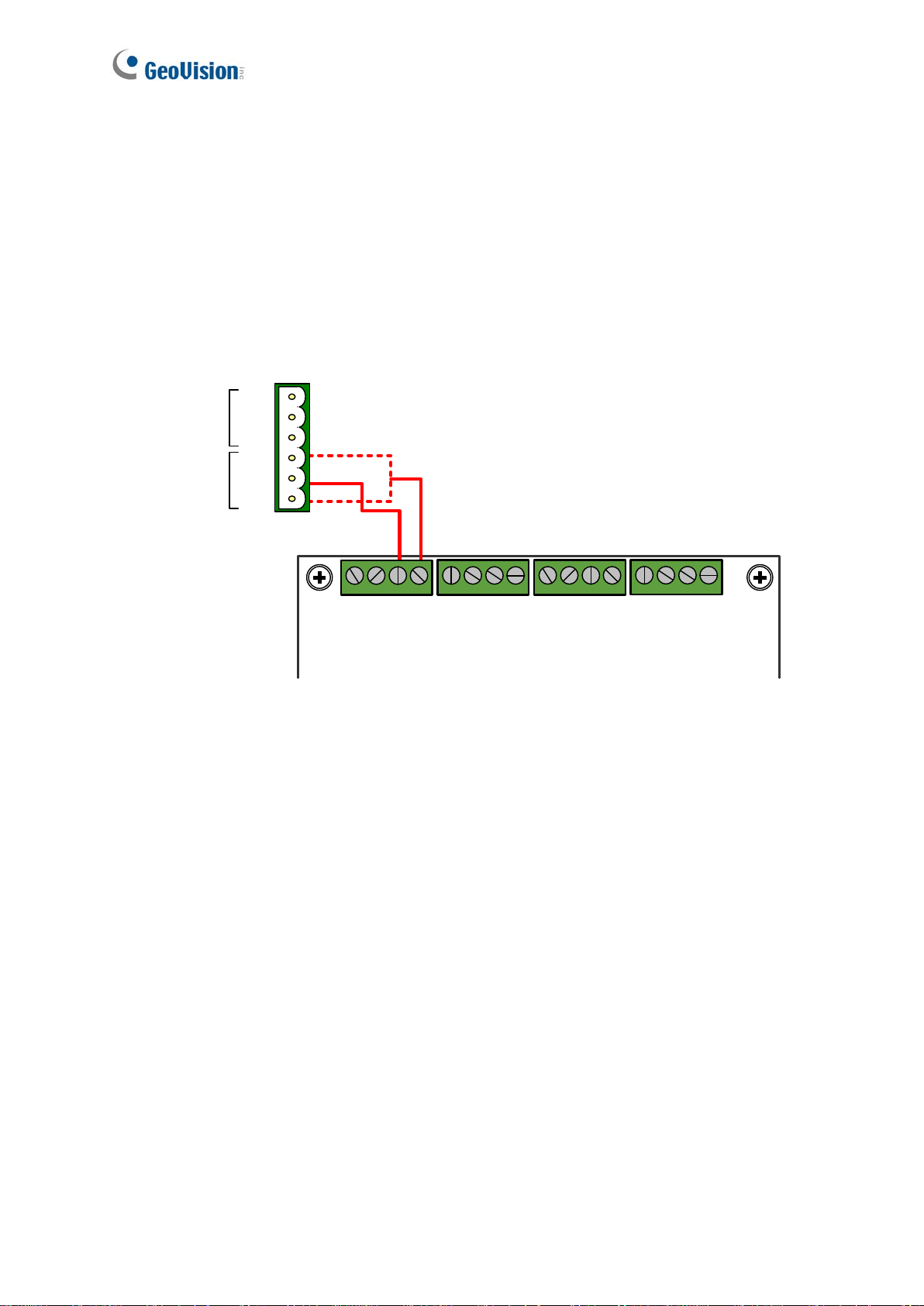

4.4 Connecting the GV-AS4111 / 8111 Kit ............................................................20
4.5 GV-AS4111 / 8111 Kit Specifications ..............................................................22
5 The Web Interface ............................................................................................... 23
6 GV-AS4111 / 8111 Specific ati on s ...................................................................... 24
Compatible Devices
Compatible devices can expand the capabilities and versatilities of your GV-AS Controllers.
Consult your sales representative for more information.
GV-RK1352 is a card reader with keypad that uses a 13.56 MHz
GV-RK1352
GV-R1352
GV-DFR1352
GV-AS4111 /
8111 Kit
frequency. The reader has both Wiegand and RS-485 outputs that can be
connected to GV-AS series control panel.
GV-R1352 is a card reader that uses a 13.56 MHz frequency. The reader
has both Wiegand and RS-485 outputs that can be connected to GV-AS
series control panel.
The GV-DFR1352 is a card reader designed to be installed on the door
frame for recognizing identification cards. Featured with the Wiegand and
RS-485 outputs, the unit can be connected to GV-AS series control panel.
GV-AS4111 / 8111 Kit is a cabinet containing a GV-AS4111 or GV-AS
8111, a power adapter board, a power supply and a casing for backup
battery. The power supply provides power to GV-AS4111 / 8111 and up to
8 output devices (12V, 0.5A per device).
1
Installation Considerations
1. There are distance limitations for Wiegand and RS-485 communications using GVAS4111 / 8111. Please note:
• Wiegand interface: 100 meters (328.1 feet)
Recommended Wiegand cable: Wiegand cable (a twisted pair of 24 AWG wires)
• RS-485 interface: 600 meters (1968.50 feet)
Recommended RS-485 cable: standard 485 cable (a twisted pair of 24 AWG wires)
Note:
1. For RS-485 connection between GV-AS Controllers and readers, use additional power
for the readers when the distance ranges from 30.48 meters ~ 600 meters (100 ft ~
1968.50 ft). There is no need to use additional power when the distance is within
30.48 meters (100 ft).
2. Recommended power supply:
Manufacturer Model Output rating
Powertron PA1015-2I 12V, 1.25A, 15W Max
3. The location and wiring methods shall be in accordance with the National Electrical
Code, ANSI/NFPA 70.
2. GV-ASManager software is used to manage GV-AS Controllers. There is a limit for the
number of controllers connected to GV-ASManager based on communication modes.
• Through network connection, up to 1000 GV-AS Controllers can connect to GV-
ASManager.
Note:
1. For GV-AS4111 / 8111, it is highly recommended to replace the button cell battery
included on the circuit board annually.
2. All control units shall be mounted in a protected area.
2
Definition
Tampering Alarm
To enable tampering alarm, install the sensor separately. The
triggering conditions depend on the type of sensor installed.
The GV-AS Controller also provides output relays for activating and
deactivating electric lock, siren and emergency door release when
tampering is detected by the sensors.
3
1 Introduction
1.1 Main Features
GV-AS4111
• One-way control: 4 doors
• Two-way control: 4 doors by Wiegand / RS-485 / Network
• Support 8 Wiegand card readers of 26 to 64 bits
• Support 8 GV-Readers through RS-485 connection / Network
• Built-in 16 digital inputs and 24 relay outputs
• Suitable for doors, parking gates and access to elevator call buttons
• Support for tampering alarm
GV-AS8111
• One-way control: 8 doors
• Two-way control: 4 doors by Wiegand only; 8 doors by RS-485 or network; 8 doors
with max 4 doors by Wiegand and other doors by RS-485 / network
• Support 8 Wiegand card readers of 26 to 64 bits
• Support 16 GV-Readers throug h RS-485 connection / Network
• Built-in 16 digital inputs and 24 relay outputs
• Suitable for doors, parking gates and access to elevator call buttons
• Support for tampering alarm
4
1.2 Packing List
GV-AS4111
• Power Adapter (12V DC, 3.5A)
• Power Cord
• Battery Cable
• Screw x 8
• Hex Nut x 8
• Hex Pillar x 8
• Micro SD Card 2 GB
• Software CD
• Warranty Car d
GV-AS8111
• Power Adapter (12V DC, 5A)
• Power Cord
• Battery Cable
• Scre w x 8
• Hex Nut x 8
• Hex Pillar x 8
• Micro SD Card 2 GB
• Software CD
• Warranty Car d
5
GV-AS4111 / 8111
Micro SD
Ethernet
OUT2
OUT1
OUT11 OUT12 OUT13 OUT14 OUT15 OUT16
OUT17
OUT18
OUT20
OUT19
OUT21
OUT22
OUT24
OUT23
J13 J14
Reset
GND
IN16
IN15
GND
IN14
IN13
GND
IN12
IN11
GND
IN10
IN09
GND
IN08
IN07
GND
IN06
IN05
GND
IN04
IN03
GND
IN02
IN01
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
12V
D0
D1
GND
Dis-Charging
Charging
Power
CON11 CON10
Load Default
(BAT)
- +
12V OUTPUT
RS485
12V
A+A-B+
B-
GND
12V
GND
12V
GND
12V
GND
CON9J2
RS
485
_A
RS
485
_B
Terminal
Resistor
J37 J35
SW1
ON OFF
SW1
Ethernet
Enable
OUT4
OUT3
OUT6
OUT5
OUT8
OUT7
OUT10
OUT9
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
RTC Battery
1.3 GV-AS4111 / 8111 Board Layout
Figure 1
6
