GE Industrial Solutions Naos Raptor 20A User Manual

Data Sheet
July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A Output Current

Naos Raptor 20A: Non-Isolated Power Modules

Features

 Compliant to RoHS EU Directive 2002/95/EC (Z

versions)

 Compatible in a Pb-free or SnPb wave-soldering

environment (Z versions)

 Wide input voltage range (4.5Vdc-14Vdc)

 Output voltage programmable from 0.59Vdc to 6Vdc

via external resistor

 Tunable Loop

response

TM

to optimize dynamic output voltage

RoHS Compliant

Applications

 Distributed power architectures

 Intermediate bus voltage applications

 Telecommunications equipment

 Servers and storage applications

 Networking equipment

 Output overcurrent protection (non-latching)

 Over temperature protection

 Remote On/Off

 Remote Sense

 Power Good Signal

 Small size: 36.8 mm x 15.5 mm x 9.2 mm

(1.45 in. x 0.61 in. x 0.36 in)

 Wide operating temperature range (-40°C to 85°C)

 UL* 60950 Recognized, CSA

Certified, and VDE
Licensed

‡

0805 (EN60950-1 3rd edition)

 ISO** 9001 and ISO 14001 certified manufacturing

facilities

†

C22.2 No. 60950-00

Description

The Naos Raptor 20A SIP power modules are non-isolated dc-dc converters in an industry standard package that

 Fixed switching frequency

can deliver up to 20A of output current with a full load efficiency of 91% at 3.3Vdc output voltage (V
These modules operate over a wide range of input voltage (V
output voltage from 0.59Vdc to 6Vdc, programmable via an external resistor. Features include remote On/Off,
adjustable output voltage, over current and over temperature protection. A new feature, the Tunable Loop
the user to optimize the dynamic response of the converter to match the load.

= 4.5Vdc-13.8Vdc) and provide a precisely regulated

IN

IN = 12Vdc).

TM

, allows

* UL is a re gistered trademark of Underwriters Laboratories, Inc.

†

CSA is a reg istered trademark of Canadian Standards Associat ion.

‡

VDE is a t rademark of Verband Deutscher Elektrotechniker e.V.

** ISO is a registered trademark of the International Orga nization of Standards

Document No: DS06-127 ver. 1.11

PDF name: NSR020A0X_ds.pdf

Data Sheet
July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are
absolute stress ratings only, functional operation of the device is not implied at these or any other conditions in
excess of those given in the operations sections of the data sheet. Exposure to absolute maximum ratings for
extended periods can adversely affect the device reliability.

Parameter Device Symbol Min Max Unit

Input Voltage

Continuous All V

Operating Ambient Temperature All T

IN

A

-0.3 15 Vdc

-40 85 °C

(see Thermal Considerations section)

Storage Temperature All T

stg

-55 125 °C

Electrical Specifications

Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature
conditions.

Parameter Device Symbol Min Typ Max Unit

Operating Input Voltage All VIN 4.5 12.0 13.8 Vdc

Maximum Input Current All I

(VIN= V

Input No Load Current V

(VIN = 12Vdc, IO = 0, module ON) V

IN, min

to V

IN, max

, IO=I

O, max VO,set

= 3.3Vdc)

= 0.6 Vdc I

O,set

= 5.0Vdc I

O,set

Input Stand-by Current All I

IN,max

IN,No load

IN,No load

IN,stand-by

(VIN = 12Vdc, module disabled)

Inrush Transient All I2t 1 A2s

Input Reflected Ripple Current, peak-to-peak
(5Hz to 20MHz, 1μH source impedance; V
V

= I

IN, max, IO

; See Test configuration section)

Omax

IN, min

to

All 34.4 mAp-p

Input Ripple Rejection (120Hz) All 43 dB

20 Adc

50 mA

110 mA

6.08 mA

LINEAGE POWER 2

Data Sheet
July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Electrical Specifications (continued)

Parameter Device Symbol Min Typ Max Unit

Output Voltage Set-point (with 0.5% tolerance
for external resistor used to set output voltage)

Output Voltage All V

(Over all operating input voltage, resistive load,
and temperature conditions until end of life)

Adjustment Range All V

Selected by an external resistor

Output Regulation (for VO ≥ 2.5V)

Line (VIN=V

Load (IO=I

IN, min

O, min

to V

to I

) All -0.2

IN, max

All

O, max

All V

O, set

O, set

O

-1.5 +1.5 % V

–3.0

⎯

+3.0 % V

0.59 6 Vdc

⎯

⎯

+0.2 % V

0.8 % V

Output Regulation (for VO < 2.5V)

Line (VIN=V

Load (IO=I

IN, min

O, min

to V

to I

) All -5

IN, max

) All

O, max

⎯

⎯

+5 mV

20 mV

Output Ripple and Noise on nominal output

(VIN=V

Peak-to-Peak (5Hz to 20MHz bandwidth) Vo = 0.59V

Peak-to-Peak (5Hz to 20MHz bandwidth) Vo = 1.2V

Peak-to-Peak (5Hz to 20MHz bandwidth) Vo = 1.8V

Peak-to-Peak (5Hz to 20MHz bandwidth) Vo = 2.5V

Peak-to-Peak (5Hz to 20MHz bandwidth) Vo = 3.3V

Peak-to-Peak (5Hz to 20MHz bandwidth) Vo = 5.0V

Peak-to-Peak (5Hz to 20MHz bandwidth) Vo = 6.0V

External Capacitance1`

Without the Tunable Loop

ESR ≥ 1 mΩ All C

With the Tunable Loop

ESR ≥ 0.15 mΩ All C

ESR ≥ 10 mΩ All C

Output Current All I

Output Current Limit Inception (Hiccup Mode ) All I

Output Short-Circuit Current All I

(VO≤250mV) ( Hiccup Mode )

Efficiency (Vin=9Vdc) V

VIN= 12Vdc, TA=25°C V

IO=I

V

V

V

V

Switching Frequency All f

IN, nom

O, max , VO

and IO=I

= V

to I

O, min

TM

TM

V

O,set

Cout = 0μF)

O, max,

= 0.59Vdc η 72.7 %

O,set

= 1.2Vdc η 82.3 %

O,set

= 1.8Vdc η 87.5 %

O,set

= 2.5Vdc η 90.2 %

O,set

= 3.3Vdc η 92.1 %

O,set

= 5.0Vdc η 94.3 %

O,set

= 6.0Vdc η 95.0 %

O,set

O, max

O, max

O, max

o

O, lim

O, s/c

sw

⎯

⎯

⎯

⎯

⎯

⎯

⎯

20 mV

23 mV

25 mV

30 mV

40 mV

50 mV

60 mV

⎯ ⎯

0

0

0

⎯

⎯

⎯

300 μF

1500 μF

10000 μF

20 Adc

140 % Io

1.1 Arms

⎯

600

⎯

1

External capacitors may require using the new Tunable LoopTM feature to ensure that the module is stable as well as

getting the best transient response. See the Tunable Loop

TM

section for details.

O, set

O, set

O, set

O, set

pk-pk

pk-pk

pk-pk

pk-pk

pk-pk

pk-pk

pk-pk

kHz

LINEAGE POWER 3

Data Sheet
July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

General Specifications

Parameter Min Typ Max Unit

Calculated MTBF (VIN=12V, VO=5Vdc, IO=0.8I
Telcordia Issue 2, Method I Case 3

Weight

, TA=40°C) Per

O, max

16,061,773 Hours

⎯

6.6 (0.23)

⎯

g (oz.)

Feature Specifications

Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature
conditions. See Feature Descriptions for additional information.

Parameter Device Symbol Min Typ Max Unit

On/Off Signal Interface

(VIN=V

IN, min

to V

IN, max

; open collector or equivalent,

Signal referenced to GND)

Logic High (On/Off pin open – Module ON)

Input High Current All IIH

Input High Voltage All VIH

Logic Low (Module OFF)

Input Low Current All IIL

Input Low Voltage All VIL

PwGood (Power Good)

Signal Interface Open Collector/Drain
PwGood = High = Power Good
PwGood = Low = Power Not Good

Logic level low voltage, I

= 5 mA 0 0.35 V

sink

Sink Current, PwGood = low 10 mA

Turn-On Delay and Rise Times
(VIN=V

IN, nom

, IO=I

to within ±1% of steady state)

O, max , VO

Case 1: On/Off input is enabled and then
input power is applied (delay from instant at
which VIN = V

until Vo = 10% of Vo, set)

IN, min

All Tdelay 2 3 msec

Case 2: Input power is applied for at least one second
and then the On/Off input is enabled (delay from instant

All Tdelay 2 3 msec

at which On/Off is enabled until Vo = 10% of Vo, set)

Output voltage Rise time (time for Vo to rise from
10% of Vo, set to 90% of Vo, set)

Output voltage overshoot
IO = I

O, max

; V

IN, min

– V

, TA = 25 oC

IN, max

All Trise

0.5 % V

Remote Sense Range All

Over Temperature Protection All T

(See Thermal Considerations section)

Input Undervoltage Lockout

Turn-on Threshold All

Turn-off Threshold All

130 ºC

ref

0

1.0

⎯

⎯

0.5 mA

5.5 V

⎯ ⎯

-0.3

⎯

200 µA

0.4 V

3 6 msec

⎯ ⎯

0.5 V

4.2 Vdc

4.1 Vdc

O, set

LINEAGE POWER 4

Data Sheet

OUTPUT

CURRENT

OUTPUT

VOLTAGE

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Characteristic Curves

The following figures provide typical characteristics for the Naos Raptor 20A modules at 0.6Vout and 25ºC.

90

85

80

75

70

65

EFFICIENCY, η (%)

60

0 5 10 15 20

Vin = 6V

Vin = 9V

Vin = 4.5V

OUTPUT CURRENT, IO (A) AMBIENT TEMPERATURE, TA OC

Figure 1. Converter Efficiency versus Output Current.

22

20

18

16

14

12

10

8

OUTPUT CURRENT, Io (A)

25 35 45 55 65 75 85

2m/s

(400LFM)

1.5m/s

(300LFM)

1m/s

(200LFM)

0.5m/s

(100LFM)

Figure 2. Derating Output Current versus Ambient
Temperature and Airflow.

NC

(V) (10mV/div)

O

V

OUTPUT VOLTAGE

TIME, t (1μs/div) TIME, t (100μs /div)

Figure 3. Typical output ripple and noise (V
I

o,max).

(V) (2V/div)

ON/OFF

(V) (200mV/div) V

O

OUTPUT VOLTAGE ON/OFF VOLTAGE

V

TIME, t (1ms/div) TIME, t (1ms/div)

IN = 9V, Io =

(V) (200mV/div)

O

,

(A) (5Adiv) V

O

I

Figure 4. Transient Response to Dynamic Load
Change from 0% to 50% to 0% with VIN=9V.

(V) (5V/div)

IN

(V) (200mV/div) V

O

OUTPUT VOLTAGE INPUT VOLTAGE

V

Figure 5. Typical Start-up Using On/Off Voltage (Io =
I

o,max).

Figure 6. Typical Start-up Using Input Voltage (V
9V, I

o = Io,max).

IN =

LINEAGE POWER 5

Data Sheet

OUTPUT

CURRENT

OUTPUT

VOLTAGE

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Characteristic Curves (continued)

The following figures provide typical characteristics for the Naos Raptor 20A modules at 1.2Vout and 25ºC.

95

90

Vin = 4.5V

85

80

Vin = 12V

75

Vin = 14V

EFFICIENCY, η (%)

70

0 5 10 15 20

OUTPUT CURRENT, IO (A) AMBIENT TEMPERATURE, TA OC

Figure 7. Converter Efficiency versus Output Current.

22

20

18

16

14

12

10

8

OUTPUT CURRENT, Io (A)

25 35 45 55 65 75 85

2m/s

(400LFM)

1.5m/s

(300LFM)

1m/s

(200LFM)

(100LFM)

Figure 8. Derating Output Current versus Ambient
Temperature and Airflow.

0.5m/s
NC

(V) (10mV/div)

O

V

OUTPUT VOLTAGE

TIME, t (1μs/div) TIME, t (20μs /div)

Figure 9. Typical output ripple and noise (V

o,max).

I

(V) (2V/div)

ON/OFF

(V) (500mV/div) V

O

OUTPUT VOLTAGE ON/OFF VOLTAGE

V

TIME, t (1ms/div) TIME, t (1ms/div)

IN = 12V, Io =

(V) (200mV/div)

O

,

(A) (5Adiv) V

O

I

Figure 10. Transient Response to Dynamic Load
Change from 0% to 50% to 0% with VIN=12V.

(V) (5V/div)

IN

(V) (500mV/div) V

O

OUTPUT VOLTAGE INPUT VOLTAGE

V

Figure 11. Typical Start-up Using On/Off Voltage (Io =
I

o,max).

Figure 12. Typical Start-up Using Input Voltage (V
12V, I

o = Io,max).

IN =

LINEAGE POWER 6

Data Sheet

OUTPUT

CURRENT

OUTPUT

VOLTAGE

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Characteristic Curves (continued)

The following figures provide typical characteristics for the Naos Raptor 20A modules at 1.8Vout and at 25ºC.

100

95

90

Vin = 4.5V

Vin = 12V

Vin = 14V

85

80

75

EFFICIENCY, η (%)

70

0 5 10 15 20

OUTPUT CURRENT, IO (A) AMBIENT TEMPERATURE, TA OC

Figure 13. Converter Efficiency versus Output Current.

22

20

18

16

2m/s

14

12

10

8

OUTPUT CURRENT, Io (A)

25 35 45 55 65 75 85

(400LFM)

(300LFM)

1.5m/s
1m/s

(200LFM)

(100LFM)

0.5m/s

Figure 14. Derating Output Current versus Ambient
Temperature and Airflow.

NC

(V) (10mV/div)

O

V

OUTPUT VOLTAGE

TIME, t (1μs/div) TIME, t (100μs /div)

Figure 15. Typical output ripple and noise (V

o,max).

= I

(V) (2V/div)

ON/OFF

(V) (500mV/div) V

O

OUTPUT VOLTAGE ON/OFF VOLTAGE

V

TIME, t (1ms/div) TIME, t (1ms/div)

IN = 12V, Io

(V) (200mV/div)

O

,

(A) (5Adiv) V

O

I

Figure 16. Transient Response to Dynamic Load
Change from 0% to 50% to 0% with VIN=12V.

(V) (5V/div)

IN

(V) (500mV/div) V

O

OUTPUT VOLTAGE INPUT VOLTAGE

V

Figure 17. Typical Start-up Using On/Off Voltage (Io =
I

o,max).

Figure 18. Typical Start-up Using Input Voltage (V
12V, I

o = Io,max).

IN =

LINEAGE POWER 7

Data Sheet

OUTPUT

CURRENT

OUTPUT

VOLTAGE

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Characteristic Curves (continued)

The following figures provide thermal derating curves for Naos Raptor 20A modules at 2.5Vout and 25ºC.

100

95

90

85

80

75

EFFICIENCY, η (%)

70

0 5 10 15 20

Vin = 12V

Vin = 4.5V

Vin = 14V

OUTPUT CURRENT, IO (A) AMBIENT TEMPERATURE, TA OC

Figure 19. Converter Efficiency versus Output Current.

22

20

18

16

14

12

10

8

OUTPUT CURRENT, Io (A)

25 35 45 55 65 75 85

2m/s

(400LFM)

1.5m/s

(300LFM)

1m/s

(200LFM)

Figure 20. Derating Output Current versus Ambient
Temperature and Airflow.

0.5m/s

(100LFM)

NC

(V) (10mV/div)

O

V

OUTPUT VOLTAGE

TIME, t (1μs/div) TIME, t (100μs /div)

Figure 21. Typical output ripple and noise (V
= I

o,max).

(V) (2V/div)

ON/OFF

(V) (1V/div) V

O

OUTPUT VOLTAGE ON/OFF VOLTAGE

V

TIME, t (1ms/div) TIME, t (1ms/div)

IN = 12V, Io

(V) (200mV/div)

O

,

(A) (5Adiv) V

O

I

Figure 22. Transient Response to Dynamic Load
Change from 0% to 50% to 0% with VIN=12V.

(V) (5V/div)

IN

(V) (1V/div) V

O

OUTPUT VOLTAGE INPUT VOLTAGE

V

Figure 23. Typical Start-up Using On/Off Voltage (Io =
I

o,max).

Figure 24. Typical Start-up Using Input Voltage (V
12V, I

o = Io,max).

IN =

LINEAGE POWER 8

Data Sheet

OUTPUT CURRENT

OUTPUT

VOLTAGE

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Characteristic Curves (continued)

The following figures provide thermal derating curves for Naos Raptor 20A modules at 3.3Vout and 25ºC.

100

95

90

85

Vin = 4.5V

Vin = 12V

Vin = 14V

EFFICIENCY, η (%)

80

0 5 10 15 20

OUTPUT CURRENT, IO (A) AMBIENT TEMPERATURE, TA OC

Figure 25. Converter Efficiency versus Output Current.

22

20

18

16

14

12

10

8

OUTPUT CURRENT, Io (A)

25 35 45 55 65 75 85

2m/s

(400LFM)

1.5m/s

(300LFM)

1m/s

(200LFM)

0.5m/s

(100LFM)

Figure 26. Derating Output Current versus Ambient
Temperature and Airflow.

NC

(V) (10mV/div)

O

V

OUTPUT VOLTAGE

TIME, t (1μs/div) TIME, t (100μs /div)

Figure 27. Typical output ripple and noise (V
= I

o,max).

(V) (2V/div)

ON/OFF

(V) (1V/div) V

O

OUTPUT VOLTAGE ON/OFF VOLTAGE

V

TIME, t (1ms/div) TIME, t (1ms/div)

IN = 12V, Io

(V) (200mV/div)

O

,

(A) (5Adiv) V

O

I

Figure 28. Transient Response to Dynamic Load
Change from 0% to 50% to 0% with VIN=12V.

(V) (5V/div)

IN

(V) (1V/div) V

O

OUTPUT VOLTAGE INPUT VOLTAGE

V

Figure 29. Typical Start-up Using On/Off Voltage (Io =
I

o,max).

Figure 30. Typical Start-up Using Input Voltage (V
12V, I

o = Io,max).

IN =

LINEAGE POWER 9

Data Sheet

OUTPUT

CURRENT

OUTPUT

VOLTAGE

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Characteristic Curves (continued)

The following figures provide thermal derating curves for Naos Raptor 20A modules at 5Vout and 25ºC.

100

95

Vin = 12V

90

85

Vin = 6V

Vin = 14V

EFFICIENCY, η (%)

80

0 5 10 15 20

OUTPUT CURRENT, IO (A) AMBIENT TEMPERATURE, TA OC

Figure 31. Converter Efficiency versus Output Current.

22

20

18

16

14

12

10

8

OUTPUT CURRENT, Io (A)

25 35 45 55 65 75 85

2m/s

(400LFM)

1.5m/s

(300LFM)

1m/s

(200LFM)

0.5m/s

(100LFM)

Figure 32. Derating Output Current versus Ambient
Temperature and Airflow.

NC

(V) (10mV/div)

O

V

OUTPUT VOLTAGE

TIME, t (1μs/div) TIME, t (100μs /div)

Figure 33. Typical output ripple and noise (V
= I

o,max).

(V) (2V/div)

ON/OFF

(V) (2V/div) V

O

OUTPUT VOLTAGE ON/OFF VOLTAGE

V

TIME, t (1ms/div) TIME, t (1ms/div)

IN = 12V, Io

(V) (200mV/div)

O

,

(A) (5Adiv) V

O

I

Figure 34. Transient Response to Dynamic Load
Change from 0% to 50% to 0% with VIN=12V.

(V) (5V/div)

IN

(V) (2V/div) V

O

OUTPUT VOLTAGE INPUT VOLTAGE

V

Figure 35. Typical Start-up Using On/Off Voltage (Io =
I

o,max).

Figure 36. Typical Start-up Using Input Voltage (V
12V, I

o = Io,max).

IN =

LINEAGE POWER 10

Data Sheet

OUTPUT

VOLTAGE

ON/OFF

VOLTAGE

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Characteristic Curves (continued)

The following figures provide thermal derating curves for Naos Raptor 20A modules at 6Vout and 25ºC.

100

95

Vin = 12V

90

85

Vin = 7.5V

Vin = 14V

EFFICIENCY, η (%)

80

0 5 10 15 20

OUTPUT CURRENT, IO (A) AMBIENT TEMPERATURE, TA OC

Figure 37. Converter Efficiency versus Output Current.

22

20

18

2m/s

16

14

12

10

OUTPUT CURRENT, Io (A)

(400LFM)

1.5m/s

(300LFM)

8

25 35 45 55 65 75 85

1m/s

(200LFM)

0.5m/s

(100LFM)

Figure 38. Derating Output Current versus Ambient
Temperature and Airflow.

NC

(V) (10mV/div)

O

V

OUTPUT VOLTAGE

TIME, t (1μs/div) TIME, t (100μs /div)

Figure 39. Typical output ripple and noise (V
= I

o,max).

(V) (2V/div)

ON/OFF

(V) (2V/div) V

O

V

TIME, t (1ms/div) TIME, t (1ms/div)

IN = 12V, Io

Figure 41. Typical Start-up Using On/Off Voltage (Io =
I

o,max).

(V) (200mV/div)

O

(A) (5Adiv) V

O

I

OUTPUT CURRENT, OUTPUT VOLTAGE

Figure 40. Transient Response to Dynamic Load
Change from 0% to 50% to 0% with VIN=12V.

(V) (5V/div)

IN

(V) (2V/div) V

O

OUTPUT VOLTAGE INPUT VOLTAGE

V

Figure 42. Typical Start-up Using Input Voltage (V
12V, I

o = Io,max).

IN =

LINEAGE POWER 11

Data Sheet
July 11, 2011

Naos Raptor 20A: Non Isolated Power Module:

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Test Configurations

TO OSCILLOSCOPE

L

TEST

1μH

CS 1000μF

BATTERY

NOTE: Measure input reflected ripple current with a simulated

Electrolytic

E.S.R.<0.1Ω

@ 20°C 100kHz

source induct ance (L
possible battery impedance. Measure current as shown
above.

) of 1μH. Capacit or CS offsets

TEST

Figure 43. Input Reflected Ripple Current Test Setup.

COPPER STRIP

V

(+)

O

1uF .

COM

GROUND PLANE

NOTE: All voltage measurements to be take n at the module

terminals, as shown above. If sockets are used then
Kelvin connections are required at the module terminals
to avoid measurement errors due to socket contact
resistance.

Figure 44. Output Ripple and Noise Test Setup.

R

R

contact

distribution

R

R

contact

distribution

NOTE: All volt age meas urements to be taken at th e module

terminals , as shown above. If sock ets are us ed then
Kelvin conn ections are requir ed at the modu le termi nals
to avoid measur ement err ors due to soc ket contact
resistance.

VIN(+)

V

IN

COM

Figure 45. Output Voltage and Efficiency Test Setup.

. I

V

O

Efficiency

=

η

VIN. I

O

IN

10uF

V

COM

Tantalum

O

CURRENT PROBE

CIN

2x100μF

SCOPE

V

O

x 100 %

VIN(+)

COM

RESISTIVE
LOAD

R

contactRdistribution

R

contactRdistribution

R

LOAD

Design Considerations

Input Filtering

The Naos Raptor 20A module should be connected to
a low-impedance source. A highly inductive source
can affect the stability of the module. An input
capacitance must be placed directly adjacent to the
input pin of the module, to minimize input ripple voltage
and ensure module stability.

To minimize input voltage ripple, low-ESR ceramic or
polymer capacitors are recommended at the input of the
module. Figure 46 shows the input ripple voltage for
various output voltages at 20A of load current with 2x22
µF or 4x22 µF ceramic capacitors and an input of 12V.

90

80

70

60

50

40

30

20

10

0

Input Ripple Voltage (mVp-p)

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

Output Voltage (Vdc)

Figure 46. Input ripple voltage for various output
voltages with 2x22 µF or 4x22 µF ceramic capacitors
at the input (20A load). Input voltage is 12V.

Output Filtering

The Naos Raptor 20A modules are designed for low
output ripple voltage and will meet the maximum output
ripple specification with no external capacitors. However,
additional output filtering may be required by the system
designer for a number of reasons. First, there may be a
need to further reduce the output ripple and noise of the
module. Second, the dynamic response characteristics
may need to be customized to a particular load step
change.

To reduce the output ripple and improve the dynamic
response to a step load change, additional capacitance at
the output can be used. Low ESR ceramic and polymer
are recommended to improve the dynamic response of
the module. For stable operation of the module, limit the
capacitance to less than the maximum output
capacitance as specified in the electrical specification
table. Optimal performance of the module can be
achieved by using the Tunable Loop
later in this data sheet.

2x22uF

4x22uF

TM

feature described

LINEAGE POWER 12

Data Sheet
July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Safety Considerations

For safety agency approval the power module must be
installed in compliance with the spacing and separation
requirements of the end-use safety agency standards,
i.e., UL 60950-1, CSA C22.2 No. 60950-1-03, and VDE
0850:2001-12 (EN60950-1) Licensed.

For the converter output to be considered meeting the
requirements of safety extra-low voltage (SELV), the
input must meet SELV requirements. The power module
has extra-low voltage (ELV) outputs when all inputs are
ELV.

An input fuse for the module is recommended. Due to the
wide input voltage and output voltage ranges of the
module, different fuse ratings are recommended as
shown in Table 1. These are suggested “maximum” fuse
ratings. However, for optimum circuit protection, the fuse
value should not be any larger than required in the end
application. As an option to using a fuse, no fuse is
required, if the module is

1. powered by a power source with current limit
protection set point less than the protection
device value listed in Table 1, and

2. the module is evaluated in the end-use
equipment.

Table 1.

Input

Voltage

(VDC)

10.1 to 14

6.51 to 10

4.5 to 6.5

0.59 to 1.3 1.31 to 2.7 2.71 to 5.0 5.1 to 6

Output Voltage (VDC)

5A 10A 15A 20A

6.3A 15A 25A 30A
10A 20A 30A NA

Naos Raptor 20A: Non Isolated Power Module:

Feature Descriptions

Remote On/Off

The Naos Raptor 20A modules feature an On/Off pin with
positive logic for remote On/Off operation. If not using the
On/Off pin, leave the pin open (the module will be ON,
except for the -49 option modules where leaving the pin
open will cause the module to remain OFF). The On/Off
signal (V

During a Logic High on the On/Off pin, the module
remains ON. During Logic-Low, the module is turned
OFF.

) is referenced to ground.

On/Off

MODULE

R1

7.5K

ENABLEON/OFF

R2
100k

GND

Figure 47. Remote On/Off Implementation.
Components R2 and C1 are only present in the -49Z
option module.

Overcurrent Protection

To provide protection in a fault (output overload)
condition, the unit is equipped with internal
current-limiting circuitry and can endure current limiting
continuously. At the point of current-limit inception, the
unit enters hiccup mode. The unit operates normally once
the output current is brought back into its specified range.
The typical average output current during hiccup is 10%
of I

.

o,max

Overtemperature Protection

C1
1000p

To provide protection in a fault condition, these modules
are equipped with a thermal shutdown circuit. The unit
will shut down if the overtemperature threshold of 130ºC
is exceeded at the thermal reference point T
thermal shutdown is not intended as a guarantee that the
unit will survive temperatures beyond its rating. Once the
unit goes into thermal shutdown it will then wait to cool
before attempting to restart.

ref

. The

Input Undervoltage Lockout

At input voltages below the input undervoltage lockout
limit, module operation is disabled. The module will begin
to operate at an input voltage above the undervoltage
lockout turn-on threshold.

LINEAGE POWER 13

Data Sheet
July 11, 2011

Naos Raptor 20A: Non Isolated Power Module:

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Feature Descriptions (continued)

Power Good

The Naos Raptor 20A modules provide a Power Good
Status signal that indicates whether or not the power
module is functioning properly.

PwGood is a power good signal implemented with an
open-collector output to indicate that the output voltage is
within the regulation limits of the power module. The
PwGood signal will be de-asserted to a low state If any
condition such as over-temperature, over-current, or
over-voltage occurs which would result in the output
voltage going out of range.

Output Voltage Programming

The output voltage of the Naos Raptor 20A module can
be programmed to any voltage from 0.59Vdc to 6Vdc by
connecting a resistor between the Trim+ and Trim– pins
of the module. Certain restrictions apply on the output
voltage set point depending on the input voltage. These
are shown in the Output Voltage vs. Input Voltage Set
Point Area plot in Fig. 48. The Upper Limit curve shows
that for output voltages of 0.9V and lower, the input
voltage must be lower than the maximum of 14V. The
Lower Limit curve shows that for output voltages of 3.8V
and higher, the input voltage needs to be larger than the
minimum of 4.5V.

16

14

12

10

8

6

4

Input Voltage (v)

2

0

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6

Output Voltage (V)

Figure 48. Output Voltage vs. Input Voltage Set Point
Area plot showing limits where the output voltage
can be set for different input voltages.

Without an external resistor between Trim+ and Trim–
pins, the output of the module will be 0.59Vdc. To
calculate the value of the trim resistor, Rtrim for a desired
output voltage, use the following equation:

Rtrim

()

−

Vo

182.1

= k

Rtrim is the external resistor in kΩ

Vo is the desired output voltage

591.0

Ω

Table 2 provides Rtrim values required for some common
output voltages.

Table 2

(V)

Rtrim (KΩ)

Vout

R

trim

LOA D

V

O, set

0.59 Open

1.0 2.89

1.2 1.941

1.5 1.3

1.8 0.978

2.5 0.619

3.3 0.436

5.0 0.268

6.0 0.219

By using a ±0.5% tolerance trim resistor with a TC of
±25ppm, a set point tolerance of ±1.5% can be achieved
as specified in the electrical specification. The POL
Programming Tool available at www.lineagepower.com
under the Design Tools section, helps determine the
required trim resistor needed for a specific output voltage.

Note: Vin ≥ 130% of Vout at the module output pin.

VIN(+)

ON /OFF

GND

VO(+)

TRIM+

TRIM−

Figure 49. Circuit configuration for programming
output voltage using an external resistor.

Voltage Margining

Output voltage margining can be implemented in the
Naos Raptor 20A modules by connecting a resistor,
R
margining-up the output voltage and by connecting a
resistor, R
for margining-down. Figure 50 shows the circuit
configuration for output voltage margining. The POL
Programming Tool, available at www.lineagepower.com
under the Design Tools section, also calculates the
values of R
voltage and % margin. Please consult your local Lineage
Power technical representative for additional details.

, from the Trim+ pin to the Trim– pin for

margin-up

margin-down

, from the Trim+ pin to the output pin

and R

margin-up

margin-down

for a specific output

LINEAGE POWER 14

Data Sheet
July 11, 2011

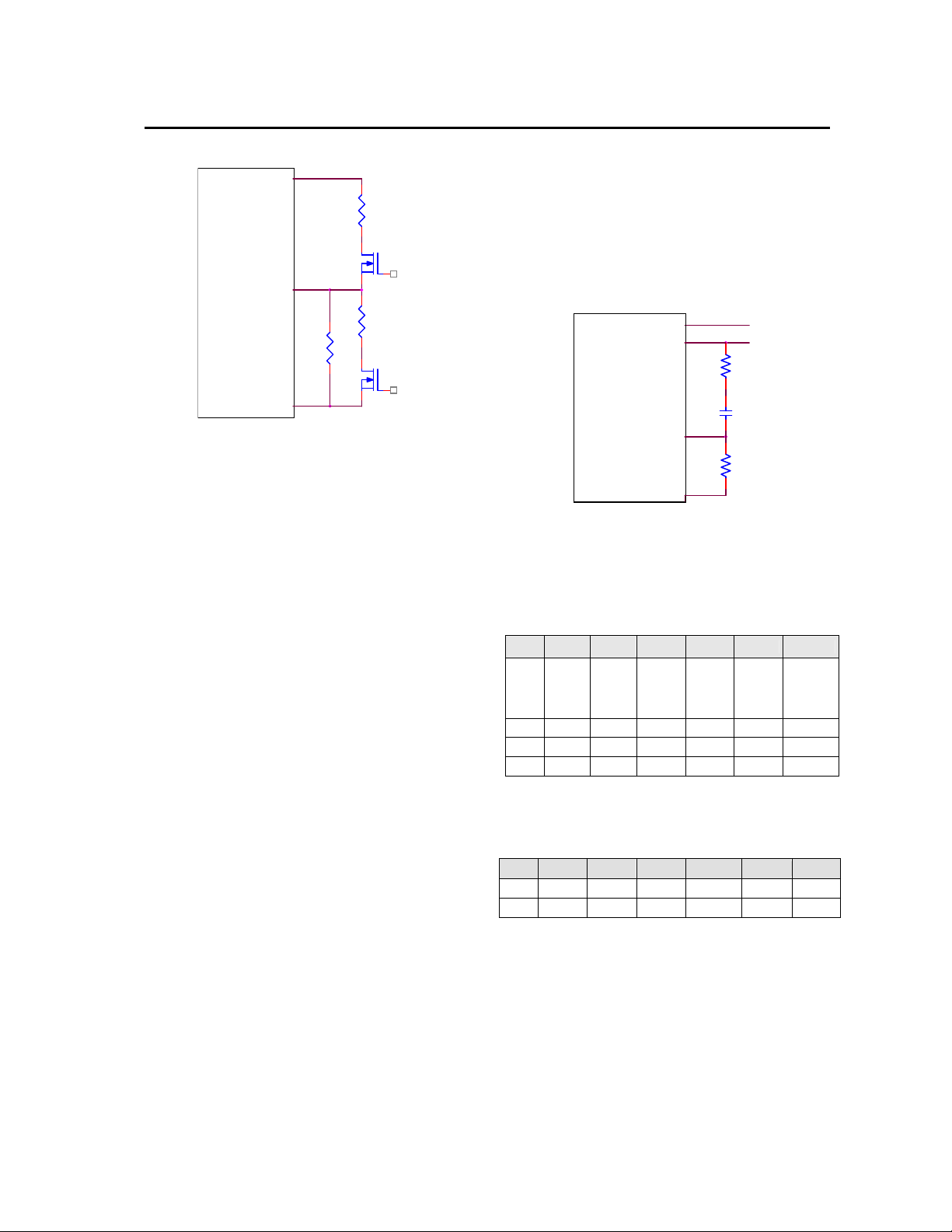

Figure 50. Circuit Configuration for margining Output
voltage.

Monotonic Start-up and Shutdown

The Naos Raptor 20A modules have monotonic start-up
and shutdown behavior for any combination of rated input
voltage, output current and operating temperature range.

Tunable Loop

The Naos Raptor 20A modules have a new feature that
optimizes transient response of the module called
Tunable Loop
to improve output voltage transient response due to load
current changes. Sensitive loads may also require
additional output capacitance to reduce output ripple and
noise. Adding external capacitance however affects the
voltage control loop of the module, typically causing the
loop to slow down with sluggish response. Larger values
of external capacitance could also cause the module to
become unstable.

To use the additional external capacitors in an optimal
manner, the Tunable Loop
tuned externally by connecting a series R-C between the
SENSE and TRIM pins of the module, as shown in Fig.

51. This R-C allows the user to externally adjust the
voltage loop feedback compensation of the module to
match the filter network connected to the output of the
module.

Recommended values of R
Tables 3 and 4. Table 3 lists recommended values of
R
deviation limits for some common output voltages in the
presence of a 5A to 10A step change (50% of full load),
with an input voltage of 12V. Table 4 shows the
recommended values of R
values of ceramic output capacitors up to 1000uF, again

TUNE

and C

Vo

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Rmargin-down

MODULE

Q2

Trim+

Rmargin-up

Rtrim

Q1

Trim-

TM

TM

. External capacitors are usually added

TM

feature allows the loop to be

and C

TUNE

in order to meet 2% output voltage

TUNE

and C

TUNE

are given in

TUNE

for different

TUNE

Naos Raptor 20A: Non Isolated Power Module:

for an input voltage of 12V. The value of R
never be lower than the values shown in Tables 3 and 4.
Please contact your Lineage Power technical
representative to obtain more details of this feature as
well as for guidelines on how to select the right value of
external R-C to tune the module for best transient
performance and stable operation for other output
capacitance values.

VOUT

SENSE+

TUNE

RTune

should

MODULE

CTune

TRIM+

RTrim

TRIM-

Figure. 51. Circuit diagram showing connection of
R

and C

TUME

module.

Table 3. Recommended values of R
obtain transient deviation of 2% of Vout for a 10A
step load with Vin=12V.

Vout 5V 3.3V 2.5V 1.8V 1.2V 0.69V

330μF

Cext

Polymer

R

TUNE

C

TUNE

100nF 150nF 220nF 330nF 330nF 330nF

ΔV

94mV 66mV 50mV 36mV 24mV 12mV

Table 4. General recommended values of of R
C

for Vin=12V and various external ceramic

TUNE

capacitor combinations.

Cext

2x47μF 4x47μF 6x47μF 10x47μF 20x47μF 30x47μF

R

C

75 75 75 51 51 51

TUNE

15nF 27nF 33nF 47nF 68nF 82nF

TUNE

to tune the control loop of the

TUNE

and C

TUNE

4x47μF

Polymer

75 51 51 51 51 31

+

330μF

2x47μF

+
2x330μF
Polymer

6x47μF

+

3x330μF

Polymer

7x330μF

Polymer

TUNE

23x330μF

Polymer

and

TUNE

to

LINEAGE POWER 15

Data Sheet

p

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Thermal Considerations

Power modules operate in a variety of thermal
environments; however sufficient cooling should always
be provided to help ensure reliable operation.

Considerations include ambient temperature, airflow,
module power dissipation, and the need for increased
reliability. A reduction in the operating temperature of the
module will result in an increase in reliability. The thermal
data presented here is based on physical measurements
taken in a wind tunnel. The test set-up is shown in Figure

52. The preferred airflow direction for the module is in
Figure 53.

76.2
[3.0]

Flow

50.8

[2.00]

7.24

[0.285]

Air

used in the

ref

Power Module

Probe Location
for measuring
airflow and
ambient

erature

tem

o

C.

Wind Tunnel

Figure 52. Thermal Test Set-up.

The thermal reference point, T
specifications is shown in Figure 53. For reliable
operation this temperatures should not exceed 122

The output power of the module should not exceed the
rated power of the module (Vo,set x Io,max).

Please refer to the Application Note “Thermal
Characterization Process For Open-Frame Board­Mounted Power Modules” for a detailed discussion of
thermal aspects including maximum device temperatures.

PWBs

Naos Raptor 20A: Non Isolated Power Module:

Figure 53. Temperature measurement location T

Heat Transfer via Convection

Increased airflow over the module enhances the heat
transfer via convection. Thermal derating curves showing
the maximum output current that can be delivered at
different local ambient temperatures (T
conditions ranging from natural convection and up to
2m/s (400 ft./min) are shown in the Characteristics
Curves section.

) for airflow

A

.

ref

Post solder Cleaning and Drying
Considerations

Post solder cleaning is usually the final circuit-board
assembly process prior to electrical board testing. The
result of inadequate cleaning and drying can affect both
the reliability of a power module and the testability of the
finished circuit-board assembly. For guidance on
appropriate soldering, cleaning and drying procedures,
refer to Board Mounted Power Modules: Soldering and
Cleaning Application Note.

Through-Hole Lead-Free Soldering
Information

These RoHS-compliant through-hole products use the
SAC (Sn/Ag/Cu) Pb-free solder and RoHS-compliant
components. They are designed to be processed
through single or dual wave soldering machines. The
pins have an RoHS-compliant finish that is compatible
with both Pb and Pb-free wave soldering processes. A
maximum preheat rate of 3°C/s is suggested. The wave
preheat process should be such that the temperature of
the power module board is kept below 210°C. For Pb
solder, the recommended pot temperature is 260°C, while
the Pb-free solder pot is 270°C max. Not all RoHS­compliant through-hole products can be processed with
paste-through-hole Pb or Pb-free reflow process. If
additional information is needed, please consult with your
Lineage Power technical representative for more details.

LINEAGE POWER 16

Data Sheet

[

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Mechanical Outline

Dimensions are in inches and (millimeters).

Tolerances: x.x mm ± 0.5 mm (x.xx in. ± 0.02 in.) [unless otherwise indicated]

x.xx mm ± 0.25 mm (x.xxx in ± 0.010 in.)

Front View

Side View

Pin out

L = 3.30 ± 0.5

0.13 ± 0.02]

Pin Function Pin Function

1 V

2 Trim + 7 Sense +

3 GND 8 Sense -

4 PwGood 9 TRIM -

5 On/Off 10 GND

out

6 Vin

LINEAGE POWER 17

Data Sheet
July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Recommended Pad Layout

Dimensions are in millimeters and (inches).

Tolerances: x.x mm ± 0.2 mm (x.xx in. ± 0.02 in.) [unless otherwise indicated]

x.xx mm ± 0.12 mm (x.xxx in ± 0.005 in.)

Pin Function Pin Function

1 V

2 Trim + 7 Sense +

3 GND 8 Sense -

4 PwGood 9 TRIM -

5 On/Off 10 GND

out

6 Vin

LINEAGE POWER 18

Data Sheet

a

©

July 11, 2011

4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A output current

Naos Raptor 20A: Non Isolated Power Module:

Ordering Information

Please contact your Lineage Power Sales Representative for pricing, availability and optional features.

Table 5. Device Codes

Device Code

NSR020A0X43Z 4.5 – 13.8Vdc 0.59 – 6Vdc 20 A Positive SIP CC109130911

Table 6. Coding Scheme

Series

generation

NSR 020A0 X 4 3

Output

Current

020A0=20A X =

Input

Voltage Range

Output

voltage

programmable

output

Output

Voltage

Pin Length On/Off

Blank =

Standard

5=5.1mm

6=3.7mm

8=2.8mm

Output

Current

logic

4 = positive

No entry =

negative

On/Off

Logic

Sense Default On/Off

3 = Remote
Sense
Blank=without

Connector

Type

Condition

Blank=Standard,

ON when

unconnected

2=Inverted On/Off

Comcode

Compliance

Z = ROHS6

ROHS

Z

Asia-Pacific Headquarters

Tel: [phone]*808

World Wide Headquarters
Lineage Power Corporation

601 Shiloh Road, Plano, TX 75074, USA
+1-888-LINEAGE(546-3243)
(Outside U.S.A.: +1-972-244-WATT(9288))

www.lineagepower.com
e-mail: [e-mail]

Europe, Middle-East and Africa Headquarters

Tel: [phone]

India Headquarters

Tel: [phone]

Lineage Power reserves the right to make changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or

pplication. No rights under any patent accompany the sale of any such product(s) or information.

Lineage Power DC-DC products are protected under various patents. Information on these patents is available at www.lineagepower.com/patents.

2011 Lineage Power Corporation, (Plano, Texas) All International Rights Reserved.

LINEAGE POWER 19

Document No: DS06-127 ver. 1.11

PDF name: NSR020A0X_ds.pdf
