Gateway FPD2185W Monitor
User Guide
Contents
Using Your Gateway Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Connecting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connecting video inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connecting USB cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecting a security cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjusting monitor height tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Ergonomic guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Starting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adjusting monitor settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Monitor buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
On-screen display (OSD) options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using Picture-in-Picture (PIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Windows controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
EzTune software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
No power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Image is not sized or centered correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
The monitor has pixels that are always dark or too bright . . . . . . . . . . . . . . . . . . . . . . 28
Gateway contact information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
www.gateway.com
i
ii
www.gateway.com
Using Your Gateway Flat Panel Monitor
• Connecting the monitor
• Adjusting the stand
• Turning on the monitor
• Changing monitor settings
• Maintaining and troubleshooting
• Getting help
• Specifications
1
Using Your Gateway Flat Panel Monitor
Connecting the monitor
Connecting video inputs
Caution
To connect the monitor:
The audio power in jack is for use only with the Gateway speaker bar.
Connecting any other device or power adapter can permanently
damage the monitor.
Audio power in jack
1 Position your computer and the monitor so you can reach the back of each.
2 Connect the power cord to the power connector under the back of the display.
2
www.gateway.com
Connecting the monitor
Caution
Do not connect power to the Audio power in jack for any device but
the Gateway speaker bar accessory.
Audio power in jack
3 Connect the blue VGA video cable to the blue video connector under the back of
the display.
- OR If your computer has a digital video conn ect or (DVI), connect a DVI video cable (not
included) to the white connector under the back of the display. You can buy a DVI
video cable from www.gateway.com.
www.gateway.com
3
Using Your Gateway Flat Panel Monitor
4 Make sure that your computer is turned off, then connect the other end of the video
cable to the matching video port on the back of your computer.
5 Connect video inputs (such as from a DVD player, video camera, or receiver) to the
appropriate video jacks on the back of the monitor.
Component red Pr jack
S-Video jack
Composite video in jack Component green Y jack
■ For basic video quality, connect your video device’s composite video in jack to
the corresponding jack on the back of your monitor. (cable not included)
■ For better video quality, connect your video device’s S-Video jack to the
corresponding jack on the back of your monitor. (cable not included)
■ For best video quality, connect your video device’s component video (green Y,
blue Pb, and red Pr) jacks to the corresponding jacks on the back of your monitor.
(cables not included)
Component blue Pb jack
6 Plug the power cord into a correctly grounded electrical outlet.
4
www.gateway.com
Connecting the monitor
Warning
Because lifting your monitor off the desktop surface takes weight off
from the adjustable stand, the stand will extend suddenly, possibly
causing damage to equipment or injury to yourself.
To avoid injury, always lift the monitor so that the stand adjusts to its
full height before moving the monitor or turning it around.
www.gateway.com
5
Using Your Gateway Flat Panel Monitor
Connecting USB cables
Your monitor has a built-in, four-port USB 2.0 hub that lets you conveniently connect
USB devices. Because your computer case may be under your desk or inside a cabinet, these
monitor-mounted USB ports can be much easier to access.
T o use the monito r’s USB ports, you must first connect the monitor to a USB port on your
computer. Because the USB hub uses power from the monitor, it does not require its own
power connection.
To connect USB cables:
1 Connect the included USB cable to the USB in (“B” type) port on the back of your
monitor, then connect the other end of the cable to a USB 2.0 port on your computer.
USB in portUSB ports
6
Important
Tips & Tricks
The built-in USB 2.0 hub provides only low-speed connections if its
USB in port is connected to a USB 1.1 port on your computer or on
a USB hub.
Use the USB 2.0 ports on the back of the monitor for connecting USB
devices you want to keep connected most of the time, such as a
keyboard, a mouse, or a printer.
www.gateway.com
Connecting the monitor
2 Connect any USB device to one of t he available USB 2.0 p orts on the side o r back of
the monitor.
USB ports
Tips & Tricks
Use the USB 2.0 ports on the side of the monitor for connecting USB
devices that are frequently disconnected, such as camera interface
cables, flash drives, and USB hard drives.
www.gateway.com
7
Using Your Gateway Flat Panel Monitor
Connecting a security cable
You can secure your monitor to your computer desk (or to another heavy object) with a
cable lock. To connect a cable lock, follow the cabl e lock’s instructions to connect it to
the Kensington lock slot on the back of your monitor. (cable lock not included)
Kensington lock slot
8
www.gateway.com
Adjusting the stand
Height:
4.12 inches
(105 mm)
Adjusting the stand
Rotation: 90°
Tilt: 35°
Pan: 35°
www.gateway.com
9
Using Your Gateway Flat Panel Monitor
Adjusting monitor heigh t tension
The stand is factory adjusted to maintain the adjusted height for your monitor. However,
you can further adjust the tension.
To test and adjust your monitor’s height tension:
1 Move your monitor up and down through its entire vertical range. If it does not stay
in place when you let go, you need to change the adjustable stand’s height tension.
You also need to adjust the stand if the amounts of force required to raise and lower
the monitor are not equal.
2 Adjust the height tension screw so the monitor stays in place when you let go. If the
monitor lowers by itself when you let go, turn the screw clockwise several complete
turns. If the monitor rises when you let go, turn the screw counter-clockwise several
complete turns. You may need to turn the screw several times before the tension is
correct for your monitor.
Increase l ifting tension
(clockwise)
Decrease lifting tension
(counter-clockwise)
3 Adjust the height tension screw so raising and lowering forces are equal. After the
forces are equalized, turn the tension screw clockwise 2 to 4 turns to slightly decrease
the lifting tension.
4 For optimum viewing, adjust the height so the top of monitor is about 1 inch below
eye level.
10
www.gateway.com
Adjusting the stand
Ergonomic guidelines
The recommended mounting heights, the range of adjustability required to provide
comfortable use by a range of users, and the forces required for making adjustmen ts to
the display are based upon the following guildelines. These guidelines are based on
available scientific literature and published standards.
Screen height
The recommended screen height for displays (except in special circumstances, such as for
bifocal use) is that the top of the display should be set at or slightly below (about 1 inch,
or 25 mm) the user’s eye level while the user is sitting in a comfortable working posture.
This guideline places the center of the screen at an ideal 15° to 20° viewing angle for most
desktop displays. If the display has multiple users, the screen height should be easily
adjustable to accommodate eac h user’s height and preference.
Screen tilt
The screen should be tilted so the user’s line of sight is perpendicular to the screen. This
angle creates the most consistent viewing distance when scanning from the top of the
screen to the bottom. Y ou may need to adjust lighting to avoid screen glare when the screen
is tilted upward.
Screen distance from user
The display screen should first be placed at arms length from the user, then adjusted back
and forth to suit individual preference. Vertical adjustments should not result in a change
in viewing distance.
Stand adjustment fo rces
The force required to make any adjustment to the stand (height, tilt, pan, or
portrait/landscape orientation) should not exceed 5.1 lbs. (2.32 kg).
www.gateway.com
11
Using Your Gateway Flat Panel Monitor
Starting the monitor
To start the monitor:
1 Press the power button on the front of monitor. The power LED on the power button
turns on.
2 Turn on your computer.
After your computer is running, the power LED on the monitor’s power button should
be blue. Allow about 10 seconds for the display image to appear. If the power LED is
not blue or you do not see a display image, check the connections. For more
troubleshooting information, see “Troubleshooting” on page 26.
3 Adjust the tilt of the monitor for the best viewing angle.
4 After you see the Windows desktop, press the Auto button on the right side of the
monitor to automatically adjust your display image to the ideal settings.
5 Use the on-screen display (OSD) to adju st other monitor settings. For more
information, see “Adjusting monitor settings” on page 13.
Important
12
When adjusting the monitor settings, alwa ys press the Auto button
before entering the OSD. This will automatically adjust the display
image to the ideal settings for the current screen resolution.
For most applications, the best screen resolution is 1680 × 1050.
www.gateway.com
Adjusting monitor settings
Adjusting monitor settings
Use the monitor controls (located on the monitor itself) and computer controls (accessible
through Windows) to adjust the display image. For more information about computer
controls, see “Windows controls” on page 19.

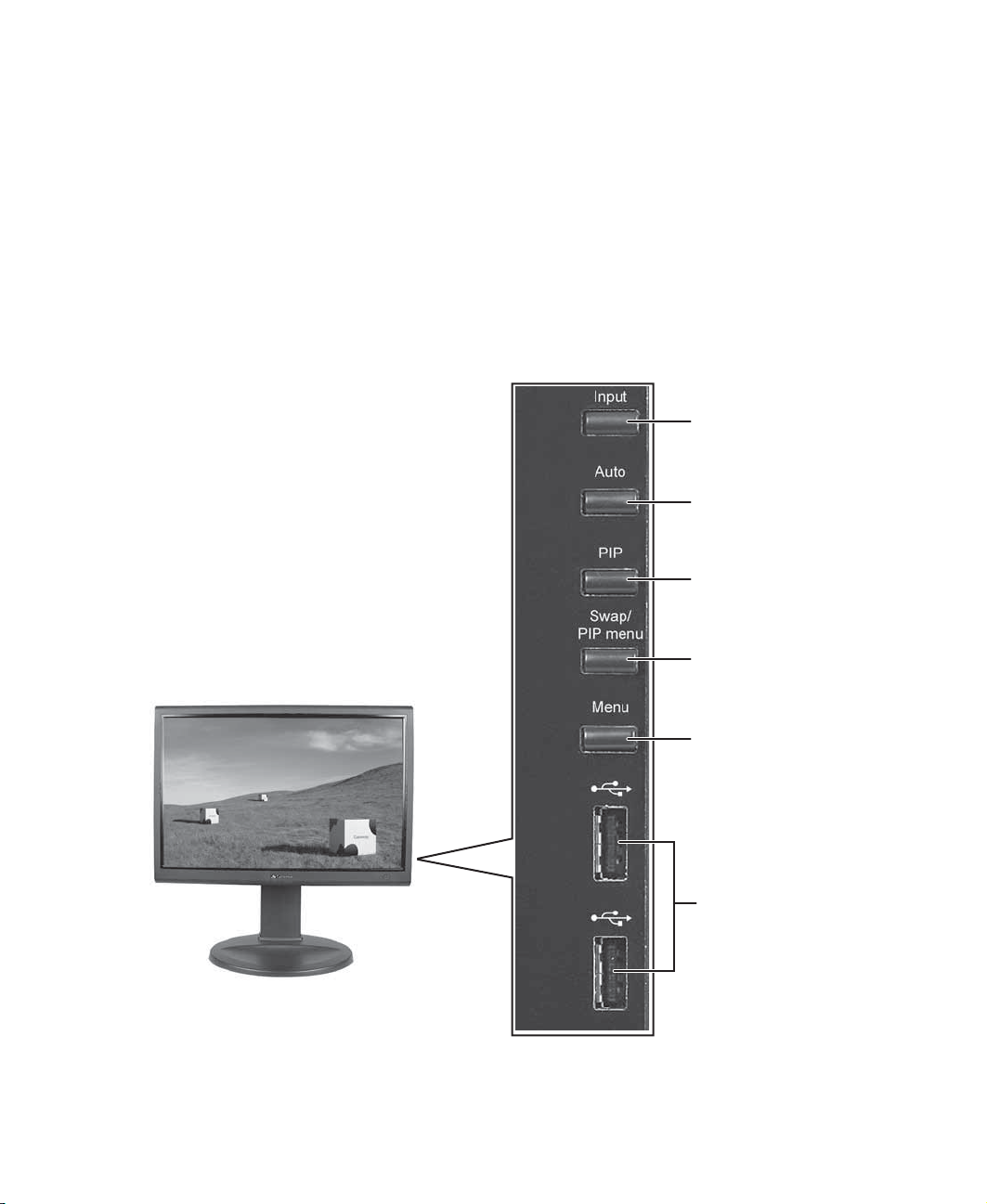

Monitor buttons
This monitor features an on-screen d isplay (OS D) t hat lets y ou a djust c ontrast, bri ghtness,
and other settings for the monitor. The monitor saves changes you make to the settings,
even if you turn off the monitor.
Input button
Auto button
PIP button
Swap/PIP menu
button
Menu button
USB ports
www.gateway.com
13
Using Your Gateway Flat Panel Monitor
■ Input
OSD active: Press to move to previous menu.
OSD inactive: Press to select the video source.
■ Auto
OSD active: Press to select a menu or setting.
OSD inactive: Press to automatically optimize the monito r’s image position, clock,
and phase.
■ PIP
OSD active: Press to move up through menu selections and adjust OSD options.
OSD inactive: Press to turn on PIP (Picture-in-Picture).
■ Swap/PIP menu
OSD active: Press to move down through menu selections and adjust OSD options.
OSD inactive, PIP on: Press to swap the PIP (Picture-in-Picture) image with the
primary im age.
OSD inactive, PIP off: Press to open PIP (Picture-in-Picture) control menu.
■ Menu
Press to view the OSD. Press again to exit the OSD.
14
www.gateway.com
On-screen display (OSD) options
Adjusting OSD settings
To adjust the OSD settings:
1 Press the Menu button. The OSD menu opens.
Main Menu
Auto
PIP
Adjusting monitor settings
Video Adjust
Geometry
Advanced
Reset
Select
Previous
Next
Menu Off
2 Press the Previous and Next (PIP buttons) to highlight a setting, then press the
Auto button to open the selected menu or setting.
Tips & Tricks
While the OSD is active, on-screen labels appear next to the buttons
to help you identify them.
3 Press the Up and Down buttons (PIP buttons) to adjust the setting to the desired level
or change the option.
4 Press the Input button to return to a previous menu.
5 When you have finished making all adjustments, press the Menu button at the
Main Menu to exit.
www.gateway.com
15
Using Your Gateway Flat Panel Monitor
OSD menus
OSD Menu Description
Main menu
Picture menu
Auto—Automatically adjusts your monitor to its optimum settings. (VGA
input only)
Picture—Opens the Picture menu, where you can adjust brightness,
contrast, and gamma.
PIP—Opens the PIP Settings menu, where you can adjust the source,
position, size, and transparency of the Picture-in-Picture image.
Video adjust—Opens the Video Adjust menu, where you can adjust the
RGB (red, green, and blue) values of the video image from a source such
as composite video, S-Video, or component video. This menu is available
only when a video (not computer) source is the main display.
Geometry—Opens the Geometry menu, where you can adjust image size
and minimize distortions. (VGA input only)
Advanced—Opens the Advanced menu, where you can adjust color
balance, change the OSD language, and display information about current
monitor settings.
Reset—Resets the monitor to its factory settings for the currently
displayed input.
Brightness—Adjusts the amount of light in the darkest portion of the
picture. Use the lowest brightness setting you are comfortable with to
maximize the life of the monitor backlights. You may need to readjust
brightness after the monitor warms up.
Contrast—Adjusts the level of white between the lightest and darkest
portions of an image.
Gamma—Customizes the gamma level. High gamma levels increase
white levels and low gamma levels increase contrast.
PIP Settings menu
16
PIP Display—Toggles the display of the PIP window.
Source—Sets the source of the video used in the PIP window.
Position—Sets the position of the PIP window on the main screen.
Size—Sets the size of the PIP window.
T ransparency—Sets the transparency of the PIP window. The PIP
window can be almost invisible to completely opaque. When the PIP
window is transparent, you are able to see through the PIP video display
to your Windows desktop, which makes it easier to access your computer
programs while watching video.
Swap—Switches the PIP image to the main image, and the main image
to the PIP image.
PIP Picture—Opens a menu where you can set the brightness, contrast,
saturation, and tint/hue.
www.gateway.com
OSD Menu Description
Adjusting monitor settings
Video Adjust menu
These settings apply only to SD (standard definition) video at 480i and
below.
Sharpness—Adjusts sharpness for video images.
Noise Reduction—Uses noise reduction filters that adapt to the amount
of noise and motion from the video source.
Video Scaling—Sets video aspect ratios and scaling between Wide,
Zoom, 1:1, and Panoramic modes.
Wide mode
broadcast or full-frame image to fill the
entire screen. Widescreen (1.76:1) images
fill the entire screen without distortion,
while widescreen (1.85:1 and 2.35:1)
images appear without distortion but with black bars at the top and
bottom.
Zoom mode
widescreen image in order to fill the entire
screen with a distortion-free and black
bar-free image.
1:1 mode
aspect ratio, so a standard broadcast or
full-frame movie appears with black bars on the
left and right of the image.
stretches a standard
crops off a portion of a
preserves the movie’s original
Panoramic mode
distortion to stretch a standard broadcast
or full-frame image to fill the entire screen.
Unlike Wide mode, Panoramic mode
stretches only the left and right sides of the
image, and leaves the center of the image distortion free.
Film Mode Detection with Bad Edit Detection and Correction—Film
Mode Detection detects frame rates of the source image and adapts the
frame rate of the display for ultimate image quality. Bad Edit Detection
and Correction corrects for incorrectly synchronized video.
Auto Video Enhance —Enables DCDi, Cross Color Reduction, and MADI
for optimized video performance.
DCDi by Faroudja
jagged edge artifacts on diagonal lines.
Cross Color Reduction
unintentional flashing colors or rainbow patterns, that result from
composite video signals.
MADI
—Motion-Adaptive De-Interlacing ensures a more static
(flicker-free) display image for image sections not containing moving
elements, and ensures smoother edges for moving elements.
www.gateway.com
uses selective
—Directional Correlation De-interlacing reduces
—Reduces cross-color artifacts, such as
17
Using Your Gateway Flat Panel Monitor
OSD Menu Description
Geometry menu
Advanc ed menu
H-Position—Moves the display image left and right.
V-Position—Moves the display image up and down. You can also press
the Auto button to configure the vertical and horizontal position
automatically.
Clock—Minimizes any vertical bars or stripes visible on the screen
background. The horizontal screen size will also change.
Phase—Minimizes any horizontal distortion and clears or sharpens the
displayed characters.
Color—Customizes the color levels.
Language—Changes the language of the OSD.
LED Mode—Changes the brightness of the Standby and Power LED to
Day Mode or Nite Mode. When watching movies in a darkened room, you
may want to change the LED mode to Nite Mode to avoid an over-bright,
distracting power LED indicator.
Resolution reminder—If the computer display input (VGA and DVI) is
not set to 1680 × 1050, displays a reminder that you should change your
computer’s settings to use the optimum 1680 × 1050 resolution. Use this
option to turn the Resolution Reminder on or off. If you prefer using your
monitor at a resolution less than 1680 × 1050, turning this feature off stops
the reminder from appearing. For information on changing your
computer’s display resolution, see “Windows controls” on page 19.
Information—Displays current screen resolution and input source for the
main display.
Reset All—Resets all values to the factory settings.
18
www.gateway.com
Adjusting monitor settings
Using Picture-in-Picture (PIP)
Picture-in-Picture (PIP) is a convenient way to view video from multiple video sources at
the same time. Refer to the following chart to determine which combinations of video
sources can be used as a PIP display.
PIP display
Main
display
VGA - OK OK* OK OK
DVI OK - OK OK OK
VGA DVI Component
(Y Pb Pr)
S-Video Composite
Component
(Y Pb Pr)
S-Video OK OK OK - No
CompositeOKOKOKNo -
* Only 480i component (Y Pb Pr) video can be used with VGA as a PIP. With this combination, the Swap feature
is not available. T o switch to full-screen component video when 480i content is used as a PIP, press the
button on the side of the monitor.
If 480p source is input to the Y Pb Pr jacks and Y Pb Pr is a PIP display within a VGA main display, then the PIP
image will be distorted. Change the output of your external Y Pb Pr device to 480i if PIP is required with VGA to
eliminate the PIP distortion. For more information, see your Y Pb Pr device’s user guide.
No OK - OK OK
Windows controls
Color depth, screen resolution, and screen fonts are three of the most basic monitor settings
you may need to change.
Adjusting the colo r depth
Color depth is the number of colors your video card uses. M ost images look best displayed
with the maximum number of colors available.
Windows lets you choose from several color depth settings for the monitor . W e recommend
that you use the 32-bit True Color setting or the highest setting available at all times.
Input
If the color in your images seems “false” or “jumpy,” especially after you have played a
game or run a video-intensive pro gram, check the color depth setting and return it to 32-bit
Tru e C o l o r, i f n e c e s sa r y.
www.gateway.com
19
Using Your Gateway Flat Panel Monitor
To change the color depth:
1 Right-click a blank area of your desktop, then click Properties. The Display Properties
dialog box opens.
2 Click the Settings tab.
3 Click the arrow button to open the Color quality list, then click the color depth you
want.
4 Click OK, then click Yes to save your changes.
Help and Support
Adjusting the screen resolution
You can change the screen resolution to a size you prefer. For example, you can increase
the resolution to fit more icons on your desktop, or you can decrease the resolution to
make reading and identifying objects on the screen e asier. The higher the resolution, the
smaller individual componen ts of the screen (such as icons and men u bars) appear.
20
For more information about adjusting monitor settings, click Start,
then click Help and Support. Type the keyword changing display
settings in the Search box, then click the arrow.
www.gateway.com
Adjusting monitor settings
To change the screen resolution:
1 Right-click a blank area of your desktop, then click Properties. The Display Properties
dialog box opens.
2 Click the Settings tab.
3 Drag the Screen resolution slider to the size you prefer, click OK, then click Yes to save
your changes.
Help and Support
For more information about adjusting monitor settings, click Start,
then click Help and Support. Type the keyword changing screen
resolution in the Search box, then click the arrow.
Clarifying screen fonts
You can change the display fonts to ClearType for smoother screen fonts.
To change the display fonts to ClearType:
1 Right-click a blank area of your desktop, then click Properties. The Display Properties
dialog box opens.
www.gateway.com
21
Using Your Gateway Flat Panel Monitor
2 Click the Appearance tab.
3 Click the Effects button. The Effects dialog box opens.
4 Click to select the Use the following method to smooth the edges of screen type check
box, click the arrow to open the list, then click
ClearType.
5 Click OK.
22
www.gateway.com
Adjusting monitor settings
EzT une s oftware
When installed onto your computer, EzTune™ software lets you control many of the
monitor settings from your computer. With EzTune, you can:
■ Change the orientation of the image (landscape to portrait) by rotating the screen
■ Change brightness, contrast, and color balance
■ Change screen geometry
■ Set the display position and resolution
For more information, see the program’s CD or the installed program’s online help.
Using landscape and portrait modes
Portrait modeLandscape mode
EzTu ne automatically swi tches the display to the appropriate mode ( landscape or portrait)
when you rotate the screen. This feature works only with VGA or DVI input (other inputs,
as well as the OSD, do not rotate into portrait mode).
www.gateway.com
23
Using Your Gateway Flat Panel Monitor
Important
Video modes
Mode Resolution Horizontal freque ncy
1 720 × 400 31.47 70
2 640 × 480 31.47 60
3 640 × 480 35.00 67
4 640 × 480 37.86 72
5 640 × 480 37.50 75
6 800 × 600 35.15 56
7 800 × 600 37.88 60
8 800 × 600 48.07 72
9 800 × 600 46.88 75
10 832 × 624 49.70 75
11 1024 × 768 48.36 60
12 1024 × 768 56.47 70
13 1024 × 768 60.12 75
14 1152 × 864 54.94 60
15 1152 × 864 66.14 70
16 1152 × 864 67.50 75
17 1152 × 870 68.70 75
18 1280 × 1024 63.98 60
19 1280 × 1024 79.98 75
20 1440 × 900 55.47 60
21 1440 × 900 84.00 75
22 1680 × 1050 65.30 60
While using portrait mode:
■
Full-screen video may display incorrectly or be slow.
■
Video games or other full-screen applications may not be fully
compatible.
■
Some programs are not able to recognize and adapt to your
monitor’s portrait mode. If you experience problems with a program
while using portrait mode, switch to landscape mode and restart
the program.
Vertical
(kHz)
frequency (Hz)
24
www.gateway.com
Power management
Po wer management
ENERGY ST AR
As an ENERGY STAR® Partner, Gateway has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
This monitor complies with the EPA's International ENERGY STAR Program, which is a
program designed to encourage manufacturers of computer equipment to build circuitry
into their products to reduce energy consumption during time of non-use.
Energy declaration
When connected to a computer that supports the VESA Display Power Management
Signaling (DPMS) Protocol, the monitor can c onserve signi ficant en ergy by reduc ing power
consumption during periods of non-us e. When your computer goes into the energy saving
mode, the monitor will then enter the Active Off mode (sleep). In the Active Off mode
the Power LED will still show orange.
Use these conventions and the power can be reduced to the following levels:
VESA State LED Indicator Power
Consumption
On Blue 75 W
Active Off Orange ≤ 2W
To “wake” the monitor when it is in Active Off mode, you can:
■ Move the mouse.
■ Press any keyboard key.
■ Press the Input button on the side of the monitor to select a different video source.
To change the period of time the monitor waits before entering these low power states,
access the power management options in the Windows Control Panel.
www.gateway.com
25
Using Your Gateway Flat Panel Monitor
Maintenance
To keep the monitor in optimal working order:
■ Do not block the ventilation holes.
■ Do not ex pose the monitor to rain or use near w ater.
■ Keep the monitor away from rad iators or heat vents.
■ Keep the monitor out of direct sunlight.
T o clean the monitor , use a soft cloth sligh tly moistened with water only . W ipe the cabinet,
screen, and controls.
Caution
Do not use any type of abrasive pad or glass cleaner. You will
permanently scratch the screen.
Troubleshooting
If you have problems with the monitor, the information in this troubleshooting section
may help you solve them.
Important
No power
Make sure that the power cord is connected correctly to both the back of the monitor
and the wall outlet. For more information about connecting the power cord, see
“Connecting the monitor” on page 2.
Make sure that the monitor has warmed up for approximately
30 minutes before making any judgments about the picture quality.
26
www.gateway.com
No picture
■ Press the Input button to make sure that you have selected the correct video source.
■ Make sure that the power cord is connected correctly to both the back of the
monitor and the wall outlet. For more information about connecting the power
cord, see “Connecting the monitor” on page 2.
■ Make sure that the video cable is connected securely to the back of the monitor
and computer. For more information about connecting the video cable, see
“Connecting the monitor” on page 2.
■ Make sure that the monitor is turned on.
■ If the power LED is orange:
■ Make sure that your computer is turned on.
■ Move the mouse or press any key on the keyboard to bring the monitor out of
sleep mode.
■ Restart your computer with the monitor turned on.
■ Make sure that the video cable is not damage d.
■ Check the end of the video cable for any pins that might be bent or pushed in.
Troubleshooting
■ Tu rn off the monitor and unplug the video cable from the back of your computer.
Turn the monitor back on and wait for ten seconds. If the monitor is functioning
correctly, a “No Signal” message appears. For more information about connecting
the video cable, see “Connecting the monitor” on page 2.
Display colors are wrong
■ Press the Auto button to automatically adjust the display image to the ideal settings.
■ Restart your computer with the monitor turned on.
■ Make sure that the video cable is connected securely to the back of the monitor
and your computer. For more information about connecting the power cord, see
“Connecting the monitor” on page 2.
■ Make sure that the video cable is not damage d.
■ Check the end of the video cable for any pins that might be bent or pushed in.
www.gateway.com
27
Using Your Gateway Flat Panel Monitor
Picture has shadows or “ ghosts”
■ Press the Auto button to automatically adjust the display image to the ideal settings.
■ Remove any extension cables or switchboxes.
■ Make sure that the video cable is connected securely to the back of the monitor
and your computer. For more information about connecting the power cord, see
“Connecting the monitor” on page 2.
■ Make sure that the video cable is not damage d.
■ Check the ends of the video cable for any pins that might be bent or pushed in.
Color is not uniform
■ Press the Auto button to automatically adjust the display image to the ideal settings.
■ Make sure that the monitor warms up for at least 30 minutes before making a final
judgment about color uniformity or brightness.
Image is not sized or centered c orrectly
■ Press the Auto button to automatically adjust the display image to the ideal settings.
■ Use the position controls to adjust the image. For instructions on how to adjust
the display image position, see “Adjusting monitor settings” on page 13.
The monitor has pix els that are alway s dark or too bright
This condition is normal and inherent in the TFT technology used in active-matrix LCD
screens. Gateway’s inspection standards keep these to a minimum. If you feel these pixels
are unacceptably numerous or dense on your display, contact Gateway Customer Care to
identify whether a repair or replacement is justified based on the number of pixels affected.
28
www.gateway.com
Troubleshooting
Gateway c ontact information
To help you locate Gateway contact information, you can find the Gateway Web site,
Online Support, and technical support contact information on the label located on the
back of your monitor.
www.gateway.com
29
Using Your Gateway Flat Panel Monitor
Specifications
Specifications are subject to change without notice or oblig ation. Many products for Gateway and its subsid iaries
are custom engineered by our suppliers to Gateway specifications and may vary from similarly marketed
products.
Panel size
Panel type
Pixel resolution
Pixel pitch
Aspect ratio
Brightness
Contrast ratio
Viewing angles
Response time
Frequency
Lamp type/life
Colors
OSD languages
21 inches (diagonal)
■
21-inch viewable
■
TFT active matrix S-PVA
■
Anti-glare coating
1680 × 1050 (native) (75 Hz)
0.0106 × 0.0106 inches (0.270 mm × 0.270 mm)
16:10
300 cd/m
2
900:1
178° horizontal, 178° vertical
16 ms or 8 ms (gray to gray)
Horizontal: 31-81 KHz
Vertical: 56-76 Hz
50,000 hours
16.7 million
English, French, Spanish, Italian, Japanese
Connections and inputs
Included cables
30
■
Analog (VGA): 15-pin mini d-sub VGA
■
Digital (DVI-D): 24-pin DVD-D (supports 480i, 480p,
720p, and 1080i). Includes HDCP (High-bandwidth
Digital Content Protection)
■
Composite video
■
S-Video
■
Component Y Pb Pr (supports 480i, 480p, 720p, and
1080i)
■
AC power input
■
USB 2.0 B-type (input)
■
USB 2.0 A-type (output ×4)
■
Audio power (only for the Gateway speaker bar
accessory)
15-pin mini d-sub analog VGA
USB A-B
Power
www.gateway.com
Specifications
Power consumption
Power input
Power management
Certifications
Wall mount bracket
Weight
Dimensions
T emperature
Humidity
Normal operation: >75 W
Off (power-save): 2 W
100-240 VAC, 50/60 Hz (built-in power supply)
Energy Star®
UL, cUL, FCC Class B, CE.
VCCI and TCO’99 where applicable.
VESA 4 × 3.937 inches (4 × 100 mm)
Net weight (with stand): 18.74 lbs. (8.5 kg)
Gross weight (with packaging): 22.05 lbs. (10 kg)
With base:
19.47 × 15.35 × 6.15 inches (49.4 × 39.0 × 15.6 cm)
Without base:
19.47 × 13.74 × 2.77 inches (49.4 × 34.9 × 7.0 cm)
VESA wall mount bracket:
3.94 × 3.94 inches (100 mm × 100 mm)
Operating: 32~122°F (0~50°C)
Storage: -13~140°F (-25~60°C)
Operating: 20~90% RH
Storage: 5~90% RH
Altitude
Security
10,000 feet (3,048 m)
Kensington lock slot
www.gateway.com
31
Using Your Gateway Flat Panel Monitor
32
www.gateway.com
Appendix
Safety, Regulatory, and Legal Information
• Safety information
• Regulatory statements
• Notices
33
Safety, Regulatory, and Legal Information
Important safety information
Y our Gateway system is designed and tested to meet the latest standards for safety of information technology
equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the
product and in the documentation are followed.
Warning
and damage to your Gateway system.
Setting up your system
■
Read and follow all instructions mar ked on the p roduct and in t he documentation before you operate your
system. Retain all safety and operating instructions for future use.
■
Do not use this product near water or a heat source such as a radiator .
■
Set up the system on a stable work surface.
■
The product should only be operated from the type of power source indicated on the rating label.
■
If your product has a voltage selector switch, make sure that the switch is in the proper position for your area.
The voltage selector switch is set at the factory to the correct voltage.
■
Openings in the monitor case are provided for ventilation. Do not block or cover these openings. Make sure
you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your
work area. Never insert objects of any kind into the monitor ventilation openin gs.
■
Some products are equipped with a three-wire power cord to make sure that the product is properly gr ounded
when in use. The plug on this c ord will only fit into a gr ounding-type outlet. This is a safety feature. If you are
unable to insert the plug into an o utlet, contact a n electrici an to install the appropr iate outlet.
■
If you use an extension cord with this system, make su re that the total ampere rating on the prod ucts plugged
into the extension cord does not exceed the extension cord ampere r ating.
■
If your system is fitted with a TV Tuner, cable, or satellite receiver card, make sure that the antenna or cable
system is electrically grounded to provide some protection against voltage surges and buildup of static charges.
Always follow these instructions to help guard against personal injury
34
www.gateway.com
Care during use
■
Do not walk on the power cord or allow anything to rest on it.
■
Do not spill anything on the system. The best way to avoid spill s is to avoid eating and drinking near yo ur
system.
■
Do not expose the monitor to rain or use near water . If the monitor does get exposed to moist ure, unplug it
and allow it to dry for 24 hours. Call Gateway Customer Care for advice on whether the monitor is safe to turn
back on.
■
When the monitor is turned off, a small amount of electr ical current still flows thr ough the monitor . To avoid
electrical shock, always unplug all power cables and modem cables from the wall outlets before cleaning the
system.
■
Unplug the system from the wall outlet and refer servicing to qualified personn el if:
■
The power cord or p lug is d amaged.
■
Liquid has been spilled into the system.
■
The system does not operate properly when the operating instructions are followed.
■
The system was dropped or the cabinet is damaged.
■
The system performance changes.
Warning
serviceable parts inside. Refer servicing to qualified service
personnel.
Replacement parts and accessories
Use only replacement parts and accessories recommended by Gateway.
To prevent electric shock, never remove the cover. No user
Warning
Do not use Gateway products in areas classified as hazardous
locations. Such areas include patient care areas of medical and
dental facilities, oxygen-laden environments, or industrial facilities.
www.gateway.com
35
Safety, Regulatory, and Legal Information
Enviro nmental information
The product you have purchased contai ns extracted natural resour ces that have been used in the manufacturing
process. This product may contain substances kno wn to be hazardous to the environment or to human health.
To prevent releases of har mful substances into the environment and to maximize the use of our natural
resources, Gateway provides the following information on how you can responsibly recycle or reuse most of the
materials in your “end of life” product.
Waste Electri cal and Electronic Equipment (commonly known as WEEE) should never be disposed of in the
municipal waste stream (residential garbage collec tion). The “Crossed-Out W as te Bin” label affixed to this
product is your reminder to dispose of your “end of life” product properly.
Substances such as glass, plastics, and certain chemical compounds are highly recoverable, recyclable, and
reusable. Y ou can do your part for the environment by following these simple steps:
■
When your electrical or el ectronic equi pment is no longer useful to you, “take it back” to your local or regional
waste collection admini stration fo r recycling .
■
In some cases, your “end of life” product may be “traded in” for credit towards the purchase of new Gateway
equipment. Call Gateway to see if this program is available in your area.
■
If you need further assistance in recyclin g, reusing, or tradi ng in your “end of life” product, you may contac t us
at the Customer Care number listed in your product’s user guide and we will be glad to help you with your
effort.
Finally, we suggest that you practice other environmentally friendly actions by understanding and using the
energy-saving features of this product (where applicable), r ecycling the inner and outer packagi ng (including
shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly.
With your help, we can reduce the amount of natural resources needed to produce electrical and electronic
equipment, minimize the use of landfills for the disposal of “end of life” products, and generally improve our
quality of life by ensuring that potentially hazar dous substances are not released into the environment and are
disposed of properl y .
36
www.gateway.com
Regulatory compliance statements
United States of America
Federal C ommunications C ommission (FC C) Unintenti onal emitter per FCC Part15
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC rules. These limits are designed to pr ovide reasonable pro tection against harmful interferenc e in a
residential installation . This equipment generat es, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio or television
reception. However, there is no guarantee that interference will not occur in a parti cular installation. If this
equipment does cause interference to radio and television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
■
Reorient or relocate the receiving an tenna
■
Increase the separation between the equipment and receiver
■
Connect the equipment to an outlet on a different circuit from that to which the receiver is connected
■
Consult the dealer or an experienced radio/TV technician for help.
Compliance Accessories: The accessories associated with this equipment are: shielded video cable. These
accessories are required to be used in order to ensure compliance with FCC rules.
FCC declarat ion of conformity
Responsible party:
Gateway , Inc.
7565 Irvine Center Drive
Irvine, CA 92618 USA
This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two
conditions: (1) this device may not cause har mful interference, and (2) this device must accept any int erference
received, including interference that may cause undesired operation.
Caution
void the FCC compliance and negate your authority to operate the
product.
California Proposition65 Warning
Changes or modifications not expressly approved by Gateway could
Warning
This product contains chemicals, including lead, known to the State
of California to cause cancer, birth defects or reproductive harm.
Mercury W arning
Hg
Warning
recycled or disposed of according to local, state, or federal laws.
lamp(s) inside this product contain mercury and must be
www.gateway.com
37
Safety, Regulatory, and Legal Information
Canada
Industry Canada (IC) Uninten tional emit ter per IC ES-003
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set
out in the radio interference regulations of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie
Canada.
EP A ENERGY ST AR
As an ENERGY STAR® Partner, Gateway has de termined that this product meets the ENERGY
STAR guidelines for energy efficiency when used with a computer equipped with a Display Power
Management System.
ENERGY STAR
38
www.gateway.com
Notices
© 2005 Gateway, Inc.
All rights reserved.
Gateway, Inc.
7565 Irvine Center Drive
Irvine, CA 92618 USA
All Rights Reserved
This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any
means or in any form, without prior consent in writing from Gateway.
The information in this manual has been carefully checked and is believed to be accurate. However, changes are made
periodically. These changes are incorporated in newer publication editions. Gateway may improve and/or change products
described in this publication at any time. Due to continuing system improvements, Gateway is not responsible for inaccurate
information which may appear in this manual. For the latest product updates, consult the Gateway Web site at
www.gateway.com
damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
In the interest of continued product development, Gateway reserves the right to make improvements in this manual and the
products it describes at any time, without notices or obligation.
Trad emark Acknowledg ments
Gateway and eMachines are trademarks or registered trademarks of Gateway, Inc. in the United States and other countries.
All other brands and product names are trademarks or registered trademarks of their respective companies.
. In no event will Gateway be liable for direct, indirect, special, exemplary, incidental, or consequential
www.gateway.com
39
MAN FPD2085/2185 USR GDE R0 8/05
Loading...
