Using Your Gateway Flat Panel Monitor
• Connecting the monitor
•Adjusting the stand
• Starting the monitor
• Adjusting monitor settings
•Windows controls
• Power management
• Maintenance
• Troubleshooting
•FAQs
• Specifications
1
Using Your Gateway Flat Panel Monitor www.gateway.com
Connecting the monitor
Connecting video inputs
To connect the monitor:
1 Position your computer and the monitor so you can reach the back of each.
2 Connect the power cord to the power connector under the back of the
display.
The audio power in jack is for use only
with the Gateway speaker bar.
Connecting any other device or power
adapter can permanently damage the
Caution
monitor.
Audio power in jack
2
www.gateway.com
Connecting the monitor
3 Connect the blue VGA video cable to the blue video connector under the
back of the display.
- OR -
If your computer has a digital video connector (DVI), connect a DVI video
cable (not included) to the white connector under the back of the display.
You can buy a DVI video cable from www.gateway.com
.
4 Make sure that your computer is turned off, then connect the other end
of the video cable to the matching video port on the back of your
computer.
5 Connect video inputs (such as from a DVD player, video camera, or
receiver) to the appropriate video jacks on the back of the monitor.
Component red Pr jack
S-Video jack
Composite video in jack Component green Y jack
Component blue Pb jack
3
Using Your Gateway Flat Panel Monitor www.gateway.com
■ For basic video quality, connect your video device’s composite video
jack to the corresponding jack on the back of your monitor. (cable
in
not included)
■ For better video quality, connect your video device’s S-Video jack to
the corresponding jack on the back of your monitor. (cable not
included)
■ For best video quality, connect your video device’s component video
(green Y, blue Pb, and red Pr) jacks to the corresponding jacks on the
back of your monitor. (cables not included)
6 Plug the power cord into a correctly grounded electrical outlet.
Because lifting your monitor off of the
Warning
desktop surface takes weight off from the
adjustable stand, the stand will extend
suddenly, possibly causing damage to
equipment or injury to yourself.
To avoid injury, always lift the monitor so
that the stand adjusts to its full height
before moving the monitor or turning it
around.
4
www.gateway.com
Connecting USB cables
The built-in USB 2.0 hub provides only
low-speed connections if its USB in por t
is connected to a USB 1.1 port on your
computer or on a USB hub.
Important
Connecting the monitor
Your monitor has a built-in, four-port USB 2.0 hub that lets you conveniently
connect USB devices. Because your computer case may be under your desk or
inside a cabinet, these monitor-mounted USB ports can be much easier to
access.
To use the monitor’s USB ports, you must first connect the monitor to a USB port
on your computer. Because the USB hub uses power from the monitor, it does
not require its own power connection.
To connect USB cables:
1 Connect the included USB cable to the USB in (“B” type) port on the back
of your monitor, then connect the other end of the cable to a USB 2.0 port
on your computer.
Use the USB 2.0 ports on the back of the
monitor for connecting USB devices you
want to keep connected most of the time,
such as a keyboard, a mouse, or a printer.
Use the USB 2.0 ports on the side of the
monitor for connecting USB devices that
are frequently disconnected, such as
camera interface cables, flash drives, and
Tips & Tricks
USB hard drives.
USB in portUSB ports
2 Connect any USB device to one of the available USB 2.0 ports on the side
or back of the monitor.
USB ports
5
Using Your Gateway Flat Panel Monitor www.gateway.com
Connecting a security cable
You can secure your monitor to your computer desk (or to another heavy object)
with a cable lock. To connect a cable lock, follow the cable lock’s instructions
to connect it to the Kensington lock slot on the back of your monitor (cable lock
not included).
Kensington lock slot
6
www.gateway.com
Adjusting the stand
Adjusting the stand
Height:
4.12 inches
(105 mm)
Rotation: 90°
Tilt: 35°
Adjusting monitor height tension
The stand is factory adjusted to maintain the adjusted height for your monitor.
However, you can further adjust the tension.
1 Move your monitor up and down through its entire vertical range. If it does
Pan: 35°
To test and adjust your monitor’s height tension:
not stay in place when you let go, you need to change the adjustable
stand’s height tension. You also need to adjust the stand if the amounts
of force required to raise and lower the monitor are not equal.
7
Using Your Gateway Flat Panel Monitor www.gateway.com
2 Adjust the height tension screw so the monitor stays in place when you
let go. If the monitor lowers by itself when you let go, turn the screw
clockwise several complete turns. If the monitor rises when you let go, turn
the screw counter-clockwise several complete turns. You may need to turn
the screw several times before the tension is correct for your monitor.
Increase lifting tension
(clockw ise)
Ergonomic guidelines
Decrease lifting tension
(counter- clockwise)
3 Adjust the height tension screw so raising and lowering forces are equal.
After the forces are equalized, turn the tension screw clockwise 2 to 4 turns
to slightly decrease the lifting tension.
4 For optimum viewing, adjust the height so the top of monitor is about
1 inch below eye level.
The recommended mounting heights, the range of adjustability required to
provide comfortable use by a range of users, and the forces required for making
adjustments to the display are based upon the following guildelines. These
guidelines are based on available scientific literature and published standards.
Screen height
The recommended screen height for displays (except in special circumstances,
such as for bifocal use) is that the top of the display should be set at or slightly
below (about 1 inch or 25 mm) the user’s eye level while the user is sitting in a
comfortable working posture. This guideline places the center of the screen at
an ideal 15° to 20° viewing angle for most desktop displays. If the display has
multiple users, the screen height should be easily adjustable to accommodate
each user’s height and preference.
8
www.gateway.com
Screen tilt
The screen should be tilted so the user’s line of sight is perpendicular to the
screen. This angle creates the most consistent viewing distance when scanning
from the top of the screen to the bottom. You may need to adjust lighting to
avoid screen glare when the screen is tilted upward.
Screen distance from user
The display screen should first be placed at arms length from the user, then
adjusted back and forth to suit individual preference.
Stand adjustment forces
The force required to make any adjustment to the stand (height, tilt, pan, or
portrait/landscape orientation) should not exceed 5.1 lbs. (2.32 kg).
Starting the monitor
Starting the monitor
To start the monitor:
1 Press the power button on the front of monitor. The power LED on the
power button turns on.
2 Turn on your computer.
After your computer is running, the power LED on the monitor’s power
button should be blue. Allow about 10 seconds for the display image to
appear. If the power LED is not blue or you do not see a display image,
check the connections. For more troubleshooting information, see
“Troubleshooting” on page 21.
3 Adjust the tilt of the monitor for the best viewing angle.
4 After you see the Windows desktop, press the Auto button on the right
side of the monitor to automatically adjust your display image to the ideal
settings.
5 Use the on-screen display (OSD) to adjust other monitor settings. For more
information, see “Adjusting monitor settings” on page 10.
9
Using Your Gateway Flat Panel Monitor www.gateway.com
Adjusting monitor settings
Use the monitor controls (located on the monitor itself) and computer controls
(accessible through Windows) to adjust the display image. For more information
about computer controls, see “Windows controls” on page 15.
Monitor bu ttons
This monitor features an on-screen display (OSD) that lets you adjust contrast,
brightness, and other settings for the monitor. The monitor saves changes you
make to the settings, even if you turn off the monitor.
Input button
Auto button
PIP button
Swap/PIP menu button
Menu button
USB ports
10
www.gateway.com
Adjusting monitor settings
■ Input
OSD active: Press to move to previous menu.
OSD inactive: Press to select the video source.
■ Auto
OSD active: Press to select a menu or setting.
OSD inactive: Press to automatically optimize the monitor’s image
position, clock, and phase.
■ PIP
OSD active: Press to move up through menu selections and adjust OSD
options.
OSD inactive: Press to turn on PIP (Picture-in-Picture).
■ Swap/PIP menu
OSD active: Press to move down through menu selections and adjust OSD
options.
OSD inactive, PIP on: Press to swap the PIP (Picture-in-Picture) image with
the primary image.
OSD inactive, PIP off: Press to open the PIP (Picture-in-Picture) control
menu.
■ Menu
Press to open the OSD. Press again to exit the OSD.
On-screen display (OSD) options
Adjusting OSD settings
When adjusting the monitor settings,
Important
always press the Auto button before
entering the OSD. This automatically
adjusts the display image to the ideal
settings for the current screen resolution.
For most applications, the best screen
resolution is 1680 × 1050.
1 Press the Auto button. The display image is automatically adjusted to the
2 Press the Menu button. The OSD menu opens.
To adjust the OSD settings:
ideal settings for your current screen resolution.
Main Menu
Auto
PIP
Video Adjust
Geometry
Select
Previous
Advanced
Reset
Next
Menu Off
11
Using Your Gateway Flat Panel Monitor www.gateway.com
While the OSD is active, on-screen labels
appear next to the buttons to help you
Tips & Tricks
identify them.
OSD Menu Description
Main menu
Auto—Automatically adjusts your monitor to its optimum settings. (VGA input only)
Picture—Opens the Picture menu, where you can adjust brightness, contrast, and gamma.
PIP—Opens the PIP Settings menu, where you can adjust the source, position, size, and transparency of the
Picture-in-Picture image.
Video adjust—Opens the Video Adjust menu, where you can adjust the RGB (red, green, and blue) values of the
video image from a source such as composite video, S-Video, or component video.
Geometry—Opens the Geometry menu, wh ere you can adjust image size and minimize distortions. (VGA input only)
3 Press the Previous and Next (PIP buttons) to highlight a setting, then
press the Auto button to open the selected menu or setting.
4 Press the Previous and Next buttons (PIP buttons) to adjust the setting
to the desired level or change the option.
5 Press the Back button to return to a previous menu.
6 When you have finished making all adjustments, press the Menu button
at the Main Menu to exit.
Picture menu
PIP Settings menu
Advanced—Opens the Advanced menu, where you can adjust color balance, change the OSD language, and display
information about current monitor settings.
Reset—Resets the monitor to its factory settings for the currently displayed input.
Brightness—Adjusts the amount of light in the darkest portion of the picture. Use the lowest brightness setting
you are comfortable with to maximize the life of the monitor backlights. You may need to readjust brightness after the monitor
warms up.
Contrast—Adjusts the level of white between the lightest and darkest portions of an image.
Gamma—Customizes the gamma level. High gamma levels increase white levels and low gamma levels increase
contrast.
PIP Display—Toggles the display of the PIP window.
Source—Sets the source of the video used in the PIP window.
Position—Sets the position of the PIP window on the main screen.
Size—Sets the size of the PIP window.
Transparency—Sets the transparency of the PIP window. The PIP window can be from almost transparent to
completely opaque. When the PIP window is transparent, you are able to see through the PIP video display to your Windows
desktop, which makes it easier to access your computer programs while watching video.
12
Swap—Switches the PIP image to the main image, and the main image to the PIP image.
PIP Picture—Opens a menu where you can set the PIP brightness, contrast, saturation, and tint/hue.
www.gateway.com

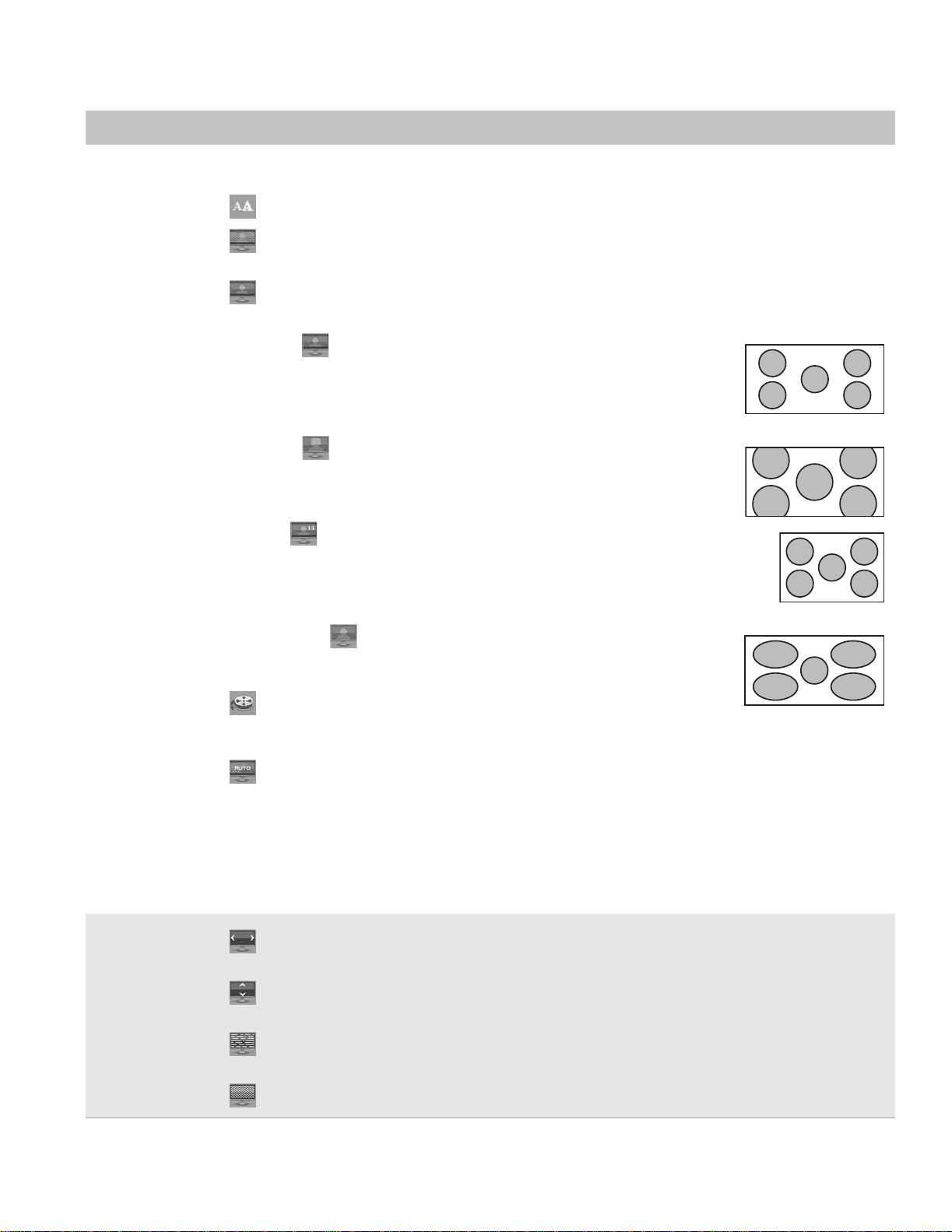

OSD Menu Description
Adjusting monitor settings
Video A djus t menu
Unless otherwise indicated, these settings apply only to SD (standard definition) video at 480i and below. Where “PC input”
is indicated, the resolutions that apply are from 800 × 600 to 1680 × 1050.
Sharpness—Adjusts sharpness for video images.
Noise Reduction—Uses noise reduction filters that adapt to the amount of noise and motion from the video
source.
Video Scaling—Sets video aspect ratios and scaling between Wide, Zoom, 1:1, and Panoramic modes. PC input:
sets resolution aspect ratios and scaling between Wide, Zoom and 1:1.
Wide mode stretches a standard broadcast or full-frame image to fill the entire screen.
Widescreen (1.76:1) images fill the entire screen without distortion, while widescreen (1.85:1
and 2.35:1) images appear without distortion but with black bars at the top and bottom.
PC input: Stretches the image to fit the entire screen.
Zoom mode crops off a portion of a widescreen image in order to fill the entire screen with
a distortion-free and black bar-free image. PC input: Zooms the image to fill the screen from
top to bottom with black bars on the left and right sides of the image.
1:1 mode preserves the movie’s original aspect ratio, so a standard broadcast or full-frame movie
appears with black bars on the left and right of the image. PC input: Preserves the original aspect
ratio of the resolution by using black bars on the left and right sides and variable sizes of black bars
on the top and bottom of the image (depends on resolution).
Geometry menu
Panoramic mode uses selective distortion to stretch a standard broadcast or full-frame
image to fill the entire screen. Unlike Wide mode, Panoramic mode stretches only the left and
right sides of the image, and leaves the center of the image distortion free.
Film Mode Detection with Bad Edit Detection and
Correction—Film Mode Detection detects frame rates of the source image and adapts the frame rate of the display for
ultimate image quality. Bad Edit Detection and Correction corrects incorrectly synchronized video.
Auto Video Enhance—Enables DCDi, Cross Color Reduction, and MADI for optimized video performance.
DCDi by Faroudja—Directional Correlation De-interlacing reduces jagged edge artifacts on diagonal lines.
Cross Color Reduction—Reduces cross-color artifacts, such as unintentional flashing colors or rainbow patterns, that result
from composite video signals.
MADI—Motion-Adaptive De-Interlacing ensures a more static (flicker-free) display image for image sections not containing
moving elements, and ensures smoother edges for moving elements.
H-Position—Moves the display image left and right. You can also press the Auto button to configure the vertical
and horizontal position automatically.
V-Position—Moves the display image up and down. You can also press the Auto button to configure the vertical
and horizontal position automatically.
Clock—Minimizes any vertical bars or stripes visible on the screen background. The horizontal screen size will also
change.
Phase—Minimizes any horizontal distortion and clears or sharpens the displayed characters.
13
Using Your Gateway Flat Panel Monitor www.gateway.com
OSD Menu Description
Advanced menu Color—Customizes the color levels.
Language—Changes the language of the OSD.
LED Mode—Changes the brightness of the Standby and Power LED to Day Mode or Nite Mode. When watching
movies in a darkened room, you may want to change the LED mode to Nite Mode to avoid an over-bright, distracting power
LED indicator.
DVI Video mode—Changes the DVI video mode by enabling either RGB Color Space (used for digital input)
and YUV Color Space (used for analog TV input such as NTSC, PAL, and SECAM).
Resolution reminder—If the computer display input (VGA and DVI) is not set to 1680 ×1050, displays a
reminder that you should change your computer’s settings to use the optimum 1680 ×1050 resolution. If you prefer using
your monitor at a resolution less than 1680 × 1050, use this option to turn off the Resolution Reminder. For information on
changing your computer’s display resolution, see “Windows controls” on page 15.
Information—Displays current screen resolution and input source for the main display.
Reset All—Resets all values to the factory settings.
Using Picture-in-Picture (PIP)
Picture-in-Picture (PIP) is a convenient way to view video from multiple video
sources at the same time. Refer to the following chart to determine which
combinations of video sources can be used as a PIP display.
Main
display
PIP display
VGA DVI Component
(Y Pb Pr)
VGA - OK OK* OK OK
DVI OK - OK OK OK
Component
No OK - OK OK
(Y Pb Pr)
S-VideoOKOKOK - No
Comp osite OK OK OK No -
* Only 480i component (Y Pb Pr) video can be used with VGA as a PIP. With this combination, the Swap feature is not available. To switch to
full-screen component video when 480i content is used as a PIP, press the Input button on the side of the monitor.
If a 480p source is input to the Y Pb Pr jacks and Y Pb Pr is a PIP display within a VGA main display, then the PIP image will be distorted.
Change the ou tput of your external Y Pb Pr device to 480i if PIP is required with VGA to el iminate the PIP distor tion. For more inf ormation,
see your Y Pb Pr device’s user guide.
S-Video Composite
14
www.gateway.com
Windows controls
For more information about adjusting
monitor settings, click Start, then click
Help and Support. Type the phra se
changing display settings in the
Search box, then click the arrow.
Help & Support
Windows controls
Color depth, screen resolution, and screen fonts are three of the most basic
monitor settings you may need to change.
Adjusting the color depth
Color depth is the number of colors your video card uses. Most images look best
displayed with the maximum number of colors available.
Windows lets you choose from several color depth settings for the monitor. We
recommend that you use the 32-bit True Color setting or the highest setting
available at all times.
If the color in your images seems “false” or “jumpy,” especially after you have
played a game or run a video-intensive program, check the color depth setting
and return it to 32-bit True Color, if necessary.
To change the color depth:
1 Click Start, then click Control Panel. The Control Panel window opens. If
your Control Panel is in Category View, click Appearance and Themes.
2 Click/Double-click the Display icon. The Display Properties dialog box
opens.
3 Click the Settings tab.
4 Click the arrow button to open the Color quality list, then click the color
depth you want.
5 Click OK, then click Ye s to save your changes.
15
Using Your Gateway Flat Panel Monitor www.gateway.com
Adjusting the screen resolution
You can change the screen resolution to a size you prefer. For example, you can
increase the resolution to fit more icons on your desktop, or you can decrease
the resolution to make reading and identifying objects on the monitor easier.
The higher the resolution, the smaller individual components of the screen
(such as icons and menu bars) appear.
To change the screen resolution:
For more information about adjusting
monitor settings, click Start, then click
Help and Support. Type the phra se
changing scree n resoluti on in the
Search box, then click the arrow.
Help & Support
1 Click Start, then click Control Panel. The Control Panel window opens. If
your Control Panel is in Category View, click Appearance and Themes.
2 Click/Double-click the Display icon. The Display Properties dialog box
opens.
3 Click the Settings tab.
16
4 Drag the Screen resolution slider to the size you prefer.
5 Click OK, then click Ye s to save your changes.
Clarifying screen fonts

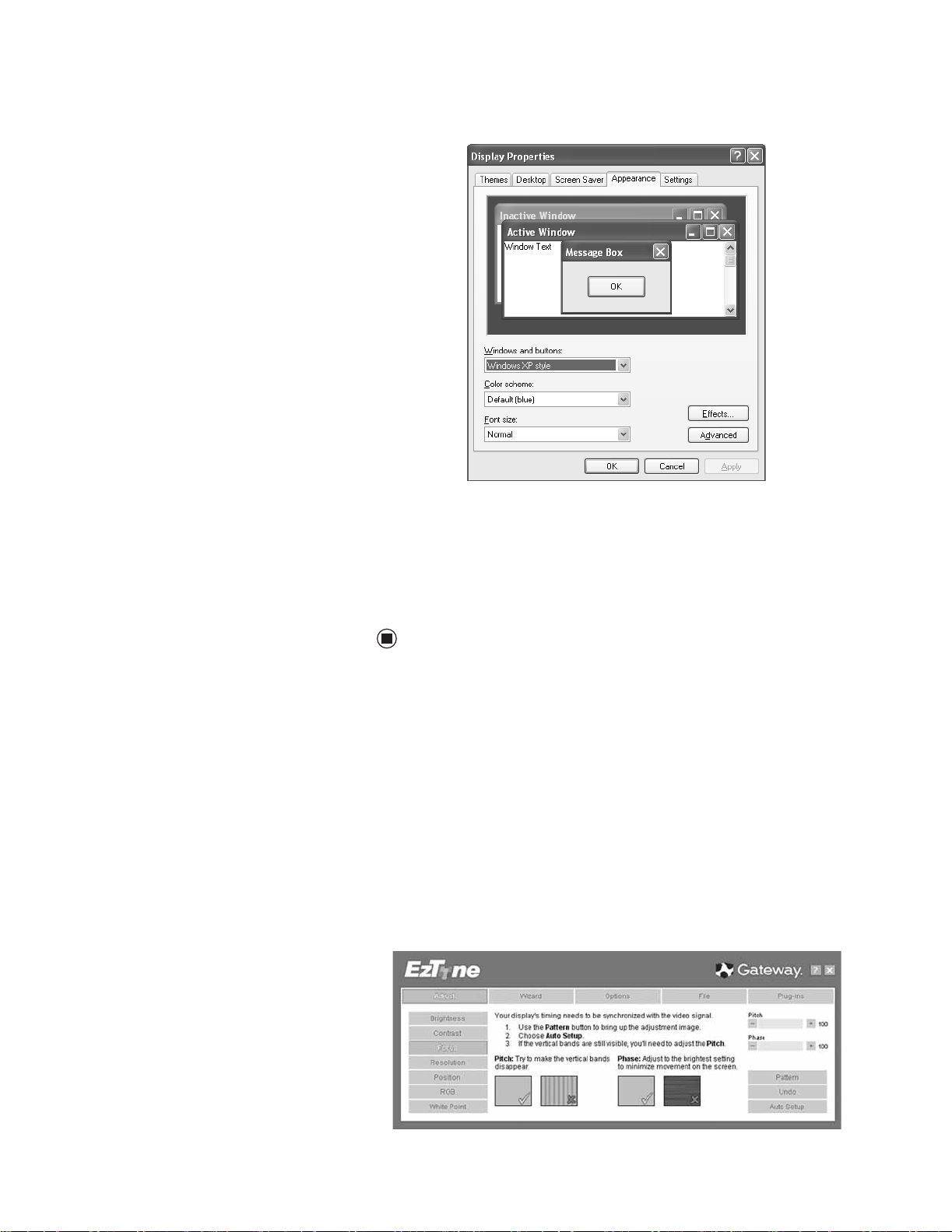

You can change the display fonts to ClearType for smoother screen fonts.
To change the display fonts to ClearType:
1 Click Start, then click Control Panel. The Control Panel window opens. If
your Control Panel is in Category View, click Appearance and Themes.
2 Click/Double-click the Display icon. The Display Properties dialog box
opens.
www.gateway.com
Windows controls
3 Click the Appearance tab.
4 Click the Effects button. The Effects dialog box opens.
EzTune software
5 Click to select the Use the following method to smooth the edges of
screen type check box.
6 Click the arrow to open the list, then click ClearType.
7 Click OK, then click OK again.
When installed onto your computer, EzTune™ software lets you control many
of the monitor settings from your computer. With EzTune, you can:
■ Change the orientation of the image (landscape to portrait) by rotating
the screen
■ Change brightness, contrast, and color balance
■ Change screen geometry
■ Set the display position and resolution
For more information, see the program’s CD or the installed program’s online
help.
17
Using Your Gateway Flat Panel Monitor www.gateway.com

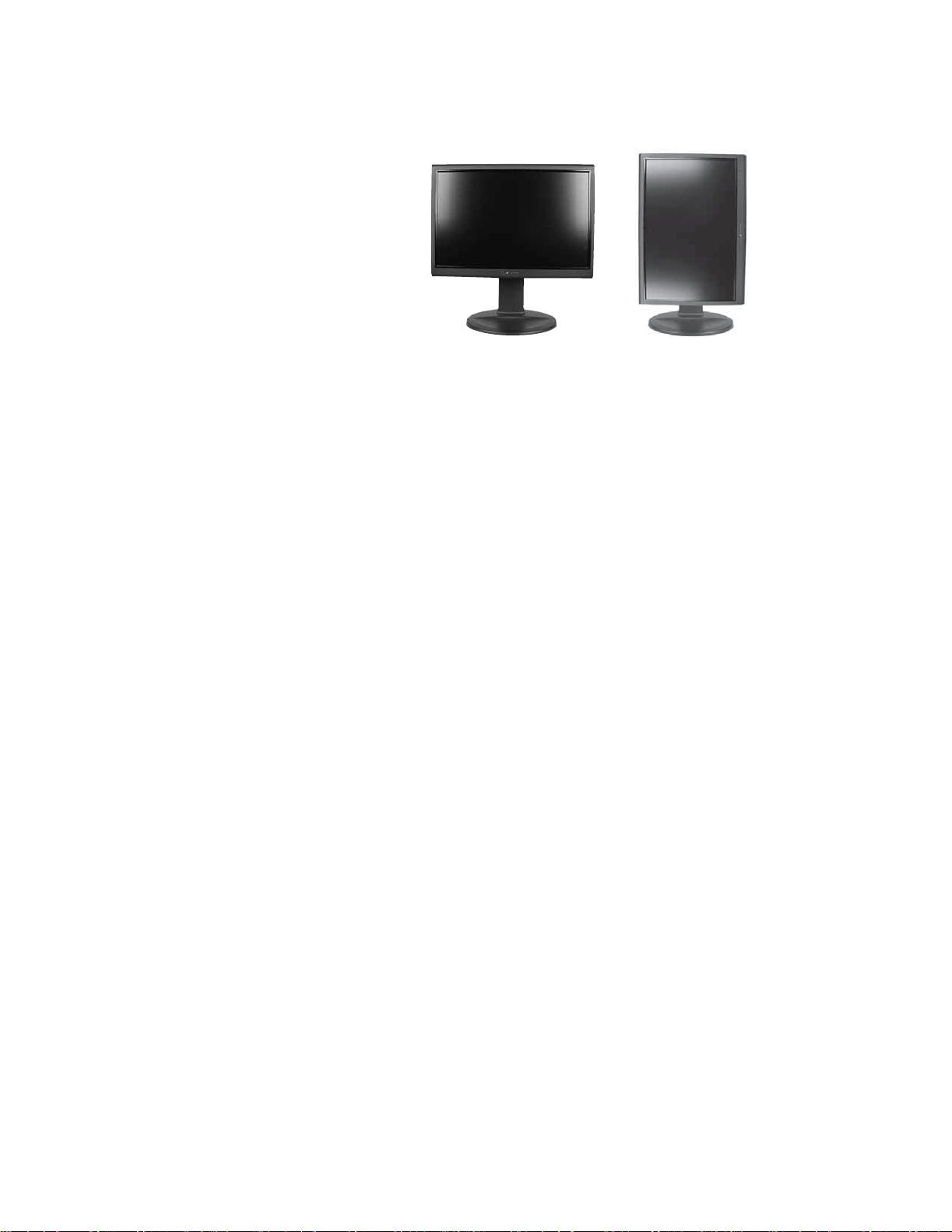

Using landscape and portrait modes
Portrait modeLandscape mode
EzTune automatically switches the display to the appropriate mode (landscape
or portrait) when you rotate the screen. This feature works only with VGA or DVI
input (other inputs, as well as the OSD, do not rotate into portrait mode).
While using portrait mode:
■ Full-screen video may display incorrectly or be slow.
■ Video games or other full-screen applications may not be fully compatible.
■ Some programs are not able to recognize and adapt to your monitor’s
portrait mode. If you experience problems with a program while using
portrait mode, switch to landscape mode and restart the program.
18
www.gateway.com
Video modes
Windows controls
Your monitor supports several video modes. If you do not use the best mode
for the monitor, the display image may look slightly “fuzzy.”
Mode Resolution Horizontal
frequency (kHz)
1 720 × 400 31.47 70
2 640 × 480 31.47 60
3 640 × 480 35.00 67
4 640 × 480 37.86 72
5 640 × 480 37.50 75
6 800 × 600 35.15 56
7 800 × 600 37.88 60
8 800 × 600 48.07 72
9 800 × 600 46.88 75
10 832 × 624 49.70 75
11 1024 × 768 48.36 60
12 1024 × 768 56.47 70
13 1024 × 768 60.12 75
Vertical
frequency (Hz)
14 1152 × 864 54.94 60
15 1152 × 864 66.14 70
16 1152 × 864 67.50 75
17 1152 × 870 68.70 75
18 1280 × 1024 63.98 60
19 1280 × 1024 79.98 75
20 1440 × 900 55.47 60
21 1440 × 900 84.00 75
22 1680 × 1050 65.30 60
19
Using Your Gateway Flat Panel Monitor www.gateway.com
Power management
ENERGY STAR
As an ENERGY STAR® Partner, Gateway has determined that this product meets
the ENERGY STAR guidelines for energy efficiency.
This monitor complies with the EPA’s International ENERGY STAR Program,
which is a program designed to encourage manufacturers of computer
equipment to build circuitry into their products to reduce energy consumption
during time of non-use.
Energy declaration
When connected to a computer that supports the VESA Display Power
Management Signaling (DPMS) Protocol, the monitor can conserve significant
energy by reducing power consumption during periods of non-use. When your
computer goes into the energy saving mode, the monitor will then enter the
Active Off mode (sleep). In the Active Off mode the Power LED will still show
orange.
Maintenance
Do not use any type of abrasive pad or
glass cleaner. You will permanently
scratch the screen.
Caution
Use these conventions and the power can be reduced to the following levels:
VESA State LED Indicator Power
Consumption
On Blue 75 W
Active Off Orange ≤ 2W
To “wake” the monitor when it is in Active Off mode, move the mouse or press
any keyboard key.
Access the power management options in the Control Panel to change the
period of time after which the monitor enters these low power states.
To keep the monitor in optimal working order:
■ Do not block the ventilation holes.
■ Do not expose the monitor to rain or use near water.
■ Keep the monitor away from radiators or heat vents.
■ Keep the monitor out of direct sunlight.
■ To clean the monitor, use a soft cloth slightly moistened with water only.
Wipe the cabinet, screen, and controls.
20
www.gateway.com
Troubleshooting
Troubleshooting
Make sure that the monitor has warmed
up for approximately 30 minutes before
making any judgments about the picture
Important
No power
No picture
If you have problems with the monitor, the information in this troubleshooting
section may help you solve them.
quality.
Make sure that the power cord is connected correctly to both the back of the
monitor and the wall outlet. For more information about connecting the power
cord, see “Connecting the monitor” on page 2.
■ Press the Input button to make sure that you have selected the correct
video source.
■ Make sure that the power cord is connected correctly to both the back of
the monitor and the wall outlet. For more information about connecting
the power cord, see “Connecting the monitor” on page 2.
■ Make sure that the video cable is connected securely to the back of the
monitor and computer. For more information about connecting the video
cable, see “Connecting the monitor” on page 2.
■ Make sure that the monitor is turned on.
■ If the power LED is orange:
■ Make sure that your computer is turned on.
■ Move the mouse or press any key on the keyboard to bring the
monitor out of sleep mode.
■ Restart your computer with the monitor turned on.
■ Make sure that the video cable is not damaged.
■ Check the end of the video cable for any pins that might be bent
or pushed in.
■ Turn off the monitor and unplug the video cable from the back of your
computer. Turn the monitor back on and wait for ten seconds. If the
monitor is functioning correctly, a “No Signal” message appears. For more
information about connecting the video cable, see “Connecting the
monitor” on page 2.
21
Using Your Gateway Flat Panel Monitor www.gateway.com
Display colors are wrong
■ Press the Auto button to automatically adjust the display image to the
ideal settings.
■ Restart your computer with the monitor turned on.
■ Make sure that the video cable is connected securely to the back of the
monitor and your computer. For more information about connecting the
video cable, see “Connecting the monitor” on page 2.
■ Make sure that the video cable is not damaged.
■ Check the end of the video cable for any pins that might be bent or pushed
in.
Picture has shadows or “ghosts”
■ Press the Auto button to automatically adjust the display image to the
ideal settings.
■ Remove any extension cables or switchboxes.
■ Make sure that the video cable is connected securely to the back of the
monitor and your computer. For more information about connecting the
video cable, see “Connecting the monitor” on page 2.
■ Make sure that the video cable is not damaged.
■ Check the end of the video cable for any pins that might be bent or pushed
in.
Color is not uniform
■ Press the Auto button to automatically adjust the display image to the
ideal settings.
■ Make sure that the monitor warms up for at least 30 minutes before
making a final judgment about color uniformity or brightness.
Image is not sized or centered correctly
■ Press the Auto button to automatically adjust the display image to the
ideal settings.
■ Use the position controls to adjust the image. For instructions on how to
adjust the display image position, see “Adjusting monitor settings” on
page 10.
The monitor has pixels that are always dark or too bright
■ This condition is normal and inherent in the TFT technology used in
active-matrix LCD screens. Gateway’s inspection standards keep these to
a minimum. If you feel these pixels are unacceptably numerous or dense
on your display, contact Gateway Customer Care to identify whether a
repair or replacement is justified based on the number of pixels affected.
22
www.gateway.com
FAQs
General
FAQs
This section contains answers to frequently asked questions.
What is DCDi® by Faroudja?
DCDi® by Faroudja is a video mode algorithm that stands for Directional
Correlation De-Interlacing. It was initially designed for fast-action
video-based material. Its general purpose is to reduce jagged edges along
diagonal lines caused by interpolation. Utilizing this algorithm, DCDi does
not simply weave together two fields of video that match. DCDi creates
new information through interpolation which “smooths” the diagonal
edges. DCDi constantly monitors edge transitions and fills in any of the
gaps that need smoothing.
I have the FPD 2185W connected to m y notebook’s VGA port and I see no image on the screen.
You have two options:
■ If your notebook supports dual displays, you can use both your
notebook’s display and this monitor in extended desktop
multi-monitor mode. See Windows Help to learn how to enable
multiple monitors.
■ You can also use this monitor as your primary monitor and not use
the notebook’s screen. Notebook computers typically have an F
key combination that lets you toggle between your notebook’s
display and an externally attached display. On Gateway notebooks,
this key combination is F
row of keys. See your notebook user guide for more information.
When I connect this monitor to my notebook while the notebook is in
Hibernate mode or Standb y mode , the EzTune software does not work.
When the monitor is connected when the notebook is in Hibernate or
Standby mode, EzTune cannot recognize the monitor. To solve this
problem:
1 Close EzTune by right-clicking the EzTune icon in the system tray,
then clicking Exit. Restart the EzTune software by double-clicking
the EzTune icon on your desktop.
2 If Step 1 does not solve the problem, save all open documents and
restart your notebook.
When I am using clone mode, why can’t I control this monitor with EzT une?
Clone mode is used when you are displaying the same image on your
notebook’s screen and on an external monitor. EzTune does not support
clone mode.
N+F4. The F4 key is located along the top
N
23
Using Your Gateway Flat Panel Monitor www.gateway.com
How To
How do I mak e the im age rota te whe n the scr een is r otate d?
Make sure that EzTune is installed on your computer. An EzTune software
CD shipped with the monitor. When using a VGA or DVI input connection
with EzTune installed, the image automatically rotates when the screen is
rotated. Other inputs and the on-screen display (OSD) do not rotate into
portrait mode.
Setup
When I rotate my screen 90 degrees, why does the image not automatically rotate?
For auto rotation to work, EzTune software must be installed. Place the
EzTune CD in your computer’s CD or DVD drive and then follow the
on-screen instructions. After your computer restarts, auto rotation will
work.
Why does the image looks stretched or fuzzy when I connect the monitor to my computer?
You must adjust the operating system’s display settings to match the
monitor’s optimal (native)1680 × 1050 setting. For information on
adjusting settings in Windows XP, see “Adjusting the screen resolution” on
page 16.
The easiest way to adjust your screen resolution is to use the included
EzTune software. After installing EzTune, click the EzTune icon in the
taskbar, click the Adjust tab, click Resolution, then click Preferred. Your
screen adjusts to 1680 × 1050, and EzTune displays a message that you
are at a preferred resolution.
I do not see 1680 × 1050 a va ilable in the W indows display c ontrol pan el
and EzTune does not adjust my resolution to the preferred setting.
■ Make sure that your video card can display at 1680 × 1050 resolution.
■ This may be caused by older video drivers on your computer. See the
Gateway support Web site (support.gateway.com
drivers for your computer. You can also go directly to your video card’s
support Web site for the most up-to-date video drivers. The Web sites for
the major video card manufacturers are:
ATI: http://www.ati.com
Intel: http://www.intel.com
Nvidia: http://www.nvidia.com
When I connect the monitor’s USB hub to my computer , I see an error
message sayin g that m y USB hub may not be running a t full speed.
This can happen if you connected the monitor’s high-speed USB 2.0 hub
to a low-speed USB 1.1 hub or a USB 1.1 port on your computer. To use
the monitor’s high-speed USB 2.0 capabilities, you must connect the
monitor to a USB 2.0 port on your computer.
) for updated video
24
www.gateway.com
Software
FAQs
When I run my games, I do not see support for widescreen displays. What can I do?
Newer games are adding support for widescreen displays as the
widescreen format becomes more popular. Check the game’s Web site for
updates. You can also consult the following Web site for specific settings
and options to configure older games to support widescreen:
http://www.widescreengamingforum.com
Some adjustments may require you to make changes to the Windows
System Registry. We recommend making a complete system backup
before changing the System Registry.
Why do I need EzTune?
EzTune is required if you want to unlock the full potential of your monitor.
EzTune provides auto-rotation, on-screen display software control, and
software color calibration features. EzTune is not required for basic
operation of the display, but auto-rotation and other EzTune features will
not be available.
.
I am using third-party rotation software. Will this conflict with the rotation features in EzTune?
There is a possibility that conflicts may occur. If the rotation software is
not part of your video driver (such as ATI, NVidia, and Intel), you should
first remove the software. If you are using the video driver’s rotation
features, you should first set the rotation to 0 degree, then disable the
video driver rotation feature.
If you see your screen rotation image corrupted after using EzTune, make
sure that the video driver’s rotation feature is not enabled. If it is, you may
have to uninstall and reinstall EzTune to resolve the conflicting rotation
software.
I updated my video driver on my computer, and when I restart my
computer I see an error message: “Pivot Software Error . Your
configuration has changed. Pivot software must be reinstalled. W ould you
like Pivot Software to re-install now?” What is this?
The Pivot software is part of EzTune. When you installed EzTune, it
automatically configured itself with your currently installed drivers. When
you update your video drivers, Pivot must reconfigure itself. This is normal
operation. Choose the option to re-install. After restarting your computer,
EzTune should work without an error message appearing.
I am using multi-monitor and I am using the stretch or clone mode of my
video driver . Will this work with EzT une?
In some cases, EzTune does not work correctly in stretch or clone mode.
You should disable these modes and use multi-monitor mode only.
Why does EzTune not work with my other Gateway or third-party monitors?
EzTune is only compatible with the Gateway 21-inch LCD Flat Panel
FPD2185W monitor.
25
Using Your Gateway Flat Panel Monitor www.gateway.com
Can I use Windo ws Medi a Pla yer or othe r medi a pla yers in portra it mode?
Depending on the processing speed of your computer, most video will
display correctly while in portrait mode. If your computer or video
subsystem cannot process the rotated video, you may see choppy or no
video displayed.
While playing a video file, I rotate my monitor , but then no video is
displayed or I see corrupted video.
Close and reopen your video player software.
Can I run video games in portrait mode?
Most video games are full-screen, 3D-accelerated programs and do not
support portrait mode. Unexpected results, including crashes or system
lockups, can occur if you run games in portrait mode. Change to landscape
mode before running video games.
Do all full-screen programs support portrait mode?
No, some full-screen programs only expect to see a display in landscape
mode. You can try your full-screen program in portrait mode. If you do not
see all of your program or if you experience unexpected program
behavior, run it in landscape mode.
Technical
Does Windows Media Center operate in portrait mode?
No, Windows Media Center expects the screen to be in landscape mode.
If you rotate the screen to portrait mode while Windows Media Center is
running, you may experience a blank screen. You should rotate back to
landscape.
Does EzTune work through a VGA splitter or KVM (keyboard/video/mouse) box?
No. For EzTune to operate, no external device or splitter can be connected
to the monitor. The monitor must be connected directly to the computer.
How can I get a copy of EzT une if I misplace or lose my CD?
The entire EzTune CD can be downloaded for free from the following link:
http://oem.portrait.com/dtune/gwy/enu/upgrade.html
Why do I see “ noise ” or “t rash ” on the screen?
When your display’s digital capabilities exceed a digital broadcast signal,
the signal is increased (up-converted) to match the display capabilities.
Up-converting can cause “noise” or “trash.” The signal on DVI-D is HDCP
encoded. Stop and restart the source to allow renegotiation.
26
What is HDCP and how do I troubleshoot it?
High-bandwidth Digital Content Protection (HDCP) is a specification
developed by the Intel® Corporation to protect digital entertainment
content that uses a digital visual interface (DVI).
HDCP encrypts the transmission of digital content (signal) between the
video source (computer, DVD player, or set-top box) and the digital display
(monitor, digital television/DTV, or projector). HDCP is not designed to
prevent copying or recording of digital content, but only to protect the
integrity of the content as transmitted.
www.gateway.com
FAQs
How does HDCP work?
Implementation of HDCP requires a license obtainable from the Digital
Content Protection, LLC, which then issues a set of unique secret device
keys to all authorized devices. During authentication, the receiving device
only accepts content after it acknowledges the keys. To further prevent
stealing of the data or line tapping, the transmitter and receiver generate
a shared secret value that is constantly checked throughout the
transmission. After authentication is established, the transmitter encrypts
the data and sends it to the receiver for decryption.
Troubleshooting
What happens if I lose signal to the display while watching a movie on a HDCP-equipped c omponent?
The component must be restarted to establish renegotiation.
For example, while watching a movie on a HDCP-enabled DVD player, you
change the receiving device (DTV, monitor, or projector) input to watch
broadcast TV, then change the input back to watch the DVD movie.
However, you are unable to watch the movie. This is because when the
input was changed, the receiver lost the HDCP signal. Restart the
HDCP-enabled DVD player to allow renegotiation.
Video/Display
What is the cause if a movie starts and then slowly fades to static?
The receiving device is not HDCP compatible or it is not negotiating
correctly. Restart the video source and re-plug all video cables from the
source to the TV.
How do I know if a component is HDCP compliant?
If the video source device does not have a DVI or HDMI connection, it is
not HDCP compliant.
When I display vid eo from S-Video , composite , or com ponent, why doe s
the video look overly compressed?
See your video de vice user manual to adjust the video or T V format ou tput
to 16:9. Setting this option to 4:3 results in compressed video. This is done
differently on all brands of video devices, so it is important that you read
your video device user guide or the help tools within your video device’s
software.
I see black bars on left and right of the video. Can I stretch the video to fit more of the scr een?
Press the Menu button on the side of the display, select Video Adjust,
then select Video Scaling. To fill more of the screen, choose Wide, Zoom,
or Panoramic modes.
Why when I try to use Picture in Picture (PIP) c omponent video a t 480p ,
720p, or 10 80i, either no vi deo is displa yed or I see corr upted vid eo?
This is a normal operation of the FPD2185W. If you wish to view
component video in PIP, adjust the video output of your external device
to 480i.
27
Using Your Gateway Flat Panel Monitor www.gateway.com
Can I connect my game console to this monitor?
Yes. Using optional video cables (available from the Gateway Accessory
Store Web site) you can connect your game console directly to the
FPD2185W. If your game console supports Component (YPbPr), this results
in the best picture quality.
Can I connect the HDMI output of my external video device to the DVI port
of the monitor? Why would I want to do this?
Although the HDMI interface supports
audio, no audio is sent to the FPD2185W.
You must separately connect the audio
output of your video device to an external
Important
audio amplifier.
Yes, you can buy an HDMI-to-DVI adapter cable from the Gateway
Accessory Store. When using the digital connection, your video content
remains completely digital from your external video device (such as a
cable box, HD DVR, or DVD player). This results in a superior digital image.
Also, in this configuration the PIP can support the input of all HD
resolutions.
When I rot ate my scr een, the PIP video a nd the e xtern al vide o sour ces do
not rotate. Why does this happen?
This is normal. PIP video and all non-computer video input sources do not
rotate. EzTune supports rotation only when a computer is connected to
the DVI and VGA inputs and the software application is installed.
I have multiple displays and I am using this monitor as my secondary
monitor. When I run EzTune , it appears on my pr imary monitor. How do I
control the monitor’s settings?
After opening the EzTune menu, drag the EzTune window to the
FPD2185W’s screen. After EzTune is on the FPD2185W’s screen, you can
adjust its settings. A quick way to control a specific EzTune-supported
display is to right-click on the desktop of the display you want to control,
then select Tune Display.
28
www.gateway.com
Specifications
Specifications
Specifications are subject to change without notice or obligation. Many
products for Gateway and its subsidiaries are custom engineered by our
suppliers to Gateway specifications and may vary from similarly marketed
products.
Panel size
Panel type
Pixel resolution
Pixel pitch
Aspect ratio
Brightness
Contrast ratio
Viewing angles
Response time
Frequency
Lamp type/life
Colors
OSD languages
21 inches (diagonal)
21-inch viewable
TFT active matrix S-PVA
Anti-glare coating
1680 × 1050 (native) (60 Hz)
0.0106 × 0.0106 inches (0.270 mm × 0.270 mm)
16:10
300 cd/m
2
1000:1
178° horizontal, 178° vertical
16ms or 8 ms (gray to gray)
Horizontal: 31-81 KHz
Vertical: 56-76 Hz
50,000 hours
16.7 million
English, French, Spanish, Italian, Japanese
Connections and inputs
Included cables
Power consumption
Power input
Power management
Analog (VGA): 15-pin mini d-sub VGA
Digital (DVI-D): 24-pin DVD-D (supports 480p, 720p, and 1080i).
Includes HDCP (High-bandwidth Digital Content Protection)
Composite video
S-Video
Component Y Pb Pr (supports 480i, 480p, 720p, and 1080i)
AC power input
USB 2.0 B-type (input)
USB 2.0 A-type (output ×4)
Audio power (only for the Gateway speaker bar accessory)
15-pin mini d-sub analog VGA
USB A-B
Powe r
Normal operation: >75 W
Off (power-save): 2 W
100-240 VAC, 50/60 Hz (built-in power supply)
Energy Star®
29
Using Your Gateway Flat Panel Monitor www.gateway.com
Certifications
Wall mount bracket
Weig ht
Dimensions
Temperature
Humidity
Altitude
Security
UL, cUL, FCC Class B, CE.
VCCI and TCO’99 where applicable.
VESA 4 × 3.937 inches (4 ×100 mm)
Net weight (with stand): 18.74 lbs. (8.5 kg)
Gross weight (with packaging): 22.05 lbs. (10 kg)
With base:
19.47 × 15.35 ×6.15 inches (49.4 ×39.0 × 15.6 cm)
Without base:
19.47 × 13.74 × 2.77 inches (49.4 × 34.9 × 7.0 cm)
VESA wall mount bracket:
3.94 × 3.94 inches (100 mm × 100 mm)
Operating: 32~122°F (0~50°C)
Storage: -13~140°F (-25~60°C)
Operating: 20~90% RH
Storage: 5~90% RH
10,000 feet (3,048 m)
Kensington lock slot
30
Safety, Regulatory, and Legal Information
• Important safety information
• Environmental information
• Regulatory compliance statements
•Notices
31
Important safety information www.gateway.com
Important safety information
Always follow these instructions to help
guard against personal injury and
damage to your Gateway product.
Warning
To prevent electric shock, never remove
the cover. No user serviceable parts
Warning
inside. Refer servicing to qualified service
personne l.
Your Gateway product is designed and tested to meet the latest standards for safety o f information technology equipment. However, to
ensure safe use of this product, it is i mportant that the safety instructions marked on the product and in the documentation are followed.
Setting up your system
■
Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and
operating instruc tions for future use.
■
Do not use this product near water or a heat source such as a radiator.
■
Set up the system on a stable work surface.
■
The product should only be operated from the type of power source indicated on the rating label.
■
If your product has a voltage selector switch, make sure that the switch is in the proper position for your area. The voltage selector switch
is set at the factory to the correct voltage.
■
Openings in the monitor case a re provided for ventilation. Do not block or cover these opening s. Make sure you provide adequate space,
at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the
monitor ventilation openings.
■
Some products are equipped with a three -wire power cord to make sure that the product is properly grounded when in use. The plug on
this cord will only fit into a grounding-type outlet. This is a sa fety feature. If you are unable to insert the plug into an outlet, contact an
electrician to install the ap propriate outlet.
■
If you use an extension cord with this system, m ake sure that the total ampere rating on the products plugged into the extension cord
does not exceed the extension cord ampere rating.
■
If your system is fitted with a TV Tuner, cable, or satellite receiver card, make sure that the antenna or cable system is electrically
grounded to provide some protection against voltage surges and buildup of static charges.
Care during use
■
Do not walk on the power cord or all ow anything to rest on it.
■
Do not spill anything on the system. The best way to avoid spills is to avoid eating and drinking near your system.
■
Do not expose t he monito r to rain o r use nea r water. If the monitor does get exposed to moisture, unplug it and al low it to dr y for
24 hou rs. Call Gateway Customer Care for advice on w hether the m onitor is saf e to turn ba ck on.
■
When the monitor is turned o ff, a small amount of electrical current still flows through the monit or. To av oi d e le ct ric al sh oc k, always
unplug all power cables and modem cables from the wall outlets before cleaning the system.
■
Unplug the system from the wall outlet and refer serv icing to qualified personnel if :
■
The power cord or pl ug is damaged.
■
Liquid has been spi lled into the system.
■
The system does not operate properly when the operating instructions are followed.
■
The system was d ropped or the cabi net is damaged.
■
The system performance changes.
Do not use Gateway products in areas
classified as hazardous locations. Such
areas include patient care areas of
medical and dental facilities,
oxygen-laden environments, or
industrial facilities.
32
Warning
Replacement parts and accessories
Use only replacement parts a nd accessories recommended by Gateway.
www.gateway.com
Environmental information
Recycling
Mercury Warning
Lamp(s) inside this product contain
mercury and must be recycled or
disposed of according to local, state, or
Hg
federal laws.
The product you have purchased contains extracted natural resources that have been used in the manufacturing process. This product may
contain substances known to be hazardous to the environment or to human health.
To prevent releases of harmful substances into the environment and to maximize the use of our natural resources, Gateway provides the
following information on how you can responsibly recycle or reuse most of the materials in you r “end of life” product.
Waste Electrical and Elec tronic Equipment (commonly known as WEEE) shou ld never be disposed of in the municipal wa ste
stream (residential garbage collection). The “Crossed-Out Waste Bin” label affixed to this product is your reminder to disp ose
of your “end of life” produc t properly.
Substances such as glass, plastics, and cer tain chemical compounds are highly recoverable, recyclable, and reusable. You can
do your part for the environment by following these simple steps:
■
When your electrical or elec tronic equipment is no longer useful t o yo u, “t ake it b ack ” to you r lo cal or re gio nal was te c olle ct ion
administration for recycling.
■
In some cases, your “end of life” product may be “traded in” for credit towards the purchase of new Gateway equipment. Call Gateway to
see if this program is available in your area.
■
If you need fur ther assistance in rec ycling, reusing, or trading in your “end of life” product, you may contac t us at the Customer Care
number listed in your product’s user guide and we will be glad to help you with your effort.
Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this
product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and by
disposing of or recycling used b atteries properly.
With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the use of
landfills for the disposal of “end of life” products, and generally improve our quality of life by ensuring that potentially hazardous
substances are not released into the environment and are disposed o f properly.
Environmental information
EPA ENERGY STAR
ENERGY STAR
As an ENERGY STAR® Partner, Gateway has determined that this product meets the ENERGY STAR guidelines for energ y efficiency when used
with a computer equipped with a Display Power Management System.
33
Regulatory compliance statements www.gateway.com
Regulatory compliance statements
United States of America
Federal Communications Commission (FCC) Unintentional emitter per FCC Part 15
This device has been tested and found to comply with the lim its for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable p rotection against harmful interf erence in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interf erence to
radio or television reception . However, there is no guarantee that interference will not occur in a particular instal lation. If this equipment
does cause interference to radio and tel evision reception, which can be determined by turning the equ ipment off and on, the user is
encouraged to try to correct the interference by one or more of the following meas ures:
■
Reorient or rel ocate the receiving antenn a
■
Increase the separation between the equipment and receiver
■
Connect the equipment to an outlet on a different circuit from that to which the receiver is connected
■
Consult the dealer or an experienced radio/TV technician for help.
Compliance Accessor ies: The accessories associated with this equipment are: shielded video cable. These accessories are required to be
used in order to ensure compliance with FCC rules.
FCC declaration of conformity
Changes or modifications not expressly
Caution
approved by Gateway could void the FCC
compliance and negate your authority to
Proposition 65 Warning
This product contains chemicals,
including lead, known to the State of
California to cause cancer, birth defects
operate the product.
California
or reproductive harm.
Responsible party:
Gateway, Inc.
7565 Irvine Center Drive
Irvine, CA 92618 USA
This device complies with Part 1 5 of the FCC Rules. Operation of this device is subject to the following t wo conditions: (1) this device may
not cause harmful interference, and (2) this device mu st accept any interference received, including interference that may cause undesired
operation.
Canada
34
Industry Canada (IC) Unintentional emitter per ICES-003
This digital apparatus does not exceed the Class B limits for radio noise emissions f rom digital apparatus as set out in the radio interferen ce
regulations of Industr y Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B
prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.
www.gateway.com
Notices
© 2005 Gateway, Inc.
All rights reser ved.
Gateway, Inc.
7565 Irvine Center Drive
Irvine, CA 92618 USA
All Rights Reserved
This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any
form, without prior consent in writing from Gateway.
The information in this manual has been carefully checked and is be lieved to be accurate. However, changes are made periodically. These
changes are incorporated in newer publication editions. Gateway may improve and/or change products described in this publication at any
time. Due to continuing system improvements, Gateway is not responsible for inaccurate information which may appear in this manua l. For
the latest product updates, consult the Gateway Web site at www.gateway.com
special, exemplary, incidental, or con sequential damages resulting from any defect or omission in this manual, even if advised of the
possibility of such damage s.
In the interest of continu ed produc t develop ment, Ga teway reser ves the right to make improvements in this manual and the p roducts it
describes at any time, without notices or obligation.
. In no event will Gateway be liable for direct, indirect,
Trademark Acknowledgments
Gateway and eMachines are trademarks or registered trademarks of Gateway, Inc. in the United States and other countries. All other bran ds
and product names are trademarks or registered trademarks of their respective companies.
Notices
35
Notices www.gateway.com
36
MAN FPD2085/2185 USR GDE R2 12/05
Loading...
