USER GUIDE
Gateway FPD1785/FPD1985 Monitor
Contents
Using Your Gateway Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Connecting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Adjusting the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rotating the screen image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adjusting monitor height tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adjusting tilt (vertical viewing angle) tension . . . . . . . . . . . . . . . . . . . . . . . . 6
Ergonomic guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Starting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting monitor settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Monitor buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
On-screen display options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Windows controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
No power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Monitor colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Image is not sized or centered correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
The monitor has pixels that are always dark or too bright . . . . . . . . . . . 20
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
17-inch monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
19-inch monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
EPA ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
i
Contents www.gateway.com
ii
Using Your Gateway Flat Panel Monitor
• Connecting the monitor
•Adjusting the stand
• Starting the monitor
• Adjusting monitor settings
•Windows controls
• Power management
• Maintenance
• Troubleshooting
• Specifications
1
Using Your Gateway Flat Panel Monitor www.gateway.com
Connecting the monitor
To connect the monitor:
1 Position your computer and the monitor so you can reach the back of each.
2 Connect the power cord to the power connector under the back of the
monitor.
3 Connect the blue VGA video cable to the blue video connector under the
back of the monitor.
- OR -
If your computer has a digital video connector (DVI), connect a DVI video
cable (not included) to the white connector under the back of the monitor.
You can buy a DVI video cable from www.gateway.com
.
2
www.gateway.com
Connecting the monitor
4 Make sure that your computer is turned off, then connect the other end
of the video cable to the matching video port on the back of your
computer.
5 Plug the power cord into a correctly grounded electrical outlet.
Because lifting your monitor off the
Warning
desktop surface takes weight off from the
stand, the stand will extend suddenly,
possibly causing damage to equipment
To avoid injury, always lift the monitor so
that the stand adjusts to its full height
before moving the monitor or turning it
or injury to yourself.
around.
3
Using Your Gateway Flat Panel Monitor www.gateway.com
Adjusting the stand
Rotates 90° for portrait or
landscape orientation
Tilts from -5° to 35°
Vertical height adjusts
five inches
Pans 31° left and right
4
www.gateway.com
Rotating the screen image
Depending on the graphics card or device driver on your computer, you may
be able to rotate the on-screen image.
■ On Gateway computers, you can rotate the image by pressing
Adjusting monitor height tension
The stand is factory adjusted to maintain the adjusted height for Gateway
17-inch and 19-inch flat-panel monitors. If you use this stand with a lighter
monitor without adjusting the weight setting of the stand, the stand will raise
your monitor, and if you use a heavier monitor, the stand will lower your
monitor.
Adjusting the stand
To rotate the screen image:
TRL+ALT+[LEFT ARROW], and return it to normal by pressing
C
Ctrl+Alt+[
For more information, click Start, Control Panel, Appearance and
Themes (if necessary), Display, the Settings tab, Advanced, then click the
graphics card-specific tab.
UP ARROW].
To test and adjust your monitor’s height tension:
1 Mov e you r monit or up and dow n thro ugh it s enti re ve rt ical range . If it does
not stay in place when you let go, you need to change the adjustable
stand’s height tension. You also need to adjust the stand if the amounts
of force required to raise and lower the monitor are not equal.
2 Adjust the height tension screw so the monitor stays in place when you
let go. If the monitor lowers by itself when you let go, turn the screw
clockwise several complete turns. If the monitor rises when you let go, turn
the screw counter-clockwise several complete turns. You may need to turn
the screw several times before the tension is correct for your monitor.
Increase lifting tension
(clockw ise)
Decrease lifting tension
(counter-clock wise)
5
Using Your Gateway Flat Panel Monitor www.gateway.com
3 Adjust the height tension screw so raising and lowering forces are equal.
After the forces are equalized, turn the tension screw clockwise 2 to 4 turns
to slightly decrease the lifting tension.
4 For optimum viewing, adjust the height so the top of monitor is about
1 inch below eye level.
Adjusting tilt (vertical viewing angle) tension
To test and adjust tilt tension:
1 Tilt the monitor back and forth through its entire tilt range. If it does not
stay in place or if movement in one direction is stiff, the tilt tension needs
adjustment.
2 Pull the black rubber cover away from the top of the stand, then hold it
back with one hand.
Increase tilt tension (clockwise)
Decrease tilt tension
(counter -clockwise)
3 To increase tilt tension, turn the screw clockwise with a Phillips
screwdriver. To decrease tilt tension, turn the screw counter-clockwise.
Adjust until the monitor stays in place and the up and down tilting
tensions are equal.
6
www.gateway.com
Ergonomic guidelines
Adjusting the stand
The recommended mounting heights, the range of adjustability required to
provide comfortable use by a range of users, and the forces required for making
adjustments to the monitor are based upon the following guildelines. These
guidelines are based on available scientific literature and published standards.
Screen height
The recommended screen height for monitors (except in special circumstances,
such as for bifocal use) is that the top of the monitor should be set at or slightly
below (about 1 inch, or 25 mm) the user’s eye level while the user is sitting in
a comfortable working posture. This guideline places the center of the screen
at an ideal 15° to 20° viewing angle for most desktop monitors. If the monitor
has multiple users, the screen height should be easily adjustable to
accommodate each user’s height and preference.
Screen tilt
The screen should be tilted so the user’s line of sight is perpendicular to the
screen. This angle creates the most consistent viewing distance when scanning
from the top of the screen to the bottom. You may need to adjust lighting to
avoid screen glare when the screen is tilted upward.
Screen distance from user
The monitor screen should first be placed at arms length from the user, then
adjusted back and forth to suit individual preference. Vertical adjustments
should not result in a change in viewing distance.
Stand adjustment forces
The force required to make any adjustment to the stand (height, tilt, pan, or
portrait/landscape orientation) should not exceed 5.1 lbs. (2.32 kg).
7
Using Your Gateway Flat Panel Monitor www.gateway.com
Starting the monitor
To start the monitor:
The appearance of your monitor may
Important
vary from that shown.
1 Press the power button on the front of monitor. The power LED on the
power button turns on.
When adjusting the monitor settings,
always press the Auto button before
entering the OSD. This will automatically
adjust the monitor image to the ideal
settings for the current screen resolution.
Important
2 Turn on your computer.
After your computer is running, the power LED on the monitor’s power
button should be blue. Allow about 10 seconds for the monitor image to
appear. If the power LED is not blue or you do not see a monitor image,
check the connections. For more troubleshooting information, see
“Troubleshooting” on page 18.
3 Adjust the tilt of the monitor for the best viewing angle.
4 After you see the Windows desktop, press the Auto button on the right
side of the monitor to automatically adjust your monitor image to the ideal
settings.
5 Use the on-screen display (OSD) to adjust other monitor settings. For more
information, see “Adjusting monitor settings” on page 9.
8
www.gateway.com
Adjusting monitor settings
Use the monitor controls (located on the monitor itself) and computer controls
(accessible through Windows) to adjust the monitor image. For more
information about computer controls, see “Windows controls” on page 12.

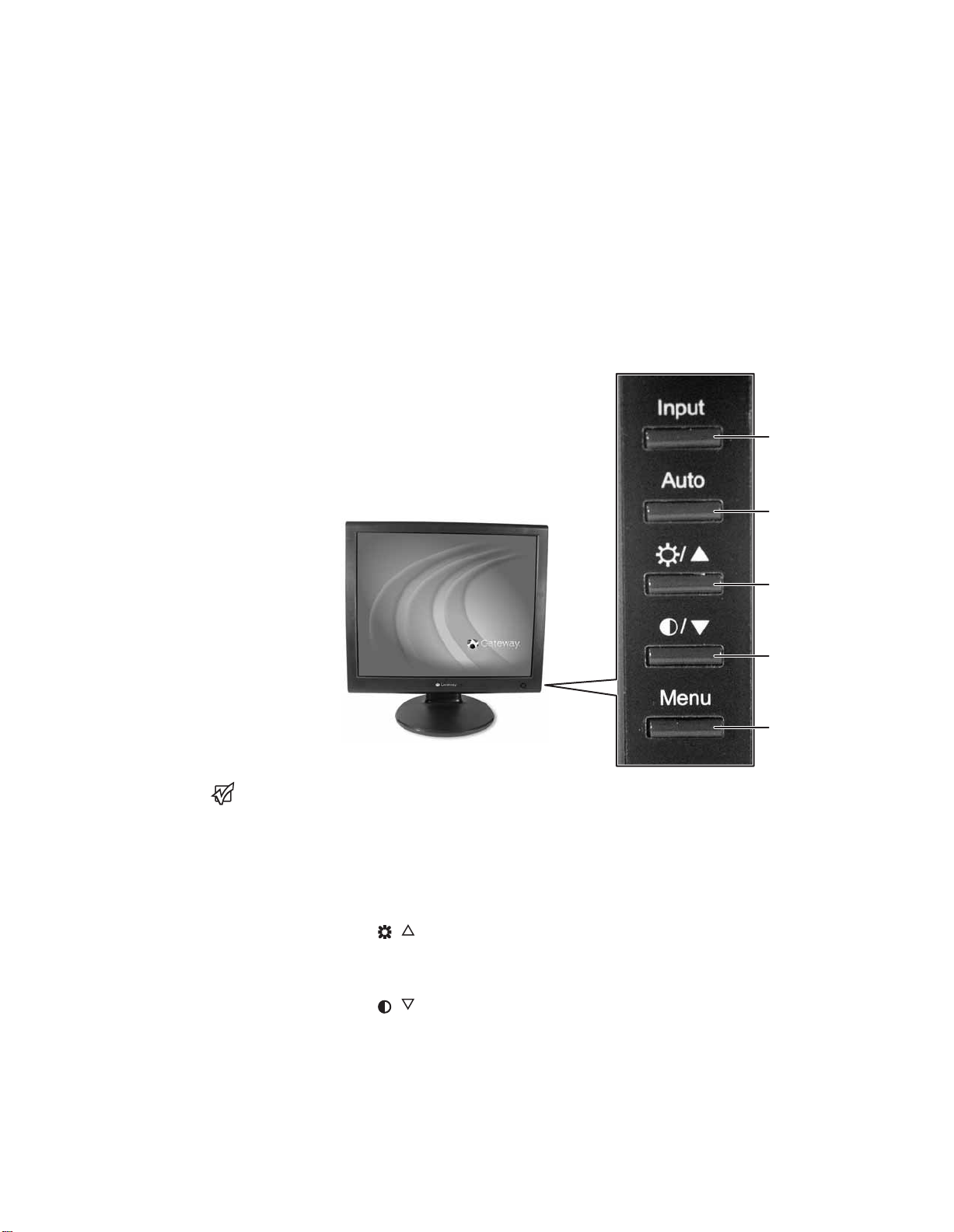

Monitor bu ttons
This monitor features an on-screen display (OSD) that lets you adjust contrast,
brightness, and other settings for the monitor. The monitor saves changes you
make to the settings, even if you turn off the monitor.
Adjusting monitor settings
Input button
Auto button
The appearance of your monitor may
Important
vary from that shown.
Brightness button
Contrast button
Menu button
■ Input
OSD active: Press to move to the previous menu.
OSD inactive: Press to select the video source.
■ Auto
OSD active: Press to open a menu or setting.
OSD inactive: Press to automatically optimize the monitor’s image
position, clock, and phase.
■ / (brightness)
OSD active: Press to move up through menu selections and adjust OSD
options.
OSD inactive: Press to adjust the brightness.
■ / (contrast)
OSD active: Press to move down through menu selections and adjust OSD
options.
OSD inactive: Press to adjust the contrast.
■ Menu
Press to open the OSD. Press again to exit the OSD.
9
Using Your Gateway Flat Panel Monitor www.gateway.com
On-screen display options
Adjusting OSD settings
To adjust the OSD settings:
While the OSD is active, on-screen labels
appear next to the buttons to help you
Tips & Tricks
identify them.
1 Press the Auto button. The monitor image is automatically adjusted to the
ideal settings for your current screen resolution.
2 Press the Menu button. The OSD menu opens.
3 Use the and buttons to highlight a setting, then press the
Auto button to open the selected menu or setting.
4 Use the and buttons to adjust the setting to the desired level or
change the option.
5 Press the Input button to return to a previous menu.
6 When you have finished making all adjustments, press the Menu button
at the Main Menu to exit.
10
www.gateway.com

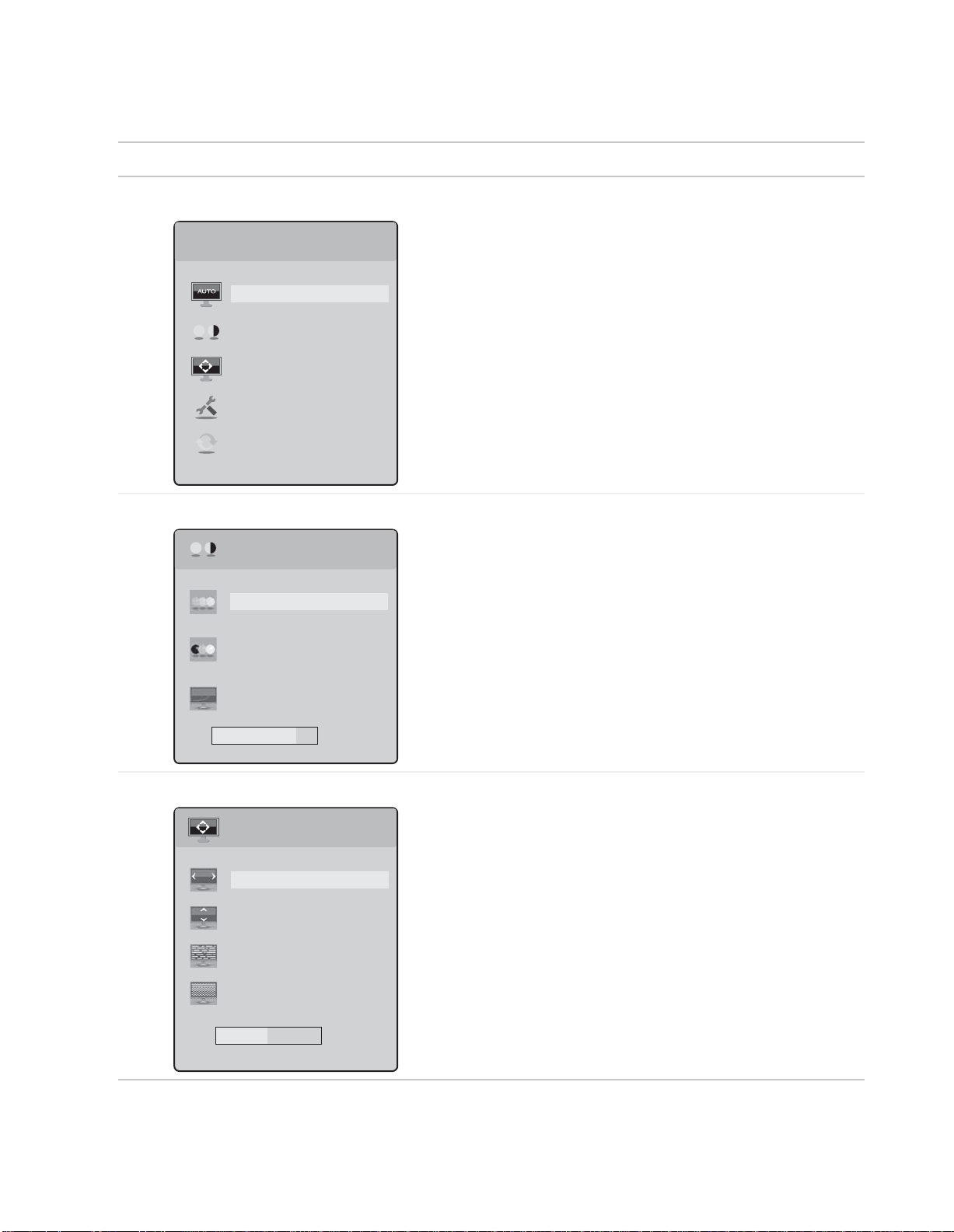

OSD menus
OSD Menu Description
Adjusting monitor settings
Main menu
Picture menu
Main Menu
Auto
Geometry
Advanced
Reset
Brightness
Contrast
Auto—Automatically adjusts your monitor to its optimum
settings.
Picture—Opens the Picture menu, where you can adjust
brightness, contrast, and gamma.
Geometry—Opens the Geometry menu, where you can
adjust image size and minimize distortions.
Advanced—Opens the Advanced menu, where you can
adjust color balance, change the OSD language, and display
information about current monitor settings.
Reset—Resets the monitor to its factory settings.
Brightness—Adjusts the amount of light in the darkest
portion of the picture. Use the lowest brightness setting you
are comfortable with to maximize the life of the monitor
backlights.
You may need to readjust brightness after the monitor has
warmed up.
Contrast—Adjusts the level of white between the lightest
and darkest portions of an image.
Gamma—Customizes the gamma level. High gamma levels
increase white levels and low gamma levels increase contrast.
Geometry menu
Gamma
Geometry
H-Position
V-Position
Clock
Phase
80
H-Position—Moves the monitor image left and right.
V-Position—Moves the monitor image up and down.
You can also press the Auto button to configure the vertical
and horizontal position automatically.
Clock—Minimizes any vertical bars or stripes visible on the
screen background. The horizontal screen size will also
change.
Phase—Minimizes any horizontal distortion and clears or
sharpens the displayed characters.
50
11
Using Your Gateway Flat Panel Monitor www.gateway.com
OSD Menu Description
Advanced menu
Advanced
Color
Language
LED Brightness
Information
Windows controls
Color—Customizes the color levels.
Language—Changes the language of the OSD.
LED Brightness—Changes the brightness of the Standby
and Power LED to Day Mode or Nite Mode.
Information—Displays current screen resolution.
Color depth, screen resolution, and screen fonts are three of the most basic
monitor settings you may need to change.
Adjusting the color depth
For more information about adjusting
monitor settings, click Start, then click
Help and Support. Type the phrase
changing display settings in the
Search box, then click the arrow.
Help & Support
Color depth is the number of colors your video card uses. Most images look best
displayed with the maximum number of colors available.
Windows lets you choose from several color depth settings for the monitor. We
recommend that you use the 32-bit True Color setting or the highest setting
available at all times.
If the color in your images seems “false” or “jumpy,” especially after you have
played a game or run a video-intensive program, check the color depth setting
and return it to 32-bit True Color, if necessary.
To change the color depth:
1 Click Start, then click Control Panel. The Control Panel window opens. If
your Control Panel is in Category View, click Appearance and Themes.
2 Click/Double-click the Display icon. The Display Properties dialog box
opens.
12
www.gateway.com
Windows controls

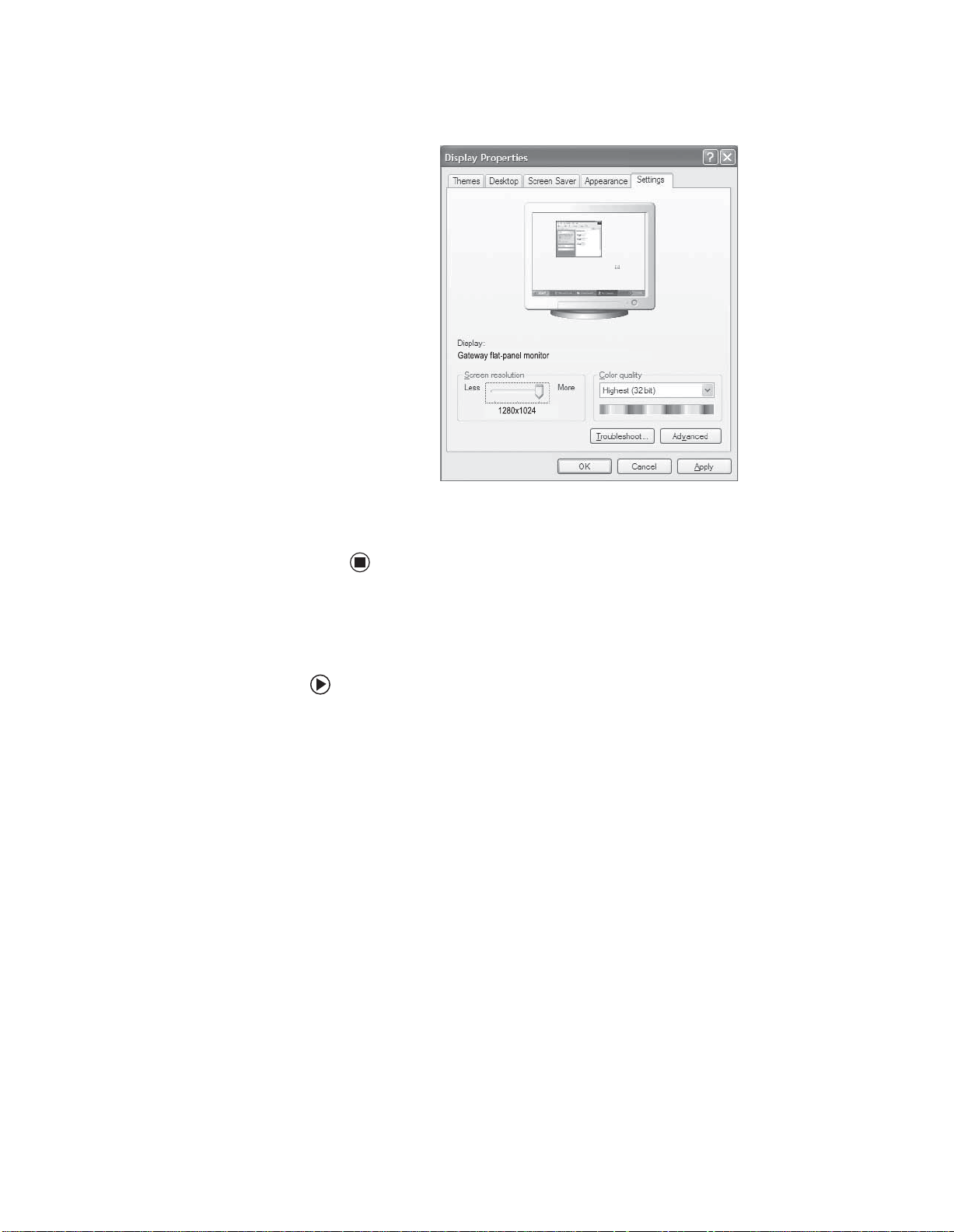

3 Click the Settings tab.
4 Click the arrow button to open the Color quality list, then click the color
depth you want.
For more information about adjusting
screen resolution, click Star t, then click
Help and Support. Type the phrase
changing scree n resoluti on in the
Search box, then click the arrow.
Help & Support
5 Click OK, then click Yes to save your changes.
Adjusting the screen resolution
You can change the screen resolution to a size you prefer. For example, you can
increase the resolution to fit more icons on your desktop, or you can decrease
the resolution to make reading and identifying objects on the monitor easier.
The higher the resolution, the smaller individual components of the screen
(such as icons and menu bars) appear.
To change the screen resolution:
1 Click Start, then click Control Panel. The Control Panel window opens. If
your Control Panel is in Category View, click Appearance and Themes.
2 Click/Double-click the Display icon. The Display Properties dialog box
opens.
13
Using Your Gateway Flat Panel Monitor www.gateway.com
3 Click the Settings tab.
4 Drag the Screen resolution slider to the size you prefer.
5 Click OK, then click Yes to save your changes.
Clarifying screen fonts
You can change the display fonts to ClearType for smoother screen fonts.
To change the display fonts to ClearType:
1 Click Start, then click Control Panel. The Control Panel window opens. If
your Control Panel is in Category View, click Appearance and Themes.
2 Click/Double-click the Display icon. The Display Properties dialog box
opens.
14
www.gateway.com
Windows controls
3 Click the Appearance tab.
4 Click the Effects button. The Effects dialog box opens.
5 Click to select the Use the following method to smooth the edges of
screen type check box.
6 Click the arrow to open the list, then click ClearType.
7 Click OK, then click OK again.
15
Using Your Gateway Flat Panel Monitor www.gateway.com
Video modes
Your monitor supports several video modes. If you do not use the best mode
for the monitor, the monitor image may look slightly “fuzzy.”
17-inch monitor
Mode Mode name and
resolution
1 VGA 720 × 400 31.469 70.087
2 VGA 640 × 480 31.469 59.941
3 VESA 640 × 480 37.861 72.810
4 VESA 640 × 480 37.500 75.000
5 VESA 800 × 600 35.156 56.250
6 VESA 800 × 600 37.879 60.317
7 VESA 800 × 600 48.077 72.188
8 VESA 800 × 600 46.875 75.000
9 VESA 1024 × 768 48.363 60.004
10 VESA 1024 × 768 56.476 70.069
11 VESA 1024 × 768 60.023 75.029
12 VESA 1280 × 1024 63.980 60.020
13 VESA 1280 × 1024 79.976 75.025
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
16
19-inch monitor
Mode Mode name and
1 VGA 720 × 400 31.469 70.087
2 VGA 640 × 480 31.469 59.941
3 VESA 640 × 480 37.861 72.810
4 VESA 640 × 480 37.500 75.000
5 VESA 800 × 600 35.156 56.250
6 VESA 800 × 600 37.879 60.317
7 VESA 800 × 600 48.077 72.188
8 VESA 800 × 600 46.875 75.000
resolution
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
www.gateway.com
Power management
Power management
ENERGY STAR
As an ENERGY STAR® Partner, Gateway has determined that this product meets
the ENERGY STAR guidelines for energy efficiency.
This monitor complies with the EPA’s International ENERGY STAR Program,
which is a program designed to encourage manufacturers of computer
equipment to build circuitry into their products to reduce energy consumption
during time of non-use.
Mode Mode name and
resolution
9 VESA 1024 × 768 48.363 60.004
10 VESA 1024 × 768 56.476 70.069
11 VESA 1024 × 768 60.023 75.029
12 VESA 1280 × 1024 63.980 60.020
13 VESA 1280 × 1024 79.976 75.025
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Energy declaration
When connected to a computer that supports the VESA Display Power
Management Signaling (DPMS) Protocol, the monitor can conserve significant
energy by reducing power consumption during periods of non-use. When your
computer goes into the energy saving mode, the monitor will then enter the
Active Off mode (sleep). In the Active Off mode the Power LED will still show
orange.
Use these conventions and the power can be reduced to the following levels:
VESA State LED Indicator Power
Consumption
On Blue 17-inch: 37 W
19-inch: 37 W
Active Off Orange 2 W
To “wake” the monitor when it is in Active Off mode, move the mouse or press
any keyboard key.
Access the power management options in the Control Panel to change the
period of time after which the monitor enters these low power states.
17
Using Your Gateway Flat Panel Monitor www.gateway.com
Maintenance
To keep the monitor in optimal working order:
■ Do not block the ventilation holes.
■ Do not expose the monitor to rain or use near water.
■ Keep the monitor away from radiators or heat vents.
■ Keep the monitor out of direct sunlight.
Do not use any type of abrasive pad or
glass cleaner. You will permanently
Caution
scratch the screen.
■ To clean the monitor, use a soft cloth slightly moistened with water only.
Wipe the cabinet, screen, and controls.
■ Storage specifications in this manual reflect design limitations, not
recommended storage and humidity. We recommend that for extended
periods of time (such as in the daily use environment), you store this
monitor between 32~95
■ Make sure that the monitor is turned off before attaching the power and
°F (0-35°C) and humidity less than 70%.
video cords.
Troubleshooting
Make sure that the monitor has warmed
up for approximately 30 minutes before
making any judgments about the picture
Important
No power
If you have problems with the monitor, the information in this troubleshooting
section may help you solve them.
quality.
Make sure that the power cord is connected correctly to both the back of the
monitor and the wall outlet. For more information about connecting the power
cord, see “Connecting the monitor” on page 2.
18
www.gateway.com
No picture
Troubleshooting
■ Press the Input button to make sure that you have selected the correct
video source.
■ Make sure that the power cord is connected correctly to both the back of
the monitor and the wall outlet. For more information about connecting
the power cord, see “Connecting the monitor” on page 2.
■ Make sure that the video cable is connected securely to the back of the
monitor and computer. For more information about connecting the video
cable, see “Connecting the monitor” on page 2.
■ Make sure that the monitor is turned on.
■ If the power LED is orange:
■ Make sure that your computer is turned on.
■ Move the mouse or press any key on the keyboard to bring the
monitor out of sleep mode.
■ Restart your computer with the monitor turned on.
■ Make sure that the video cable is not damaged.
■ Check the end of the video cable for any pins that might be bent
or pushed in.
■ Turn off the monitor and unplug the video cable from the back of your
computer. Turn the monitor back on and wait for ten seconds. If the
monitor is functioning correctly, a “No Signal” message appears. For more
information about connecting the video cable, see “Connecting the
monitor” on page 2.
Monitor co lors are wro ng
■ Press the Auto button to automatically adjust the monitor image to the
■ Restart your computer with the monitor turned on.
■ Make sure that the video cable is connected securely to the back of the
■ Make sure that the video cable is not damaged.
■ Check the end of the video cable for any pins that might be bent or pushed
Picture has shadows or “ghosts”
■ Press the Auto button to automatically adjust the monitor image to the
■ Remove any extension cables or switchboxes.
■ Make sure that the video cable is connected securely to the back of the
■ Make sure that the video cable is not damaged.
■ Check the end of the video cable for any pins that might be bent or pushed
ideal settings.
monitor and your computer. For more information about connecting the
video cable, see “Connecting the monitor” on page 2.
in.
ideal settings.
monitor and your computer. For more information about connecting the
video cable, see “Connecting the monitor” on page 2.
in.
19
Using Your Gateway Flat Panel Monitor www.gateway.com
Color is not uniform
■ Press the Auto button to automatically adjust the monitor image to the
ideal settings.
■ Make sure that the monitor warms up for at least 30 minutes before
making a final judgment about color uniformity or brightness.
Image is not sized or centered correctly
■ Press the Auto button to automatically adjust the monitor image to the
ideal settings.
■ Use the position controls to adjust the image. For instructions on how to
adjust the monitor image position, see “Adjusting monitor settings” on
page 9.
The monitor has pixels that are always dark or too bright
■ This condition is normal and inherent in the TFT technology used in
active-matrix LCD screens. Gateway’s inspection standards keep these to
a minimum. If you feel these pixels are unacceptably numerous or dense
on your monitor, contact Gateway Customer Care to identify whether a
repair or replacement is justified based on the number of pixels affected.
Specifications
Specifications are subject to change without notice or obligation. Many
products for Gateway and its subsidiaries are custom engineered by our
suppliers to Gateway specifications and may vary from similarly marketed
products.
20
www.gateway.com
17-inch monitor
Panel size 17 inches (diagonal)
Panel type 17-inch viewable TFT with anti-glare coating
Pixel resolution 1280 × 1024 (native)
Pixel pitch 0.0104 × 0.0104 inches (0.264 mm × 0.264 mm)
Aspect ratio 5:4
Brightness and contrast ratio 280 cd/m
2
, 1500:1
Specifications
Frequencies Horizontal: 31~81 KHz
Viewing angles 178° horizontal, 178° vertical
Response time 25 ms
Lamp type/life 50,000 hours
Colors 16.7 million
OSD languages English, French, Spanish, Italian, Japanese
Connections and inputs Analog (VGA): 15-pin mini d-sub VGA
Cables 15-pin mini d-sub analog VGA (included)
Power consumption Normal operation: 37 W
Power input 100-240 VAC, 50/60 Hz
Power management Energy Star®
Certifications UL, cUL, FCC Class B, NOM,CE, TUV/GS.
Vertical: 56~75 KHz
Color temperature: 6500K
Digital (DVI-D): 24-pin DVD-D
AC power input
24-pin DVI-D (not included)
Off (power-save): 2 W
VCCI and TCO’99 where applicable.
Wall mount bracket VESA 4 × 3.937 inches (4 × 100 mm)
Dimensions 14.96 × 14.79~19.91 × 8.72 inches
(38.02 × 37.57~50.57 × 22.15 cm) with stand
Weight 12.24 lbs. (5.55 kg)
Temperature Operating: 41~95°F (5~35°C)
Non-operating: -4~149°F (-20~65°C)
Humidity Operating: 65±20% RH
Non-operating: 10~95% RH
Altitude Operating: 10,000 ft (3,048 m)
Non-operating: 40,000 ft (12,192 m)
21
Using Your Gateway Flat Panel Monitor www.gateway.com
19-inch monitor
Panel size 19 inches (diagonal)
Panel type 19-inch viewable TFT with anti-glare coating
Pixel resolution 1280 × 1024 (native)
Pixel pitch 0.0116 × 0.0116 inches (0.294 mm × 0.294 mm)
Aspect ratio 5:4
Brightness and contrast ratio 280 cd/m
2
, 1000:1
Frequencies Horizontal: 31~81 KHz
Viewing angles 178° horizontal, 178° vertical
Response time 8ms
Lamp type/life 50,000 hours
Colors 16.7 million
OSD languages English, French, Spanish, Italian, Japanese
Connections and inputs Analog (VGA): 15-pin mini d-sub VGA
Cables 15-pin mini d-sub analog VGA (included)
Power consumption Normal operation: 37 W
Power input 100-240 VAC, 50/60 Hz
Power management Energy Star®
Certifications UL, cUL, FCC Class B, NOM,CE, TUV/GS.
Vertical: 56~75 KHz
Color temperature: 6500K
Digital (DVI-D): 24-pin DVD-D
AC Power input
24-pin DVI-D (not included)
Off (power-save): 2 W
VCCI and TCO’99 where applicable.
22
Wall mount bracket VESA 4 × 3.937 inches (4 × 100 mm)
Dimensions 16.8 × 16.18~21.30 × 8.72 inches
(42.66 × 41.10~54.10 × 22 cm) with stand
Weight 14.88 lbs. (6.75 kg)
Temperature Operating: 41~95°F (5~35°C)
Non-operating: -4~149°F (-20~65°C)
Humidity Operating: 65±20% RH
Non-operating: 5~90% RH
Altitude Operating: 10,000 ft (3,048 m)
Non-operating: 40,000 ft (12,192 m)
Safety, Regulatory, and Legal Information
• Important safety information
• Environmental information
• Regulatory compliance statements
•Notices
23
Important safety information www.gateway.com
Important safety information
Always follow these instructions to help
guard against personal injury and
damage to your Gateway product.
Warning
To prevent electric shock, never remove
the cover. No user serviceable parts
Warning
inside. Refer servicing to qualified service
personnel.
Your Gateway product is designed and tested to meet the latest standards for safety of information technology equipment. However, t o
ensure safe use of this product, it is impor tant that the safety instructions marked on the product and in the documentation are followed.
Setting up your system
■
Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and
operating instructions for future use.
■
Do not use this product near water or a heat source such as a radiator.
■
Set up the system on a stable work surface.
■
The product should only be operated from the type of power source indicated on the rating label.
■
If your product has a voltage selector switch, make sure that the switch is in the proper position for your area. The voltage selector switch
is set at the factory to the correct voltage.
■
Openings in the monitor case a re provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space,
at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the
monitor ventilation openings.
■
Some products are equipped with a three-wire power cord to make sure that the p roduct is properly grounded when in use. The plug on
this cord will only f it into a grounding-type outlet. This is a safety feature. If you are un able to insert the plug in to an outlet, contact an
electrician to install the appropriate outlet.
■
If you use a n exte nsio n cord w ith t his sy stem, m ake su re that the total ampere rating on the products plugged into the extensio n cord
does not exceed the extension cord ampere rating.
■
If you r system is fitte d with a TV Tune r, cable, o r satell ite rece iver ca rd, make sure that th e ante nna o r cable syste m is e lectrically
grounded to provide some protection against voltage surges and buildup of static charges.
Care during use
■
Do not walk on the power cord or allow anything to rest on it.
■
Do not spill anything on the system. The best way to avoid spills is to avoid eating and drinking near your system.
■
Do not expose the monitor to rain or use near water. If the monitor does get exposed to moisture, unplug it and allow it to d ry for
24 hours. Call Gateway Customer Care for advice on whether the monitor is safe to turn back on.
■
When the monitor is turned off, a s mall amount of electrical current still flows through the monitor. To avoid electrical shock, always
unplug all power cables and modem cables from the wall outlets before cleaning the system.
■
Unplug the system from the wall outlet and refer serv icing to qualified personnel if:
■
The power co rd or plug is dama ged.
■
Liquid has been spi lled into the system.
■
The system does not operate properly when the operating in structions are followed.
■
The system was dropped or the cabinet is damaged.
■
The system performance cha nges.
Do not use Gateway products in areas
classified as hazardous locations. Such
areas include patient care areas of
medical and dental facilities,
oxygen-laden environments, or
industrial facilities.
24
Warning
Replacement parts and accessories
Use only replacement parts and accessories recommended by Gateway.
www.gateway.com
Environmental information
Recycling
Mercury Warning
Lamp(s) inside this product contain
mercury and must be recycled or
disposed of according to local, state, or
Hg
federal laws.
The product you have purchased contains extracted natural resources that have been used in the manufacturing process. This product may
contain substances known to be hazardous to the environment or to human health.
To prevent releases of harmful substances into the environment and to max imize the use of our natural resources, Gateway provides the
following information on how you can responsibly recycle or reuse most of the materials in your “end of life” product.
Waste Electrical and Electronic Equipment (commonl y known as WEEE) should never be disposed o f in the municipal waste
stream (residential garbage collection). T he “Crossed-Out Waste Bin” label affixed to this product is your reminder to dispose
of your “end of life” prod uct properly.
Substances such as glas s, plastics, and certain chemical compou nds are highly recoverable, recyclable, and reusable. You ca n
do your part for the environment by following these si mple steps:
■
When your electrical or electroni c equipment is no longer useful to you, “take it back” to your local or regional waste collection
administration for recycling.
■
In some cases, your “end of life” product may be “traded in” for cred it towards the purchase of new Gateway equi pment. Call Gateway to
see if this program is available in your area.
■
If y ou n eed fur the r a ssis tan ce i n re cycl ing , re usi ng, or t radi ng in yo ur “e nd o f li fe” prod uct , yo u ma y co ntac t us at the Cus tomer Care
num ber lis ted in y our prod uct ’s u ser gui de a nd w e wi ll b e gl ad t o he lp y ou w ith your eff or t.
Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this
product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and by
disposing of or recycling used batteries prope rly.
With your help, we can reduce the amount of natural resources needed to produce electrical and electronic eq uipment, minimize the use of
landfills for the disposal of “end of life” products, and generally improve our quality of life by ensuring that potentially hazardous
substances are not released into the environment and are disposed of properly.
Environmental information
EPA ENERGY STAR
As an ENERGY STAR® Partner, Gateway has determined that this product meets the ENERGY STAR g uidelines for energy efficiency when used
with a computer equipped with a D isplay Power Management System.
ENERGY STAR
25
Regulatory compliance statements www.gateway.com
Regulatory compliance statements
United States of America
Federal Communications Commission (FCC) Unintentional emitter per FCC Part 15
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection a gainst harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if no t installed and used in accordance with the instru ctions, may cause harmful interference to
radio or television reception. However, there is no guarantee that interference will not occur in a particular insta llation. If this equipment
does cause interference to radio a nd television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interf erence by one or more of the following measures:
■
Reorient or relocate t he receiving antenna
■
Increase the separation between the equip ment and receiver
■
Connect the equipment to an outlet on a different circuit from that to wh ich the receiver is connected
■
Consult the dealer or an experienced radio/TV technician for help.
Compliance Accessories: The accessories associated with this equi pment are: shielded video cable. These accessori es are required to be
used in order to ensure compliance with FCC rules.
FCC declaration of conformity
Changes or modifications not expressly
approved by Gateway could void the FCC
compliance and negate your authority to
operate the product.
Caution
California
Proposition 65 Warning
This product contains chemicals,
including lead, known to the State of
California to cause cancer, birth defects
or reproductive harm.
Responsible party:
Gateway, Inc.
7565 Irvine Center Drive
Irvine, CA 92618 USA
This device complies with Part 15 of the FCC Rules. Operation of this device is subjec t to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device m ust accept any interference received, including interference that may caus e undesired
operation.
Canada
26
Industry Canada (IC) Unintentional emitter per ICES-003
This digital apparatus does not exceed the Class B limits for radio noise emissio ns from digital apparatus as set out in the radio inter ference
regulations o f Industry Ca nada.
Le présent appa reil numérique n’ém et pas de bruits radio électriques dépas sant les limites applicab les aux appareils num ériques de Classe B
prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.
www.gateway.com
Notices
© 2006 Gateway, Inc.
All rights reser ved.
Gateway, Inc.
7565 Irvine Center Drive
Irvine, CA 92618 USA
All Rights Reserved
This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any
form, without prio r consent in writing from G ateway.
The information in this manual has been carefull y checked and is believed to be accurate. However, changes are m ade periodically. Thes e
changes are incorporated in newer publication editions. Gateway may improve and/or change products described in this publication at any
time. Due to continui ng system improvements, Gateway is not responsibl e for inaccurate information which may appear in this man ual. For
the latest product updates, consult the Gateway Web site at www.gateway.com
special, exemplary, incidental, or consequential damages resulting from any de fect or omission in this manua l, even if advised of the
possibility of such damage s.
In the interest of continued product development, Gateway reserves the right to make improvements in this manual and the products it
describes at any time, without notices or obligation.
. In no event will Gateway be liable for dire ct, indirect,
Trademark Acknowledgments
Gateway and eMachines are trademarks or registered trademarks of Gateway, Inc. in the United States and other countries. All other brands
and product names are trademarks or regi stered trademarks of their respective companies.
Notices
27
Notices www.gateway.com
28
MAN FPD1785/1985 USR GDE R0 4/06
Loading...
