Gateway FPD1960
1
SERVICE MANUAL
19” LCD MONITOR
FPD1960
THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY REASONABLE EFFORT
HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE CANNOT GUARANTEE THE
ACCURACY OF THIS INFORMATION AFTER THE DATE OF PUBLICATION AND DISCLAIMS RELIABILITY FOR
CHANGES, ERRORS OR OMISSIONS.
Page 2
Gateway FPD1960
2
Table of Content
Revision List…………………………………………………………………………………………………………. 3
1. Monitor Description…………………………………………………………………………………………….. 4
2. LCD Monitor Description……………………………………………………………………………………….. 5
3. Operating Instructions………………………………………………………………………………………….. 6
3.1 General Instructions…………………………………………………………………………………………... 6
3.2 Control Buttons………………………………………………………………………………………………... 6
3.3 Adjusting the Picture………………………………………………………………………………………….. 7
4. Input/Output Specification……………………………………………………………………………………... 10
4.1 Input Signal Connector……………………………………………………………………………………….. 10
4.2 Factory Preset Display Modes……………………………………………………………………………….. 11
4.3 Panel Specification………………………………………………………………………………………….… 11
4.3.1 Features………………………………………………………………………………….……………….. 11
4.3.2 Display Characteristics…………………………………………………………………………………... 12
4.3.3 Optical Characteristics…………………………………………………………………………………… 12
4.3.4 Parameter Guide Line For CCFL Inverter……………………………………………………………… 13
5. Block Diagram………………………………………………………………………………………………….… 14
5.1 Monitor Exploded View……………………………………………………………………………………….. 14
5.2 Software Flow Chart…………………………………………………………………………………………... 15
5.3 Electrical Block Diagram……………………………………………………………………………………… 17
5.3.1 Main Board………………………………………………………………………………………………... 17
5.3.2 Inverter/Power Board………………………………………………………….…………………………. 18
6. Schematic……………………………………………………………………………………………………….… 19
6.1 Main Board…………………………………………………………………………………………………….. 19
6.2 Power Board…………………………………………………………………………………………………. 24
7. PCB Layout………………………………………………………………………………………………………. 26
7.1 Main Board…………………………………………………………………………………………………….. 26
7.2 Power Board…………………………………………………………………………………………………. 27
7.3 Key Board………………………………………………………………………….………………………… 27
8. Maintainability……………………………………………………………………………………………………. 28
8.1 Equipments and Tools Requirement………………………………………………………………………… 28
8.2 Trouble Shooting…………………………………………………………………………………………….… 29
8.2.1 Main Board………………………………………………………………………………………………... 29
8.2.2 Inverter/Power Board…………………………………………………………………………………….. 32
8.2.3 Keypad Board…………………………………………………………………………………………….. 34
9. White-Balance, Luminance adjustment………………………………………………………………….….. 35
10. EDID Content……………………………………………………………………………………………………. 36
11. BOM LIST………………………………………………………………………………………………………... 37
Page 3
Gateway FPD1960
3
REVISION LIST
Revision Date TPV Model Name Change Description
A00 Nov-30-05 T980KHCHKGGYNP Original Revision
Page 4
Gateway FPD1960
4
1. MONITOR SPECIFICATIONS
Item Description
Driving system TFT Color LCD
Type HSD190ME13
Size 48.0cm(19.0")
Pixel pitch 0.294mm(H) x 0.294mm(V)
Viewable angle 160˚ (H) 150˚ (V) (CR>5)
LCD Panel
Response time (type) 8ms
Sync. Type H/V TTL
15Pin Analog
Input Signal
24Pin Digital
Analog: 30kHz – 83kHz
H-Frequency
Digital: 30kHz-71kHz
Analog: 56Hz-75Hz
Input
V-Frequency
Digital: 56Hz-75Hz
ON Mode: <40W
Power Consumption
OFF Mode: <1W
Analog: 135MHz
Dot Clock
Digital: 108MHz
Contrast Ratio 600:1
White Luminance 250cd/m
2
Max. Resolution 1280 x 1024
Plug & Play VESA DDC2BTM
Power Source 90~264VAC,47~63Hz
Display Color 16.1M colors (6-bits+FRC)
Maximum Screen Size
Horizontal : 376.32mm
Vertical: 301.056mm
Environmental
Considerations
Operating Temp: 10°C to 35°C
Storage Temp: -20°C to 60°C
Operating Humidity: 10% to 90%
Page 5
Gateway FPD1960
5
2. LCD MONITOR DESCRIPTION
The LCD MONITOR will contain a main board, a power board and two keypad boards which house the flat panel
control logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.
HOST Computer
AC-IN
100V-240V
PWPC board
(
Include: adapter, inverter)
Flat Panel and
CCFL backlight
Main Board
RS232 Connector
For white balance
adjustment in factory
mode
CCFL Drive.
Video signal,
Monitor Block Diagram
Keyboard
Keyboard
Page 6
Gateway FPD1960
6
3. OPERATING INSTRUCTIONS
3.1 GENERAL INSTRUCTIONS
Press the power button to turn the monitor on or off. The other control buttons are located in the side of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.
-
The power cord should be connected.
-
Connect the video cable from the monitor to the video card.
-
Press the power button to turn on the monitor, the power indicator will light up.
3.2 CONTROL BUTTONS
- Power Button:
When pressed, the monitor enters the off mode, and the LED turns blank. Press again to restore normal status.
- Left / Right Button:
The Left/Right Button is used to control the monitor functions. Press to switch functions or adjust settings.
- Auto Adjust Key:
The Auto Adjust Key is used to automatically set the H Position, V Position, Clock and Phase.
- Power Indicator:
Blue — Power On mode.
Orange — Power Saving mode.
Blank —Power Off Mode.
NO. Name
Within OSD
Without OSD
1 Input Back to previous menu Select input signal: Analog or Digital
2
Auto
Select Function or enter Sub menu
Auto configuration
3
/ ▲
1.Move the cursor up
2.Increase the value of the selected item
Activate the Brightness menu
4
/ ▼
1.Move the cursor down
2.Decrease the value of the selected item
Activate the contrast menu
5 MENU Exit the OSD menu Activate the OSD menu
①
②
③
④
⑤
⑥
Page 7
Gateway FPD1960
7
6 POWER Power On / Off Power On / Off
3.3 ADJUSTING THE PICTURE
Adjustment steps:
1. Press the MENU-button to activate the OSD window.
2. Press < or > to select the desired function.
3. Press the MENU-button to select the function that you want to adjust.
4. Press < or > to change the settings of the current function.
5. To exit and save, select the exit function, or leave the monitor alone for 10 seconds. If you want to adjust any
other function, repeat steps 2-4.

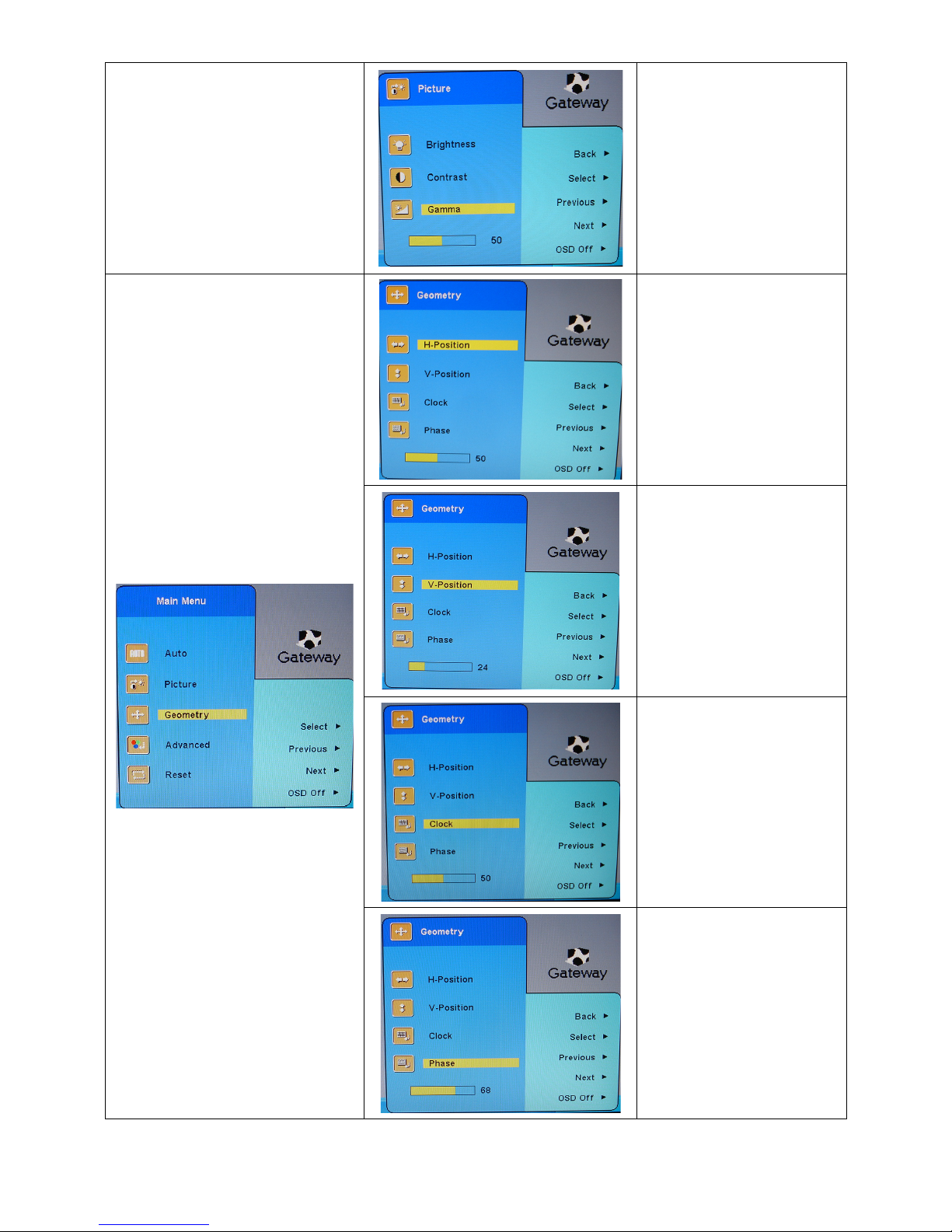

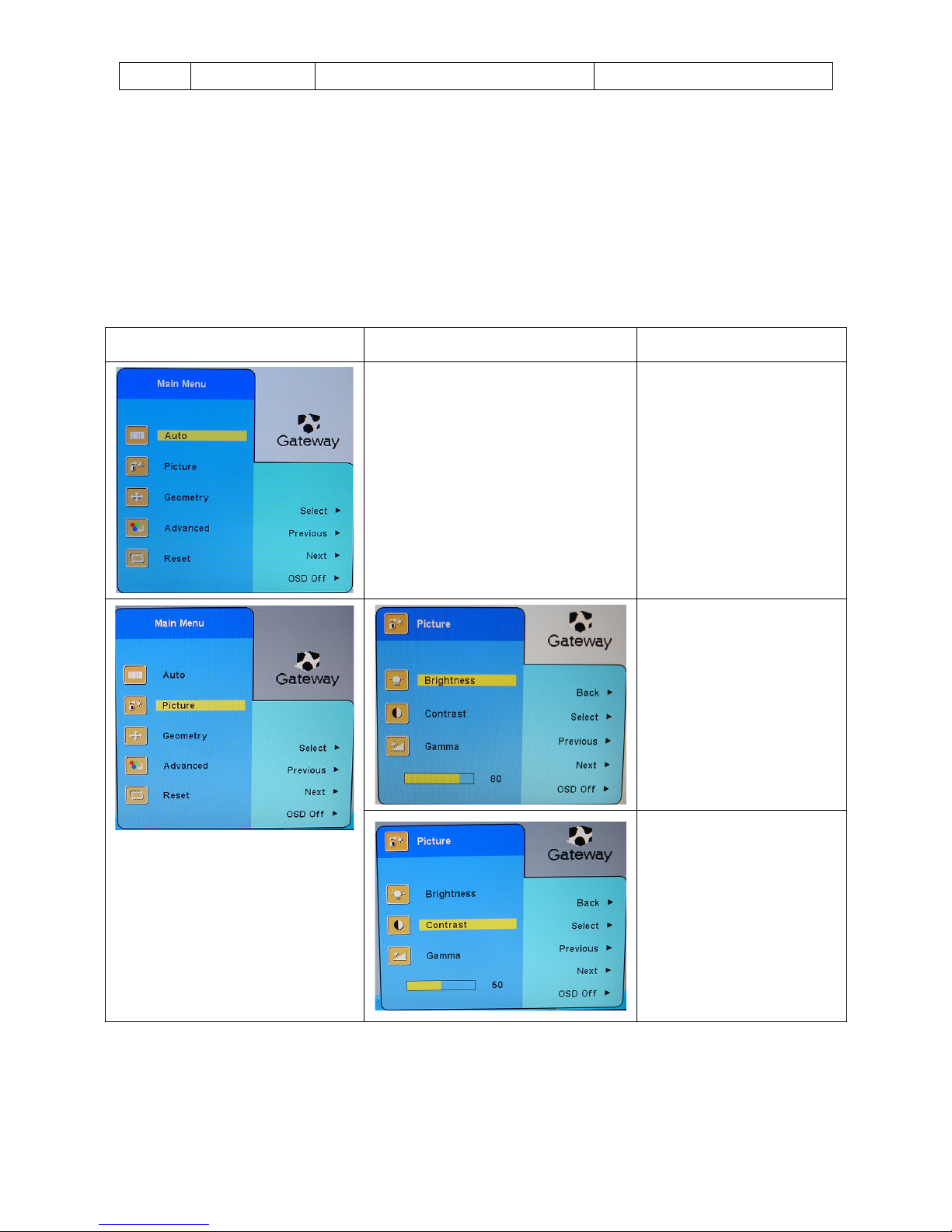

Main Menu Sub Menu Description
N/A Auto adjustment
Brightness adjustment
Contrast adjustment
Page 8
Gateway FPD1960
8
Gamma adjustment
Moves the display image left
and right.
Moves the display image up
and down.
Adjust picture Clock to reduce
Vertical-Line noise.
Adjust Picture Phase to
reduce Horizontal-Line noise.
Page 9
Gateway FPD1960
9
Customizes the color levels.
Change the language of the
OSD.
Change LED Brightness
modes between Day Mode
and Nite Mode.
Displays screen resolution,
the
current input mode, and
the OSD version.
N/A
Resets the monitor to its
factory settings.
Page 10
Gateway FPD1960
10
4. INPUT/OUTPUT SPECIFICATION
4.1 INPUT SIGANAL CONNECTOR
1. D-SUB connector
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. Red Video 9. No Pin!
2. Green Video 10. Ground
3. Blue Video 11. Ground
4. Ground 12. DDC-Serial Data
5. DDC-Return 13. H-Sync
6. Red Ground 14. V-Sync
7. Green Return 15. DDC-Serial Clock
8. Blue Return
Analog Connector
12345
10
12
11
6
13
14
15
2. DVI connector
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1.
TMDS data 2－
13.
TMDS data 3＋
2.
TMDS data 2＋
14.
＋5V Power
3. TMDS data 2/4 Shield 15. GND (for +5V)
4.
TMDS data 4－
16. Hot Plug Detect
5.
TMDS data 4＋
17.
TMDS data 0－
6. DDC Clock 18.
TMDS data 0＋
7. DDC Data 19. TMDS data 0/5 Shield
8. No Connect 20.
TMDS data 5－
9.
TMDS data 1－
21.
TMDS data 5＋
10.
TMDS data 1＋
22. TMDS Clock Shield
11. TMDS data 1/3 Shield 23. TMDS Clock +
12.
TMDS data 3－
24.
TMDS Clock －
Digital Connector
GCOCO
9 10 11
TMDS Data 1
+
-
19
SHLD 1/3
SHLD 0/5
1 2 3
TMDS Data 2
+-
SHLD 2/4
4 5
TMDS Data 2
+-
12 13 14
TMDS Data 3
+
-
20 21 22
TMDS Data 5
+
-
15816
NO
CONNECT
HOT PLUG
DETECT
+5V
GND
CLOCK
SHLD
23 24
TMDS CLOCK
-+
6 7
CLK
DATA
DDC
TMDS Data 0
18+17
-
Page 11
Gateway FPD1960
11
4.2 FACTORY PRESET DISPLAT MODES：
No
Mode
Name and Resolution
Hor. Frequency
(KHz) Vt. Frequency (Hz)
1 VGA 720x400 31.469 70.087
2 VGA 640x480 31.469 59.941
3 VESA 640x480 37.861 72.810
4 VESA 640x480 37.500 75.000
5 VESA 800x600 35.156 56.250
6 VESA 800x600 37.879 60.317
7 VESA 800x600 48.077 72.188
8 VESA 800x600 46.875 75.000
9 VESA 1024x768 48.363 60.004
10 VESA 1024x768 56.476 70.069
11 VESA 1024x768 60.023 75.029
12 VESA 1280x1024 63.980 60.020
13 VESA 1280x1024 79.976 75.025
4.3 PANEL SPECIFICATION
4.3.1 Features
z 19”SXGA TFT LCD panel
z 4 CCFLs Backlight system
z Supported SXGA (V:1024 lines, H:1280 pixels) resolution
z Supported to 75Hz refresh rate
z LCD Timing Controller
z Compatible with RoHS standard
Page 12
Gateway FPD1960
12
4.3.2 Display Characteristics
4.3.3 Optical Characteristics
Page 13
Gateway FPD1960
13
4.3.4 Parameter guide line for CCFL Inverter
1 TFT LCD Module
2 Backlight Units
Page 14
Gateway FPD1960
14
5. BLOCK DIAGRAM
5.1 MONITOR EXPLODED VIEW
NO. Part Name Part Number NO. Part Name Part Number
1 LEFT PLATE 23G3155-915-9A 13 BASE 34G6324-L-B
2 BEZEL 34G6325APC-B 14 BASE PLATE 15G6276-1
3 HOLD BRACKET-L 15G6295-1 15 RUBBER FOOT
4 PANEL 750GLH90E13-21 16 HINGE 37G6045-3
5 METAL COVER 15G6274-1 17 NECK BRACKET 15G6275-1
6 MYLAR 52G6025- 11-930 18 HOLD BRACKET-R 15G6296-1
7 PCB 19 RIGHT PLATE 23G3155-915-10A
8 METAL CASE 15G6273-2 20 POWER BOARD
9 REAR COVER 34G6326-TL-B 21 POWER BUTTON 33G6368-PC-L
10 MYLAR 52G6025- 11-931 22 POWER LENS 33G6371-1-C
11 WIRE CLAMP 33G6366-TL-L 23 KEY PAD 33G6369 TL-L
12 STAND 34G6321-TL-B 24 KEY BOARD
Page 15
Gateway FPD1960
15
5.2 SOFTWARE FLOW CHART
1
2
N
Y
5
Y
N
10
Y
N
12
Y
N
7
N
6
4
3
9
14
11
13
Y
N
15
Y
N
16
17
19
Y
N
18
Page 16
Gateway FPD1960
16
1) MCU initializes.
2) Is the EPROM blank?
3) Program the EPROM by default values.
4) Get the PWM value of brightness from EPROM.
5) Is the power key pressed?
6) Clear all global flags.
7) Are the AUTO and SELECT keys pressed?
8) Enter factory mode.
9) Save the power key status into EPROM.
Turn on the LED and set it to green color.
Scalar initializes.
10) In standby mode?
11) Update the lifetime of back light.
12) Check the analog port, are there any signals coming?
13) Does the scalar send out an interrupt request?
14) Wake up the scalar.
15) Are there any signals coming from analog port?
16) Display "No connection Check Signal Cable" message. And go into standby mode after the message
disappears.
17) Program the scalar to be able to show the coming mode.
18) Process the OSD display.
19) Read the keyboard. Is the power key pressed?
Page 17
Gateway FPD1960
17
5.3 ELECTRICAL BLOCK DIAGRAM
5.3.1 Main Board
Flash Memory
SST25VF010
(U402)
Scalar IC GM 5621
(Include MCU, ADC, OSD)
(U401)
D-Sub
Connector
(CN202)
EEPROM
24C02
(U202)
H sync
V sync
RGB
DB15_SDA,
DB15
_
SCL
LCD Interface
(CN501)
DVI-I only
Connector
(CN201)
EEPROM
24C02
(U201)
DDC2_SDA,
DDC2_SCL
D_H sync
D_V sync
D_RGB
OSD Control
Interface
(CN402)
Crystal
14.318MHZ
(X301)
Page 18
Gateway FPD1960
18
5.3.2 Inverter/Power Board
CN902
EMI filter
Bridge
Rectifier
and Filter
Start Circuit: R909、R910、 R931
PWM
Control IC
Transformer
Over
Voltage
Protect
Rectifier
diodes
AC input
12V
ON/OFF Control
PWM
Control IC
Feedback
Circuit
Output
Circuit
Transformer
MOSFET
Q805、Q806
Lamp
ON/OFF
DIM
PWM
Feedback
Circuit
12V
5V
Page 19
Gateway FPD1960
19
6. SCHEMATIC
6.1 MAIN BOARD
715G1691-1
+5V
R215 220 1/16W
RXC- (3)
R217 22K 1/16W
C212
0.047uF
FB202
60 OHM
GND
R223 75 1/16W
+3.3V_VDD
VGA_PLUG
CN202
DB15
1
6
2
7
3
8
4
9
5
11
12
13
14
15
10
1716
2005.05.20 FOR NMV Issue
ED107
SG168
VGA_5V
DDC_SCL_VGA(3)
R220 75 1/16W
R206 10 1/16W
GND
GND
RX1- (3)
R238 220 1/16W
GND
VS_IN
SDA_IN
2
DVI_EDID_WP (3)
RX2- (3)
GND
RX1-IN
R209 10 1/16W
DDC_SDA_A
ED104
SG168
DDC_SDA_VGA(3)
D209
BAV70
3
1
2
C209
0.1uF/16V
U201
M24C02WMN6
1
2
3
4 5
6
7
8
A0
A1
A2
VSS SDA
SCL
WC
VCC
Q201
2N7002E
3D
1
G
2
S
GND
+5V
GND
Bin
C218
NC
C214
0.1uF/16V
D211
BAV99
3
1
2
R202 10 1/16W
DDC_SCL_DVI (3)
ED103
SG168
R240
2.2K 1/16W
+5V
R239 220 1 /16W
GREEN- (3)
DVI_HPD
RX0+ (3)
GND
RXC-IN
D212
BAV99
3
1
2
RED+ (3)
SCL_IN
ED101
SG168
R205 10 1/16W
C217
NC
C215
0.047uF
RX2+ (3)
CABLE_DET (3)
ZD212
UDZS5.6B
FB204
430 OHM
FB203
60 OHM
C222
0.1uF/16V
(8 mil)
R203 10 1/16W
RX2+IN
ED108
SG168
ZD208
UDZS5.6B
ZD213
UDZS5.6B
+5V
GND
R212
4.7K 1/16W
R234
75 1/16W
R243 0 1/16W
ZD215
UDZS5.6B
BLUE+ (3)
R201 10K 1/16W
GND
ZD202
UDZS5.6B
Pins 6/7/8 are R/G/B
return lines resp.
BLUE- (3)
GND
R218 33K 1/16W
SDA_IN
Gin
(10 mil,
┰キ︽絬
)
C216
0.047uF
RX2-IN
R229 75 1/16W
R213
4.7K 1/16W
U202
M24C02WMN6
4
81
237
6
5
GND
VCCA0
A1A2WP
SCL
SDA
1
FB201
60 OHM
R241
2.2K 1/16W
DVI_HPD
VS (3)
CN201
JACK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
23
24
C1
16
22
C2
C3
C4
C5
25
26
T2T2+
SGND
T4-
T4+
DDCCLK
DDCDAT
A_VSYNC
T1-
T1+
SGND
T3-
T3+
+5V
GND
T0-
T0+
SGND
T5-
T5+
TC+
TC-
A_RED
HPD
SGND
A_GREEN
A_BLUE
A_HSYNC
A_GND
A_GND
A_GND
R216 220 1/16W
R222 100 1/16W
0522 ESD SOLUTION
A
Input Connectors
C
26Tuesday, November 08, 2005
Title
Size Document Number Rev
Date: Sheet
of
ZD203
UDZS5.6B
ED106
SG168
GND
+5V
AGND
HS (3)
R207 10 1/16W
C210
0.047uF
RED- (3)
RXC+IN
R233
75 1/16W
C201
1000pF
ZD201
UDZS5.6B
GREEN+ (3)
ZD211
UDZS5.6B
RX1+IN
RX0+IN
R226
4.7K 1/16W
GND
C213
0.047uF
R224 100 1/16W
+5V
AGND
GND
R204 10 1/16W
HOT_PLUG
+5V
R214
10K 1/16W
ZD204
UDZS5.6B
ZD214
UDZS5.6B
VGA_PLUG
HS_in
R211
10K 1/16W
ZD207
UDZS5.6B
SCL_IN
RX0-IN
3
D213
BAV99
3
1
2
C221
0.1uF/16V
D210
BAV70
3
1
2
C219
0.1uF/16V
R208 10 1/16W
ED105
SG168
C211
0.047uF
Rin
RX0- (3)
ZD209
UDZS5.6B
R210 220 1/16W
ED102
SG168
0522 ESD SOLUTION
DVI_5V
GND
R230 100 1/16W
R232 220 1/16W
R227
4.7K 1/16W
GND
GND
2005/04/22 Write protect
R235
75 1/16W
R228 220 1/16W
R242
10K 1/16W
C220
0.1uF/16V
RX1+ (3)
DDC_SCL_A
GND
DVI_5V
VGA_5V
RXC+ (3)
ZD210
UDZS5.6B
GND
GND
DDC_SDA_DVI (3)
R237 220 1/16W
75-ohm terminating resistor
very close to the VGA
conn.
Page 20
Gateway FPD1960
20
L301
120 OHM
(PWM1)
Standard SPI ROM
GND
C307
0.1uF/16V
3.3V_PVDD
1.8V_DVDD
GM5621 GM2621BC
3.3V_DDC
/WP
+3.3V_VDD
R317
4.7K 1/16W
LVDS_E5
NVRAM_SCL
DDC_SDA_DVI(2)
R312
4.7K 1/16W
C313
0.1uF/16V
Open
Ext. ROM JTAG Off
C321
0.1uF/16V
2
CONTROL GM2621
R323
4.7K 1/16W
R316
4.7K 1/16W
C335
0.1uF/16V
Close to respective power Pins
R329
GND
GND
BLUE-(2)
R313
NC
C334
0.1uF/16V
C324
0.1uF/16V
C328 33pF
RX2+(2)
/WP
RESETn
LVDS_O5
LED_TR(4)
LVDS_E[0..9]
R313
1.8V_AVDD
1
GND
RXC+(2)
R331 0 1/16W
GND
GND
3.3V_AVDD
LVDS_E4
C332
0.1uF/16V
LVDS_E1
R307
4.7K 1/16W
R314
GND
6.2K
3.3V_PVDD
R312
3.3V_AVDD
3.3V_DVDD
LVDS_E6
UDART_DO
R308
4.7K 1/16W
Standard SPI ROM
L303
120 OHM
U403
M24C16-MN6T
1
2
3
4 5
6
7
8
A0
A1
A2
VSS SDA
SCL
WC
VCC
3.3V_LAVDD
Open
PPWR (6)
Close to respective power Pins
UART on GPO
1.8V_AVDD
RED+(2)
UDART_DO
ROM_WP#
ZD301
UDZS5.6B
R325
NC
R319
NC
LVDS_O4
+
C301
22uF
R303
NC
Remove ROM_WP# function to GPIO12
3.3V_DVDD
U401
56
49
50
33
34
36
37
38
39
35
29
40
62
60
27
45
41
96
42
119
100
61
12
10
9
8
5
4
3
24
6
7
94
93
52
127
125
124
123
46
44
43
51
28
32
31
30
13
14
15
16
85
19
20
21
22
11
23
99
59
97
103
104
105
106
108
109
110
111
89
90
65
64
121
120
122
126
128
57
58
63
66
67
69
72
73
75
76
80
81
83
84
107
112
113
114
115
12648
1755118
87
9598102
91
116
53
10192827422547
687177
79
867870
185488
117
GPO_1
PBIAS
PWM0 / GP0_4
O_CLK_N
O_CLK_P
O_CH2_P
O_CH1_N
O_CH1_P
O_CH0_N
O_CH2_N
RESERVED
O_CH0_P
SPI_DO
SPI_CLK
RESERVED
RESERVED
RESERVED
GREEN+
RESERVED
PWM1 / GPO_5
RED-
SPI_DI
E_CH2_P
E_CLK_P
E_CLK_N
E_CH3_P
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
E_CH3_N
BLUE-
BLUE+
CRVSS
PPWR
GPIO_13
GPIO_12
GPIO_11
RESERVED
RESERVED
RESERVED
GPO_0
RESERVED
O_CH3_P
O_CH3_N
RESERVED
E_CH1_N
E_CH1_P
E_CH0_N
E_CH0_P
AVSS_DVI
RESERVED
RESERVED
RESERVED
RESERVED
E_CH2_N
RESERVED
RED+
SPI_CSn
GREEN-
AVSS_ADC
AVDD_ADC_18
VBUFC_RPLL
VDD_RPLL_18
XTAL
TCLK
AVDD_RPLL_33
RESETn
HSYNC
VSYNC
DDC_SDA_VGA
DDC_SCL_VGA
GPIO_9
GPIO_8
GPIO_10
GPIO_14
AVDD_BIAS_33
GPO_2
GPO_3
RESERVED
DDC_SCL_DVI
DDC_SDA_DVI
REXT
RX2+
RX2RX1+
RX1RX0+
RX0RXC+
RXC-
VSS_RPLL
LBADC_VSS
LBADC_IN3
LBADC_IN2
LBADC_IN1
AVSS_BIAS
VSS_OUT
VSS_OUT
CVDD_18
CVDD_18
CVDD_18
CVDD_18
AVSS_ADC
AVSS_ADC
AVSS_ADC
RVDD_33
LBADC_VDD_33
RVDD_33
AVDD_ADC_33
AVDD_ADC_33
AVDD_DVI_33
AVDD_DVI_33
VDD_OUT_33
VDD_OUT_33
VDD_OUT_33
AVSS_DVI
AVSS_DVI
AVSS_DVI
AVSS_DVI
AVDD_DVI_18
AVDD_DVI_18
AVDD_DVI_18
CRVSS
CRVSS
CRVSS
CRVSS
Boot-Strap Configuration:
3.3V_DVDD
NVRAM_SDA
L305
120 OHM
ATMEL_EN
NVRAM_SCL
+3.3V_VDD
LVDS_O8
R304
NC
Open
G-PROBE
Move ROM_WP# function to GPIO12
CN301
CONN
1
2
3
RX1+(2)
NC
L304
120 OHM
GND
LVDS_O[0..9]
PBIAS
L302
120 OHM
AUDIO_STDBY(4)
C314
0.1uF/16V
GPO_0
DDC_SDA_VGA(2)
R302 249 1/16W
10 KOhm
POWER_ON (4)
LVDS_E9
R301 10 1/16W
OPTIONAL
FOR
DEBUGGING
PURPOSES
ONLY
GND
0522
BOM
LOSE
LVDS_O[0..9] (5)
R329
NC
NC
BRIGHTNESS(6)
A
gm5621
C
16Tuesday, November 08, 2005
Title
Size Document Number Rev
Date: Sheet
of
C333
0.1uF/16V
+
C309
22uF
R305
4.7K 1/16W
GND
C323
0.1uF/16V
C306
0.1uF/16V
R314
NC
Reseerver GM2621 BC Version
GND
NVRAM_SDA
3.3V_PVDD
NC
GND
C317
0.1uF/16V
X301
14.318MHz
GND
GND
LVDS_E[0..9] (5)
3
(PWM0)
GND
RESETn
LBADC1 (4)
12K
LVDS_O7
LVDS_O0
+
C316
22uF
U302
G691L400T73
3
2
1
VCC
RSTN
GND
1K
DDC_SCL_VGA(2)
NC
GND
LED_O (4)
L306
120 OHM
DVI_EDID_WP(2)
LVDS_O3
UDART_DI
ROM_WP#
LVDS_E3
Default
GND
C326
0.1uF/16V
ATMELSPI ROM
3.3V_AVDD
LVDS_E0
R319
NC
U402
SST25VF010-20-4C-SA
1
2
3
4 5
6
7
8
CE#
SO
WP#
VSS SI
SCK
HOLD#
VDD
LVDS_E8
R315
4.7K 1/16W
Reserver GM2621 BC Version LVDS
GND
RX2-(2)
Internal reset ciriuit mount R313=4.7K
+5V
C320
0.1uF/16V
R310 100 1/16W
GREEN-(2)
PBIAS (6)
ROM_SDI
LVDS_E2
R324
4.7K 1/16W
PPWR
R330
10K 1/16W
3.3V_PVDD
RX0-(2)
+3.3V_VDD
3.3V_DVDD
C302
0.1uF/16V
ATMELSPI ROM
GND
V_EDID_ATMEL
GND
3.3V_DVDD
LVDS_O1
C303
0.1uF/16V
UDART_DI
C327 33pF
GM5621
C308
0.1uF/16V
Internal reset circuit mount R319=12K,R314=6.2K
+
C319
22uF
1.8V_DVDD
GND
3.3V_RVDD
C310
0.1uF/16V
+5V
LBADC2 (4)
R306
4.7K 1/16W
C311
0.1uF/16V
Open
NC
C329
0.01uF
+1.8V_VDD
ROM_SCLK
GND
RX0+(2)
UART on DDC
Cancel this circuit
DDC_SCL_DVI(2)
C322
0.1uF/16V
RED-(2)
R321
R309 100 1/16W
RXC-(2)
C331
0.1uF/16V
C330
0.1uF/16V
C312
0.1uF/16V
(SPI_CSn)
0522 ESD SOLUTION
HS(2)
C305
0.1uF/16V
C318
0.1uF/16V
NC
3.3V_LAVDD
4.7K
VS(2)
R318
4.7K 1/16W
Name
RX1-(2)
LED_B (4)
UART_PIN_SEL
LVDS_O2
LVDS_O9
+
C325
22uF
GND
LVDS_O6
R311 100 1/16W
BLUE+(2)
GREEN+(2)
CABLE_DET (2)
LVDS_E7
C304
0.1uF/16V
Page 21
Gateway FPD1960
21
+3.3V
KEY_LEFT
L404 300 OHM
C404
1000pF
C416
0.001uF
L401 300 OHM
C421
1000pF
+3.3V_VDD
R414 220 1/16W
VER D Modify led circuit.8-22
+3.3V_VDD
L405 300 OHM
R413 220 1/16W
+5V
C411
0.001uF
C407
1000pF
KEY_ONOFF
GND
+3.3V
LBADC1(3)
Q404
PMBS3906
GND
ZD401UDZS5.6B
GND
KEYPAD
B
46Tuesday, November 08, 2005
Title
Size Document Number Rev
Date: Sheet
of
GND
GND
KEY_INFO
Q403
PMBS3906
R428 Change 47K key R Change 1%
VER D Modify led circuit.8-22
CN401
CONN
1 2
3 4
5 6
7 8
9 10
11 12
13 14
R419 30K 1/16W
R405
47K 1/16W
POWER_ON(3)
R430
10K 1/16W
GND
+3.3V
ZD405
UDZS5.6B
C417
NC
KEY_LEFT
C409
1uF/25V
GND
GND
GND
C405
1000pF
09-14 ESD
SOLUTION
LED LIGHT CONTROL
7-11
GND
LED_TR(3)
LED_O
C401
NC
R410 47K 1/16W
R426 10K 1/16W
C402
NC
KEY_MENU
R402
4.7K 1/16W
KEY_AUTO
R407
150 1/16W
C415
0.001uF
GND
GND
R429
0 1/16W
C420
1000pF
MUTE
ZD406
UDZS5.6B
GND
C412
0.001uF
Q402
PMBS3904
GND
LED_ORANGE
C413
0.001uF
R424 4.7K 1/16W
AUDIO_STDBY (3)
KEY_MENU
R406
47K 1/16W
LED_Blue
R420 22K 1/16W
R415 220 1/16W
GND
LED_B
C408
0.1uF/16V
ESD Soluction 0630
GND
R418
10K 1/16W
R425 100 1/16W
+5V
GND
LBADC2(3)
STANDBY
R432
220 1/16W
R428 47K 1/16W
KEY_RIGHT
ADD KEY_INFO 6-27
KEY_INFO
KEY_AUTO
GNDGND
C414
0.001uF
R431
10K 1/16W
R417
10K 1/16W
+12V
GND
ZD402UDZS5.6B
R403 NC
L402 300 OHM
GND
GND
LED_B(3)
C410
1uF/25V
C406
1000pF
R412 220 1/16W
R427
100 1/16W
D401
BAV99
3
1
2
KEY_ONOFF
L403 300 OHM
KEY_RIGHT
CN402
CON16A
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
R411 220 1/16W
ADD KEY_INFO 6-27
LED_O (3)
R401
NC
GND
GND
R408
150 1/16W
R416
10K 1/16W
R421 22K 1/16W
ZD403UDZS5.6B
NOT USE -Gateway project
(audio function)
R422 30K 1/16W
ZD404
UDZS5.6B
GND
Q401
PMBS3906
+5V
R409 47K 1/16W
Page 22
Gateway FPD1960
22
RXO2- LVDS_O5
LVDS_E2
LVDS_E3
RXE3-
LVDS_O6
RXO2+
RXE0-
LVDS_O1
RXO3+
RXO3-
A
PANEL INTERFACE
A
56Tuesday, November 08, 2005
Title
Size Document Number Rev
Date: Sheet
of
+VLCD
LVDS_O9
LVDS_E0
LVDS_O7
RXE1+
LVDS_E5
LVDS_O3
LVDS_E5
+
C501
22uF
RXE2RXEC-
RXE3+
LVDS_O7
LVDS_E8
LVDS_O1
RXE0+
RXOC+
CN501
CONN
2
4
6
8
10
12
14
16
18
20
22
24
1
3
5
7
9
11
13
15
17
19
21
23
LVDS_O[0..9](3)
LVDS_E2
LVDS_E1
RXO1-
LVDS_E9
LVDS_O3
C503
NC
RXE2+
LVDS_E3
LVDS_O4
LVDS_E7
LVDS_E0
LVDS_O6
LVDS_E[0..9](3)
LVDS_E6
LVDS_E7
LVDS_O4
GND
LVDS_E8
R501
1K 1/16W
LVDS_O0
LVDS_O9
LVDS_E9
GND
LVDS_E6
LVDS_O0
LVDS_O5
LVDS_O2
LVDS_O8
RXO1+
C502
0.1uF/16V
LVDS_E1
RXE1-
LVDS_O2
LVDS_E4
RXOC-
GND
RXO0+
RXO0-
15.4mA
RXEC+
LVDS_E4
LVDS_O8
Page 23
Gateway FPD1960
23
BRIGHTNESS(3)
R610
NC
VCC5V
A
POWER
B
16Tuesday, November 08, 2005
Title
Size Document Number Rev
Date: Sheet
of
R602
1K 1/16W
ON_OFF
1.435A
+
C601
220uF/25V
+5V
C613
0.1uF/16V
Q602
AO3401
1
3
2
GND
CN601
CON402(PITCH 2.00)
1
3
5
7
9
11
2
4
6
8
10
12
C616
1uF/16V
0.8A-max
R609
47K 1/16W
GND
FB605
0 OHM
FB602
300 OHM
R608
47K 1/16W
VCC12V
0522 Inrush Solution
+5V
PBIAS (3)
GND
D601
FA20-04
GNDFB603
300 OHM
C607
0.1uF/16V
+12V
C608
0.1uF/16V
C614
1uF/16V
+
C615
22uF
+3.3V_VDD
GND
+VLCD
GND
+3.3V_VDD
GND
GND
+5V
+5V
PPWR(3)
C618
0.068uF/16V
GND
204mA
GND
Cancel C618,Add C617 1UF for
17"HSD and 19"HSD panel
+
C602
220uF/25V
+12V
+1.8V_VDD
+
C605
220uF/25V
+5V
GND
+5V
VCC5V
+
C609
NC
GND
+
C610
22uF
FB601
300 OHM
R601 4.7K 1/16W
+
C606
220uF/25V
VCC12V
R604
1K 1/16W
C612
0.1uF/16V
GND
C617
NC
Add C616
C604
0.1uF/16V
GND
Add C609 22UF for 17" CMO
panel
R603
1K 1/16W
GND
GND
142mA
GND
U601
AIC1084-33M
3
1
2
VIN
ADJ
VOUT
GND
U602
AZ1117D-1.8
123
ADJ/GND
OUTPUT
INPUT
GND
GND
Q603
PMBS3904
32
1
R607
NC
C603
0.1uF/16V
Q601
PMBS3904
32
1
D602
FA20-04
GND
R606
0 1/16W
+
C611
220uF/25V
GND
R605
47K 1/16W
Page 24
Gateway FPD1960
24
6.2 POWER BOARD
715G1695-1
Page 25
Gateway FPD1960
25
Page 26
Gateway FPD1960
26
7. PCB LAYOUT
7.1 MAIN BOARD
715G1691-1
Page 27
Gateway FPD1960
27
7.2 POWER BOARD
715G1695-1
7.3 KEY BOARD
715G1707-1-19
715G1706-1
Page 28
Gateway FPD1960
28
8. MAINTAINABILITY
8.1 EQUIPMENTS AND TOOLS REQUIREMENT
1. Voltmeter.
2. Oscilloscope.
3. Pattern Generator.
4. DDC Tool with an IBM Compatible Computer.
5. Alignment Tool.
6. LCD Color Analyzer.
7. Service Manual.
8. User Manual.
Page 29
Gateway FPD1960
29
8.2 TROUBLE SHOOTING
8.2.1 Main Board
No power
No power
Press power key and look
if the picture is normal
Please reinsert and make sure
the AC of 100-240 is normal
Measure U602 PIN2=1.8V
U601 PIN2=3.3V
Reinsert or check the
Adapter/Inverter
section
X301 oscillate waveforms
are normal
Check CN601 or replace
U601, U602
Replace U401
Replace X301
OK
OK
OK
NG
OK
NG
NG
Page 30
Gateway FPD1960
30
No picture (LED orange)
No picture
Measure U602 PIN2=1.8V
U601 PIN2=3.3V
Replace U401
X301 oscillate
waveform is normal
Replace
U601, U602
OK
OK
OK
NG
Check HS/VS from
CN202 is normal
Replace X301
Check Correspondent
component
NG
NG
Replace U401
Whether the reset
of the Scalar IC is
useful?
Check U302, C333,
C329, ZD301
NG
OK
Page 31
Gateway FPD1960
31
White screen
White screen
Measure Q603 base
is low level?
X301 oscillate
waveform is normal
Check Q603, Q602 is
broken or CN501 solder?
Check Correspondent
component.
Replace PANEL
Check Correspondent
component.
Replace U401
OK
OK
OK
Replace X301
OK
NG
NG
NG
NG
Check reset circuit of
U401 is normal
Page 32
Gateway FPD1960
32
8.2.2 Power/Inverter Board
No power
Check bridge rectified circuit and F901 circut
1) Check IC901
2) Check IC904, D906, D907…OVP circuit
Check CN902 pin5, 6 = 12V
Check the voltage of C905(+)
Check start voltage for the pin3 of IC901
Check R909,R910,R931 and Change IC901
NG
Check the auxiliary voltage is bigger than
10V and smaller than 20V
NG
NG
NG
Check Q903, R904, T901, D902, D904,
D905, L903, L904, ZD902, ZD904
Check IC901 pin8 PWM wave
Check IC901
NG
OK
NG
OK
OK
OK
OK
Check AC line volt 110V or 220V
Check AC input
Page 33
Gateway FPD1960
33
W / LED, No Backlight
Check VDDA, ENA
VDDA=4.75~5.25V
;
ENA>3V
OK
NG
Check On/Off loop Circuit
Check ISEN(pin5) normally
Check ISEN loop components
NG
End Striking function debug
Connect TIMER (Pin3) to GND
Check ENA(pin10), OVPT(pin7), CT(pin13), DRV1(pin1),
DRV2
(p
in15) of IC801
Check half bridge power conversion
circuit and Transformer output circuit
OK
NG
Change IC801
OK
OK
Check VSEN(pin6) of IC801
Judge VSEN>0.7V&<OVPT
OK
Check VSEN circuit form lamp’s
return to VSEN(pin6) of IC801
NG
Check pin3 voltage of D801,
D803<2V
OK
End VSEN circuit and
Protection loop debug
Check Protection
circuit, Components
short, open or fail
NG
OK
Page 34
Gateway FPD1960
34
8.2.3 Keypad Board
OSD is unstable or not working
Is Key Pad Board connecting normally?
Connect Key Pad Board
Is Button Switch normally?
Replace Button Switch
Y
N
N
Is Key Pad Board normally?
Replace Key Pad Board
Y
N
Y
Check Main Board
Page 35
Gateway FPD1960
35
９.WHITE-BALANCE, LUMINANCE ADJUSTMENT
Approximately 30 minutes should be allowed for warm up before proceeding White-Balance adjustment.
1. How to do the Chroma-7120 MEM. Channel setting
A. Reference to chroma 7120 user guide
B. Use “ SC” key and “ NEXT” key to modify XyY value and use “ID” key to modify the
TEXT description Following is the procedure to do white-balance adjust
2. Setting the color temp. you want
A. MEM.CHANNEL 3 (7800 color):
7800 color temp. parameter is x = 283 ±30, y = 298 ±30, Y = 180 cd/m
2 ,
B. MEM.CHANNEL 4 (6500 color):
6500 color temp. parameter is x = 313±30, y = 329 ±30, Y =180 cd/m2
3. Into factory mode of Gateway FPD1960
Turn on power, press the MENU button, pull out the power cord, and then plug the power cord. Then the factory
OSD will be at the left top of the panel.
4. Bias adjustment:
Set the Contrast
to 50; Adjust the Brightness to 80.
5. Gain adjustment:
Move cursor to “-F-” and press MENU key
A. Adjust 7800 color-temperature
1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM. Channel to Channel 3 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 283 ±20, y = 298±20, Y =180 cd/m
2
4. Adjust the RED of color1 on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color1 on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE of color1 on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
B. Adjust 6500 color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 4(with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 313 ±30, y = 329 ±30, Y = 180 cd/m
2
4. Adjust the RED of color3 on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color3 on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE of color3 on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
C. Turn the Power-button off to quit from factory mode.
Page 36
Gateway FPD1960
36
10. EDID CONTENT
1. Analog EDID
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
0: 00 FF FF FF FF FF FF 00 1E F9 B1 07 42 58 0D 00
16: 2B 0F 01 03 68 26 1E 78 EA A2 A5 A3 57 4C 9D 25
32: 11 50 54 AF CF 00 81 80 01 01 01 01 01 01 01 01
48: 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
64: 13 00 78 2D 11 00 00 1E 00 00 00 FF 00 32 31 33
80: 36 35 34 39 38 37 34 35 36 32 00 00 00 FC 00 46
96: 50 44 31 39 36 30 0A 20 20 20 20 20 00 00 00 FD
112: 00 38 4B 1E 53 0E 00 0A 20 20 20 20 20 20 00 B9
2. Digital EDID
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
0: 00 FF FF FF FF FF FF 00 1E F9 B2 07 A1 E6 0E 00
16: 2B 0F 01 03 E8 26 1E 78 EA A2 A5 A3 57 4C 9D 25
32: 11 50 54 AF CF 00 81 80 01 01 01 01 01 01 01 01
48: 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
64: 13 00 78 2D 11 00 00 1E 00 00 00 FF 00 31 33 32
80: 36 35 34 38 39 37 36 35 34 35 00 00 00 FC 00 46
96: 50 44 31 39 36 30 0A 20 20 20 20 20 00 00 00 FD
112: 00 38 4B 1E 53 0E 00 0A 20 20 20 20 20 20 00 47
Page 37
Gateway FPD1960
37
11. BOM LIST
T980KHCHKGGYNP
Location Part NO for TPV Description Quantity Unit
AIK780KGYSMTP KEY BOARD 1 PCS
CBPC980KHCGYP CONVERSION BOARD 1 PCS
KEPC780KG1P KEY BOARD 1 PCS
PWPC1942CMW1P POWER BOARD 1 PCS
11G6086 1 CLIP 1 PCS
11G6095 1 SHORE 1 PCS
11G6099 1 SUPPORT 1 PCS
12G6215 1 RUBBER PAD 5 PCS
15G5689 2 A GND CLAMP 2 PCS
15G6273 2 METAL CASE 1 PCS
15G6274 1 METAL COVER 1 PCS
15G6295 1 HOLD BKT-L 1 PCS
15G6296 1 HOLD BKT-R 1 PCS
23G3178915 2A GATEWAN LOGO 1 PCS
33G6367 TL L HINGE COVER 1 PCS
33G6368 PC L POWER BUTTON 1 PCS
33G6369 TL L BUTTON-FUNC 1 PCS
33G6371 1 C POWER LENS 1 PCS
34G6326 TL B REAR COVER 1 PCS
37G6045 3 HINGE 1 PCS
40G 190915 1 ID LABEL 1 PCS
40G 581915 2A E-MACHINES LOGO LABEL 1 PCS
40G 581915 4A DVI LABEL 1 PCS
40G 581915 5A AC LABEL 1 PCS
44G3942 1 EPS(L) 1 PCS
44G3942 2 EPS(R) 1 PCS
44G3942 3EPE EPE 1 PCS
44G3942624 1A CARTON 1 PCS
45G 76 31 RN PR BAG FOR BASE 1 PCS
45G 88609GT2 EPE BAG 1 PCS
52G 1186 SMALL TAPE 8 CM
52G 1205 A ALUMINIUM TAPE 1 PCS
52G 1210 A ALUMINIUM TAPE 2 PCS
52G 1211516 ALUMINUM TAPE 1 PCS
52G6025 11930 MYLAR 1 PCS
Page 38
Gateway FPD1960
38
52G6025 11931 MYLAR 1 PCS
89G602A18N IS POWER CORD 1 PCS
95G8018 30637 LVDS CABLE 1 PCS
M1G 130 4128 SCREW 1 PCS
M1G 330 4128 SCREW M3X4 2 PCS
M1G1340 5 47 SCREW 4 PCS
M1G1730 6128 SCREW M3x6 7 PCS
M1G1740 6128 SCREW 1 PCS
M1G1740 8128 SCREW M4X8 2 PCS
M1G1740 10225 SCREW 1 PCS
M1G3130 5128 SCREW 4 PCS
Q1G 330 5128 SCREW 2 PCS
Q1G 330 6128 SCREW 2 PCS
Q1G 330 8 47 SCREW 3X8mm 2 PCS
Q1G 330 8128 SCREW PH K30X8 PT 11 PCS
705G980KP34025 19" LCD COVER ASS'Y 1 PCS
E089B 89G1738LAA DG SIGNAL CABLE 1 PCS
E095A 95G8014 10519 D HARNESS 1 PCS
E095B 95G8014 16636 D HARNESS 1 PCS
E750L 750GLH90E13 21 HSD 19" A02 PANEL 1 PCS
705G980KP34025
15G6275 1 MECK BKT 1 PCS
15G6276 1 BASE PLATE 1 PCS
23G3155915 9A LEFT PLATE 1 PCS
23G315591510A RIGHT PLATE 1 PCS
33G6366 TL L WIRE CLAMP 1 PCS
34G6321 TL B STAND] 1 PCS
34G6324 TL B BASE 1 PCS
34G6325APC B BEZEL 1 PCS
Q1G2430 6120 SCREW 8 PCS
Q1G2430 6120 SCREW 7 PCS
AIK780KGYSMTP
715G1706 1 PCB BOARD 1 PCS
CN102 33G8034 6S 6PIN 1MM 1 PCS
SW102 77G 606501 CJ TACT SWITCH 1 PCS
SW103 77G 606501 CJ TACT SWITCH 1 PCS
SW104 77G 606501 CJ TACT SWITCH 1 PCS
SW105 77G 606501 CJ TACT SWITCH 1 PCS
Page 39
Gateway FPD1960
39
SW106 77G 606501 CJ TACT SWITCH 1 PCS
CBPC980KHCGYP
AIC980KHCGYP MAIN BOARD 1 PCS
40G 45762412B CBPC LABEL 1 PCS
C301 67G215Y2207RV RUBYCON 50V 22UF 1 PCS
C309 67G215Y2207RV RUBYCON 50V 22UF 1 PCS
C316 67G215Y2207RV RUBYCON 50V 22UF 1 PCS
C319 67G215Y2207RV RUBYCON 50V 22UF 1 PCS
C325 67G215Y2207RV RUBYCON 50V 22UF 1 PCS
C501 67G215Y2207RV RUBYCON 50V 22UF 1 PCS
C601 67G215V221 4R LOW E.S.R 220UF +/-20% 1 PCS
C602 67G215V221 4R LOW E.S.R 220UF +/-20% 1 PCS
C605 67G215V221 4R LOW E.S.R 220UF +/-20% 1 PCS
C606 67G215V221 4R LOW E.S.R 220UF +/-20% 1 PCS
C610 67G215Y2207RV RUBYCON 50V 22UF 1 PCS
C611 67G215V221 4R LOW E.S.R 220UF +/-20% 1 PCS
C615 67G215Y2207RV RUBYCON 50V 22UF 1 PCS
CN201 88G 35424F H DV1 CONNECTOR 24PIN 1 PCS
CN202 88G 35315F H D-SUB 15PIN 1 PCS
CN402 33G8027 16 WAFER 16PIN 2.0mm DIP 1 PCS
CN501 33G8027 24 CONN W TO B 12P*2 P*2.0 1 PCS
CN601 33G8027 12 WAFER 2*6P 2.0MM R/A 1 PCS
U401 90G6250 1 GP HEAT SINK 1 PCS
X301 93G 22 53 CRYSTAL 14.318MHzHC-49U 1 PCS
40G 457624 1B LABEL-CPU 1 PCS
715G1691 1 PCB BOARD 1 PCS
C201 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C209 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C210 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C211 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C212 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C213 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C214 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C215 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C216 65G0603473 32 CHIP 0.047UF 50V X7R 1 PCS
C219 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C220 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C302 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
Page 40
Gateway FPD1960
40
C303 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C304 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C305 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C306 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C307 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C308 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C310 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C311 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C312 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C313 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C314 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C317 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C318 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C320 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C321 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C322 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C323 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C324 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C326 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C327 65G0603330 31 CER1 0603 NP0 50V 33P P 1 PCS
C328 65G0603330 31 CER1 0603 NP0 50V 33P P 1 PCS
C329 65G0603103 32 0.01UF +-10% 50V X7R 1 PCS
C330 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C332 65G0603224 12 CHIP 0.22UF +-10% 16V X 1 PCS
C333 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C334 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C335 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C404 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C405 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C406 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C407 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C408 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C411 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C412 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C413 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C414 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C415 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C416 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
Page 41
Gateway FPD1960
41
C420 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C421 65G0603102 32 1000PF +-10% 50V X7R 1 PCS
C502 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C603 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C604 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C607 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C608 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C612 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C613 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C614 65G0603104 12 CER2 0603 X7R 16V 100N 1 PCS
C616 65G0603105 12 CHIP 1UF 16VX7R 0603 1 PCS
C617 65G0603105 12 CHIP 1UF 16VX7R 0603 1 PCS
D209 93G 64 42 P BAV70 SOT-23 1 PCS
D210 93G 64 42 P BAV70 SOT-23 1 PCS
D211 93G 64 33 DIO SIG SM BAV99 (PHSE) 1 PCS
D212 93G 64 33 DIO SIG SM BAV99 (PHSE) 1 PCS
D213 93G 64 33 DIO SIG SM BAV99 (PHSE) 1 PCS
D401 93G 64 33 DIO SIG SM BAV99 (PHSE) 1 PCS
D601 93G2040 3F FA20-04 1 PCS
D602 93G2040 3F FA20-04 1 PCS
ED101 93G 64 40 PC DIODE 1 PCS
ED102 93G 64 40 PC DIODE 1 PCS
ED103 93G 64 40 PC DIODE 1 PCS
ED104 93G 64 40 PC DIODE 1 PCS
ED105 93G 64 40 PC DIODE 1 PCS
ED106 93G 64 40 PC DIODE 1 PCS
ED107 93G 64 40 PC DIODE 1 PCS
ED108 93G 64 40 PC DIODE 1 PCS
FB201 71G 59C600 CHIP BEAD 1 PCS
FB202 71G 59C600 CHIP BEAD 1 PCS
FB203 71G 59C600 CHIP BEAD 1 PCS
FB204 71G 59B431 BK1608 HW 431 1 PCS
FB601 71G 56G301 EA BEAD 300 1 PCS
FB602 71G 56G301 EA BEAD 300 1 PCS
FB603 71G 56G301 EA BEAD 300 1 PCS
FB605 61L0805000 CHIP O OHM 1/8W 1 PCS
L301 71G 56K121 CHIP BEAD 1 PCS
L302 71G 56K121 CHIP BEAD 1 PCS
Page 42
Gateway FPD1960
42
L303 71G 56K121 CHIP BEAD 1 PCS
L304 71G 56K121 CHIP BEAD 1 PCS
L305 71G 56K121 CHIP BEAD 1 PCS
L306 71G 56K121 CHIP BEAD 1 PCS
L401 71G 59C600 CHIP BEAD 1 PCS
L402 71G 59C600 CHIP BEAD 1 PCS
L403 71G 59C600 CHIP BEAD 1 PCS
L404 71G 59C600 CHIP BEAD 1 PCS
L405 71G 59C600 CHIP BEAD 1 PCS
Q201 57G 758 1 2N7002ESOT23 SILICONIX 1 PCS
Q401 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q402 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
Q403 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q404 57G 417 6 PMBS3906/PHILIPS-SMT(06 1 PCS
Q601 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
Q602 57G 763 1 A03401 SOT23 BY AOS(A1) 1 PCS
Q603 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
R201 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R202 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R203 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R204 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R205 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R206 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R207 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R208 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R209 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R210 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R211 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R212 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R213 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R214 61L0603100 2F 10K 1% 1/10W 1 PCS
R215 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R216 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R217 61L0603223 CHIPR 22K OHM +-5% 1/10 1 PCS
R218 61L0603303 CHIP 30K OHM 5% 1/10W 1 PCS
R220 61L0603750 RST SM 0603 RC22H 75R P 1 PCS
R222 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R223 61L0603750 RST SM 0603 RC22H 75R P 1 PCS
Page 43
Gateway FPD1960
43
R224 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R226 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R227 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R228 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R229 61L0603750 RST SM 0603 RC22H 75R P 1 PCS
R230 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R232 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R233 61L0603750 9F 75OHM 1% 1/10W 1 PCS
R234 61L0603750 9F 75OHM 1% 1/10W 1 PCS
R235 61L0603750 9F 75OHM 1% 1/10W 1 PCS
R237 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R238 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R239 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R240 61L0603222 RST SM 0603 RC0603 2K2 1 PCS
R241 61L0603222 RST SM 0603 RC0603 2K2 1 PCS
R242 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R243 61L0603000 RST SM 0603 JUMP MAX 0R 1 PCS
R301 61L0603100 CHIP 10 OHM 1/10W 1 PCS
R302 61L0603249 0F CHIP 249OHM 1/16W 1% 1 PCS
R305 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R315 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R316 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R317 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R318 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R323 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R324 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R329 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R330 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R331 61L0603000 RST SM 0603 JUMP MAX 0R 1 PCS
R402 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R405 61L0603473 RST SM 0603 RC0603 47K 1 PCS
R406 61L0603473 RST SM 0603 RC0603 47K 1 PCS
R407 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R408 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R409 61L0603223 CHIPR 22K OHM +-5% 1/10 1 PCS
R410 61L0603223 CHIPR 22K OHM +-5% 1/10 1 PCS
R411 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R412 61L0603221 RST SM 0603 RC0603 220R 1 PCS
Page 44
Gateway FPD1960
44
R413 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R414 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R415 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R416 61L0603100 2F 10K 1% 1/10W 1 PCS
R417 61L0603100 2F 10K 1% 1/10W 1 PCS
R418 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R419 61L0603303 CHIP 30K OHM 5% 1/10W 1 PCS
R420 61L0603223 CHIPR 22K OHM +-5% 1/10 1 PCS
R421 61L0603223 CHIPR 22K OHM +-5% 1/10 1 PCS
R422 61L0603303 CHIP 30K OHM 5% 1/10W 1 PCS
R424 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R425 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R426 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R427 61L0603101 RST SM 0603 RC0603 100R 1 PCS
R428 61L0603473 RST SM 0603 RC0603 47K 1 PCS
R429 61L0603000 RST SM 0603 JUMP MAX 0R 1 PCS
R430 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R431 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R432 61L0603221 RST SM 0603 RC0603 220R 1 PCS
R501 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R601 61L0603472 RST SM 0603 RC0603 4K7 1 PCS
R602 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R603 61L0603102 RST SM 0603 RC0603 1K P 1 PCS
R604 61L0603473 RST SM 0603 RC0603 47K 1 PCS
R605 61L0603104 RST SM 0603 RC0603 100K 1 PCS
R606 61L0603000 RST SM 0603 JUMP MAX 0R 1 PCS
R608 61L0603103 RST SM 0603 RC0603 10K 1 PCS
R609 61L0603103 RST SM 0603 RC0603 10K 1 PCS
U201 56G1133 34 M24C02-WMN6TP 1 PCS
U202 56G1133 34 M24C02-WMN6TP 1 PCS
U302 56G 643 13 G691L400T73UF SOT-23 GM 1 PCS
U401 56G 562 97 GM 5621-LF-AA 1 PCS
U402 56G1133 59HG1 SST25VF010 1 PCS
U601 56G 563 7 AIC1084-33PM 1 PCS
U602 56G 563 31 AI1117D-1.8-EI 1 PCS
ZD201 93G 39S 34 T UDZS5.6B 1 PCS
ZD202 93G 39S 34 T UDZS5.6B 1 PCS
ZD203 93G 39S 34 T UDZS5.6B 1 PCS
Page 45
Gateway FPD1960
45
ZD204 93G 39S 34 T UDZS5.6B 1 PCS
ZD207 93G 39S 34 T UDZS5.6B 1 PCS
ZD208 93G 39S 34 T UDZS5.6B 1 PCS
ZD209 93G 39S 34 T UDZS5.6B 1 PCS
ZD210 93G 39S 34 T UDZS5.6B 1 PCS
ZD211 93G 39S 34 T UDZS5.6B 1 PCS
ZD212 93G 64 49 SU EGA10603 V05 1 PCS
ZD213 93G 64 49 SU EGA10603 V05 1 PCS
ZD214 93G 64 49 SU EGA10603 V05 1 PCS
ZD215 93G 64 49 SU EGA10603 V05 1 PCS
ZD301 93G 64 49 SU EGA10603 V05 1 PCS
ZD401 93G 39S 34 T UDZS5.6B 1 PCS
ZD402 93G 39S 34 T UDZS5.6B 1 PCS
ZD403 93G 39S 34 T UDZS5.6B 1 PCS
ZD404 93G 39S 34 T UDZS5.6B 1 PCS
ZD405 93G 39S 34 T UDZS5.6B 1 PCS
ZD406 93G 39S 34 T UDZS5.6B 1 PCS
KEPC780KG1P
715G1707 1 19 PCB BOARD 1 PCS
CN101 33G8015 4 H CONNECTOR 1 PCS
DP101 81G 12 7 GP LED 1 PCS
SW101 77G 605 1 CJ TSAB-2 1 PCS
PWPC1942CMW1P
PW1942CMW1SMTP POWER BOARD FOR SMT 1 PCS
40G 45762420A GP CBPC LABEL 25X6mm 1 PCS
705G 560 61GTW NR901 ASS'Y 1 PCS
705G 780 57 05 Q903 ASS'Y 1 PCS
705G 780 87 20 AC SOCKET ASS'Y 1 PCS
705G 780 93 05 D902 ASS'Y 1 PCS
C811 67G215D471 4K ED 470UF 25V 1 PCS
C816 65G 3J1506EM 15PF/3KV 1 PCS
C817 65L 3J5096ET 5PF 5% SL 3KV 1 PCS
C820 67G215D471 4K ED 470UF 25V 1 PCS
C825 65G 3J1506EM 15PF/3KV 1 PCS
C826 65L 3J5096ET 5PF 5% SL 3KV 1 PCS
C901 65G306M1022BP 1000PF Y1.CAP 1 PCS
C902 65G306M1022BP 1000PF Y1.CAP 1 PCS
C904 67G215D471 4K ED 470UF 25V 1 PCS
Page 46
Gateway FPD1960
46
C905 67G215S10115K 100UF 450V 1 PCS
C906 67G215D471 4K ED 470UF 25V 1 PCS
C908 67G215D471 4K ED 470UF 25V 1 PCS
C909 67G215D471 4K ED 470UF 25V 1 PCS
C911 67G215D471 4K ED 470UF 25V 1 PCS
C921 65G306M1022BP 1000PF Y1.CAP 1 PCS
CN801 33G8021 2D U 3.5mm WAFER 1 PCS
CN802 33G8021 2D U 3.5mm WAFER 1 PCS
CN803 33G8021 2D U 3.5mm WAFER 1 PCS
CN804 33G8021 2D U 3.5mm WAFER 1 PCS
CN902 95G8014 12531 WIRE HARNESS 1 PCS
D907 93G 6038T52T FR103 1 PCS
DB901 93G 50460 16 U4KB80R 1 PCS
HS3 90G6276 1 V HEATSINK 1 PCS
IC902 56G 139 3B PC123 Y82FZ0F 1 PCS
L901 73L 174 50 LH LINE FILTER 1 PCS
L902 73G 174 65 LS LINE FILTER BY LISHIN 1 PCS
L903 73G 253 91 L CHOKE BY LI TA 1 PCS
L904 73G 253 91 L CHOKE BY LI TA 1 PCS
P051 51G 6 4503 RTV 2 G
PT801 80GL19T 8 DN OZ9RR_TRANS 1 PCS
PT802 80GL19T 8 DN OZ9RR_TRANS 1 PCS
R904 61G 2J478 59 0.47 2W 1 PCS
R905 61G152M10458F 100K OHM 5% 2W 1 PCS
T901 80GL19T 13 N TRANSFORMER 1 PCS
VAR901 61G 46 6 GP TNR 10V471K 1 PCS
PW1942CMW1AIP POWER BOARD FOR AI 1 PCS
C804 65G0805155 A2 1.5 UF 10V 1 PCS
C805 65G0805102 31 1000PF 50V NPO 1 PCS
C806 65G1206225 22 2.2UF 25V X7R 1206 1 PCS
C807 65G0805103 22 CHIP 0.01uF 25V X7R 080 1 PCS
C808 61L0805274 270K OHM 1/8W 1 PCS
C809 65G0805223 22 CHIP 0.022UF 25V X7R 08 1 PCS
C810 65G0805471 21 CHIP 470PF 25V NPO 1 PCS
C812 65G1206152 32 1.5N/50V 1 PCS
C813 65G1206152 32 1.5N/50V 1 PCS
C818 65G0805471 21 CHIP 470PF 25V NPO 1 PCS
C819 65G0805683 22 68NK X7R 25V 1 PCS
Page 47
Gateway FPD1960
47
C822 65G1206152 32 1.5N/50V 1 PCS
C823 65G1206152 32 1.5N/50V 1 PCS
C827 65G0805471 21 CHIP 470PF 25V NPO 1 PCS
C907 65G0805104 22 0.1UF +-10% 25V X7R 080 1 PCS
C910 65G0805104 22 0.1UF +-10% 25V X7R 080 1 PCS
C912 65G0805334 22 0.33UF+-10% 25V X7R 080 1 PCS
C914 65G0805104 22 0.1UF +-10% 25V X7R 080 1 PCS
C917 65G0805223 22 CHIP 0.022UF 25V X7R 08 1 PCS
C918 65G0805104 22 0.1UF +-10% 25V X7R 080 1 PCS
C919 65G0805221 21 220PF 25V 5% 1 PCS
C933 65G0805104 32 CHIP 0.1U 50V X7R 1 PCS
C934 65G0805104 22 0.1UF +-10% 25V X7R 080 1 PCS
D801 93G 64 42 P BAV70 SOT-23 1 PCS
D802 93G 6433P BAV99 1 PCS
D803 93G 64 42 P BAV70 SOT-23 1 PCS
D804 93G 6433P BAV99 1 PCS
F902 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS
IC801 56G 608 10 0Z9938 1 PCS
IC901 56G 379 52 LD7552BS 1 PCS
J805 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS
JR801 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS
JR802 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS
JR803 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS
Q801 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
Q802 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
Q803 57G 417 4 PMBS3904/PHILIPS-SMT(04 1 PCS
Q805 57G 600 55 P5506 HVG SO-8 1 PCS
Q806 57G 600 55 P5506 HVG SO-8 1 PCS
R801 61L1206000 RST SM 1206 JUMP MAX 0R 1 PCS
R802 61L1206274 CHIP 270K OHM 1/4W 1 PCS
R803 61L1206103 CHIP 10KOHM 5% 1/4W 1 PCS
R804 61L1206103 CHIP 10KOHM 5% 1/4W 1 PCS
R805 61L1206471 CHIPR 470 OHM+-5% 1/4W 1 PCS
R806 61L1206105 CHIP 1MOHM 5% 1/4W 1 PCS
R807 61L1206220 CHIP 22OHM 5% 8W 1 PCS
R808 61L1206104 CHIP 100KOHM 5% 1/4W 1 PCS
R810 61L1206105 CHIP 1MOHM 5% 1/4W 1 PCS
R812 61L0805103 CHIPR 10K OHM +-5% 1/8W 1 PCS
Page 48
Gateway FPD1960
48
R813 61L1206105 CHIP 1MOHM 5% 1/4W 1 PCS
R814 61L1206684 CHIPR 680K OHM+-5% 1/4W 1 PCS
R815 61L1206104 CHIP 100KOHM 5% 1/4W 1 PCS
R816 61L1206155 1.5M/0805 1 PCS
R817 61L1206433 43K/0805 1 PCS
R818 61L1206220 CHIP 22OHM 5% 8W 1 PCS
R819 61L1206220 CHIP 22OHM 5% 8W 1 PCS
R820 61L0805153 CHIPR 15K OHM+-5% 1/8W 1 PCS
R821 61L0805913 CHIPR 91K 0HM+-5% 1/8W 1 PCS
R825 61L0805561 CHIP 560 OHM 1/8W 1 PCS
R826 61L1206182 0F CHIP 180 OHM 1/4W 1 PCS
R827 61L0805392 CHIP 3.9K OHM 1/8W 1 PCS
R828 61L1206220 CHIP 22OHM 5% 8W 1 PCS
R829 61L1206220 CHIP 22OHM 5% 8W 1 PCS
R830 61L0805153 CHIPR 15K OHM+-5% 1/8W 1 PCS
R831 61L0805913 CHIPR 91K 0HM+-5% 1/8W 1 PCS
R834 61L0805392 CHIP 3.9K OHM 1/8W 1 PCS
R835 61L0805561 CHIP 560 OHM 1/8W 1 PCS
R836 61L1206100 CHIPR 10 OHM+-5% 1/4W 1 PCS
R837 61L1206100 CHIPR 10 OHM+-5% 1/4W 1 PCS
R840 61L0805000 CHIP O OHM 1/8W 1 PCS
R841 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R842 61L0805000 CHIP O OHM 1/8W 1 PCS
R843 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R901 61L1206684 CHIPR 680K OHM+-5% 1/4W 1 PCS
R902 61L1206684 CHIPR 680K OHM+-5% 1/4W 1 PCS
R903 61L1206684 CHIPR 680K OHM+-5% 1/4W 1 PCS
R906 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R907 61L1206514 CHIPR 510KOHM +-5% 1/4W 1 PCS
R908 61L1206514 CHIPR 510KOHM +-5% 1/4W 1 PCS
R909 61L1206434 430K 1206 1/4W 5% 1 PCS
R910 61L1206434 430K 1206 1/4W 5% 1 PCS
R911 61L1206151 CHIP 150OHM 1/4W 1 PCS
R912 61L0805750 2F cHIP 75KOHM 1% 1/8W 1 PCS
R913 61L0805100 3F CHIP 100KOHM +-1% 1/8W 1 PCS
R914 61L1206339 CHIP 3.3OHM 1/4W 1 PCS
R917 61L1206103 CHIP 10KOHM 5% 1/4W 1 PCS
R918 61L1206100 CHIPR 10 OHM+-5% 1/4W 1 PCS
Page 49
Gateway FPD1960
49
R919 61L1206103 CHIP 10KOHM 5% 1/4W 1 PCS
R920 61L0805303 CHIP 30K OHM 1/8W 1 PCS
R921 61L0805360 1F CHIP 3.6KOHM 1/8W 1% 1 PCS
R922 61L0805240 1F CHIPR 2.4KOHM +-1% 1/8W 1 PCS
R923 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R924 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R925 61L0805202 CHIP 2KOHM 1/8W 1 PCS
R926 61L0805102 CHIPR 1K OHM +-5% 1/8W 1 PCS
R928 61L1206102 CHIP 1K OHM 5% 1/4W 1 PCS
R930 61L1206100 3F CHIP 100K OHM +-1% 1/4W 1 PCS
R931 61L1206434 430K 1206 1/4W 5% 1 PCS
R932 61L1206514 CHIPR 510KOHM +-5% 1/4W 1 PCS
R934 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R935 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R936 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R937 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R938 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
R939 61L1206101 CHIP 100 OHM 5% 1/4W 1 PCS
ZD801 93G 39S 24 T RLZ 5.6B LLDS 1 PCS
ZD902 93G 39S 17 T RLZ12B LLDS 1 PCS
ZD903 93G 39S 19 T PTZ7.5B 1 PCS
ZD904 93G 39S 25 T RLZ5.1B LLDS 1 PCS
715G1695 1 PCB BOARD 1 PCS
C814 65G 44222013T 22PF +-5% 50V NPO 1 PCS
C815 65G 44222013T 22PF +-5% 50V NPO 1 PCS
C821 65G 44222013T 22PF +-5% 50V NPO 1 PCS
C824 65G 44222013T 22PF +-5% 50V NPO 1 PCS
C905 6G 31502 1.5MM RIVET 2 PCS
C923 67G 2152207NT GP LOW ESR 22UF+-20% 50V B 1 PCS
C930 65G 2K152 1T6921 1.5NF/2KV Y5P +-10% 1 PCS
C931 65G517K102 5T 1000PF 10% Y5P 500V 1 PCS
C932 65G517K102 5T 1000PF 10% Y5P 500V 1 PCS
CN901 6G 31500 EYELET 2 PCS
D901 93G 6026T52T RECTIFIER DIODE FR107 1 PCS
F901 84G 56 1 FUSE 2A 250V WICKMANN 1 PCS
FB901 71G 55 29 FERRITE BEAD 1 PCS
IC903 56G 158 4 T A H431BA 1 PCS
IC904 56G 158 4 T A H431BA 1 PCS
Page 50
Gateway FPD1960
50
L901 6G 31502 1.5MM RIVET 4 PCS
L902 6G 31502 1.5MM RIVET 2 PCS
NR901 6G 31502 1.5MM RIVET 2 PCS
PT801 6G 31502 1.5MM RIVET 2 PCS
PT802 6G 31502 1.5MM RIVET 2 PCS
R822 61G212Y305 KT MGFR 3M OHM +-5% 1/2W 1 PCS
R832 61G212Y305 KT MGFR 3M OHM +-5% 1/2W 1 PCS
R940 61G 60247152T 470OHM +-5% 1/6W 1 PCS
T901 6G 31502 1.5MM RIVET 4 PCS
96G 29 10 H.S.TUBE 15 MM
NR901 61G 58050 WT NTC 5 OHM 5A 1 PCS
90G6274 1 L HEATSINK 1 PCS
M1T1730 8128 SCREW M3x8 1 PCS
Q903 57G 724 11 STP9NK65ZFP 1 PCS
CN901 87G 504501 S AC SOCKET ST-03 1 PCS
CN901 95G 900567 WIRE HARNESS 1 PCS
CN901 96G 29 6 SHRINK TUBE UL/CSA 1 PCS
90G6275 1 N HEAT SINK 1 PCS
M1T1730 8128 SCREW M3x8 3 PCS
D902 93G 60242 SRF20150C T0-220 1 PCS
D904 93G 60248 SP20100 1 PCS
D905 93G 60242 SRF20150C T0-220 1 PCS
34FPF20P01 BOBBIN 2 PCS
34FPE19P03 CASE EEL19 1 PCS
34FPE19P03 CASE EEL19 1 PCS
Loading...
