Gateway FPD1950 User Manual

FPD1950 Monitor
User Guide
Contents
Using Your FPD 1950 Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Starting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adjusting monitor settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
External controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
On-screen display options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Software controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
No power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Image is not sized or centered correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
The monitor has pixels that are always dark or too bright . . . . . . . . . . . . . . . . . . . . . . 18
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
www.gateway.com
i
ii
www.gateway.com
Gateway
Using Your FPD 1950 Monitor
Connecting the monitor
Starting the monitor
Adjusting monitor settings
Maintenance and troubleshooting
Specifications
1
Connecting the monitor
To connect the monitor:
1 Position your computer and the monitor so you can reach the connections on each. 2 Lay the monitor on its back, then connect the power cord to the power connector
under the bottom of the screen.
3 If your computer supports analog video (blue video connector), connect the analog
video cable to the blue analog connector under the bottom of the screen.
- OR -
2
www.gateway.com
If your computer supports digital video (white video connector), connect the digital video cable to the white DVI connector under the bottom of the screen.
Important Make sure that you only connect one video cable to the monitor and
computer. The only way to use both connections it to share the monitor between two computers. Use the SOURCE button to change between computers. For more information, see “Adjusting monitor settings” on page 6.
4 Return the monitor to its upright position, then make sure that your computer is
turned off.
5 If you connected the analog video cable to your monitor, connect the other end of
the cable to the matching blue video port on the back of your computer.
- OR -
If you connected the digital video cable to your monitor, connect the other end of the cable to the matching white video port on the back of your computer.
www.gateway.com
3
6 Plug the power cord into a grounded electrical outlet.
4
www.gateway.com
Starting the monitor
To start the monitor:
1 Press the power button on the front of monitor. The power LED on the power button
turns on.
Power button
2 Turn on your computer. 3 After your computer is running, the power LED on the monitor’s power button should
be blue. Allow about 10 seconds for the display image to appear. If the power LED is not blue or you do not see a display image, check the connections. For more troubleshooting information, see “Troubleshooting” on page 16.
4 Adjust the tilt of the monitor for the best viewing angle. 5 After you see the Windows desktop, press the AUTO/SELECT button to automatically
adjust your display image to the ideal settings.
6 Use the on-screen display (OSD) to adjust other monitor settings. For more
information, see “Adjusting monitor settings” on page 6.
Important When adjusting the monitor settings, always press the
AUTO/SELECT button before entering the OSD. This will
automatically adjust the display image to the ideal settings for the current screen resolution.
The best screen resolution is 1280 × 1024.
www.gateway.com
5
Adjusting monitor settings
Use the external controls (located on the monitor itself) and software controls (accessible in Windows) to adjust the display image. For more information about software controls, see “Software controls” on page 10.
External controls
This monitor features an on-screen display (OSD) that lets you adjust and save contrast, brightness, and other settings for the monitor. The monitor saves changes you make to the settings, even if you turn off the monitor.
SOURCE
button
MENU
button
6
LightView
buttons
www.gateway.com
Contrast/Brightness
buttons
AUTO/SELECT
button
Power button
and LED
SOURCE
Press to switch between analog or digital source signals or switch between computers if you have two computers connected to the monitor.
MENU
Press to view the OSD. Press again to exit.
/LightView
OSD active: Press to select OSD options. OSD inactive: Press to select a LightView preset viewing mode. Preset modes include optimized settings for text, movies, or photos in either day or night ambient light levels.
/Contrast/Brightness
OSD active: Press to adjust OSD options. OSD inactive: Press to open the Contrast/Brightness menu. You can then press to adjust the brightness, and press to adjust the contrast.
AUTO/SELECT
OSD active: Press to make a selection in the OSD. OSD inactive: Press to automatically optimize the monitor’s image position, clock, and phase.
Power/LED
Press this button to turn the monitor off and on.
On-screen display options
Adjusting OSD settings
To adjust the OSD settings:
1 Press the MENU button. The OSD menu opens. 2 Use the and buttons to highlight a menu or control, then press the
AUTO/SELECT button.
3 Use the buttons to adjust the control to the desired level. 4 Press the AUTO/SELECT button to return to the navigation bar on the left of the OSD. 5 When you have finished making all adjustments, press the MENU button to exit.
www.gateway.com
7
Locking the control buttons
You can lock the control buttons to prevent them from being used to change display settings.
To lock the control buttons:
1 Press and hold the MENU and buttons together for five seconds. 2 To unlock the controls, press and hold the MENU and buttons together for five
seconds.
OSD menus
OSD Menu Description
COLOR
BRIGHTNESS
CONTRAST
GAMMA
PRESET
!
6500K
RED
GREEN
BLUE
MENU
9300K
50
50
50
50
50
50
BRIGHTNESS. Adjusts the amount of light in the
darkest portion of the picture. Use the lowest brightness setting you are comfortable with to maximize the life of the monitor backlights.
You may need to readjust brightness after the monitor has warmed up.
CONTRAST. Adjusts the level of white between the lightest and darkest portions of an image.
GAMMA. Customizes the gamma level. High gamma levels increase white levels and low gamma levels increase contrast.
PRESET. Adjusts the color temperature. 9300K is bluish white. 6500K is reddish white (default).
RED, GREEN, BLUE. Customizes the color levels.
the button to move to the next color.
Press
MENU
8
www.gateway.com
OSD Menu Description
POSITION
HORIZONTAL
VERTICAL
TRACKING
CLOCK
PHASE
MENU
50
50
50
50
HORIZONTAL. Moves the display image left and right.
VERTICAL. Moves the display image up and down.
You can also use the AUTO/SELECT button to configure the vertical and horizontal position automatically.
CLOCK. Minimizes any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.
PHASE. Minimizes any horizontal distortion and clears or sharpens the displayed characters.
SETUP
MENU
LANGUAGE ENGLISH
OSD POSITION
HORIZONTAL
50
VERTICAL
50
WHITE BALANCE NO FACTORY RESET NO
ANALOG
1280 X 1024 60Hz
MENU
www.gateway.com
LANGUAGE. Changes the language of the OSD.
OSD POSITION. Adjusts the OSD window position on
the screen.
WHITE BALANCE. Adjusts the color temperatures for truer colors.
FACTORY RESET. Returns settings to the factory defaults.
Mode Info. Displays current screen resolution.
9
Software controls
Color depth and screen resolution are two of the most basic monitor settings you may need to change.
Adjusting the color depth
Color depth is the number of colors your video card uses. Most images look best displayed with the maximum number of colors available.
Windows lets you choose from several color depth settings for the monitor. We recommend that you use the 32-bit True Color setting or the highest setting available at all times.
If the color in your images seems “false” or “jumpy,” especially after you have played a game or run a video-intensive program, check the color depth setting and return it to 32-bit True Color, if necessa r y.
To change the color depth:
1 Click Start, then click Control Panel. The Control Panel window opens. If your Control
Panel is in Category View, click

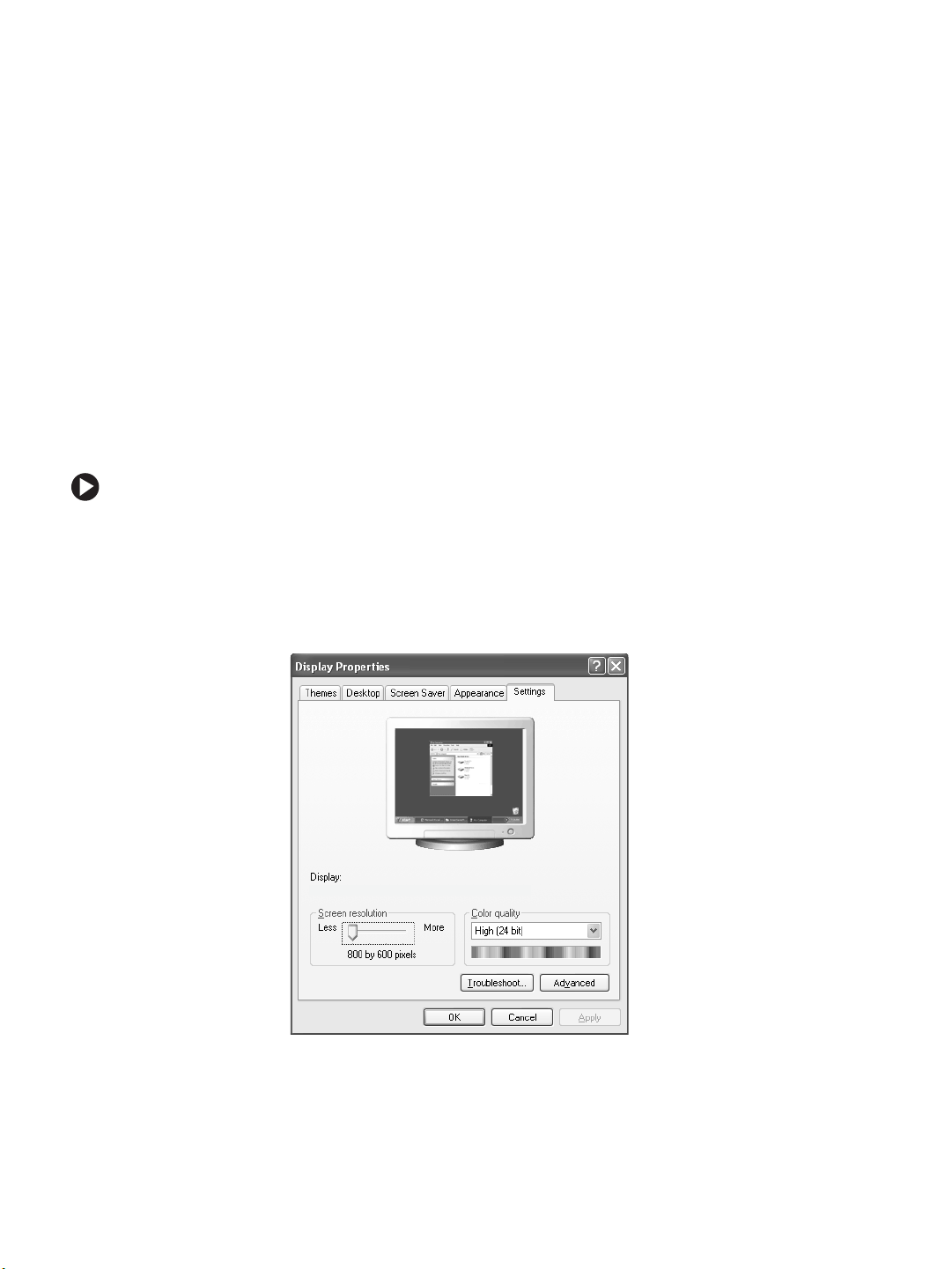

2 Click/Double-click the Display icon. The Display Properties dialog box opens. 3 Click the Settings tab.
Appearance and Themes.
Gateway FPD 1940 on Intel(r) 82810E Graphics Controller
4 Click the arrow button to open the Color quality list, then click the color depth you
want.
10
www.gateway.com
5 Click OK, then click Ye s to save your changes.
Help and
Support
For more information about adjusting monitor settings, click Start, then click Help and Support.
Type the keyword changing display settings in the Search box
, then click the arrow.
www.gateway.com
11
Adjusting the screen resolution
You can change the screen resolution to a size you prefer. For example, you can increase the resolution to fit more icons on your desktop, or you can decrease the resolution to make reading and identifying objects on the monitor easier. The higher the resolution, the smaller individual components of the screen (such as icons and menu bars) appear.
To change the screen resolution:
1 Click Start, then click Control Panel. The Control Panel window opens. If your Control
Panel is in Category View, click
Appearance and Themes.
2 Click/Double-click the Display icon. The Display Properties dialog box opens. 3 Click the Settings tab.
Gateway FPD 1940 on Intel(r) 82810E Graphics Controller
4 Drag the Screen resolution slider to the size you prefer. 5 Click OK, then click Yes to save your changes.
Help and
Support
12
For more information about adjusting screen resolution, click Start, then click Help and Support.
Type the keyword changing screen resolution in the Search box
, then click the arrow.
www.gateway.com
Clarifying screen fonts
You can change the display fonts to ClearType for smoother screen fonts.
To change the screen resolution:
1 Click Start, then click Control Panel. The Control Panel window opens. If your Control
Panel is in Category View, click
Appearance and Themes.
2 Click/Double-click the Display icon. The Display Properties dialog box opens. 3 Click the Appearance tab.
4 Click the Effects button. The Effects dialog box opens. 5 Click to select the Use the following method to smooth the edges of screen type check box. 6 Click the arrow to open the list, then click ClearType. 7 Click OK.
www.gateway.com
13
Video modes
The monitor supports several video modes.
Best video mode is 1280 × 1024 @ 6o Hz.
The supported video modes are:
Screen Resolution
(display mode)
1 VGA 640 × 350 31.47 kHz 70 Hz
2 VGA 720 × 400 31.47 kHz 70 Hz
3 VGA 640 × 480 31.47 kHz 60 Hz
4 VESA 640 × 480 37.50 kHz 75 Hz
5 VESA 800 × 600 37.88 kHz 60 Hz
6 VESA 800 × 600 46.88 kHz 75 Hz
7 MAC 832 × 624 49.73 kHz 75 Hz
8 VESA 1024 × 768 48.36 kHz 60 Hz
9 VESA 1024 × 768 60.12 kHz 75 Hz
10 MAC 1152 × 870 68.68 kHz 75 Hz
11 VESA 1152 × 900 61.81 kHz 65 Hz
12 VESA 1280 × 1024 63.98 kHz 60 Hz
13 VESA 1280 × 1024 79.98 kHz 75 Hz
Horizontal Frequency
Vertical
Frequency
If you do not use the best mode for the monitor, the display image may look slightly “fuzzy.”
14
www.gateway.com
Power management
ENERGY STAR
As an ENERGY STAR® Partner, Gateway has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
This monitor complies with the EPA's International ENERGY STAR Program, which is a program designed to encourage manufacturers of computer equipment to build circuitry into their products to reduce energy consumption during time of non-use.
Energy declaration
When connected to a computer that supports the VESA Display Power Management Signaling (DPMS) Protocol, the monitor can conserve significant energy by reducing power consumption during periods of non-use. When your computer goes into the energy saving mode, the monitor will then enter the Active Off mode (different from total shut down). In the Active Off mode the Power LED will still show orange.
Use these conventions and the power can be reduced to the following levels:
VESA State LED Indicator Power Consumption
On Blue 45 W
Active Off Orange 3W
To “wake” the monitor when it is in Active Off mode, move the mouse or press any keyboard key.
Access the power management options in the Control Panel to change the period of time after which the monitor enters these low power states.
www.gateway.com
15
Maintenance
To keep the monitor in optimal working order:
Do not block the ventilation holes.
Do not expose the monitor to rain or use near water.
Keep the monitor away from radiators or heat vents.
Keep the monitor out of direct sunlight.
To clean the monitor, use a soft cloth slightly moistened with water only. Wipe the cabinet, screen, and controls.
Caution Do not use any type of abrasive pad or glass cleaner. You will
permanently scratch the screen.
Troubleshooting
If you have problems with the monitor, the information in this troubleshooting section may help you solve them.
Important Make sure that the monitor has warmed up for approximately
30 minutes before making any judgments about the picture quality.
No power
Make sure that the power cord is connected correctly to both the back of the monitor and the wall outlet. For more information about connecting the power cord, see “Connecting the monitor” on page 2.
16
www.gateway.com
No picture
Make sure that the power cord is connected correctly to both the back of the monitor
and the wall outlet. For more information about connecting the power cord, see “Connecting the monitor” on page 2.
Make sure that the video cable is connected securely to the back of the monitor and
computer. For more information about connecting the video cable, see “Connecting the monitor” on page 2.
Make sure that the monitor is turned on.
If you have two computers connected to the monitor, press the SOURCE button on
the front of the monitor to switch between computers. For more information about the
SOURCE button, see “External controls” on page 6.
If the power LED is orange:
Make sure that your computer is turned on.
Move the mouse or press any key on the keyboard to bring the monitor out of
Active Off mode.
Restart your computer with the monitor turned on.
Make sure that the video cable is not damaged.
Check the ends of the video cable for any pins that might be bent or pushed in.
Turn off the monitor and unplug the video cable from the back of your computer.
Turn the monitor back on and wait for ten seconds. If the monitor is functioning correctly, a self-diagnostic screen appears. For more information about connecting the video cable, see “Connecting the monitor” on page 2.
Display colors are wrong
Press the AUTO/SELECT button to automatically adjust the display image to the
ideal settings.
Restart your computer with the monitor turned on.
Make sure that the video cable is connected securely to the back of the monitor and
your computer. For more information about connecting the power cord, see “Connecting the monitor” on page 2.
Make sure that the video cable is not damaged.
Check the ends of the video cable for any pins that might be bent or pushed in.
www.gateway.com
17
Picture has shadows or “ghosts”
Press the AUTO/SELECT button to automatically adjust the display image to the
ideal settings.
Remove any extension cables or switchboxes.
Make sure that the video cable is connected securely to the back of the monitor and
your computer. For more information about connecting the power cord, see “Connecting the monitor” on page 2.
Make sure that the video cable is not damaged.
Check the ends of the video cable for any pins that might be bent or pushed in.
Color is not uniform
Make sure that the monitor warms up for at least 30 minutes before making a final
judgment about color uniformity or brightness.
Press the AUTO/SELECT button to automatically adjust the display image to the
ideal settings.
Image is not sized or centered correctly
Press the AUTO/SELECT button to automatically adjust the display image to the
ideal settings.
Use the position controls to adjust the image. For instructions on how to adjust the
display image position, see “Adjusting monitor settings” on page 6.
The monitor has pixels that are always dark or too bright
This condition is normal and inherent in the TFT technology used in active-matrix LCD screens. Gateway’s inspection standards keep these to a minimum. If you feel these pixels are unacceptably numerous or dense on your display, contact Gateway Technical Support to identify whether a repair or replacement is justified based on the number of pixels affected.
18
www.gateway.com
Specifications
Specifications are subject to change without notice or obligation.
Monitor
Best screen resolution
Display colors
Power input
Power consumption
Dimensions
Power management
Certifications
Many products for Gateway and its subsidiaries are custom engineered by our suppliers to Gateway specifications and may vary from similarly marketed products.
19-inch active-matrix TFT (Thin Film Transistor) LCD
1280 × 1024
Over 16 million colors
AC 100-240 V 50/60 Hz 1.0 A
Normal operation: 45 W
Active Off operation: ≤ 3W
16.25 × 8.78 × 17.13 inches (41.28 × 22.30 × 43.50 cm)
Meets EPA ENERGY STAR® and VESA DPMS requirements
UL, cUL, EPA, and FCC Class B, NOM
www.gateway.com
19
20
www.gateway.com
Appendix A
Safety, Regulatory, and Legal
Information
Safety information
Regulatory statements
Notices
21
Important safety information
Your Gateway system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.
Warning Always follow these instructions to help guard against personal injury
and damage to your Gateway system.
Setting up your system
Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.
Do not use this product near water or a heat source such as a radiator.
Set up the system on a stable work surface.
The product should only be operated from the type of power source indicated on the rating label.
If your product has a voltage selector switch, make sure that the switch is in the proper position for your area. The voltage selector switch is set at the factory to the correct voltage.
Openings in the monitor case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the monitor ventilation openings.
Some products are equipped with a three-wire power cord to make sure that the product is properly grounded when in use. The plug on this cord will only fit into a grounding-type outlet. This is a safety feature. If you are unable to insert the plug into an outlet, contact an electrician to install the appropriate outlet.
If you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension cord does not exceed the extension cord ampere rating.
If you r sy ste m is fit ted wit h a T V Tuner, c abl e, or sa tellite receiver card, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and buildup of static charges.
22
www.gateway.com
Care during use
Do not wal k on the pow er c ord or a llo w an ythin g to res t on it .
Do not spill anything on the system. The best way to avoid spills is to avoid eating and drinking near your system.
Do not expose the monitor to rain or use near water. If the monitor does get exposed to moisture, unplug it and allow it to dry for 24 hours. Call Gateway Technical Support for advice on whether the monitor is safe to turn back on.
When the monitor is turned off, a small amount of electrical current still flows through the monitor. To avoid electrical shock, always unplug all power cables and modem cables from the wall outlets before cleaning the system.
Unplug the system from the wall outlet and refer servicing to qualified personnel if:
The power cord or plug is damaged.
Liquid has been spilled into the system.
The system does not operate properly when the operating instructions are followed.
The system was dropped or the cabinet is damaged.
The system performance changes.
Warning To prevent electric shock, never remove the cover. No user
serviceable parts inside. Refer servicing to qualified service personnel.
Replacement parts and accessories
Use only replacement parts and accessories recommended by Gateway.
Warning Do not use Gateway products in areas classified as hazardous
locations. Such areas include patient care areas of medical and dental facilities, oxygen-laden environments, or industrial facilities.
www.gateway.com
23
Regulatory compliance statements
United States of America
Federal Communications Commission (FCC) Unintentional emitter per FCC Part 15
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment to an outlet on a different circuit from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help.
Compliance Accessories: The accessories associated with this equipment are: shielded video cable. These accessories are required to be used in order to ensure compliance with FCC rules.
FCC declaration of conformity
Responsible party:
Gateway, Inc. 14350 Myford Road Irvine, CA 92606 USA
This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution Changes or modifications not expressly approved by Gateway could
void the FCC compliance and negate your authority to operate the product.
California Proposition 65 Warning
Warning This product contains chemicals, including lead, known to the State
of California to cause cancer, birth defects or reproductive harm.
Mercury Warning
Warning lamp(s) inside this product contain mercury and must be
Hg
recycled or disposed of according to local, state, or federal laws.
24
www.gateway.com
Canada
Industry Canada (IC) Unintentional emitter per ICES-003
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.
EPA ENERGY STAR
As an E NER GY S TAR® Partner, Gateway has determined that this product meets the ENERGY STAR guidelines for energy efficiency when used with a computer equipped with a Display Power Management System.
ENERGY STAR
www.gateway.com
25
Notices
Copyright © 2004 Gateway, Inc. All Rights Reserved 14303 Gateway Place Poway, CA 92064 USA
All Rights Reserved
This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form, without prior consent in writing from Gateway.
The information in this manual has been carefully checked and is believed to be accurate. However, changes are made periodically. These changes are incorporated in newer publication editions. Gateway may improve and/or change products described in this publication at any time. Due to continuing system improvements, Gateway is not responsible for inaccurate information which may appear in this manual. For the latest product updates, consult the Gateway Web site at
www.gateway.com
damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
In the interest of continued product development, Gateway reserves the right to make improvements in this manual and the products it describes at any time, without notices or obligation.
Trademark Acknowledgments
Gateway and the Black-and-White Spot Design are trademarks or registered trademarks of Gateway, Inc. in the U.S. and other countries. SpotShop, Spotshop.com, and Your:)Ware are trademarks of Gateway, Inc. Intel, Intel Inside logo, and Pentium are registered trademarks and MMX is a trademark of Intel Corporation. Microsoft, MS, MS-DOS, and Windows are trademarks or registered trademarks of Microsoft Corporation. All other product names mentioned herein are used for identification purposes only, and may be the trademarks or registered trademarks of their respective companies.
. In no event will Gateway be liable for direct, indirect, special, exemplary, incidental, or consequential
26
www.gateway.com
MAN LG FPD1950 USR GDE R0 07/04
Loading...
