Garmin SL10 User Manual
â
Apollo
Model SL10 Series
Audio Selector Panel
User’s Guide
December 2001
560-0973-00a
No part of this document may be reproduced in any form or by any
means without the express written consent of UPS Aviation
Technologies, Inc.
UPS Aviation Technologies, Inc., II Morrow, and Apollo are trademarks
of UPS Aviation Technologies, Inc.
© 2001 by UPS Aviation Technologies, Inc. All rights reserved.
Printed in the U.S.A.
UPS Aviation Technologies, Inc.
2345 Turner Road, S.E. Salem, OR 97302
U.S.A. Toll Free 800.525.6726
Canada Toll Free 800.654.3415
International 503.391.3411
FAX 503.364.2138
Visit our web page at
http://www.upsat.com
Send comments about this manual by email to: techpubs@at.ups.com
History of Revisions
Original Release December 2001 Rev. 00
Ordering Information
To receive additional copies of the Apollo SL10 Installation Guide, order
part #560-0978-00 and for the Apollo SL10 User’s Guide, order part
#560-0973-00a.
SL10 Series Audio Selector Panel and Intercom System
UPS Aviation Technologies
User’s Guide
Table of Contents
Section I - General Information ...................................................... 1
1.1 SCOPE ...................................................................................... 1
1.2 Audio Selector (All models) ..................................................... 1
1.2.1 Speaker Amplifier ........................................................... 2

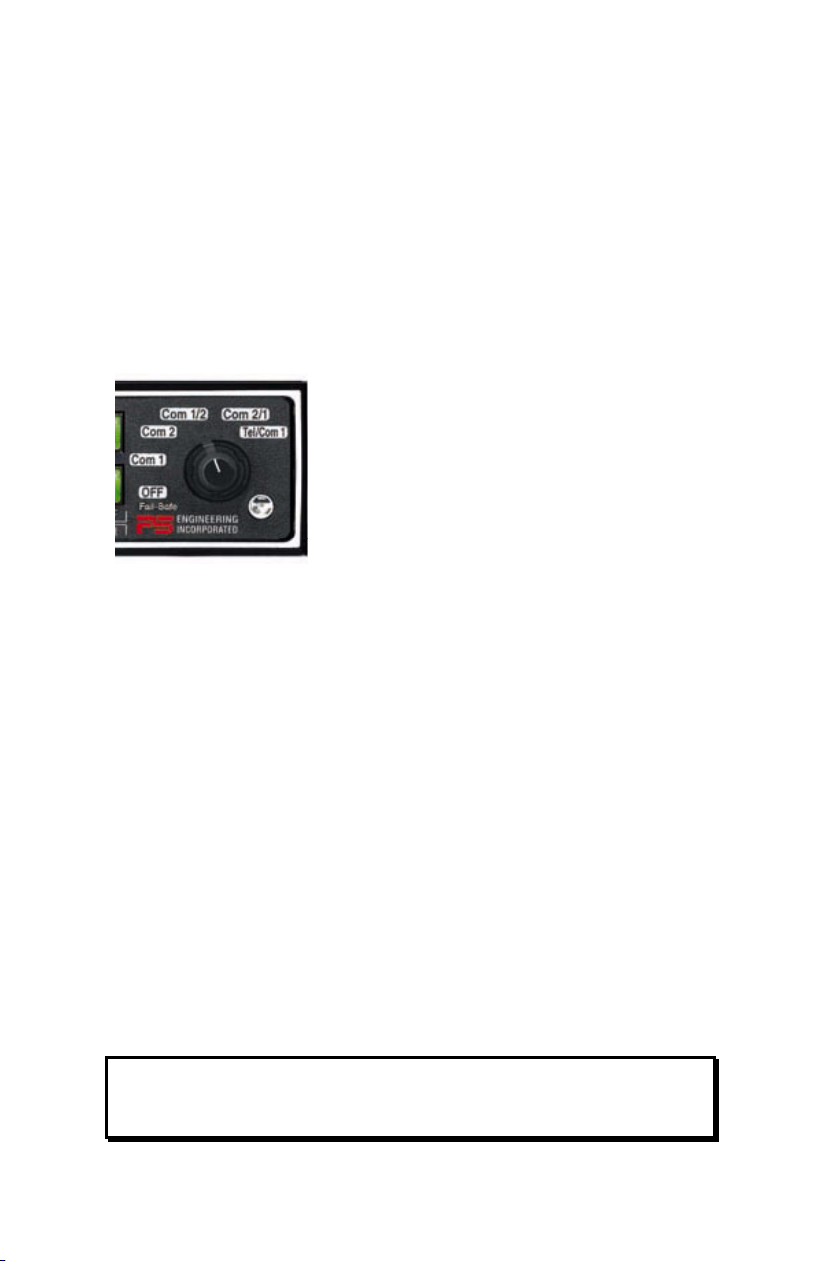

1.3 Mic Selector Switch (Fail Safe Operation) ............................... 2
1.3.1 Swap Mode (Switch from Com 1 to Com 2 remotely).... 3
1.4 Split Mode................................................................................. 3
1.5 Intercom .................................................................................... 3

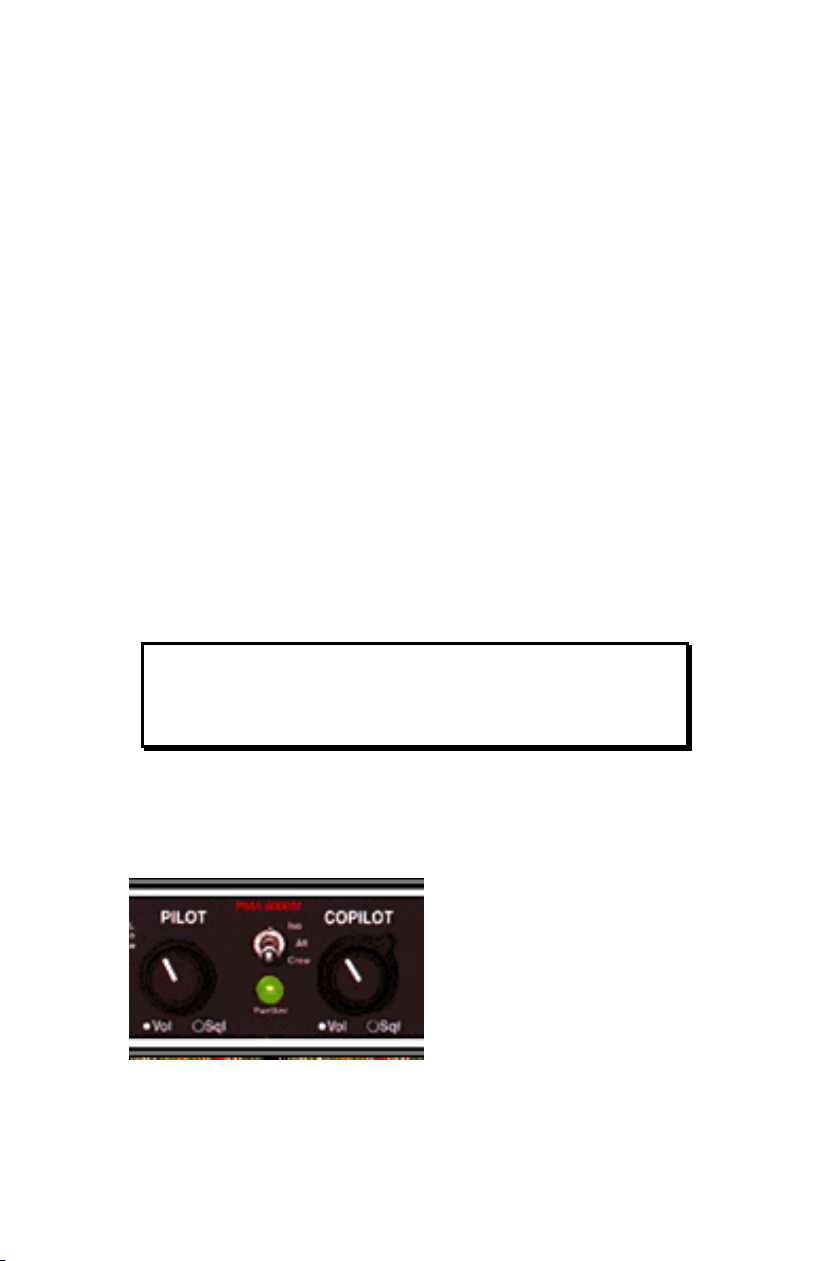

1.5.1 Volume Control, Monaural (SL10M SL10).................... 3
1.5.2 Volume Control, Stereo, (SL10S, SL10MS)................... 4
1.5.3 Adjusting the VOX-Squelch control, Monaural (SL10,
SL10M) 4
1.5.4 Adjusting the VOX- Squelch control, Stereo (SL10S,
SL10MS)........................................................................................ 5
1.5.5 Intercom Modes (All versions)........................................ 5
1.5.6 Push to talk intercom mode ............................................. 7
1.6 Marker Beacon (SL10M, SL10M-S.......................................... 8
1.6.1 Middle Marker Sense ...................................................... 8
1.6.2 External Marker Lights (SL10, SL10S)........................... 8
1.6.3 Receiver Sensitivity......................................................... 9
Section II- Warranty and Service ................................................. 10
2.1 Warranty ................................................................................. 10
2.2 Factory Service ....................................................................... 10
SL10 Series Audio Selector Panel and Intercom System
UPS Aviation Technologies
User’s Guide
SL10 Series Audio Selector Panel and Intercom System
UPS Aviation Technologies
User’s Guide
Section I - General Information
1.1 SCOPE
This section provides detailed operating instructions for the UPS
Aviation Technologies SL10, SL10S, SL10M, SL10M-S, SL10C,
SL10S-C, SL10M-C, and SL10M-S-C Audio Selector Panel/Intercom
Systems. Please read it carefully before using the equipment so that you
can take full advantage of its capabilities.
This section is divided into four sections covering the basic operating
areas of the SL10 systems. They are: Audio Selector, Transceiver
Selection, Intercom, and Marker Beacon Receiver (SL10M and SL10MS
only).
1.2 Audio Selector (All models)
Through the use of two
momentary and seven latched,
push-button, back-lit switches, it is
possible to select any or all
receiver audio. C1 and C2 are
momentary switches.
When selected, an internal
backlight will illuminate
indicating which audio source is
Figure 1 Audio Selector
heard by the pilot and copilot (the crew), "Cl" (Com 1) and "C2" (Com 2)
push-buttons are of the momentary type and do not remain in when
selected. This is also part of the "auto function." You will always hear the
audio from the transceiver that is selected by the rotary mic selector
switch.
The users can identify which receivers are selected by noting which
push-button switches are illuminated. Push buttons labeled Nl (Nav 1),
N2 (Nav 2), D (DME), M (Marker), A (ADF), AX (auxiliary), and S
(Speaker) are "latched" type switches. When one of these buttons is
pressed, it will stay in the "in" position. Press the switch again and it be
in the "out" position and remove that receiver from the audio. While
selected, the switch will also be annunciated by an internal lamp.
NOTE: In Split Mode, no pushbuttons will be active. The only audio
selected is the com 1 and 2, as indicated by their respective lamps.
selected. Because the rotary switch
controls what transceiver is being
Page 1
