Garmin 02759 Users Manual

A02759

Quick Start Manual........................................................ 2

Manuel de démarrage rapide

......................................... 4

January 2016 Printed in Taiwan 190-01978-91_0B

A02759 Quick Start Manual

Introduction

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Tips and Shortcuts

•

Press

to turn the chartplotter on.

•

Select Home from any screen to return to the Home screen.

• Select Menu from any main screen to access additional

settings about that screen.

• Press

to adjust the backlight and lock the

touchscreen.

•

Press

and select Power Off to turn the chartplotter

off.

Using the Touchscreen

•

Tap the screen to select an item.

• Drag or swipe your finger across the screen to pan or scroll.

• Pinch two fingers together to zoom out.

• Spread two fingers apart to zoom in.

On-Screen Buttons

These on-screen buttons may be displayed on some screens and functions. Some buttons are accessible only in a combination page or SmartMode™ layout.

Button Function

Clears the on-screen icons and re-centers the screen on the boat

Opens a full screen view of the item

Creates a new waypoint

Creates a route, with turns, to the destination

Adds a turn to the route at the selected location

Removes the last turn added from the route

Creates a direct route, without turns, to the destination

Creates an Auto Guidance route to the destination

Begins navigation

Ends navigation

Acquires a radar target and begins tracking it

Opens the menu for the page or function

Opens the presets menu for the page or function

Adding an Item to Favorites

From the home screen, select a category from the right.

Hold a button on the left. The item is added to the

Favorites home screen

category.

Customizing the Layout of a SmartMode or Combination Page

You can customize the layout and data shown in the combination pages and

SmartMode layouts. When you change the layout of a page in a display you are interacting with, the change appears only on that display, except for the SmartMode name and symbol. When you change the SmartMode name or symbol for the layout, the new name or symbol appears on all displays in the station.

Open a page to customize.

Select Menu.

Select Edit Layout or Edit Combo.

Select an option:

• To change the name, select Name or Name &

Symbol > Name, enter a new name, and select Done.

• To change the SmartMode symbol, select Name & Symbol > Symbol, and select a new symbol.

• To change the function of a portion of the screen, select the area to change, and select a function from the list on the right.

• To change the number of functions shown and the layout of the screen, select Layout, and select an option.

• To change how data appears on the page and additional data bars, select Overlays, and select an option.

• To change the type of data shown, select Overlays, select a data field, and select the new data type from the list on the right.

Customizing the Data Overlays

You can customize the data shown on a screen.

Select an option based on the type of screen you are viewing:

• From a full screen view, select Menu > Edit Overlays.

• From a combination screen, select Menu > Edit Combo > Overlays.

• From a SmartMode screen, select Menu > Edit

Layout > Overlays.

TIP: To quickly change the data shown in an overlay

box, hold the overlay box.

Select an item to customize the data and data bar:

• To change the data shown in an overlay box, select the overlay box, select the new data to show, and select Back.

• To select the location and layout of the data overlay bar, select Data, and select an option.

• To customize the information shown when navigating, select Navigation, and select an option.

• To turn on other data bars, like the media controls, select Top Bar or Bottom Bar, and select the necessary options.

Select Done.

Accessing Owner's Manuals on the Chartplotter

Select Info > Owner's Manual.

2 Quick Start Manual

Select a manual.

Select Open

Downloading the Manuals

You can get the latest owner's manual and translations of manuals from the web.

Download the manual.

Basic Operation

Marking Your Present Location as a Waypoint

From any screen, select Mark.

Creating a Waypoint on the Sonar Screen

From a sonar view, select

Select a location.

Select New Wpt or .

If necessary, edit the waypoint information.

Creating a Waypoint on the Chart

From a chart or a 3D chart view, select a location or object.

Select Create Waypoint or .

Marking an MOB or SOS Location

From any screen, select SOS.

Follow the on-screen instructions.

Navigating to a Point on the Chart

From the Navigation chart or Fishing chart, select a location.

If necessary, select Navigate To.

Select an option:

• To navigate directly to the location, select Go To or

• To create a route to the location, including turns,

select Route To

• To use Auto Guidance, select Auto Guidance

NOTE: Auto Guidance is available with premium charts, in some areas.

Review the course indicated by the magenta line. NOTE: When using Auto Guidance, a gray segment

within any part of the magenta line indicates that Auto Guidance cannot calculate part of the Auto Guidance line. This is due to the settings for minimum safe water depth and minimum safe obstacle height.

Follow the magenta line, steering to avoid land, shallow water, and other obstacles.

Copying Waypoints, Routes, and Tracks to a Memory Card

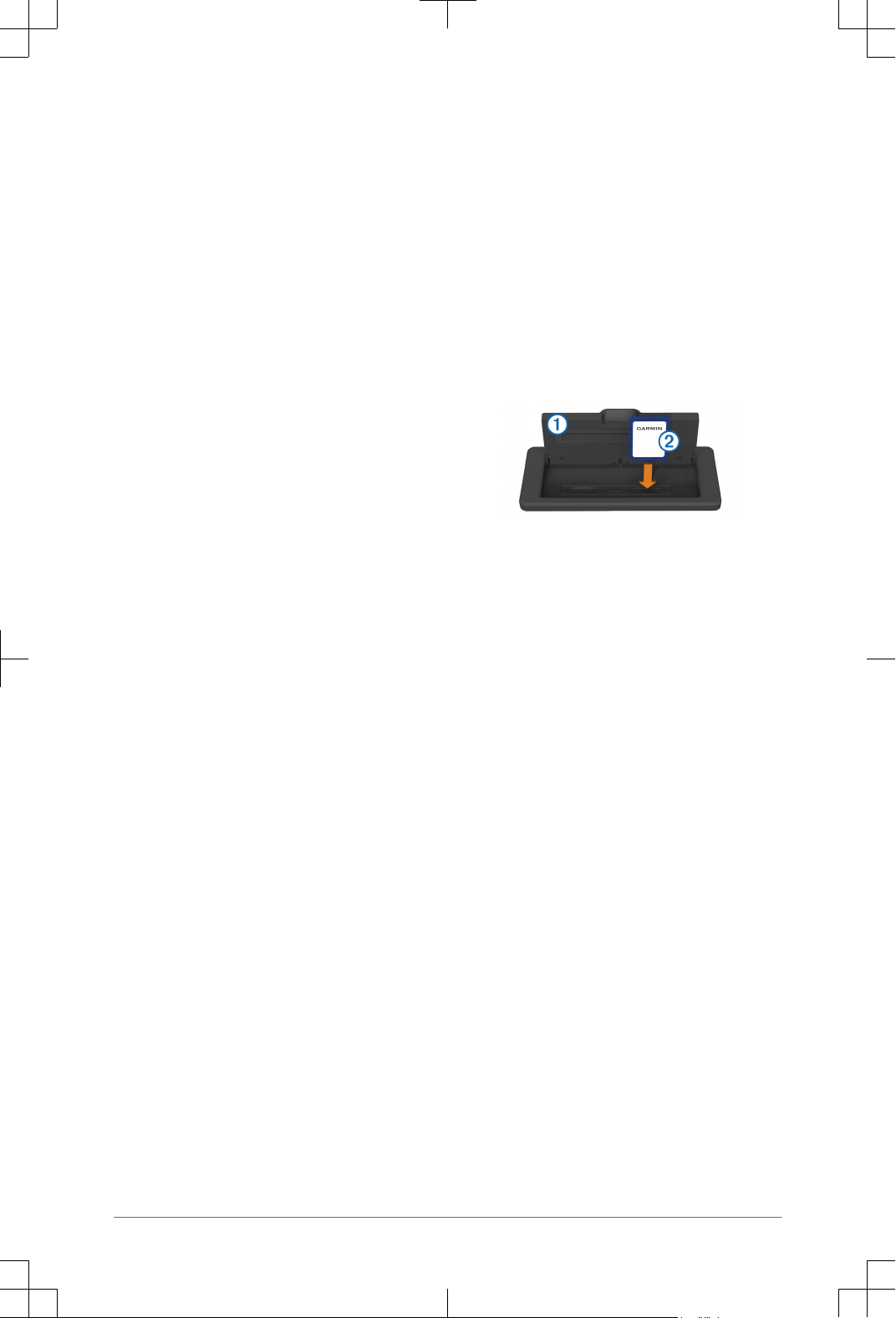

Insert a memory card into the card slot.

Select Info > User Data > Data Transfer > Save to Card.

If necessary, select the memory card to copy data to.

Select an option:

•

To create a new file, select Add New File, and enter a name.

• To add the information to an existing file, select the file from the list.

Showing Tracks

From a chart or a 3D chart view, select Menu

> Chart

Menu > Waypoints and Tracks > Tracks > On. A trailing line on the chart indicates your track.

Configuring the Recording Interval of the Track Log

You can indicate the frequency at which the track plot is recorded. Recording more frequent plots is more accurate but fills the track log faster. The resolution interval is recommended for the most efficient use of memory.

Select Info > User Data > Tracks > Active Track Options > Interval > Interval.

Select an option:

• To record the track based on a distance between points, select Distance > Change, and enter the distance.

• To record the track based on a time interval, select Time > Change, and enter the time interval.

• To record the track plot based on a variance from your course, select Resolution > Change, and enter the maximum error allowed from the true course before recording a track point.

Selecting a Map

If your product has both BlueChart® g2 and Garmin LakeVü™ HD built-in maps, you can select which map to use. Not all models have both types of built-in maps.

From the Navigation chart, select Menu > Built-In Map.

Select an option:

• When you are on an inland lake, select LakeVü™ HD.

• When you are offshore, select BlueChart® g2.

Troubleshooting

My device is not creating waypoints in the correct location

You can manually enter a waypoint location to transfer and share data from one device to the next. If you have manually entered a waypoint using coordinates, and the location of the point does not appear where the point should be, the map datum and position format of the device may not match the map datum and position format originally used to mark the waypoint.

Quick Start Manual 3

Go to www.garmin.com/manuals/A02759.

quickly open this web page, scan this code:

TIP: To

Position format is the way in which the A02759 receiver's position appears on the screen. Commonly displayed as latitude/longitude in degrees and minutes, with options for degrees, minutes and second, degrees only, or one of several grid formats.
